实验4：抽象工厂模式

本次实验属于模仿型实验，通过本次实验学生将掌握以下内容：

1、理解抽象工厂模式的动机，掌握该模式的结构；

2、能够利用抽象工厂模式解决实际问题。

[实验任务一]：人与肤色

使用抽象工厂模式，完成下述产品等级结构：

实验要求：

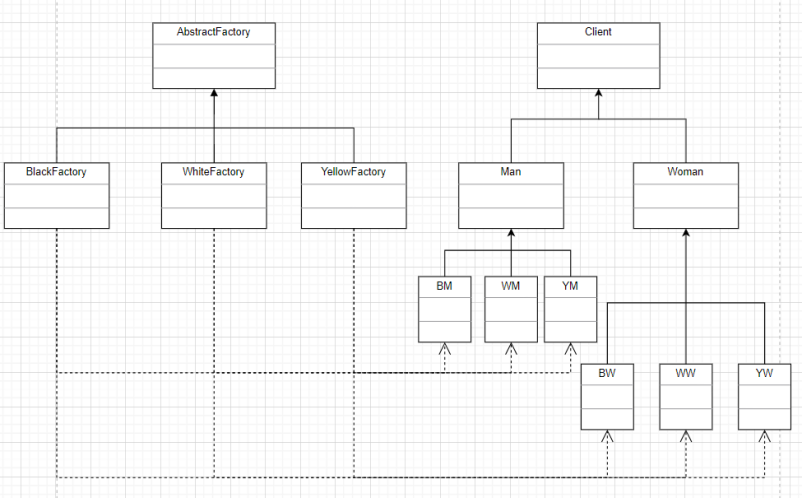

1.画出对应的类图；

2.提交源代码；

3.注意编程规范。

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

package test4;

public class BlackFactory implements MWFactory
{
    public Man produceMan()
    {
        return new BlackSkinMan();
    }

    public Woman produceWomen()
    {
        return new BlackSkinWomen();
    }
}


package test4;

public class BlackSkinMan implements Man
{
    public void play()
    {
        System.out.println("我是黑种男人!");
    }
}


package test4;

public class BlackSkinWomen implements Woman
{
    public void play()
    {
        System.out.println("我是黑种女人!");
    }
}


package test4;

public class Client
{
    public static void main(String args[])
    {
        try
        {
            MWFactory factory;
            Man m;
            Woman w;
            factory=(MWFactory)XMLUtil.getBean();
            m=factory.produceMan();
            m.play();
            w=factory.produceWomen();
            w.play();
        }
        catch(Exception e)
        {
            System.out.println(e.getMessage());
        }
    }
}


package test4;

public interface Man
{
    public void play();
}


package test4;

public interface MWFactory
{
    public Man produceMan();
    public Woman produceWomen();
}


package test4;

public class WhiteFactory implements MWFactory
{
    public Man produceMan()
    {
        return new WhiteSkinMan();
    }

    public Woman produceWomen()
    {
        return new WhiteSkinWomen();
    }
}


package test4;

public class WhiteSkinMan implements Man{
    public void play()
    {
        System.out.println("我是白种男人!");
    }
}


package test4;

public class WhiteSkinWomen implements Woman{
    public void play()
    {
        System.out.println("我是白种女人!");
    }
}


package test4;

public interface Woman
{
    public void play();
}


package test4;

import javax.xml.parsers.*;
import org.w3c.dom.*;
import org.xml.sax.SAXException;
import java.io.*;
public class XMLUtil
{
    //该方法用于从XML配置文件中提取具体类类名，并返回一个实例对象
    public static Object getBean()
    {
        try
        {
            //创建文档对象
            DocumentBuilderFactory dFactory = DocumentBuilderFactory.newInstance();
            DocumentBuilder builder = dFactory.newDocumentBuilder();
            Document doc;
            doc = builder.parse(new File("Cainiao.iml"));

            //获取包含类名的文本节点
            NodeList nl = doc.getElementsByTagName("className");
            Node classNode=nl.item(0).getFirstChild();
            String cName=classNode.getNodeValue();

            //通过类名生成实例对象并将其返回
            Class c=Class.forName(cName);
            Object obj=c.newInstance();
            return obj;
        }
        catch(Exception e)
        {
            e.printStackTrace();
            return null;
        }
    }
}


package test4;

public class YellowFactory {

        public Man produceMan()
        {
            return new YellowSkinMan();
        }

        public Woman produceWomen()
        {
            return new YellowSkinWomen();
        }
    }


package test4;

public class YellowSkinMan implements Man{
    public void play()
    {
        System.out.println("我是黄种男人!");
    }
}


package test4;

public class YellowSkinWomen implements Woman{
    public void play()
    {
        System.out.println("我是黄种女人!");
    }
}
