10.31每日总结

实验5：建造者模式

本次实验属于模仿型实验，通过本次实验学生将掌握以下内容：

1、理解建造者模式的动机，掌握该模式的结构；

2、能够利用建造者模式解决实际问题。

[实验任务一]：计算机组装

使用建造者模式，完成下述任务：计算机组装工厂可以将CPU、内存、硬盘、主机等硬件设备组装在一起构成计算机，计算机的类型可以是笔记本，也可以是台式机。

实验要求：

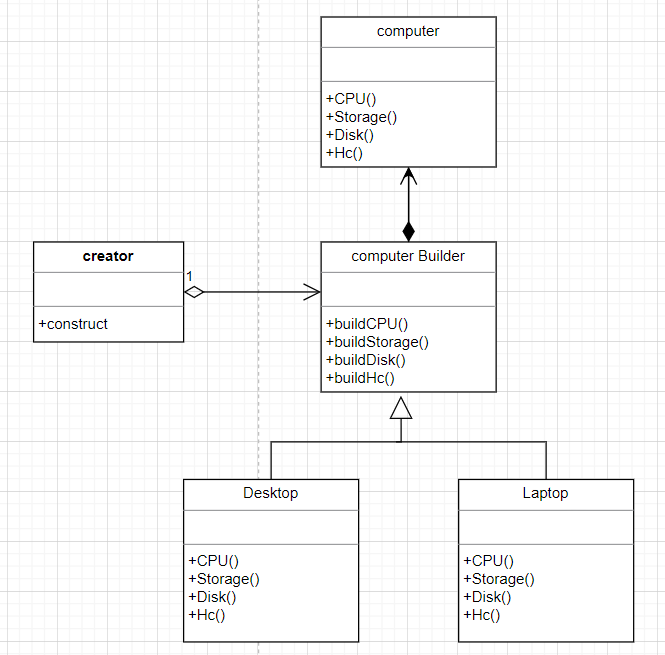

1.画出对应的类图；

2.提交源代码；

3.注意编程规范。

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

public abstract class Builder {
    Computer computer = new Computer();
    abstract public void buildHc();
    abstract public void buildDisk();
    abstract public void buildCpu();
    abstract public void buildStorage();
    public Compture getCompture(){
        return compture;
    }
}

public class Compture {
    private String cpu;
    private String Storage;
    private String Disk;
    private String Hci;


    public String Disk() {
        return Disk;
    }

    public void setDisk(String Disk) {
        this.Disk = Disk;
    }

    public String getStorage() {
        return Storage;
    }

    public void setStorage(String Storage) {
        this.Storage = Storage;
    }

    public String getHc() {
        Return Hc;
    }

    public void setHc(String Hc) {
        this.Hc = Hc;
    }

    public String getCpu() {
        return cpu;
    }

    public void setCpu(String cpu) {
        this.cpu = cpu;
    }
}


public class Factory {
    private Builder comptureKind;

    public void setCompture(Builder kind) {
        this.comptureKind = kind;
    }
    public Compture construct(){
        comptureKind.buildCpu();
        comptureKind.buildHc();
        comptureKind.buildDisk();
        comptureKind.buildStorage();
        return comptureKind.getCompture();
    }
}


public class LapBuilder extends Builder{
    @Override
    public void buildHc() {
        compture.setHc("LHc");
    }

    @Override
    public void buildDisk() {
        compture.setDisk("LDisk");
    }

    @Override
    public void buildCpu() {
        compture.setCpu("LC");
    }

    @Override
    public void buildStorage() {
        compture.setStorage("LS");
    }
}


public class Store {
    public static void main(String[] args) {
        Builder lap;
        Factory factory=new Factory();
        for (int i = 0; i < 2; i++) {
            if(i==1)
                lap = new LapBuilder();
            else
                lap=new Desktop();
            factory.setCompture(lap);
            factory.construct();
            System.out.println(lap.getCompture().getCpu());
            System.out.println(lap.getCompture().getStorage());
            System.out.println(lap.getCompture().getDisk());
            System.out.println(lap.getCompture().getHc());
        }

    }
}


public class Desktop extends Builder{

    @Override
    public void buildHc() {
        compture.setHc("THc");
    }

    @Override
    public void buildDisk() {
        compture.setDisk("TDisk");
    }

    @Override
    public void buildCpu() {
        compture.setCpu("TC");
    }

    @Override
    public void buildStorage() {
        compture.setStorage("TS");
    }
}
