强网拟态国际精英防御赛 复盘 baby_re 异常 + 魔改AES

md，这道题不难的，就是被放出来的比较完，没细看

一、分析程序

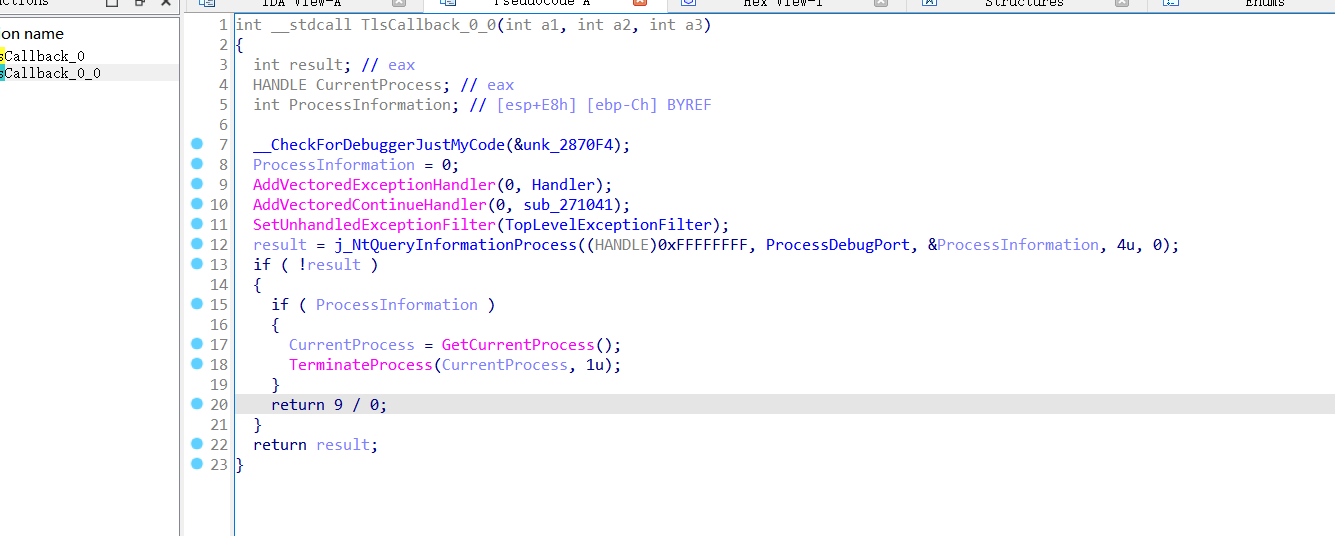

首先发现该程序存在tls回调函数

0
可以看到，程序设置的VEH异常和顶层接管异常，后面的除0操作用于触发异常
其中VEH异常修改了s_box盒

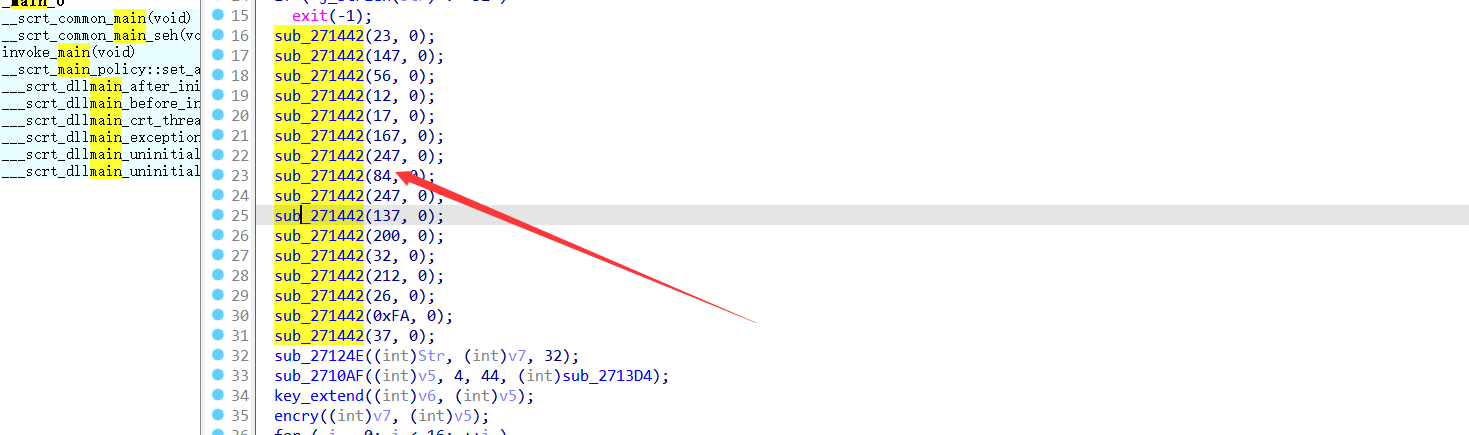

观察main函数逻辑，由于该程序是c++编写的，逻辑有点奇怪，但不影响分析，中间这一串即为密钥

0
根据特征可发现这是一个AES加密，其有三处魔改点

1、s_box盒

这在tls回调函数中已经体现了

2、addRoundKey 轮密钥加

黑盒测试可以发现，作者对论密钥加的结果进行了转置

3、storeStateArray

在第一轮加密结束后，原AES加密会对得到的密文进行转置，而该程序没有此操作
这里有个坑，我们不能去修改storeStateArray 函数，而是需要手动把密文转置！！！


二、程序流程

密文被分开成两部分，第一部分密文进行AES加密操作的key值题目已经给出，第二部分密文进行AES加密的key值是第一部分加密后的密文异或第一部分的key的结果
最后两组密文连接起来和题目中的cip相比较

三、exp

#include <stdint.h>
#include <stdio.h>
#include <string.h>

typedef struct {
    uint32_t eK[44], dK[44];    // encKey, decKey
    int Nr; // 10 rounds
}AesKey;

#define BLOCKSIZE 16  //AES-128分组长度为16字节

// uint8_t y[4] -> uint32_t x
#define LOAD32H(x, y) \
  do { (x) = ((uint32_t)((y)[0] & 0xff)<<24) | ((uint32_t)((y)[1] & 0xff)<<16) | \
             ((uint32_t)((y)[2] & 0xff)<<8)  | ((uint32_t)((y)[3] & 0xff));} while(0)

// uint32_t x -> uint8_t y[4]
#define STORE32H(x, y) \
  do { (y)[0] = (uint8_t)(((x)>>24) & 0xff); (y)[1] = (uint8_t)(((x)>>16) & 0xff);   \
       (y)[2] = (uint8_t)(((x)>>8) & 0xff); (y)[3] = (uint8_t)((x) & 0xff); } while(0)

// 从uint32_t x中提取从低位开始的第n个字节
#define BYTE(x, n) (((x) >> (8 * (n))) & 0xff)

/* used for keyExpansion */
// 字节替换然后循环左移1位
#define MIX(x) (((S[BYTE(x, 2)] << 24) & 0xff000000) ^ ((S[BYTE(x, 1)] << 16) & 0xff0000) ^ \
                ((S[BYTE(x, 0)] << 8) & 0xff00) ^ (S[BYTE(x, 3)] & 0xff))

// uint32_t x循环左移n位
#define ROF32(x, n)  (((x) << (n)) | ((x) >> (32-(n))))
// uint32_t x循环右移n位
#define ROR32(x, n)  (((x) >> (n)) | ((x) << (32-(n))))

/* for 128-bit blocks, Rijndael never uses more than 10 rcon values */
// AES-128轮常量
static const uint32_t rcon[10] = {
        0x01000000UL, 0x02000000UL, 0x04000000UL, 0x08000000UL, 0x10000000UL,
        0x20000000UL, 0x40000000UL, 0x80000000UL, 0x1B000000UL, 0x36000000UL
};
// S盒
unsigned char S[256] = {
            0x00000077, 0x00000068, 0x00000063, 0x0000006F, 0x000000E6, 0x0000007F, 0x0000007B, 0x000000D1,
    0x00000024, 0x00000015, 0x00000073, 0x0000003F, 0x000000EA, 0x000000C3, 0x000000BF, 0x00000062,
    0x000000DE, 0x00000096, 0x000000DD, 0x00000069, 0x000000EE, 0x0000004D, 0x00000053, 0x000000E4,
    0x000000B9, 0x000000C0, 0x000000B6, 0x000000BB, 0x00000088, 0x000000B0, 0x00000066, 0x000000D4,
    0x000000A3, 0x000000E9, 0x00000087, 0x00000032, 0x00000022, 0x0000002B, 0x000000E3, 0x000000D8,
    0x00000020, 0x000000B1, 0x000000F1, 0x000000E5, 0x00000065, 0x000000CC, 0x00000025, 0x00000001,
    0x00000010, 0x000000D3, 0x00000037, 0x000000D7, 0x0000000C, 0x00000082, 0x00000011, 0x0000008E,
    0x00000013, 0x00000006, 0x00000094, 0x000000F6, 0x000000FF, 0x00000033, 0x000000A6, 0x00000061,
    0x0000001D, 0x00000097, 0x00000038, 0x0000000E, 0x0000000F, 0x0000007A, 0x0000004E, 0x000000B4,
    0x00000046, 0x0000002F, 0x000000C2, 0x000000A7, 0x0000003D, 0x000000F7, 0x0000003B, 0x00000090,
    0x00000047, 0x000000C5, 0x00000014, 0x000000F9, 0x00000034, 0x000000E8, 0x000000A5, 0x0000004F,
    0x0000007E, 0x000000DF, 0x000000AA, 0x0000002D, 0x0000005E, 0x00000058, 0x0000004C, 0x000000DB,
    0x000000C4, 0x000000FB, 0x000000BE, 0x000000EF, 0x00000057, 0x00000059, 0x00000027, 0x00000091,
    0x00000051, 0x000000ED, 0x00000016, 0x0000006B, 0x00000044, 0x00000028, 0x0000008B, 0x000000BC,
    0x00000045, 0x000000B7, 0x00000054, 0x0000009B, 0x00000086, 0x00000089, 0x0000002C, 0x000000E1,
    0x000000A8, 0x000000A2, 0x000000CE, 0x00000035, 0x00000004, 0x000000EB, 0x000000E7, 0x000000C6,
    0x000000D9, 0x00000018, 0x00000007, 0x000000F8, 0x0000004B, 0x00000083, 0x00000050, 0x00000003,
    0x000000D0, 0x000000B3, 0x0000006A, 0x00000029, 0x00000070, 0x00000049, 0x0000000D, 0x00000067,
    0x00000074, 0x00000095, 0x0000005B, 0x000000C8, 0x00000036, 0x0000003E, 0x00000084, 0x0000009C,
    0x00000052, 0x000000FA, 0x000000AC, 0x00000000, 0x000000CA, 0x0000004A, 0x0000001F, 0x000000CF,
    0x000000F4, 0x00000026, 0x0000002E, 0x0000001E, 0x0000005D, 0x00000012, 0x00000030, 0x00000048,
    0x000000D6, 0x000000C7, 0x000000B8, 0x00000076, 0x00000085, 0x00000081, 0x000000F0, 0x0000006D,
    0x000000F3, 0x000000DC, 0x00000023, 0x00000079, 0x00000099, 0x000000C1, 0x0000005A, 0x000000BD,
    0x00000078, 0x00000042, 0x000000E0, 0x000000FE, 0x00000071, 0x0000006E, 0x000000BA, 0x0000001C,
    0x000000AE, 0x0000006C, 0x00000031, 0x0000003A, 0x00000008, 0x000000B2, 0x000000A0, 0x000000D2,
    0x000000FC, 0x000000C9, 0x00000060, 0x0000000B, 0x0000005F, 0x000000A9, 0x0000009F, 0x0000009E,
    0x00000064, 0x0000002A, 0x000000A1, 0x00000072, 0x0000005C, 0x00000017, 0x000000E2, 0x0000001A,
    0x00000075, 0x00000021, 0x00000043, 0x000000AD, 0x00000092, 0x000000D5, 0x00000009, 0x0000008A,
    0x000000F5, 0x000000EC, 0x0000008C, 0x00000005, 0x0000007D, 0x000000CD, 0x0000009A, 0x00000080,
    0x0000008F, 0x0000000A, 0x00000093, 0x000000FD, 0x000000DA, 0x00000041, 0x0000003C, 0x000000CB,
    0x00000098, 0x000000B5, 0x0000009D, 0x00000019, 0x000000AB, 0x000000F2, 0x00000056, 0x0000007C,
    0x00000055, 0x0000008D, 0x00000039, 0x0000001B, 0x000000A4, 0x00000040, 0x000000AF, 0x00000002
};

//逆S盒
unsigned char inv_S[256] = {
        0x9B, 0x2F, 0xFF, 0x87, 0x7C, 0xE3, 0x39, 0x82, 0xC4, 0xDE, 0xE9, 0xCB, 0x34, 0x8E, 0x43, 0x44,
0x30, 0x36, 0xA5, 0x38, 0x52, 0x09, 0x6A, 0xD5, 0x81, 0xF3, 0xD7, 0xFB, 0xBF, 0x40, 0xA3, 0x9E,
0x28, 0xD9, 0x24, 0xB2, 0x08, 0x2E, 0xA1, 0x66, 0x6D, 0x8B, 0xD1, 0x25, 0x76, 0x5B, 0xA2, 0x49,
0xA6, 0xC2, 0x23, 0x3D, 0x54, 0x7B, 0x94, 0x32, 0x42, 0xFA, 0xC3, 0x4E, 0xEE, 0x4C, 0x95, 0x0B,
0xFD, 0xED, 0xB9, 0xDA, 0x6C, 0x70, 0x48, 0x50, 0xA7, 0x8D, 0x9D, 0x84, 0x5E, 0x15, 0x46, 0x57,
0x86, 0x68, 0x98, 0x16, 0x72, 0xF8, 0xF6, 0x64, 0x5D, 0x65, 0xB6, 0x92, 0xD4, 0xA4, 0x5C, 0xCC,
0xCA, 0x3F, 0x0F, 0x02, 0xD0, 0x2C, 0x1E, 0x8F, 0x01, 0x13, 0x8A, 0x6B, 0xC1, 0xAF, 0xBD, 0x03,
0x8C, 0xBC, 0xD3, 0x0A, 0x90, 0xD8, 0xAB, 0x00, 0xB8, 0xB3, 0x45, 0x06, 0xF7, 0xE4, 0x58, 0x05,
0xE7, 0xAD, 0x35, 0x85, 0x96, 0xAC, 0x74, 0x22, 0x1C, 0x75, 0xDF, 0x6E, 0xE2, 0xF9, 0x37, 0xE8,
0x4F, 0x67, 0xDC, 0xEA, 0x3A, 0x91, 0x11, 0x41, 0xF0, 0xB4, 0xE6, 0x73, 0x97, 0xF2, 0xCF, 0xCE,
0xC6, 0xD2, 0x79, 0x20, 0xFC, 0x56, 0x3E, 0x4B, 0x78, 0xCD, 0x5A, 0xF4, 0x9A, 0xDB, 0xC0, 0xFE,
0x1D, 0x29, 0xC5, 0x89, 0x47, 0xF1, 0x1A, 0x71, 0xAA, 0x18, 0xBE, 0x1B, 0x6F, 0xB7, 0x62, 0x0E,
0x19, 0xB5, 0x4A, 0x0D, 0x60, 0x51, 0x7F, 0xA9, 0x93, 0xC9, 0x9C, 0xEF, 0x2D, 0xE5, 0x7A, 0x9F,
0x88, 0x07, 0xC7, 0x31, 0x1F, 0xDD, 0xA8, 0x33, 0x27, 0x80, 0xEC, 0x5F, 0xB1, 0x12, 0x10, 0x59,
0xBA, 0x77, 0xD6, 0x26, 0x17, 0x2B, 0x04, 0x7E, 0x55, 0x21, 0x0C, 0x7D, 0xE1, 0x69, 0x14, 0x63,
0xAE, 0x2A, 0xF5, 0xB0, 0xA0, 0xE0, 0x3B, 0x4D, 0x83, 0x53, 0x99, 0x61, 0xC8, 0xEB, 0xBB, 0x3C
};

/* copy in[16] to state[4][4] */
int loadStateArray(uint8_t(*state)[4], const uint8_t* in) {
    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            state[j][i] = *in++;
        }
    }
    return 0;
}

/* copy state[4][4] to out[16] */
int storeStateArray(uint8_t(*state)[4], uint8_t* out) {
    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            *out++ = state[i][j];
        }
    }
    return 0;
}
//秘钥扩展
int keyExpansion(const uint8_t* key, uint32_t keyLen, AesKey* aesKey) {



    if (NULL == key || NULL == aesKey) {
        printf("keyExpansion param is NULL\n");
        return -1;
    }

    if (keyLen != 16) {
        printf("keyExpansion keyLen = %d, Not support.\n", keyLen);
        return -1;
    }

    uint32_t* w = aesKey->eK;  //加密秘钥
    uint32_t* v = aesKey->dK;  //解密秘钥

    /* keyLen is 16 Bytes, generate uint32_t W[44]. */

    /* W[0-3] */
    for (int i = 0; i < 4; ++i) {
        LOAD32H(w[i], key + 4 * i);
    }

    /* W[4-43] */
    for (int i = 0; i < 10; ++i) {
        w[4] = w[0] ^ MIX(w[3]) ^ rcon[i];
        w[5] = w[1] ^ w[4];
        w[6] = w[2] ^ w[5];
        w[7] = w[3] ^ w[6];
        w += 4;
    }

//     uint32_t* ww = aesKey->eK;
//    for(int i = 0;i<=43;i++){
//        if (i % 15 == 0){
//            printf("\n");
//        }
//        printf("0x%x ",ww[i] );
//    }

    w = aesKey->eK + 44 - 4;
    //解密秘钥矩阵为加密秘钥矩阵的倒序，方便使用，把ek的11个矩阵倒序排列分配给dk作为解密秘钥
    //即dk[0-3]=ek[41-44], dk[4-7]=ek[37-40]... dk[41-44]=ek[0-3]
    for (int j = 0; j < 11; ++j) {

        for (int i = 0; i < 4; ++i) {
            v[i] = w[i];
        }
        w -= 4;
        v += 4;
    }


    return 0;
}

// 轮秘钥加
int addRoundKey(uint8_t(*state)[4], const uint32_t* key) {
    uint8_t k[4][4];

    /* i: row, j: col */
    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            k[i][j] = (uint8_t)BYTE(key[j], 3 - i);  /* 把 uint32 key[4] 先转换为矩阵 uint8 k[4][4] */
            state[i][j] ^= k[i][j];
        }
    }


    return 0;
}

//字节替换
int subBytes(uint8_t(*state)[4]) {
    /* i: row, j: col */
    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            state[i][j] = S[state[i][j]]; //直接使用原始字节作为S盒数据下标
        }
    }

    return 0;
}

//逆字节替换
int invSubBytes(uint8_t(*state)[4]) {
    /* i: row, j: col */
    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            state[i][j] = inv_S[state[i][j]];
        }
    }
    return 0;
}

//行移位
int shiftRows(uint8_t(*state)[4]) {
    uint32_t block[4] = { 0 };

    /* i: row */
    for (int i = 0; i < 4; ++i) {
        //便于行循环移位，先把一行4字节拼成uint_32结构，移位后再转成独立的4个字节uint8_t
        LOAD32H(block[i], state[i]);
        block[i] = ROF32(block[i], 8 * i);
        STORE32H(block[i], state[i]);
    }

    return 0;
}

//逆行移位
int invShiftRows(uint8_t(*state)[4]) {
    uint32_t block[4] = { 0 };

    /* i: row */
    for (int i = 0; i < 4; ++i) {
        LOAD32H(block[i], state[i]);
        block[i] = ROR32(block[i], 8 * i);
        STORE32H(block[i], state[i]);
    }

    return 0;
}

/* Galois Field (256) Multiplication of two Bytes */
// 两字节的伽罗华域乘法运算
uint8_t GMul(uint8_t u, uint8_t v) {
    uint8_t p = 0;

    for (int i = 0; i < 8; ++i) {
        if (u & 0x01) {    //
            p ^= v;
        }

        int flag = (v & 0x80);
        v <<= 1;
        if (flag) {
            v ^= 0x1B; /* x^8 + x^4 + x^3 + x + 1 */
        }

        u >>= 1;
    }

    return p;
}

// 列混合
int mixColumns(uint8_t(*state)[4]) {
    uint8_t tmp[4][4];
    uint8_t M[4][4] = { {0x02, 0x03, 0x01, 0x01},
                       {0x01, 0x02, 0x03, 0x01},
                       {0x01, 0x01, 0x02, 0x03},
                       {0x03, 0x01, 0x01, 0x02} };

    /* copy state[4][4] to tmp[4][4] */
    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            tmp[i][j] = state[i][j];
        }
    }

    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {  //伽罗华域加法和乘法

//            printf("0x%x = 0x%x ^ 0x%x ^ 0x%x ^ 0x%x\n",state[j][0],GMul(M[i][0], tmp[0][j]), GMul(M[i][1], tmp[1][j]),GMul(M[i][2], tmp[2][j]),GMul(M[i][3], tmp[3][j]));
//            getchar();


            state[i][j] = GMul(M[i][0], tmp[0][j]) ^ GMul(M[i][1], tmp[1][j])
                ^ GMul(M[i][2], tmp[2][j]) ^ GMul(M[i][3], tmp[3][j]);

        //魔改:
//                            state[j][i] = GMul(M[i][0], tmp[0][j]) ^ GMul(M[i][1], tmp[1][j])
//                ^ GMul(M[i][2], tmp[2][j]) ^ GMul(M[i][3], tmp[3][j]);

        }
    }

    return 0;
}

// 逆列混合
int invMixColumns(uint8_t(*state)[4]) {
    uint8_t tmp[4][4];
    uint8_t M[4][4] = { {0x0E, 0x0B, 0x0D, 0x09},
                       {0x09, 0x0E, 0x0B, 0x0D},
                       {0x0D, 0x09, 0x0E, 0x0B},
                       {0x0B, 0x0D, 0x09, 0x0E} };  //使用列混合矩阵的逆矩阵

    /* copy state[4][4] to tmp[4][4] */
    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            tmp[i][j] = state[i][j];
        }
    }

    for (int i = 0; i < 4; ++i) {
        for (int j = 0; j < 4; ++j) {
            state[i][j] = GMul(M[i][0], tmp[0][j]) ^ GMul(M[i][1], tmp[1][j])
                ^ GMul(M[i][2], tmp[2][j]) ^ GMul(M[i][3], tmp[3][j]);
        }
    }

    return 0;
}

// AES-128加密接口，输入key应为16字节长度，输入长度应该是16字节整倍数，
// 这样输出长度与输入长度相同，函数调用外部为输出数据分配内存
int aesEncrypt(const uint8_t* key, uint32_t keyLen, const uint8_t* pt, uint8_t* ct, uint32_t len) {

    AesKey aesKey;
    uint8_t* pos = ct;
    const uint32_t* rk = aesKey.eK;  //解密秘钥指针
    uint8_t out[BLOCKSIZE] = { 0 };
    uint8_t actualKey[16] = { 0 };
    uint8_t state[4][4] = { 0 };

    if (NULL == key || NULL == pt || NULL == ct) {
        printf("param err.\n");
        return -1;
    }

    if (keyLen > 16) {
        printf("keyLen must be 16.\n");
        return -1;
    }

    if (len % BLOCKSIZE) {
        printf("inLen is invalid.\n");
        return -1;
    }

    memcpy(actualKey, key, keyLen);
    keyExpansion(actualKey, 16, &aesKey);  // 秘钥扩展

    // 使用ECB模式循环加密多个分组长度的数据
    for (int i = 0; i < len; i += BLOCKSIZE) {
        // 把16字节的明文转换为4x4状态矩阵来进行处理
        loadStateArray(state, pt);

//        for(int i = 0;i<=3;i++){
//            for(int j = 0;j<=3;j++){
//                printf("%x ",state[i][j]);
//            }
//            printf("\n");
//        }

//        unsigned char t[4][4] = { {0x30,0x31,0x32,0x33},{0x34,0x35,0x36,0x37},{0x38,0x39,0x3a,0x3b},{0x3c,0x3d,0x3e,0x3f} };
        unsigned char t[4][4] = {0};
        memcpy(t,state,16);

        for(int i = 0;i<=3;i++){
            for(int j = 0;j<=3;j++){
                state[i][j] = t[j][i];
            }
        }

        // 轮秘钥加
        addRoundKey(state, rk);

//        printf("轮秘钥加 => \n");
//        for(int i = 0;i<=3;i++){
//            for(int j = 0;j<=3;j++){
//                printf("%x ",state[i][j]);
//            }
//            printf("\n");
//        }
//        getchar();

        for (int j = 1; j < 10; ++j) {
            rk += 4;

            subBytes(state);   // 字节替换
//            printf("字节替换1 => \n");
//            for(int i = 0;i<=3;i++){
//                for(int j = 0;j<=3;j++){
//                    printf("%x ",state[i][j]);
//                }
//                printf("\n");
//            }
//            printf("\n");
//            getchar();

            shiftRows(state);  // 行移位

//            printf("行移位2 => \n");
//            for(int i = 0;i<=3;i++){
//                for(int j = 0;j<=3;j++){
//                    printf("%x ",state[i][j]);
//                }
//                printf("\n");
//            }
//            printf("\n");
//            getchar();

            mixColumns(state); // 列混合

//            printf("列混合3 => \n");
//            for(int i = 0;i<=3;i++){
//                for(int j = 0;j<=3;j++){
//                    printf("%x ",state[i][j]);
//                }
//                printf("\n");
//            }
//            printf("\n");
//            getchar();

            addRoundKey(state, rk); // 轮秘钥加
//            printf("轮秘钥加4 => \n");
//            for(int i = 0;i<=3;i++){
//                for(int j = 0;j<=3;j++){
//                    printf("%x ",state[i][j]);
//                }
//                printf("\n");
//            }
//            printf("\n");
//            getchar();

        }

        subBytes(state);    // 字节替换

//         printf("字节替换1 => \n");
//            for(int i = 0;i<=3;i++){
//                for(int j = 0;j<=3;j++){
//                    printf("%x ",state[i][j]);
//                }
//                printf("\n");
//            }
//            printf("\n");
//            getchar();


        shiftRows(state);  // 行移位
        // 此处不进行列混合
        addRoundKey(state, rk + 4); // 轮秘钥加

//            printf("轮秘钥加4 => \n");
//            for(int i = 0;i<=3;i++){
//                for(int j = 0;j<=3;j++){
//                    printf("%x ",state[i][j]);
//                }
//                printf("\n");
//            }
//            printf("\n");
//            getchar();


        // 把4x4状态矩阵转换为uint8_t一维数组输出保存
        storeStateArray(state, pos);
//        printf("storeStateArray 转换二维矩阵为一维矩阵同时行列变换\n");
//        for(int i = 0;i<=15;i++){
//            printf("%x ",pos[i]);
//        }
//        printf("\n");
//        getchar();


        pos += BLOCKSIZE;  // 加密数据内存指针移动到下一个分组
        pt += BLOCKSIZE;   // 明文数据指针移动到下一个分组
        rk = aesKey.eK;    // 恢复rk指针到秘钥初始位置
    }
    return 0;
}

// AES128解密， 参数要求同加密
int aesDecrypt(const uint8_t* key, uint32_t keyLen, const uint8_t* ct, uint8_t* pt, uint32_t len) {
    AesKey aesKey;
    uint8_t* pos = pt;
    const uint32_t* rk = aesKey.dK;  //解密秘钥指针
    uint8_t out[BLOCKSIZE] = { 0 };
    uint8_t actualKey[16] = { 0 };
    uint8_t state[4][4] = { 0 };

    if (NULL == key || NULL == ct || NULL == pt) {
        printf("param err.\n");
        return -1;
    }

    if (keyLen > 16) {
        printf("keyLen must be 16.\n");
        return -1;
    }

    if (len % BLOCKSIZE) {
        printf("inLen is invalid.\n");
        return -1;
    }

    memcpy(actualKey, key, keyLen);
    keyExpansion(actualKey, 16, &aesKey);  //秘钥扩展，同加密

    for (int i = 0; i < len; i += BLOCKSIZE) {
        // 把16字节的密文转换为4x4状态矩阵来进行处理
        loadStateArray(state, ct);
        // 轮秘钥加，同加密
        addRoundKey(state, rk);

        for (int j = 1; j < 10; ++j) {
            rk += 4;
            invShiftRows(state);    // 逆行移位
            invSubBytes(state);     // 逆字节替换，这两步顺序可以颠倒
            addRoundKey(state, rk); // 轮秘钥加，同加密
            invMixColumns(state);   // 逆列混合
        }

        invSubBytes(state);   // 逆字节替换
        invShiftRows(state);  // 逆行移位
        // 此处没有逆列混合
        addRoundKey(state, rk + 4);  // 轮秘钥加，同加密

        storeStateArray(state, pos);  // 保存明文数据
        pos += BLOCKSIZE;  // 输出数据内存指针移位分组长度
        ct += BLOCKSIZE;   // 输入数据内存指针移位分组长度
        rk = aesKey.dK;    // 恢复rk指针到秘钥初始位置
    }
    return 0;
}
void printHex(const uint8_t* ptr, int len, const char* tag) {
    printf("%s\ndata[%d]: ", tag, len);
    for (int i = 0; i < len; ++i) {
        printf("%.2X ", *ptr++);
    }
    printf("\n");
}

int main() {

    // case 1
    const uint8_t key[16] = { 0x17, 0x93, 0x38, 0xc, 0x11, 0xa7, 0xf7, 0x54, 0xf7, 0x89, 0xc8, 0x20, 0xd4, 0x1a, 0xfa, 0x25 };
    unsigned char cip[32] = {
    0x0000004E, 0x00000054, 0x000000D6, 0x00000026, 0x000000C7, 0x00000097, 0x00000097, 0x0000008B,
    0x00000006, 0x000000E5, 0x00000009, 0x0000009E, 0x000000BE, 0x00000057, 0x00000008, 0x0000004E,
    0x00000028, 0x0000002A, 0x0000008A, 0x0000007F, 0x00000088, 0x000000C9, 0x000000F7, 0x000000EB,
    0x000000E2, 0x000000BA, 0x000000F4, 0x0000005E, 0x000000E1, 0x00000040, 0x000000C0, 0x0000005A
};
    unsigned char cip1[] = {0x0000004e,0x000000c7,0x00000006,0x000000be,0x00000054,0x00000097,0x000000e5,0x00000057,0x000000d6,0x00000097,0x00000009,0x00000008,0x00000026,0x0000008b,0x0000009e,0x0000004e};
//    unsigned char cip1[] = {0xFA ,0x94, 0xCC, 0x40, 0x67, 0x0A, 0x80, 0x55, 0xC3, 0x1A, 0x92,0xBF, 0x1B, 0x54,0xD1, 0x29};
//    unsigned char cip1[] = {0xFA,0x67,0xC3,0x1B,0x94,0x0A,0x1A,0x54,0xCC,0x80,0x92,0xD1,0x40,0x55,0xBF,0x29};
    unsigned char cip2[] = {0x00000028,0x00000088,0x000000E2,0x000000E1,0x0000002A,0x000000C9,0x000000BA,0x00000040,0x0000008A,0x000000F7,0x000000F4,0x000000C0,0x0000007F,0x000000EB,0x0000005E,0x0000005A};

        uint8_t plain[16] = { 0 };  // 外部申请输出数据内存，用于解密后的数据
    aesDecrypt(key, 16, cip1, plain, 16);       // 解密

        uint8_t key2[16] = {0 };
        for(int i = 0;i<=15;i++){
            key2[i] = key[i] ^cip[i] ;
        }
        printHex(plain, 16, "after decryption:"); // 打印解密后的明文数据

        aesDecrypt((const unsigned char *)key2, 16, cip2, plain, 16);       // 解密
        printHex(plain, 16, "after decryption:"); // 打印解密后的明文数据


    return 0;
}
//代码链接：https://blog.csdn.net/gq1870554301/article/details/118737728




__EOF__

本文作者：_TLSN
本文链接：https://www.cnblogs.com/lordtianqiyi/articles/16890556.html
关于博主：评论和私信会在第一时间回复。或者直接私信我。
版权声明：本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
声援博主：如果您觉得文章对您有帮助，可以点击文章右下角【推荐】一下。您的鼓励是博主的最大动力！
posted @   TLSN  阅读(229)  评论(0)  编辑  收藏  举报
编辑推荐：
· AI与.NET技术实操系列：基于图像分类模型对图像进行分类
· go语言实现终端里的倒计时
· 如何编写易于单元测试的代码
· 10年+ .NET Coder 心语，封装的思维：从隐藏、稳定开始理解其本质意义
· .NET Core 中如何实现缓存的预热？
阅读排行：
· 分享一个免费、快速、无限量使用的满血 DeepSeek R1 模型，支持深度思考和联网搜索！
· 基于 Docker 搭建 FRP 内网穿透开源项目（很简单哒）
· 25岁的心里话
· ollama系列01：轻松3步本地部署deepseek，普通电脑可用
· 按钮权限的设计及实现
点击右上角即可分享
微信分享提示
AI IDE Trae
