[stm32]C++控制台下绘点画图
// hui: 摘自: http://www.cnblogs.com/pianoid/archive/2011/05/27/2060001.html
//[stm32]C++控制台下绘点画图
#include <windows.h>
#include <stdio.h>
#include <conio.h>
HWND hwnd;
HDC hdc;
void DrawInit(void)
{
//获取console的设备上下文句柄
hwnd = GetConsoleWindow();
hdc = GetDC(hwnd);
//调整一下console背景颜色,
// 0=黑色 1=蓝色 2=绿色 3=浅绿色 4=红色 5=紫色 6=黄色
// 7=白色 8=灰色 9=淡蓝色 A=淡绿色 B=淡浅绿色 C=淡红色
// D=淡紫色 E=淡黄色 F=亮白色
system("color 70");
}
void DrawPoint(int x0, int y0)
{
MoveToEx(hdc, x0, y0, NULL); //起点坐标
LineTo(hdc, x0+1, y0+1); // 连线至该坐标
}
void DrawLine(int x0, int y0, int x1, int y1)
{
MoveToEx(hdc, x0, y0, NULL); //起点坐标
LineTo(hdc, x1, y1); // 连线至该坐标
}
void BresenhamCircle(int x0, int y0, int R) // Bresenham 画圆法
{
int x=0;
int y=R;
int p=3-2*R;
for(;x<=y;x++)
{
DrawPoint(x0 + x, y0 + y);
if(p>=0)
{
p+=4*(x-y)+10;
y--;
}
else
{
p+=4*x+6;
}
}
}
void main(void)
{
DrawInit();
for (int i=0; i<50; i++)
{
DrawPoint(i+20, 120);
}
BresenhamCircle(50,50,100);
system("timeout /t 60");
}
C++控制台下绘点画图
很多颜色// hui 参考: https://blog.csdn.net/chenqiai0/article/details/8045123
注:要改变窗口起始位置,只能通过设置系统默认值,方法见附件。
// hui 控制台部分参考自: http://www.cnblogs.com/pianoid/archive/2011/05/27/2060001.html
// hui 画彩色线条参考自: https://blog.csdn.net/chenqiai0/article/details/8045123
#include <iostream>
#define _AFXDLL
#include <afx.h>
using namespace std;
HWND hwnd = GetConsoleWindow();
HDC hdc = GetDC(hwnd);//获取console的设备上下文句柄
void DrawBackground(void)
{
for (int y=20; y<20+480; y++)
{
for(int x=50; x<50+320; x++)
SetPixel(hdc, x, y, RGB(255,255,255));
}
}
void main(void)
{
system("mode con cols=80 lines=40");//改变宽高
while (1)
{
DrawBackground();
char a;cin>>a;
}
}
进阶代码:
lcd_driver.h
#pragma once
#define LCD_HEIGHT 800
#define LCD_WIDTH 480
void lcd_Init(void);
void DrawPoint24(int x, int y, COLORREF color);
void DrawPoint16(int x, int y, unsigned short color16);
lcd_driver.cpp
#include <iostream>
#define _AFXDLL
#include <afx.h>
#include "lcd_driver.h"
using namespace std;
HWND hwnd = GetConsoleWindow();
HDC hdc = GetDC(hwnd);//获取console的设备上下文句柄
const int x0 = 50;
const int y0 = 100;
void DrawPoint24(int x, int y, COLORREF color)
{
SetPixel(hdc, x0+x, y0+y, color);
}
void DrawPoint16(int x, int y, unsigned short color16)
{
unsigned char R = (color16 >> 11) * (double)0xFF / 0x1F ;
unsigned char G = (color16 >> 5 & 0x2F) * (double)0xFF / 0x2F ;
unsigned char B = (color16 & 0x1F) * (double)0xFF / 0x1F ;
DrawPoint24(x, y, RGB(R, G, B));
}
#define RGB24_WHITE RGB(255,255,255)
#define RGB24_RED 0x0000ff
#define RGB16_RED 0xF800
void DrawBackground(void)
{
int height = LCD_HEIGHT;
int width = LCD_WIDTH;
for (int y=0; y<height; y++)
{
int x = 0;
for(x=0; x<width/2; x++)
DrawPoint24(x, y, RGB24_RED);
for( ; x<width; x++)
DrawPoint16(x, y, RGB16_RED);
}
}
void lcd_Init(void)
{
system("mode con cols=80 lines=60");//改变宽高
DrawBackground();
}
【转载】c++ API 在屏幕上(或窗口中)的(x,y)坐标绘制一个点
https://blog.csdn.net/u013077144/article/details/51211840
C++ opencv小练习绘制点,直线,圆,椭圆等基本图像
https://blog.csdn.net/wwxy1995/article/details/82887179
C++实现glut绘制点、直线、多边形、圆
https://www.cnblogs.com/wsine/p/4639050.html
附录1:如何设置CMD窗口的位置
参考:https://jingyan.baidu.com/article/22fe7ceddeda2d3002617f81.html

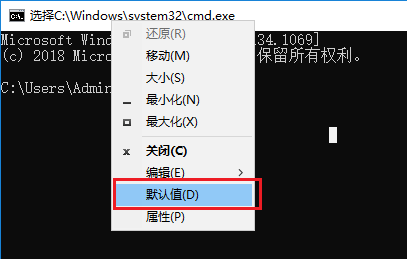

a.

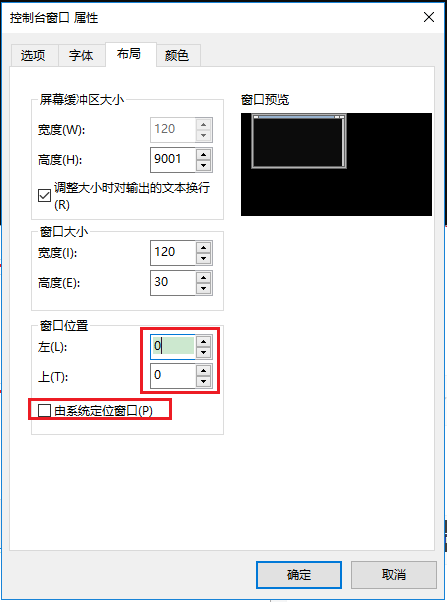

b.这下面是默认值。
改为:
