使用JavaScript处理串口数据（Modbus协议）
一：接收任意数量的输入寄存器数据并生成折线图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Modbus Serial Tool</title>
<!-- Replace the Chart.js CDN with this line -->
<script src="https://cdnjs.cloudflare.com/ajax/libs/Chart.js/3.9.1/chart.min.js"></script>
<style>
:root {
--primary-color: #2196F3;
--success-color: #4CAF50;
--error-color: #f44336;
--text-dark: #2c3e50;
--background-light: #f8f9fa;
}
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
max-width: 1200px;
margin: 0 auto;
padding: 20px;
background-color: var(--background-light);
color: var(--text-dark);
}
h1 {
color: var(--primary-color);
text-align: center;
margin-bottom: 2rem;
}
.toolbar {
display: flex;
gap: 1rem;
margin-bottom: 1.5rem;
}
button {
padding: 0.8rem 1.5rem;
border: none;
border-radius: 4px;
cursor: pointer;
transition: all 0.3s ease;
font-weight: 600;
}
button:disabled {
opacity: 0.6;
cursor: not-allowed;
}
#open-port {
background-color: var(--success-color);
color: white;
}
#close-port {
background-color: var(--error-color);
color: white;
}
.status {
padding: 1rem;
border-radius: 4px;
margin: 1rem 0;
transition: all 0.3s ease;
}
.connected {
background-color: #d4edda;
border: 1px solid #c3e6cb;
color: #155724;
}
.disconnected {
background-color: #f8d7da;
border: 1px solid #f5c6cb;
color: #721c24;
}
.modbus-section {
background: white;
border-radius: 8px;
padding: 1.5rem;
margin: 1.5rem 0;
box-shadow: 0 2px 8px rgba(0,0,0,0.1);
}
.input-group {
display: flex;
align-items: center;
gap: 1rem;
margin: 1rem 0;
}
label {
width: 120px;
font-weight: 500;
}
input[type="number"] {
padding: 0.5rem;
border: 1px solid #ddd;
border-radius: 4px;
width: 150px;
transition: border-color 0.3s ease;
}
input[type="number"]:focus {
outline: none;
border-color: var(--primary-color);
box-shadow: 0 0 0 2px rgba(33,150,243,0.2);
}
#read-registers {
background-color: var(--primary-color);
color: white;
margin-top: 1rem;
}
#myChart {
width: 100% !important;
height: 300px !important;
margin-top: 1rem;
}
#response-data {
background: white;
padding: 1rem;
border-radius: 4px;
border: 1px solid #eee;
min-height: 100px;
overflow-x: auto;
}
@media (max-width: 768px) {
.modbus-section {
flex-direction: column;
}
#myChart {
margin-top: 2rem;
}
.input-group {
flex-direction: column;
align-items: flex-start;
}
}
</style>
</head>
<body>
<!-- 保持原有的HTML结构不变，仅修改class -->

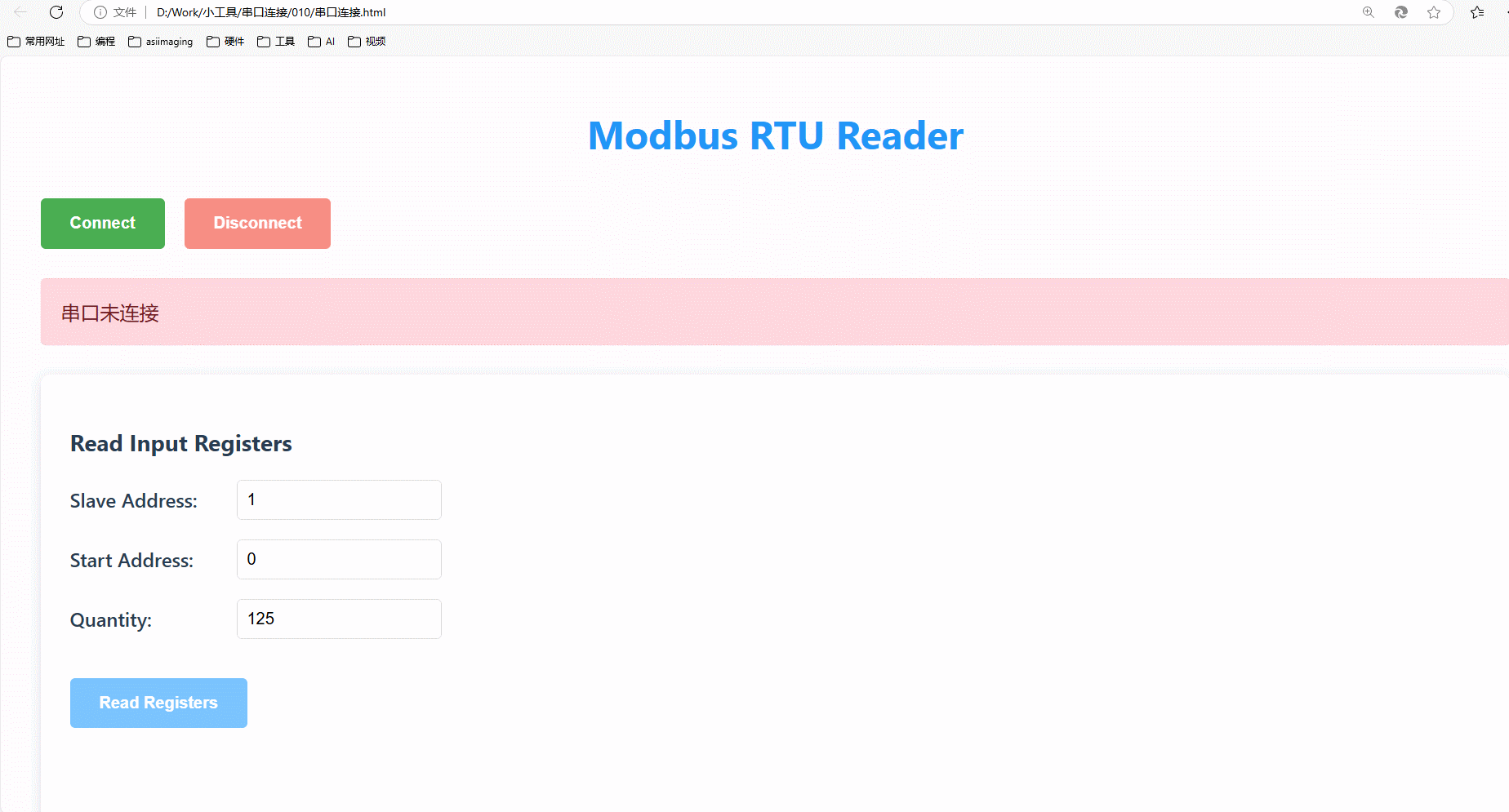

<h1>Modbus RTU Reader</h1>
<div class="toolbar">
<button id="open-port">Connect</button>
<button id="close-port" disabled>Disconnect</button>
</div>
<div id="port-status" class="status"></div>
<div class="modbus-section">
<div>
<h3>Read Input Registers</h3>
<div class="input-group">
<label>Slave Address:</label>
<input type="number" id="slave-address" min="1" max="247" value="1">
</div>
<div class="input-group">
<label>Start Address:</label>
<input type="number" id="start-address" min="0" value="0">
</div>
<div class="input-group">
<label>Quantity:</label>
<input type="number" id="quantity" min="1" max="125" value="125">
</div>
<button id="read-registers" disabled>Read Registers</button>
</div>
<canvas id="myChart"></canvas>
</div>
<div class="modbus-section">
<h3>Results</h3>
<pre id="response-data"></pre>
</div>
<script>
let port, reader, writer;
// CRC16计算函数（Modbus RTU）
function crc16(data) {
const auchCRCHi = [
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40
];
const auchCRCLo = [
0x00, 0xC0, 0xC1, 0x01, 0xC3, 0x03, 0x02, 0xC2, 0xC6, 0x06,
0x07, 0xC7, 0x05, 0xC5, 0xC4, 0x04, 0xCC, 0x0C, 0x0D, 0xCD,
0x0F, 0xCF, 0xCE, 0x0E, 0x0A, 0xCA, 0xCB, 0x0B, 0xC9, 0x09,
0x08, 0xC8, 0xD8, 0x18, 0x19, 0xD9, 0x1B, 0xDB, 0xDA, 0x1A,
0x1E, 0xDE, 0xDF, 0x1F, 0xDD, 0x1D, 0x1C, 0xDC, 0x14, 0xD4,
0xD5, 0x15, 0xD7, 0x17, 0x16, 0xD6, 0xD2, 0x12, 0x13, 0xD3,
0x11, 0xD1, 0xD0, 0x10, 0xF0, 0x30, 0x31, 0xF1, 0x33, 0xF3,
0xF2, 0x32, 0x36, 0xF6, 0xF7, 0x37, 0xF5, 0x35, 0x34, 0xF4,
0x3C, 0xFC, 0xFD, 0x3D, 0xFF, 0x3F, 0x3E, 0xFE, 0xFA, 0x3A,
0x3B, 0xFB, 0x39, 0xF9, 0xF8, 0x38, 0x28, 0xE8, 0xE9, 0x29,
0xEB, 0x2B, 0x2A, 0xEA, 0xEE, 0x2E, 0x2F, 0xEF, 0x2D, 0xED,
0xEC, 0x2C, 0xE4, 0x24, 0x25, 0xE5, 0x27, 0xE7, 0xE6, 0x26,
0x22, 0xE2, 0xE3, 0x23, 0xE1, 0x21, 0x20, 0xE0, 0xA0, 0x60,
0x61, 0xA1, 0x63, 0xA3, 0xA2, 0x62, 0x66, 0xA6, 0xA7, 0x67,
0xA5, 0x65, 0x64, 0xA4, 0x6C, 0xAC, 0xAD, 0x6D, 0xAF, 0x6F,
0x6E, 0xAE, 0xAA, 0x6A, 0x6B, 0xAB, 0x69, 0xA9, 0xA8, 0x68,
0x78, 0xB8, 0xB9, 0x79, 0xBB, 0x7B, 0x7A, 0xBA, 0xBE, 0x7E,
0x7F, 0xBF, 0x7D, 0xBD, 0xBC, 0x7C, 0xB4, 0x74, 0x75, 0xB5,
0x77, 0xB7, 0xB6, 0x76, 0x72, 0xB2, 0xB3, 0x73, 0xB1, 0x71,
0x70, 0xB0, 0x50, 0x90, 0x91, 0x51, 0x93, 0x53, 0x52, 0x92,
0x96, 0x56, 0x57, 0x97, 0x55, 0x95, 0x94, 0x54, 0x9C, 0x5C,
0x5D, 0x9D, 0x5F, 0x9F, 0x9E, 0x5E, 0x5A, 0x9A, 0x9B, 0x5B,
0x99, 0x59, 0x58, 0x98, 0x88, 0x48, 0x49, 0x89, 0x4B, 0x8B,
0x8A, 0x4A, 0x4E, 0x8E, 0x8F, 0x4F, 0x8D, 0x4D, 0x4C, 0x8C,
0x44, 0x84, 0x85, 0x45, 0x87, 0x47, 0x46, 0x86, 0x82, 0x42,
0x43, 0x83, 0x41, 0x81, 0x80, 0x40
];
let crc_hi = 0xFF;
let crc_lo = 0xFF;
for (let i = 0; i < data.length; i++) {
const idx = crc_hi ^ data[i];
crc_hi = crc_lo ^ auchCRCHi[idx];
crc_lo = auchCRCLo[idx];
}
return new Uint8Array([crc_hi, crc_lo]);
}
// 构建Modbus请求帧
function buildModbusFrame(slaveId, functionCode, startAddress, quantity) {
const buffer = new ArrayBuffer(6);
const view = new DataView(buffer);
view.setUint8(0, slaveId); // 从机地址
view.setUint8(1, functionCode); // 功能码04
view.setUint16(2, startAddress, false); // 起始地址
view.setUint16(4, quantity, false); // 寄存器数量
const data = new Uint8Array(buffer);
const crc = crc16(data); // CRC now returns a Uint8Array with 2 bytes
// Create new array for data + CRC
const result = new Uint8Array(data.length + crc.length);
// Copy data to result array
result.set(data, 0);
// Copy CRC to result array
result.set(crc, data.length);
return result;
}
// 解析Modbus响应（带CRC校验）
function parseModbusResponse(response, slaveId) {
// 合并所有chunk为一个Uint8Array
const merged = new Uint8Array(response.reduce((acc, curr) => [...acc, ...curr], []));
// 检查最小长度（从机地址1 + 功能码1 + 字节数1 + 数据0 + CRC2）
if (merged.length < 5)
return null;
if (merged[0] != slaveId)
return null;
// 分离数据和CRC（最后2字节为CRC）
const dataPart = merged.slice(0, -2);
const receivedCRC = merged.slice(-2);
// 计算数据的CRC
const calculatedCRC = crc16(dataPart);
// 校验CRC是否匹配（需考虑字节顺序）
if (calculatedCRC[0] !== receivedCRC[0] || calculatedCRC[1] !== receivedCRC[1]) {
return null;
}
// 解析数据部分
const dataView = new DataView(dataPart.buffer);
const byteCount = dataView.getUint8(2);
// 检查数据长度是否匹配
if (dataPart.length !== 3 + byteCount) {
return null;
}
const registers = [];
for (let i = 0; i < byteCount/2; i++) {
registers.push(dataView.getUint16(3 + i*2, false));
}
return {
slaveId: dataView.getUint8(0),
functionCode: dataView.getUint8(1),
registers: registers
};
}
// 在全局添加读取状态锁
let isReading = false;
// 读取输入寄存器
async function readInputRegisters() {
// 添加互斥锁防止重复点击
if (isReading) return;
isReading = true;
const readButton = document.getElementById('read-registers');
readButton.disabled = true; // 禁用按钮防止重复点击
try {
const slaveId = parseInt(document.getElementById('slave-address').value);
const startAddr = parseInt(document.getElementById('start-address').value);
const quantity = parseInt(document.getElementById('quantity').value);
// 构建请求帧
const request = buildModbusFrame(slaveId, 0x04, startAddr, quantity);
// 发送请求
writer = port.writable.getWriter();
await writer.write(request);
await writer.close(); // 关闭并释放writer
writer = null;
// 确保之前的reader已释放
if (reader) {
await reader.releaseLock();
reader = null;
}
// 读取响应
reader = port.readable.getReader(); // 此时流未被锁定，可以安全获取
const response = await readWithTimeout(reader, 50);
const result = parseModbusResponse(response, slaveId);
if(result != null){
// 显示结果 将 registers 中的所有数据用空格连接并打印在同一行
document.getElementById('response-data').textContent = JSON.stringify(result.registers.join(' '), null, 2);
//更新折线图
createLineChart(result.registers);
}
} catch (error) {
console.error("Modbus error:", error);
alert(`Error: ${error.message}`);
} finally {
// 确保释放所有锁
if (writer) {
await writer.releaseLock();
writer = null;
}
if (reader) {
await reader.releaseLock();
reader = null;
}
isReading = false;
readButton.disabled = false; // 重新启用按钮
}
}
// 定义一个全局变量来存储图表实例
let myChart;
function createLineChart(registers) {
var ctx = document.getElementById('myChart').getContext('2d');
// 如果已经存在图表实例，销毁它
if (myChart) {
myChart.destroy();
}
// 创建新的图表实例
myChart = new Chart(ctx, {
type: 'line', // 图表类型为折线图
data: {
labels: registers.map((_, index) => index), // 用 registers 数据的索引作为 X 轴标签
datasets: [{
label: 'AB电压差', // 标签
data: registers, // 用 registers 数据作为 Y 轴数据
borderColor: 'rgba(75, 192, 192, 1)', // 折线颜色
backgroundColor: 'rgba(75, 192, 192, 0.2)', // 填充颜色
borderWidth: 1
}]
},
options: {
scales: {
y: {
beginAtZero: true // Y轴从0开始
}
}
}
});
}
async function readWithTimeout(reader, timeout) {
const chunks = [];
try {
// 读取第一个数据块，不设置超时以确保至少开始接收一帧
let firstResult = await reader.read();
if (firstResult.done) return chunks; // 如果流已结束直接返回
if (firstResult.value) {
chunks.push(firstResult.value);
console.log("Received first chunk:", firstResult.value);
}
// 后续读取使用超时机制
while (true) {
// 创建带超时的读取任务
const timer = new Promise((_, reject) =>
setTimeout(() => reject(new Error("Timeout waiting for response")), timeout)
);
// 同时等待读取结果和超时
const { value, done } = await Promise.race([reader.read(), timer]);
// 如果触发的是超时，直接返回已收集的数据
if (!done && !value) break; // 此处通过race机制自动处理
console.log("Received value:", value, "done:", done);
if (done) break; // 流正常结束
if (value) chunks.push(value); // 收集有效数据
}
return chunks;
}
catch (error) {
// 超时后返回已收集的数据（至少有一个初始数据块）
if (error.message === "Timeout waiting for response") {
return chunks;
}
// 其他错误处理
alert(`接收失败: ${error.message}`);
throw error;
}
}
// 更新状态显示
function updateStatus(isConnected, portPath = "") {
const statusElement = document.getElementById('port-status');
if (isConnected) {
statusElement.textContent = `已连接: ${portPath}`;
statusElement.className = "status connected";
} else {
statusElement.textContent = "串口未连接";
statusElement.className = "status disconnected";
}
}
// 打开串口
async function openPort() {
try {
port = await navigator.serial.requestPort();
await port.open({ baudRate: 115200 });
// 更新UI状态
document.getElementById('open-port').disabled = true;
document.getElementById('close-port').disabled = false;
document.getElementById('read-registers').disabled = false;
updateStatus(true, port.path);
// 删除此处多余的 reader 初始化
} catch (error) {
console.error("Error opening port:", error);
if (error.name === 'NotFoundError') {
alert('没有选择串口设备！');
}
updateStatus(false);
}
}
// 关闭串口
async function closePort() {
try {
if (reader) {
await reader.cancel();
reader = null;
}
if (writer) {
await writer.close();
writer = null;
}
if (port) {
await port.close();
port = null;
}
// 更新UI状态
document.getElementById('open-port').disabled = false;
document.getElementById('close-port').disabled = true;
document.getElementById('read-registers').disabled = true;
updateStatus(false);
} catch (error) {
console.error("Error closing port:", error);
}
}
// 在openPort函数最后添加：
document.getElementById('read-registers').disabled = false;
// 在closePort函数中添加：
document.getElementById('read-registers').disabled = true;
// 事件监听
document.getElementById('read-registers').addEventListener('click', readInputRegisters);
document.getElementById('open-port').addEventListener('click', openPort);
document.getElementById('close-port').addEventListener('click', closePort);
</script>
</body>
</html>

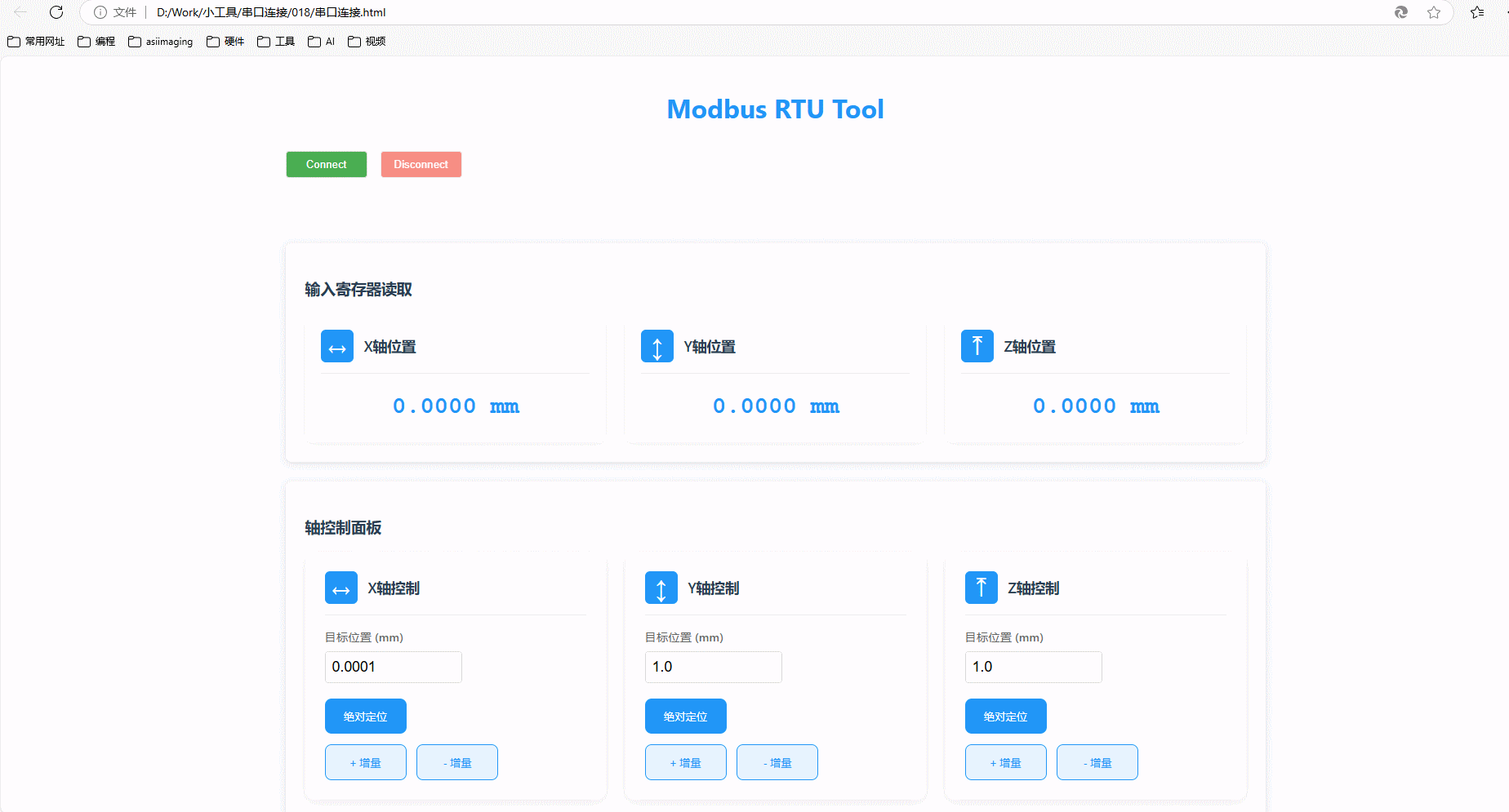

使用Edge浏览器打开，效果如下
二：实时发送保持寄存器和更新输入寄存器
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Modbus Serial Tool</title>
<style>
/* 定义一些全局的 CSS 变量，方便统一管理颜色 */
:root {
--primary-color: #2196F3; /* 主色调 */
--success-color: #4CAF50; /* 成功色调 */
--error-color: #f44336; /* 错误色调 */
--text-dark: #2c3e50; /* 深色文本 */
--background-light: #f8f9fa; /* 背景浅色 */
}
/* 设置全局样式 */
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif; /* 字体 */
max-width: 1200px; /* 最大宽度 */
margin: 0 auto; /* 居中 */
padding: 20px; /* 内边距 */
background-color: var(--background-light); /* 背景颜色 */
color: var(--text-dark); /* 文本颜色 */
}
/* 标题样式 */
h1 {
color: var(--primary-color); /* 主色调 */
text-align: center; /* 居中 */
margin-bottom: 2rem; /* 底部外边距 */
}
/* 工具栏样式 */
.toolbar {
display: flex; /* 弹性布局 */
gap: 1rem; /* 元素间距 */
margin-bottom: 1.5rem; /* 底部外边距 */
}
/* 按钮样式 */
button {
padding: 0.5rem; /* 内边距 */
border: 1px solid #ddd; /* 边框 */
border-radius: 4px; /* 圆角 */
cursor: pointer; /* 鼠标指针 */
transition: all 0.3s ease; /* 过渡效果 */
width: 100px; /* 宽度 */
}
/* 禁用按钮样式 */
button:disabled {
opacity: 0.6; /* 透明度 */
cursor: not-allowed; /* 禁用鼠标指针 */
}
/* 打开串口按钮样式 */
#open-port {
background-color: var(--success-color); /* 成功色调 */
color: white; /* 白色文本 */
}
/* 关闭串口按钮样式 */
#close-port {
background-color: var(--error-color); /* 错误色调 */
color: white; /* 白色文本 */
}
/* 状态显示区域样式 */
.status {
padding: 1rem; /* 内边距 */
border-radius: 4px; /* 圆角 */
margin: 1rem 0; /* 外边距 */
transition: all 0.3s ease; /* 过渡效果 */
}
/* 连接成功状态样式 */
.connected {
background-color: #d4edda; /* 背景颜色 */
border: 1px solid #c3e6cb; /* 边框 */
color: #155724; /* 文本颜色 */
}
/* 断开连接状态样式 */
.disconnected {
background-color: #f8d7da; /* 背景颜色 */
border: 1px solid #f5c6cb; /* 边框 */
color: #721c24; /* 文本颜色 */
}
/* Modbus 功能区域样式 */
.modbus-section {
background: white; /* 白色背景 */
border-radius: 8px; /* 圆角 */
padding: 1.5rem; /* 内边距 */
margin: 1.5rem 0; /* 外边距 */
box-shadow: 0 2px 8px rgba(0,0,0,0.1); /* 阴影 */
}
/* 输入组样式 */
.input-group {
display: flex; /* 弹性布局 */
align-items: center; /* 垂直居中 */
gap: 1rem; /* 元素间距 */
margin: 1rem 0; /* 外边距 */
}
.position-display {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(220px, 1fr));
gap: 1.5rem;
margin-top: 1rem;
}
.axis-card {
background: white;
border-radius: 8px;
padding: 1.2rem;
box-shadow: 0 2px 12px rgba(0,0,0,0.08);
transition: transform 0.2s ease;
}
.axis-card:hover {
transform: translateY(-2px);
}
.axis-header {
display: flex;
align-items: center;
gap: 0.8rem;
margin-bottom: 1rem;
border-bottom: 1px solid #eee;
padding-bottom: 0.8rem;
}
.axis-icon {
font-size: 1.8rem;
width: 40px;
height: 40px;
background: var(--primary-color);
color: white;
border-radius: 6px;
display: flex;
align-items: center;
justify-content: center;
}
.axis-title {
font-weight: 600;
color: var(--text-dark);
font-size: 1.1rem;
}
.axis-value {
font-size: 1.8rem;
font-weight: 700;
color: var(--primary-color);
text-align: center;
font-family: 'Courier New', monospace;
padding: 0.5rem;
background: #f8f9fa;
border-radius: 6px;
}
.control-card {
background: white;
border-radius: 12px;
padding: 1.5rem;
box-shadow: 0 3px 15px rgba(0,0,0,0.1);
transition: transform 0.2s ease;
}
.control-card:hover {
transform: translateY(-2px);
}
.control-group {
display: flex;
flex-direction: column;
gap: 1.2rem;
}
.input-wrapper {
display: flex;
flex-direction: column;
gap: 0.5rem;
}
.input-wrapper label {
font-size: 0.9rem;
color: #666;
font-weight: 500;
}
.modern-input {
padding: 0.8rem;
border: 2px solid #e0e0e0;
border-radius: 8px;
font-size: 1.1rem;
transition: all 0.3s ease;
width: 100%;
}
.modern-input:focus {
border-color: var(--primary-color);
box-shadow: 0 0 0 3px rgba(33,150,243,0.15);
outline: none;
}
.button-group {
display: grid;
grid-template-columns: repeat(3, 1fr);
gap: 0.8rem;
}
.control-btn {
padding: 0.8rem 1rem;
border: none;
border-radius: 8px;
cursor: pointer;
transition: all 0.3s ease;
font-weight: 500;
display: flex;
align-items: center;
justify-content: center;
gap: 0.5rem;
}
.control-btn.absolute {
background: var(--primary-color);
color: white;
grid-column: span 3;
}
.control-btn.relative {
background: #e3f2fd;
color: var(--primary-color);
border: 1px solid var(--primary-color);
}
.control-btn.relative:hover {
background: var(--primary-color);
color: white;
}
.control-btn:hover {
filter: brightness(0.95);
transform: translateY(-1px);
}
@media (max-width: 768px) {
.button-group {
grid-template-columns: 1fr;
}
.control-btn.absolute {
grid-column: span 1;
}
.modern-input {
font-size: 1rem;
}
}
@media (max-width: 768px) {
.position-display {
grid-template-columns: 1fr;
}
.axis-value {
font-size: 1.5rem;
}
}
/* 标签样式 */
label {
width: 120px; /* 宽度 */
font-weight: 500; /* 字体加粗 */
}
/* 数字输入框样式 */
input[type="number"] {
padding: 0.5rem; /* 内边距 */
border: 1px solid #ddd; /* 边框 */
border-radius: 4px; /* 圆角 */
width: 150px; /* 宽度 */
transition: border-color 0.3s ease; /* 过渡效果 */
}
/* 数字输入框聚焦样式 */
input[type="number"]:focus {
outline: none; /* 去除轮廓 */
border-color: var(--primary-color); /* 主色调边框 */
box-shadow: 0 0 0 2px rgba(33,150,243,0.2); /* 阴影 */
}
/* 读取寄存器按钮样式 */
#read-registers {
background-color: var(--primary-color); /* 主色调 */
color: white; /* 白色文本 */
margin-top: 1rem; /* 顶部外边距 */
}
/* 图表样式 */
#myChart {
width: 100% !important; /* 宽度100% */
height: 300px !important; /* 高度300px */
margin-top: 1rem; /* 顶部外边距 */
}
/* 响应数据区域样式 */
#response-data {
font-size: 16px; /* 字体大小 */
padding: 0px; /* 内边距 */
background-color: hsl(103, 47%, 78%); /* 背景颜色 */
border: 1px solid #ddd; /* 边框 */
border-radius: 8px; /* 圆角 */
box-shadow: 0 2px 8px rgba(0,0,0,0.1); /* 阴影 */
margin-top: 1rem; /* 顶部外边距 */
}
/* 响应内容样式 */
#response-content {
display: block; /* 确保内容占满一行 */
font-family: 'Courier New', Courier, monospace; /* 使用等宽字体 */
color: #333; /* 文本颜色 */
line-height: 1.6; /* 行高 */
}
/* 响应式设计，屏幕宽度小于768px时的样式 */
@media (max-width: 768px) {
.modbus-section {
flex-direction: column; /* 垂直排列 */
}
#myChart {
margin-top: 2rem; /* 顶部外边距 */
}
.input-group {
flex-direction: column; /* 垂直排列 */
align-items: flex-start; /* 左对齐 */
}
}
/* 寄存器修改区域样式 */
.register-edit {
margin-top: 1rem; /* 顶部外边距 */
display: flex; /* 弹性布局 */
gap: 1rem; /* 元素间距 */
align-items: center; /* 垂直居中 */
}
#register-value {
width: 100px; /* 宽度 */
}
</style>
</head>
<body>
<!-- 页面标题 -->
<h1>Modbus RTU Tool</h1>
<!-- 工具栏，包含连接和断开按钮 -->
<div class="toolbar">
<button id="open-port">Connect</button>
<button id="close-port" disabled>Disconnect</button>
</div>
<!-- 串口连接状态显示区域 -->
<div id="port-status" class="status"></div>
<!-- Modbus 读取输入寄存器区域 -->
<div class="modbus-section">
<h3>输入寄存器读取</h3>
<div class="position-display">
<!-- X轴位置 -->
<div class="axis-card">
<div class="axis-header">
<span class="axis-icon">↔</span>
<span class="axis-title">X轴位置</span>
</div>
<div class="axis-value" id="current-pos-x">0.0000 mm</div>
</div>
<!-- Y轴位置 -->
<div class="axis-card">
<div class="axis-header">
<span class="axis-icon">↕</span>
<span class="axis-title">Y轴位置</span>
</div>
<div class="axis-value" id="current-pos-y">0.0000 mm</div>
</div>
<!-- Z轴位置 -->
<div class="axis-card">
<div class="axis-header">
<span class="axis-icon">⤒</span>
<span class="axis-title">Z轴位置</span>
</div>
<div class="axis-value" id="current-pos-z">0.0000 mm</div>
</div>
</div>
</div>
<!-- 保持寄存器控制区域修改后代码 -->
<div class="modbus-section">
<h3>轴控制面板</h3>
<div class="position-display">
<!-- X轴控制 -->
<div class="control-card">
<div class="axis-header">
<span class="axis-icon">↔</span>
<span class="axis-title">X轴控制</span>
</div>
<div class="control-group">
<div class="input-wrapper">
<label>目标位置 (mm)</label>
<input type="number" id="x-axis-value" value="0.0001"
max="38.0" min="-20.0" step="0.1" class="modern-input">
</div>
<div class="button-group">
<button class="control-btn absolute" data-axis-move="x-absolute">绝对定位</button>
<button class="control-btn relative" data-axis-move="x-relativePlus">+ 增量</button>
<button class="control-btn relative" data-axis-move="x-relativeMinus">- 增量</button>
</div>
</div>
</div>
<!-- Y轴控制 -->
<div class="control-card">
<div class="axis-header">
<span class="axis-icon">↕</span>
<span class="axis-title">Y轴控制</span>
</div>
<div class="control-group">
<div class="input-wrapper">
<label>目标位置 (mm)</label>
<input type="number" id="y-axis-value" value="1.0"
max="38.0" min="-20.0" step="0.1" class="modern-input">
</div>
<div class="button-group">
<button class="control-btn absolute" data-axis-move="y-absolute">绝对定位</button>
<button class="control-btn relative" data-axis-move="y-relativePlus">+ 增量</button>
<button class="control-btn relative" data-axis-move="y-relativeMinus">- 增量</button>
</div>
</div>
</div>
<!-- Z轴控制 -->
<div class="control-card">
<div class="axis-header">
<span class="axis-icon">⤒</span>
<span class="axis-title">Z轴控制</span>
</div>
<div class="control-group">
<div class="input-wrapper">
<label>目标位置 (mm)</label>
<input type="number" id="z-axis-value" value="1.0"
max="38.0" min="-20.0" step="0.1" class="modern-input">
</div>
<div class="button-group">
<button class="control-btn absolute" data-axis-move="z-absolute">绝对定位</button>
<button class="control-btn relative" data-axis-move="z-relativePlus">+ 增量</button>
<button class="control-btn relative" data-axis-move="z-relativeMinus">- 增量</button>
</div>
</div>
</div>
</div>
</div>
<script>
let port, reader, writer;
let isRunning = false; // 添加运行状态变量
let intervalId = null; // 添加循环ID变量
// 在全局添加保持寄存器相关变量
let holdingRegisters = new Array(100).fill(0);
let sendIntervalId = null;
let isSending = false;
// CRC16计算函数（Modbus RTU）
function crc16(data) {
const auchCRCHi = [
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
0x80, 0x41, 0x00, 0xC1, 0x81, 0x40
];
const auchCRCLo = [
0x00, 0xC0, 0xC1, 0x01, 0xC3, 0x03, 0x02, 0xC2, 0xC6, 0x06,
0x07, 0xC7, 0x05, 0xC5, 0xC4, 0x04, 0xCC, 0x0C, 0x0D, 0xCD,
0x0F, 0xCF, 0xCE, 0x0E, 0x0A, 0xCA, 0xCB, 0x0B, 0xC9, 0x09,
0x08, 0xC8, 0xD8, 0x18, 0x19, 0xD9, 0x1B, 0xDB, 0xDA, 0x1A,
0x1E, 0xDE, 0xDF, 0x1F, 0xDD, 0x1D, 0x1C, 0xDC, 0x14, 0xD4,
0xD5, 0x15, 0xD7, 0x17, 0x16, 0xD6, 0xD2, 0x12, 0x13, 0xD3,
0x11, 0xD1, 0xD0, 0x10, 0xF0, 0x30, 0x31, 0xF1, 0x33, 0xF3,
0xF2, 0x32, 0x36, 0xF6, 0xF7, 0x37, 0xF5, 0x35, 0x34, 0xF4,
0x3C, 0xFC, 0xFD, 0x3D, 0xFF, 0x3F, 0x3E, 0xFE, 0xFA, 0x3A,
0x3B, 0xFB, 0x39, 0xF9, 0xF8, 0x38, 0x28, 0xE8, 0xE9, 0x29,
0xEB, 0x2B, 0x2A, 0xEA, 0xEE, 0x2E, 0x2F, 0xEF, 0x2D, 0xED,
0xEC, 0x2C, 0xE4, 0x24, 0x25, 0xE5, 0x27, 0xE7, 0xE6, 0x26,
0x22, 0xE2, 0xE3, 0x23, 0xE1, 0x21, 0x20, 0xE0, 0xA0, 0x60,
0x61, 0xA1, 0x63, 0xA3, 0xA2, 0x62, 0x66, 0xA6, 0xA7, 0x67,
0xA5, 0x65, 0x64, 0xA4, 0x6C, 0xAC, 0xAD, 0x6D, 0xAF, 0x6F,
0x6E, 0xAE, 0xAA, 0x6A, 0x6B, 0xAB, 0x69, 0xA9, 0xA8, 0x68,
0x78, 0xB8, 0xB9, 0x79, 0xBB, 0x7B, 0x7A, 0xBA, 0xBE, 0x7E,
0x7F, 0xBF, 0x7D, 0xBD, 0xBC, 0x7C, 0xB4, 0x74, 0x75, 0xB5,
0x77, 0xB7, 0xB6, 0x76, 0x72, 0xB2, 0xB3, 0x73, 0xB1, 0x71,
0x70, 0xB0, 0x50, 0x90, 0x91, 0x51, 0x93, 0x53, 0x52, 0x92,
0x96, 0x56, 0x57, 0x97, 0x55, 0x95, 0x94, 0x54, 0x9C, 0x5C,
0x5D, 0x9D, 0x5F, 0x9F, 0x9E, 0x5E, 0x5A, 0x9A, 0x9B, 0x5B,
0x99, 0x59, 0x58, 0x98, 0x88, 0x48, 0x49, 0x89, 0x4B, 0x8B,
0x8A, 0x4A, 0x4E, 0x8E, 0x8F, 0x4F, 0x8D, 0x4D, 0x4C, 0x8C,
0x44, 0x84, 0x85, 0x45, 0x87, 0x47, 0x46, 0x86, 0x82, 0x42,
0x43, 0x83, 0x41, 0x81, 0x80, 0x40
];
let crc_hi = 0xFF;
let crc_lo = 0xFF;
for (let i = 0; i < data.length; i++) {
const idx = crc_hi ^ data[i];
crc_hi = crc_lo ^ auchCRCHi[idx];
crc_lo = auchCRCLo[idx];
}
return new Uint8Array([crc_hi, crc_lo]);
}
// 构建写保持寄存器请求帧（功能码0x10）
function buildWriteHoldingFrame(slaveId, startAddress, registers) {
const byteCount = registers.length * 2;
const buffer = new ArrayBuffer(7 + byteCount);
const view = new DataView(buffer);
view.setUint8(0, slaveId); // 从机地址
view.setUint8(1, 0x10); // 功能码
view.setUint16(2, startAddress, false); // 起始地址
view.setUint16(4, registers.length, false); // 寄存器数量
view.setUint8(6, byteCount); // 字节数
// 填充寄存器数据
let offset = 7;
registers.forEach(value => {
view.setUint16(offset, value, false);
offset += 2;
});
const data = new Uint8Array(buffer);
const crc = crc16(data);
const result = new Uint8Array(data.length + crc.length);
result.set(data);
result.set(crc, data.length);
return result;
}
function floatToRegisters(value) {
const buffer = new ArrayBuffer(4);
new DataView(buffer).setFloat32(0, value, false); // 大端序
return [
new DataView(buffer).getUint16(2), // CD部分
new DataView(buffer).getUint16(0) // AB部分
];
}
function registersToFloat(cd, ab) {
const buffer = new ArrayBuffer(4);
const view = new DataView(buffer);
view.setUint16(0, ab); // AB部分
view.setUint16(2, cd); // CD部分
return view.getFloat32(0, false); // 大端序
}
// 宏定义的寄存器地址
const Addr_Ho_Kp_Speed = 0;
const Addr_Ho_Ki_Speed = 2;
const Addr_Ho_Kp_Uq = 4;
const Addr_Ho_Ki_Uq = 6;
const Addr_Ho_MaxAngularVelocity = 8;
const Addr_Ho_SetUq = 15;
const Addr_Ho_VcmKp = 20;
const Addr_Ho_VcmKi = 22;
const Addr_Ho_VcmSpeedMax = 26;
const Addr_Ho_VcmSpeedAcc = 28;
const Addr_Ho_FocusOffSet = 30;
const Addr_Ho_W0 = 31;
const Addr_Ho_W1 = 32;
const Addr_Ho_RedLaserPower = 33;
const Addr_Ho_GreenLaserPower = 34;
const Addr_Ho_HandleLaser = 35;
const Addr_Ho_HandleFocus = 36;
const Addr_Ho_KpFocus = 38;
const Addr_Ho_SetPosX = 40;
const Addr_Ho_HandleX = 42;
const Addr_Ho_SetPosY = 43;
const Addr_Ho_HandleY = 45;
const Addr_Ho_SetPosZ = 46;
const Addr_Ho_HandleZ = 48;
const Addr_In_CurPosX = 40;
const Addr_In_CurPosY = 42;
const Addr_In_CurPosZ = 44;
// 初始化Modbus数据
function initModbus() {
// 定义需要初始化的寄存器地址和对应的值
const initValues = [
{ address: Addr_Ho_Kp_Speed, value: 0.1, type: 'float' }, // Kp_Speed
{ address: Addr_Ho_Ki_Speed, value: 0.0, type: 'float' }, // Ki_Speed
{ address: Addr_Ho_Kp_Uq, value: 10.0, type: 'float' }, // Kp_Uq
{ address: Addr_Ho_Ki_Uq, value: 0.2, type: 'float' }, // Ki_Uq
{ address: Addr_Ho_MaxAngularVelocity, value: 50, type: 'float' }, // MaxAngularVelocity
{ address: Addr_Ho_SetUq, value: 12, type: 'float' },
{ address: Addr_Ho_VcmKp, value: 30, type: 'float' },
{ address: Addr_Ho_VcmKi, value: 1, type: 'float' },
{ address: Addr_Ho_VcmSpeedMax, value: 200, type: 'float' },
{ address: Addr_Ho_VcmSpeedAcc, value: 80, type: 'float' },
{ address: Addr_Ho_W0, value: 55, type: 'int' },
{ address: Addr_Ho_W1, value: 128, type: 'int' },
];
// 遍历初始化值并写入寄存器
initValues.forEach(({ address, value, type }) => {
if (address < 0 || address >= holdingRegisters.length) {
console.error(`地址 ${address} 超出范围`);
return;
}
if (type === 'float') {
// 浮点数需要占用两个寄存器
if (address + 1 >= holdingRegisters.length) {
console.error(`地址 ${address} 超出范围（浮点数需要两个寄存器）`);
return;
}
// 将浮点数转换为寄存器值
const [cd, ab] = floatToRegisters(value);
if (cd === undefined || ab === undefined) {
console.error(`值 ${value} 转换失败`);
return;
}
// 写入寄存器
holdingRegisters[address + 1] = ab; // AB 部分
holdingRegisters[address + 0] = cd; // CD 部分
} else if (type === 'int') {
// 整数直接写入
holdingRegisters[address] = value;
} else {
console.error(`未知的类型: ${type}`);
}
});
console.log("初始化寄存器完成");
}
// 定义各轴的寄存器偏移配置
const axisConfig = {
x: {
valueAddr: Addr_Ho_SetPosX, // 值存储起始地址
controlAddr: Addr_Ho_HandleX, // 控制指令地址
inputId: 'x-axis-value'
},
y: {
valueAddr: Addr_Ho_SetPosY,
controlAddr: Addr_Ho_HandleY,
inputId: 'y-axis-value'
},
z: {
valueAddr: Addr_Ho_SetPosZ,
controlAddr: Addr_Ho_HandleZ,
inputId: 'z-axis-value'
}
};
// 统一处理轴移动
function handleAxisMove(axisType, moveType) {
const config = axisConfig[axisType];
if (!config) return;
// 获取输入值
const value = parseFloat(document.getElementById(config.inputId).value);
// 转换为寄存器值并更新
const [cd, ab] = floatToRegisters(value);
holdingRegisters[config.valueAddr + 1] = ab;
holdingRegisters[config.valueAddr + 0] = cd;
// 设置控制指令
holdingRegisters[config.controlAddr] = moveType;
}
// 事件监听统一处理（替换原来的多个事件监听）
document.querySelectorAll('[data-axis-move]').forEach(button => {
button.addEventListener('click', (e) => {
const [axis, type] = e.target.dataset.axisMove.split('-');
const moveType = {
absolute: 1,
relativePlus: 2,
relativeMinus: 3
}[type];
if (moveType) handleAxisMove(axis, moveType);
});
});
// 构建Modbus请求帧
function buildModbusFrame(slaveId, functionCode, startAddress, quantity) {
const buffer = new ArrayBuffer(6);
const view = new DataView(buffer);
view.setUint8(0, slaveId); // 从机地址
view.setUint8(1, functionCode); // 功能码04
view.setUint16(2, startAddress, false); // 起始地址
view.setUint16(4, quantity, false); // 寄存器数量
const data = new Uint8Array(buffer);
const crc = crc16(data); // CRC now returns a Uint8Array with 2 bytes
// Create new array for data + CRC
const result = new Uint8Array(data.length + crc.length);
// Copy data to result array
result.set(data, 0);
// Copy CRC to result array
result.set(crc, data.length);
return result;
}
// 解析Modbus响应（带CRC校验）
function parseModbusResponse(response, slaveId) {
// 合并所有chunk为一个Uint8Array
const merged = new Uint8Array(response.reduce((acc, curr) => [...acc, ...curr], []));
// 检查最小长度（从机地址1 + 功能码1 + 字节数1 + 数据0 + CRC2）
if (merged.length < 5)
return null;
if (merged[0] != slaveId)
return null;
// 分离数据和CRC（最后2字节为CRC）
const dataPart = merged.slice(0, -2);
const receivedCRC = merged.slice(-2);
// 计算数据的CRC
const calculatedCRC = crc16(dataPart);
// 校验CRC是否匹配（需考虑字节顺序）
if (calculatedCRC[0] !== receivedCRC[0] || calculatedCRC[1] !== receivedCRC[1]) {
return null;
}
// 解析数据部分
const dataView = new DataView(dataPart.buffer);
const byteCount = dataView.getUint8(2);
// 检查数据长度是否匹配
if (dataPart.length !== 3 + byteCount) {
return null;
}
const registers = [];
for (let i = 0; i < byteCount/2; i++) {
registers.push(dataView.getUint16(3 + i*2, false));
}
return {
slaveId: dataView.getUint8(0),
functionCode: dataView.getUint8(1),
registers: registers
};
}
async function readWithTimeout(reader, timeout) {
const chunks = [];
try {
// 读取第一个数据块，不设置超时以确保至少开始接收一帧
let firstResult = await reader.read();
if (firstResult.done) return chunks; // 如果流已结束直接返回
if (firstResult.value) {
chunks.push(firstResult.value);
console.log("Received first chunk:", firstResult.value);
}
// 后续读取使用超时机制
while (true) {
// 创建带超时的读取任务
const timer = new Promise((_, reject) =>
setTimeout(() => reject(new Error("Timeout waiting for response")), timeout)
);
// 同时等待读取结果和超时
const { value, done } = await Promise.race([reader.read(), timer]);
// // 如果触发的是超时，直接返回已收集的数据
// if (!done && !value) break; // 此处通过race机制自动处理
// console.log("Received value:", value, "done:", done);
if (done) break; // 流正常结束
if (value) chunks.push(value); // 收集有效数据
}
return chunks;
}
catch (error) {
// 超时后返回已收集的数据（至少有一个初始数据块）
if (error.message === "Timeout waiting for response") {
return chunks;
}
// 其他错误处理
alert(`接收失败: ${error.message}`);
throw error;
}
}
// 更新状态显示
function updateStatus(isConnected, portPath = "") {
const statusElement = document.getElementById('port-status');
if (isConnected) {
statusElement.textContent = `已连接: ${portPath}`;
statusElement.className = "status connected";
} else {
statusElement.textContent = "串口未连接";
statusElement.className = "status disconnected";
}
}
// 打开串口并启动循环
async function openPort() {
try {
port = await navigator.serial.requestPort();
await port.open({ baudRate: 115200 });
// 更新UI状态
document.getElementById('open-port').disabled = true;
document.getElementById('close-port').disabled = false;
updateStatus(true, port.path);
// 启动循环任务
isRunning = true;
runLoop();
} catch (error) {
console.error("Error opening port:", error);
updateStatus(false);
}
}
// 关闭串口并停止循环
async function closePort() {
try {
// 停止循环
isRunning = false;
if (intervalId) {
clearInterval(intervalId);
intervalId = null;
}
// 关闭串口资源
if (reader) {
await reader.cancel();
await reader.releaseLock();
reader = null; // 重置 reader
}
if (writer) {
try {
await writer.close(); // 尝试关闭 writer
} catch (error) {
console.error("Error closing writer:", error);
}
await writer.releaseLock();
writer = null; // 重置 writer
}
if (port) await port.close();
// 强制更新UI状态
document.getElementById('open-port').disabled = false;
document.getElementById('close-port').disabled = true;
updateStatus(false);
} catch (error) {
console.error("Error closing port:", error);
}
}
// 修改后的主循环函数
async function runLoop() {
if (!isRunning) return;
try {
// 使用setInterval代替requestAnimationFrame
intervalId = setInterval(async () => {
if (!isRunning) {
clearInterval(intervalId);
return;
}
// 发送保持寄存器
await sendHoldingRegisters();
await delay(50);
// 读取输入寄存器
await readInputRegisters();
await delay(50);
}, 100);
} catch (error) {
console.error("循环任务出错:", error);
closePort();
}
}
// 延时函数
function delay(ms) {
return new Promise(resolve => setTimeout(resolve, ms));
}
// 发送保持寄存器
async function sendHoldingRegisters() {
if (!port?.writable) return;
try {
const slaveId = 1; // 假设固定从机地址
const snapshot = [...holdingRegisters];
const request = buildWriteHoldingFrame(slaveId, 0, snapshot);
writer = port.writable.getWriter();
await writer.write(request);
await writer.releaseLock();
// 重置控制位
holdingRegisters[Addr_Ho_HandleX] = 0;
holdingRegisters[Addr_Ho_HandleY] = 0;
holdingRegisters[Addr_Ho_HandleZ] = 0;
} catch (error) {
console.error("发送失败:", error);
throw error; // 抛出错误以便主循环处理
}
}
async function clearBuffer(reader) {
try {
while (true) {
const { value, done } = await reader.read();
if (done) break; // 流结束
if (!value) break; // 没有数据
}
} catch (error) {
console.error("清空缓冲区失败:", error);
}
}
// 读取输入寄存器
async function readInputRegisters() {
let reader = null; // 显式声明 reader
if (!port?.readable) return;
try {
const slaveId = 1;
const request = buildModbusFrame(slaveId, 0x04, 0, 100);
// 清空缓冲区
reader = port.readable.getReader(); // 明确初始化 reader
await reader.cancel();
await reader.releaseLock();
// 发送请求
const writer = port.writable.getWriter();
await writer.write(request);
await writer.releaseLock();
// 读取响应
reader = port.readable.getReader(); // 重新初始化 reader
const response = await readWithTimeout(reader, 30);
const result = parseModbusResponse(response, slaveId);
if (result) {
// 提取 XYZ 位置并更新显示
const curPosX = registersToFloat(result.registers[Addr_In_CurPosX], result.registers[Addr_In_CurPosX + 1]);
const curPosY = registersToFloat(result.registers[Addr_In_CurPosY], result.registers[Addr_In_CurPosY + 1]);
const curPosZ = registersToFloat(result.registers[Addr_In_CurPosZ], result.registers[Addr_In_CurPosZ + 1]);
// 更新显示
document.getElementById('current-pos-x').textContent = `${curPosX.toFixed(4)} mm`;
document.getElementById('current-pos-y').textContent = `${curPosY.toFixed(4)} mm`;
document.getElementById('current-pos-z').textContent = `${curPosZ.toFixed(4)} mm`;
}
} catch (error) {
console.error("读取失败:", error);
throw error;
} finally {
if (reader) {
try {
await reader.releaseLock(); // 确保释放锁
} catch (releaseError) {
console.error("释放 reader 锁失败:", releaseError);
}
}
}
}
document.getElementById('open-port').addEventListener('click', openPort);
document.getElementById('close-port').addEventListener('click', closePort);
// 初始化保持寄存器默认值
initModbus();
</script>
</body>
</html>

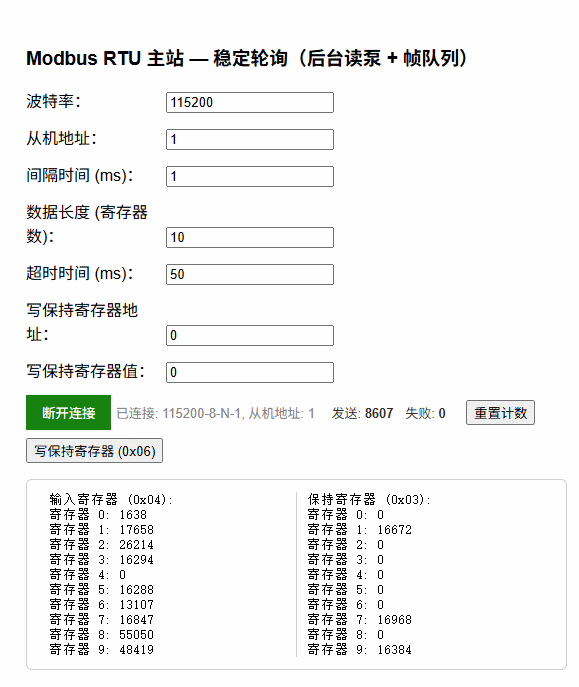

效果如下
【推荐】国内首个AI IDE，深度理解中文开发场景，立即下载体验Trae
【推荐】编程新体验，更懂你的AI，立即体验豆包MarsCode编程助手
【推荐】抖音旗下AI助手豆包，你的智能百科全书，全免费不限次数
【推荐】轻量又高性能的 SSH 工具 IShell：AI 加持，快人一步
· TypeScript + Deepseek 打造卜卦网站：技术与玄学的结合
· Manus的开源复刻OpenManus初探
· AI 智能体引爆开源社区「GitHub 热点速览」
· 三行代码完成国际化适配，妙~啊~
· .NET Core 中如何实现缓存的预热？
2020-02-18 Halcon 形态学膨胀腐蚀理论知识学习笔记
