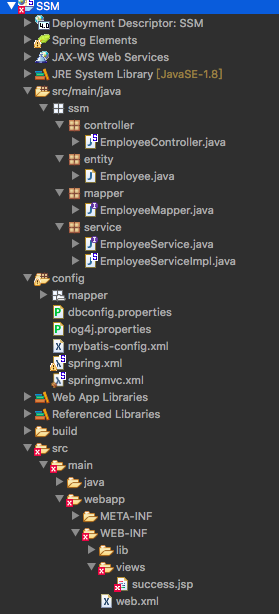

一、目录结构





回到顶部

helloworld(SSM)创建步骤：

步骤一：创建一个类型为Dynamic Web Project  名称为ssm的项目

步骤二：加入jar包：

spring核心jar包：

1. commons-logging-1.2.jar
2. spring-beans-5.3.10.jar
3. spring-context-5.3.10.jar
4. spring-core-5.3.10.jar
5. spring-expression-5.3.10.jar

spring aop:

1. spring-aop-5.3.10.jar
2. spring-aspects-5.3.10.jar

springmvc jar包：

1. spring-web-5.3.10.jar
2. spring-webmvc-5.3.10.jar

spring 数据库交互jar包：

1. spring-jdbc-5.3.10.jar
2. spring-tx-5.3.10.jar

mybatis jar包：

1. mybatis-3.5.9.jar
2. mysql-connector-java-8.0.27 (1).jar
3. log4j-1.2.17.jar

mybatis-spring 适配器包：

1. mybatis-spring-1.3.2.jar

c3po:

1. c3p0-0.9.5.5.jar
2. c3p0-oracle-thin-extras-0.9.5.5.jar
3. mchange-commons-java-0.2.19.jar

MyBatis-Spring下载地址：

https://github.com/mybatis/spring 在release中选择对应的版本下载即可；

步骤三：配置

web.xml:

1. 配置DispacherServlet
2. 配置启动spring ioc容器的Listener

配置说明，可参考十二、springMVC整合spring

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://xmlns.jcp.org/xml/ns/javaee"
    xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
    version="4.0">
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring.xml</param-value>
    </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!-- 配置DispatcherServlet(快捷键 alt +/) -->
    <servlet>
        <servlet-name>springDispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- 配置DispatcherServletd 一个初始化参数：配置springmvc配置文件的位置和名称 -->
        <!-- 实际上也可以不通过 contextConfigLocation 来配置Springmvc的配置文件，而是用默认的 即默认的配置文件为
            /WEB-INF/<servlet-name>-servlet.xml 本项目默认位置配置文件即为： /WEB-INF/springDispatcherServlet-servlet.xml -->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc.xml</param-value>
        </init-param>
        <!-- 表示springDispatcherServlet在加载的时候被创建 -->
        <load-on-startup>1</load-on-startup>
    </servlet>

    <!-- Map all requests to the DispatcherServlet for handling -->
    <servlet-mapping>
        <servlet-name>springDispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

</web-app>

springmvc.xml:

基础配置（扫描包配置+视图解析器配置+<mvc:annotation-driven></mvc:annotation-driven>）

配置说明，可参考十二、springMVC整合spring  spring和springmvc 整合时对扫描包做了特殊处理，来解决重复扫描包启动时实例化两次的问题；

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

<!-- spirngmvc 只负责 网站跳转逻辑 -->
    <context:component-scan base-package="ssm" use-default-filters="false">
        <context:include-filter type="annotation"
            expression="org.springframework.stereotype.Controller" />
        <context:include-filter type="annotation"
            expression="org.springframework.stereotype.Service" />
    </context:component-scan>

    <bean
        class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
    <mvc:annotation-driven></mvc:annotation-driven>
</beans>

spring.xml:

扫描包配置+数据源配置+事务配置+mybatis配置；

扫描包配置：请参考十二、springMVC整合spring  spring和springmvc 整合时对扫描包做了特殊处理，来解决重复扫描包启动时实例化两次的问题；

数据源配置：和四、JdbcTemplate的配置  中的配置是一样的；

mybatis配置：

• 创建出 sqlSessionFactoryBean对象
• 配置一个可以进行批量执行的sqlSession
•  扫描所有的mapper接口的实现，让这些mapper能够自动注入

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.2.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.2.xsd">

    <!-- spring 希望管理所有的业务逻辑组件，等 -->

    <!-- 自动扫描配置 -->
    <context:component-scan base-package="ssm"
        use-default-filters="false">
        <context:exclude-filter type="annotation"
            expression="org.springframework.stereotype.Controller" />
        <context:exclude-filter type="annotation"
            expression="org.springframework.stereotype.Service" />
    </context:component-scan>

    <!-- spring用来控制业务逻辑。数据源、事务控制、aop... -->
    <!-- 导入资源文件 -->
    <context:property-placeholder
        location="classpath:dbconfig.properties" />
    <!-- 配置c3p0数据源 -->
    <bean id="datasource"
        class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="user" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
        <property name="driverClass" value="${jdbc.driver}"></property>
        <property name="jdbcUrl" value="${jdbc.url}"></property>
    </bean>
    <!-- spring 事务管理器 -->
    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="datasource"></property>
    </bean>
    <!-- 开启基于注解的事务 -->
    <tx:annotation-driven
        transaction-manager="transactionManager" />

    <!-- 整合mybatis目的： 1.spring管理所有组件。mapper的实现类。可以对service中引用dao的内容，可以为@Autowired
        自动注入mapper； 2.spring用来管理声明式事务， -->
    <!-- 创建出 sqlSessionFactoryBean对象 -->
    <bean id="sqlSessionFactoryBean"
        class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="datasource"></property>
        <!-- configLocation指定全局配置文件的位置 -->
        <property name="configLocation"
            value="classpath:mybatis-config.xml"></property>
        <!-- 指定mapper位置（如果mapper与mapper接口的文件名不一样的话这里需要配置，若一样就可以不配置） -->
        <property name="mapperLocations"
            value="classpath:mapper/*.xml"></property>
    </bean>
    <!--配置一个可以进行批量执行的sqlSession -->
    <bean id="sqlSession"
        class="org.mybatis.spring.SqlSessionTemplate">
        <constructor-arg name="sqlSessionFactory"
            ref="sqlSessionFactoryBean"></constructor-arg>
        <constructor-arg name="executorType" value="BATCH"></constructor-arg>
    </bean>
    <!-- 扫描所有的mapper接口的实现，让这些mapper能够自动注入 -->
    <!-- <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"> 配置SqlSessionFactoryBean的名称
        <property name="basePackage" value="ssm.mapper" /> </bean> -->
    <mybatis-spring:scan base-package="ssm.mapper" />
</beans>

dbconfig.properties：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/mybatis
jdbc.username=root
jdbc.password=

jdbc2.driver=com.mysql.jdbc.Driver
jdbc2.url=jdbc:mysql://localhost:3306/mybatis2
jdbc2.username=root
jdbc2.password=

mybatis-config.xml：

具体的mybatis的全局配置文件说明请参看二、mybatis全局配置文件说明

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!-- settings包含很多重要的设置项； name:设置项的名字，value设置项的取值 -->
    <settings>
        <!-- 开启驼峰命名 比如数据库字段为Last_Name 则 自动变为lastName -->
        <setting name="mapUnderscoreToCamelCase" value="true" />
        <!-- 分步查询配合一下两个配置 实现懒加载（按需加载） -->
        <setting name="lazyLoadingEnabled" value="true" />
        <setting name="aggressiveLazyLoading" value="false" />
    </settings>

    <!-- 配置顺序，properties settings typeAliases typeHandlers objectFactory objectWrapperFactory
        reflectFactory plugings environment databaseIdProvider mappers -->
</configuration>

 log4j.properties:

 ### 设置###
log4j.rootLogger = debug,stdout,D,E

### 输出信息到控制抬 ###
log4j.appender.stdout = org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target = System.out
log4j.appender.stdout.layout = org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern = [%-5p] %d{yyyy-MM-dd HH:mm:ss,SSS} method:%l%n%m%n

### 输出DEBUG 级别以上的日志到=E://logs/error.log ###
log4j.appender.D = org.apache.log4j.DailyRollingFileAppender
log4j.appender.D.File = E://logs/log.log
log4j.appender.D.Append = true
log4j.appender.D.Threshold = DEBUG
log4j.appender.D.layout = org.apache.log4j.PatternLayout
log4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n

### 输出ERROR 级别以上的日志到=E://logs/error.log ###
log4j.appender.E = org.apache.log4j.DailyRollingFileAppender
log4j.appender.E.File =E://logs/error.log
log4j.appender.E.Append = true
log4j.appender.E.Threshold = ERROR
log4j.appender.E.layout = org.apache.log4j.PatternLayout
log4j.appender.E.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n
### 设置###
log4j.rootLogger = debug,stdout,D,E

### 输出信息到控制抬 ###
log4j.appender.stdout = org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target = System.out
log4j.appender.stdout.layout = org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern = [%-5p] %d{yyyy-MM-dd HH:mm:ss,SSS} method:%l%n%m%n

### 输出DEBUG 级别以上的日志到=E://logs/error.log ###
log4j.appender.D = org.apache.log4j.DailyRollingFileAppender
log4j.appender.D.File = E://logs/log.log
log4j.appender.D.Append = true
log4j.appender.D.Threshold = DEBUG
log4j.appender.D.layout = org.apache.log4j.PatternLayout
log4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n

### 输出ERROR 级别以上的日志到=E://logs/error.log ###
log4j.appender.E = org.apache.log4j.DailyRollingFileAppender
log4j.appender.E.File =E://logs/error.log
log4j.appender.E.Append = true
log4j.appender.E.Threshold = ERROR
log4j.appender.E.layout = org.apache.log4j.PatternLayout
log4j.appender.E.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n

代码部分：

EmployeeController.java:

package ssm.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import ssm.entity.Employee;
import ssm.service.EmployeeService;

@RequestMapping("/emp")
@Controller
public class EmployeeController {
    @Autowired
    private EmployeeService employeeService;

    @RequestMapping("/getEmp")
    public ModelAndView getById(Employee employee) {
        ModelAndView mv = new ModelAndView("success");
        mv.addObject("employee", employeeService.getEmpById(employee.getId()));
        return mv;
    }

}

Employee.java

package ssm.entity;

public class Employee {

    private Integer id;
    private String lastName;
    private String email;
    private String gender;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getGender() {
        return gender;
    }

    public void setGender(String gender) {
        this.gender = gender;
    }

    @Override
    public String toString() {
        return "Employee [id=" + id + ", lastName=" + lastName + ", email=" + email + ", gender=" + gender + "]";
    }

}

EmployeeService.java

package ssm.service;

import ssm.entity.Employee;

public interface EmployeeService {

    Employee getEmpById(Integer id);

}

EmployeeServiceImpl.java

package ssm.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import ssm.entity.Employee;
import ssm.mapper.EmployeeMapper;

@Service("employeeService")
public class EmployeeServiceImpl implements EmployeeService {

    @Autowired
    private EmployeeMapper employeeMapper;

    @Override
    public Employee getEmpById(Integer id) {
        return employeeMapper.getEmpById(id);
    }

}

EmployeeMapper.java

package ssm.mapper;

import ssm.entity.Employee;

public interface EmployeeMapper {

    Employee getEmpById(Integer id);

}

EmployeeMapper.xml:

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="ssm.mapper.EmployeeMapper">

    <select id="getEmpById" resultType="ssm.entity.Employee">
        select * from tbl_employee
        where id=#{id,jdbcType=INTEGER}
    </select>
</mapper>

success.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<h3>success</h3>
<p>${employee.id}</p>

</body>
</html>

回到顶部

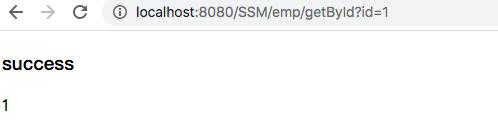

运行结果：

当运行http://localhost:8080/SSM/emp/getById?id=1 时，跳转到了success页面，且形式了当前的id;



回到顶部

SSM的CRUD:

SSM整合(spring-springmvc-mybatis)之CRUD
