Fast Inserts to PostgreSQL with JDBC and COPY FROM

Labels: batches, copy from, inserts, java, jdbc

I was reading some materials on how to make database inserts as efficient as possible from Java. it was motivated by an already existing application for storing of some measurements into PosgtreSQL. So I decided to compare known approaches to see if there is some way how to improve the application already using batched inserts.

For the purpose of  the test I created following table:

CREATE TABLE measurement

(
  measurement_id bigint NOT NULL,
  valid_ts timestamp with time zone NOT NULL,
  measurement_value numeric(19,4) NOT NULL,
  CONSTRAINT pk_mv_raw PRIMARY KEY (measurement_id, valid_ts)
)
WITH (OIDS=FALSE)

I decided to test the insertion of 1000 records to the table. The data for the recors was generated before running of any of test methods. Four test methods were created to reflect ususal approaches:

• VSI (Very Stupid Inserts) - executing queries made of concatenated Strings one by one
• SPI  (Stupid Prepared Inserts) - similar to VSI but using prepared statements
• BPI (Batched Prepared Inserts) - prepared inserts, executed in batches of various length
• CPI (Copy Inserts) - inserts based on COPY FROM, executed in batches of various length

Prior to each inserts the table is cleared, the same after all data are succesfully inserted. Commit is called only once in each test method, following all the insert calls.  The following code exerpts illustrate the above listed approaches:

VSI

for (int i=0; i<testSize; i++)
{
  insertSQL = "insert into measurement values ("
            + measurementIds[i] +",'"+ timestamps[i] +"',"+values[i]+")";
  insert.execute(insertSQL);
}

SPI

PreparedStatement insert = conn.prepareStatement("insert into measurement values (?,?,?)");

for (int i=0; i<testSize; i++)
{
  insert.setLong(1,measurementIds[i]);
  insert.setTimestamp(2, timestamps[i]);
  insert.setBigDecimal(3, values[i]);
  insert.execute();
}

BPI

PreparedStatement insert = conn.prepareStatement("insert into measurement values (?,?,?)");

for (int i=0; i<testSize; i++)
{
  insert.setLong(1,measurementIds[i]);
  insert.setTimestamp(2, timestamps[i]);
  insert.setBigDecimal(3, values[i]);
  insert.addBatch();
  if (i % batchSize == 0) { insert.executeBatch(); }
}
insert.executeBatch();

CPI

StringBuilder sb = new StringBuilder();
CopyManager cpManager = ((PGConnection)conn).getCopyAPI();
PushbackReader reader = new PushbackReader( new StringReader(""), 10000 );
for (int i=0; i<testSize; i++)
{
    sb.append(measurementIds[i]).append(",'")
      .append(timestamps[i]).append("',")
      .append(values[i]).append("\n");
    if (i % batchSize == 0)
    {
      reader.unread( sb.toString().toCharArray() );
      cpManager.copyIn("COPY measurement FROM STDIN WITH CSV", reader );
      sb.delete(0,sb.length());
    }
}
reader.unread( sb.toString().toCharArray() );
cpManager.copyIn("COPY measurement FROM STDIN WITH CSV", reader );

I hoped to get some improvements for using COPY FROM instead of batched inserts but not expected no big gain. But the results were a pleasant surprise. For a batch of size 50 (as defined in the original aplication I wanted to improve) the COPY FROM gave 40% improvement.  I expect some improvements when data come from a stream and skip the StringBuffer-with-PushbackReader exercise.

See the graphs yourself - the number following the method abbreviation is the size of the batch.

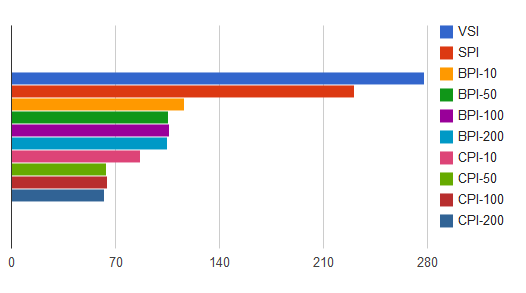

Average time in milliseconds

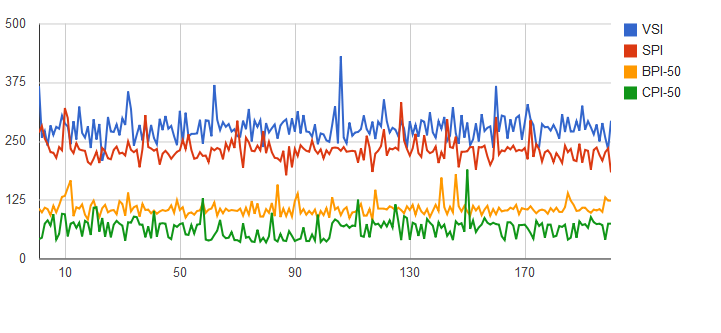

All the 200 runs individually
