unity全局雾处理

全屏后处理全局雾

网上找到的基本是要计算摄影机边界的4条射线,然后标准化插值后射线方向,利用深度还原场景的世界坐标,代码比较繁琐,要向shader多传递4条射线参数



如下图





其实有更简化的处理方式, 用unity shader自带的全局变量与函数,加上场景深度,可以直接在shader里面还原世界坐标,然后完成雾效处理

mtx_view_inv:投影矩阵的逆 cs脚本中绑定,值为:Camera.worldToCameraMatrix.inverse

mtx_proj_inv:变换矩阵的逆 cs脚本中绑定,值为 Camera.projectionMatrix.inverse

_CameraDepthTexture:: 会被宏处理成 sample_CameraDepthTexture,也是shader的自带变量

SAMPLE_DEPTH_TEXTURE:宏处理CameraDepthTexture采样

LinearEyeDepth:根据(0,1)之间的深度纹理还原视深度,即摄影机空间的z坐标

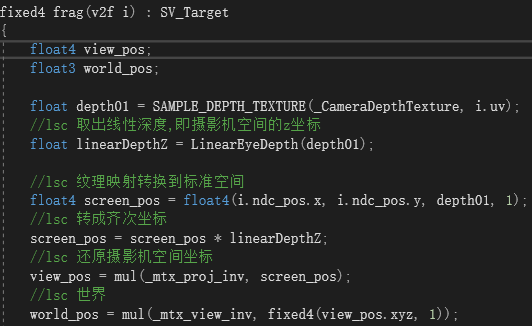

还原世界坐标代码如下:



有了世界坐标,距离雾和高度雾就可以处理了





对应的.cs脚本就可以不用繁琐的计算射线,只要绑定行对应的两个投影与摄影机变换逆矩阵,

注意:这两个矩阵必须由外部绑定,在Post全屏路径处理下,

unity内部自带的两个矩阵unity_CameraInvProjection unity_CameraToWorld是不能用的,

它们的值会被更改成为画全屏四边形对应的逆矩阵,而不是camera对象的投影与变换矩阵的逆

如下图,fogMaterial是对应的shader材质Material对象

    void OnRenderImage(RenderTexture src, RenderTexture dest)
    {
        Camera cam = GetComponent<Camera>();
        var mtx_view_inv = cam.worldToCameraMatrix.inverse;
        var mtx_proj_inv = cam.projectionMatrix.inverse;

        Matrix4x4 temp = cam.worldToCameraMatrix * cam.projectionMatrix;
        Matrix4x4 mtx_clip_to_world = temp.inverse;

        fogMaterial.SetMatrix("_mtx_clip_to_world", mtx_clip_to_world);
        fogMaterial.SetMatrix("_mtx_view_inv", mtx_view_inv);
        fogMaterial.SetMatrix("_mtx_proj_inv", mtx_proj_inv);

        Graphics.Blit(src, dest, fogMaterial);
    }





以下贴出完整的shader代码,

Shader "lsc/test_post_fog"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
    }
        SubShader
    {
        // No culling or depth
        Cull Off ZWrite Off ZTest Always

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            sampler2D _CameraDepthTexture;
            float4x4 _mtx_view_inv;
            float4x4 _mtx_proj_inv;
            float4x4 _mtx_clip_to_world;


            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;

                float4 screen_pos : TEXCOORD1;
                float2 ndc_pos : TEXCOORD2;
            };

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = v.uv;

                o.screen_pos = ComputeScreenPos(o.vertex);
                o.ndc_pos = (v.uv) * 2.0 - 1.0;

                return o;
            }

            sampler2D _MainTex;

            fixed4 frag(v2f i) : SV_Target
            {
                float4 view_pos;
                float3 world_pos;

                float depth01 = SAMPLE_DEPTH_TEXTURE(_CameraDepthTexture, i.uv);
                //lsc 取出线性深度,即摄影机空间的z坐标
                float linearDepthZ = LinearEyeDepth(depth01);

                //lsc 纹理映射转换到标准空间
                float4 screen_pos = float4(i.ndc_pos.x, i.ndc_pos.y, depth01, 1);
                //lsc 转成齐次坐标
                screen_pos = screen_pos * linearDepthZ;
                //lsc 还原摄影机空间坐标
                view_pos = mul(_mtx_proj_inv, screen_pos);
                //lsc 世界
                world_pos = mul(_mtx_view_inv, fixed4(view_pos.xyz, 1));

                //高度
                float h_percent = saturate(((world_pos.y - 0.0f) / 20.0f));
                float fac_h = exp(-h_percent * h_percent);

                //距离
                float dis = length(world_pos.xyz - _WorldSpaceCameraPos.xyz);
                float d_percent = 1 - ((dis - 100.0) / 100.0f);
                d_percent = saturate(d_percent);
                float fac_d = exp(-d_percent * d_percent);


                fixed4 final_col;
                final_col.w = 1.0;

                fixed4 col = tex2D(_MainTex, i.uv);
                final_col.rgb = lerp(col.rgb, fixed3(0.5, 0.0, 0.5), fac_d * fac_h);

                return final_col;
            }
            ENDCG
        }
    }
}







对应的.cs代码

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class cam_postprocess : MonoBehaviour
{
    //public Shader fogShader;
    public Material fogMaterial = null;

    // Start is called before the first frame update
    void Start()
    {
        Camera cam = GetComponent<Camera>();
        cam.depthTextureMode = DepthTextureMode.Depth | DepthTextureMode.DepthNormals | DepthTextureMode.MotionVectors;
    }

    // Update is called once per frame
    void Update()
    {
    }

    void OnRenderImage(RenderTexture src, RenderTexture dest)
    {
        Camera cam = GetComponent<Camera>();
        var mtx_view_inv = cam.worldToCameraMatrix.inverse;
        var mtx_proj_inv = cam.projectionMatrix.inverse;

        Matrix4x4 temp = cam.worldToCameraMatrix * cam.projectionMatrix;
        Matrix4x4 mtx_clip_to_world = temp.inverse;

        fogMaterial.SetMatrix("_mtx_clip_to_world", mtx_clip_to_world);
        fogMaterial.SetMatrix("_mtx_view_inv", mtx_view_inv);
        fogMaterial.SetMatrix("_mtx_proj_inv", mtx_proj_inv);

        Graphics.Blit(src, dest, fogMaterial);
    }
}

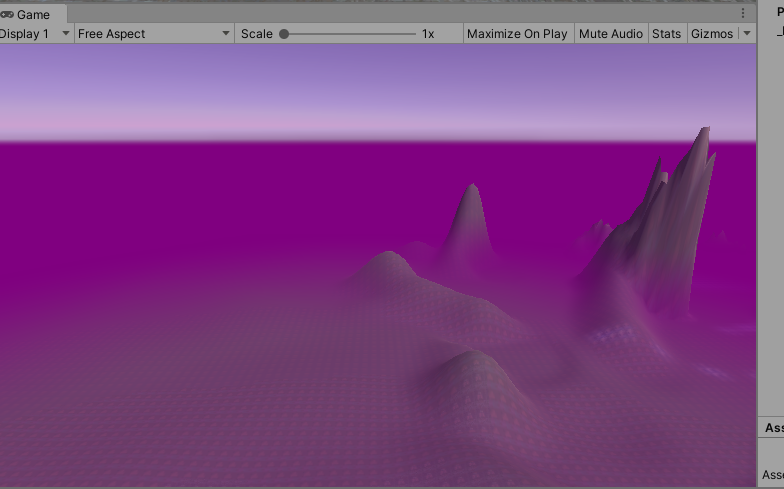

运行效果:
