unity urp raytrace体积光god ray效果
试了一下在unity中使用raytrace方式实现体积光,

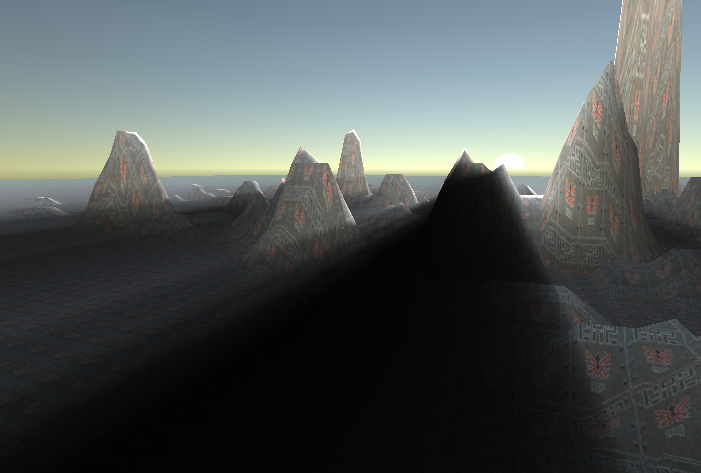

运行效果如下
raytrace开销较大,采样加到200几乎卡得跑不动了
首先在光源处拍摄场景(unity对mainlight做了这个处理,并且是级联可设置)
基本原理是在全屏路径下,根据场景深度,还原出世界坐标
根据世界坐标判断是哪个裁切球
(如果不是级联阴影,比如spotlight就不需要这个操作)
然后将世界坐标变换到光源观察坐标light_view_pos
再根据投影矩阵对应到光源纹理的深度纹理
比较当前点在光源摄像机的深度,判断是不是处于遮挡(即阴影)
原理和纹理阴影的处理方式类似
附shader代码如下
Shader "lsc/RaytraceShader"
{
Properties
{
_MainTex ("Texture", 2D) = "white" {}
_raytrace_step_count("rayrace step count", Int) = 5
_scale("scale", float) = 1.0
}
SubShader
{
// No culling or depth
Cull Off ZWrite Off ZTest Always
Pass
{
HLSLPROGRAM
#pragma vertex vert
#pragma fragment frag
#pragma multi_compile _ _MAIN_LIGHT_SHADOWS
#pragma multi_compile _ _MAIN_LIGHT_SHADOWS_CASCADE
#pragma multi_compile_fragment _ _ADDITIONAL_LIGHT_SHADOWS
#pragma multi_compile_fragment _ _SHADOWS_SOFT
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
struct appdata
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
};
struct v2f
{
float2 uv : TEXCOORD0;
float4 vertex : SV_POSITION;
float4 screen_pos : TEXCOORD1;
};
float4x4 _mtx_view_inv;
float4x4 _mtx_proj_inv;
TEXTURE2D_X_FLOAT(_CameraDepthTexture);
SAMPLER(sampler_CameraDepthTexture);
v2f vert (appdata v)
{
v2f o;
VertexPositionInputs vertexInput = GetVertexPositionInputs(v.vertex.xyz);
o.vertex = vertexInput.positionCS;
o.screen_pos = ComputeScreenPos(o.vertex);
o.uv = v.uv;
return o;
}
sampler2D _MainTex;
int _raytrace_step_count;
float _scale;
float4 cal_world_pos_by_dep(float ndc_dep, float2 screen_space, out float4 view_pos)
{
// 取出非线性深度与视深度
float linearDepthZ = LinearEyeDepth(ndc_dep, _ZBufferParams);
// 屏幕转ndc
float4 ndc_pos;
ndc_pos.xy = screen_space * 2.0 - 1.0;
ndc_pos.zw = float2(ndc_dep, 1);
// 添加齐次因子
ndc_pos = ndc_pos * linearDepthZ;
// 转成观察与世界坐标
view_pos = mul(_mtx_proj_inv, ndc_pos);
float4 world_pos = mul(_mtx_view_inv, float4(view_pos.xyz, 1));
return world_pos;
}
float4 frag (v2f i) : SV_Target
{
float4 col = tex2D(_MainTex, i.uv);
// 插值后的屏幕坐标去除齐次因子
float2 screen_space = i.screen_pos.xy / i.screen_pos.w;
// 取出非线性深度
float org_depth = SAMPLE_TEXTURE2D_X(_CameraDepthTexture, sampler_CameraDepthTexture, screen_space).x;
// 计算世界坐标
float4 view_pos;
float4 world_pos = cal_world_pos_by_dep(org_depth, screen_space, view_pos);
float3 cam_wpos = GetCameraPositionWS();
float3 v_step = (world_pos - cam_wpos) / _raytrace_step_count;
float3 rt_start = cam_wpos;
float shadow_atten = 0;
UNITY_LOOP
for (int i = 0; i < _raytrace_step_count; i++)//循环,超级低效
{
float4 shadow_coord = TransformWorldToShadowCoord(rt_start);
rt_start += v_step;
Light mainLight = GetMainLight(shadow_coord);//这样产生了级联阴影采样
shadow_atten += mainLight.shadowAttenuation;
}
shadow_atten = (shadow_atten / _raytrace_step_count) * _scale;
col.rgb = col.rgb * shadow_atten;
return col;
}
ENDHLSL
}
}
}
对应的urp管线cs代码
using UnityEngine;
using UnityEngine.Rendering;
using UnityEngine.Rendering.Universal;
using System;
public class RayTraceFogRenderPassFeature : ScriptableRendererFeature
{
class CustomRenderPass : ScriptableRenderPass
{
public Material raytrace_material_;
public RenderTargetIdentifier render_target_color_;
public RenderTargetHandle temp_render_target_;
public int raytrace_count_ = 5;
public float scale_ = 1.0f;
// This method is called before executing the render pass.
// It can be used to configure render targets and their clear state. Also to create temporary render target textures.
// When empty this render pass will render to the active camera render target.
// You should never call CommandBuffer.SetRenderTarget. Instead call <c>ConfigureTarget</c> and <c>ConfigureClear</c>.
// The render pipeline will ensure target setup and clearing happens in a performant manner.
public override void OnCameraSetup(CommandBuffer cmd, ref RenderingData renderingData)
{
}
// Here you can implement the rendering logic.
// Use <c>ScriptableRenderContext</c> to issue drawing commands or execute command buffers
// https://docs.unity3d.com/ScriptReference/Rendering.ScriptableRenderContext.html
// You don't have to call ScriptableRenderContext.submit, the render pipeline will call it at specific points in the pipeline.
public override void Execute(ScriptableRenderContext context, ref RenderingData renderingData)
{
if (!raytrace_material_)
return;
raytrace_material_.SetInt("_raytrace_step_count", raytrace_count_);
raytrace_material_.SetFloat("_scale", scale_);
{
Camera cam = renderingData.cameraData.camera;
var mtx_view_inv = cam.worldToCameraMatrix.inverse;
var mtx_proj_inv = cam.projectionMatrix.inverse;
raytrace_material_.SetMatrix("_mtx_view_inv", mtx_view_inv);
raytrace_material_.SetMatrix("_mtx_proj_inv", mtx_proj_inv);
}
const string CommandBufferTag = "raytrace fog Pass";
var cmd = CommandBufferPool.Get(CommandBufferTag);
RenderTextureDescriptor opaqueDesc = renderingData.cameraData.cameraTargetDescriptor;
opaqueDesc.depthBufferBits = 0;
cmd.GetTemporaryRT(temp_render_target_.id, opaqueDesc);
// 通过材质,将计算结果存入临时缓冲区
cmd.Blit(render_target_color_, temp_render_target_.Identifier(), raytrace_material_);
// 再从临时缓冲区存入主纹理
cmd.Blit(temp_render_target_.Identifier(), render_target_color_);
// 执行命令缓冲区
context.ExecuteCommandBuffer(cmd);
// 释放命令缓存
CommandBufferPool.Release(cmd);
// 释放临时RT
cmd.ReleaseTemporaryRT(temp_render_target_.id);
}
// Cleanup any allocated resources that were created during the execution of this render pass.
public override void OnCameraCleanup(CommandBuffer cmd)
{
}
}
CustomRenderPass m_ScriptablePass;
public Material raytrace_material_;
public int raytrace_count_ = 5;
public float scale_ = 1.0f;
/// <inheritdoc/>
public override void Create()
{
m_ScriptablePass = new CustomRenderPass();
// Configures where the render pass should be injected.
m_ScriptablePass.renderPassEvent = RenderPassEvent.AfterRenderingOpaques;
}
// Here you can inject one or multiple render passes in the renderer.
// This method is called when setting up the renderer once per-camera.
public override void AddRenderPasses(ScriptableRenderer renderer, ref RenderingData renderingData)
{
m_ScriptablePass.render_target_color_ = renderer.cameraColorTarget;
m_ScriptablePass.raytrace_material_ = raytrace_material_;
m_ScriptablePass.raytrace_count_ = raytrace_count_;
m_ScriptablePass.scale_ = scale_;
renderer.EnqueuePass(m_ScriptablePass);
}
}
