java下使用gRPC的helloworld的demo实现

参考：

java下使用gRPC的helloworld的demo实现https://blog.csdn.net/u013992365/article/details/81698531#%E6%96%B0%E5%BB%BA%E4%B8%80%E4%B8%AA%E6%99%AE%E9%80%9A%E7%9A%84maven%E9%A1%B9%E7%9B%AE
grpc官方文档中文版 http://doc.oschina.net/grpc?t=58008
示例：https://github.com/grpc/grpc-java/tree/master/examples/src/main/java/io/grpc/examples

具体实施步骤：

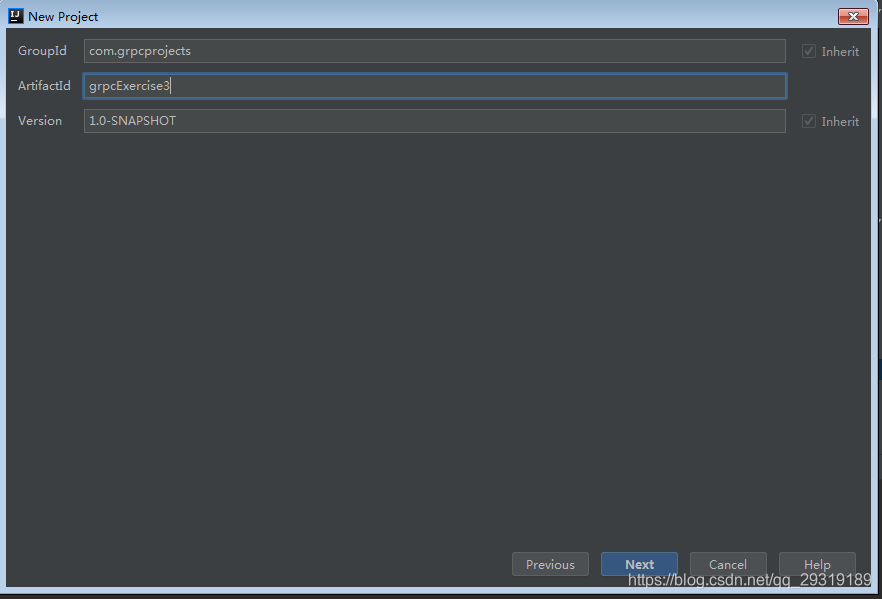

1、新建一个普通的Maven项目：

点击下一步，再点击Finsh。

2、配置pom文件，导入grpc的依赖和插件

全部的pom内容如下：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

<modelVersion>4.0.0</modelVersion>



<groupId>com.grpcprojects</groupId>

<artifactId>grpcExercise3</artifactId>

<version>1.0-SNAPSHOT</version>



<properties>

<grpc-version>1.20.0</grpc-version>

</properties>



<dependencies>

<dependency>

<groupId>io.grpc</groupId>

<artifactId>grpc-core</artifactId>

<version>${grpc-version}</version>

</dependency>

<dependency>

<groupId>io.grpc</groupId>

<artifactId>grpc-netty-shaded</artifactId>

<version>${grpc-version}</version>

</dependency>

<dependency>

<groupId>io.grpc</groupId>

<artifactId>grpc-protobuf</artifactId>

<version>${grpc-version}</version>

</dependency>

<dependency>

<groupId>io.grpc</groupId>

<artifactId>grpc-stub</artifactId>

<version>${grpc-version}</version>

</dependency>

</dependencies>



<build>

<extensions>

<extension>

<groupId>kr.motd.maven</groupId>

<artifactId>os-maven-plugin</artifactId>

<version>1.5.0.Final</version>

</extension>

</extensions>



<plugins>

<plugin>

<groupId>org.xolstice.maven.plugins</groupId>

<artifactId>protobuf-maven-plugin</artifactId>

<version>0.5.1</version>

<configuration>

<protocArtifact>com.google.protobuf:protoc:3.7.1:exe:${os.detected.classifier}</protocArtifact>

<pluginId>grpc-java</pluginId>

<pluginArtifact>io.grpc:protoc-gen-grpc-java:1.9.1:exe:${os.detected.classifier}</pluginArtifact>

<protoSourceRoot>src/main/proto</protoSourceRoot>

</configuration>

<executions>

<execution>

<goals>

<goal>compile</goal>

<goal>compile-custom</goal>

</goals>

</execution>

</executions>

</plugin>

<plugin>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-compiler-plugin</artifactId>

<version>3.6.1</version>

<configuration>

<source>1.8</source>

<target>1.8</target>

</configuration>

</plugin>

</plugins>

</build>



</project>

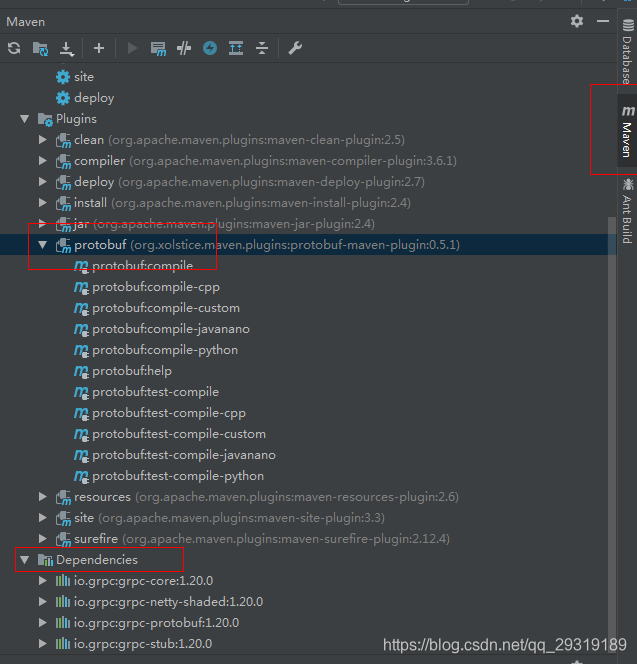

添加好依赖之后的显示：

添加之后选择右下键出现的import change，就能在Maven Projects中看到添加的依赖了。

3、编写helloworld.proto文件

在项目main目录下新建一个proto文件夹，再在此文件夹下创建一个helloworld.proto文件

helloworld.proto（跟官网上的一样）中的代码如下：

syntax = "proto3";



option java_multiple_files = true;

option java_package = "io.grpc.examples.helloworld";

option java_outer_classname = "HelloWorldProto";

option objc_class_prefix = "HLW";



package helloworld;



// The greeting service definition.

service Greeter {

// Sends a greeting

rpc SayHello (HelloRequest) returns (HelloReply) {}

}



// The request message containing the user's name.

message HelloRequest {

string name = 1;

}



// The response message containing the greetings

message HelloReply {

string message = 1;

}

重要的地方来了，编译helloworld.proto文件，编译此文件有两种方法，第一种使用protoc.exe和protoc-gen-grpc-java插件进行编译。第二种方法是用刚才在项目里边添加的插件进行编译。下边分别进行说明：

第一种：使用protoc.exe和protoc-gen-grpc-java插件进行编译

下载protoc.exe 工具，下载地址：https://github.com/protocolbuffers/protobuf/releases

下载protoc-gen-grpc 插件 , 下载地址: http://jcenter.bintray.com/io/grpc/protoc-gen-grpc-java/

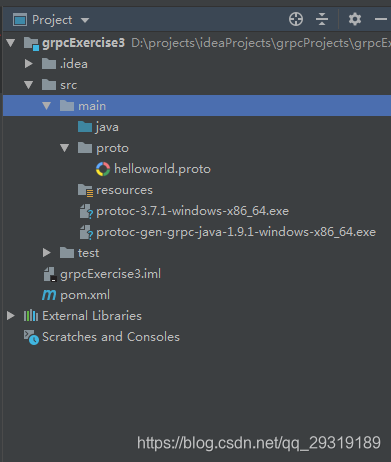

将protoc.exe和protoc-gen-grpc插件放到main目录中：

在项目的terminal窗口中执行如下两条指令：

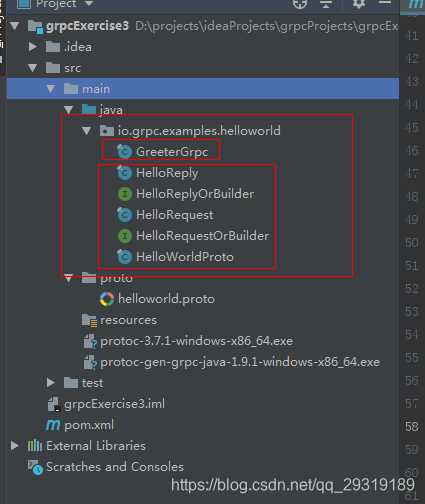

执行完每条指令之后，窗口应该不会出现任何信息，在项目文件目录中会添加如下文件：

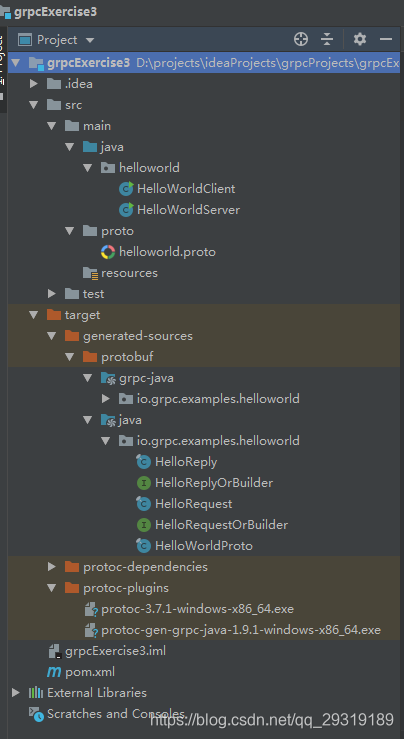

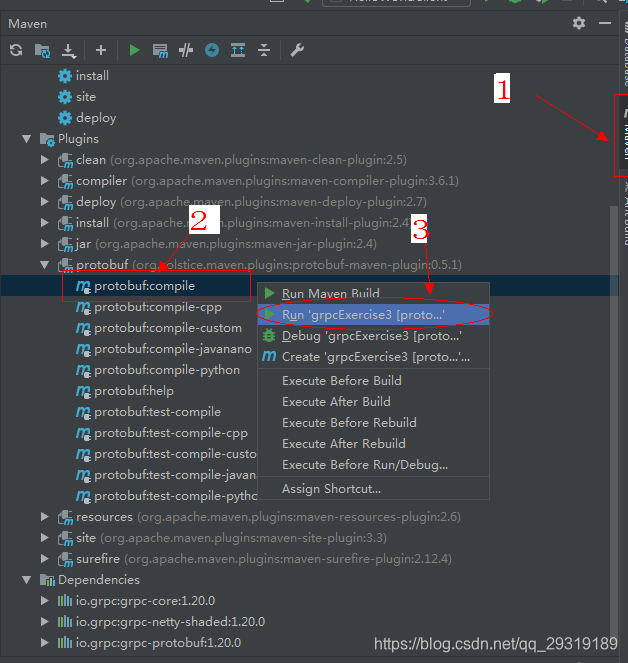

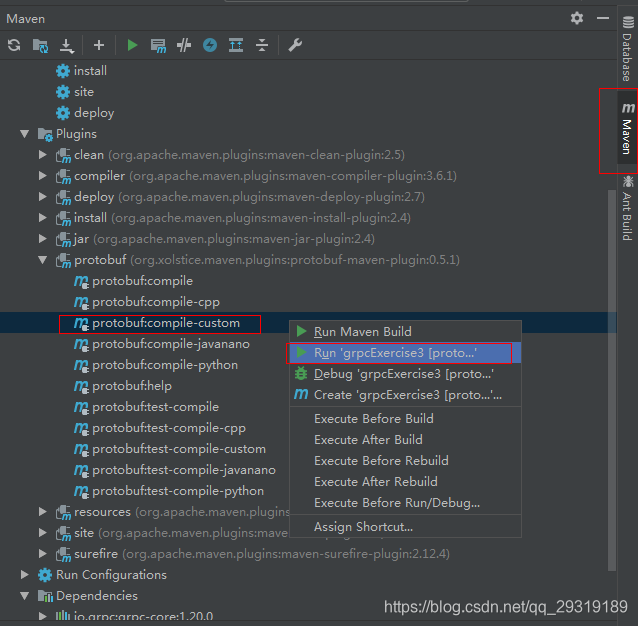

第二种方法：用刚才在项目里边添加的插件进行编译

在分割线下边

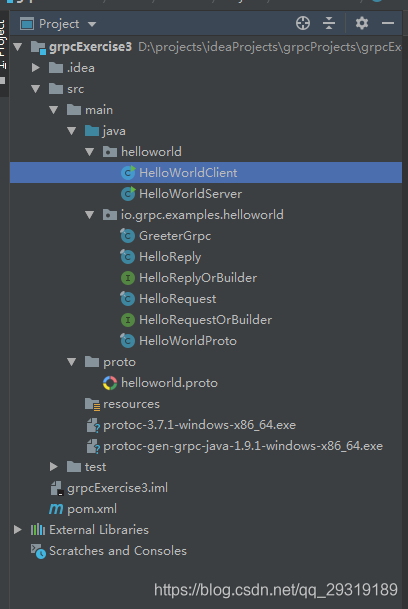

4、添加客户端和服务端代码

我是直接从官网上直接拿过来的代码，分别为HelloWorldClient.java和HelloWorldServer.java

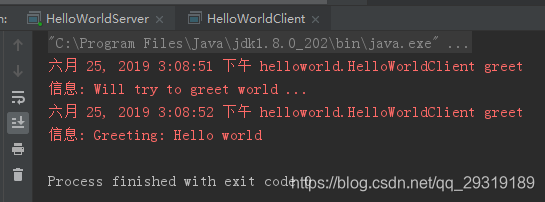

HelloWorldClient.java代码如下：

/*

* Copyright 2015 The gRPC Authors

*

* Licensed under the Apache License, Version 2.0 (the "License");

* you may not use this file except in compliance with the License.

* You may obtain a copy of the License at

*

* http://www.apache.org/licenses/LICENSE-2.0

*

* Unless required by applicable law or agreed to in writing, software

* distributed under the License is distributed on an "AS IS" BASIS,

* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

* See the License for the specific language governing permissions and

* limitations under the License.

*/



package helloworld;



import io.grpc.ManagedChannel;

import io.grpc.ManagedChannelBuilder;

import io.grpc.StatusRuntimeException;

import io.grpc.examples.helloworld.GreeterGrpc;

import io.grpc.examples.helloworld.HelloReply;

import io.grpc.examples.helloworld.HelloRequest;



import java.util.concurrent.TimeUnit;

import java.util.logging.Level;

import java.util.logging.Logger;



/**

* A simple client that requests a greeting from the {@link HelloWorldServer}.

*/

public class HelloWorldClient {

private static final Logger logger = Logger.getLogger(HelloWorldClient.class.getName());



private final ManagedChannel channel;

private final GreeterGrpc.GreeterBlockingStub blockingStub;



/** Construct client connecting to HelloWorld server at {@code host:port}. */

public HelloWorldClient(String host, int port) {

this(ManagedChannelBuilder.forAddress(host, port)

// Channels are secure by default (via SSL/TLS). For the example we disable TLS to avoid

// needing certificates.

.usePlaintext()

.build());

}



/** Construct client for accessing HelloWorld server using the existing channel. */

HelloWorldClient(ManagedChannel channel) {

this.channel = channel;

blockingStub = GreeterGrpc.newBlockingStub(channel);

}



public void shutdown() throws InterruptedException {

channel.shutdown().awaitTermination(5, TimeUnit.SECONDS);

}



/** Say hello to server. */

public void greet(String name) {

logger.info("Will try to greet " + name + " ...");

HelloRequest request = HelloRequest.newBuilder().setName(name).build();

HelloReply response;

try {

response = blockingStub.sayHello(request);

} catch (StatusRuntimeException e) {

logger.log(Level.WARNING, "RPC failed: {0}", e.getStatus());

return;

}

logger.info("Greeting: " + response.getMessage());

}



/**

* Greet server. If provided, the first element of {@code args} is the name to use in the

* greeting.

*/

public static void main(String[] args) throws Exception {

HelloWorldClient client = new HelloWorldClient("localhost", 50051);

try {

/* Access a service running on the local machine on port 50051 */

String user = "world";

if (args.length > 0) {

user = args[0]; /* Use the arg as the name to greet if provided */

}

client.greet(user);

} finally {

client.shutdown();

}

}

}

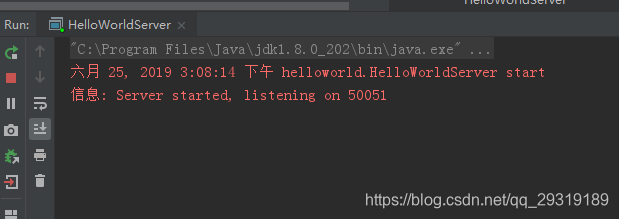

HelloWorldServer.java代码如下：

/*

* Copyright 2015 The gRPC Authors

*

* Licensed under the Apache License, Version 2.0 (the "License");

* you may not use this file except in compliance with the License.

* You may obtain a copy of the License at

*

* http://www.apache.org/licenses/LICENSE-2.0

*

* Unless required by applicable law or agreed to in writing, software

* distributed under the License is distributed on an "AS IS" BASIS,

* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

* See the License for the specific language governing permissions and

* limitations under the License.

*/



package helloworld;



import io.grpc.Server;

import io.grpc.ServerBuilder;

import io.grpc.examples.helloworld.GreeterGrpc;

import io.grpc.examples.helloworld.HelloReply;

import io.grpc.examples.helloworld.HelloRequest;

import io.grpc.stub.StreamObserver;

import java.io.IOException;

import java.util.logging.Logger;



/**

* Server that manages startup/shutdown of a {@code Greeter} server.

*/

public class HelloWorldServer {

private static final Logger logger = Logger.getLogger(HelloWorldServer.class.getName());



private Server server;



private void start() throws IOException {

/* The port on which the server should run */

int port = 50051;

server = ServerBuilder.forPort(port)

.addService(new GreeterImpl())

.build()

.start();

logger.info("Server started, listening on " + port);

Runtime.getRuntime().addShutdownHook(new Thread() {

@Override

public void run() {

// Use stderr here since the logger may have been reset by its JVM shutdown hook.

System.err.println("*** shutting down gRPC server since JVM is shutting down");

HelloWorldServer.this.stop();

System.err.println("*** server shut down");

}

});

}



private void stop() {

if (server != null) {

server.shutdown();

}

}



/**

* Await termination on the main thread since the grpc library uses daemon threads.

*/

private void blockUntilShutdown() throws InterruptedException {

if (server != null) {

server.awaitTermination();

}

}



/**

* Main launches the server from the command line.

*/

public static void main(String[] args) throws IOException, InterruptedException {

final HelloWorldServer server = new HelloWorldServer();

server.start();

server.blockUntilShutdown();

}



static class GreeterImpl extends GreeterGrpc.GreeterImplBase {



@Override

public void sayHello(HelloRequest req, StreamObserver<HelloReply> responseObserver) {

HelloReply reply = HelloReply.newBuilder().setMessage("Hello " + req.getName()).build();

responseObserver.onNext(reply);

responseObserver.onCompleted();

}

}

}
