halcon-roberts计算边缘





在HDevelop中

dev_close_window ()
read_image (Image, 'D:/bb/tu/1.jpg')
rgb1_to_gray (Image, GrayImage)

roberts (GrayImage, ImageRoberts, 'gradient_sum')
*计算边缘
*参数1：输入图像
*参数2：输出图像
*参数3：过滤器类型
*       'gradient_sum'    默认
*       'gradient_max'
*       'roberts_max'

get_image_size (GrayImage, Width, Height)
dev_open_window(10,10,Width, Height,'black',WindowHandle)

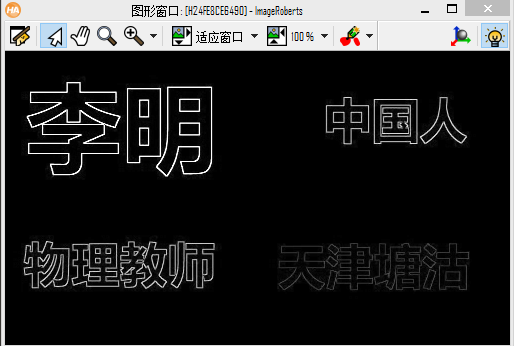

dev_display(ImageRoberts)





在QtCreator中

  HObject  ho_Image, ho_GrayImage, ho_ImageRoberts;
  HTuple  hv_Width, hv_Height, hv_WindowHandle;

  if (HDevWindowStack::IsOpen())
    CloseWindow(HDevWindowStack::Pop());
  ReadImage(&ho_Image, "D:/bb/tu/1.jpg");
  Rgb1ToGray(ho_Image, &ho_GrayImage);

  Roberts(ho_GrayImage, &ho_ImageRoberts, "gradient_sum");
  //计算边缘
  //参数1：输入图像
  //参数2：输出图像
  //参数3：过滤器类型
  //      'gradient_sum'    默认
  //      'gradient_max'
  //      'roberts_max'

  GetImageSize(ho_GrayImage, &hv_Width, &hv_Height);
  SetWindowAttr("background_color","black");
  OpenWindow(10,10,hv_Width,hv_Height,0,"visible","",&hv_WindowHandle);
  HDevWindowStack::Push(hv_WindowHandle);
  if (HDevWindowStack::IsOpen())

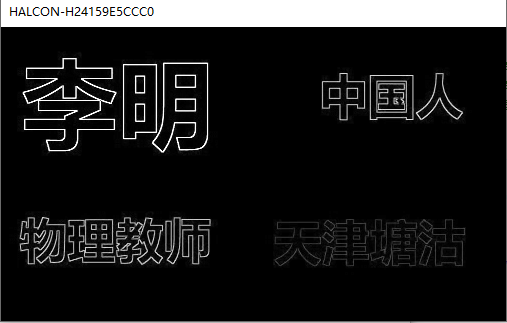

    DispObj(ho_ImageRoberts, HDevWindowStack::GetActive());
