Elasticstack学习随笔——系统部署

Elastic stack

elasticsearch

为什么当今开发者这么喜欢使用elasticsearch？

Horizontal Scale （可以很好支持横向扩展）
High Avaliability （可以配置多个副本集，保证高可用性）
Flexible Data Model （灵活的数据模型）
Rapid Query Execution （快速执行）
Sophisticated Query Language （支持复杂的聚合查询语言）
Schemaless

部署（elasticsearch和kibana）

方式一：安装包本地部署

安装包下载地址：

https://www.elastic.co/cn/downloads/elasticsearch

https://www.elastic.co/cn/downloads/kibana

1、下载好安装包后解压

[root@elasticsearch opt]# ls -lh
total 4.0K
lrwxrwxrwx  1 root root   20 Oct 12 08:47 elasticsearch -> elasticsearch-8.4.3/
drwxr-xr-x  9 root root  155 Oct  4 15:24 elasticsearch-8.4.3
lrwxrwxrwx  1 root root   13 Oct 12 10:40 kibana -> kibana-8.4.3/
drwxr-xr-x 11 root root 4.0K Oct 12 10:39 kibana-8.4.3

2、启动elasticsearch

[root@elasticsearch opt]# groupadd es
[root@elasticsearch opt]# useradd es -g es
[root@elasticsearch opt]# echo "es" | passwd es --stdin
Changing password for user es.
passwd: all authentication tokens updated successfully.
[root@elasticsearch opt]# chown -R es:es elasticsearch*
[root@elasticsearch opt]# chown -R es:es kibana*
[root@elasticsearch opt]# su - es
[es@elasticsearch ~]$ cd /opt/
# 第一次启动记得保存elasticsearch和kibana登录密钥和token
[es@elasticsearch opt]$ ./elasticsearch/bin/elasticsearch
......
✅ Elasticsearch security features have been automatically configured!
✅ Authentication is enabled and cluster connections are encrypted.

ℹ️  Password for the elastic user (reset with `bin/elasticsearch-reset-password -u elastic`):
  sw+ZjdL4qytAQZmGM4At

ℹ️  HTTP CA certificate SHA-256 fingerprint:
  716e3315ea9c6baf594683f3d61f21e0c00e8bceafa50124ec82c30ef6b242a3

ℹ️  Configure Kibana to use this cluster:
• Run Kibana and click the configuration link in the terminal when Kibana starts.
• Copy the following enrollment token and paste it into Kibana in your browser (valid for the next 30 minutes):
  eyJ2ZXIiOiI4LjQuMyIsImFkciI6WyIxOTIuMTY4LjAuMTkwOjkyMDAiXSwiZmdyIjoiNzE2ZTMzMTVlYTljNmJhZjU5NDY4M2YzZDYxZjIxZTBjMDBlOGJjZWFmYTUwMTI0ZWM4MmMzMGVmNmIyNDJhMyIsImtleSI6IllyeWx5b01CZjVpczdzel9xWWF3OlpYeVE3amJGVHNTZ3hPWUM0VXU5d1EifQ==

ℹ️  Configure other nodes to join this cluster:
• On this node:
  ⁃ Create an enrollment token with `bin/elasticsearch-create-enrollment-token -s node`.
  ⁃ Uncomment the transport.host setting at the end of config/elasticsearch.yml.
  ⁃ Restart Elasticsearch.
• On other nodes:
  ⁃ Start Elasticsearch with `bin/elasticsearch --enrollment-token <token>`, using the enrollment token that you generated.

3、验证

[es@elasticsearch elasticsearch]$ curl --cacert config/certs/http_ca.crt https://localhost:9200 -u elastic
Enter host password for user 'elastic':
{
  "name" : "elasticsearch",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "H-8IIEaaTKm8Lwb_sldclA",
  "version" : {
    "number" : "8.4.3",
    "build_flavor" : "default",
    "build_type" : "tar",
    "build_hash" : "42f05b9372a9a4a470db3b52817899b99a76ee73",
    "build_date" : "2022-10-04T07:17:24.662462378Z",
    "build_snapshot" : false,
    "lucene_version" : "9.3.0",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}

4、启动kibana

# 修改配置文件 config/kibana.yml
server.host: "192.168.0.190"
i18n.locale: "zh-CN"

[es@elasticsearch opt]$ ./kibana/bin/kibana
······
Go to http://192.168.0.190:5601/?code=834817 to get started.
······

打开浏览器，输入上面保存的enrollment token。token保存时间为30分钟，当过期之后，重新生成即可：

[es@elasticsearch opt]$ ./elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana -- url "https://127.0.0.1:9200"
eyJ2ZXIiOiI4LjQuMyIsImFkciI6WyIxOTIuMTY4LjAuMTkwOjkyMDAiXSwiZmdyIjoiNzE2ZTMzMTVlYTljNmJhZjU5NDY4M2YzZDYxZjIxZTBjMDBlOGJjZWFmYTUwMTI0ZWM4MmMzMGVmNmIyNDJhMyIsImtleSI6ImpQTkV5NE1CSjRjd3VLUm1YYW5SOjhiMmp1bEhxUXZDSW9QcTBxeExTTEEifQ==

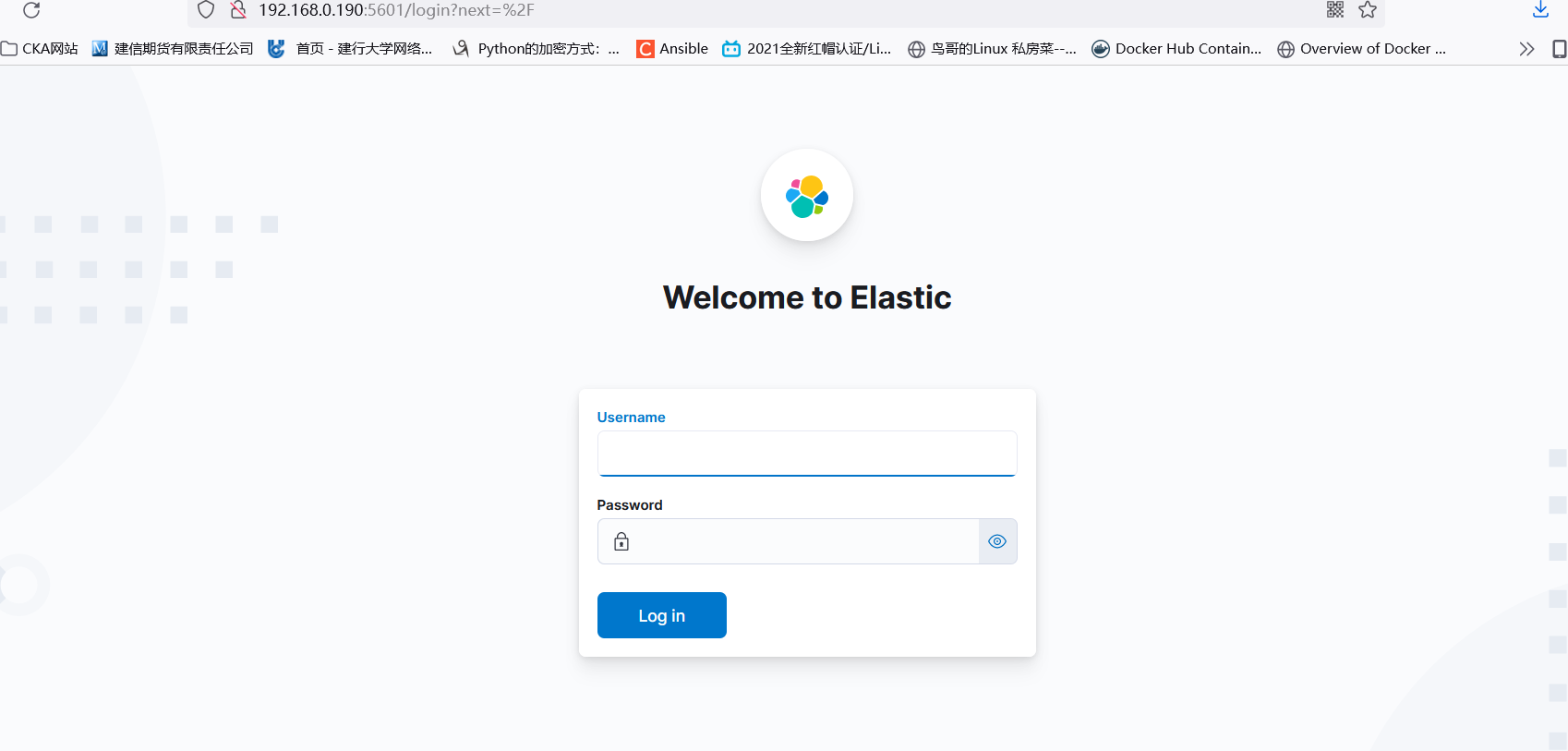

完成之后，进入登陆界面：
