UGUI

作者：孙广东 2015.5.11 在此感谢作者的无私奉献

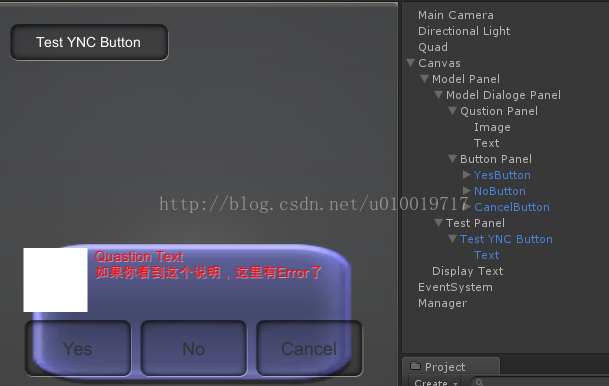

在此文章中我们将制作一个泛型的MODAL窗口 （Yes, No, Maybeso, Cancel） 在那里我们可以把内容和动作push到窗口中，这个窗口可以在我们的游戏的任何地方使用，按钮被按下时事件工作。



涉及到的代码：

using UnityEngine;
using System.Collections;

public class BringToFront : MonoBehaviour {

    void OnEnable () {
        transform.SetAsLastSibling ();
    }
}

using UnityEngine;
using UnityEngine.UI;
using UnityEngine.Events;
using System.Collections;

//  This script will be updated in Part 2 of this 2 part series.
public class ModalPanel : MonoBehaviour {

    public Text question;
    public Image iconImage;
    public Button yesButton;
    public Button noButton;
    public Button cancelButton;
    public GameObject modalPanelObject;

    private static ModalPanel modalPanel;

    public static ModalPanel Instance () {
        if (!modalPanel) {
            modalPanel = FindObjectOfType(typeof (ModalPanel)) as ModalPanel;
            if (!modalPanel)
                Debug.LogError ("There needs to be one active ModalPanel script on a GameObject in your scene.");
        }

        return modalPanel;
    }

    // Yes/No/Cancel: A string, a Yes event, a No event and Cancel event
    public void Choice (string question, UnityAction yesEvent, UnityAction noEvent, UnityAction cancelEvent) {
        modalPanelObject.SetActive (true);

        yesButton.onClick.RemoveAllListeners();
        yesButton.onClick.AddListener (yesEvent);
        yesButton.onClick.AddListener (ClosePanel);

        noButton.onClick.RemoveAllListeners();
        noButton.onClick.AddListener (noEvent);
        noButton.onClick.AddListener (ClosePanel);

        cancelButton.onClick.RemoveAllListeners();
        cancelButton.onClick.AddListener (cancelEvent);
        cancelButton.onClick.AddListener (ClosePanel);

        this.question.text = question;

        this.iconImage.gameObject.SetActive (false);
        yesButton.gameObject.SetActive (true);
        noButton.gameObject.SetActive (true);
        cancelButton.gameObject.SetActive (true);
    }

    void ClosePanel () {
        modalPanelObject.SetActive (false);
    }
}

using UnityEngine;
using UnityEngine.UI;
using System.Collections;

public class DisplayManager : MonoBehaviour {

    public Text displayText;
    public float displayTime;
    public float fadeTime;

    private IEnumerator fadeAlpha;

    private static DisplayManager displayManager;

    public static DisplayManager Instance () {
        if (!displayManager) {
            displayManager = FindObjectOfType(typeof (DisplayManager)) as DisplayManager;
            if (!displayManager)
                Debug.LogError ("There needs to be one active DisplayManager script on a GameObject in your scene.");
        }

        return displayManager;
    }

    public void DisplayMessage (string message) {
        displayText.text = message;
        SetAlpha ();
    }

    void SetAlpha () {
        if (fadeAlpha != null) {
            StopCoroutine (fadeAlpha);
        }
        fadeAlpha = FadeAlpha ();
        StartCoroutine (fadeAlpha);
    }

    IEnumerator FadeAlpha () {
        Color resetColor = displayText.color;
        resetColor.a = 1;
        displayText.color = resetColor;

        yield return new WaitForSeconds (displayTime);

        while (displayText.color.a > 0) {
            Color displayColor = displayText.color;
            displayColor.a -= Time.deltaTime / fadeTime;
            displayText.color = displayColor;
            yield return null;
        }
        yield return null;
    }
}

using UnityEngine;
using UnityEngine.UI;
using UnityEngine.Events;
using System.Collections;

//  This script will be updated in Part 2 of this 2 part series.
public class TestModalWindow : MonoBehaviour {
    private ModalPanel modalPanel;
    private DisplayManager displayManager;

    private UnityAction myYesAction;
    private UnityAction myNoAction;
    private UnityAction myCancelAction;

    void Awake () {
        modalPanel = ModalPanel.Instance ();
        displayManager = DisplayManager.Instance ();

        myYesAction = new UnityAction (TestYesFunction);
        myNoAction = new UnityAction (TestNoFunction);
        myCancelAction = new UnityAction (TestCancelFunction);
    }

    //  Send to the Modal Panel to set up the Buttons and Functions to call
    public void TestYNC () {
        modalPanel.Choice ("Do you want to spawn this sphere?", TestYesFunction, TestNoFunction, TestCancelFunction);
        //      modalPanel.Choice ("Would you like a poke in the eye?\nHow about with a sharp stick?", myYesAction, myNoAction, myCancelAction);
    }

    //  These are wrapped into UnityActions
    void TestYesFunction () {
        displayManager.DisplayMessage ("Heck yeah! Yup!");
    }

    void TestNoFunction () {
        displayManager.DisplayMessage ("No way, José!");
    }

    void TestCancelFunction () {
        displayManager.DisplayMessage ("I give up!");
    }
}

说说别的：

 Resolution & Device Independence

PlayerSettings ：

iPhone6 Plus:具备1920x1080分辨率

在一个比例下的分辨率通过 牟定的概念可以 打开适配，如16:9

明显在四个角落上的元素直接牟定在对应的脚上即可！

正中间就定在正中间。

上下左右就定在对应的上下左右。

但是屏幕变小时依然会出现很大的问题：



接下来要登场的是：Canvas Scaler 组件

这样，当屏幕大小发生变化后，UI不再是简单的牟定了，会随着变大变小。

Creating a Scene Selection Menu

场景更改后要切换声音：MonoBehaviour中的
void OnLevelWasLoaded(int level)
    {
        if (level == 2)
        {
            source.clip = level2Music;
            source.Play ();
        }
    }

异步加载场景：
using UnityEngine;
using System.Collections;
using UnityEngine.UI;

public class ClickToLoadAsync : MonoBehaviour {
    public Slider loadingBar;
    public GameObject loadingImage;
    private AsyncOperation async;
    public void ClickAsync(int level)
    {
        loadingImage.SetActive(true);
        StartCoroutine(LoadLevelWithBar(level));
    }
    IEnumerator LoadLevelWithBar (int level)
    {
        async = Application.LoadLevelAsync(level);
        while (!async.isDone)
        {
            loadingBar.value = async.progress;
            yield return null;
        }
    }
}
