spring源码分析之AOP开启注解
系列文章目录
文章目录
AOP开启注解
在使用注解@Aspect来进行AOP操作时，需要在xml中进行配置
<!-- 使@Aspect注解生效 -->
<aop:aspectj-autoproxy/>
创建BeanFactory时obtainFreshBeanFactory()在解析xml加载BeanDefinition中，执行parseBeanDefinitions方法进行解析发现其内有逻辑是
delegate.parseCustomElement(ele)
即进行自定义标签的解析，会去META-INF/spring.handlers中寻找对应的handler，该标签的namespace是 http://www.springframework.org/schema/aop，去spring.handlers中找到对应的记录
NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
http\://www.springframework.org/schema/aop=org.springframework.aop.config.AopNamespaceHandler
然后执行该handler中的init方法
NamespaceHandler namespaceHandler = (NamespaceHandler) BeanUtils.instantiateClass(handlerClass);
namespaceHandler.init();
即执行AopNamespaceHandler#init
AopNamespaceHandler#init
public void init() {
// In 2.0 XSD as well as in 2.5+ XSDs
registerBeanDefinitionParser("config", new ConfigBeanDefinitionParser());
registerBeanDefinitionParser("aspectj-autoproxy", new AspectJAutoProxyBeanDefinitionParser());
registerBeanDefinitionDecorator("scoped-proxy", new ScopedProxyBeanDefinitionDecorator());
// Only in 2.0 XSD: moved to context namespace in 2.5+
registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
}
这里可以看到aspectj-autoproxy，也就是说在配置文件中如果存在<aop:aspectj-autoproxy/>就会使用AspectJAutoProxyBeanDefinitionParser进行解析，调用parse方法
class AspectJAutoProxyBeanDefinitionParser implements BeanDefinitionParser {
@Override
public BeanDefinition parse(Element element, ParserContext parserContext) {
// 注册AnnotationAwareAspectJAutoProxyCreator
// AUTO_PROXY_CREATOR_BEAN_NAME ="org.springframework.aop.config.internalAutoProxyCreator"
// 如果标签中有"proxy-target-class"属性会进行下一步的解析
AopNamespaceUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(parserContext, element);
// 对于注解中子节点的处理
extendBeanDefinition(element, parserContext);
return null;
}
private void extendBeanDefinition(Element element, ParserContext parserContext) {
BeanDefinition beanDef =
parserContext.getRegistry().getBeanDefinition(AopConfigUtils.AUTO_PROXY_CREATOR_BEAN_NAME);
if (element.hasChildNodes()) {
addIncludePatterns(element, parserContext, beanDef);
}
}
private void addIncludePatterns(Element element, ParserContext parserContext, BeanDefinition beanDef) {
ManagedList<TypedStringValue> includePatterns = new ManagedList<TypedStringValue>();
NodeList childNodes = element.getChildNodes();
for (int i = 0; i < childNodes.getLength(); i++) {
Node node = childNodes.item(i);
if (node instanceof Element) {
Element includeElement = (Element) node;
TypedStringValue valueHolder = new TypedStringValue(includeElement.getAttribute("name"));
valueHolder.setSource(parserContext.extractSource(includeElement));
includePatterns.add(valueHolder);
}
}
if (!includePatterns.isEmpty()) {
includePatterns.setSource(parserContext.extractSource(element));
beanDef.getPropertyValues().add("includePatterns", includePatterns);
}
}
}

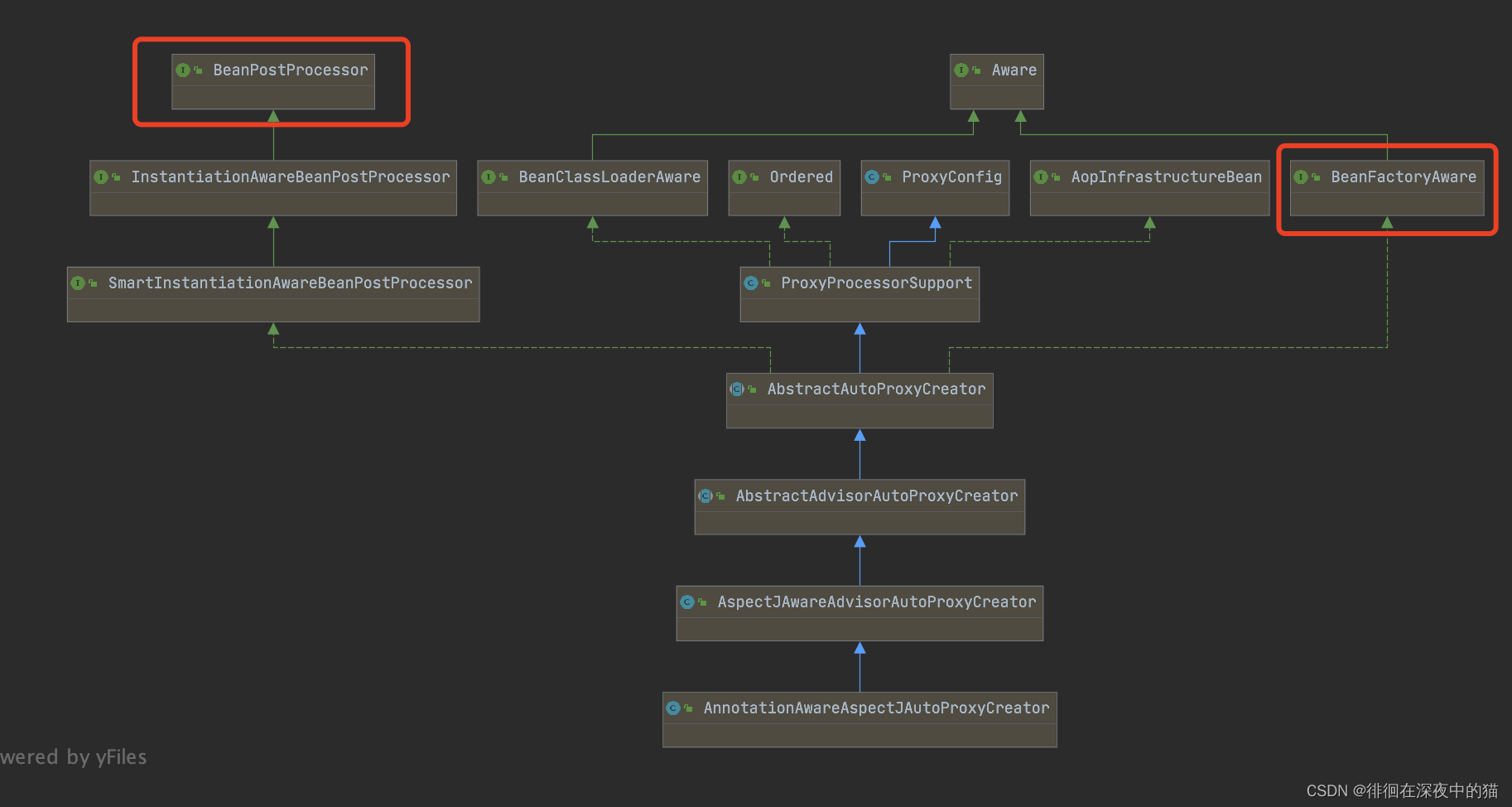

而在registerBeanPostProcessors(beanFactory)中会去进行注册BeanPostProcessor，在上面解析xml注册的AnnotationAwareAspectJAutoProxyCreator的结构还挺复杂，实现的重要的两个接口都标出来了，可以看到实现了BeanPostProcessor和BeanFactoryAware两个接口
在该registerBeanPostProcessors(beanFactory)方法中会找到beanFactory中所有BeanPostProcessor的类，然后获取到该类实例
String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);
// 注册AnnotationAwareAspectJAutoProxyCreator时的beanName为org.springframework.aop.config.internalAutoProxyCreator
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
在获取bean的时候会创建bean，但是不要忘了该类还实现了一个BeanFactoryAware接口，在创建bean之后会进行初始化，也就会执行org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#invokeAwareMethods方法
if (bean instanceof BeanFactoryAware) {
((BeanFactoryAware) bean).setBeanFactory(AbstractAutowireCapableBeanFactory.this);
}
这样就会执行AbstractAdvisorAutoProxyCreator#setBeanFactory，也没干什么事，就是给几个变量赋了个值
// org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#setBeanFactory
@Override
public void setBeanFactory(BeanFactory beanFactory) {
super.setBeanFactory(beanFactory);
if (!(beanFactory instanceof ConfigurableListableBeanFactory)) {
throw new IllegalArgumentException(
"AdvisorAutoProxyCreator requires a ConfigurableListableBeanFactory: " + beanFactory);
}
initBeanFactory((ConfigurableListableBeanFactory) beanFactory);
}
// org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator#initBeanFactory
protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
// advisorRetrievalHelper赋值 BeanFactoryAdvisorRetrievalHelperAdapter实例化
super.initBeanFactory(beanFactory);
if (this.aspectJAdvisorFactory == null) {
this.aspectJAdvisorFactory = new ReflectiveAspectJAdvisorFactory(beanFactory);
}
this.aspectJAdvisorsBuilder =
new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
}
由于实现了BeanPostProcessor接口，在进行实例化bean的前后会调用该类的postProcessBeforeInitialization和postProcessAfterInitialization
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) {
return bean;
}
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
if (bean != null) {
// 根据给定的bean的class和name生成一个key
Object cacheKey = getCacheKey(bean.getClass(), beanName);
if (this.earlyProxyReferences.remove(cacheKey) != bean) {
// 进行代理
return wrapIfNecessary(bean, beanName, cacheKey);
}
}
return bean;
}
wrapIfNecessary
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
// 已经处理过则无需处理
if (beanName != null && this.targetSourcedBeans.contains(beanName)) {
return bean;
}
// 无需进行增强
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
}
// 如果是继承自Advice、Pointcut、Advisor、AopInfrastructureBean的类，或者@Aspect注解标注的类不需要代理
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
// Create proxy if we have advice.
// 如果存在增强方法则创建代理
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
if (specificInterceptors != DO_NOT_PROXY) {
this.advisedBeans.put(cacheKey, Boolean.TRUE);
// 创建代理
Object proxy = createProxy(
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
getAdvicesAndAdvisorsForBean查找增强器
protected Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName, TargetSource targetSource) {
List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
if (advisors.isEmpty()) {
return DO_NOT_PROXY;
}
return advisors.toArray();
}
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
// 获取增强器
List<Advisor> candidateAdvisors = findCandidateAdvisors();
// 寻找匹配的增强器
List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
extendAdvisors(eligibleAdvisors);
if (!eligibleAdvisors.isEmpty()) {
eligibleAdvisors = sortAdvisors(eligibleAdvisors);
}
return eligibleAdvisors;
}
// org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator#findCandidateAdvisors
protected List<Advisor> findCandidateAdvisors() {
// Add all the Spring advisors found according to superclass rules.
// 这里处理的是xml方式的
List<Advisor> advisors = super.findCandidateAdvisors();
// Build Advisors for all AspectJ aspects in the bean factory.
// 解析@Aspect注解中的增强方法，进行解析
advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
return advisors;
}
createProxy创建代理
protected Object createProxy(
Class<?> beanClass, String beanName, Object[] specificInterceptors, TargetSource targetSource) {
if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
}
ProxyFactory proxyFactory = new ProxyFactory();
proxyFactory.copyFrom(this);
// 是接口需要代理还是类需要代理
if (!proxyFactory.isProxyTargetClass()) {
if (shouldProxyTargetClass(beanClass, beanName)) {
proxyFactory.setProxyTargetClass(true);
}
else {
evaluateProxyInterfaces(beanClass, proxyFactory);
}
}
Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
proxyFactory.addAdvisors(advisors);
// 设置需要代理的类
proxyFactory.setTargetSource(targetSource);
// 定制代理
customizeProxyFactory(proxyFactory);
proxyFactory.setFrozen(this.freezeProxy);
if (advisorsPreFiltered()) {
proxyFactory.setPreFiltered(true);
}
return proxyFactory.getProxy(getProxyClassLoader());
}
突然发现就创建个代理对象，spring考虑的是方方面面的，太强大了
