CoProcessFunction 练习一

package www.zcb.threeweek
import org.apache.flink.api.common.state.ValueStateDescriptor
import org.apache.flink.streaming.api.functions.co.CoProcessFunction
import org.apache.flink.streaming.api.scala._
import org.apache.flink.util.Collector

/*
* 构建Flink流式环境，正确读取订单数据和到账数据，构建2条流
2）使用支付编号作为连接键，连接2条流
3）通过主流输出订单和支付能够匹配上的数据
4）通过侧输出流输出有订单但未到账的数据
5）通过侧输出流输出有到账但订单数据缺失的数据
* */
case class Order(did:String,type1:String,zid:String,time1:Long)
case class Rec(zid:String,qudao:String,time2:Long)
object Test02 {
  def main(args: Array[String]): Unit = {
    val env: StreamExecutionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment
    env.setParallelism(1)
    val input1: DataStream[String] = env.readTextFile("data/weekthree/OrderLog.csv")
    val input2: DataStream[String] = env.readTextFile("data/weekthree/ReceiptLog.csv")
    val orderDs: DataStream[Order] = input1.filter(f => {
      f.split(",").length == 4 && f.split(",")(2) != ""
    }).map(m => {
      val s: Array[String] = m.split(",")
      Order(s(0), s(1), s(2), s(3).trim.toLong * 1000)
    })

    val recDs: DataStream[Rec] = input2.map(m => {
      val s: Array[String] = m.split(",")
      Rec(s(0), s(1), s(2).trim.toLong * 1000)
    })

    //指定订单编号 为时间  连接两条流
    val value2: DataStream[Order] = orderDs.assignAscendingTimestamps(_.time1)
    val value3: DataStream[Rec] = recDs.assignAscendingTimestamps(_.time2)
    val value: ConnectedStreams[Order, Rec] = value2.connect(value3)

    //对两条流相同的zid进行分组
    val value1: ConnectedStreams[Order, Rec] = value.keyBy("zid": String,"zid": String)

    val tag1 = new OutputTag[Order]("celiu1")
    val tag2 = new OutputTag[Rec]("celiu2")
    val value4: DataStream[String] = value1.process(new MyCo(tag1, tag2))
    value4.print("主流:")
    value4.getSideOutput(tag1).print("侧输出流输出有订单但未到账的数据:")
    value4.getSideOutput(tag2).print("侧输出流输出有到账但订单数据缺失的数据:")
    env.execute()
  }
}
//处理双流数据
class MyCo(t1:OutputTag[Order],t2:OutputTag[Rec]) extends CoProcessFunction[Order,Rec,String] {
  //创建两个状态
  lazy val order1=getRuntimeContext.getState(new ValueStateDescriptor[Order]("o",classOf[Order]))
  lazy val rec1=getRuntimeContext.getState(new ValueStateDescriptor[Rec]("r",classOf[Rec]))

  //处理Order事件
  override def processElement1(value: Order, ctx: CoProcessFunction[Order, Rec, String]#Context, out: Collector[String]): Unit = {
    //查看rec 是否先到 到了就合并输出
    if(rec1.value()!=null){
      out.collect("匹配成功"+value+"=="+rec1.value())
    }else{//没到 将值存储到状态值 创建计时器
      order1.update(value)
      ctx.timerService().registerEventTimeTimer(value.time1+15000)
    }
  }
  override def processElement2(value: Rec, ctx: CoProcessFunction[Order, Rec, String]#Context, out: Collector[String]): Unit = {
    if(order1.value()!=null){
      out.collect("匹配成功"+value+"=="+order1.value())
    }else{//没到 存储状态值 并给出等待时间 计时
      rec1.update(value)
      ctx.timerService().registerEventTimeTimer(value.time2+15000)
    }
  }

  //定时器
  override def onTimer(timestamp: Long, ctx: CoProcessFunction[Order, Rec, String]#OnTimerContext, out: Collector[String]): Unit = {
    //order1状态有 ，rec1 没有 侧流一
    if(order1.value()!=null){
      ctx.output(t1,order1.value())
    }
    //order1状态没有 ，rec1 有 侧流二
    if(rec1.value()!=null){
      ctx.output(t2,rec1.value())
    }

    //清空数据的操作
    rec1.clear()
    order1.clear()
  }
}

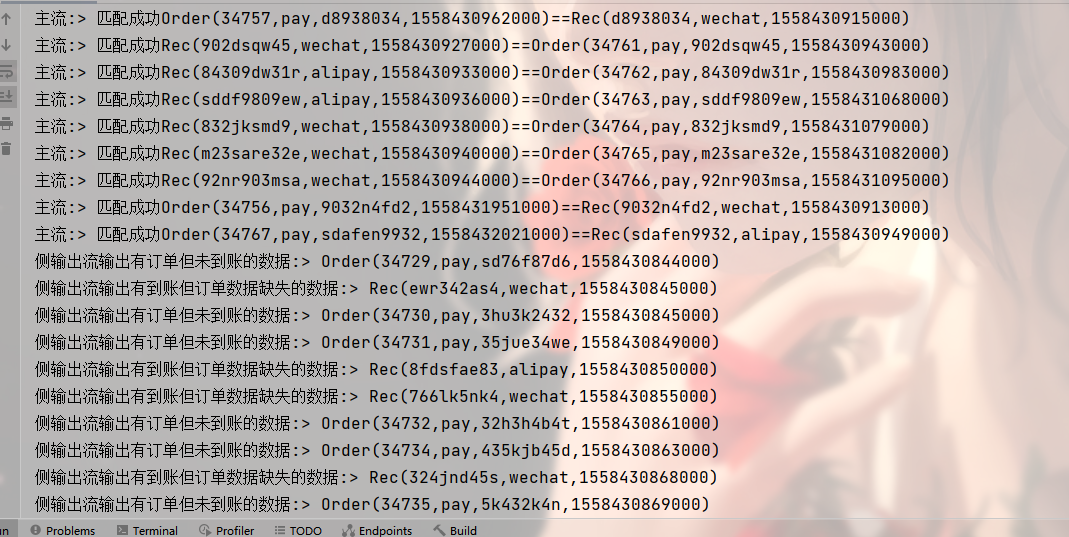

效果：
