Windows编程之非模态对话框
1 创建非模态对话框
<1> HWNDCreateDialog( HINSTANCE hInstance, // handle to module
LPCTSTRlpTemplate, // dialog box template name
HWNDhWndParent, // handle to owner window
DLGPROClpDialogFunc // dialog box procedure);
<2> HWND CreateDialogIndirect( HINSTANCE hInstance, // handle to module
LPCDLGTEMPLATE lpTemplate, //dialog box template
HWND hWndParent, // handle to owner window
DLGPROC lpDialogFunc //dialog box procedure);
<3> HWND CreateDialogIndirectParam( HINSTANCE hInstance, // handle to module
LPCDLGTEMPLATE lpTemplate, // dialog box template
HWND hWndParent, // handle to owner window
DLGPROC lpDialogFunc, // dialog box procedure
LPARAM lParamInit // initialization value);
<4> HWND CreateDialogParam( HINSTANCE hInstance, // handle to module
LPCTSTR lpTemplateName, //dialog box template
HWND hWndParent, // handle to owner window
DLGPROC lpDialogFunc, //dialog box procedure
LPARAM dwInitParam //initialization value);
參数跟非模态对话框一致。CreateDialogParam会调用CreateWindowExe去创建一个窗体,所以这种对话框事实上就是窗体。当然单独一个对话框能够没有父窗体直接单独存在。
2 含有父窗体的对话框程序
3 自己定义窗体类(无父窗体)的对话框程序
<1>在脚本中指定对话框的类型以及各种控件假定脚本名称为new.dlg
<2>然后在rc文件里加入脚本
<3>在WinMain函数注冊窗体类
注意这里的CreateDialog的最后一个參数DLGPROC为NULL,由于在窗体类中指定了窗体过程函数。
int WINAPI WinMain (HINSTANCE hInstance, HINSTANCEhPrevInstance,PSTR szCmdLine, intiCmdShow) { staticTCHAR szAppName[] = TEXT ("HexCalc"); HWND hwnd ; MSG msg ; WNDCLASS wndclass ; wndclass.style = CS_HREDRAW | CS_VREDRAW ; wndclass.lpfnWndProc = WndProc ; wndclass.cbClsExtra = 0 ; wndclass.cbWndExtra = DLGWINDOWEXTRA ; // note here wndclass.hInstance = hInstance ; wndclass.hIcon = LoadIcon (NULL, IDI_APPLICATION) ; wndclass.hCursor = LoadCursor (NULL, IDC_ARROW) ; wndclass.hbrBackground = (HBRUSH) GetStockObject (WHITE_BRUSH) ; wndclass.lpszMenuName = NULL ; wndclass.lpszClassName =szAppName ; if(!RegisterClass (&wndclass)) { MessageBox ( NULL, TEXT ("Thisprogram requires Windows NT!"), szAppName, MB_ICONERROR) ; return0 ; } hwnd =CreateDialog(hInstance,szAppName,NULL,NULL); //note here ShowWindow (hwnd, iCmdShow) ; UpdateWindow (hwnd) ; while(GetMessage (&msg, NULL, 0, 0)) { TranslateMessage (&msg) ; DispatchMessage (&msg) ; } returnmsg.wParam ; }生成的窗体程序程序如图所看到的:
12 从资源载入(无父窗体)的对话框程序
LRESULT CALLBACKWndProc(HWND,UINT,WPARAM,LPARAM) ; int WINAPI WinMain (HINSTANCE hInstance, HINSTANCEhPrevInstance,PSTR szCmdLine, intiCmdShow) { HWND hwnd ; MSG msg ; //hwnd =CreateDialog(hInstance,MAKEINTRESOURCE(IDD_DIALOG1),NULL,(DLGPROC)WndProc); hwnd =CreateDialogParam(hInstance,MAKEINTRESOURCE(IDD_DIALOG1),NULL,(DLGPROC)WndProc,NULL); ShowWindow (hwnd, iCmdShow) ; UpdateWindow (hwnd) ; while(GetMessage (&msg, NULL, 0, 0)) { TranslateMessage (&msg) ; DispatchMessage (&msg) ; } returnmsg.wParam ; }能够看到这里没有窗体的设计,窗体的注冊,由于这样的从资源载入的对话框的窗体类是已经定义的,就像那种PushButton一样。都是定义好的窗体的类,因而不须要注冊。

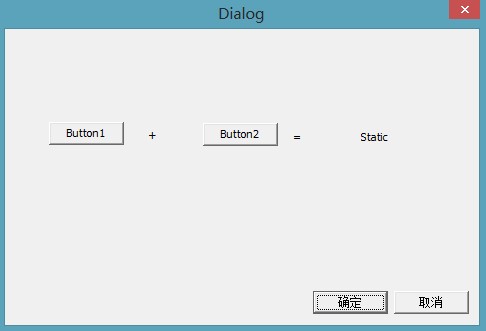

生成的单独对话框程序例如以下图所看到的:
以上程序的下载地址:下载
