NGFW-虚拟系统与站点建立IPSec

一，环境简介

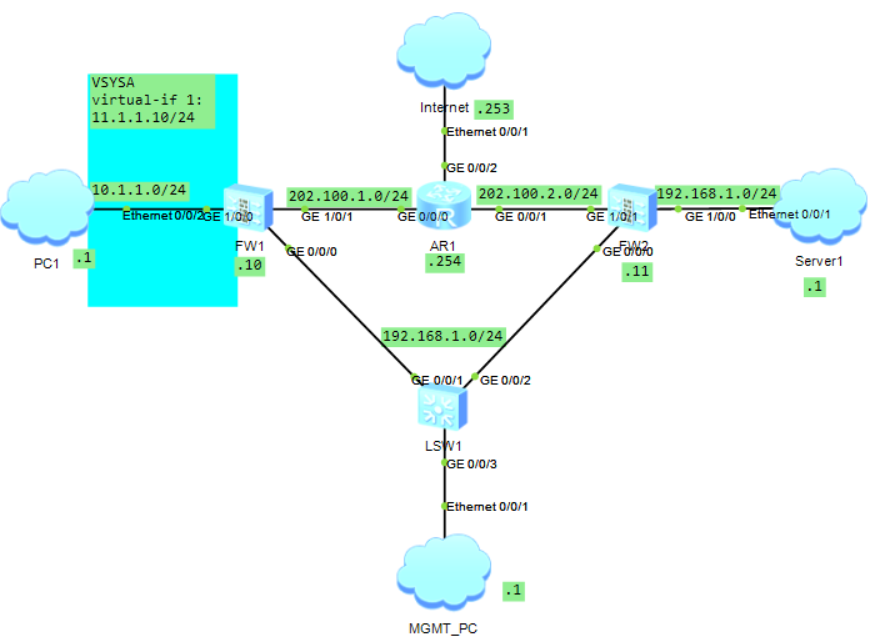

1.1拓扑图

1.2桥接虚拟网卡

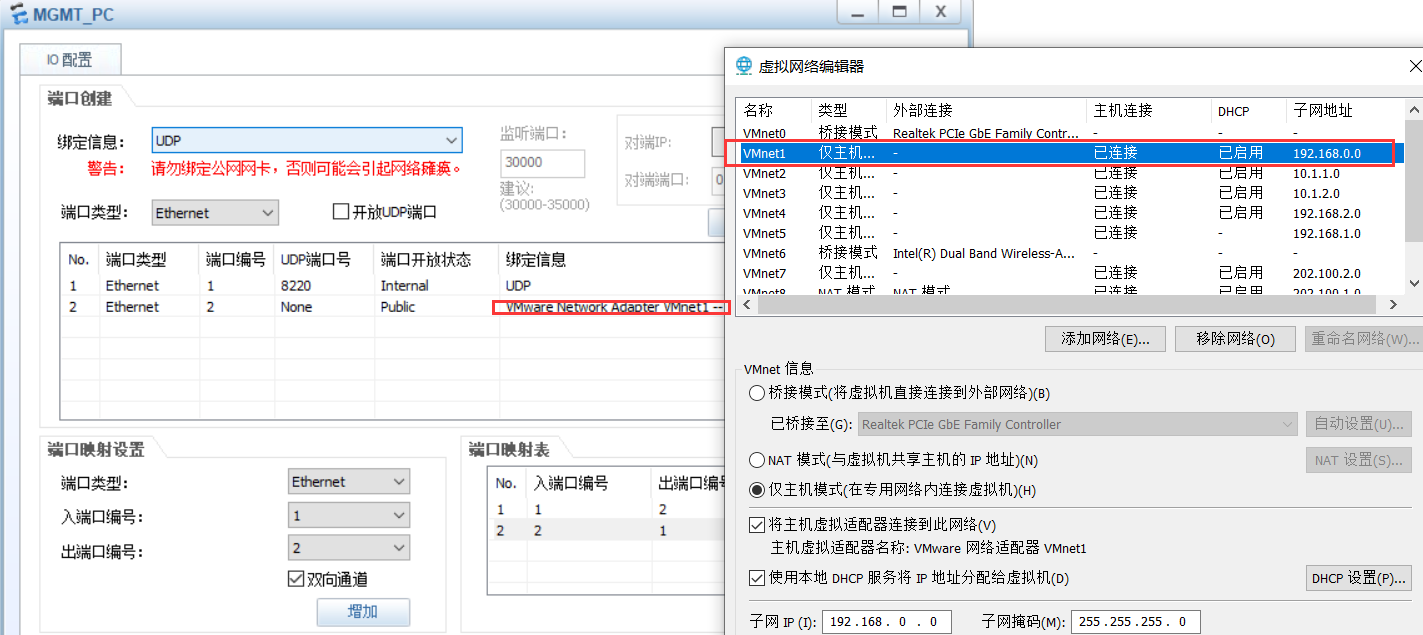

1.MGMT_PC

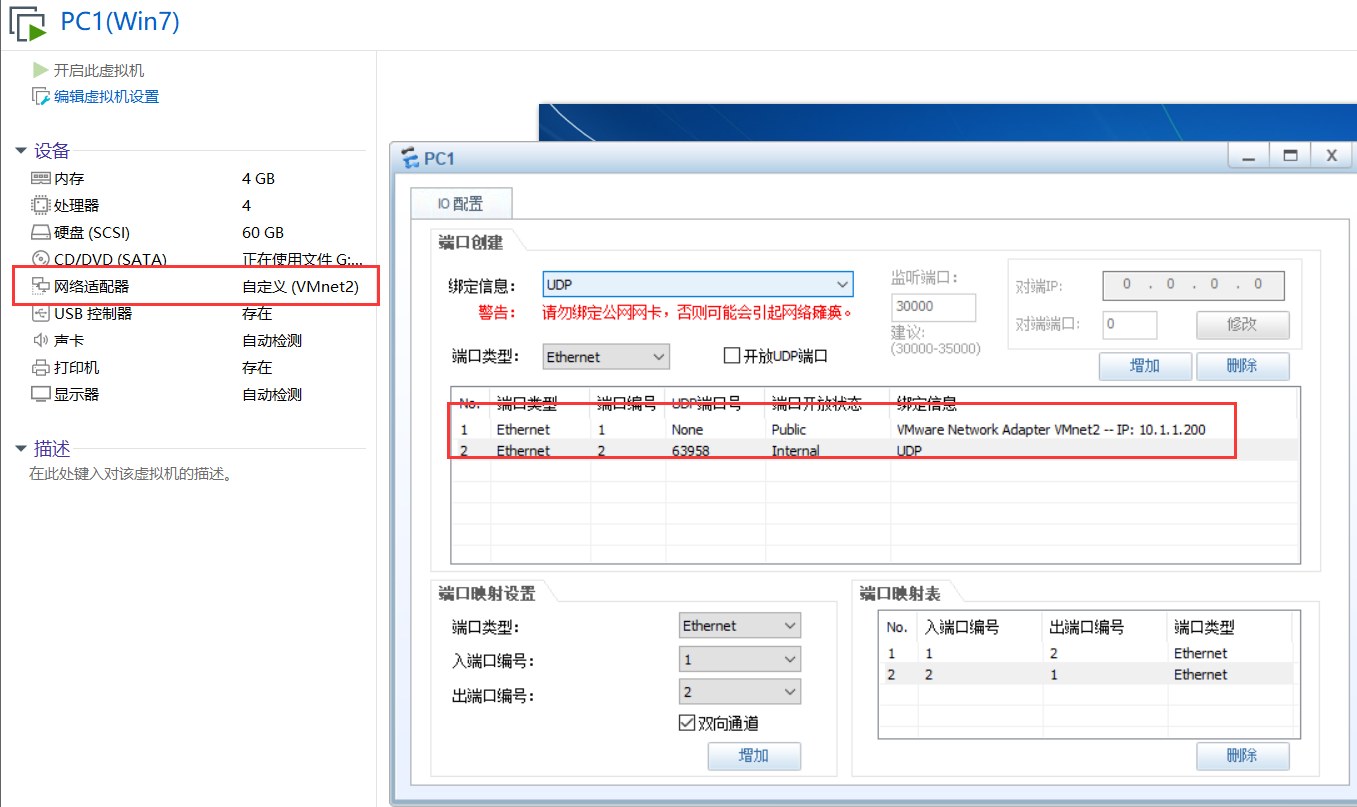

2.PC1

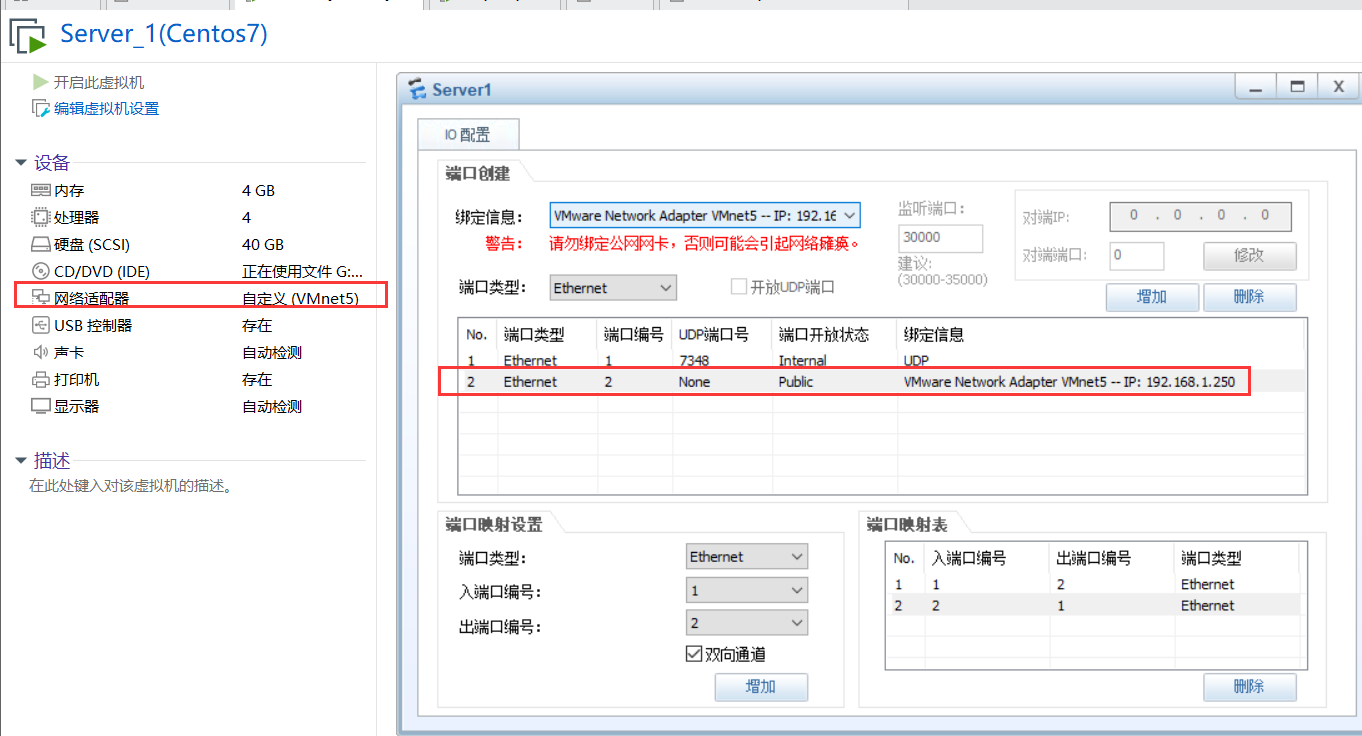

3.Server1

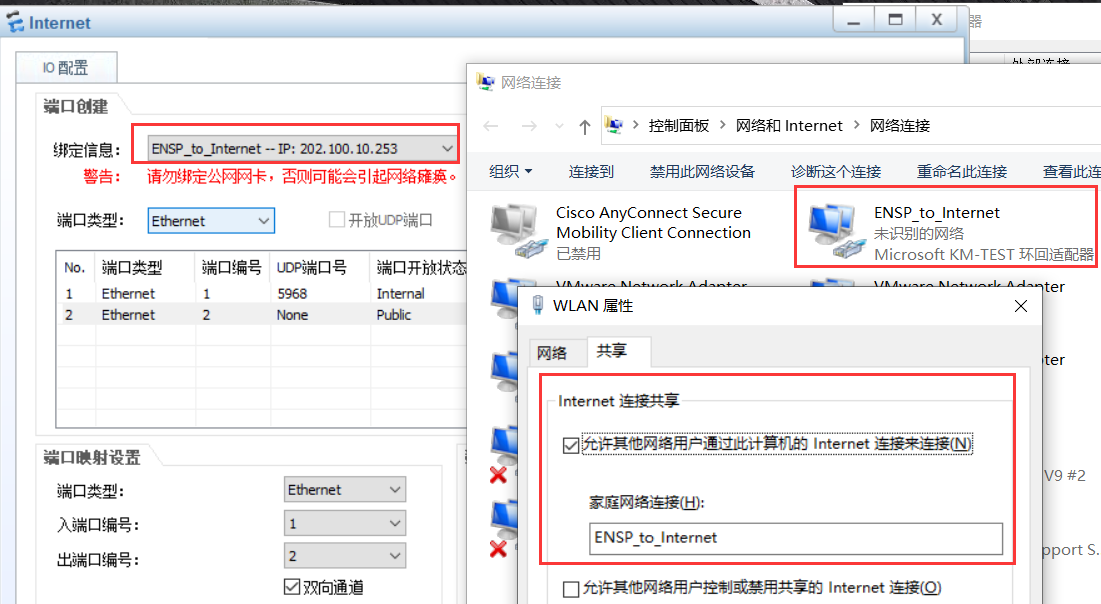

4.Internet

1.3实验需求

　　在FW1上配置虚拟系统，并为虚拟系统分配物理接口。物理接口连接虚拟系统的内网PC。在虚拟系统中配置与FW建立IPSec VPN。实验分为两种场景，一种是对端IP固定的且可以在公网种寻址的，第二种是虚拟系统一方是不固定并且在与FW2的链路中是穿越NAT的(做的时候建立失败，后续更新）。

二，固定地址的实验配置

2.1基础配置

2.1.1AR1

[AR1]interface  GigabitEthernet  0/0/0
[AR1-GigabitEthernet0/0/0]ip address 202.100.1.254 24
[AR1-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[AR1-GigabitEthernet0/0/1]ip address 202.100.2.254 24
[AR1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[AR1-GigabitEthernet0/0/2]ip address 202.100.10.254 24
[AR1]ip route-static 0.0.0.0 0 202.100.10.253
[AR1]ip route-static  202.100.3.13 32 202.100.1.10

2.1.2 FW1（根系统）

1.创建虚拟系统并分配资源（本人没有实战和项目经验，对于分配资源的数值没有感觉）

[FW1]vsys enable
[FW1]resource-class vsysa
[FW1-resource-class-vsysa]resource-item-limit session reserved-number  500 maximum  600
[FW1-resource-class-vsysa]resource-item-limit policy  reserved-number  100
[FW1-resource-class-vsysa]resource-item-limit bandwidth  1 inbound
[FW1-resource-class-vsysa]resource-item-limit bandwidth  1 outbound
[FW1-resource-class-vsysa]vsys name VSYSA 1
[FW1-vsys-VSYSA]assign  interface  GigabitEthernet  1/0/0
[FW1-vsys-VSYSA]assign  resource-class  vsysa

2.配置IP地址及安全区域

[FW1]interface  GigabitEthernet  1/0/1
[FW1-GigabitEthernet1/0/1]ip address 202.100.1.10 24
[FW1-GigabitEthernet1/0/1]service-manage ping  permit
[FW1]firewall zone trust
[FW1-zone-trust]add interface virtual-if 0
[FW1-zone-trust]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet 1/0/1
[FW1-zone-untrust]ip route-static 0.0.0.0 0 202.100.1.254
[FW1]ip route-static 202.100.3.13 32 vpn-instance  VSYSA

3.配置安全策略需要调用的对象

[FW1]ip service-set ISAKMP type  object
[FW1-object-service-set-ISAKMP]service  protocol  udp  source-port  500 destination-port 500
[FW1-object-service-set-ISAKMP]ip address-set ipsec type object
[FW1-object-address-set-ipsec]address  202.100.2.11 mask 32
[FW1-object-address-set-ipsec]address 202.100.3.13 mask 32

4.配置安全策略放行虚拟系统的流量

[FW1]security-policy
[FW1-policy-security]rule name ipsec
[FW1-policy-security-rule-ipsec]rule name ipsec
[FW1-policy-security-rule-ipsec]source-zone trust untrust
[FW1-policy-security-rule-ipsec]destination-zone untrust trust
[FW1-policy-security-rule-ipsec]source-address address-set  ipsec
[FW1-policy-security-rule-ipsec]destination-address address-set ipsec
[FW1-policy-security-rule-ipsec]service ISAKMP esp
[FW1-policy-security-rule-ipsec]action  permit

2.1.2 FW2

1.IP，安全区域及静态路由

[FW2]interface  GigabitEthernet  1/0/0
[FW2-GigabitEthernet1/0/0]ip address 192.168.1.11 24
[FW2-GigabitEthernet1/0/0]service-manage  ping  permit
[FW2-GigabitEthernet1/0/0]interface  GigabitEthernet  1/0/1
[FW2-GigabitEthernet1/0/1]ip address 202.100.2.11 24
[FW2-GigabitEthernet1/0/1]service-manage  ping permit
[FW2]firewall zone trust
[FW2-zone-trust]add  interface GigabitEthernet  1/0/0
[FW2-zone-trust]firewall zone untrust
[FW2-zone-untrust]add  interface GigabitEthernet  1/0/1
[FW2]ip route-static 0.0.0.0 0 202.100.2.254

2.安全策略需要调用的对象

[FW2]ip service-set  ISAKMP type  object
[FW2-object-service-set-ISAKMP]service 0 protocol udp source-port 500 destination-port 500
[FW2-object-service-set-ISAKMP]ip address-set ipsec type object
[FW2-object-address-set-ipsec]address 202.100.3.13 mask 32
[FW2-object-address-set-ipsec]address 202.100.2.11 mask 32
[FW2-object-address-set-ipsec]ip address-set vpn_pc type object
[FW2-object-address-set-vpn_pc]address 10.1.1.0 mask 24
[FW2-object-address-set-vpn_pc]address 192.168.1.0 mask 24

3.安全策略

[FW2]security-policy
[FW2-policy-security]rule name ipsec
[FW2-policy-security-rule-ipsec]source-zone  local  untrust
[FW2-policy-security-rule-ipsec]destination-zone local  untrust
[FW2-policy-security-rule-ipsec]source-address address-set  ipsec
[FW2-policy-security-rule-ipsec]destination-address address-set  ipsec
[FW2-policy-security-rule-ipsec]service ISAKMP  esp
[FW2-policy-security-rule-ipsec]action permit
[FW2-policy-security]rule name vpn_pc
[FW2-policy-security-rule-vpn_pc]source-zone trust untrust
[FW2-policy-security-rule-vpn_pc]destination-zone untrust  trust
[FW2-policy-security-rule-vpn_pc]source-address address-set  vpn_pc
[FW2-policy-security-rule-vpn_pc]destination-address address-set  vpn_pc
[FW2-policy-security-rule-vpn_pc]action  permit

2.2虚拟系统配置

2.2.1配置IP，安全区域和静态路由

[FW1-VSYSA]interface GigabitEthernet  1/0/0
[FW1-VSYSA-GigabitEthernet1/0/0]ip address 10.1.1.10 24
[FW1-VSYSA-GigabitEthernet1/0/0]service-manage ping  permit
[FW1-VSYSA]interface  Virtual-if 1
[FW1-VSYSA-Virtual-if1]ip address 202.100.3.13 24
[FW1-VSYSA]firewall  zone  trust
[FW1-VSYSA-zone-trust]add  interface GigabitEthernet  1/0/0
[FW1-VSYSA-zone-trust]firewall zone untrust
[FW1-VSYSA-zone-untrust]add interface  Virtual-if  1
[FW1-VSYSA-zone-untrust]ip route-static 0.0.0.0 0 public

2.2.2配置安全策略需要调用的对象

[FW1-VSYSA]ip service-set  ISAKMP type  object
[FW1-VSYSA-object-service-set-ISAKMP]service  protocol udp source-port 500 destination-port 500
[FW1-VSYSA-object-service-set-ISAKMP]ip address-set ipsec type object
[FW1-VSYSA-object-address-set-ipsec]address 202.100.3.13 mask 32
[FW1-VSYSA-object-address-set-ipsec]address 202.100.2.11 mask 32
[FW1-VSYSA-object-address-set-ipsec]ip address-set vpn_pc type object
[FW1-VSYSA-object-address-set-vpn_pc]address 10.1.1.0 mask 24
[FW1-VSYSA-object-address-set-vpn_pc]address 192.168.1.0 mask 24

2.2.3配置安全策略放行IPSec协商及加密流量内的通信

[FW1-VSYSA]security-policy
[FW1-VSYSA-policy-security]rule name ipsec
[FW1-VSYSA-policy-security-rule-ipsec]source-zone local  untrust
[FW1-VSYSA-policy-security-rule-ipsec]destination-zone local  untrust
[FW1-VSYSA-policy-security-rule-ipsec]source-address address-set  ipsec
[FW1-VSYSA-policy-security-rule-ipsec]destination-address address-set  ipsec
[FW1-VSYSA-policy-security-rule-ipsec]service ISAKMP  esp
[FW1-VSYSA-policy-security-rule-ipsec]action permit
[FW1-VSYSA-policy-security]rule name vpn_pc
[FW1-VSYSA-policy-security-rule-vpn_pc]source-zone trust untrust
[FW1-VSYSA-policy-security-rule-vpn_pc]destination-zone trust untrust
[FW1-VSYSA-policy-security-rule-vpn_pc]source-address address-set vpn_pc
[FW1-VSYSA-policy-security-rule-vpn_pc]destination-address address-set vpn_pc
[FW1-VSYSA-policy-security-rule-vpn_pc]action permit

2.3IPSec配置

2.3.1VSYSA

[FW1-VSYSA]ike proposal  1
[FW1-VSYSA-ike-proposal-1]dis this
2022-10-26 02:54:00.070
#
ike proposal 1
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
return
[FW1-VSYSA]ike peer fw2
[FW1-VSYSA-ike-peer-fw2]pre-shared-key  Huawei@123
[FW1-VSYSA-ike-peer-fw2]ike-proposal 1
[FW1-VSYSA-ike-peer-fw2]undo version 2
[FW1-VSYSA-ike-peer-fw2]remote-address 202.100.2.11
[FW1-VSYSA-ike-peer-fw2]acl number 3000
[FW1-VSYSA-acl-adv-3000]rule permit ip source 10.1.1.0 0.0.0.255 destination 192.168.1.0 0.0.0.255
[FW1-VSYSA-ipsec-proposal-1]dis this
2022-10-26 02:55:35.200
#
ipsec proposal 1
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
return
[FW1-VSYSA-ipsec-proposal-1]ipsec policy ipsec1 1 isakmp
[FW1-VSYSA-ipsec-policy-isakmp-ipsec1-1]security  acl  3000
[FW1-VSYSA-ipsec-policy-isakmp-ipsec1-1]ike-peer  fw2
[FW1-VSYSA-ipsec-policy-isakmp-ipsec1-1]proposal  1
[FW1-VSYSA-Virtual-if1]ipsec policy ipsec1

2.3.1FW2

[FW2]ike proposal  1
[FW2-ike-proposal-1]dis this
2022-10-26 03:01:03.210
#
ike proposal 1
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
return
[FW2-ike-proposal-1]ike peer fw1
[FW2-ike-peer-fw1]remote-address 202.100.3.13
[FW2-ike-peer-fw1]undo version 2
[FW2-ike-peer-fw1]pre-shared-key  Huawei@123
[FW2-ike-peer-fw1]ike-proposal 1
[FW2-ike-peer-fw1]acl number 3000
[FW2-acl-adv-3000]rule permit ip source 192.168.1.0 0.0.0.255 destination  10.1.1.0 0.0.0.255
[FW2]ipsec  proposal 1
[FW2-ipsec-proposal-1]dis this
2022-10-26 03:03:10.360
#
ipsec proposal 1
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
return
[FW2-ipsec-proposal-1]ipsec policy ipsec1 1 isakmp
[FW2-ipsec-policy-isakmp-ipsec1-1]security  acl  3000
[FW2-ipsec-policy-isakmp-ipsec1-1]ike-peer fw1
[FW2-ipsec-policy-isakmp-ipsec1-1]ike-peer fw1
[FW2]interface  GigabitEthernet  1/0/1
[FW2-GigabitEthernet1/0/1]ipsec policy  ipsec1

2.4测试现象

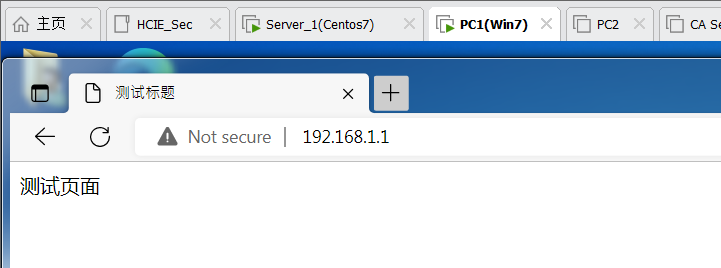

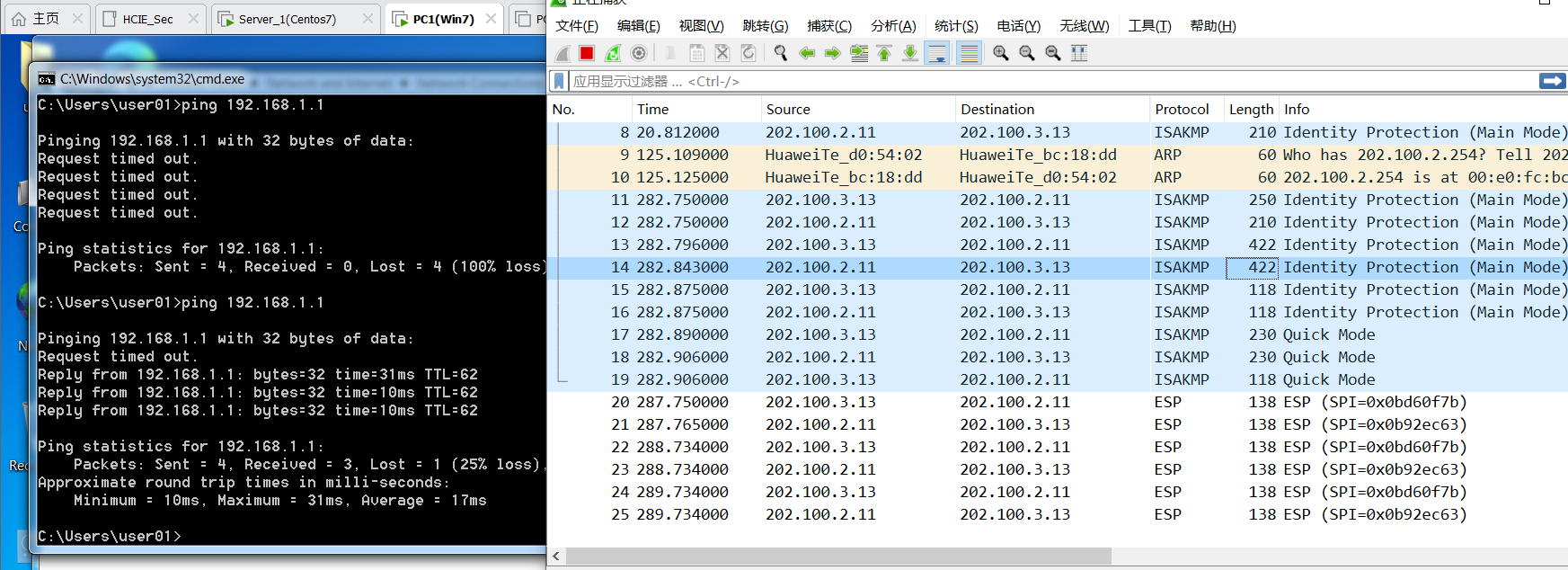

1.使用PC1与Server1通信并抓包发现完成了IPSec的通信

2.查看IKE SA，确实是由VSYSA发起的

[FW1-VSYSA]display  ike sa
2022-10-26 03:14:09.510

IKE SA information :
 Conn-ID    Peer                                          VPN              Flag(s)               Phase  RemoteType  RemoteID
------------------------------------------------------------------------------------------------------------------------------------
 3          202.100.2.11:500                              -                RD|ST|A               v1:2   IP          202.100.2.11
 2          202.100.2.11:500                              -                RD|ST|A               v1:1   IP          202.100.2.11

  Number of IKE SA : 2
------------------------------------------------------------------------------------------------------------------------------------

 Flag Description:
 RD--READY   ST--STAYALIVE   RL--REPLACED   FD--FADING   TO--TIMEOUT
 HRT--HEARTBEAT   LKG--LAST KNOWN GOOD SEQ NO.   BCK--BACKED UP
 M--ACTIVE   S--STANDBY   A--ALONE  NEG--NEGOTIATING

3.查看IPSec加密解封装，也确实是三个包

[FW1-VSYSA]display  ipsec statistics
2022-10-26 03:14:56.180
 IPSec statistics information:
 Number of IPSec tunnels: 1
 Number of standby IPSec tunnels: 0
 the security packet statistics:
   input/output security packets: 3/3
   input/output security bytes: 180/180
   input/output dropped security packets: 0/0
   the encrypt packet statistics:
     send chip: 3, recv chip: 3, send err: 0
     local cpu: 3, other cpu: 0, recv other cpu: 0
     intact packet: 3, first slice: 0, after slice: 0
   the decrypt packet statistics:
     send chip: 3, recv chip: 3, send err: 0
     local cpu: 3, other cpu: 0, recv other cpu: 0
     reass  first slice: 0, after slice: 0

4.查看IPSec sa，可以看见IPSec的配置，NAT穿越并未置一。

[FW1-VSYSA]dis ipsec sa
2022-10-26 03:15:45.160

ipsec sa information:

===============================
Interface: Virtual-if1
===============================

  -----------------------------
  IPSec policy name: "ipsec1"
  Sequence number  : 1
  Acl group        : 3000
  Acl rule         : 5
  Mode             : ISAKMP
  -----------------------------
    Connection ID     : 3
    Encapsulation mode: Tunnel
    Holding time      : 0d 0h 5m 11s
    Tunnel local      : 202.100.3.13:500
    Tunnel remote     : 202.100.2.11:500
    Flow source       : 10.1.1.0/255.255.255.0 0/0-65535
    Flow destination  : 192.168.1.0/255.255.255.0 0/0-65535

    [Outbound ESP SAs]
      SPI: 198578043 (0xbd60f7b)
      Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128
      SA remaining key duration (kilobytes/sec): 10485760/3289
      Max sent sequence-number: 4
      UDP encapsulation used for NAT traversal: N
      SA encrypted packets (number/bytes): 3/180

    [Inbound ESP SAs]
      SPI: 194178147 (0xb92ec63)
      Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128
      SA remaining key duration (kilobytes/sec): 10485760/3289
      Max received sequence-number: 1
      UDP encapsulation used for NAT traversal: N
      SA decrypted packets (number/bytes): 3/180
      Anti-replay : Enable
      Anti-replay window size: 1024

5.查看会话表

VSYSA：

[FW1-VSYSA]display  firewall session  table  verbose
2022-10-26 03:17:11.200
 Current Total Sessions : 3
 icmp  VPN: VSYSA --> public  ID: c387f05d761c998a4b6358a6b4
 Zone: trust --> untrust  TTL: 00:00:20  Left: 00:00:17
 Recv Interface: GigabitEthernet1/0/0
 Interface: Virtual-if1  NextHop: 0.0.0.0  MAC: 0000-0000-0000
 <--packets: 0 bytes: 0 --> packets: 1 bytes: 60
 10.1.1.1:1 --> 192.168.1.1:2048 PolicyName: vpn_pc

 esp  VPN: VSYSA --> VSYSA  ID: c487f05d761c63815d06358a52d
 Zone: untrust --> local  TTL: 00:10:00  Left: 00:03:30
 Recv Interface: Virtual-if1
 Interface: InLoopBack0  NextHop: 127.0.0.1  MAC: 0000-0000-0000
 <--packets: 0 bytes: 0 --> packets: 3 bytes: 372
 202.100.2.11:0 --> 202.100.3.13:0 PolicyName: ipsec

 udp  VPN: VSYSA --> VSYSA  ID: c487f05d761c8c020386358a6af
 Zone: untrust --> local  TTL: 00:02:00  Left: 00:01:57
 Recv Interface: Virtual-if1
 Interface: InLoopBack0  NextHop: 127.0.0.1  MAC: 0000-0000-0000
 <--packets: 5 bytes: 1,068 --> packets: 6 bytes: 1,164
 202.100.2.11:500 --> 202.100.3.13:500 PolicyName: ipsec

FW1根系统：

[FW1]display  firewall session  table  verbose
2022-10-26 03:18:07.460
 Current Total Sessions : 2
 udp  VPN: public --> VSYSA  ID: c387f05d761c7e8df26358a6af
 Zone: untrust --> trust  TTL: 00:02:00  Left: 00:01:01
 Recv Interface: GigabitEthernet1/0/1
 Interface: Virtual-if0  NextHop: 0.0.0.0  MAC: 0000-0000-0000
 <--packets: 5 bytes: 1,068 --> packets: 6 bytes: 1,164
 202.100.2.11:500 --> 202.100.3.13:500 PolicyName: ipsec

 esp  VPN: public --> VSYSA  ID: c487f05d761c56022dd6358a52d
 Zone: untrust --> trust  TTL: 00:10:00  Left: 00:09:08
 Recv Interface: GigabitEthernet1/0/1
 Interface: Virtual-if0  NextHop: 0.0.0.0  MAC: 0000-0000-0000
 <--packets: 0 bytes: 0 --> packets: 6 bytes: 744
 202.100.2.11:0 --> 202.100.3.13:0 PolicyName: ipsec

6，经过隧道加密，PC1同样可以访问http服务

posted @ 2022-10-26 12:23 L_F_A_L 阅读(158) 评论(0) 编辑收藏举报

刷新页面返回顶部

登录后才能查看或发表评论，立即登录或者逛逛博客园首页

相关博文：

· NGFW-IPSec的高可用性

· HCIP-security-IPSec虚拟专用网络主备链路1

· HUAWEI-防火墙USG6000 与 Windows2008 R2配置IPSec（防火墙篇）

· 某高校-网络安全实战综合案例

· Linux 虚拟网络 IPSec

阅读排行：
· winform 绘制太阳，地球，月球运作规律
· 超详细：普通电脑也行Windows部署deepseek R1训练数据并当服务器共享给他人
· TypeScript + Deepseek 打造卜卦网站：技术与玄学的结合
· AI 智能体引爆开源社区「GitHub 热点速览」
· 写一个简单的SQL生成工具

公告

昵称： L_F_A_L
园龄： 3年1个月
粉丝： 6
关注： 3

+加关注

2025年3月

日

一

二

三

四

五

六

L_F_A_L
