OpenStack Redhat命令行操作

命令行删除

环境变量

OpenStack的九个组件必须熟记，命令不需要死记硬背，我们可以通过help来查询相关的命令和参数。

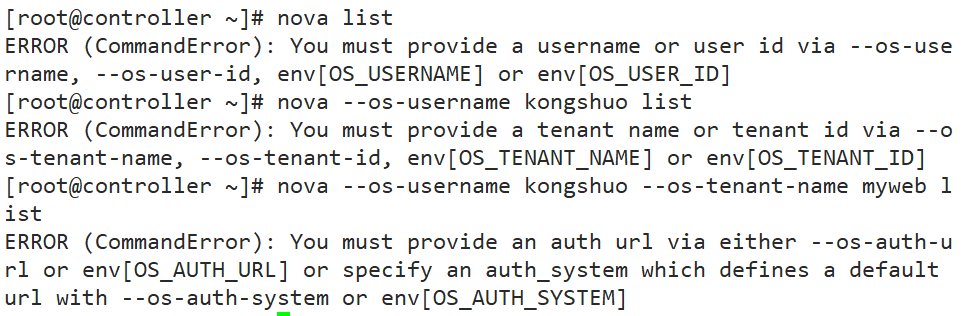

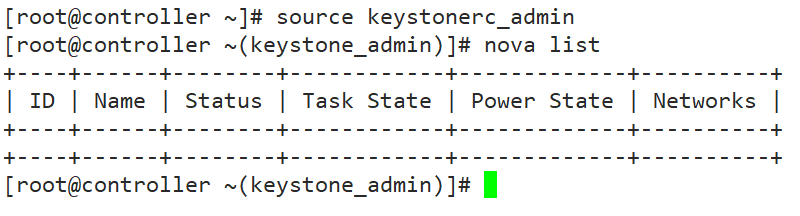

如果你直接使用命令来查询或者做其他操作，那么会涉及到环境变量，操作起来非常麻烦，比如：

所以需要提前加载好环境变量，而默认情况下创建好OP，会自动生成一个admin的环境变量文件：

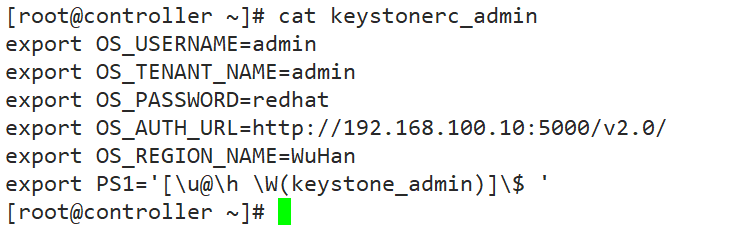

文件内容：

那这个文件是如何生成的？

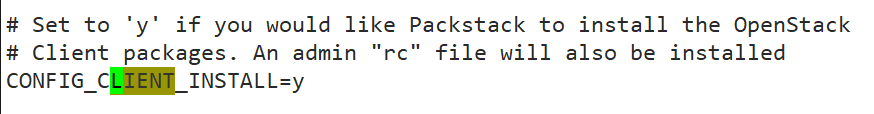

在应答文件中cloudcs.txt

如果你的环境没有这个文件，怎么办？
可以进行手工创建，也可以从其他地方拷贝一份。
现在有了admin的环境变量文件，我们就可以进行加载环境变量，让它变为admin的用户变量。

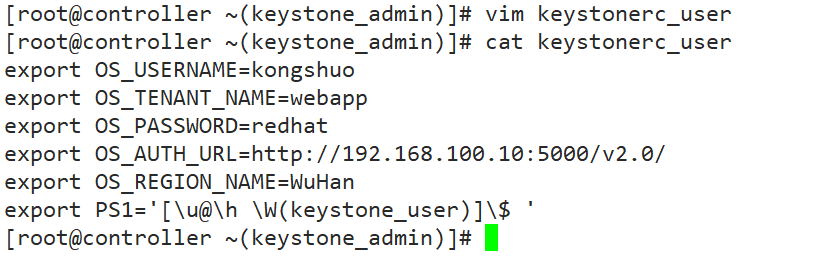

但是没有普通用户的环境变量，可以拷贝一份，然后进行修改

之后，就可以通过两个环境变量文件，快速切换。

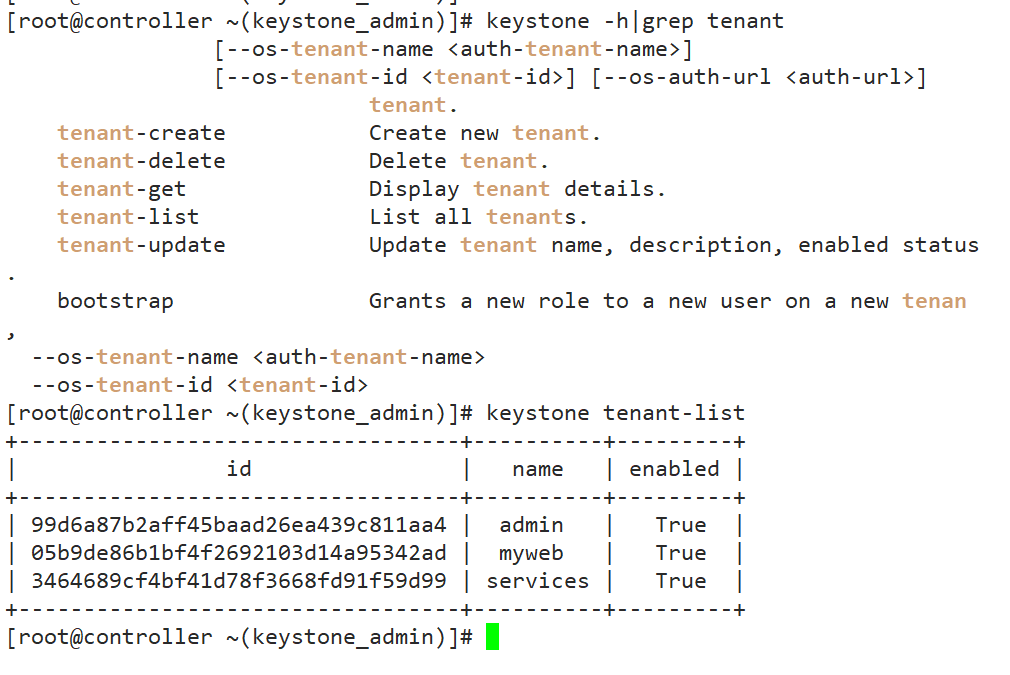

查询租户信息(admin)

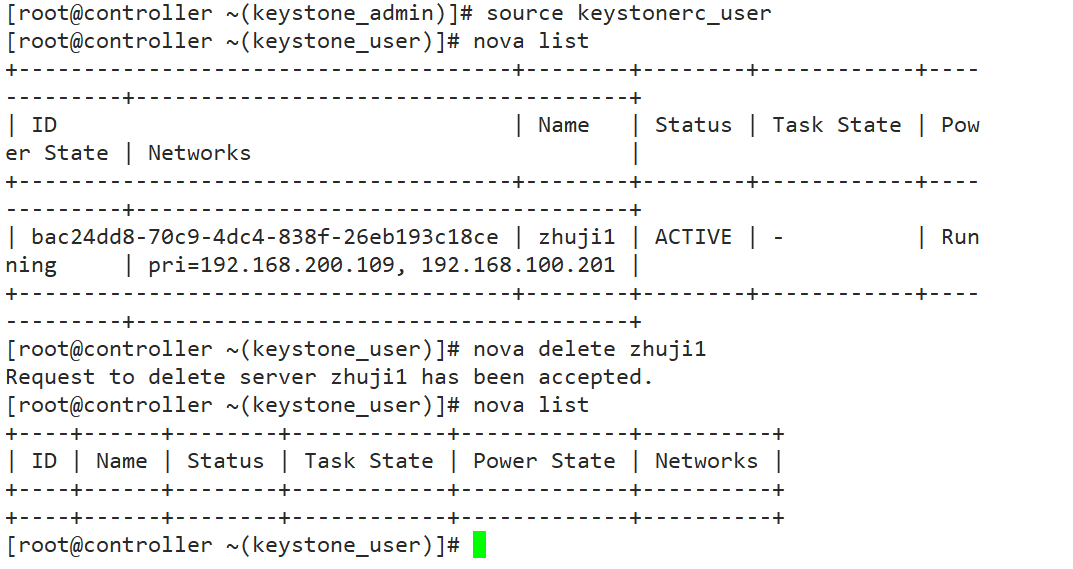

删除实例云主机(nova)

因为主机实例是在普通用户下创建的，所有切换普通用户

[root@controller ~(keystone_admin)]# source keystonerc_user
[root@controller ~(keystone_user)]# nova list
[root@controller ~(keystone_user)]# nova delete zhuji1

删除云硬盘(cinder)

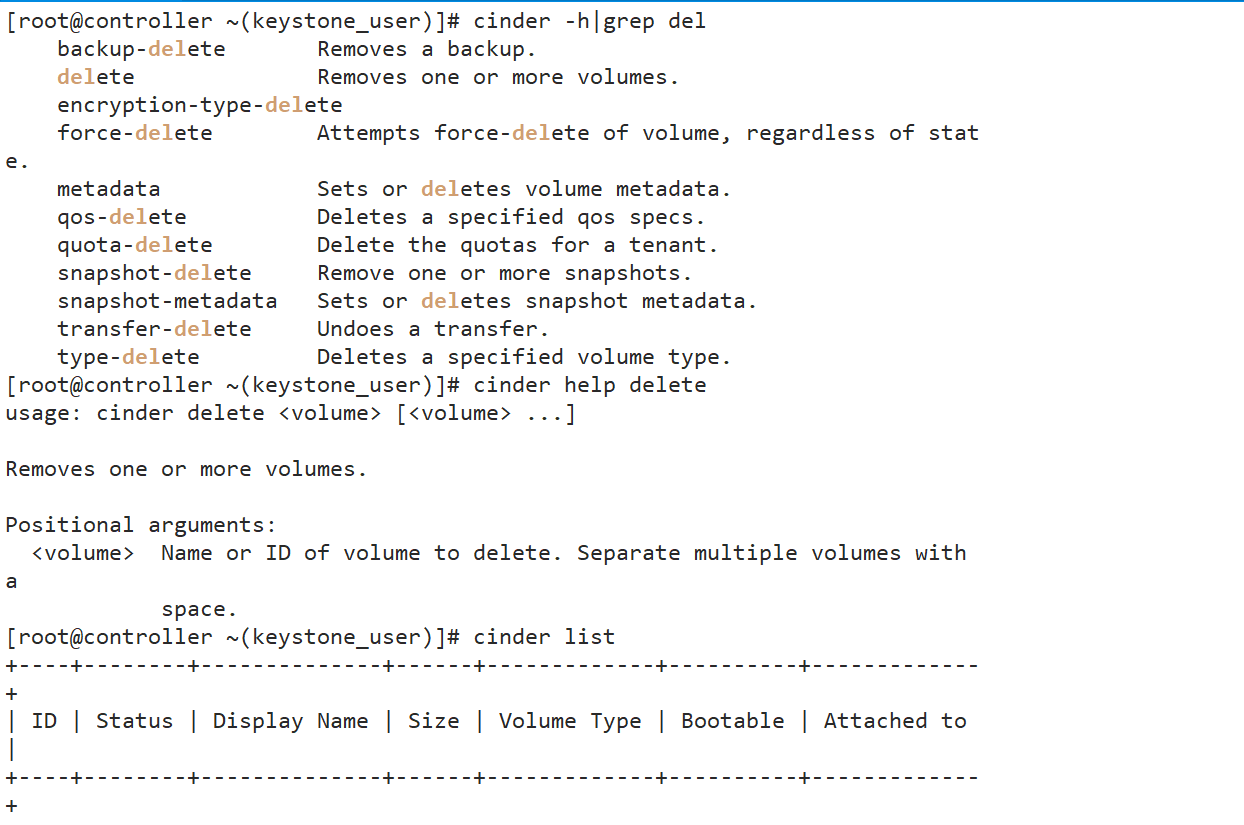

[root@controller ~(keystone_user)]# cinder -h |grep del
[root@controller ~(keystone_user)]# cinder help delete
[root@controller ~(keystone_user)]# cinder delete abc

删除安全组(neutron)

[root@controller ~(keystone_user)]# neutron -h |grep del
[root@controller ~(keystone_user)]# neutron -h |grep list

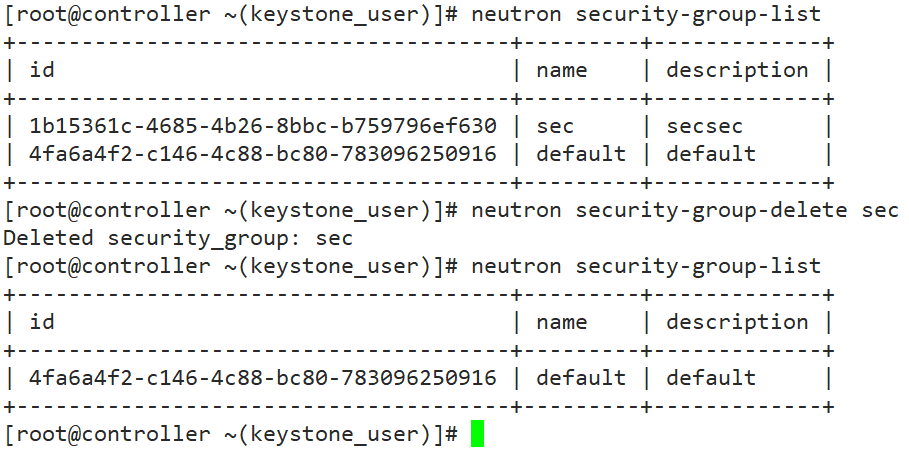

[root@controller ~(keystone_user)]# neutron security-group-list
[root@controller ~(keystone_user)]# neutron help security-group-delete
[root@controller ~(keystone_user)]# neutron security-group-delete sec

删除密钥对(nova)

[root@controller ~(keystone_user)]# nova -h |grep key
    flavor-key                  Set or unset extra_spec for a flavor.
    keypair-add                 Create a new key pair for use with servers.
    keypair-delete              Delete keypair given by its name.
    keypair-list                Print a list of keypairs for a user
    keypair-show                Show details about the given keypair.

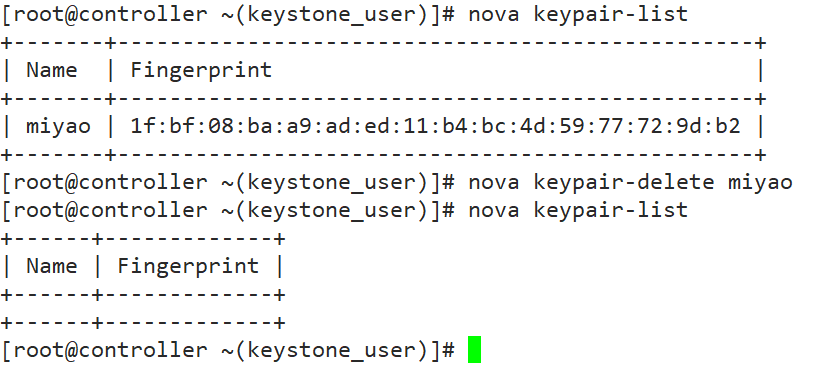

[root@controller ~(keystone_user)]# nova keypair-list
[root@controller ~(keystone_user)]# nova keypair-delete miyao
[root@controller ~(keystone_user)]# nova keypair-list

删除浮动IP(neutron)

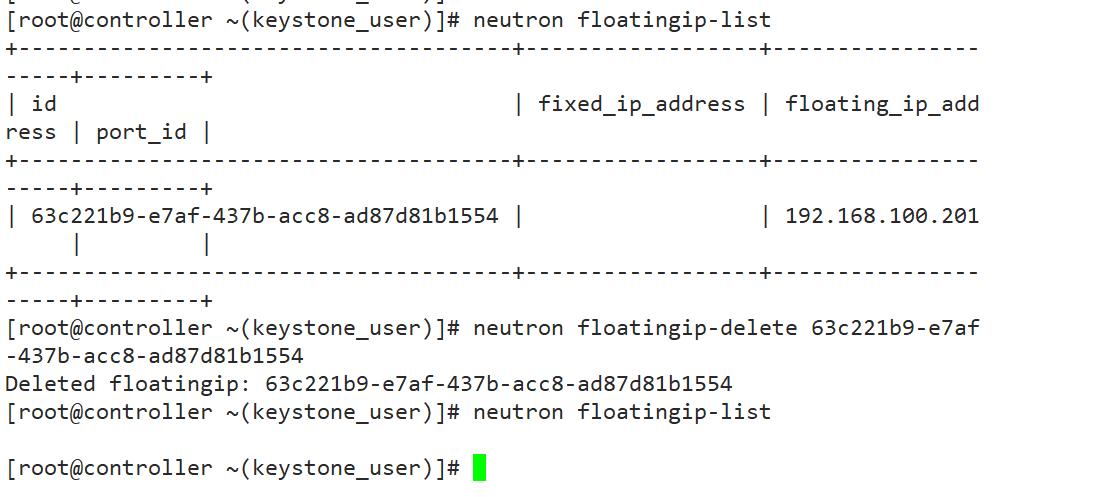

[root@controller ~(keystone_user)]# neutron floatingip-list
[root@controller ~(keystone_user)]# neutron floatingip-delete 63c221b9-e7af-437b-acc8-ad87d81b1554
Deleted floatingip: 63c221b9-e7af-437b-acc8-ad87d81b1554
[root@controller ~(keystone_user)]# neutron floatingip-list

删除网络(neutron)

清除网关--删除公网线

[root@controller ~(keystone_user)]# neutron -h |grep rout
[root@controller ~(keystone_user)]# neutron  router-list
[root@controller ~(keystone_user)]# neutron help router-gateway-clear
[root@controller ~(keystone_user)]# neutron router-gateway-clear route
Removed gateway from router route

清除路由接口--删除私网线

[root@controller ~(keystone_user)]# neutron  router-list  --获取路由的ID
[root@controller ~(keystone_user)]# neutron subnet-list --获取私网子网的ID
[root@controller ~(keystone_user)]# neutron router-interface-delete d2979f27-2eae-433a-ad2b-eb99f1195144 5a5ddaa8-911a-4801-87b4-2e18d28ca490
Removed interface from router d2979f27-2eae-433a-ad2b-eb99f1195144.

清除路由

[root@controller ~(keystone_user)]# neutron -h |grep rout
[root@controller ~(keystone_user)]# neutron help router-delete
[root@controller ~(keystone_user)]# neutron router-delete route
Deleted router: route

删除网络

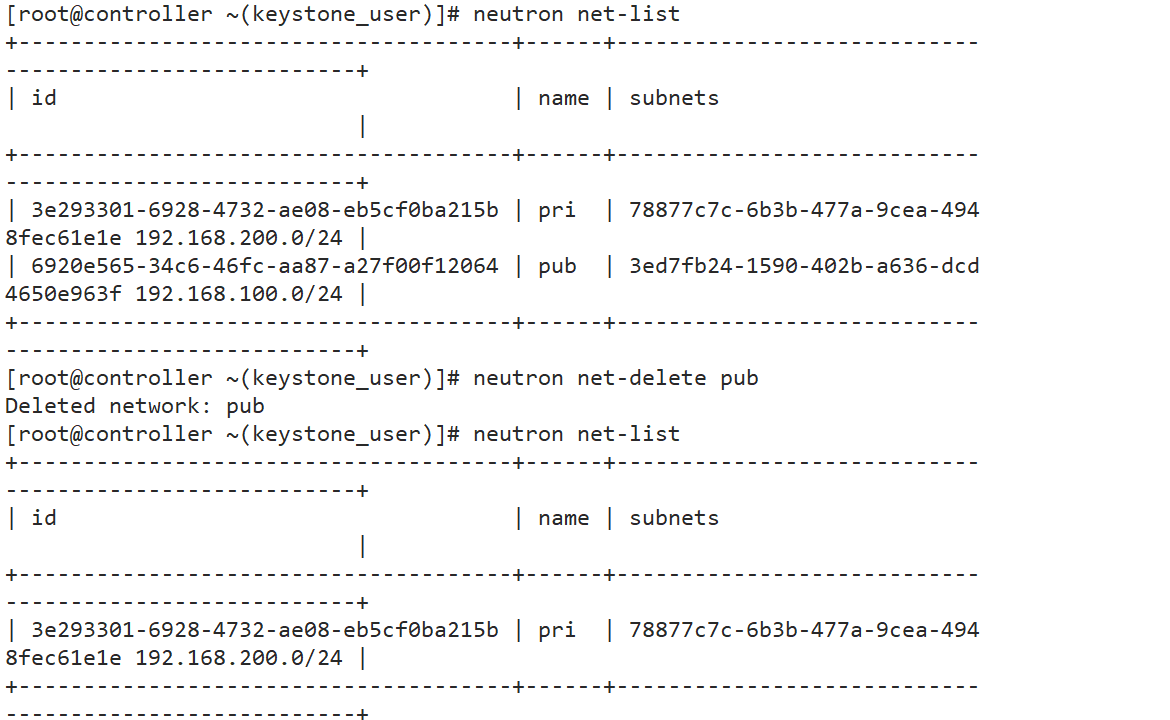

[root@controller ~(keystone_user)]# neutron net-list
+--------------------------------------+------+-------------------------------------------------------+
| id                                   | name | subnets                                               |
+--------------------------------------+------+-------------------------------------------------------+
| 3e293301-6928-4732-ae08-eb5cf0ba215b | pri  | 78877c7c-6b3b-477a-9cea-4948fec61e1e 192.168.200.0/24 |
| 6920e565-34c6-46fc-aa87-a27f00f12064 | pub  | 3ed7fb24-1590-402b-a636-dcd4650e963f 192.168.100.0/24 |
+--------------------------------------+------+-------------------------------------------------------+
[root@controller ~(keystone_user)]# neutron net-delete pub
Deleted network: pub
[root@controller ~(keystone_user)]# neutron net-list
+--------------------------------------+------+-------------------------------------------------------+
| id                                   | name | subnets                                               |
+--------------------------------------+------+-------------------------------------------------------+
| 3e293301-6928-4732-ae08-eb5cf0ba215b | pri  | 78877c7c-6b3b-477a-9cea-4948fec61e1e 192.168.200.0/24 |
+--------------------------------------+------+-------------------------------------------------------+
[root@controller ~(keystone_user)]# neutron net-delete pri
Deleted network: pri

删除镜像(glance)

[root@controller ~(keystone_user)]# source keystonerc_admin

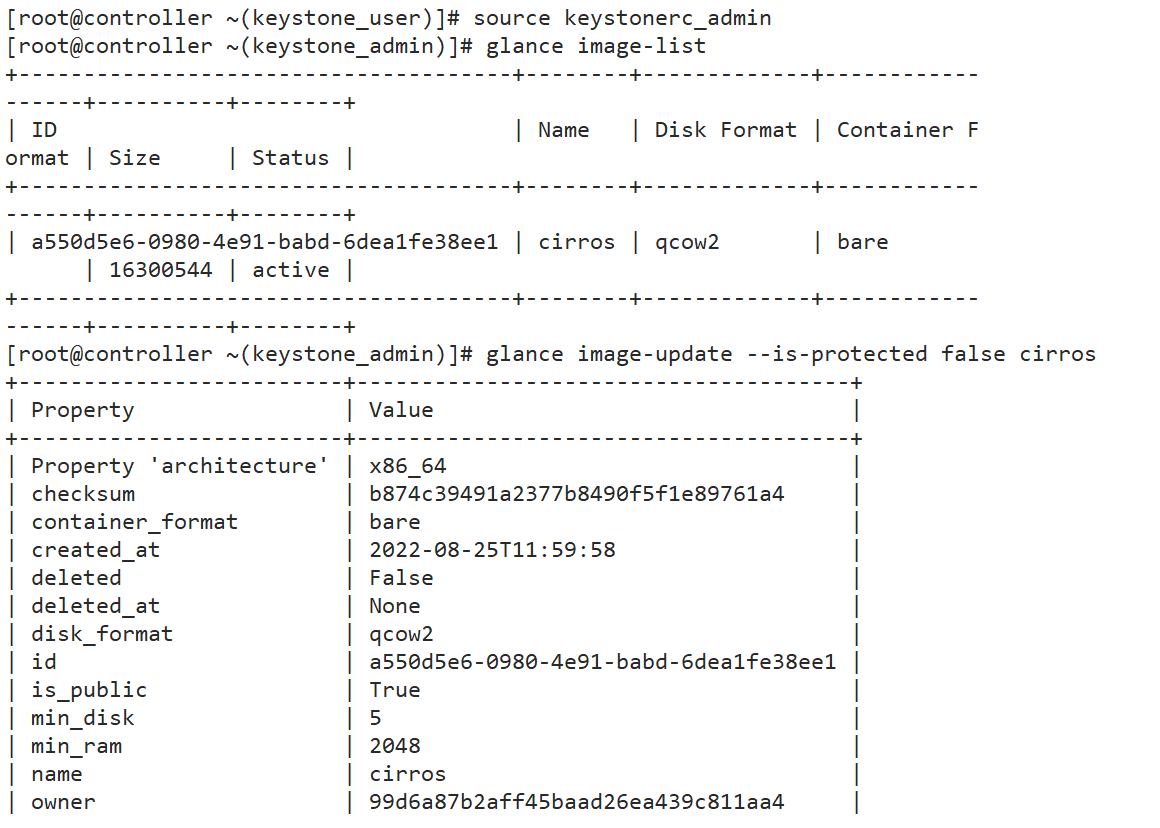

[root@controller ~(keystone_admin)]# glance image-list
因为镜像是受保护的，索引要更新一下
[root@controller ~(keystone_admin)]# glance -h |grep update
[root@controller ~(keystone_admin)]# glance image-update --is-protected false cirros

删除规格(nova)

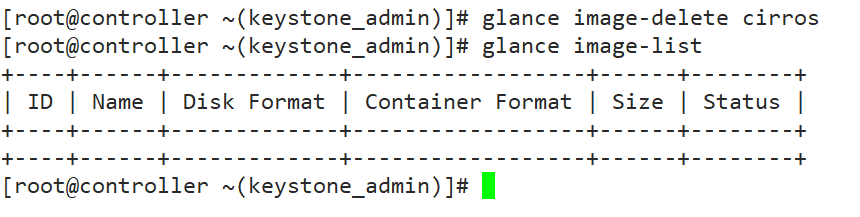

[root@controller ~(keystone_admin)]# glance image-delete cirros
[root@controller ~(keystone_admin)]# nova -h |grep fla

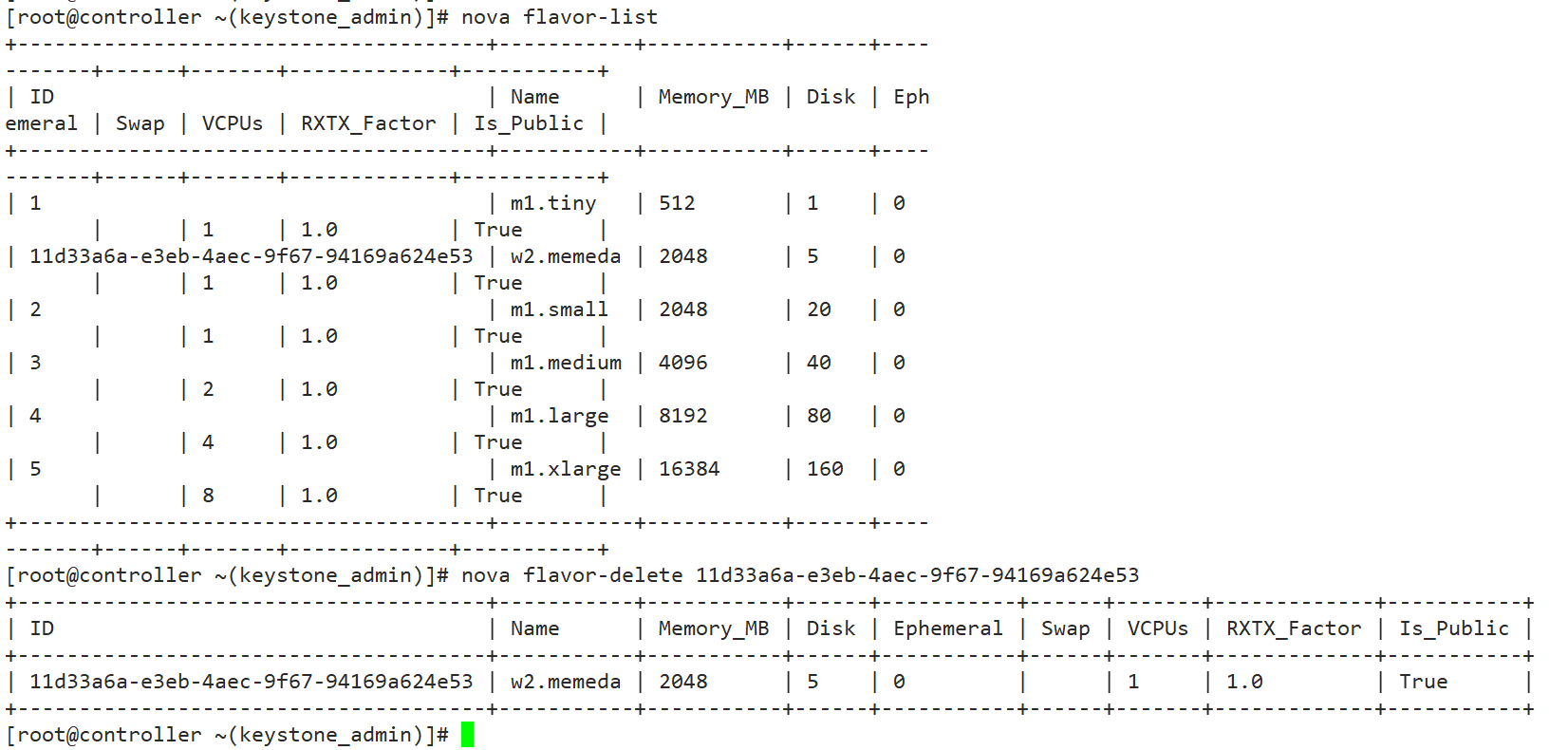

[root@controller ~(keystone_admin)]# nova flavor-list
[root@controller ~(keystone_admin)]# nova flavor-delete 11d33a6a-e3eb-4aec-9f67-94169a624e53
[root@controller ~(keystone_admin)]# nova flavor-list

删除用户(keystone)

[root@controller ~(keystone_admin)]# keystone -h |grep user

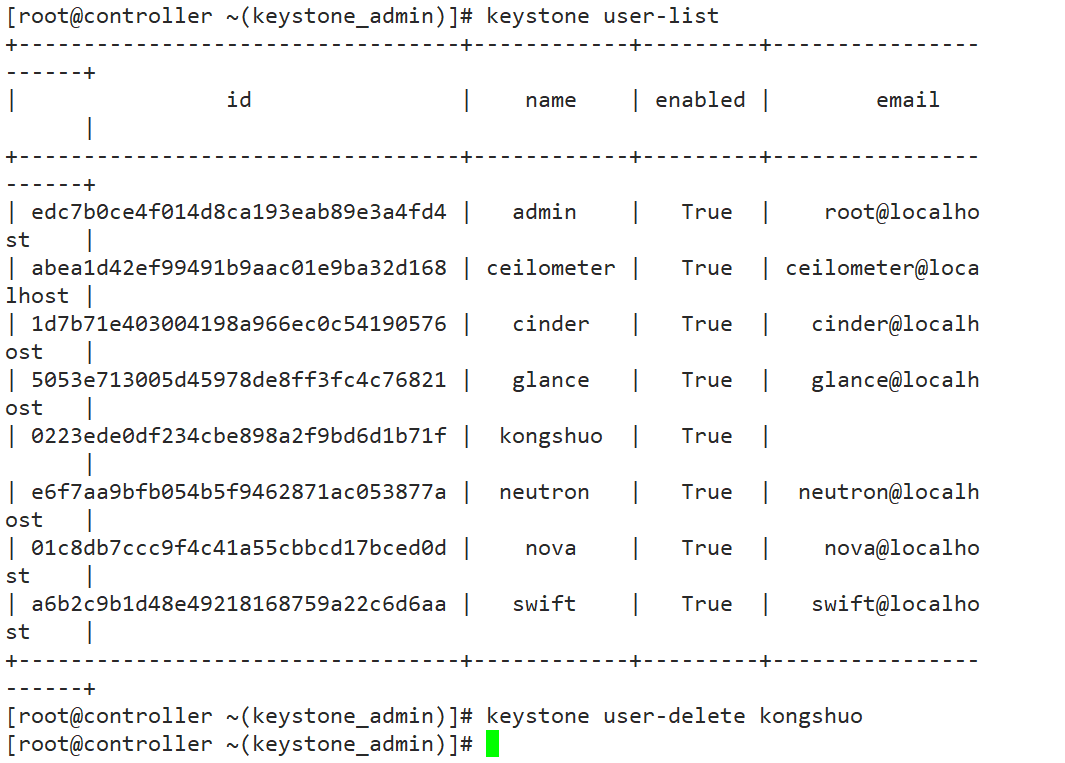

[root@controller ~(keystone_admin)]# keystone user-list
[root@controller ~(keystone_admin)]# keystone user-delete kongshuo

删除租户(keystone)

[root@controller ~(keystone_admin)]# keystone -h |grep tenan

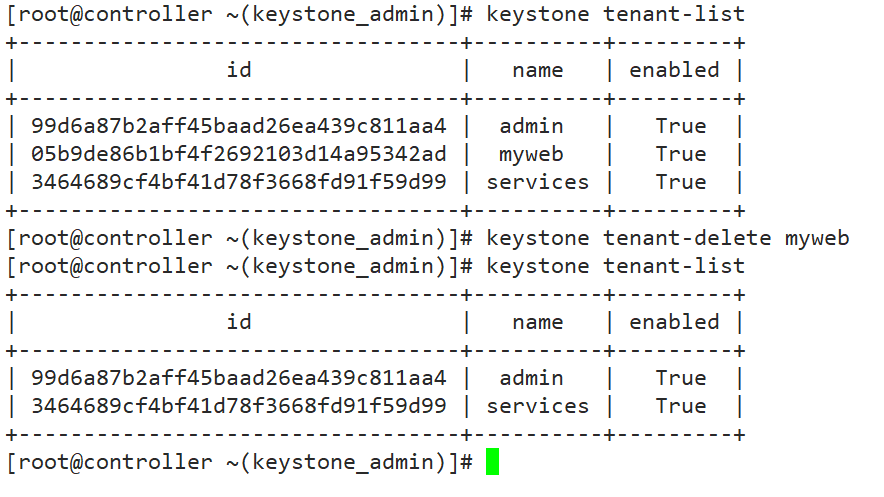

[root@controller ~(keystone_admin)]# keystone tenant-list
[root@controller ~(keystone_admin)]# keystone tenant-delete myweb

命令行创建

创建租户(keystone)

[root@controller ~(keystone_admin)]# keystone -h |grep crea
[root@controller ~(keystone_admin)]# keystone help tenant-create

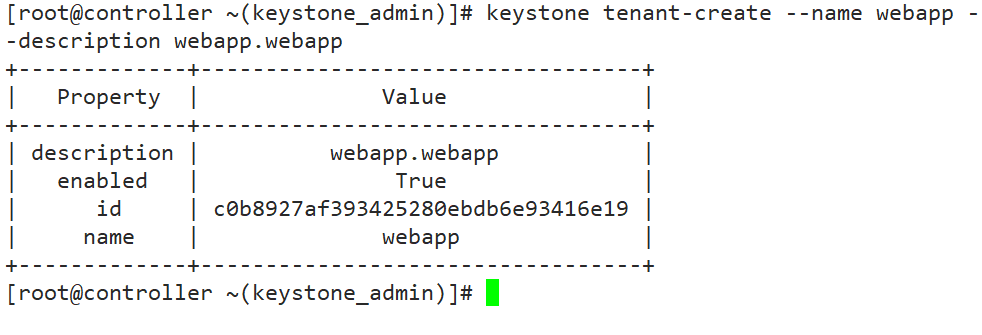

[root@controller ~(keystone_admin)]# keystone tenant-create --name webapp --description webapp.app

创建用户(keystone)

[root@controller ~(keystone_admin)]# keystone -h |grep user
[root@controller ~(keystone_admin)]# keystone help user-create
[root@controller ~(keystone_admin)]# keystone user-create --name kongshuo --tenant webapp
[root@controller ~(keystone_admin)]# keystone user-password-update --pass redhat kongshuo
当然你也可以在创建用户的时候，直接带上密码

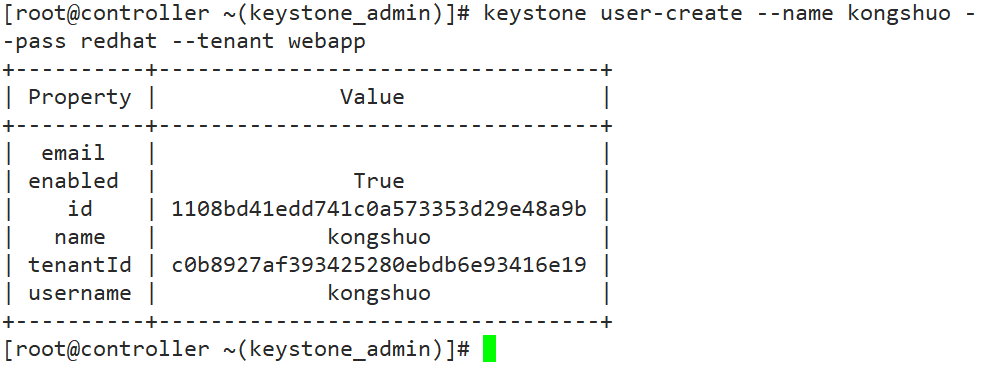

[root@controller ~(keystone_admin)]# keystone user-create --name kongshuo --pass redhat --tenant webapp

上传镜像(glance)

[root@controller ~(keystone_admin)]# glance -h |grep image
[root@controller ~(keystone_admin)]# glance help image-create

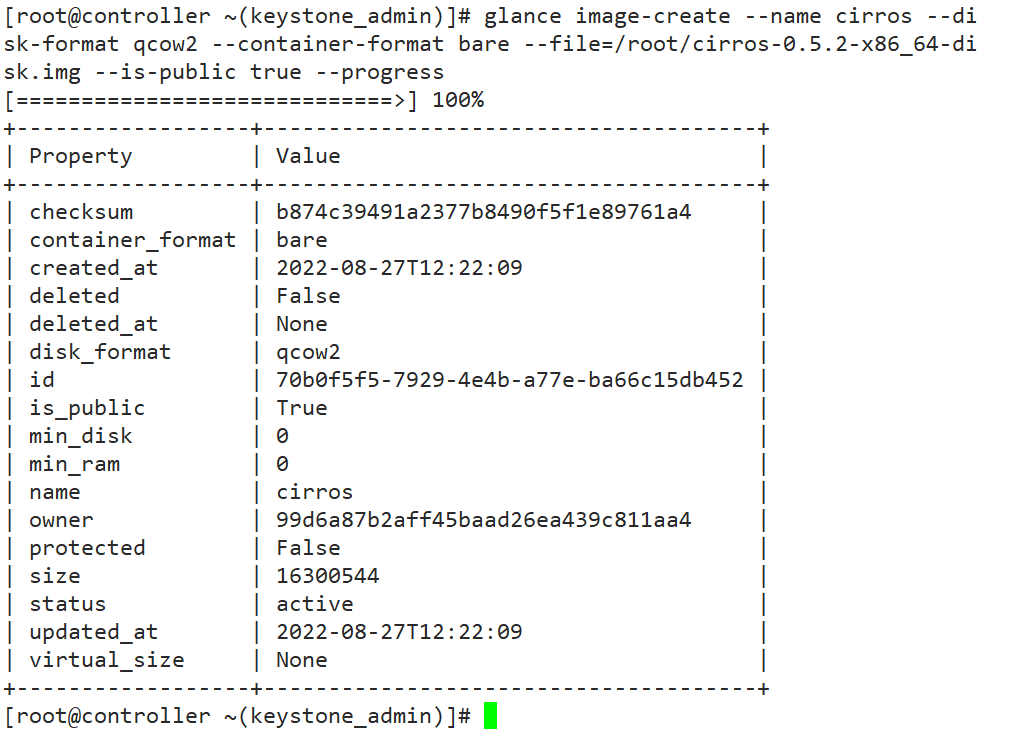

[root@controller ~(keystone_admin)]# glance image-create --name cirros --disk-format qcow2 --container-format bare --file=/root/cirros-0.5.2-x86_64-disk.img --is-public true --progress

创建规格(nova)

[root@controller ~(keystone_admin)]# nova -h |grep fla
[root@controller ~(keystone_admin)]# nova help flavor-create

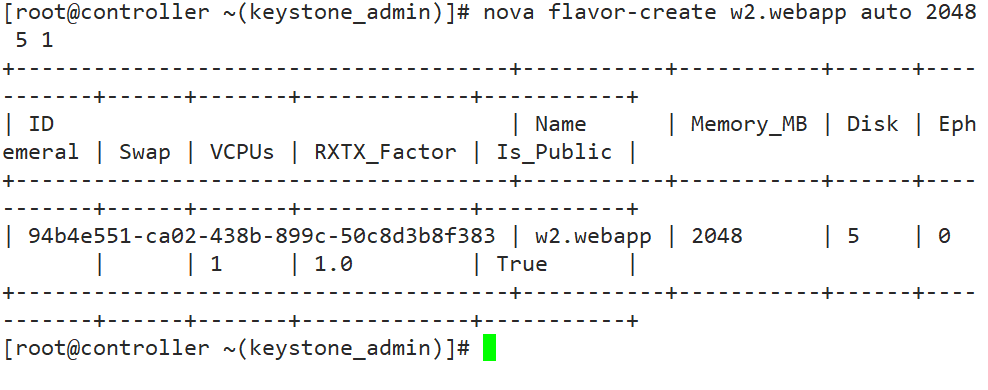

[root@controller ~(keystone_admin)]# nova flavor-create w2.webapp auto 2048 5 1

创建网络(neutron)

普通用户创建

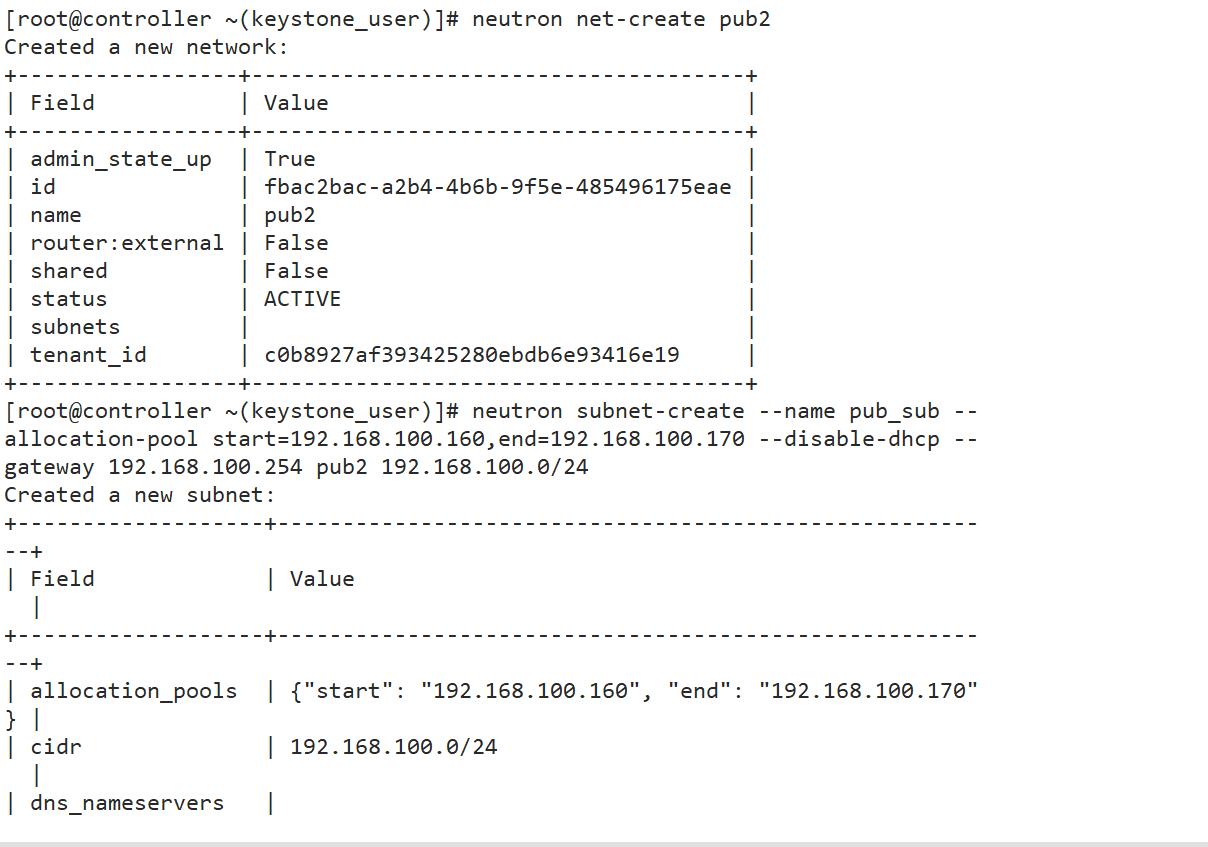

创建公网

[root@controller ~(keystone_admin)]# source keystonerc_user
[root@controller ~(keystone_user)]# neutron help subnet-create
[root@controller ~(keystone_user)]# neutron net-create pub2
[root@controller ~(keystone_user)]# neutron subnet-create --name pub_sub --allocation-pool start=192.168.100.160,end=192.168.100.170 --disable-dhcp --gateway 192.168.100.254 pub2 192.168.100.0/24

该公网没有被共享，所以切换到管理员

[root@controller ~(keystone_user)]# source keystonerc_admin

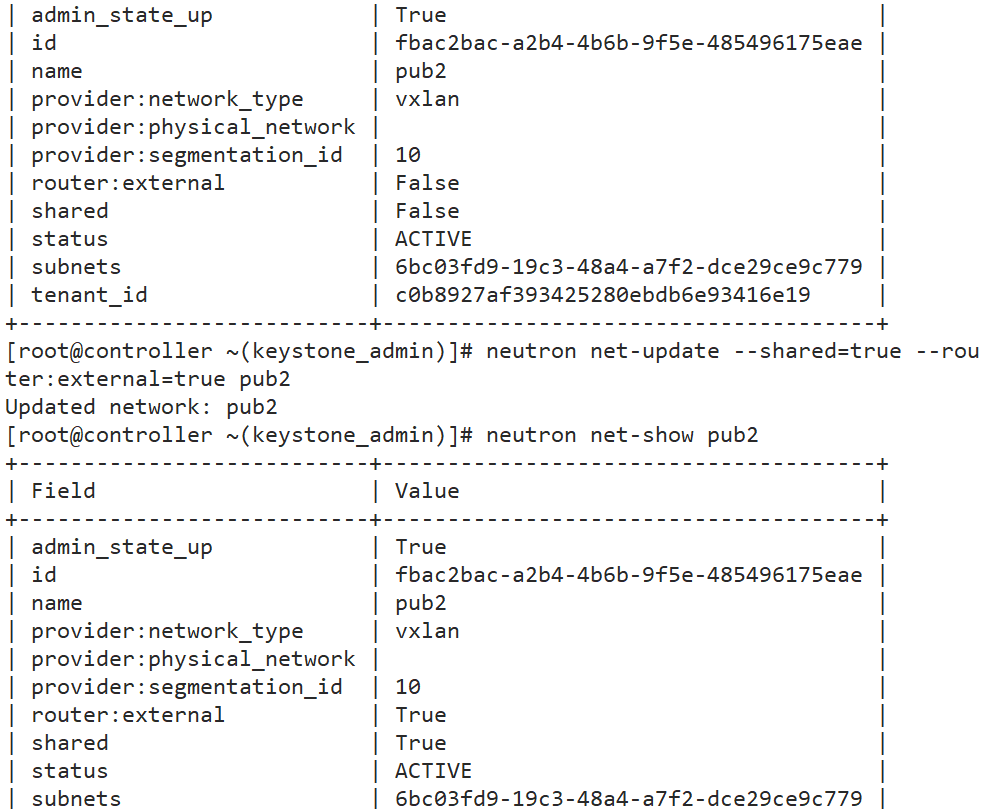

[root@controller ~(keystone_admin)]# neutron net-show pub2
[root@controller ~(keystone_admin)]# neutron net-update --shared=true --router:external=true pub2
Updated network: pub2
[root@controller ~(keystone_admin)]# neutron net-show pub2

创建私网

[root@controller ~(keystone_user)]# neutron help subnet-create

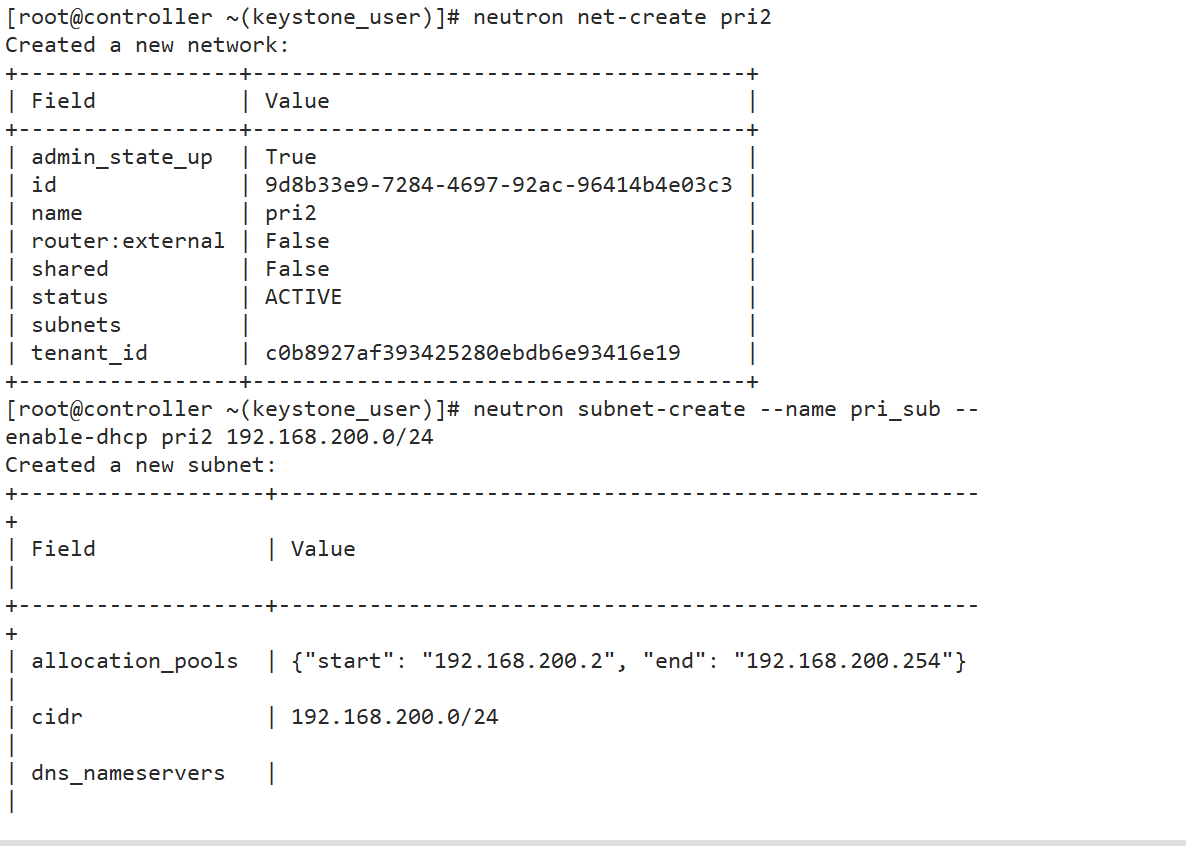

[root@controller ~(keystone_user)]# neutron net-create pri2
[root@controller ~(keystone_user)]# neutron subnet-create --name pri_sub --enable-dhcp pri2 192.168.200.0/24

创建路由器

[root@controller ~(keystone_user)]# neutron -h |grep route
[root@controller ~(keystone_user)]# neutron router-create route

设置网关

[root@controller ~(keystone_user)]# neutron -h |grep gatewa

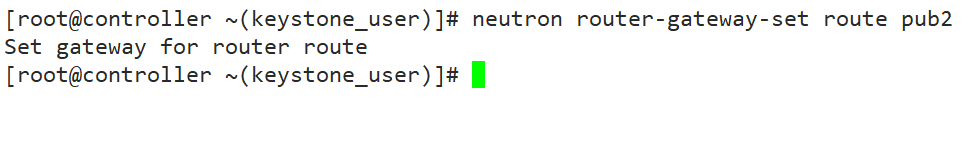

[root@controller ~(keystone_user)]# neutron router-gateway-set route pub2

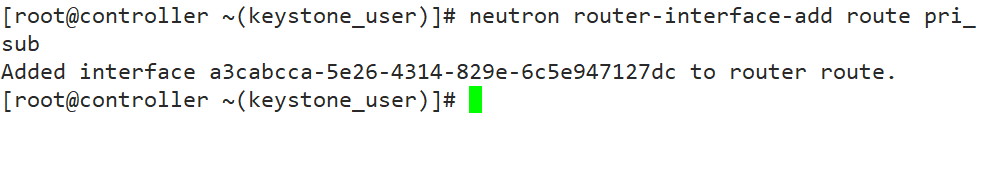

设置路由接口

[root@controller ~(keystone_user)]# neutron -h |grep inter
[root@controller ~(keystone_user)]# neutron router-interface-add route pri_sub

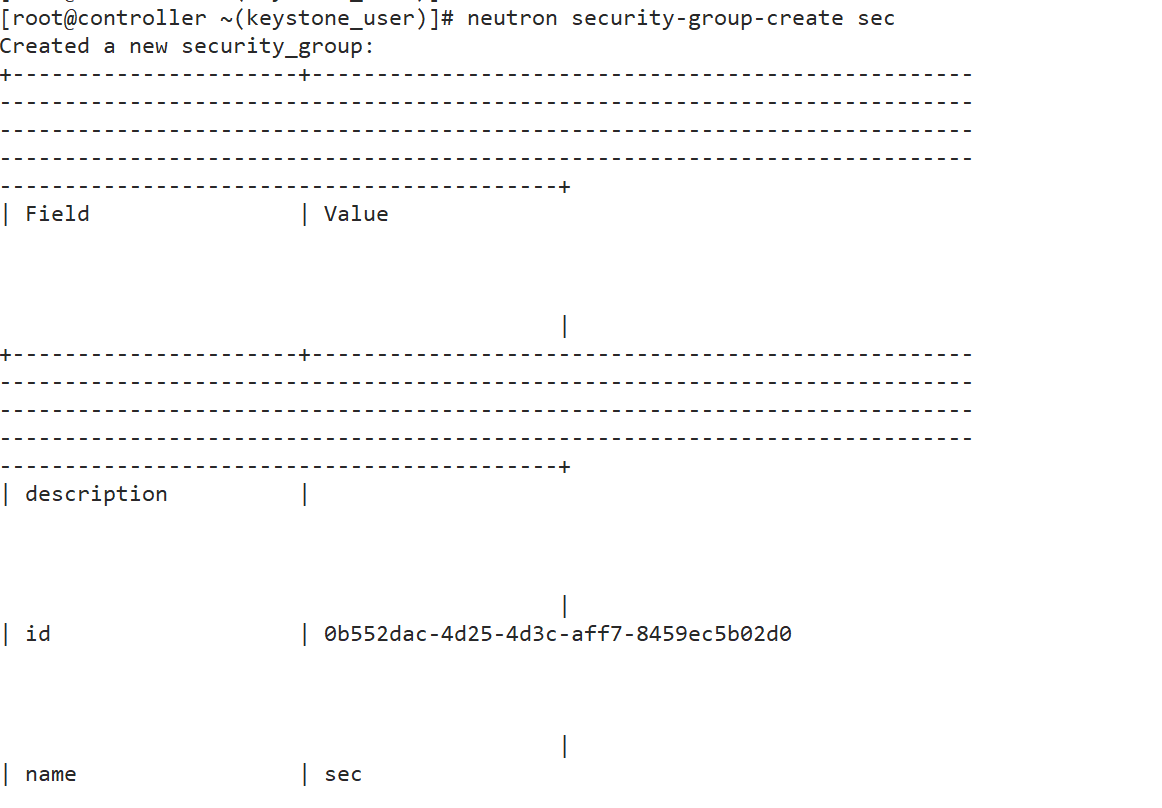

设置安全组(neutron)

[root@controller ~(keystone_user)]# neutron -h |grep sec
[root@controller ~(keystone_user)]# neutron security-group-create sec

添加规则

[root@controller ~(keystone_user)]# neutron security-group-rule-create --direction ingress --protocol tcp --port-range-min 80 --port-range-max 80 sec

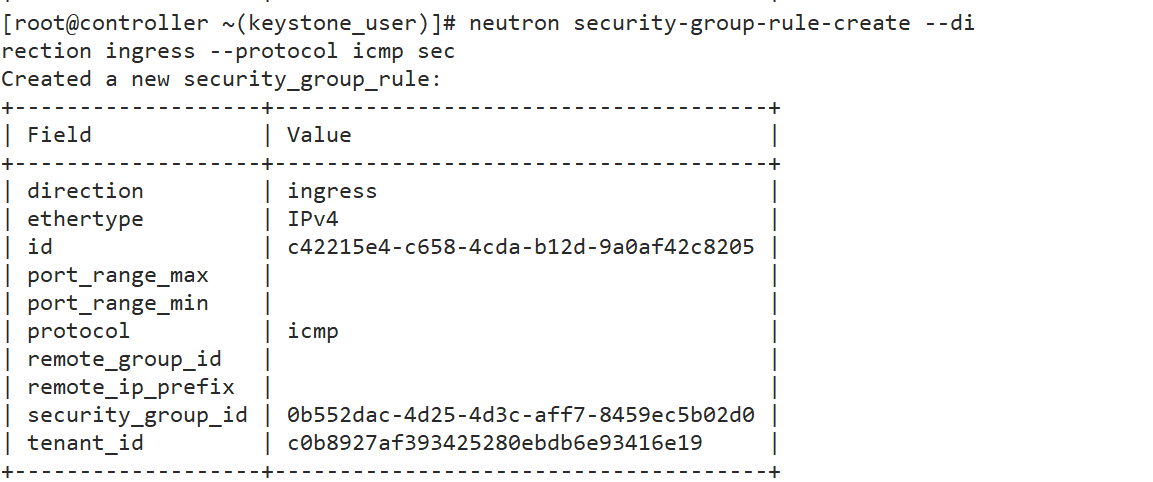

[root@controller ~(keystone_user)]# neutron security-group-rule-create --direction ingress --protocol icmp sec

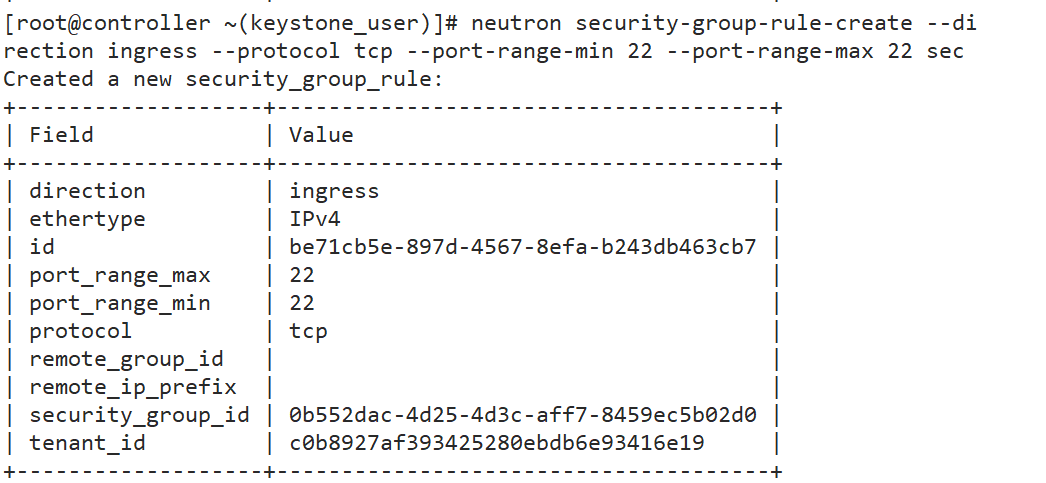

[root@controller ~(keystone_user)]# neutron security-group-rule-create --direction ingress --protocol tcp --port-range-min 22 --port-range-max 22 sec

创建密钥(nova)

[root@controller ~(keystone_user)]# nova -h|grep key

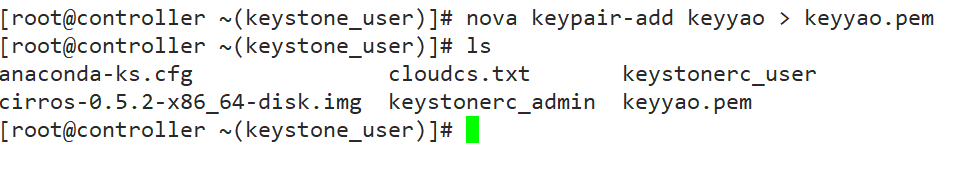

[root@controller ~(keystone_user)]# nova keypair-add keyyao > keyyao.pem

创建浮动IP(neutron)

[root@controller ~(keystone_user)]# neutron -h|grep flo

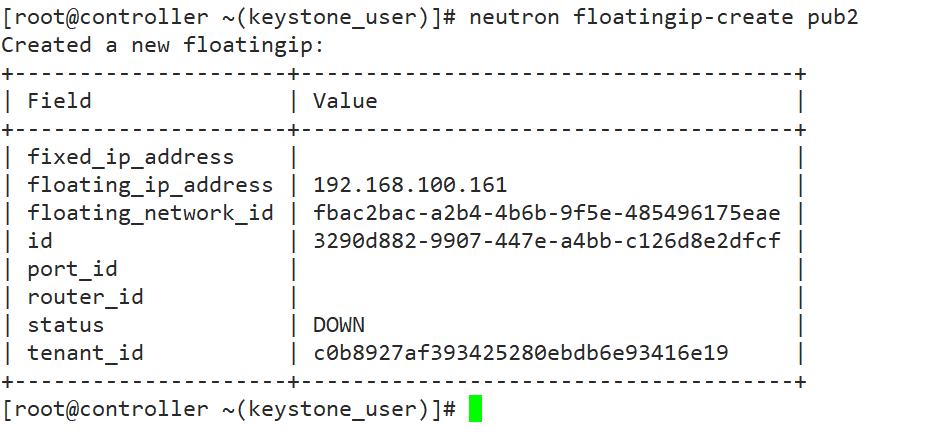

[root@controller ~(keystone_user)]# neutron floatingip-create pub2

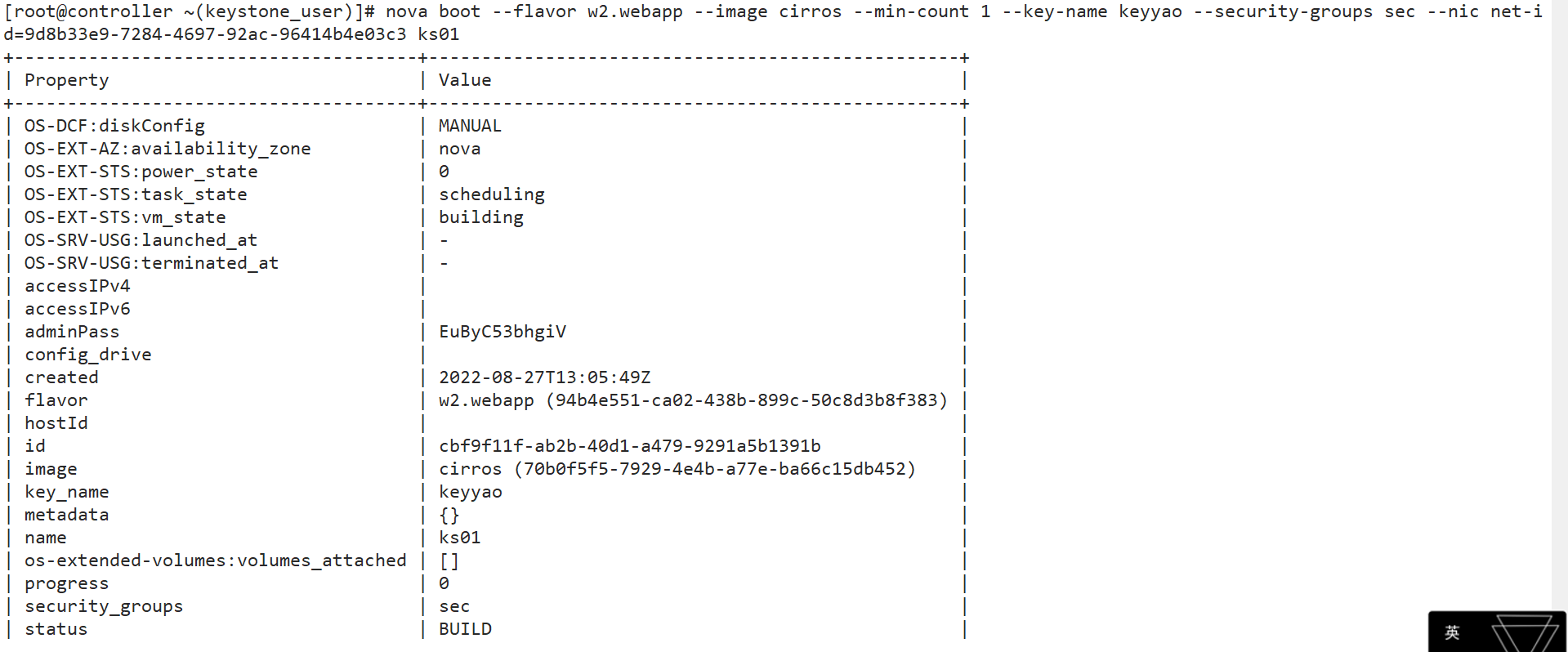

创建云主机(nova)

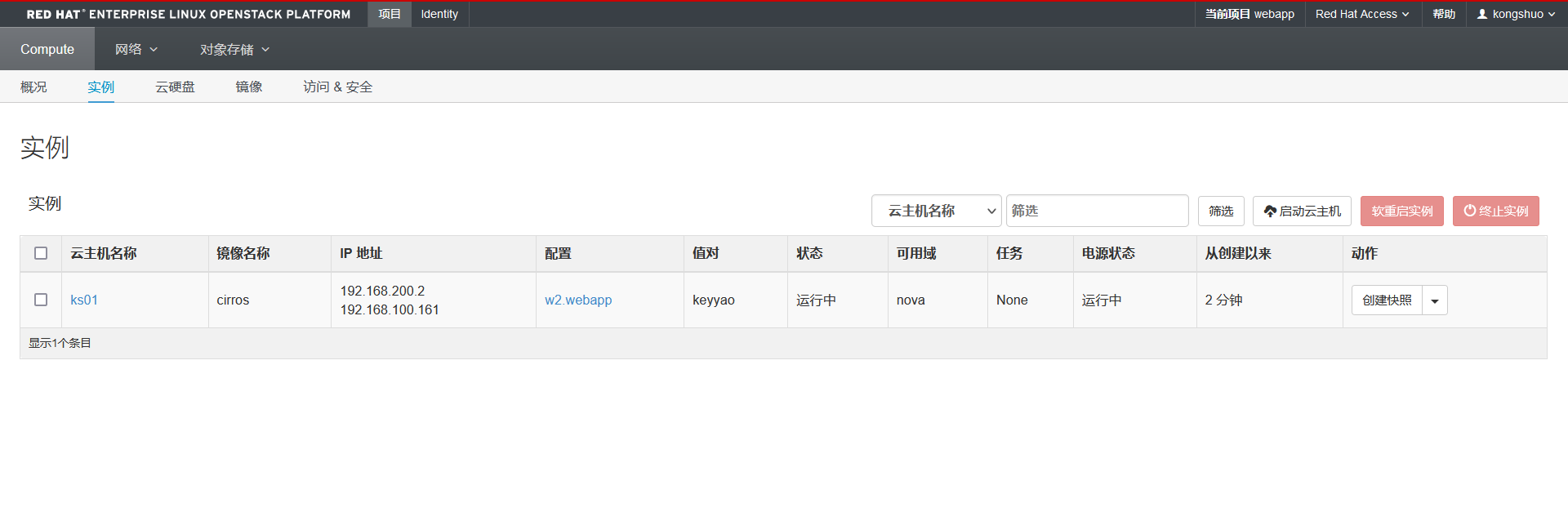

[root@controller ~(keystone_user)]# nova boot --flavor w2.webapp --image cirros --min-count 1 --key-name keyyao --security-groups sec --nic net-id=9d8b33e9-7284-4697-92ac-96414b4e03c3 ks01

绑定浮动IP(nova)

浮动的创建是由neutron，而分配和取消分配是由nova
[root@controller ~(keystone_user)]# nova -h| grep flo

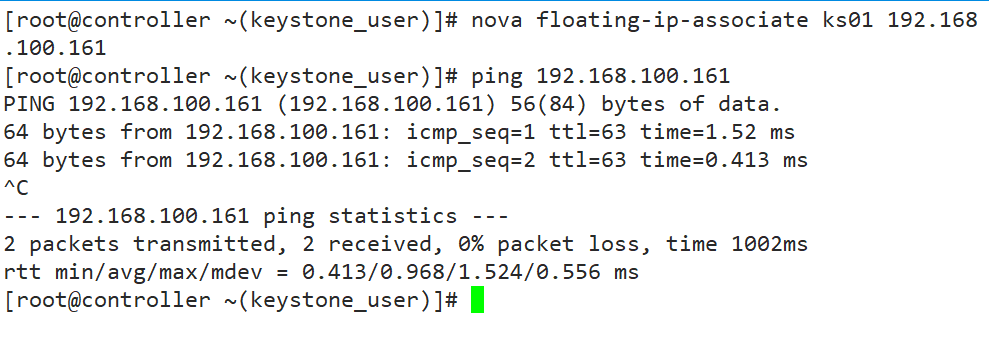

[root@controller ~(keystone_user)]# nova floating-ip-associate ks01 192.168.100.161

绑定云硬盘(cinder+nova)

创建云硬件

[root@controller ~(keystone_user)]# cinder -h |grep vol
[root@controller ~(keystone_user)]# cinder help create

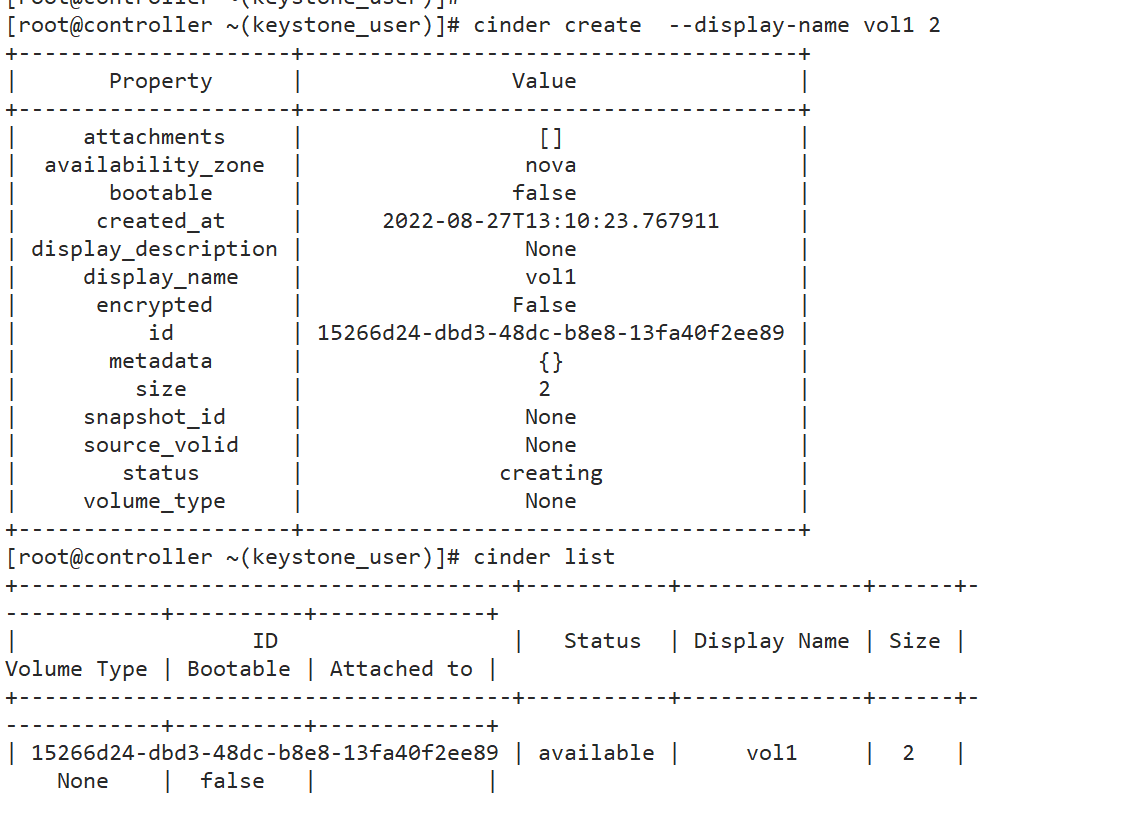

[root@controller ~(keystone_user)]# cinder create --display-name vol1 2
[root@controller ~(keystone_user)]# cinder list

绑定云硬盘

[root@controller ~(keystone_user)]# nova -h | grep att
[root@controller ~(keystone_user)]# nova help volume-attach

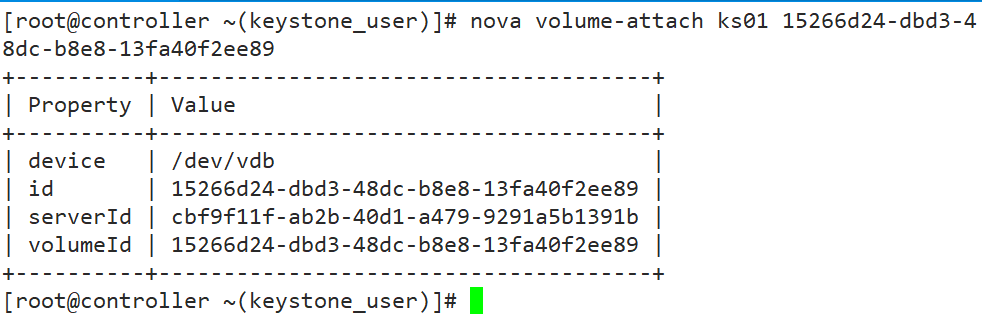

[root@controller ~(keystone_user)]# nova volume-attach ks01 15266d24-dbd3-48dc-b8e8-13fa40f2ee89

查看云硬盘

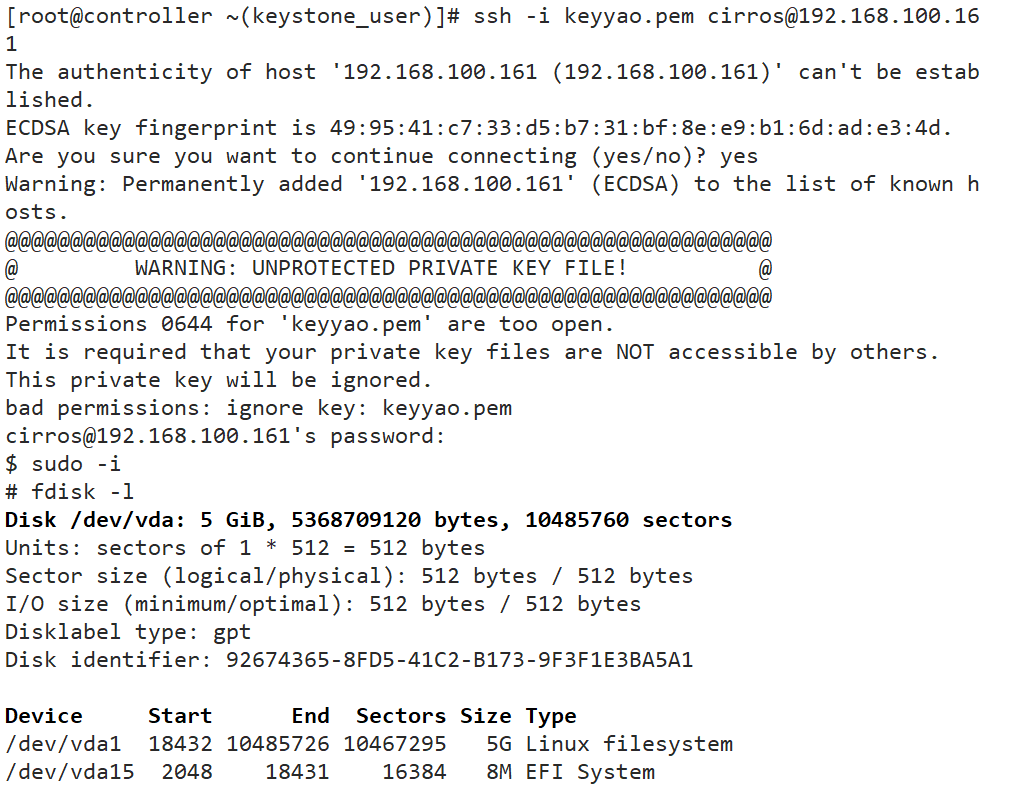

[root@controller ~(keystone_user)]# ssh -i keyyao.pem cirros@192.168.100.161
# 密码 gocubsgo
