LUA连接美的平台

-- 协议解析文件描述，根据实际情况修正
-- author : andywo
-- email  :
-- date   : 2022-01-24

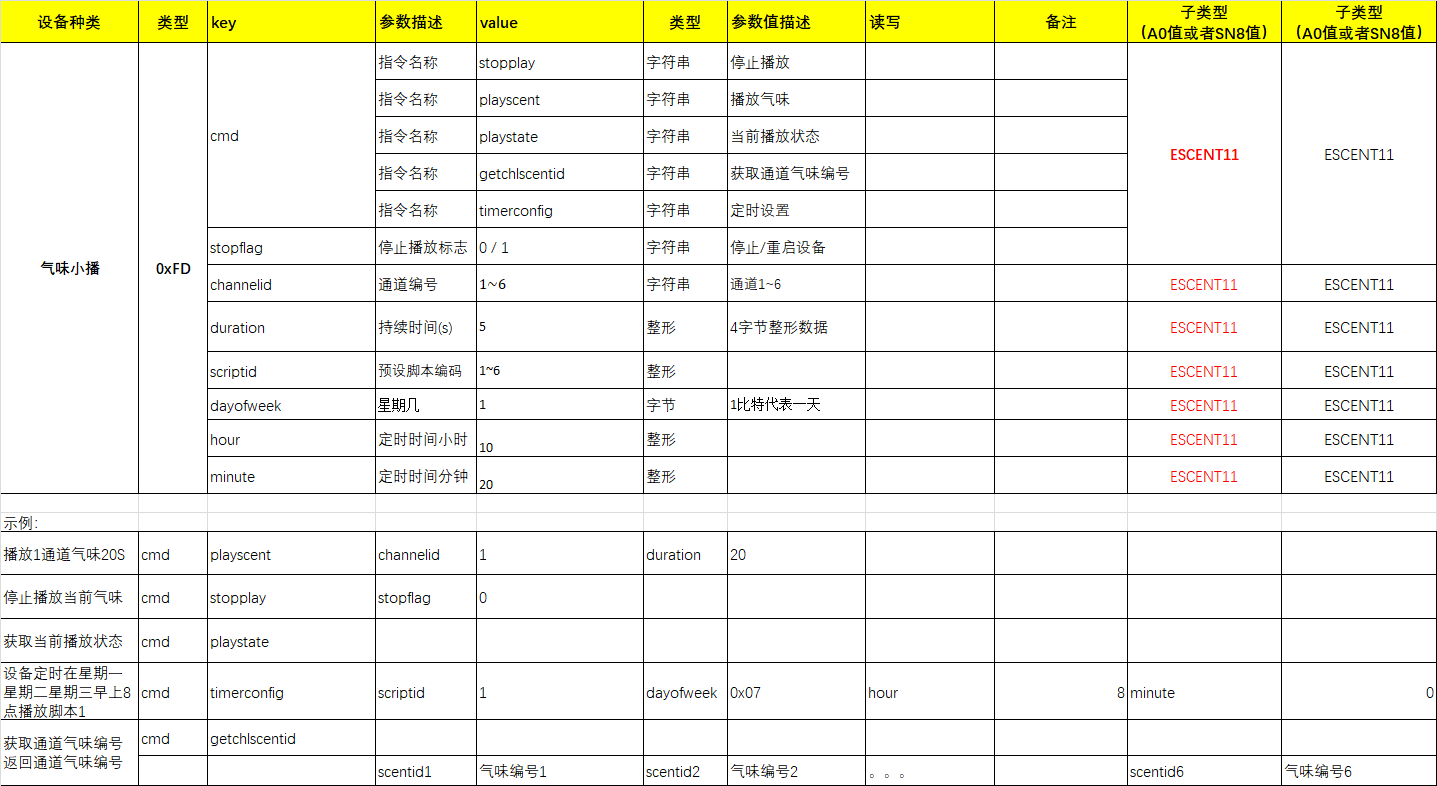

-- T0xFD  : 气味小播灯

-- 必须要引入的库
local JSON = require "cjson"



-- 协议相关常量，请勿修改

-- 控制请求
local BYTE_CONTROL_REQUEST = 0x02
-- 查询请求
local BYTE_QUERY_REQUEST = 0x03
-- 协议头
local BYTE_PROTOCOL_HEAD = 0xAA
-- 协议头长度
local BYTE_PROTOCOL_LENGTH = 0x0A

-- 公共属性值，预定义的值，请勿修改
-- 属性值为未知值时，使用此值。
local VALUE_UNKNOWN = "unknown"
-- 属性值为无效值时，使用此值。
local VALUE_INVALID = "invalid"



-- 协议相关变量,此部分根据实际需要修改，但是local变量的个数不能超过60个，若超过，请使用table封装变量。

-- 数据返回类型，02:控制返回, 03:查询返回, 04:主动上报, 05:主动上报(需要响应), 06:设备异常事件上报。
local dataType = 0
-- 子命令（若有）
local cmdType=0

-- profile 中的 key定义，若太多，请使用table封装变量
local KEY_VERSION = "version"
local KEY_POWER = "power"
local KEY_SCENE_LIGHT = "scene_light"
local KEY_COLOR_TEMPERATURE = "color_temperature"
local KEY_BRIGHTNESS = "brightness"
local KEY_DELAY_LIGHT_OFF = "delay_light_off"
local KEY_LIFE_COLOR_TEMPERATURE = "life_color_temperature"
local KEY_LIFE_BRIGHTNESS = "life_brightness"
local KEY_READ_COLOR_TEMPERATURE = "read_color_temperature"
local KEY_READ_BRIGHTNESS = "read_brightness"
local KEY_MILD_COLOR_TEMPERATURE = "mild_color_temperature"
local KEY_MILD_BRIGHTNESS = "mild_brightness"
local KEY_FILM_COLOR_TEMPERATURE = "film_color_temperature"
local KEY_FILM_BRIGHTNESS = "film_brightness"
local KEY_LIGHT_COLOR_TEMPERATURE = "light_color_temperature"
local KEY_LIGHT_BRIGHTNESS = "light_brightness"
local KEY_RESULT = "result"

-- 存储属性值的变量，若太多，请使用table封装变量
local powerValue = 0
local sceneLight = 0
local colorTemperature = 0
local brightness = 0
local delayLightOff = 0
local lifeColorTemperature = 0
local lifeBrightness = 0
local readColorTemperature = 0
local readBrightness = 0
local mildColorTemperature = 0
local mildBrightness = 0
local filmColorTemperature = 0
local filmBrightness = 0
local lightColorTemperature = 0
local lightBrightness = 0
local colorRed=0
local colorGreen=0
local colorBlue=0
local result=0



--公共的函数，请勿随意修改。

-- 从电控协议(byteData)中提取消息体(body)，返回的消息体数组索引从0开始。
local function extractBodyBytes(byteData)
    local msgLength = #byteData
    local msgBytes = {}
    local bodyBytes = {}
    for i = 1, msgLength do
        msgBytes[i - 1] = byteData[i]
    end
    --去掉消息头和校验码就剩下消息体
    local bodyLength = msgLength - BYTE_PROTOCOL_LENGTH - 1
    --获取消息体 body 部分
    for i = 0, bodyLength - 1 do
        bodyBytes[i] = msgBytes[i + BYTE_PROTOCOL_LENGTH]
    end
    return bodyBytes
end

-- 计算校验和
local function makeSum(tmpbuf, start_pos, end_pos)
    local resVal = 0
    for si = start_pos, end_pos do
        resVal = resVal + tmpbuf[si]
    end
    resVal = bit.bnot(resVal)+1
    resVal = bit.band(resVal, 0x00ff)
    return resVal
end

-- 1.将bodyBytes组装上电控协议头(10字节)和尾部校验码(1字节)。
-- 2.传入的 bodyBytes 为索引从0开始。
-- 3.返回的 table 索引也从0开始。
local function assembleUart(bodyBytes, type)
    local bodyLength = #bodyBytes + 1
    if bodyLength == 0 then
        return nil
    end

    local msgLength = (bodyLength + BYTE_PROTOCOL_LENGTH + 1)
    local msgBytes = {}

    for i = 0, msgLength - 1 do
        msgBytes[i] = 0
    end
    --构造消息部分
    msgBytes[0] = BYTE_PROTOCOL_HEAD
    msgBytes[1] = msgLength - 1
    msgBytes[2] = 0x13
    msgBytes[9] = type

    for i = 0, bodyLength - 1 do
        msgBytes[i + BYTE_PROTOCOL_LENGTH] = bodyBytes[i]
    end

    msgBytes[msgLength - 1] = makeSum(msgBytes, 1, msgLength - 2)
    return msgBytes
end

-- CRC码表
local crc8_854_table =
{
    0, 94, 188, 226, 97, 63, 221, 131, 194, 156, 126, 32, 163, 253, 31, 65,
    157, 195, 33, 127, 252, 162, 64, 30, 95, 1, 227, 189, 62, 96, 130, 220,
    35, 125, 159, 193, 66, 28, 254, 160, 225, 191, 93, 3, 128, 222, 60, 98,
    190, 224, 2, 92, 223, 129, 99, 61, 124, 34, 192, 158, 29, 67, 161, 255,
    70, 24, 250, 164, 39, 121, 155, 197, 132, 218, 56, 102, 229, 187, 89, 7,
    219, 133, 103, 57, 186, 228, 6, 88, 25, 71, 165, 251, 120, 38, 196, 154,
    101, 59, 217, 135, 4, 90, 184, 230, 167, 249, 27, 69, 198, 152, 122, 36,
    248, 166, 68, 26, 153, 199, 37, 123, 58, 100, 134, 216, 91, 5, 231, 185,
    140, 210, 48, 110, 237, 179, 81, 15, 78, 16, 242, 172, 47, 113, 147, 205,
    17, 79, 173, 243, 112, 46, 204, 146, 211, 141, 111, 49, 178, 236, 14, 80,
    175, 241, 19, 77, 206, 144, 114, 44, 109, 51, 209, 143, 12, 82, 176, 238,
    50, 108, 142, 208, 83, 13, 239, 177, 240, 174, 76, 18, 145, 207, 45, 115,
    202, 148, 118, 40, 171, 245, 23, 73, 8, 86, 180, 234, 105, 55, 213, 139,
    87, 9, 235, 181, 54, 104, 138, 212, 149, 203, 41, 119, 244, 170, 72, 22,
    233, 183, 85, 11, 136, 214, 52, 106, 43, 117, 151, 201, 74, 20, 246, 168,
    116, 42, 200, 150, 21, 75, 169, 247, 182, 232, 10, 84, 215, 137, 107, 53
}

-- CRC校验码
local function crc8_854(dataBuf, start_pos, end_pos)
    local crc = 0

    for si = start_pos, end_pos do
        crc = crc8_854_table[bit.band(bit.bxor(crc, dataBuf[si]), 0xFF) + 1]
    end

    return crc
end

-- 将json字符串转换为LUA中的table
local function decodeJsonToTable(cmd)
    local tb

    if JSON == nil then
        JSON = require "cjson"
    end

    tb = JSON.decode(cmd)

    return tb
end

-- 将LUA中的table转换为json字符串
local function encodeTableToJson(luaTable)
    local jsonStr

    if JSON == nil then
        JSON = require "cjson"
    end

    jsonStr = JSON.encode(luaTable)

    return jsonStr
end

-- 将十六进制string字符串转成LUA中的table
local function string2table(hexstr)
    local tb = {}
    local i = 1
    local j = 1

    for i = 1, #hexstr - 1, 2 do
        local doublebytestr = string.sub(hexstr, i, i + 1)
        tb[j] = tonumber(doublebytestr, 16)
        j = j + 1
    end

    return tb
end

-- 将table转成字符串
local function table2string(cmd)
    local ret = ""
    local i

    for i = 1, #cmd do
        ret = ret .. string.char(cmd[i])
    end

    return ret
end

-- 将字符串转成十六进制字符串输出
local function string2hexstring(str)
    local ret = ""

    for i = 1, #str do
        ret = ret .. string.format("%02x", str:byte(i))
    end

    return ret
end

-- 检查data的值是否超过边界
local function checkBoundary(data, min, max)
    if (not data) then
        data = 0
    end

    data = tonumber(data)

    if ((data >= min) and (data <= max)) then
        return data
    else
        if (data < min) then
            return min
        else
            return max
        end
    end
end

-- 将String转int
local function string2Int(data)
    if (not data) then
        data = tonumber("0")
    end
    data = tonumber(data)
    if (data == nil) then
        data = 0
    end
    return data
end

-- 将int转String
local function int2String(data)
    if (not data) then
        data = tostring(0)
    end
    data = tostring(data)
    if (data == nil) then
        data = "0"
    end
    return data
end

-- 打印table表
local function print_lua_table(lua_table, indent)
    indent = indent or 0

    for k, v in pairs(lua_table) do
        if type(k) == "string" then
            k = string.format("%q", k)
        end

        local szSuffix = ""

        if type(v) == "table" then
            szSuffix = "{"
        end

        local szPrefix = string.rep("    ", indent)
        formatting = szPrefix .. "[" .. k .. "]" .. " = " .. szSuffix

        if type(v) == "table" then
            print(formatting)

            print_lua_table(v, indent + 1)

            print(szPrefix .. "},")
        else
            local szValue = ""

            if type(v) == "string" then
                szValue = string.format("%q", v)
            else
                szValue = tostring(v)
            end

            print(formatting .. szValue .. ",")
        end
    end
end



-- 根据电控协议不同，需要改变的函数

-- 根据传入的json修改全局变量值
local function updateGlobalPropertyValueByJson(luaTable)
    if luaTable[KEY_POWER] == "on" then
        powerValue = 0x01
    elseif luaTable[KEY_POWER] == "off" then
        powerValue = 0x00
    end

    if luaTable[KEY_SCENE_LIGHT] == "life" then
        sceneLight=0x02
    elseif luaTable[KEY_SCENE_LIGHT] == "read" then
        sceneLight=0x03
    elseif luaTable[KEY_SCENE_LIGHT] == "mild" then
        sceneLight=0x04
    elseif luaTable[KEY_SCENE_LIGHT] == "film" then
        sceneLight=0x05
    elseif luaTable[KEY_SCENE_LIGHT] == "light" then
        sceneLight=0x06
    end

    if luaTable[KEY_COLOR_TEMPERATURE] ~= nil then
        colorTemperature=string2Int(luaTable[KEY_COLOR_TEMPERATURE])
    end

    if luaTable[KEY_BRIGHTNESS] ~= nil then
        brightness=string2Int(luaTable[KEY_BRIGHTNESS])
    end

    if luaTable[KEY_DELAY_LIGHT_OFF] ~= nil then
        delayLightOff=string2Int(luaTable[KEY_DELAY_LIGHT_OFF])
    end

    --设置色温/亮度
    if luaTable[KEY_LIFE_COLOR_TEMPERATURE] ~= nil then
        lifeColorTemperature=string2Int(luaTable[KEY_LIFE_COLOR_TEMPERATURE])
    end
    if luaTable[KEY_LIFE_BRIGHTNESS] ~= nil then
        lifeBrightness=string2Int(luaTable[KEY_LIFE_BRIGHTNESS])
    end

    if luaTable[KEY_READ_COLOR_TEMPERATURE] ~= nil then
        readColorTemperature=string2Int(luaTable[KEY_READ_COLOR_TEMPERATURE])
    end

    if luaTable[KEY_READ_BRIGHTNESS] ~= nil then
        readBrightness=string2Int(luaTable[KEY_READ_BRIGHTNESS])
    end

    if luaTable[KEY_MILD_COLOR_TEMPERATURE] ~= nil then
        mildColorTemperature=string2Int(luaTable[KEY_MILD_COLOR_TEMPERATURE])
    end
    if luaTable[KEY_MILD_BRIGHTNESS] ~= nil then
        mildBrightness=string2Int(luaTable[KEY_MILD_BRIGHTNESS])
    end

    if luaTable[KEY_FILM_COLOR_TEMPERATURE] ~= nil then
        filmColorTemperature=string2Int(luaTable[KEY_FILM_COLOR_TEMPERATURE])
    end
    if luaTable[KEY_FILM_BRIGHTNESS] ~= nil then
        filmBrightness=string2Int(luaTable[KEY_FILM_BRIGHTNESS])
    end

    if luaTable[KEY_LIGHT_COLOR_TEMPERATURE] ~= nil then
        lightColorTemperature=string2Int(luaTable[KEY_LIGHT_COLOR_TEMPERATURE])
    end
    if luaTable[KEY_LIGHT_BRIGHTNESS] ~= nil then
        lightBrightness=string2Int(luaTable[KEY_LIGHT_BRIGHTNESS])
    end
end

-- 根据传入的byte[]修改全局变量值
local function updateGlobalPropertyValueByByte(messageBytes)
    cmdType=messageBytes[0]
    if cmdType==0x81 then
        --powerValue=messageBytes[1]
        result=messageBytes[1]
    end
    if cmdType==0x82 then
        --sceneLight=messageBytes[1]
        result=messageBytes[1]
    end
    if cmdType==0x83 then
        --colorTemperature=messageBytes[1]
        result=messageBytes[1]
    end
    if cmdType==0x84 then
        --brightness=messageBytes[1]
        result=messageBytes[1]
    end
    if cmdType==0x85 then
        --delayLightOff=messageBytes[1]
        result=messageBytes[1]
    end
    if cmdType==0xa4 then
        brightness=messageBytes[1]
        colorTemperature=messageBytes[2]
        sceneLight=messageBytes[3]
        delayLightOff=messageBytes[4]

        colorRed=messageBytes[5]
        colorGreen=messageBytes[6]
        colorBlue=messageBytes[7]

        powerValue=messageBytes[8]

        lifeBrightness=messageBytes[9]
        lifeColorTemperature=messageBytes[10]
        readBrightness=messageBytes[11]
        readColorTemperature=messageBytes[12]
        mildBrightness=messageBytes[13]
        mildColorTemperature=messageBytes[14]
        filmBrightness=messageBytes[15]
        filmColorTemperature=messageBytes[16]
        lightBrightness=messageBytes[17]
        lightColorTemperature=messageBytes[18]
    end

    if cmdType==0x86 then
        --lifeBrightness=messageBytes[1]
        --lifeColorTemperature=messageBytes[2]
        result=messageBytes[1]
    end
    if cmdType==0x87 then
        --readBrightness=messageBytes[1]
        --readColorTemperature=messageBytes[2]
        result=messageBytes[1]
    end
    if cmdType==0x88 then
        --mildBrightness=messageBytes[1]
        --mildColorTemperature=messageBytes[2]
        result=messageBytes[1]
    end
    if cmdType==0x89 then
        --filmBrightness=messageBytes[1]
        --filmColorTemperature=messageBytes[2]
        result=messageBytes[1]
    end
    if cmdType==0x8a then
        --lightBrightness=messageBytes[1]
        --lightColorTemperature=messageBytes[2]
        result=messageBytes[1]
    end
end

-- 将属性值转换为最终table
local function assembleJsonByGlobalProperty()
    local streams = {}
    --版本
    streams[KEY_VERSION] = "2"

    if cmdType==0xa4 then

        streams[KEY_BRIGHTNESS]=int2String(brightness)
        streams[KEY_COLOR_TEMPERATURE]=int2String(colorTemperature)

        if sceneLight==0x02 then
            streams[KEY_SCENE_LIGHT] = "life"
        elseif sceneLight==0x03 then
            streams[KEY_SCENE_LIGHT] = "read"
        elseif sceneLight==0x04 then
            streams[KEY_SCENE_LIGHT] = "mild"
        elseif sceneLight==0x05 then
            streams[KEY_SCENE_LIGHT] = "film"
        elseif sceneLight==0x06 then
            streams[KEY_SCENE_LIGHT] = "light"
        elseif sceneLight==0x01 then
            streams[KEY_SCENE_LIGHT] = "manual"
        end

        streams[KEY_DELAY_LIGHT_OFF]=int2String(delayLightOff)

        streams["color_red"]=int2String(colorRed)
        streams["color_green"]=int2String(colorGreen)
        streams["color_blue"]=int2String(colorBlue)

        if powerValue==0x01 then
            streams[KEY_POWER] = "on"
        elseif powerValue==0x00 then
            streams[KEY_POWER] = "off"
        end

        streams[KEY_LIFE_BRIGHTNESS]=int2String(lifeBrightness)
        streams[KEY_LIFE_COLOR_TEMPERATURE]=int2String(lifeColorTemperature)
        streams[KEY_READ_BRIGHTNESS]=int2String(readBrightness)
        streams[KEY_READ_COLOR_TEMPERATURE]=int2String(readColorTemperature)
        streams[KEY_MILD_BRIGHTNESS]=int2String(mildBrightness)
        streams[KEY_MILD_COLOR_TEMPERATURE]=int2String(mildColorTemperature)
        streams[KEY_FILM_BRIGHTNESS]=int2String(filmBrightness)
        streams[KEY_FILM_COLOR_TEMPERATURE]=int2String(filmColorTemperature)
        streams[KEY_LIGHT_BRIGHTNESS]=int2String(lightBrightness)
        streams[KEY_LIGHT_COLOR_TEMPERATURE]=int2String(lightColorTemperature)

        streams[KEY_RESULT]="1"
    else
        streams[KEY_RESULT]=int2String(result)
    end

    return streams
end

-- 接口方法，json转二进制，可传入原状态，此方法不能使用local修饰
function jsonToData(jsonCmdStr)
    if (#jsonCmdStr == 0) then
        return nil
    end
    local msgBytes


    local json = decodeJsonToTable(jsonCmdStr)

    local deviceSubType = json["deviceinfo"]["deviceSubType"]

    local query = json["query"]
    local control = json["control"]
    local status = json["status"]

    --当前是查询指令，构造固定的二进制即可

    if (control) then
        --将原始状态 转换为属性（全状态协议时使用）
        if (status) then
            --updateGlobalPropertyValueByJson(status)
        end

        --将用户控制 转换为属性
        if (control) then
            updateGlobalPropertyValueByJson(control)
        end

        local bodyLength = 5
        local bodyBytes = {}
        for i = 0, bodyLength - 1 do
            bodyBytes[i] = 0
        end
        --构造消息 body 部分

        if control[KEY_POWER] ~=nil then
            bodyBytes[0] = 0x01
            bodyBytes[1] = powerValue
        elseif control[KEY_SCENE_LIGHT] ~= nil then
            bodyBytes[0] = 0x02
            bodyBytes[1] = sceneLight
        elseif control[KEY_COLOR_TEMPERATURE] ~= nil then
            bodyBytes[0] = 0x03
            bodyBytes[1] = colorTemperature
        elseif control[KEY_BRIGHTNESS] ~= nil then
            bodyBytes[0] = 0x04
            bodyBytes[1] = brightness
        elseif control[KEY_DELAY_LIGHT_OFF] ~= nil then
            bodyBytes[0] = 0x05
            bodyBytes[1] = delayLightOff
        elseif control[KEY_LIFE_COLOR_TEMPERATURE] ~= nil and control[KEY_LIFE_BRIGHTNESS] ~= nil then
            bodyBytes[0] = 0x06
            bodyBytes[1] = lifeBrightness
            bodyBytes[2] = lifeColorTemperature
        elseif control[KEY_READ_COLOR_TEMPERATURE] ~= nil and control[KEY_READ_BRIGHTNESS] ~= nil then
            bodyBytes[0] = 0x07
            bodyBytes[1] = readBrightness
            bodyBytes[2] = readColorTemperature
        elseif control[KEY_MILD_COLOR_TEMPERATURE] ~= nil and control[KEY_MILD_BRIGHTNESS] ~= nil then
            bodyBytes[0] = 0x08
            bodyBytes[1] = mildBrightness
            bodyBytes[2] = mildColorTemperature
        elseif control[KEY_FILM_COLOR_TEMPERATURE] ~= nil and control[KEY_FILM_BRIGHTNESS] ~= nil then
            bodyBytes[0] = 0x09
            bodyBytes[1] = filmBrightness
            bodyBytes[2] = filmColorTemperature
        elseif control[KEY_LIGHT_COLOR_TEMPERATURE] ~= nil and control[KEY_LIGHT_BRIGHTNESS] ~= nil then
            bodyBytes[0] = 0x0A
            bodyBytes[1] = lightBrightness
            bodyBytes[2] = lightColorTemperature
        end

        msgBytes = assembleUart(bodyBytes, BYTE_CONTROL_REQUEST)
    elseif (query) then
        --构造消息 body 部分
        local bodyLength = 5
        local bodyBytes = {}
        for i = 0, bodyLength - 1 do
            bodyBytes[i] = 0
        end
        bodyBytes[0] = 0x24

        msgBytes = assembleUart(bodyBytes, BYTE_QUERY_REQUEST)
    end

    --lua table 索引从 1 开始，因此此处要重新转换一次
    local infoM = {}

    local length = #msgBytes + 1

    for i = 1, length do
        infoM[i] = msgBytes[i - 1]
    end

    --table 转换成 string 之后返回
    local ret = table2string(infoM)
    ret = string2hexstring(ret)
    return ret
end

-- 接口方法，二进制转json，此方法不能使用local修饰
function dataToJson(jsonStr)
    if (not jsonStr) then
        return nil
    end

    local json = decodeJsonToTable(jsonStr)

    local deviceinfo = json["deviceinfo"]

    --根据设备子类型来处理协议差异
    local deviceSubType = deviceinfo["deviceSubType"]
    if (deviceSubType == 1) then
    end

    local binData = json["msg"]["data"]

    local bodyBytes = {}
    --包括Uart头
    local byteData = string2table(binData)

    --获取消息数据类型
    dataType = byteData[10];

    bodyBytes = extractBodyBytes(byteData)

    --将二进制状态解析为属性值
    local ret = updateGlobalPropertyValueByByte(bodyBytes)
    local retTable = {}
    --将属性转换为table
    retTable["status"] = assembleJsonByGlobalProperty()
    --将table转换为json
    local ret = encodeTableToJson(retTable)
    return ret
end

与美的平台对接，获取自己的设备数据转换成美的平台数据的LUA脚本；指令列表



 测试结果

获取设备通道气味编号
{
"deviceinfo": {
"deviceSubType": 1
},
"control": {
"cmd":"getchlscentid"
}
}
下发指令：[1~10]: aa,15,fd,00,00,00,00,00,00,02,[11~20]: f5,00,00,00,00,0e,01,06,51,fb,[21~22]: 55,41

播放通道2持续20秒
{
"deviceinfo": {
"deviceSubType": 1
},
"control": {
"cmd":"playscent",
"channelid":2,
"duration":20
}
}
下发指令：[1~10]: aa,19,fd,00,00,00,00,00,00,02,[11~20]: f5,00,00,00,00,02,05,02,00,00,[21~26]: 4e,20,c9,68,55,f6

停止播放指令
{
"deviceinfo": {
"deviceSubType": 1
},
"control": {
"cmd":"stopplay",
"stopflag":0
}
}
下发指令：[1~10]: aa,15,fd,00,00,00,00,00,00,02,[11~20]: f5,00,00,00,00,00,01,00,90,1a,[21~22]: 55,f7

返回获取通道指令 AA 1D FD E0 00 00 00 00 00 02 F5 00 00 00 00 0E 09 00 10 02 00 30 04 00 50 06 CD 85 55 B5
返回JSON
{
"status": {
"receive": "F5 00 00 00 00 0E 09 00 10 02 00 30 04 00 50 06 CD 85 55 ",
"result": "00",
"cmd": "0E",
"scentid1": 1,
"scentid2": 2,
"scentid3": 3,
"scentid4": 4,
"scentid5": 5,
"scentid6": 6
}
}
-------------------------------------------------------------------------------------------
返回停止执行指令 AA 15 FD 00 00 00 00 00 00 02 F5 00 00 00 00 00 01 00 90 1A 55 F7
返回JSON
{
"status": {
"receive": "F5 00 00 00 00 00 01 00 90 1A 55 ",
"result": 0,
"cmd": "00"
}
}

返回播放指令 AA 19 FD 00 00 00 00 00 00 02 F5 00 00 00 00 02 01 00 41 34 55 44
返回JSON
{
"status": {
"receive": "F5 00 00 00 00 02 01 00 41 34 55 ",
"result": 0,
"cmd": "02"
}
}

返回查询非正常执行指令 AA 15 FD 00 00 00 00 00 00 02 F5 00 00 00 00 99 01 00 90 1A 55 F7
返回JSON
{
"status": {
"receive": "F5 00 00 00 00 99 01 00 90 1A 55 ",
"result": 1,
"cmd": "99"
}
}

返回非正常指令 AA 15 FD 00 00 00 00 00 00 02 00 00 00 00 00 F7
返回JSON
{
"status": {
"receive": "00 00 00 00 00 ",
"result": "01",
"cmd": "FF"
}
}
