eclipse+maven+spring，mvc项目基本搭建

环境
- 操作系统

　　　　　　windows10

- JDK

　　　　　　jdk1.8.0_192

- IDE

　　　　　　Eclipse IDE for Enterprise Java Developers.

　　　　　　Version: 2019-06 (4.12.0) Build id: 20190614-1200

构建

　1.配置settings.xml

　　创建一个settings.xml文件，复制下列代码到文件中

 1 <?xml version="1.0" encoding="UTF-8"?>
 2  <settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
 3            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 4            xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
 5
 6  <!--  本地maven库，路径可以自定义 -->
 7    <localRepository>D:\DxOffice\repository</localRepository>
 8
 9  <!--   中央maven库 -->
10    <mirrors>
11      <mirror>
12          <id>nexus-aliyun</id>
13          <mirrorOf>*</mirrorOf>
14          <name>Nexus aliyun</name>
15          <url>http://maven.aliyun.com/nexus/content/groups/public</url>
16      </mirror>
17    </mirrors>
18
19  </settings>

　　配置

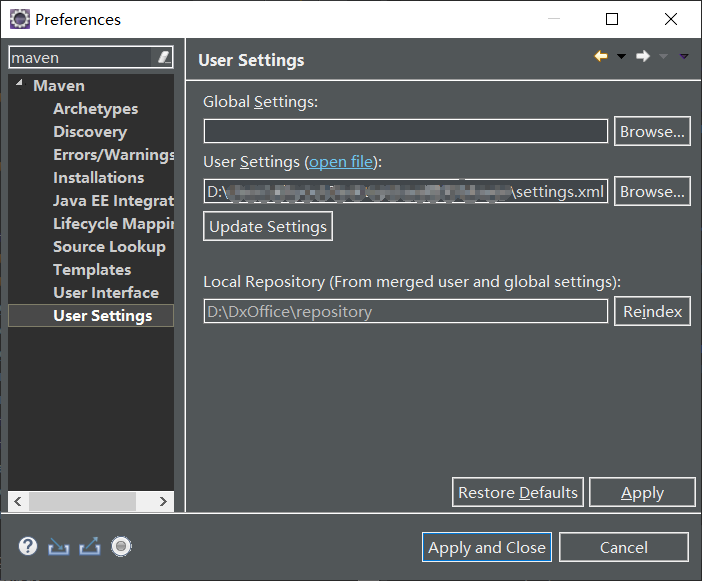

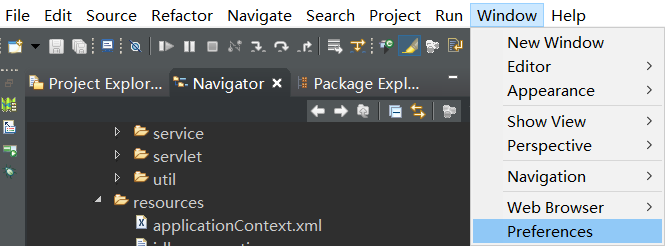

　　　Window -> Preferences

　　Maven -> User Settings -> User Settings ->Browse...->选择settings.xml所在目录->Apply and Close

　2.创建Maven项目

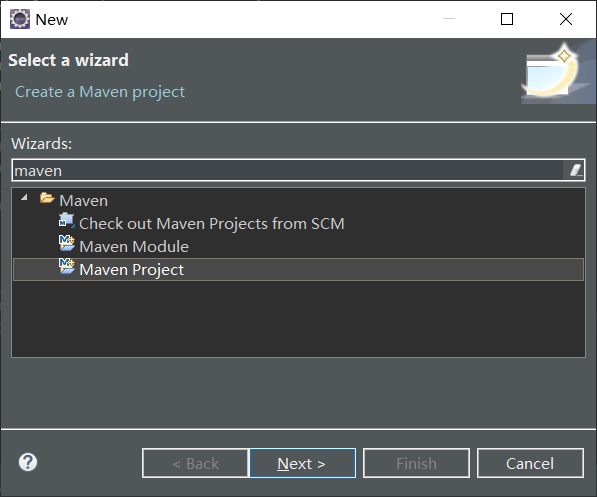

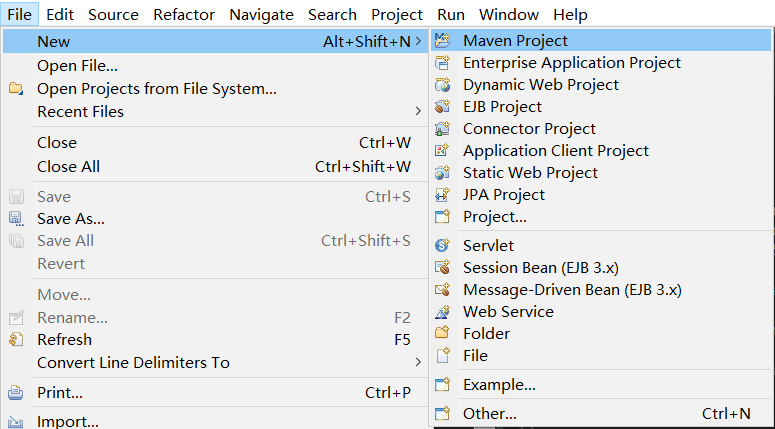

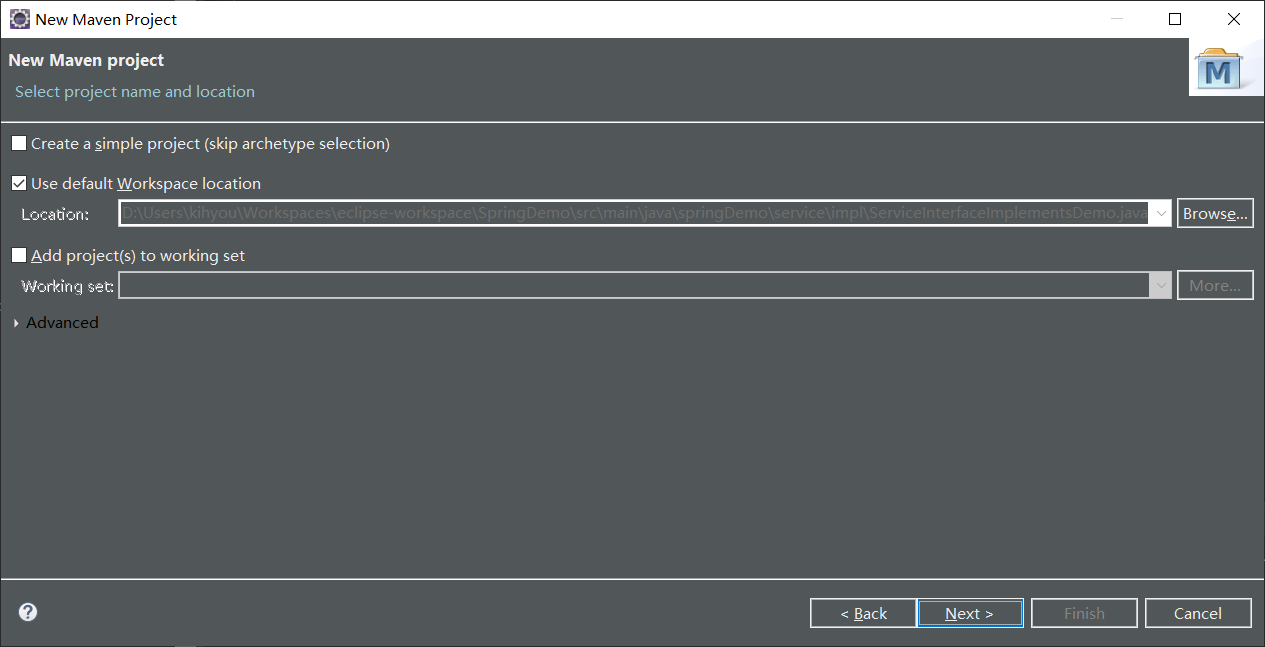

　　 File -> New ->Maven Project(/Other...->Maven Project -> Next)

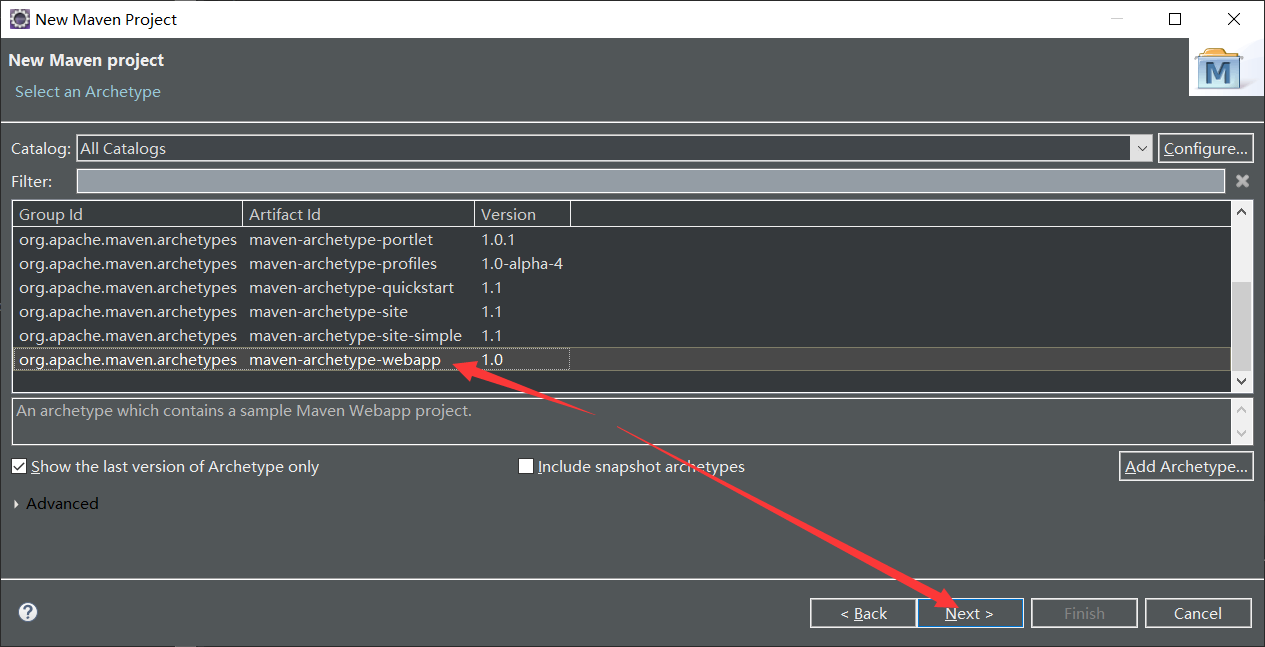

　　org.apache.maven.archetypes maven-archetype-webapp 1 .0->Next　　

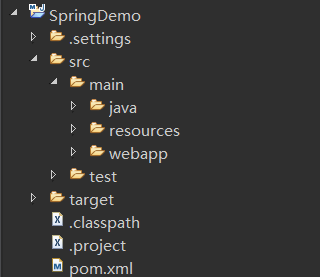

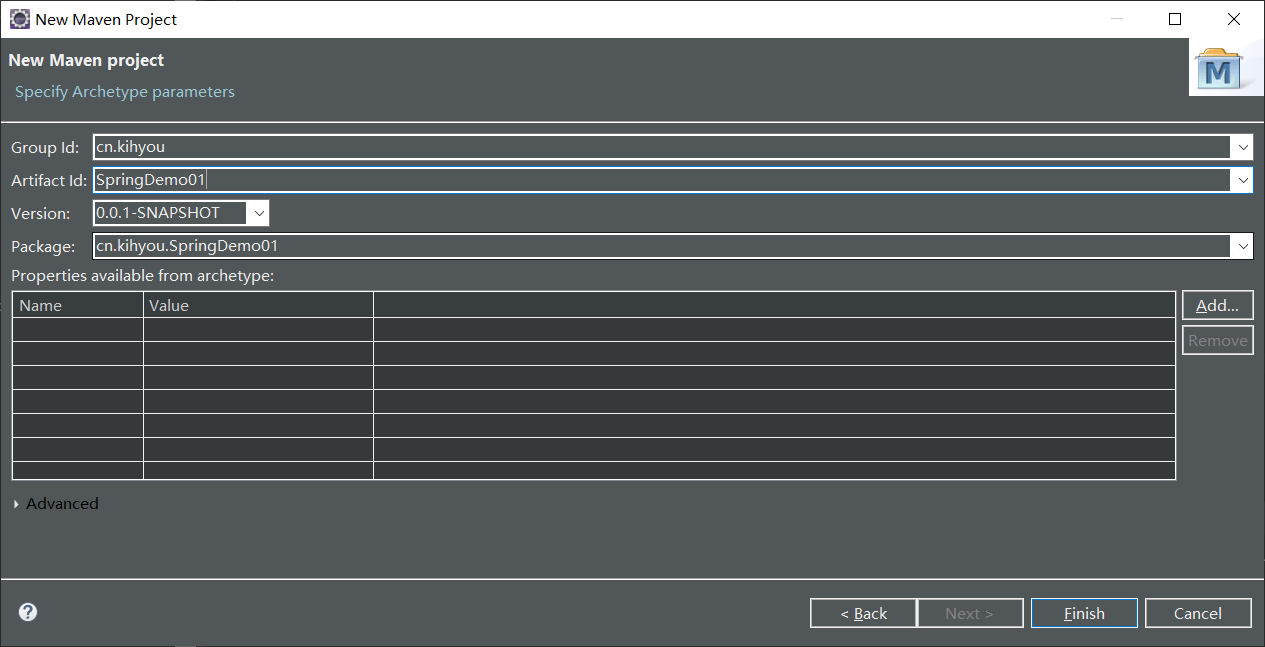

　　Group Id、Artifact Id、Version、Package -> Finish　

3.修改JRE

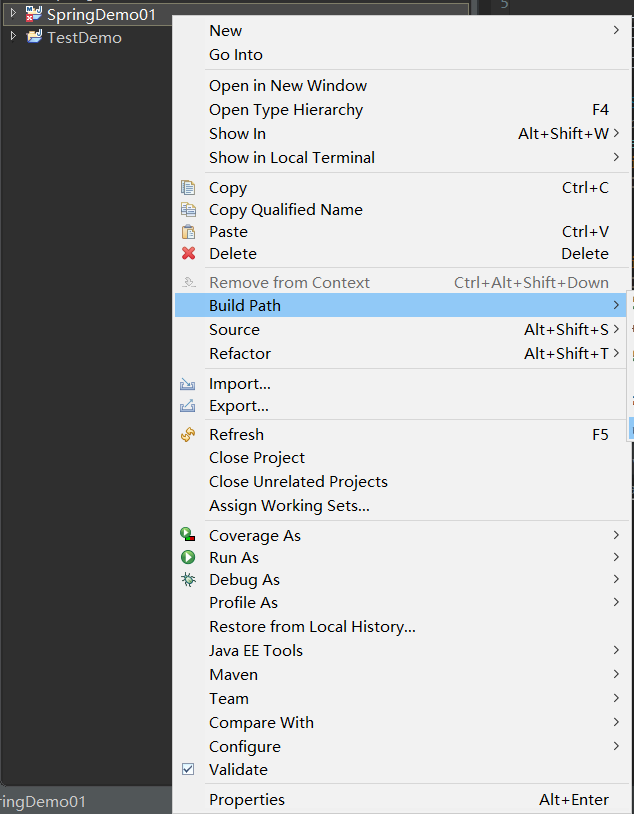

　　Build Path　

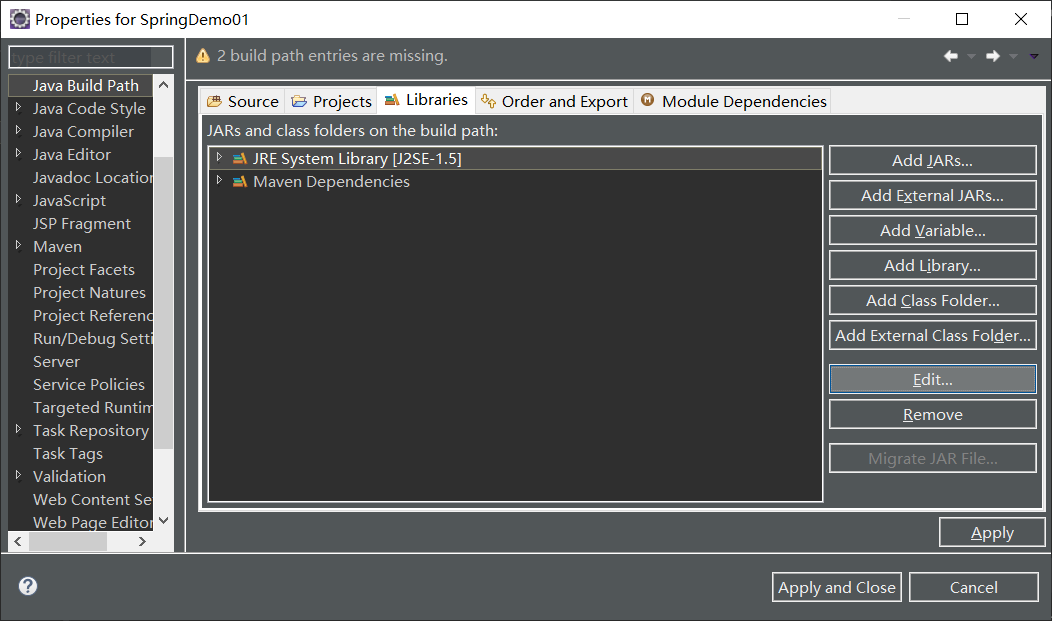

　　Configure Build Path...

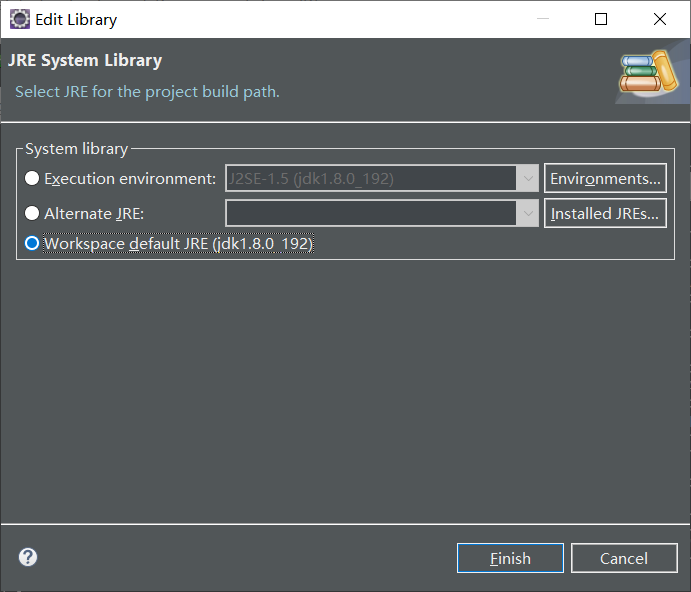

　　Libraries -> JRE System Library -> Edit

　　Workspace default JRE ->Finish

4.配置pom.xml

初始文件

 1 <project xmlns="http://maven.apache.org/POM/4.0.0"
 2     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 3     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
 4     <modelVersion>4.0.0</modelVersion>
 5     <groupId>cn.kihyou</groupId>
 6     <artifactId>SpringDemo</artifactId>
 7     <packaging>war</packaging>
 8     <version>0.0.1-SNAPSHOT</version>
 9     <name>SpringDemo Maven Webapp</name>
10     <url>http://maven.apache.org</url>
11   <dependencies>
12     <dependency>
13       <groupId>junit</groupId>
14       <artifactId>junit</artifactId>
15       <version>3.8.1</version>
16       <scope>test</scope>
17     </dependency>
18   </dependencies>
19   <build>
20     <finalName>SpringDemo</finalName>
21   </build>
22 </project>

　添加配置

<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>cn.kihyou</groupId>
    <artifactId>SpringDemo</artifactId>
    <packaging>war</packaging>
    <version>0.0.1-SNAPSHOT</version>
    <name>SpringDemo Maven Webapp</name>
    <url>http://maven.apache.org</url>
    <!-- 以上自动生成 -->

    <!-- properties内自定义复用的属性的标签名，${标签名}调用 -->
    <properties>
        <spring.version>4.3.11.Release</spring.version>
    </properties>

　　<dependencies>
　　　　<dependency>
　　　　　　<groupId>junit</groupId>
　　　　　　<artifactId>junit</artifactId>
　　　　　　<version>3.8.1</version>
　　　　　　<scope>test</scope>
　　　　</dependency>
　　</dependencies>
　　<build>
　　　　<finalName>SpringDemo</finalName>

　　</build>

</project>

修改<dependencies></dependcies>内代码如下

 1 <dependencies>
 2          <dependency>
 3              <groupId>mysql</groupId>
 4              <artifactId>mysql-connector-java</artifactId>
 5              <version>8.0.17</version>
 6          </dependency>
 7
 8          <!-- https://mvnrepository.com/artifact/javax.servlet.jsp/jsp-api -->
 9          <dependency>
10              <groupId>javax.servlet.jsp</groupId>
11              <artifactId>jsp-api</artifactId>
12              <version>2.2</version>
13              <scope>provided</scope>
14          </dependency>
15
16          <dependency>
17              <groupId>commons-io</groupId>
18              <artifactId>commons-io</artifactId>
19              <version>2.6</version>
20          </dependency>
21
22          <!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
23          <dependency>
24              <groupId>commons-fileupload</groupId>
25              <artifactId>commons-fileupload</artifactId>
26              <version>1.4</version>
27          </dependency>
28
29          <!-- https://mvnrepository.com/artifact/com.alibaba/fastjson -->
30          <dependency>
31              <groupId>com.alibaba</groupId>
32              <artifactId>fastjson</artifactId>
33              <version>1.2.59</version>
34          </dependency>
35
36          <dependency>
37              <groupId>jstl</groupId>
38              <artifactId>jstl</artifactId>
39              <version>1.2</version>
40          </dependency>
41
42          <dependency>
43              <groupId>junit</groupId>
44              <artifactId>junit</artifactId>
45              <version>4.11</version>
46              <scope>test</scope>
47          </dependency>
48
49          <dependency>
50              <groupId>javax.servlet</groupId>
51              <artifactId>javax.servlet-api</artifactId>
52              <version>3.1.0</version>
53          </dependency>
54
55          <dependency>
56              <groupId>javax.servlet.jsp</groupId>
57              <artifactId>javax.servlet.jsp-api</artifactId>
58              <version>2.3.1</version>
59          </dependency>
60
61          <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
62          <dependency>
63              <groupId>org.springframework</groupId>
64              <artifactId>spring-webmvc</artifactId>
65              <version>4.3.11.RELEASE</version>
66          </dependency>
67          <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
68          <dependency>
69              <groupId>org.springframework</groupId>
70              <artifactId>spring-jdbc</artifactId>
71  <version>4.3.11.RELEASE</version>
72 </dependency>
73 </dependencies>

　　<build></build>内添加<plugins></plugins>，代码如下

 1 <plugins>
 2              <plugin>
 3                  <groupId>org.eclipse.jetty</groupId>
 4                  <artifactId>jetty-maven-plugin</artifactId>
 5                  <version>9.3.7.v20160115</version>
 6                  <configuration>
 7                      <httpConnector>
 8                          <port>8081</port>
 9                      </httpConnector>
10                      <webApp>
11                          <contextPath>/${project.artifactId}</contextPath>
12                      </webApp>
13
14                      <contextHandlers>
15                          <!-- 附件目录服务 -->
16                          <contextHandler implementation="org.eclipse.jetty.maven.plugin.JettyWebAppContext">
17                              <contextPath>/image</contextPath>
18                              <resourceBase>D:\DxOffice\workspace\image</resourceBase>
19                          </contextHandler>
20                      </contextHandlers>
21
22                      <encoding>UTF-8</encoding>
23                      <scanIntervalSeconds>10</scanIntervalSeconds>
24                  </configuration>
25
26              </plugin>
27              <!-- 要解决静态文件锁定问题org\eclipse\jetty\jetty-webapp\ -->
28              <!-- org\eclipse\jetty\webapp\webdefault.xml -->
29              <!-- <init-param> -->
30              <!-- <param-name>useFileMappedBuffer</param-name> -->
31              <!-- <param-value>true</param-value> change to false -->
32              <!-- </init-param> -->
33
34              <plugin>
35                  <groupId>org.apache.tomcat.maven</groupId>
36                  <artifactId>tomcat7-maven-plugin</artifactId>
37                  <version>2.2</version>
38                  <configuration>
39                      <path>/${project.artifactId}</path>
40                      <port>8080</port>
41                      <uriEncoding>UTF-8</uriEncoding>
42                      <finalName>${project.artifactId}</finalName>
43                      <server>tomcat7</server>
44                  </configuration>
45              </plugin>
46
47              <plugin>
48                  <groupId>org.apache.maven.plugins</groupId>
49                  <artifactId>maven-compiler-plugin</artifactId>
50                  <version>3.7.0</version>
51
52                  <configuration>
53                      <source>1.8</source>
54                      <target>1.8</target>
55                      <encoding>UTF-8</encoding>
56                  </configuration>
57
58              </plugin>
59          </plugins>

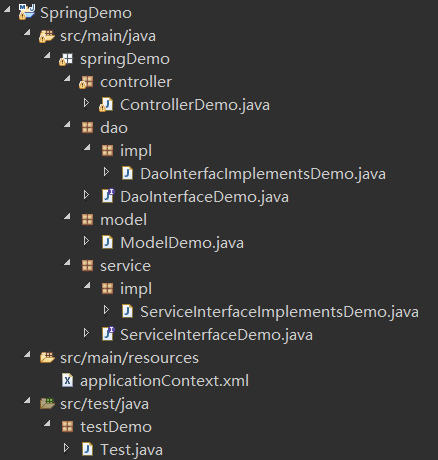

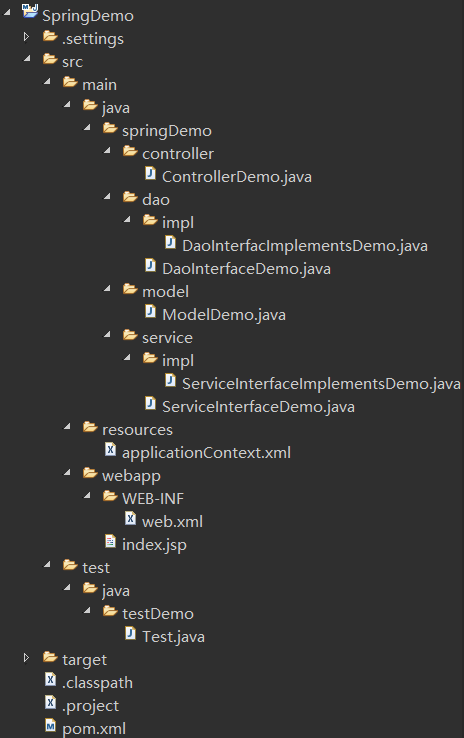

5.主目录结构搭建　　

　　M

　　　model

　　V

　　　view

　　C

　　　controller

　　　service
