识别格子内是否存在芯片(转)

来源：https://www.cnblogs.com/LearningC/p/15870948.html

代码流程

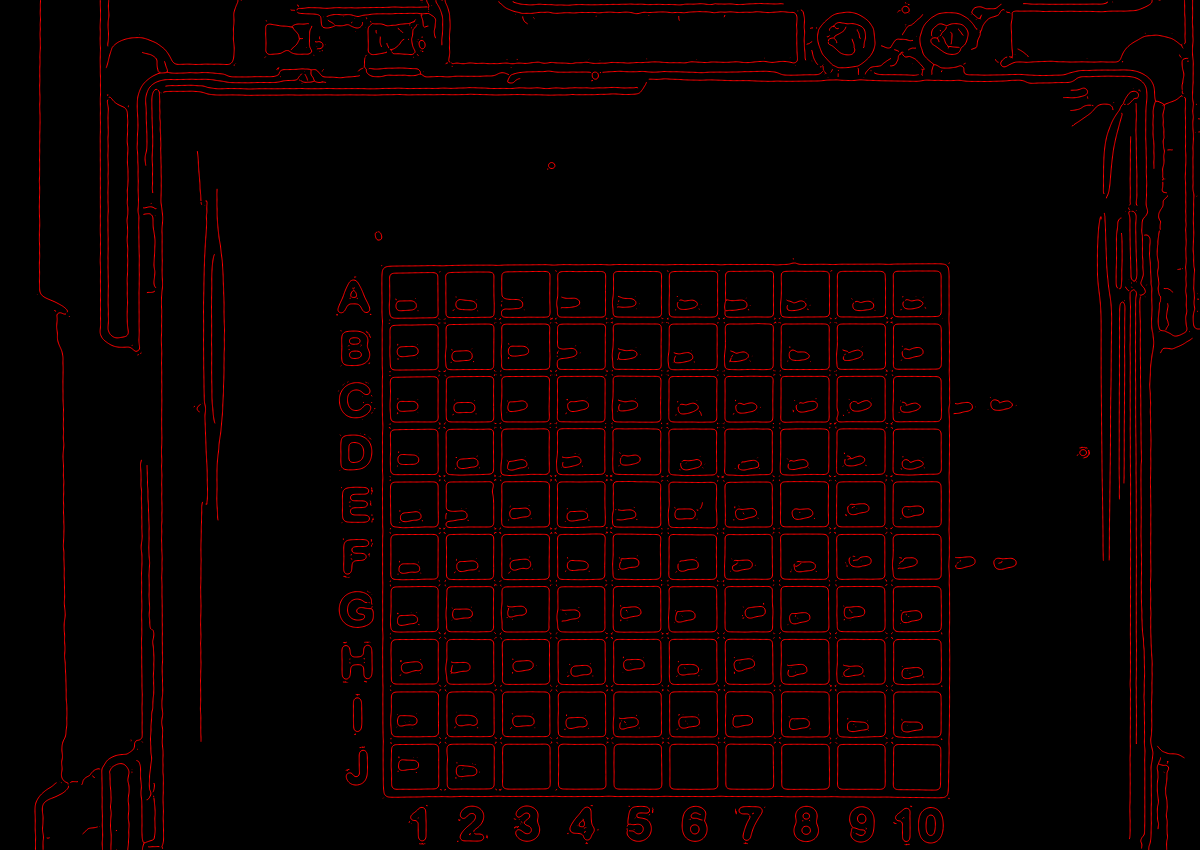

使用edges_sub_pix (Image, Edges, 'canny', 10, 20, 40)，获取黑白之间的边缘线条
轮廓转区域

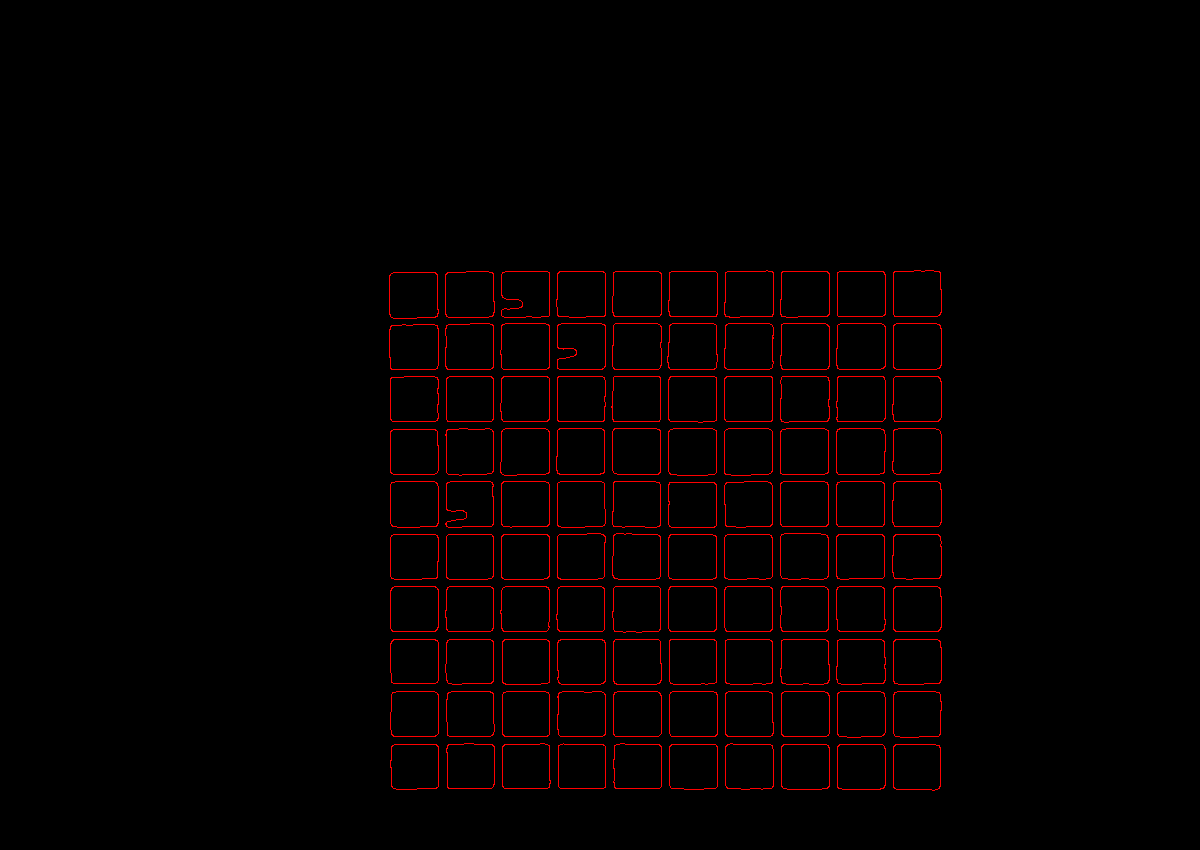

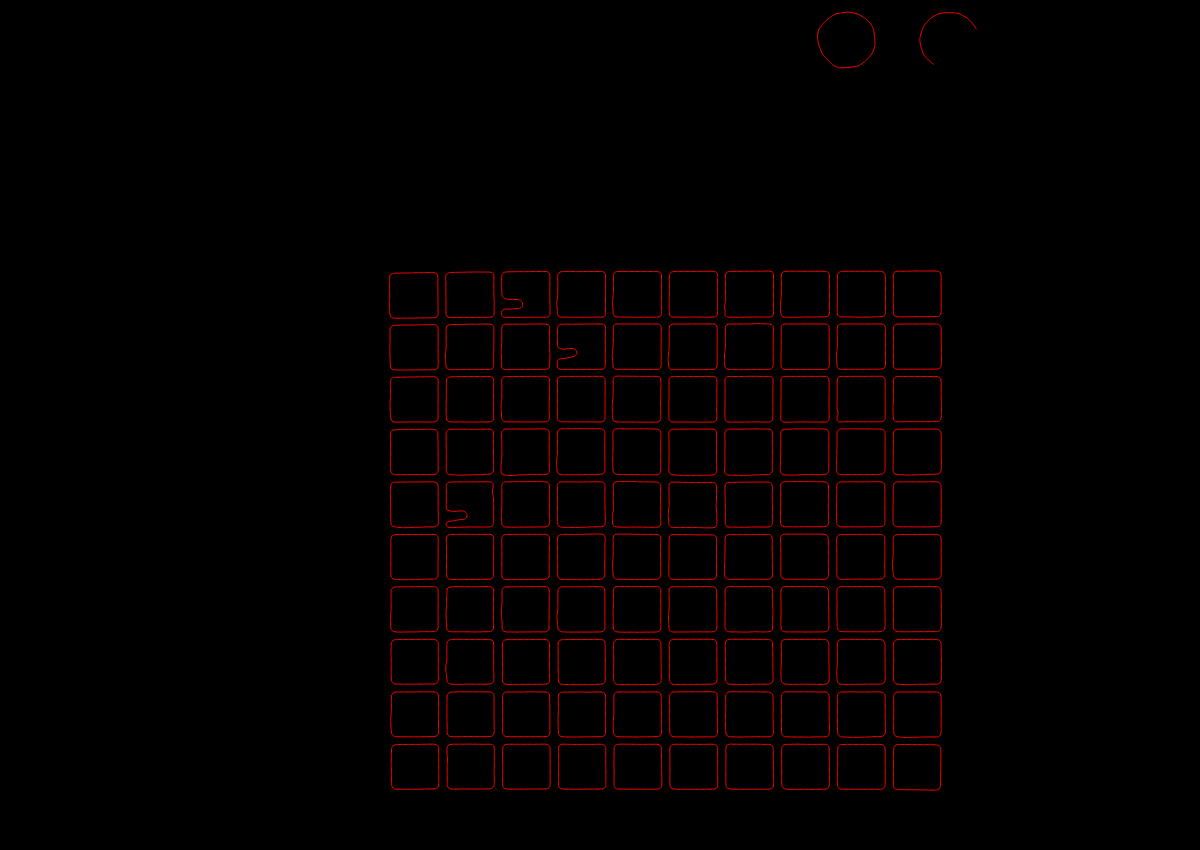

根据边长和面积select_shape_xld (Edges, SelectedXLD, ['rect2_len1','area'], 'and', [70,18000], [100,33000])，筛选小方格
再根据长宽做二次筛选，得到所有的方格
动态二值化各个方格，
图像取反，腐蚀细小的区域（存在不确定性）
检查是否存在区域，有则表示存在芯片

dev_close_window ()
dev_open_window (0, 0, 1200, 850, 'black', WindowHandle)
dev_clear_window()
* read_image (Image, 'D:/temp/chips/20220110112001.jpg')
* read_image (Image, 'D:/temp/chips/20220110112121.jpg')
* read_image (Image, 'D:/temp/chips/20220110112137.jpg')
 read_image (Image, 'D:/temp/chips/Image_20211227154621354.bmp')

*使用canny算子提取亚像素边界
edges_sub_pix (Image, Edges, 'canny', 10, 20, 40)
*根据边长和面积提取xld
select_shape_xld (Edges, SelectedXLD, ['rect2_len1','area'], 'and', [70,18000], [100,33000])
*根据xld绘出区域
gen_region_contour_xld (SelectedXLD, Region, 'margin')
*根据区域面积提取芯片盒子
select_shape (Region, ChipsImage, ['width','height'], \
'and', [155,155], [170,170])
*合并区域
union1 (ChipsImage, RegionUnion)
*填充区域
fill_up (RegionUnion, ROI_0)
*根据联合区域裁剪感兴趣区域

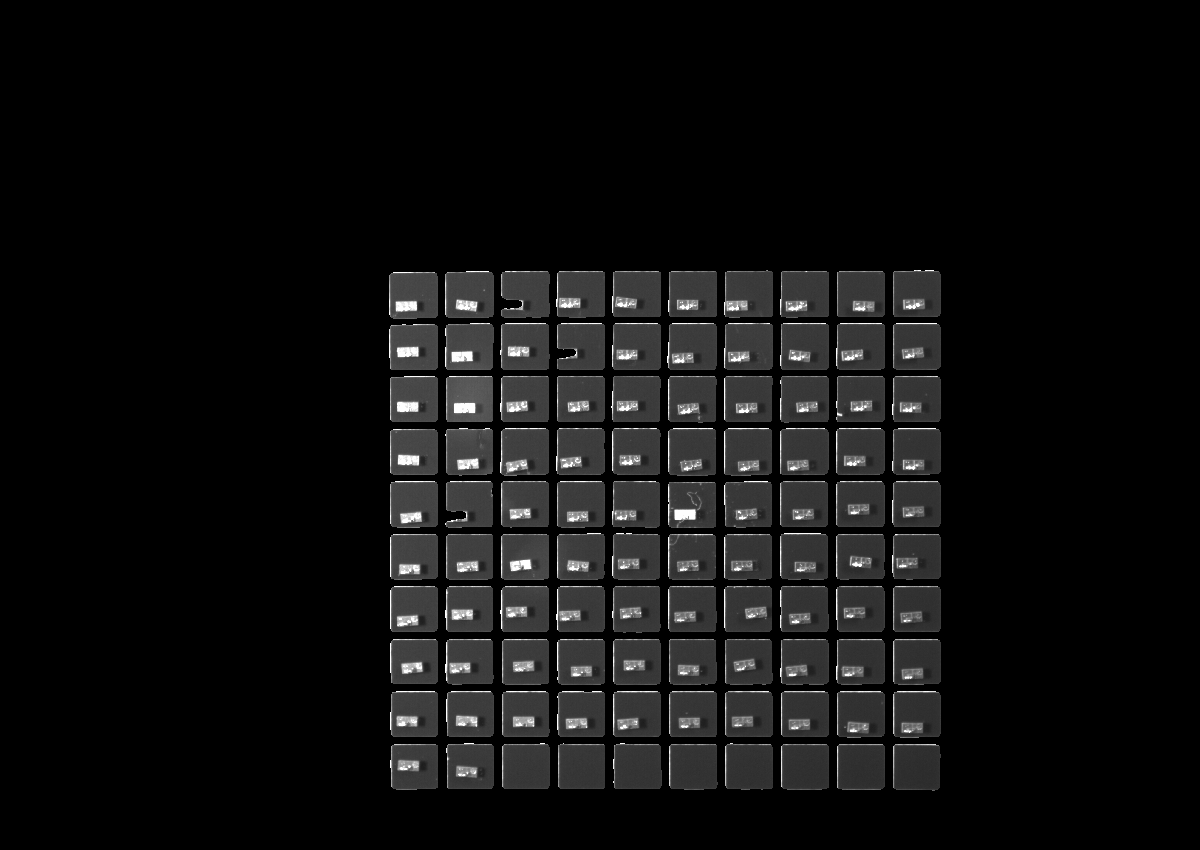

reduce_domain (Image, ROI_0, ImageReduced)
*联通分割区域
connection (ImageReduced, ConnectedRegions)
*将每个芯片方格转换成标准矩形
shape_trans (ConnectedRegions, RegionTransRect, 'rectangle1')
*排序
sort_region (RegionTransRect, SortedRegions, 'character', 'true', 'row')
*总孔位数量
count_obj (SortedRegions, Number)
*结果数组，0 代表没有 1代表有芯片
result:= []
*空位的数量
EmptyCount :=0
dev_display (Image)
for Index := 1 to Number by 1
  * 找到索引对应的区域
   select_obj (SortedRegions, ALL_ROI_OF_SINGLES, Index)
   *裁剪区域
   reduce_domain (Image, ALL_ROI_OF_SINGLES, ChipBoxRegion)
   *动态阈值分割
   binary_threshold (ChipBoxRegion, ChipRegion, 'max_separability', 'dark', UsedThreshold)
   *反向选择

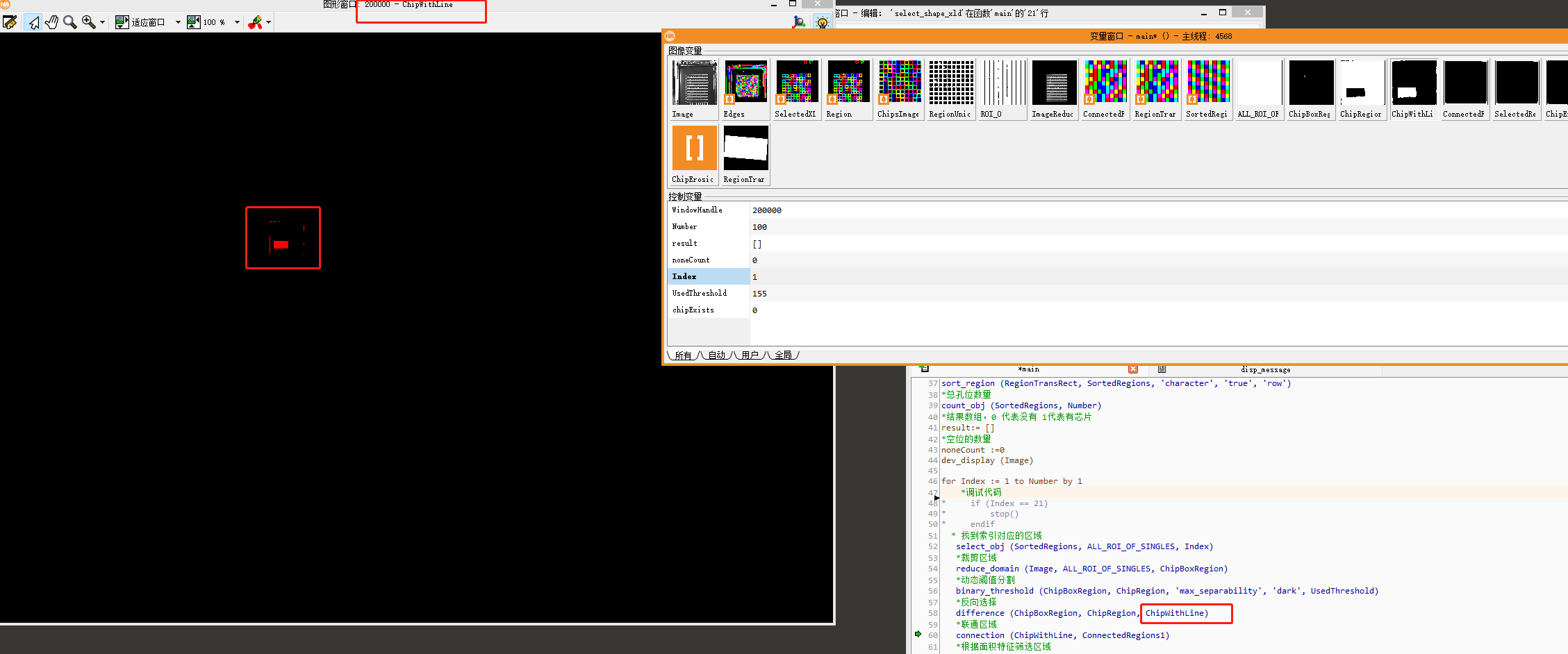

   difference (ChipBoxRegion, ChipRegion, ChipWithLine)
   *联通区域
   connection (ChipWithLine, ConnectedRegions1)
   *根据面积特征筛选区域
   select_shape (ConnectedRegions1, SelectedRegions, 'area', 'and', 1000.59, 3001.78)
   *腐蚀
   erosion_circle (SelectedRegions, ChipErosion, 2)
   *再次通过面积筛选
   select_shape (ChipErosion, ChipInside, 'area', 'and', 1000, 3000)
   *腐蚀
   erosion_circle (ChipInside, ChipErosion1, 2)
   *计算赛选个数
   count_obj (ChipErosion1, chipExists)

   if (chipExists == 0)
       *判断不存在芯片的逻辑
        EmptyCount := EmptyCount +1
        *显示用
        dev_update_on()
        dev_set_color ('red')
        dev_set_draw ('fill')
        dev_display (ALL_ROI_OF_SINGLES)
        dev_update_off()
   endif
   if(chipExists == 1)
       *判断有芯片的逻辑

       *显示用
        dev_update_on()
        dev_set_color ('green')
        dev_set_draw ('fill')
        shape_trans (ChipErosion1, RegionTrans, 'rectangle2')
        dev_display (RegionTrans)
        dev_update_off()
   endif
   result[Index-1] := chipExists
endfor

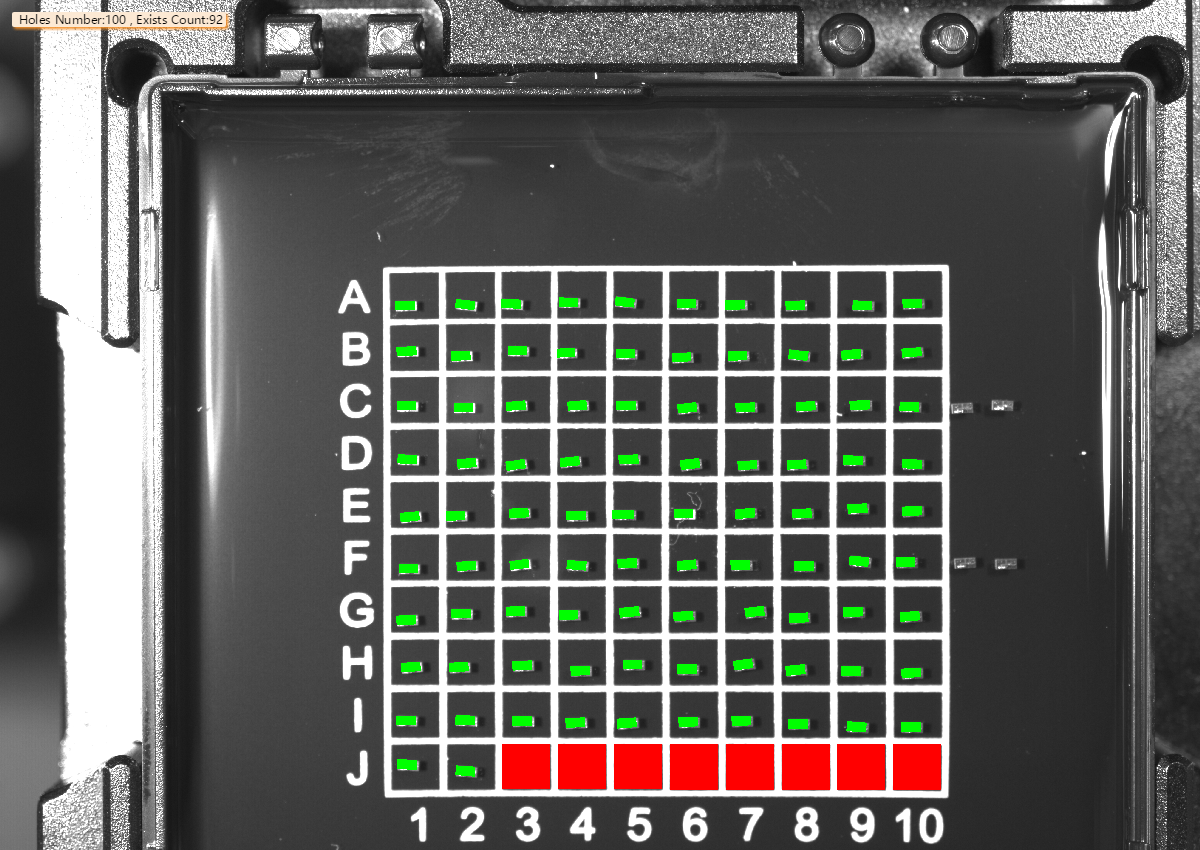

disp_message (WindowHandle, ' Holes Number:'+Number + ' , Exists Count:' + (Number - EmptyCount) , 'window', 12, 12, 'black', 'true')
