UE4之Game、Render、RHI多线程架构

游戏线程（GameThread）

GameThread是引擎运行的心脏，承载游戏逻辑、运行流程的工作，也是其它线程的数据发起者。在FEngineLoop::Tick函数执行每帧逻辑的更新。

在引擎启动时会把GameThread的线程id存储到全局变量GGameThreadId中，且稍后会设置到TaskGraph系统中。

int32 FEngineLoop::PreInitPreStartupScreen(const TCHAR* CmdLine)
{
    // ... ...

    // 创建线程自己的TLS数据FPerThreadFreeBlockLists  注：Binned2、Binned3内存分配器需要
    FMemory::SetupTLSCachesOnCurrentThread();

    // remember thread id of the main thread
    GGameThreadId = FPlatformTLS::GetCurrentThreadId();// 游戏线程id
    GIsGameThreadIdInitialized = true; // 游戏线程id是否被初始化

    FPlatformProcess::SetThreadAffinityMask(FPlatformAffinity::GetMainGameMask()); // 设置当前线程的cpu核的相关性  注：防止在多个cpu核心上跳来跳去，引发性能问题
    FPlatformProcess::SetupGameThread(); // 设置游戏线程数据(但很多平台都是空的实现体)

    // ... ...

    FTaskGraphInterface::Startup(FPlatformMisc::NumberOfCores()); // TaskGraph初始化，并根据当前机器cpu的核数来创建工作线程
    FTaskGraphInterface::Get().AttachToThread(ENamedThreads::GameThread); // 附加到TaskGraph的GameThread命名插槽中. 这样游戏线程便和TaskGraph联动了起来.


    if (GUseThreadedRendering)  // 如果使用渲染线程
    {
        if (GRHISupportsRHIThread) // 当前平台如果支持RHI线程
        {
            const bool DefaultUseRHIThread = true;
            GUseRHIThread_InternalUseOnly = DefaultUseRHIThread;
            if (FParse::Param(FCommandLine::Get(), TEXT("rhithread")))
            {
                GUseRHIThread_InternalUseOnly = true; // 创建独立的RHIThread，并加入到TaskGraph中，RHI会跑在TaskGraph的RHIThread上
            }
            else if (FParse::Param(FCommandLine::Get(), TEXT("norhithread")))
            {
                GUseRHIThread_InternalUseOnly = false; // RHI跑在TaskGraph的AnyThread上
            }
        }

        SCOPED_BOOT_TIMING("StartRenderingThread");
        StartRenderingThread();  // 创建并启动渲染线程
    }

    // ... ...
}

游戏线程和TaskGraph系统的ENamedThreads::GameThread其实是一回事，都是同一个线程！

经过上面的初始化和设置后，其它地方就可以通过TaskGraph系统并行地处理任务了，也可以访问全局变量，以便判断游戏线程是否初始化完，当前线程是否游戏线程：

bool IsInGameThread()
{
    return GIsGameThreadIdInitialized && FPlatformTLS::GetCurrentThreadId() == GGameThreadId;
}

渲染线程（RenderThread）

RenderThread在TaskGraph系统中有一个任务队列，其他线程（主要是GameThread）通过宏ENQUEUE_RENDER_COMMAND(Type)向该队列中填充任务注：Type字符串要保持唯一，否则ENQUEUE_RENDER_COMMAND(Type)会失效

RenderThread则不断从这个队列中取出任务来执行，从而生成与平台无关的Command List（渲染指令列表）。注：整个过程是异步的

RenderThread是其他线程（主要是GameThread）的奴隶，只是简单地作为工作线程不断执行它们赋予的工作。

RenderingThread.h声明了全部对外的接口，部分如下：

// Engine\Source\Runtime\RenderCore\Public\RenderingThread.h

// 是否启用了独立的渲染线程, 如果为false, 则所有渲染命令会被立即执行, 而不是放入渲染命令队列.
extern RENDERCORE_API bool GIsThreadedRendering;

// 渲染线程是否应该被创建. 通常被命令行参数或ToggleRenderingThread控制台参数设置.
extern RENDERCORE_API bool GUseThreadedRendering;

// 是否开启RHI线程
extern RENDERCORE_API void SetRHIThreadEnabled(bool bEnableDedicatedThread, bool bEnableRHIOnTaskThreads);

(......)

// 开启渲染线程.
extern RENDERCORE_API void StartRenderingThread();

// 停止渲染线程.
extern RENDERCORE_API void StopRenderingThread();

// 检查渲染线程是否健康(是否Crash), 如果crash, 则会用UE_Log输出日志.
extern RENDERCORE_API void CheckRenderingThreadHealth();

// 检查渲染线程是否健康(是否Crash)
extern RENDERCORE_API bool IsRenderingThreadHealthy();

// 增加一个必须在下一个场景绘制前或flush渲染命令前完成的任务.
extern RENDERCORE_API void AddFrameRenderPrerequisite(const FGraphEventRef& TaskToAdd);

// 手机帧渲染前序任务, 保证所有渲染命令被入队.
extern RENDERCORE_API void AdvanceFrameRenderPrerequisite();

// 等待所有渲染线程的渲染命令被执行完毕. 会卡住游戏线程, 只能被游戏线程调用.
extern RENDERCORE_API void FlushRenderingCommands(bool bFlushDeferredDeletes = false);

extern RENDERCORE_API void FlushPendingDeleteRHIResources_GameThread();
extern RENDERCORE_API void FlushPendingDeleteRHIResources_RenderThread();

extern RENDERCORE_API void TickRenderingTickables();

extern RENDERCORE_API void StartRenderCommandFenceBundler();
extern RENDERCORE_API void StopRenderCommandFenceBundler();

(......)

RenderingThread.h还有一个非常重要的宏ENQUEUE_RENDER_COMMAND，它的作用是向渲染线程入队渲染指令。下面是它的声明和实现：

// 向渲染线程入队渲染指令, Type指明了渲染操作的名字.
#define ENQUEUE_RENDER_COMMAND(Type) \
    struct Type##Name \
    {  \
        static const char* CStr() { return #Type; } \
        static const TCHAR* TStr() { return TEXT(#Type); } \
    }; \
    EnqueueUniqueRenderCommand<Type##Name>

上面最后一句使用了EnqueueUniqueRenderCommand命令，继续追踪之：

/* UnrealEngine\Engine\Source\Runtime\RenderCore\Public\RenderingThread.h */

/** The parent class of commands stored in the rendering command queue. */
class RENDERCORE_API FRenderCommand
{
public:
    // All render commands run on the render thread
    static ENamedThreads::Type GetDesiredThread() // 所有渲染指令都必须在渲染线程执行.
    {
        check(!GIsThreadedRendering || ENamedThreads::GetRenderThread() != ENamedThreads::GameThread);
        return ENamedThreads::GetRenderThread(); // 开启渲染多线程时，返回渲染线程。不开启渲染多线程时，返回GameThread
    }

    static ESubsequentsMode::Type GetSubsequentsMode()
    {
        // Don't support tasks having dependencies on us, reduces task graph overhead tracking and dealing with subsequents
        return ESubsequentsMode::FireAndForget;
    }
};

template<typename TSTR, typename LAMBDA>
class TEnqueueUniqueRenderCommandType : public FRenderCommand
{
public:
    TEnqueueUniqueRenderCommandType(LAMBDA&& InLambda) : Lambda(Forward<LAMBDA>(InLambda)) {}

    void DoTask(ENamedThreads::Type CurrentThread, const FGraphEventRef& MyCompletionGraphEvent)
    {
        TRACE_CPUPROFILER_EVENT_SCOPE_ON_CHANNEL_STR(TSTR::TStr(), RenderCommandsChannel);
        FRHICommandListImmediate& RHICmdList = GetImmediateCommandList_ForRenderCommand();
        Lambda(RHICmdList);
    }

    FORCEINLINE_DEBUGGABLE TStatId GetStatId() const
    {
#if STATS
        static struct FThreadSafeStaticStat<FStat_EnqueueUniqueRenderCommandType> StatPtr_EnqueueUniqueRenderCommandType;
        return StatPtr_EnqueueUniqueRenderCommandType.GetStatId();
#else
        return TStatId();
#endif
    }

private:
    LAMBDA Lambda; // 缓存渲染回调函数.
};

/*************************************************************************************************************/

template<typename TSTR, typename LAMBDA> // 传入的TSTR为结构体类型，里面包含CStr和TStr的静态方法，为渲染命令名字。 LAMBDA是回调函数
FORCEINLINE_DEBUGGABLE void EnqueueUniqueRenderCommand(LAMBDA&& Lambda)
{
    QUICK_SCOPE_CYCLE_COUNTER(STAT_EnqueueUniqueRenderCommand);
    typedef TEnqueueUniqueRenderCommandType<TSTR, LAMBDA> EURCType;  // EURCType类型即为TEnqueueUniqueRenderCommandType<TSTR, LAMBDA>类型

#if 0 // UE_SERVER && UE_BUILD_DEBUG
    UE_LOG(LogRHI, Warning, TEXT("Render command '%s' is being executed on a dedicated server."), TSTR::TStr())
#endif

    if (IsInRenderingThread()) // 如果在渲染线程内直接执行回调而不入队渲染命令.
    {
        FRHICommandListImmediate& RHICmdList = GetImmediateCommandList_ForRenderCommand();  // --》FRHICommandListExecutor::GetImmediateCommandList() --》GRHICommandList.CommandListImmediate
        Lambda(RHICmdList); // 在渲染线程中，直接执行传入的lamda匿名函数
    }
    else
    {
        if (ShouldExecuteOnRenderThread()) // if ((GIsThreadedRendering || !IsInGameThread())) // 使用渲染线程 or 当前不为GameThread  // 需要在独立的渲染线程执行
        {
            CheckNotBlockedOnRenderThread();
            TGraphTask<EURCType>::CreateTask().ConstructAndDispatchWhenReady(Forward<LAMBDA>(Lambda)); // 向渲染线程的TaskGraph队列里面投递类型名为EURCType类型的任务，并将lamda匿名函数作为参数传入该任务的构造函数
        }
        else
        {
            // 不在独立的渲染线程执行，则构建EURCType类型的对象，然后直接执行
            EURCType TempCommand(Forward<LAMBDA>(Lambda));
            FScopeCycleCounter EURCMacro_Scope(TempCommand.GetStatId());
            TempCommand.DoTask(ENamedThreads::GameThread, FGraphEventRef());
        }
    }
}

EnqueueUniqueRenderCommand函数只负责向渲染线程的TaskGraph队列里面投递任务，它耗时统计到Quick的EnqueueUniqueRenderCommand分类中

注：执行EnqueueUniqueRenderCommand函数的线程可能为：GameThread、RenderThread、RTHeartBeat、TaskGraph的AnyThread、PoolThread的FQueuedThread

ENQUEUE_RENDER_COMMAND(xxx)，在RenderThread上执行的xxx的耗时统计在RenderThreadCommands分类中

为了更好理解入队渲染命令操作，举2个具体的例子：

例1：在GameThread执行LoadMap切地图，在卸载掉Old World之后，会在TrimMemory()函数中使用宏ENQUEUE_RENDER_COMMAND向RenderThread的TaskGraph队列中投递一个FlushCommand任务

ENQUEUE_RENDER_COMMAND(FlushCommand)(
/* ---------------------------------------------- ENQUEUE_RENDER_COMMAND宏展开后 ------------------------------------------------
struct FlushCommandName
{
    static const char* CStr() { return "FlushCommand"; }
    static const TCHAR* TStr() { return L"FlushCommand"; }
};
EnqueueUniqueRenderCommand<FlushCommandName>( */
    [](FRHICommandList& RHICmdList)
    {
        GRHICommandList.GetImmediateCommandList().ImmediateFlush(EImmediateFlushType::FlushRHIThreadFlushResources);
        RHIFlushResources();
        GRHICommandList.GetImmediateCommandList().ImmediateFlush(EImmediateFlushType::FlushRHIThreadFlushResources);
    });

例2：在GameThread中执行控制台变量命令，会使用宏ENQUEUE_RENDER_COMMAND向RenderThread的TaskGraph队列中投递一个OnCVarChange1任务，以便将新的数值传递到RenderThread的逻辑中使用

virtual void OnCVarChange(int32& Dest, int32 NewValue)
{
    int32* DestPtr = &Dest;
    ENQUEUE_RENDER_COMMAND(OnCVarChange1)(
    /* ---------------------------------------------- ENQUEUE_RENDER_COMMAND宏展开后 ------------------------------------------------
    struct OnCVarChange1Name
    {
        static const char* CStr() { return "OnCVarChange1"; }
        static const TCHAR* TStr() { return L"OnCVarChange1"; }
    };
    EnqueueUniqueRenderCommand<OnCVarChange1Name>( */
        [DestPtr, NewValue](FRHICommandListImmediate& RHICmdList)
        {
            *DestPtr = NewValue;
        });
}

FRenderingThread承载了渲染线程的主要工作，它的部分接口和实现代码如下：

// Engine\Source\Runtime\RenderCore\Private\RenderingThread.cpp

class FRenderingThread : public FRunnable
{
private:
    bool bAcquiredThreadOwnership;    // 当没有独立的RHI线程时, 渲染线程将被其它线程捕获.

public:
    FEvent* TaskGraphBoundSyncEvent; // TaskGraph同步事件, 以便在主线程使用渲染线程之前就将渲染线程绑定到TaskGraph体系中.

    FRenderingThread()
    {
        bAcquiredThreadOwnership = false;
        // 获取同步事件.
        TaskGraphBoundSyncEvent    = FPlatformProcess::GetSynchEventFromPool(true);
        RHIFlushResources();
    }

    // FRunnable interface.
    virtual bool Init(void) override
    {
        // 获取当前线程ID到全局变量GRenderThreadId, 以便其它地方引用.
        GRenderThreadId = FPlatformTLS::GetCurrentThreadId();

        // 处理线程捕获关系.
        if (!IsRunningRHIInSeparateThread())
        {
            bAcquiredThreadOwnership = true;
            RHIAcquireThreadOwnership();
        }

        return true;
    }

    (......)

    virtual uint32 Run(void) override
    {
        // 设置TLS.
        FMemory::SetupTLSCachesOnCurrentThread();
        // 设置渲染线程平台相关的数据.
        FPlatformProcess::SetupRenderThread();

        (......)

        {
            // 进入渲染线程主循环.
            RenderingThreadMain( TaskGraphBoundSyncEvent );
        }

        FMemory::ClearAndDisableTLSCachesOnCurrentThread();
        return 0;
    }
};

可见它在运行之后会进入渲染线程逻辑，这里再进入RenderingThreadMain代码一探究竟：

void RenderingThreadMain( FEvent* TaskGraphBoundSyncEvent )
{
    LLM_SCOPE(ELLMTag::RenderingThreadMemory);

    // 将渲染线程和局部线程线程插槽设置成ActualRenderingThread和ActualRenderingThread_Local.
    ENamedThreads::Type RenderThread = ENamedThreads::Type(ENamedThreads::ActualRenderingThread);

    ENamedThreads::SetRenderThread(RenderThread);
    ENamedThreads::SetRenderThread_Local(ENamedThreads::Type(ENamedThreads::ActualRenderingThread_Local));

    // 将当前线程附加到TaskGraph的RenderThread插槽中.
    FTaskGraphInterface::Get().AttachToThread(RenderThread);
    FPlatformMisc::MemoryBarrier();

    // 触发同步事件, 通知主线程渲染线程已经附加到TaskGraph, 已经准备好接收任务.
    if( TaskGraphBoundSyncEvent != NULL )
    {
        TaskGraphBoundSyncEvent->Trigger();
    }

    (......)

    // 渲染线程不同阶段的处理.
    FCoreDelegates::PostRenderingThreadCreated.Broadcast();
    check(GIsThreadedRendering);
    FTaskGraphInterface::Get().ProcessThreadUntilRequestReturn(RenderThread);
    FPlatformMisc::MemoryBarrier();
    check(!GIsThreadedRendering);
    FCoreDelegates::PreRenderingThreadDestroyed.Broadcast();

    (......)

    // 恢复线程线程到游戏线程.
    ENamedThreads::SetRenderThread(ENamedThreads::GameThread);
    ENamedThreads::SetRenderThread_Local(ENamedThreads::GameThread_Local);
    FPlatformMisc::MemoryBarrier();
}

不过这里还留有一个很大的疑问，那就是FRenderingThread只是获取当前线程作为渲染线程并附加到TaskGraph中，并没有创建线程。

那么是哪里创建的渲染线程呢？继续追踪，结果发现是在StartRenderingThread()接口中创建了FRenderingThread实例，它的实现代码如下（节选）：

// Engine\Source\Runtime\RenderCore\Private\RenderingThread.cpp

void StartRenderingThread()
{
    (......)

    // Turn on the threaded rendering flag.
    GIsThreadedRendering = true;

    // 创建FRenderingThread实例.
    GRenderingThreadRunnable = new FRenderingThread();

    // 创建渲染线程!!
    GRenderingThread = FRunnableThread::Create(GRenderingThreadRunnable, *BuildRenderingThreadName(ThreadCount), 0, FPlatformAffinity::GetRenderingThreadPriority(), FPlatformAffinity::GetRenderingThreadMask(), FPlatformAffinity::GetRenderingThreadFlags());

    (......)

    // 开启渲染命令的栅栏.
    FRenderCommandFence Fence;
    Fence.BeginFence();
    Fence.Wait();

    (......)
}

如果继续追踪，会发现StartRenderingThread()是在FEngineLoop::PreInitPostStartupScreen中调用的。

至此，渲染线程的创建、初始化以及主要接口的实现都剖析完了。

RHI线程（RHIThread）

RenderThread作为前端（frontend）产生的Command List是平台无关的，是抽象的图形API调用；

而RHIThread作为后端（backend）会执行和转换渲染线程的Command List成为指定图形API的调用（称为Graphical Command），并提交到GPU执行。

RHI线程的工作是转换渲染指令到指定图形API，创建、上传渲染资源到GPU。实现代码如下：

// Engine\Source\Runtime\RenderCore\Private\RenderingThread.cpp

class FRHIThread : public FRunnable
{
public:
    FRunnableThread* Thread;    // 所在的RHI线程.

    FRHIThread()
        : Thread(nullptr)
    {
        check(IsInGameThread());
    }

    void Start()
    {
        // 开始时创建RHI线程.
        Thread = FRunnableThread::Create(this, TEXT("RHIThread"), 512 * 1024, FPlatformAffinity::GetRHIThreadPriority(),
            FPlatformAffinity::GetRHIThreadMask(), FPlatformAffinity::GetRHIThreadFlags()
            );
        check(Thread);
    }

    virtual uint32 Run() override
    {
        LLM_SCOPE(ELLMTag::RHIMisc);

        // 初始化TLS
        FMemory::SetupTLSCachesOnCurrentThread();
        // 将FRHIThread所在的RHI线程附加到askGraph体系中，并指定到ENamedThreads::RHIThread。
        FTaskGraphInterface::Get().AttachToThread(ENamedThreads::RHIThread);
        // 启动RHI线程，直到线程返回。
        FTaskGraphInterface::Get().ProcessThreadUntilRequestReturn(ENamedThreads::RHIThread);
        // 清理TLS.
        FMemory::ClearAndDisableTLSCachesOnCurrentThread();
        return 0;
    }

    // 单例接口。
    static FRHIThread& Get()
    {
        static FRHIThread Singleton; // 使用了局部静态变量，可以保证线程安全。
        return Singleton;
    }
};

可见RHI线程不同于渲染线程，是直接在FRHIThread对象内创建实际的线程。而FRHIThread的创建也是在StartRenderingThread()中：

void StartRenderingThread()
{
    (......)

    if (GUseRHIThread_InternalUseOnly)
    {
        FRHICommandListExecutor::GetImmediateCommandList().ImmediateFlush(EImmediateFlushType::DispatchToRHIThread);
        if (!FTaskGraphInterface::Get().IsThreadProcessingTasks(ENamedThreads::RHIThread))
        {
            // 创建FRHIThread实例并启动它.
            FRHIThread::Get().Start();
        }
        DECLARE_CYCLE_STAT(TEXT("Wait For RHIThread"), STAT_WaitForRHIThread, STATGROUP_TaskGraphTasks);

        // 创建RHI线程拥有者捕获任务, 让游戏线程等待.
        FGraphEventRef CompletionEvent = TGraphTask<FOwnershipOfRHIThreadTask>::CreateTask(NULL, ENamedThreads::GameThread).ConstructAndDispatchWhenReady(true, GET_STATID(STAT_WaitForRHIThread));
        QUICK_SCOPE_CYCLE_COUNTER(STAT_StartRenderingThread);
        // 让游戏线程或局部线程等待RHI线程处理(捕获了线程拥有者, 大多数图形API为空)完毕.
        FTaskGraphInterface::Get().WaitUntilTaskCompletes(CompletionEvent, ENamedThreads::GameThread_Local);
        // 存储RHI线程id.
        GRHIThread_InternalUseOnly = FRHIThread::Get().Thread;
        check(GRHIThread_InternalUseOnly);
        GIsRunningRHIInDedicatedThread_InternalUseOnly = true;
        GIsRunningRHIInSeparateThread_InternalUseOnly = true;
        GRHIThreadId = GRHIThread_InternalUseOnly->GetThreadID();

        GRHICommandList.LatchBypass();
    }

    (......)
}

以Fortnite（堡垒之夜）移动端为例，在开启RHI线程之前，渲染线程急剧地上下波动，而加了RHI线程之后，波动平缓许多，和游戏线程基本保持一致，帧率也提升不少：

GameThread、RenderThread、RHIThread之间的同步机制

这3个线程处理的数据通常是不同帧的，譬如GameThread处理N帧数据，RenderThread和RHIThread处理N-1帧数据。

但也存在例外，比如RenderThread和RHIThread运行很快，几乎不存在延迟，这种情况下，GameThread处理N帧，而RenderThread可能处理N或N-1帧，RHIThread也可能在转换N或N-1帧。

但是，RenderThread不能落后游戏线程一帧，否则GameThread会卡住，直到RenderThread处理所有指令。

游戏线程和渲染线程的同步

游戏线程不可能领先于渲染线程超过一帧（最多快一帧），否则游戏线程会等待渲染线程处理完。它们的同步机制涉及两个关键的概念：

// Engine\Source\Runtime\RenderCore\Public\RenderCommandFence.h

// 渲染命令栅栏
class RENDERCORE_API FRenderCommandFence
{
public:
    // 向渲染命令队列增加一个栅栏. bSyncToRHIAndGPU是否同步RHI和GPU交换Buffer, 否则只等待渲染线程.
    void BeginFence(bool bSyncToRHIAndGPU = false);

    // 等待栅栏被执行. bProcessGameThreadTasks没有作用.
    void Wait(bool bProcessGameThreadTasks = false) const;

    // 是否完成了栅栏.
    bool IsFenceComplete() const;

private:
    mutable FGraphEventRef CompletionEvent; // 处理完成同步的事件
    ENamedThreads::Type TriggerThreadIndex; // 处理完之后需要触发的线程类型.
};

// Engine\Source\Runtime\Engine\Public\UnrealEngine.h
class FFrameEndSync
{
    FRenderCommandFence Fence[2]; // 渲染栅栏对.
    int32 EventIndex; // 当前事件索引
public:
    // 同步游戏线程和渲染线程. bAllowOneFrameThreadLag是否允许渲染线程一帧的延迟.
    void Sync( bool bAllowOneFrameThreadLag )
    {
        Fence[EventIndex].BeginFence(true); // 开启栅栏, 强制同步RHI和GPU交换链的.

        bool bEmptyGameThreadTasks = !FTaskGraphInterface::Get().IsThreadProcessingTasks(ENamedThreads::GameThread);

        // 保证游戏线程至少跑过一次任务.
        if (bEmptyGameThreadTasks)
        {
            FTaskGraphInterface::Get().ProcessThreadUntilIdle(ENamedThreads::GameThread);
        }

        // 如果允许延迟, 交换事件索引.
        if( bAllowOneFrameThreadLag )
        {
            EventIndex = (EventIndex + 1) % 2;
        }

        (......)

        // 开启栅栏等待.
        Fence[EventIndex].Wait(bEmptyGameThreadTasks);
    }
};

在FRenderCommandFence的BeginFence函数中

当GameThread与RHI线程及GPU同步时，GameThread会使用宏ENQUEUE_RENDER_COMMAND向RenderThread的TaskGraph队列中投递一个FSyncFrameCommand任务，以便将Command List同步投递到RHI线程

当GameThread与RenderThread同步时，GameThread会创建一个FNullGraphTask空任务，放到RenderThread的TaskGraph队列中让其执行

在FRenderCommandFence的Wait函数中，会检查投递给RenderThread的CompletionEvent是否被执行，如果没有执行则调用GameThreadWaitForTask函数来阻塞等待（通过Event实现）

void FRenderCommandFence::BeginFence(bool bSyncToRHIAndGPU)
{
    if (!GIsThreadedRendering)
    {
        return;
    }
    else
    {
        // Render thread is a default trigger for the CompletionEvent
        TriggerThreadIndex = ENamedThreads::ActualRenderingThread;

        if (BundledCompletionEvent.GetReference() && IsInGameThread())
        {
            CompletionEvent = BundledCompletionEvent;
            return;
        }

        int32 GTSyncType = CVarGTSyncType.GetValueOnAnyThread();
        if (bSyncToRHIAndGPU)
        {
            // Don't sync to the RHI and GPU if GtSyncType is disabled, or we're not vsyncing
            //@TODO: do this logic in the caller?
            static auto CVarVsync = IConsoleManager::Get().FindConsoleVariable(TEXT("r.VSync")); // 是否开了VSync
            check(CVarVsync != nullptr);

            if ( GTSyncType == 0 || CVarVsync->GetInt() == 0 ) // r.GTSyncType为0或r.VSync为0时，GameThread不与RHI线程及GPU同步
        {
                bSyncToRHIAndGPU = false;
            }
        }


        if (bSyncToRHIAndGPU) // GameThread与RHI线程及GPU同步时
        {
            if (IsRHIThreadRunning())
            {
                // Change trigger thread to RHI
                TriggerThreadIndex = ENamedThreads::RHIThread;
            }

            // Create a task graph event which we can pass to the render or RHI threads.
            CompletionEvent = FGraphEvent::CreateGraphEvent();

            FGraphEventRef InCompletionEvent = CompletionEvent;
            /* ---------------------------------------------- ENQUEUE_RENDER_COMMAND宏展开后 ------------------------------------------------
            struct FSyncFrameCommandName
            {
            static const char* CStr() { return "FSyncFrameCommand"; }
            static const TCHAR* TStr() { return L"FSyncFrameCommand"; }
            };
            EnqueueUniqueRenderCommand<FSyncFrameCommandName>( */
            ENQUEUE_RENDER_COMMAND(FSyncFrameCommand)(
                [InCompletionEvent, GTSyncType](FRHICommandListImmediate& RHICmdList)
                {
                    if (IsRHIThreadRunning()) // 如果开启了RHI线程
                    {
                        ALLOC_COMMAND_CL(RHICmdList, FRHISyncFrameCommand)(InCompletionEvent, GTSyncType); // 将创建的CompletionEvent投递到RHI线程的TaskGraph的任务队列中
                        RHICmdList.ImmediateFlush(EImmediateFlushType::DispatchToRHIThread);
                    }
                    else  // 渲染线程直接执行
                    {
                        FRHISyncFrameCommand Command(InCompletionEvent, GTSyncType);
                        Command.Execute(RHICmdList);
                    }
                });
        }
        else  // GameThead与RenderThread同步
        {
            // Sync Game Thread with Render Thread only
            DECLARE_CYCLE_STAT(TEXT("FNullGraphTask.FenceRenderCommand"),
            STAT_FNullGraphTask_FenceRenderCommand,
                STATGROUP_TaskGraphTasks);

            CompletionEvent = TGraphTask<FNullGraphTask>::CreateTask(NULL, ENamedThreads::GameThread).ConstructAndDispatchWhenReady(
                GET_STATID(STAT_FNullGraphTask_FenceRenderCommand), ENamedThreads::GetRenderThread());
        }
    }
}


/**
 * Waits for pending fence commands to retire.
 */
void FRenderCommandFence::Wait(bool bProcessGameThreadTasks) const
{
    if (!IsFenceComplete())
    {
        StopRenderCommandFenceBundler();

        GameThreadWaitForTask(CompletionEvent, TriggerThreadIndex, bProcessGameThreadTasks);
    }
}

bool FRenderCommandFence::IsFenceComplete() const
{
    if (!GIsThreadedRendering)
    {
        return true;
    }
    check(IsInGameThread() || IsInAsyncLoadingThread());
    CheckRenderingThreadHealth();
    if (!CompletionEvent.GetReference() || CompletionEvent->IsComplete())
    {
        CompletionEvent = NULL; // this frees the handle for other uses, the NULL state is considered completed
        return true;
    }
    return false;
}

而FFrameEndSync的使用是在FEngineLoop::Tick中：

// Engine\Source\Runtime\Launch\Private\LaunchEngineLoop.cpp

void FEngineLoop::Tick()
{
    (......)

    // 在引擎循环的帧末尾添加游戏线程和渲染线程的同步事件.
    {
        static FFrameEndSync FrameEndSync; // 局部静态变量, 线程安全.
        static auto CVarAllowOneFrameThreadLag = IConsoleManager::Get().FindTConsoleVariableDataInt(TEXT("r.OneFrameThreadLag"));
        // 同步游戏和渲染线程, 是否允许一帧的延迟可由控制台命令控制. 默认是开启的.
        FrameEndSync.Sync( CVarAllowOneFrameThreadLag->GetValueOnGameThread() != 0 );
    }

    (......)
}

FlushRenderingCommands

在游戏线程中调用，会阻塞游戏线程，强行等待所有的渲染线程pending render command以及RHI线程中的指令执行完，相当于一次完整地对渲染线程的同步

/
 * Waits for the rendering thread to finish executing all pending rendering commands.  Should only be used from the game thread.
 */
void FlushRenderingCommands(bool bFlushDeferredDeletes)
{
    if (!GIsRHIInitialized)
    {
        return;
    }
    FSuspendRenderingTickables SuspendRenderingTickables;

    // Need to flush GT because render commands from threads other than GT are sent to
    // the main queue of GT when RT is disabled
    if (!GIsThreadedRendering
        && !FTaskGraphInterface::Get().IsThreadProcessingTasks(ENamedThreads::GameThread)
        && !FTaskGraphInterface::Get().IsThreadProcessingTasks(ENamedThreads::GameThread_Local))
    {
        FTaskGraphInterface::Get().ProcessThreadUntilIdle(ENamedThreads::GameThread);
        FTaskGraphInterface::Get().ProcessThreadUntilIdle(ENamedThreads::GameThread_Local);
    }

    ENQUEUE_RENDER_COMMAND(FlushPendingDeleteRHIResourcesCmd)(
        [bFlushDeferredDeletes](FRHICommandListImmediate& RHICmdList)
    {
        RHICmdList.ImmediateFlush(
            bFlushDeferredDeletes ?
            EImmediateFlushType::FlushRHIThreadFlushResourcesFlushDeferredDeletes :
            EImmediateFlushType::FlushRHIThreadFlushResources);
    });

    // Find the objects which may be cleaned up once the rendering thread command queue has been flushed.
    FPendingCleanupObjects* PendingCleanupObjects = GetPendingCleanupObjects();

    // Issue a fence command to the rendering thread and wait for it to complete.
    FRenderCommandFence Fence;
    Fence.BeginFence(); // 创建一个FNullGraphTask空任务，放到RenderThread的TaskGraph队列中让其执行
    Fence.Wait(); // 检查投递给RenderThread的CompletionEvent是否被执行，如果没有执行就会阻塞等待

    // Delete the objects which were enqueued for deferred cleanup before the command queue flush.
    delete PendingCleanupObjects;
}

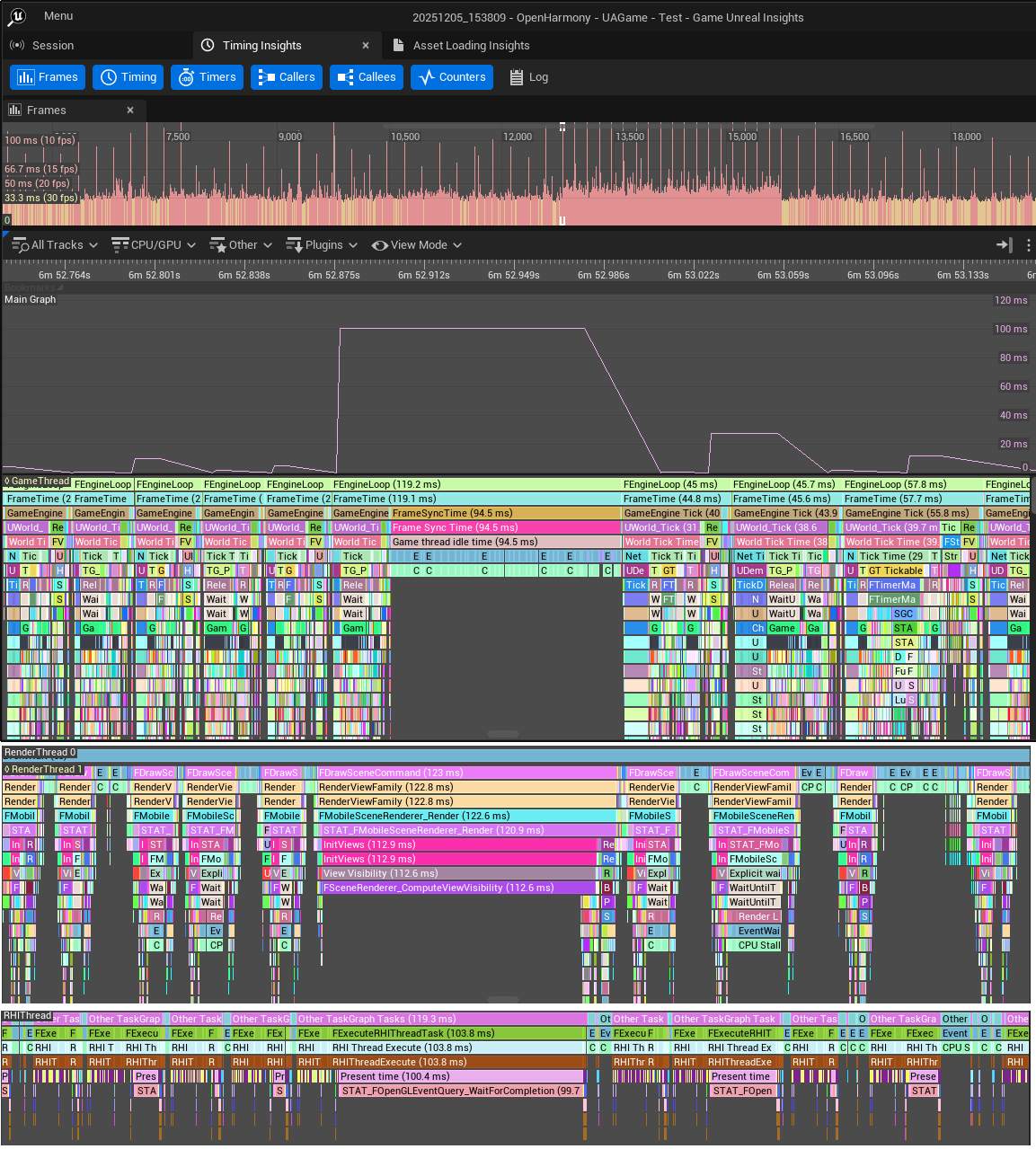

渲染线程和RHI线程的同步

RenderThread每次在调用RenderViewFamily_RenderThread的起始处，会阻塞等待所有RHI指令处理完成，然后才开始当前帧的渲染逻辑。

FMobileSceneRender渲染管线下，RenderThread每一帧都会执行ImmediateFlush，阻塞等待RHI处理完FGraphEventRef RHIThreadTask任务，代码如下：

FDeferredShadingSceneRender渲染管线下，RenderThread每一帧都会执行ImmediateFlush，阻塞等待RHI处理完FGraphEventRef RHIThreadTask任务，代码如下：

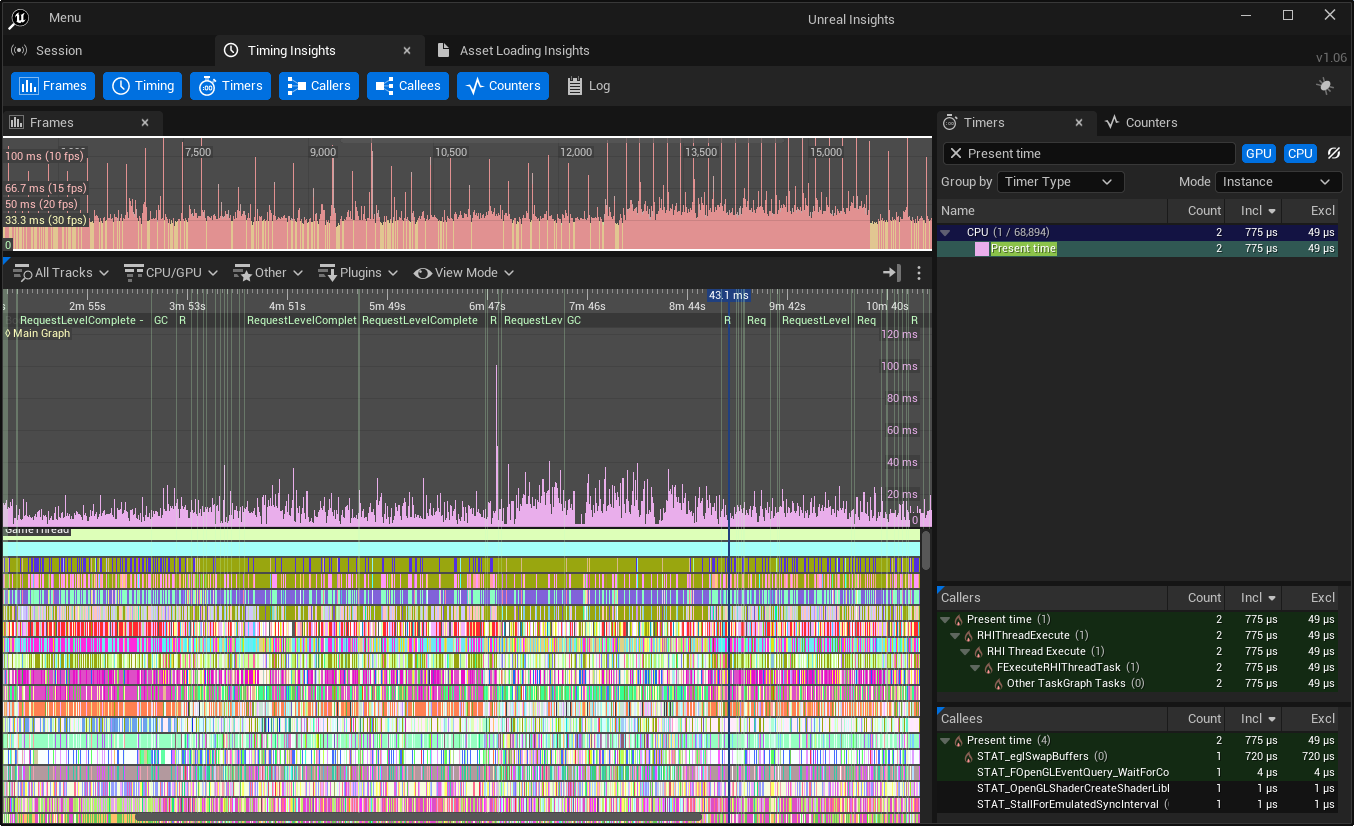

RHI线程与GPU的同步

UE4Editor-D3D11RHI-Win64-Debug.dll!FD3D11Viewport::PresentChecked(int SyncInterval=0) Line 374    C++
UE4Editor-D3D11RHI-Win64-Debug.dll!FD3D11Viewport::Present(bool bLockToVsync=false) Line 622    C++
UE4Editor-D3D11RHI-Win64-Debug.dll!FD3D11DynamicRHI::RHIEndDrawingViewport(FRHIViewport * ViewportRHI=0x00000273786c9180, bool bPresent=true, bool bLockToVsync=false) Line 770    C++
UE4Editor-RHI-Win64-Debug.dll!FRHICommandEndDrawingViewport::Execute(FRHICommandListBase & CmdList={...}) Line 704    C++
UE4Editor-RHI-Win64-Debug.dll!FRHICommand<FRHICommandEndDrawingViewport,FRHICommandEndDrawingViewportString1847>::ExecuteAndDestruct(FRHICommandListBase & CmdList={...}, FRHICommandListDebugContext & Context={...}) Line 763    C++
UE4Editor-RHI-Win64-Debug.dll!FRHICommandListExecutor::ExecuteInner_DoExecute(FRHICommandListBase & CmdList={...}) Line 374    C++
UE4Editor-RHI-Win64-Debug.dll!FExecuteRHIThreadTask::DoTask(ENamedThreads::Type CurrentThread=RHIThread, const TRefCountPtr<FGraphEvent> & MyCompletionGraphEvent={...}) Line 429    C++
UE4Editor-RHI-Win64-Debug.dll!TGraphTask<FExecuteRHIThreadTask>::ExecuteTask(TArray<FBaseGraphTask *,TSizedDefaultAllocator<32>> & NewTasks={...}, ENamedThreads::Type CurrentThread=RHIThread) Line 888    C++
UE4Editor-Core-Win64-Debug.dll!FNamedTaskThread::ProcessTasksNamedThread(int QueueIndex=0, bool bAllowStall=true) Line 709    C++
UE4Editor-Core-Win64-Debug.dll!FNamedTaskThread::ProcessTasksUntilQuit(int QueueIndex=0) Line 601    C++
UE4Editor-Core-Win64-Debug.dll!FTaskGraphImplementation::ProcessThreadUntilRequestReturn(ENamedThreads::Type CurrentThread=RHIThread) Line 1474    C++
UE4Editor-RenderCore-Win64-Debug.dll!FRHIThread::Run() Line 320    C++
UE4Editor-Core-Win64-Debug.dll!FRunnableThreadWin::Run() Line 84    C++
UE4Editor-Core-Win64-Debug.dll!FRunnableThreadWin::GuardedRun() Line 27    C++
UE4Editor-Core-Win64-Debug.dll!FRunnableThreadWin::_ThreadProc(void * pThis=0x000002730781fc90) Line 38    C++
kernel32.dll!BaseThreadInitThunk()    Unknown
ntdll.dll!RtlUserThreadStart()    Unknown

阻塞时的stats栈（移动端）

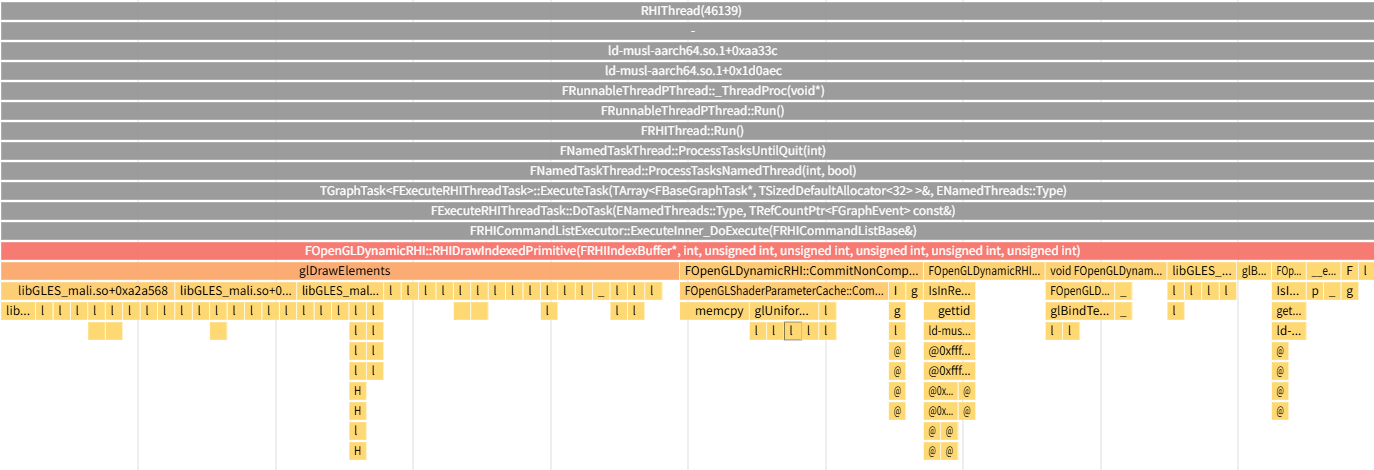

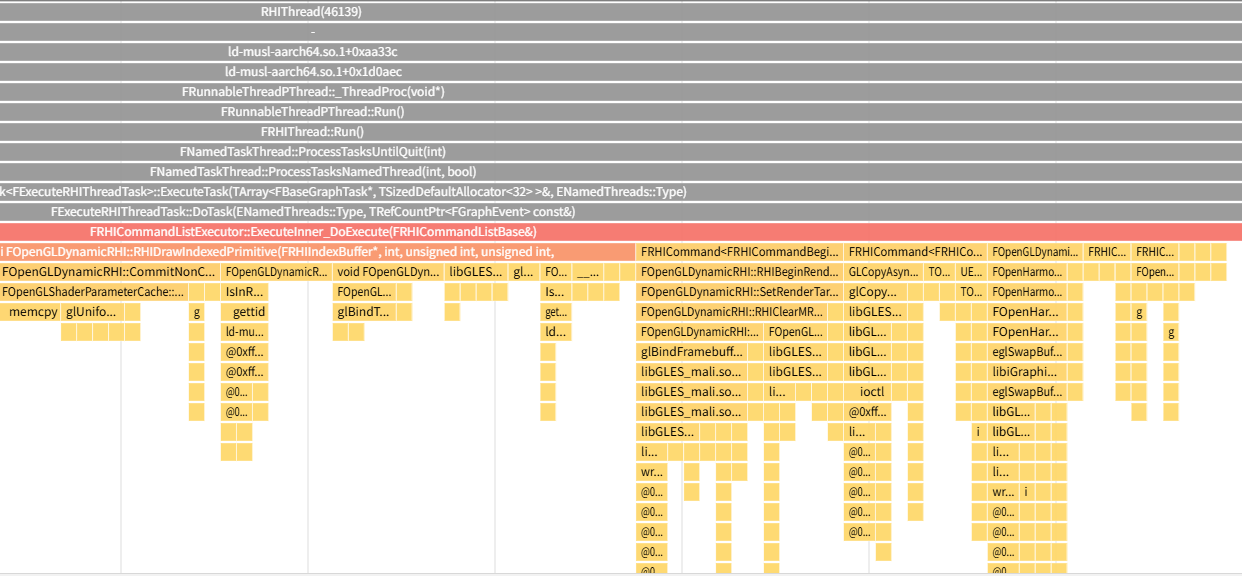

RHI等待eglSwapBuffers（Android移动端）

高通下调用堆栈为：

1 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 0000000000128c48 (EsxContext::WriteBinScissor(EsxRenderMode, EsxBinData*, EsxRenderBucket*, int, int)+232) [arm64-v8a]
2 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 0000000000131020 (EsxContext::ProcessAndSubmitRendering(EsxFlushReason)+3168) [arm64-v8a]
3 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 0000000000253814 (EsxCmdMgr::Flush(EsxFlushReason)+596) [arm64-v8a]
4 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 000000000012d6fc (EsxContext::SwapBuffers(EsxRect const*, unsigned int)+124) [arm64-v8a]
5 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 00000000001b4d9c (EglContext::SwapBuffers(EsxRect const*, unsigned int)+92) [arm64-v8a]
6 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 00000000001c4578 (EglWindowSurface::PerformContextSwapOperation(EglContext*, EsxRect const*, unsigned int, EglResourceAccessInfo*)+56) [arm64-v8a]
7 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 00000000001c4678 (EglWindowSurface::SwapBuffers(EglContext*, EsxRect const*, unsigned int)+56) [arm64-v8a]
8 /system/vendor/lib64/egl/libGLESv2_adreno.so pc 00000000001b029c (EglApi::SwapBuffers(void*, void*)+156) [arm64-v8a]
9 /system/vendor/lib64/egl/libEGL_adreno.so pc 0000000000009348 (eglSwapBuffers+40) [arm64-v8a]
10 /system/lib64/libEGL.so pc 0000000000027af8 (eglSwapBuffers+168) [arm64-v8a]
11 libUE4.so pc 00000000057c01dc SwapBuffers (D:/Code\UnrealEngine\Engine\Source\Runtime\OpenGLDrv\Private\Android/AndroidOpenGLFramePacer.cpp:408) [arm64-v8a]
12 libUE4.so pc 00000000057ba094 PlatformBlitToViewport (D:/Code\UnrealEngine\Engine\Source\Runtime\OpenGLDrv\Private\Android/AndroidOpenGL.cpp:184 [Inline: SwapBuffers]) [arm64-v8a]
13 libUE4.so pc 000000000583a310 RHIEndDrawingViewport (D:/Code\UnrealEngine\Engine\Source\Runtime\OpenGLDrv\Private/OpenGLViewport.cpp:143) [arm64-v8a]
14 libUE4.so pc 0000000003246198 ExecuteInner_DoExecute (D:/Code\UnrealEngine\Engine\Source\Runtime\RHI\Private/RHICommandList.cpp:400) [arm64-v8a]
15 libUE4.so pc 000000000326934c DoTask (D:/Code\UnrealEngine\Engine\Source\Runtime\RHI\Private/RHICommandList.cpp:461) [arm64-v8a]
16 libUE4.so pc 0000000003269114 ExecuteTask (D:/Code\UnrealEngine\Engine\Source\Runtime\Core\Public\Async/TaskGraphInterfaces.h:886) [arm64-v8a]
17 libUE4.so pc 00000000029ebf2c ProcessTasksNamedThread (D:/Code\UnrealEngine\Engine\Source\Runtime\Core\Public\Async/TaskGraphInterfaces.h:524) [arm64-v8a]
18 libUE4.so pc 00000000029ebac0 ProcessTasksUntilQuit (D:/Code\UnrealEngine\Engine\Source\Runtime\Core\Private\Async/TaskGraph.cpp:600) [arm64-v8a]
19 libUE4.so pc 00000000032a7754 Run (D:/Code\UnrealEngine\Engine\Source\Runtime\RenderCore\Private/RenderingThread.cpp:319) [arm64-v8a]
20 libUE4.so pc 0000000002a575f8 Run (D:/Code\UnrealEngine\Engine\Source\Runtime\Core\Private\HAL/PThreadRunnableThread.cpp:25) [arm64-v8a]
21 libUE4.so pc 00000000029e9eb4 _ThreadProc (D:/Code\UnrealEngine\Engine\Source\Runtime\Core\Private\HAL/PThreadRunnableThread.h:185) [arm64-v8a]
22 /system/lib64/libc.so pc 0000000000018ff0 (__pthread_start(void*)+52) [arm64-v8a]
23 /system/lib64/libc.so pc 0000000000015170 (__start_thread+16) [arm64-v8a]

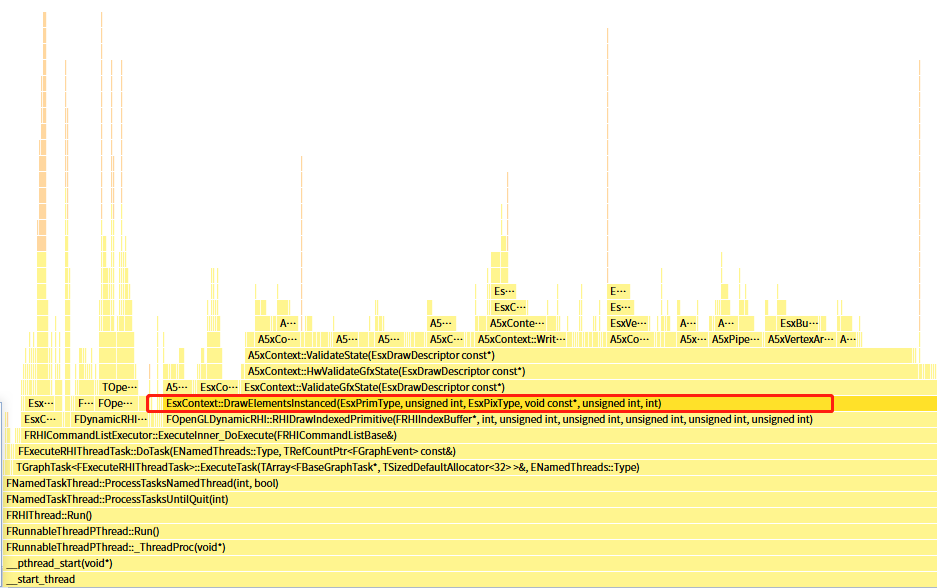

mali下调用堆栈为：

1 #00 pc 00000000000706f8  /apex/com.android.runtime/lib64/bionic/libc.so (0x0000007C3D7166F8 libc.so(0x00000000000AD6F8)![Unknown]()  [])
2 #01 pc 000000000002404c  /apex/com.android.runtime/lib64/bionic/libc.so (0x0000007C3D6CA04C libc.so(0x000000000006104C)!poll()  [])
3 #02 pc 000000000000006c  /system/lib64/libsync.so (0x0000007C45A9606C libsync.so(0x000000000000106C)!sync_wait()  [])
4 #03 pc 00000000000027ac  /system/lib64/libui.so (0x0000007C44A377AC libui.so(0x000000000002F7AC)!android::Fence::waitForever(char const*)  [])
5 #04 pc 0000000000056f34  /system/lib64/libgui.so (0x0000007C4FB48F34 libgui.so(0x00000000000E1F34)!android::BufferQueueProducer::queueBuffer(int, android::IGraphicBufferProducer::QueueBufferInput const&, android::IGraphicBufferProducer::QueueBufferOutput*)  [])
6 #05 pc 000000000009bcb8  /system/lib64/libgui.so (0x0000007C4FB8DCB8 libgui.so(0x0000000000126CB8)!android::Surface::queueBuffer(ANativeWindowBuffer*, int)  [])
7 #06 pc 0000000000001c3c  /system/lib64/libnativewindow.so (0x0000007C4E87BC3C libnativewindow.so(0x0000000000005C3C)!ANativeWindow_queueBuffer()  [])
8 #07 pc 00000000000f12e8  /vendor/lib64/egl/libGLES_mali.so (0x000000797C0DF2E8 libGLES_mali.so(0x000000000083C2E8)![Unknown]()  [])
9 #08 pc 0000000000109b24  /vendor/lib64/egl/libGLES_mali.so (0x000000797C0F7B24 libGLES_mali.so(0x0000000000854B24)![Unknown]()  [])
10 #09 pc 0000000000108c30  /vendor/lib64/egl/libGLES_mali.so (0x000000797C0F6C30 libGLES_mali.so(0x0000000000853C30)![Unknown]()  [])
11 #10 pc 000000000000c4e4  /system/lib64/libEGL.so (0x0000007C644E54E4 libEGL.so(0x00000000000204E4)![Unknown]()  [])
12 #11 pc 0000000000008c44  /system/lib64/libEGL.so (0x0000007C644E1C44 libEGL.so(0x000000000001CC44)!eglSwapBuffers()  [])
13 #12 pc 000000000ecf3c3c  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x0000007903290C3C libUE4.so(0x000000001DB6FC3C)!FAndroidOpenGLFramePacer::SwapBuffers(bool)  [])
14 #13 pc 000000000ece5688  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x0000007903282688 libUE4.so(0x000000001DB61688)!PlatformBlitToViewport(FPlatformOpenGLDevice*, FOpenGLViewport const&, unsigned int, unsigned int, bool, bool)  [])
15 #14 pc 000000000ee2c868  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000079033C9868 libUE4.so(0x000000001DCA8868)!FOpenGLDynamicRHI::RHIEndDrawingViewport(FRHIViewport*, bool, bool)  [])
16 #15 pc 0000000009c82574  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FE21F574 libUE4.so(0x0000000018AFE574)!FRHICommandEndDrawingViewport::Execute(FRHICommandListBase&)  [])
17 #16 pc 0000000009c8fd64  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FE22CD64 libUE4.so(0x0000000018B0BD64)!FRHICommandListExecutor::ExecuteInner_DoExecute(FRHICommandListBase&)  [])
18 #17 pc 0000000009d189ac  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FE2B59AC libUE4.so(0x0000000018B949AC)!FExecuteRHIThreadTask::DoTask(ENamedThreads::Type, TRefCountPtr<FGraphEvent> const&)  [])
19 #18 pc 0000000009d17720  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FE2B4720 libUE4.so(0x0000000018B93720)!TGraphTask<FExecuteRHIThreadTask>::ExecuteTask(TArray<FBaseGraphTask*, TSizedDefaultAllocator<32> >&, ENamedThreads::Type)  [])
20 #19 pc 00000000084d2e04  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FCA6FE04 libUE4.so(0x000000001734EE04)!FNamedTaskThread::ProcessTasksNamedThread(int, bool)  [])
21 #20 pc 00000000084cfd1c  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FCA6CD1C libUE4.so(0x000000001734BD1C)!FNamedTaskThread::ProcessTasksUntilQuit(int)  [])
22 #21 pc 0000000009dc36bc  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FE3606BC libUE4.so(0x0000000018C3F6BC)!FRHIThread::Run()  [])
23 #22 pc 000000000860d190  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FCBAA190 libUE4.so(0x0000000017489190)!FRunnableThreadPThread::Run()  [])
24 #23 pc 00000000084c9860  /data/app/~~LnYA_TCpurC7EQEE1aBIoA==/com.tencent.mf.mytest-k7EFP2nWw8f9fcvqfcRAdA==/lib/arm64/libUE4.so (0x00000078FCA66860 libUE4.so(0x0000000017345860)!FRunnableThreadPThread::_ThreadProc(void*)  [])
25 #24 pc 000000000008526c  /apex/com.android.runtime/lib64/bionic/libc.so (0x0000007C3D72B26C libc.so(0x00000000000C226C)![Unknown]()  [])
26 #25 pc 0000000000017a30  /apex/com.android.runtime/lib64/bionic/libc.so (0x0000007C3D6BDA30 libc.so(0x0000000000054A30)![Unknown]()  [])

注：eglSwapBuffers高一般是等待GPU完成

iOS下RenderThread等待Present 注：iOS默认不开启RHI线程

MyGame 0x0000000105ea8fd0 FMetalViewport::Present(FMetalCommandQueue&, bool) (Runtime/Apple/MetalRHI/Private/MetalViewport.cpp:573)
MyGame 0x0000000105e39424 FMetalDeviceContext::EndDrawingViewport(FMetalViewport*, bool, bool) (Runtime/Apple/MetalRHI/Private/MetalContext.cpp:724)
MyGame 0x0000000105ea9b6c FMetalRHIImmediateCommandContext::RHIEndDrawingViewport(FRHIViewport*, bool, bool) (Runtime/Apple/MetalRHI/Private/MetalViewport.cpp:668)
MyGame 0x00000001066e0be8 FRHICommandList::EndDrawingViewport(FRHIViewport*, bool, bool) (Runtime/RHI/Public/RHICommandList.h:102)
MyGame 0x00000001074e92bc FSlateRHIRenderer::DrawWindow_RenderThread(FRHICommandListImmediate&, FViewportInfo&, FSlateWindowElementList&, FSlateDrawWindowCommandParams const&) (Runtime/Core/Public/Apple/ApplePlatformTime.h:41)
MyGame 0x0000000107502bdc _ZN10TGraphTaskI31TEnqueueUniqueRenderCommandTypeIZN17FSlateRHIRenderer19DrawWindows_PrivateER16FSlateDrawBufferE27SlateDrawWindowsCommandNameZNS1_19DrawWindows_PrivateES3_E4$_15EE11ExecuteTaskER6TArrayIP14FBaseGraphTask22TSizedDefaultAllocatorILi32EEEN13ENamedThreads4TypeE (Runtime/Core/Public/Async/TaskGraphInterfaces.h:891)
MyGame 0x0000000105ece890 FNamedTaskThread::ProcessTasksNamedThread(int, bool) (Runtime/Core/Private/Async/TaskGraph.cpp:710)
MyGame 0x0000000105ece404 FNamedTaskThread::ProcessTasksUntilQuit(int) (Runtime/Core/Private/Async/TaskGraph.cpp:601)
MyGame 0x000000010671e610 RenderingThreadMain(FEvent*) (Runtime/Core/Public/Delegates/MulticastDelegateBase.h:248)
MyGame 0x0000000106729d90 FRenderingThread::Run() (Runtime/RenderCore/Private/RenderingThread.cpp:532)
MyGame 0x0000000105f32bec FRunnableThreadPThread::Run() (Runtime/Core/Private/HAL/PThreadRunnableThread.cpp:25)
MyGame 0x0000000105f03a80 FRunnableThreadPThread::_ThreadProc(void*) (Runtime/Core/Private/HAL/PThreadRunnableThread.h:186)
libsystem_pthread.dylib 0x00000001d6ca4bfc _pthread_start + 320
