OpenCv dnn模块扩展研究(1)--style transfer

一、opencv的示例模型文件

使用Torch模型【OpenCV对各种模型兼容并包，起到胶水作用】，

下载地址：

fast_neural_style_eccv16_starry_night.t7

http://cs.stanford.edu/people/jcjohns/fast-neural-style/models/eccv16/starry_night.t7

和

fast_neural_style_instance_norm_feathers.t7

http://cs.stanford.edu/people/jcjohns/fast-neural-style/models/instance_norm/feathers.t7

二、示例代码

代码流程均较简单：图像转Blob，forward，处理输出结果，显示。【可以说是OpenCV Dnn使用方面的经典入门，对于我们对流程配置、参数理解都有很好帮助】

c++代码如下：




     // This script is used to run style transfer models from '


     // https://github.com/jcjohnson/fast-neural-style using OpenCV



#
     include
     <opencv2
     /dnn.hpp
     >

#
     include
     <opencv2
     /imgproc.hpp
     >

#
     include
     <opencv2
     /highgui.hpp
     >

#
     include
     <iostream
     >




     using
     namespace cv;


     using
     namespace cv
     :
     :dnn;


     using
     namespace std;






     int main(
     int argc,
     char
     *
     *argv)

{

    string modelBin
     =
     "../../data/testdata/dnn/fast_neural_style_instance_norm_feathers.t7";

    string imageFile
     =
     "../../data/image/chicago.jpg";




     float scale
     =
     1.
     0;

    cv
     :
     :Scalar mean {
     103.
     939,
     116.
     779,
     123.
     68 };


     bool swapRB
     =
     false;


     bool crop
     =
     false;


     bool useOpenCL
     =
     false;



    Mat img
     = imread(imageFile);


     if (img.empty()) {

        cout
     <<
     "Can't read image from file: "
     << imageFile
     << endl;


     return
     2;

    }




     // Load model

    Net net
     = dnn
     :
     :readNetFromTorch(modelBin);


     if (useOpenCL)

        net.setPreferableTarget(DNN_TARGET_OPENCL);




     // Create a 4D blob from a frame.

    Mat inputBlob
     = blobFromImage(img,scale, img.size(),mean,swapRB,crop);




     // forward netword

    net.setInput(inputBlob);

    Mat output
     = net.forward();




     // process output

    Mat(output.size[
     2], output.size[
     3], CV_32F, output.ptr
     <
     float
     >(
     0,
     0))
     +=
     103.
     939;

    Mat(output.size[
     2], output.size[
     3], CV_32F, output.ptr
     <
     float
     >(
     0,
     1))
     +=
     116.
     779;

    Mat(output.size[
     2], output.size[
     3], CV_32F, output.ptr
     <
     float
     >(
     0,
     2))
     +=
     123.
     68;



    std
     :
     :vector
     <cv
     :
     :Mat
     > ress;

    imagesFromBlob(output, ress);




     // show res

    Mat res;

    ress[
     0].convertTo(res, CV_8UC3);

    imshow(
     "reslut", res);



    imshow(
     "origin", img);



    waitKey();


     return
     0;

}

三、演示

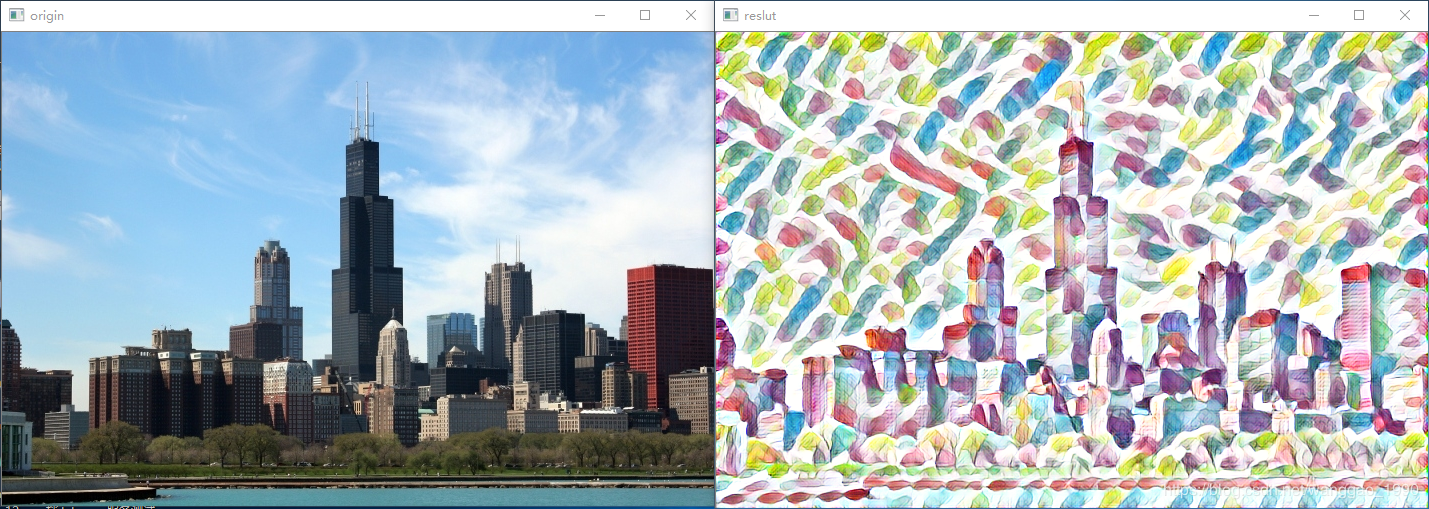

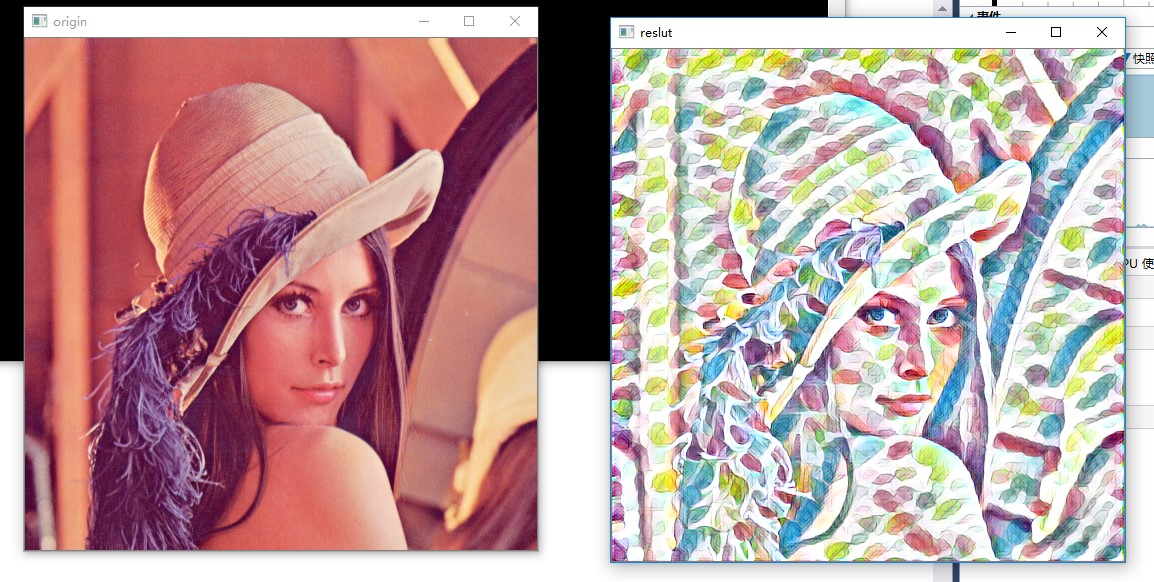

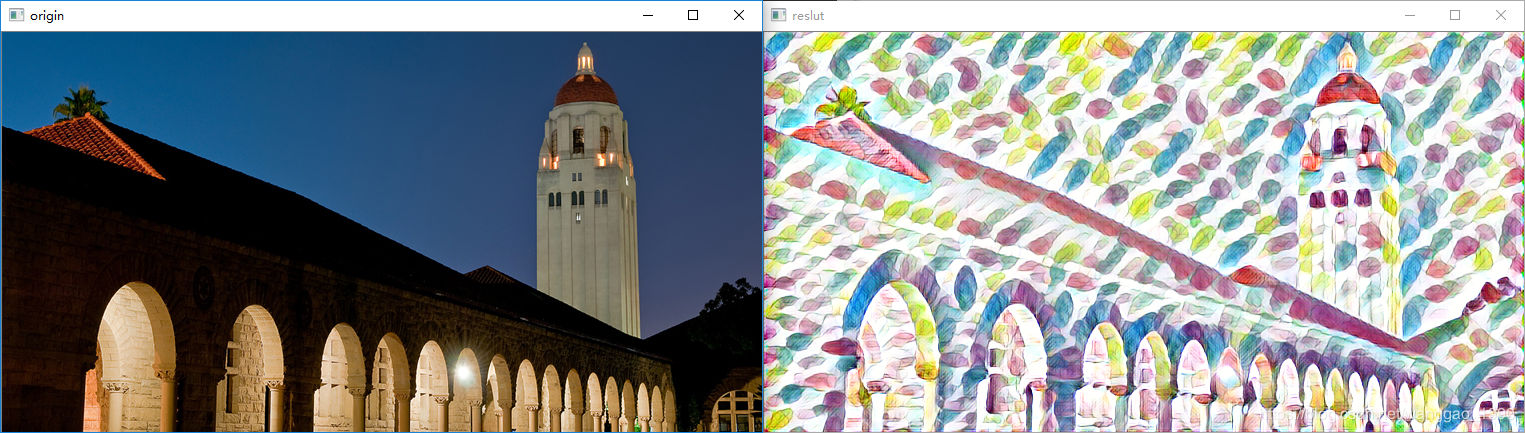

fast_neural_style_instance_norm_feathers.t7的演示效果

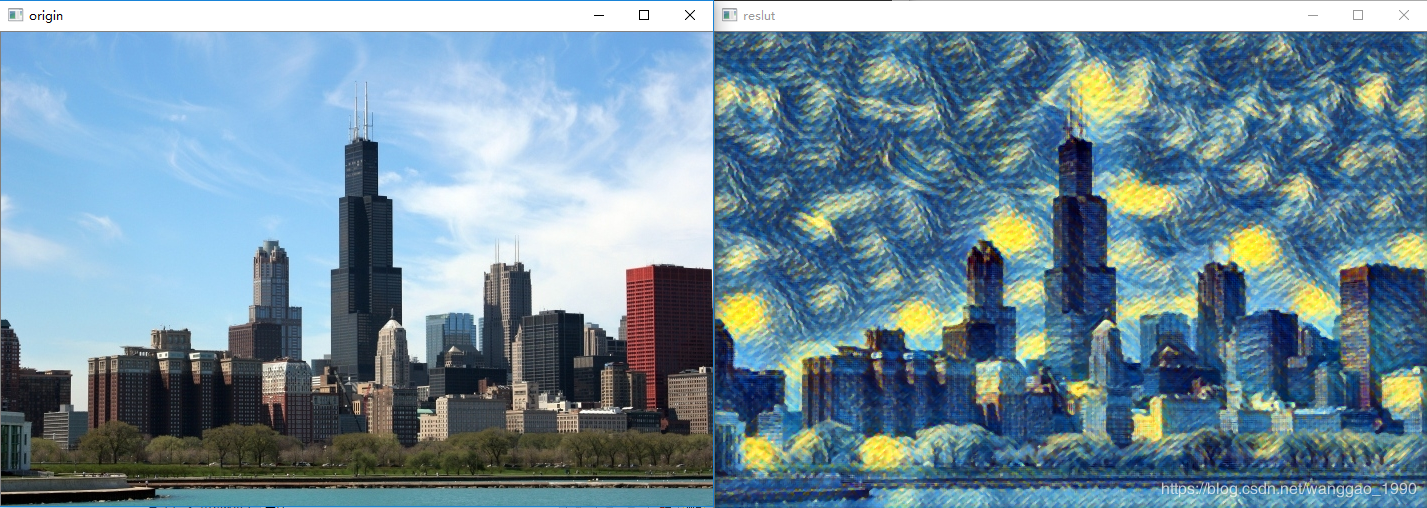

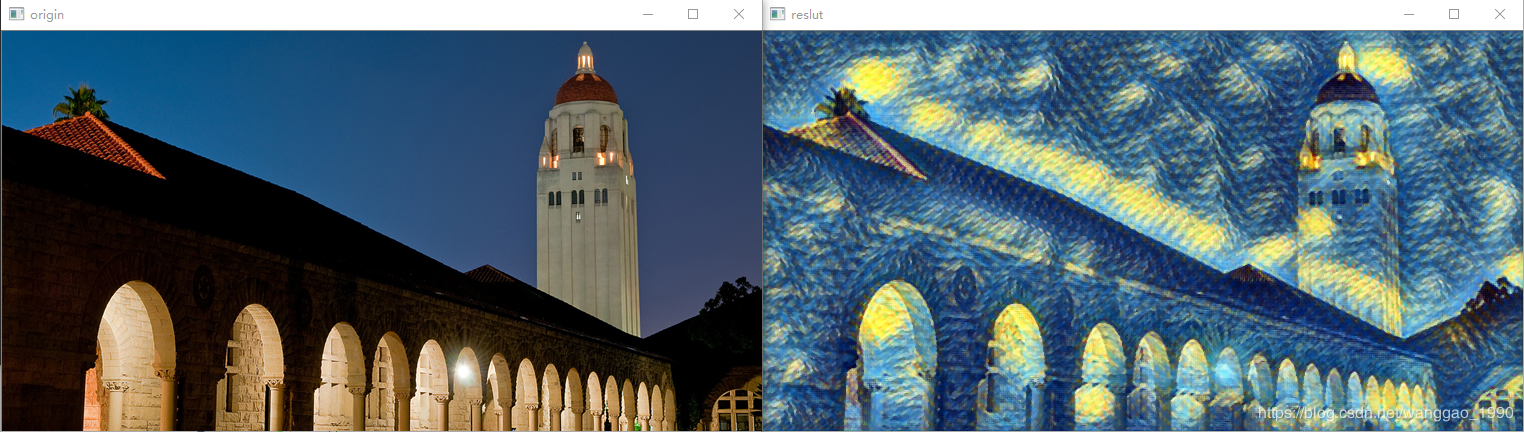

fast_neural_style_eccv16_starry_night.t7的演示效果：

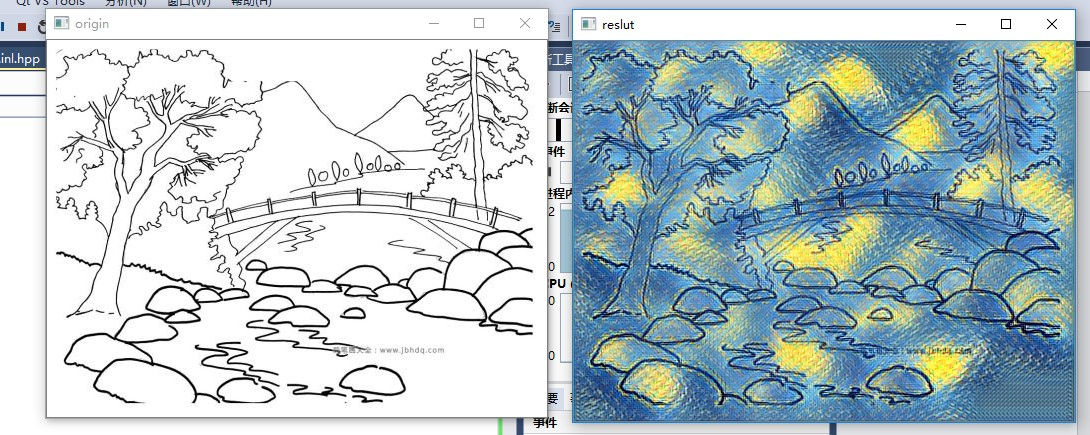

我认为对简笔画的效果不是太好

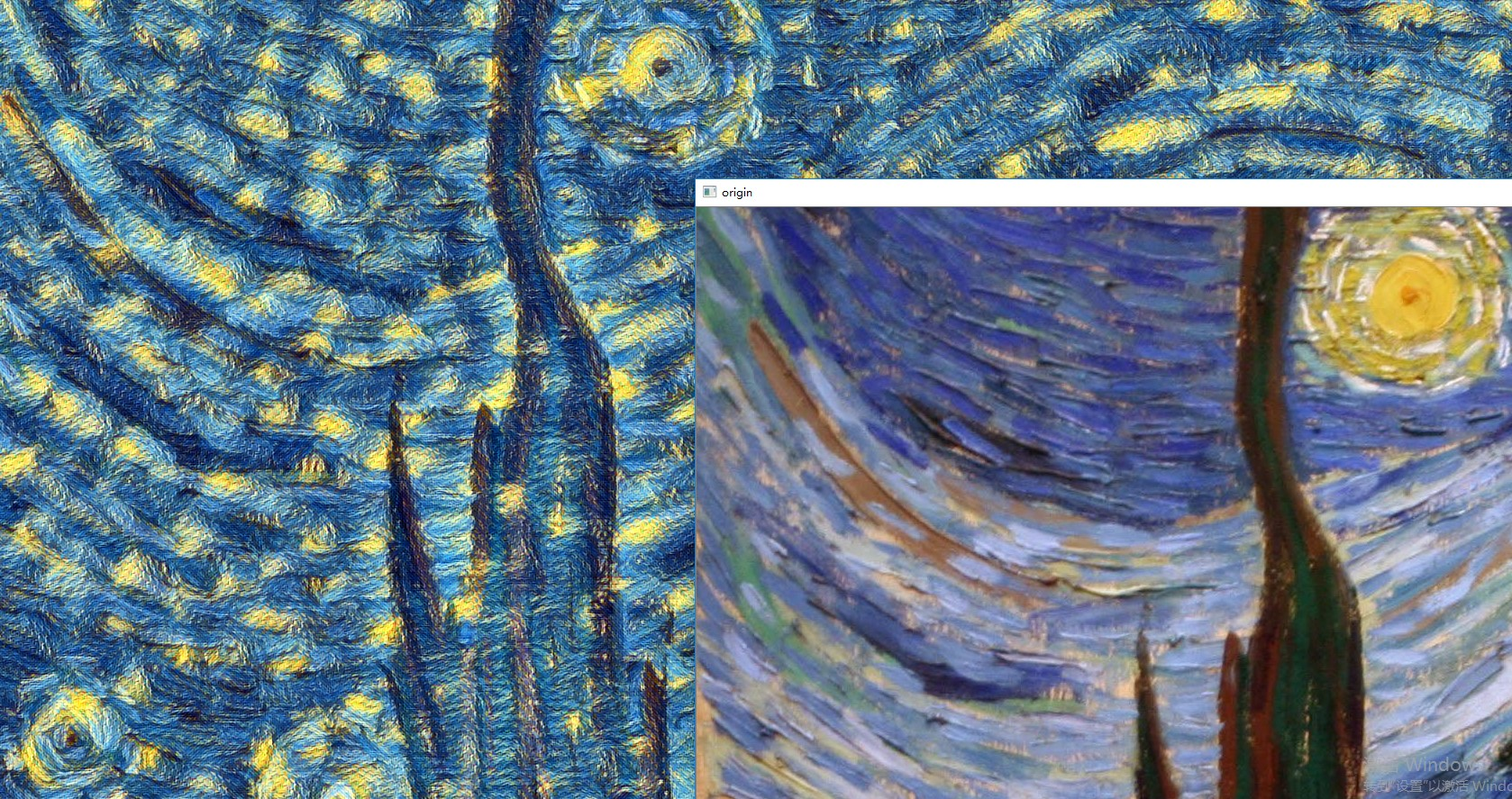

通过重新作用于原始图片，我认识到这个模型采用的很可能是局部图片

那么这些模型如何训练出来？这里也给出了很多帮助：

Training new models

To train new style transfer models, first use the scriptscripts/make_style_dataset.py to create an HDF5 file from folders of images.You will then use the script train.lua to actually train models.

Step 1: Prepare a dataset

You first need to install the header files for Python 2.7 and HDF5. On Ubuntuyou should be able to do the following:

     sudo apt-get -y install python2.7-dev

     sudo apt-get install libhdf5-dev

You can then install Python dependencies into a virtual environment:

    virtualenv .env
    # Create the virtual environmentsource .env/bin/activate
    # Activate the virtual environment

     pip install -r requirements.txt

# Install Python dependencies# Work for a while ...

     deactivate

# Exit the virtual environment

With the virtual environment activated, you can use the scriptscripts/make_style_dataset.py to create an HDF5 file from a directory oftraining images and a directory of validation images:

     python scripts/make_style_dataset.py \

       --train_dir path/to/training/images \

       --val_dir path/to/validation/images \

       --output_file path/to/output/file.h5

All models in thisrepository were trained using the images from theCOCO dataset.

The preprocessing script has the following flags:

--train_dir: Path to a directory of training images.
--val_dir: Path to a directory of validation images.
--output_file: HDF5 file where output will be written.
--height, --width: All images will be resized to this size.
--max_images: The maximum number of images to use for trainingand validation; -1 means use all images in the directories.
--num_workers: The number of threads to use.

Step 2: Train a model

After creating an HDF5 dataset file, you can use the script train.lua totrain feedforward style transfer models. First you need to download aTorch version of theVGG-16 modelby running the script

bash models/download_vgg16.sh

This will download the file vgg16.t7 (528 MB) to the models directory.

You will also need to installdeepmind/torch-hdf5which gives HDF5 bindings for Torch:

luarocks install https://raw.githubusercontent.com/deepmind/torch-hdf5/master/hdf5-0-0.rockspec

You can then train a model with the script train.lua. For basic usage thecommand will look something like this:

     th train.lua \

       -h5_file path/to/dataset.h5 \

       -style_image path/to/style/image.jpg \

       -style_image_size 384 \

       -content_weights 1.0 \

       -style_weights 5.0 \

       -checkpoint_name checkpoint \

       -gpu 0

The full set of options for this script are described here.

来源： <https://github.com/jcjohnson/fast-neural-style/blob/master/doc/training.md>
