SSH框架通过JFreeChart实现柱状图和获取项目路径

获取项目路径：String url= ServletActionContext.getRequest().getRealPath("/upload");

一.直接生成的图片输出到jsp页面

1.jsp页面

<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags" %>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<base href="<%=basePath%>">
<title>Insert title here</title>
</head>
<body>
<img alt="统计图" src="<%=basePath%>/chart2.action">
</body>
</html>

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags" %>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<base href="<%=basePath%>">
<title>Insert title here</title>
</head>
<body>
 <!--img src='D:\temp\chart.jpg' width="680" height="700" onload="alert('图片存在');"  onerror="alert('无此图片');"/-->
 <img alt="统计图" src="<%=basePath%>/chart2.action">
</body>
</html>

2.action类

[java] view plain copy

print?

public String execute() throws Exception{
//添加数据
DefaultCategoryDataset dataset = new DefaultCategoryDataset();
dataset.addValue(42000, "月份" , "1月");
dataset.addValue(40000 , "月份" , "2月");
dataset.addValue(34000 , "月份" , "3月");
dataset.addValue(18000 , "月份" , "4月");
dataset.addValue(26000 , "月份" , "5月");
dataset.addValue(42000 , "月份" , "6月");
dataset.addValue(40000 , "月份" , "7月");
dataset.addValue(34000 , "月份" , "8月");
dataset.addValue(18000 , "月份" , "9月");
dataset.addValue(26000 , "月份" , "10月");
dataset.addValue(45000 , "月份" , "11月");
dataset.addValue(38000 , "月份" , "12月");
//创建一个柱状图
JFreeChart chart = ChartFactory.createBarChart3D("年度人口统计图", "人口", "数量",dataset,PlotOrientation.VERTICAL, true, false, false);
chart.setTitle(new TextTitle("年度人口统计图", new Font("黑体", Font.ITALIC,22)));
LegendTitle legend = chart.getLegend(0);
legend.setItemFont(new Font("宋体", Font.BOLD, 14));
CategoryPlot plot = (CategoryPlot) chart.getPlot();
CategoryAxis categoryAxis = plot.getDomainAxis();
categoryAxis.setLabelFont(new Font("宋体", Font.BOLD, 22));
categoryAxis.setCategoryLabelPositions(CategoryLabelPositions.UP_45);
categoryAxis.setTickLabelFont(new Font("宋体", Font.BOLD, 18));
NumberAxis numberAxis = (NumberAxis) plot.getRangeAxis();
numberAxis.setLabelFont(new Font("宋体", Font.BOLD, 22));
HttpServletResponse response=ServletActionContext.getResponse();
response.setContentType("image/");
ChartUtilities.writeChartAsJPEG(response.getOutputStream(), 1, chart, 900, 600, null);
response.getOutputStream().close();
return null;
}

	public String execute() throws Exception{
	 //添加数据
			DefaultCategoryDataset dataset = new DefaultCategoryDataset();
			dataset.addValue(42000, "月份" , "1月");
			dataset.addValue(40000 , "月份" , "2月");
			dataset.addValue(34000 , "月份" , "3月");
			dataset.addValue(18000 , "月份" , "4月");
			dataset.addValue(26000 , "月份" , "5月");
			dataset.addValue(42000 , "月份" , "6月");
			dataset.addValue(40000 , "月份" , "7月");
			dataset.addValue(34000 , "月份" , "8月");
			dataset.addValue(18000 , "月份" , "9月");
			dataset.addValue(26000 , "月份" , "10月");
			dataset.addValue(45000 , "月份" , "11月");
			dataset.addValue(38000 , "月份" , "12月");
		//创建一个柱状图
		JFreeChart chart = ChartFactory.createBarChart3D("年度人口统计图", "人口", "数量",dataset,PlotOrientation.VERTICAL, true, false, false);
		chart.setTitle(new TextTitle("年度人口统计图", new Font("黑体", Font.ITALIC,22)));
		LegendTitle legend = chart.getLegend(0);
		legend.setItemFont(new Font("宋体", Font.BOLD, 14));
		CategoryPlot plot = (CategoryPlot) chart.getPlot();
		CategoryAxis categoryAxis = plot.getDomainAxis();
		categoryAxis.setLabelFont(new Font("宋体", Font.BOLD, 22));
		categoryAxis.setCategoryLabelPositions(CategoryLabelPositions.UP_45);
		categoryAxis.setTickLabelFont(new Font("宋体", Font.BOLD, 18));
		NumberAxis numberAxis = (NumberAxis) plot.getRangeAxis();
		numberAxis.setLabelFont(new Font("宋体", Font.BOLD, 22));

		HttpServletResponse response=ServletActionContext.getResponse();
		response.setContentType("image/");
		ChartUtilities.writeChartAsJPEG(response.getOutputStream(), 1, chart, 900, 600, null);
		response.getOutputStream().close();

		return null;
}
</pre>3.struts.xml配置<p></p>


[java] view plain copy print?
<action name="chart2" class="Char2tAction">
<result name="success">/Chart.jsp</result>
</action>
      <action name="chart2" class="Char2tAction">
      <result name="success">/Chart.jsp</result>
      </action>




Tip:参考的别的文章包一定得继承两个类，或者修改源码，实践正确配置如下：
       <!-- 柱状图 -->

	<package name="struts2" extends="struts-default,jfreechart-default">

		<action name="chart2" class="com.ssh.app.web.action.CreateChartBar">

                <result name="success">/tLiveStatistics.jsp</result>

                </action>

	</package>

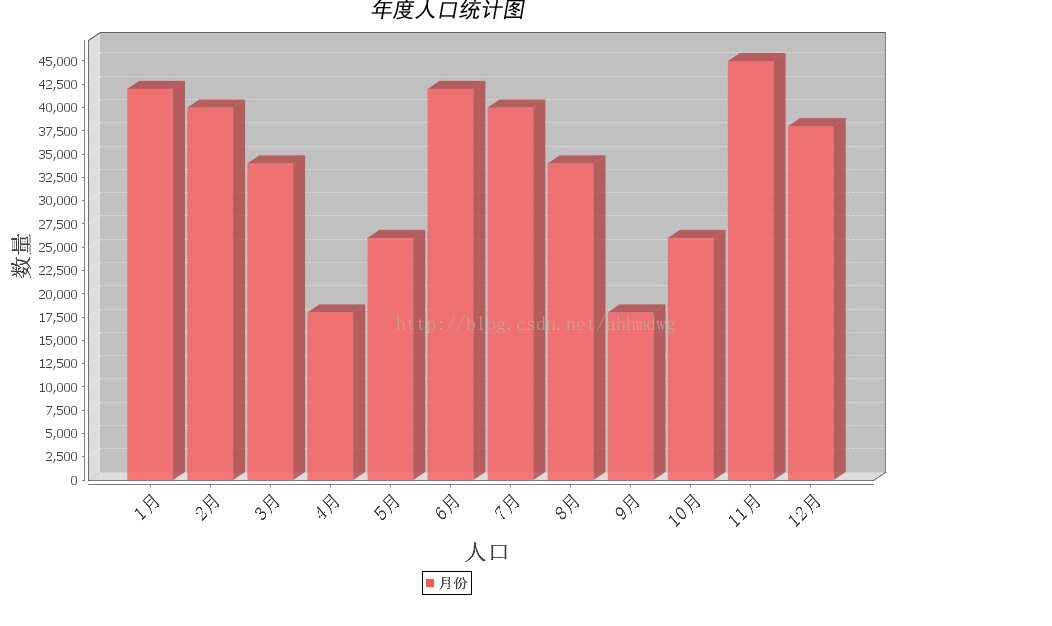

4.效果图








二.生成图片保存到本地：
1.生成图片


[java] view plain copy print?
    public void createChart() {
        // TODO Auto-generated method stub
        DefaultCategoryDataset dataset = new DefaultCategoryDataset();
        dataset.addValue(1001, "1", "A");
        dataset.addValue(800, "2", "A");
        dataset.addValue(150, "3", "A");
        dataset.addValue(150, "1", "B");
        dataset.addValue(150, "2", "B");
        dataset.addValue(250, "3", "B");
        dataset.addValue(150, "1", "C");
        dataset.addValue(33, "2", "C");
        dataset.addValue(900, "3", "C");
//      JFreeChart chart = ChartFactory.createBarChart3D(
//                                          "", // 图表标题
//                                          "", // 目录轴的显示标签
//                                          "产量", // 数值轴的显示标签
//                                          dataset, // 数据集
//                                          PlotOrientation.VERTICAL , // 图表方向：垂直
//                                          true, // 是否显示图例(对于简单的柱状图必须是false)
//                                          false, // 是否生成工具
//                                          false // 是否生成URL链接
//                                  );
        //JFreeChart chart = ChartFactory.createBarChart3D("","","产量",dataset,PlotOrientation.VERTICAL,true,false,false);
        JFreeChart chart = ChartFactory.createBarChart3D("销量统计图", "种类", "产量", dataset, PlotOrientation.VERTICAL, true, false, false);

        //重新设置图标标题，改变字体
        chart.setTitle(new TextTitle("销量统计图", new Font("黑体", Font.ITALIC , 22)));
                //取得统计图标的第一个图例
                LegendTitle legend = chart.getLegend(0);
                //修改图例的字体
                legend.setItemFont(new Font("宋体", Font.BOLD, 14));
                //legend.setItemFont(new Font("宋体", Font.TRUETYPE_FONT, 14));
                CategoryPlot plot = (CategoryPlot)chart.getPlot();

                chart.setBackgroundPaint(ChartColor.WHITE);

                //设置柱状图到图片上端的距离
                ValueAxis rangeAxis = plot.getRangeAxis();
                rangeAxis.setUpperMargin(0.5);

                //取得横轴
                CategoryAxis categoryAxis = plot.getDomainAxis();
                //设置横轴显示标签的字体
                categoryAxis.setLabelFont(new Font("宋体" , Font.BOLD , 22));
                //分类标签以45度角倾斜
//              categoryAxis.setCategoryLabelPositions(CategoryLabelPositions.UP_45);
                categoryAxis.setTickLabelFont(new Font("宋体" , Font.BOLD , 18));

                //取得纵轴
                NumberAxis numberAxis = (NumberAxis)plot.getRangeAxis();
                //设置纵轴显示标签的字体
                numberAxis.setLabelFont(new Font("宋体" , Font.BOLD , 22));

                //在柱体的上面显示数据
                BarRenderer custombarrenderer3d = new BarRenderer();
                custombarrenderer3d.setBaseItemLabelPaint(Color.BLACK);//数据字体的颜色
                custombarrenderer3d.setBaseItemLabelGenerator(new StandardCategoryItemLabelGenerator());
                custombarrenderer3d.setBaseItemLabelsVisible(true);
                plot.setRenderer(custombarrenderer3d);
                //HttpServletRequest request = null;
                //request.getSession().getServletContext().getRealPath("/");
                //URL a = Thread.currentThread().getContextClassLoader().getResource("");
                //URL a = Thread.currentThread().getContextClassLoader().getResource("");
                //System.out.println(a);
                FileOutputStream fos = null;
                //String imagePath = "D:\\chart.jpg";
                String imagePath = "D:\\temp\\chart.jpg";
                ChartRenderingInfo info = new ChartRenderingInfo();
                try {
                    fos = new FileOutputStream(imagePath);
                    //将统计图标输出成JPG文件
                    ChartUtilities.writeChartAsJPEG(
                        fos, //输出到哪个输出流
                        1, //JPEG图片的质量，0~1之间
                        chart, //统计图标对象
                        800, //宽
                        600,//高
                        info //ChartRenderingInfo 信息
                    );
                    fos.close();
                } catch (FileNotFoundException e) {
                    // TODO Auto-generated catch block
                    e.printStackTrace();
                } catch (IOException e) {
                    // TODO Auto-generated catch block

                    e.printStackTrace();
                }

    }
	public void createChart() {
		// TODO Auto-generated method stub
		DefaultCategoryDataset dataset = new DefaultCategoryDataset();
		dataset.addValue(1001, "1", "A");
		dataset.addValue(800, "2", "A");
		dataset.addValue(150, "3", "A");
		dataset.addValue(150, "1", "B");
		dataset.addValue(150, "2", "B");
		dataset.addValue(250, "3", "B");
		dataset.addValue(150, "1", "C");
		dataset.addValue(33, "2", "C");
		dataset.addValue(900, "3", "C");
//		JFreeChart chart = ChartFactory.createBarChart3D(
//											"", // 图表标题
//											"", // 目录轴的显示标签
//											"产量", // 数值轴的显示标签
//											dataset, // 数据集
//											PlotOrientation.VERTICAL , // 图表方向：垂直
//											true, // 是否显示图例(对于简单的柱状图必须是false)
//											false, // 是否生成工具
//											false // 是否生成URL链接
//									);
		//JFreeChart chart = ChartFactory.createBarChart3D("","","产量",dataset,PlotOrientation.VERTICAL,true,false,false);
		JFreeChart chart = ChartFactory.createBarChart3D("销量统计图", "种类", "产量", dataset, PlotOrientation.VERTICAL, true, false, false);
	//重新设置图标标题，改变字体
	chart.setTitle(new TextTitle("销量统计图", new Font("黑体", Font.ITALIC , 22)));
			//取得统计图标的第一个图例
			LegendTitle legend = chart.getLegend(0);
			//修改图例的字体
	        legend.setItemFont(new Font("宋体", Font.BOLD, 14));
			//legend.setItemFont(new Font("宋体", Font.TRUETYPE_FONT, 14));
			CategoryPlot plot = (CategoryPlot)chart.getPlot();

			chart.setBackgroundPaint(ChartColor.WHITE);

			//设置柱状图到图片上端的距离
			ValueAxis rangeAxis = plot.getRangeAxis();
			rangeAxis.setUpperMargin(0.5);

			//取得横轴
			CategoryAxis categoryAxis = plot.getDomainAxis();
			//设置横轴显示标签的字体
			categoryAxis.setLabelFont(new Font("宋体" , Font.BOLD , 22));
			//分类标签以45度角倾斜

//				categoryAxis.setCategoryLabelPositions(CategoryLabelPositions.UP_45);

categoryAxis.setTickLabelFont(new Font("宋体" , Font.BOLD , 18));
			//取得纵轴
			NumberAxis numberAxis = (NumberAxis)plot.getRangeAxis();
			//设置纵轴显示标签的字体
			numberAxis.setLabelFont(new Font("宋体" , Font.BOLD , 22));

			//在柱体的上面显示数据
			BarRenderer custombarrenderer3d = new BarRenderer();
			custombarrenderer3d.setBaseItemLabelPaint(Color.BLACK);//数据字体的颜色
			custombarrenderer3d.setBaseItemLabelGenerator(new StandardCategoryItemLabelGenerator());
			custombarrenderer3d.setBaseItemLabelsVisible(true);
			plot.setRenderer(custombarrenderer3d);
            //HttpServletRequest request = null;
			//request.getSession().getServletContext().getRealPath("/");
			//URL a = Thread.currentThread().getContextClassLoader().getResource("");
            //URL a = Thread.currentThread().getContextClassLoader().getResource("");
            //System.out.println(a);
			FileOutputStream fos = null;
			//String imagePath = "D:\\chart.jpg";
			String imagePath = "D:\\temp\\chart.jpg";
			ChartRenderingInfo info = new ChartRenderingInfo();
			try {
				fos = new FileOutputStream(imagePath);
				//将统计图标输出成JPG文件
				ChartUtilities.writeChartAsJPEG(
					fos, //输出到哪个输出流
					1, //JPEG图片的质量，0~1之间
					chart, //统计图标对象
					800, //宽
					600,//高
					info //ChartRenderingInfo 信息
				);
				fos.close();
			} catch (FileNotFoundException e) {
				// TODO Auto-generated catch block
				e.printStackTrace();
			} catch (IOException e) {
				// TODO Auto-generated catch block

				e.printStackTrace();
			}

}</pre><br>

2.显示到jsp：



[java] view plain copy print?
try{

    String impath = "D:\\temp\\chart.jpg";//此处的图路径，是上面所示代码中生成柱状图的存储路径
    File file = new File(impath);

    InputStream inputStream = null;
    if(file.exists()){
        try {
            inputStream = new FileInputStream(file);

        } catch (FileNotFoundException e) {

        }
    }

    int i = inputStream.available();
         byte data[] = new byte[i];
         inputStream.read(data);

         HttpServletResponse response = ServletActionContext.getResponse();
         ServletOutputStream out = response.getOutputStream();

         response.setContentType("image/jpeg");

         out.write(data);
         out.flush();
         out.close();

}catch(IOException e){
         e.printStackTrace();
}
		try{
		String impath = "D:\\temp\\chart.jpg";//此处的图路径，是上面所示代码中生成柱状图的存储路径
		File file = new File(impath);

		InputStream inputStream = null;
		if(file.exists()){
			try {
				inputStream = new FileInputStream(file);

			} catch (FileNotFoundException e) {

			}
		}

		int i = inputStream.available();
	         byte data[] = new byte[i];
	         inputStream.read(data);

	         HttpServletResponse response = ServletActionContext.getResponse();
	         ServletOutputStream out = response.getOutputStream();

	         response.setContentType("image/jpeg");

	         out.write(data);
	         out.flush();
	         out.close();

	}catch(IOException e){
	         e.printStackTrace();
	}</pre><br>

posted @ 2017-08-21 16:07 星朝阅读(513) 评论(0) 编辑收藏举报

刷新页面返回顶部

星朝

SSH框架通过JFreeChart实现柱状图和获取项目路径

公告
