BLF] CAN ASC Log文件

0 引言

因工作研究需要，担心精华内容丢失。故转载之，精华内容转载自：图文详解CAN Log文件 - ASC文件格式 - CSDN

CAN总线，是当下智能汽车的核心车载网络之一。CAN总线上的CAN报文/CAN信号，作为车端控制器间核心的通信、控制数据，也被多用于云端软件做诊断、测试、远控、分析等核心业务。
存储CAN log的asc文件，主要用于车端嵌软。如果云端需要采集使用，其内的CAN报文数据，会被车端嵌软做一定的转换、封装，通过其他的车云网络协议与云端交互。

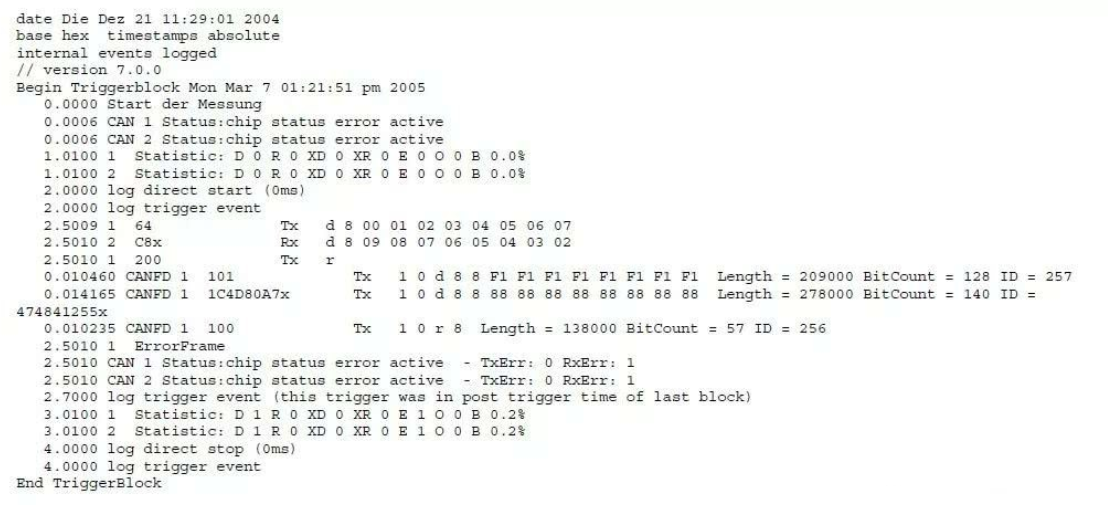

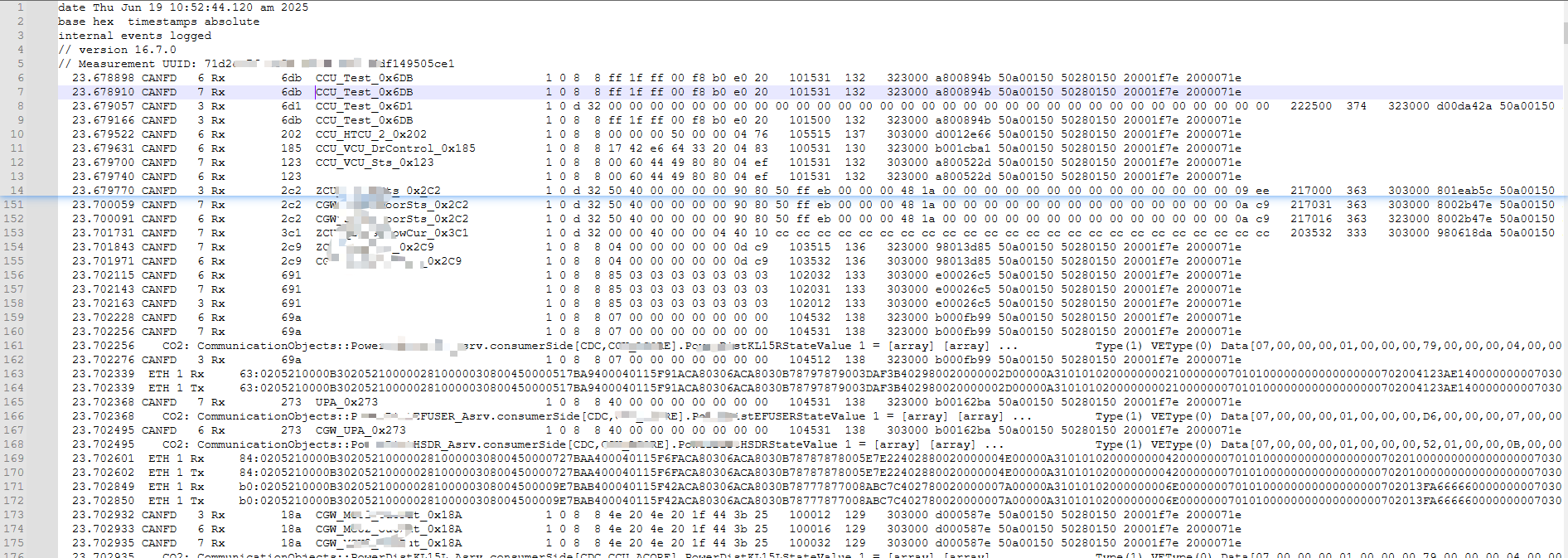

CAN ASC 文件样例

Vector提供了两种记录数据格式的格式规范：BLF和ASC。
在Vector提供的CAN_LOG_TRIGGER_ASC_Format.pdf文件中，规定了CANoe/CANalyzer ASC记录中CAN、Log和Trigger event的格式。
CAN Message Event 是 ASC 文件的主要部分。

从左到右一次是：时间戳、CAN通道编号、帧ID（16进制）、帧方向（发送或接收）、d。之后跟的DLC、数据。

1 1 CAN ASC Log 文件 := 以 ASCII 编码格式的 CAN 总线日志文件

CAN ASC Log 文件 := 以 ASCII 编码格式的 CAN 总线日志文件

文件格式后缀：.asc

ASC Log 及 BLF (Binary Logging Format) 文件，是 Vector 公司制订的一种日志文件格式，其支持描述：CAN / ETH(以太网/SOMEIP等) / FlexRay / LIN 总线数据。

Vector 提供的规范文件：（如有需要可找笔者领取）

CAN_and_General_BLF_Format.pdf

Ethernet_BLF_Format.pdf

FlexRay_BLF_Format.pdf

LIN_BLF_Format.pdf

MOST_BLF_Format.pdf

TPDiag_BLF_Format.pdf

1.1 Header

一个ASCII格式的日志文件，以一个header开始。

header包含关于日志文件的一般信息。

Format

date <WeekDay> <Month> <Date> <Fulltime> <Year>

base <hex |dec> timestamps <absolute |relative>

<”” |no> internal events logged

Example

date Wed Apr 16 09:21:13.159 am 2014

base hex timestamps absolute

internal events logged

base：表示记录的数值是十六进制(hex)、或十进制的符号(dec)。

timestamps：表示时间戳是绝对写入测量的开始时间(absolute)、还是相对于前一个事件(relative)。

internal：events logged 表示是否记录了内部事件。

1.2 版本编号

从CANalyzer/CANoe v7.0开始，版本号以注释的形式写在Header之后：

Format Since v7.0	// version <major>.<minor>.<patch>
Example	// version 8.2.1

<major>.<minor> : 表示CANalyzer/CANoe的版本号不包括构建号（例如v7.0、v7.1等）
<patch> : 表示在CANalyzer/CANoe主版本中的变更版本（例如:服务包中所做的变更）。
无论ASCII格式是否发生更改，CANalyzer/CANoe的每次新主版本的<major>.<minor>号通常都会增加。

主版本的<patch>号始终为零。
在service Pack中，只有对ASCII格式进行了更改和/或添加时，才会增加<patch>编号。

1.3 经典CAN网络中的描述

该部分列出了CANoe/CANalyzer ASC记录中的所有CAN event。

1.3.1 经典CAN Standard标准帧的描述

Format since v8.0	<Time> <Channel> <ID> <Dir> d <DLC> <D0> <D1>...<D8> Length = <MessageDuration> BitCount = <MessageLength> ID = <IDnum> <MessageFlags>
Example	0.003040 1 123 Tx d 2 00 00 Length = 768000 BitCount = 67 ID = 291

ID：表示 CAN ID 的十六进制值；
Dir : 数据的收发方向(Direction): "Tx"(发送) / "Rx"(接收)
Length：表示发送/接收该Frame/Message占据总线的时间，单位纳秒；
BitCount：表示发送/接收该Frame/Message由多少各Bit构成；
IDnum：表示CAN ID的十进制值。
举例：

date Mon Apr 10 02:24:54.471 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.036886 CAN 1 Status:chip status error active
   0.036886 CAN 2 Status:chip status error active
   0.101317 1  211             Tx   d 8 00 00 00 00 00 00 00 00  Length = 242015 BitCount = 124 ID = 529
   0.201267 1  211             Tx   d 8 00 00 00 00 00 00 00 00  Length = 242015 BitCount = 124 ID = 529
   0.301361 1  211             Tx   d 8 00 00 00 00 00 00 00 00  Length = 242015 BitCount = 124 ID = 529
   0.401419 1  211             Tx   d 8 00 00 00 00 00 00 00 00  Length = 242015 BitCount = 124 ID = 529

1.3.2 经典CAN Extended扩展帧的描述

Format since v8.0	<Time> <Channel> <ID>x <Dir> d <DLC> <D0> <D1>...<D8> Length = <MessageDuration> BitCount = <MessageLength> ID = <IDnum>x <MessageFlags>
Example	4.876870 1 54C5638x Tx d 8 00 00 00 00 00 00 00 00 Length = 1704000 BitCount = 145 ID = 88888888x

与经典CAN标准帧的差异: ID和IDnum后带字符x。

举例：

date Mon Apr 10 02:28:37.439 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.021151 CAN 1 Status:chip status error active
   0.021151 CAN 2 Status:chip status error active
   0.101557 1  211x            Tx   d 8 00 00 00 00 00 00 00 00  Length = 290015 BitCount = 148 ID = 529x
   0.201483 1  211x            Tx   d 8 00 00 00 00 00 00 00 00  Length = 290015 BitCount = 148 ID = 529x
   0.301437 1  211x            Tx   d 8 00 00 00 00 00 00 00 00  Length = 290015 BitCount = 148 ID = 529x
   0.401151 1  211x            Tx   d 8 00 00 00 00 00 00 00 00  Length = 290015 BitCount = 148 ID = 529x

1.3.3 CAN Remote远程帧的描述

Format since v8.5	<Time> <Channel> <ID> <Dir> r <DLC> Length = <MessageDuration> BitCount = <MessageLength> ID = <IDnum>x
Example	2.5010 1 200 Tx r 8 Length = 1704000 BitCount = 145 ID = 88888888x

与经典CAN**标准 **/ 扩展帧的差异:没有<D0> <D1>...<D8>。

举例：

date Mon Apr 10 02:31:19.810 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.041478 CAN 1 Status:chip status error active
   0.041478 CAN 2 Status:chip status error active
   0.101079 1  211             Tx   r 8  Length = 88015 BitCount = 47 ID = 529
   0.101219 1  211x            Tx   r 8  Length = 134015 BitCount = 70 ID = 529x
   0.200845 1  211x            Tx   r 8  Length = 134015 BitCount = 70 ID = 529x
   0.200939 1  211             Tx   r 8  Length = 88015 BitCount = 47 ID = 529

1.3.4 CAN Error错误帧的描述

CAN Error Frame
Format since v7.5	Interfaces with CAN-Core: <Time> <Channel> ErrorFrame Flags = <flags> CodeExt = <codeExt> Code = <code> ID = <ID> DLC = <DLC> Position = <Position> Length = <Length> Flags：定义参数Code, CodeExt, ID, DLC, Position和Length的有效性的Bit field。Bit含义： 0：SJA 1000 ECC是有效的 1：矢量CAN核心错误代码有效 2：矢量CAN核心错误位置有效 3：矢量CAN核心帧长度（ns）有效 Code： Vector CAN-Core的Bit含义： Bit 0-5： 0: Bit Error 1: Form Error 2: Stuff Error 3: Other Error 4: CRC Error 5: Ack-Del-Error 7: Ack-Error Bit 6-7： 0: RX-NAK-Error 1: TX-NAK-Error 2: RX-Error 3: TX-Error
	CodeExt：Extended error flags Bit 0-4：Segment (only SJA1000) Bit 5：Direction, 1=RX Bit 6-11：Error Code 0 Bit Error 1 Form Error 2 Stuff Error 3 Other Error 4 CRC Error 5 ACK- DEL Error 7 ACK Error Bit 12-13：Extended Direction 0 RX NAK 1 TX NAK 2 RX 3 TX Bit 14：1 =错误帧由应用程序发送备注 1 只对带有Vector CAN-Core的接口有效（CANcardXLe, VN7600, VN16xx, VN89xx和其他）。 2 ID、DLC和data field的有效性取决于干扰的类型和位置。例如：如果信息在ID- field受到干扰，那么只有ID的第一个Bit可能有效，但DLC和data field无效。错误位置不是干扰的位置。例如：如果错误位置位于CRC-field，那么信息可能在任何其他field受到干扰，错误的CRC是该干扰的结果。
Examples	1.592186 2 ErrorFrame Flags = 0xe CodeExt = 0x20a2 Code = 0x82 ID = 0 DLC = 0 Position = 5 Length = 11300

CAN Error Event

Format

<Time> CAN <Channel> Status:<Error>

<Time> CAN <Channel> Status:<Error> - TxErr: <TxCount> RxErr: <RxCount>

TxCount：

transmit error count寄存器的值

RxCount：

receive error count寄存器的值

Example

0.0006 CAN 2 Status:chip status error active

2137.317027 CAN 2 Status:chip status error active - TxErr: 8 RxErr: 0

举例：

date Mon Apr 10 02:33:32.536 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.014704 CAN 1 Status:chip status error active
   0.014704 CAN 2 Status:chip status error active
   0.100641 CAN 1 Status:chip status error active  - TxErr: 8 RxErr: 0
   0.100642 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.100901 CAN 1 Status:chip status error active  - TxErr: 16 RxErr: 0
   0.100902 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.101161 CAN 1 Status:chip status error active  - TxErr: 24 RxErr: 0
   0.101162 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.101421 CAN 1 Status:chip status error active  - TxErr: 32 RxErr: 0
   0.101422 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.101681 CAN 1 Status:chip status error active  - TxErr: 40 RxErr: 0
   0.101682 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.101941 CAN 1 Status:chip status error active  - TxErr: 48 RxErr: 0
   0.101942 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.102201 CAN 1 Status:chip status error active  - TxErr: 56 RxErr: 0
   0.102202 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.102461 CAN 1 Status:chip status error active  - TxErr: 64 RxErr: 0
   0.102462 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.102721 CAN 1 Status:chip status error active  - TxErr: 72 RxErr: 0
   0.102722 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.102981 CAN 1 Status:chip status error active  - TxErr: 80 RxErr: 0
   0.102982 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.103241 CAN 1 Status:chip status error active  - TxErr: 88 RxErr: 0
   0.103242 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.103501 CAN 1 Status:chip status warning level - TxErr: 96 RxErr: 0
   0.103502 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.103761 CAN 1 Status:chip status warning level - TxErr: 104 RxErr: 0
   0.103762 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.104021 CAN 1 Status:chip status warning level - TxErr: 112 RxErr: 0
   0.104022 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.104281 CAN 1 Status:chip status warning level - TxErr: 120 RxErr: 0
   0.104282 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   0.104541 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   0.104542 1  ErrorFrame	Flags = 0xfffe	CodeExt = 0x31d9	Code = 0xc7	ID = 0x211	DLC = 8	Position = 99	Length = 226015	Data = 0  0  0  0  0  0  0  0
   1.014705 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   1.014705 CAN 2 Status:chip status error active
   2.014705 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   2.014705 CAN 2 Status:chip status error active
   3.014705 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   3.014705 CAN 2 Status:chip status error active
   4.014706 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   4.014706 CAN 2 Status:chip status error active
   5.014706 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   5.014706 CAN 2 Status:chip status error active

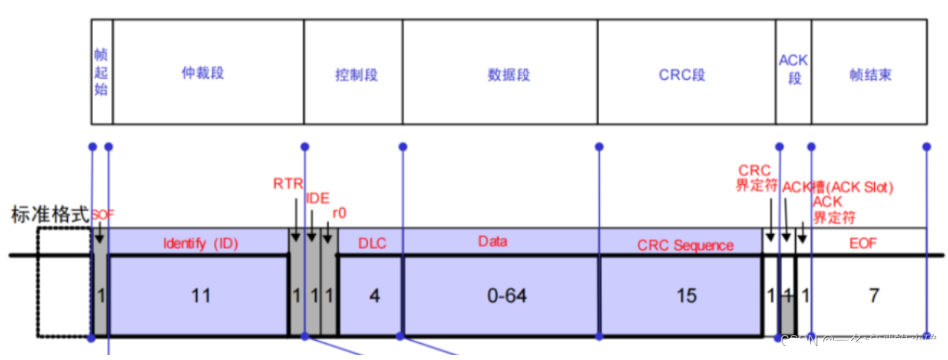

1.4 CANFD网络中的描述

该部分列出了CANoe/CANalyzer ASC记录中的所有经典CAN event和CAN FD channel上的CAN FD event。

1.4.1 经典CAN Standard标准帧的描述

Format since v8.1	<Time> CANFD <Channel> <Dir> <ID> <SymbolicName> <BRS> <ESI> <DLC> <DataLength> <D1> … <D8> <MessageDuration> <MessageLength> <Flags> <CRC> <BitTimingConfArb> <BitTimingConfData> <BitTimingConfExtArb> <BitTimingConfExtData>
Example	0.105364 CANFD 1 Tx 1 0 0 1 1 01 112000 59 200040 39b5 46500250 460a0250 20011736 20010205

ID：表示CANID的十六进制值；

BRS：表示CANFD Frame的BRS位；

ESI：表示CANFD Frame的DEI位；

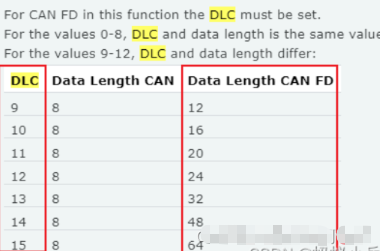

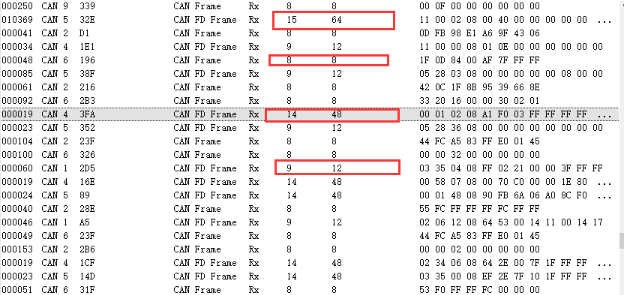

DLC：表示CANFD Frame的控制段DTC；

DataLength：message的有效长度，以字节为单位。

MessageDuration：表示发送/接收该Frame/Message占据总线的时间，单位纳秒；

MessageLength：表示发送/接收该Frame/Message由多少各Bit构成；

Flags：Bit含义

Bit 0: Reserved, must be 0
Bit 1: Reserved, for internal use
Bit 2: 1=NERR (1=single wire on low speed CAN)
Bit 3: 1=High voltage wake up
Bit 4: 1=Remote frame (only CAN)
Bit 5: Reserved, must be 0
Bit 6: 1= Tx Acknowledge
Bit 7: 1= Tx Request
Bit 8: Reserved, must be 0
Bit 9: SRR (CAN FD)
Bit 10: R0
Bit 11: R1
Bit 12: FDF bit 0: CAN frame 1: CAN FD frame
Bit 13: BRS bit (CAN FD)
Bit 14: ESI bit (CAN FD)
Bit 15: Reserved, must be 0
Bit 16: Reserved, must be 0
Bit 17: 1= Frame is part ofa burst
Bit 18: Single shot mode: Frame could not be transmitted
Bit 19: Single shot mode: If bit 18 set to 1, then this bit reports the reason.0 = arbitration lost 1=frame disturbed
Bit 20: Reserved, for internal use
Bit 21: Reserved, for internal use
Bit 22 -31: Reserved, must be 0

CRC：message的校验和；

Bit 0 – 20: CRC
Bit 21 – 26: Reserved for internal use
Bit 27 – 29: Stuff count field
Bit 30: Stuff count field parity
Bit 31: ISO format. 如果设置为1，那么该报文是CAN FD ISO格式，并且stuff count是有效的.

BitTimingConfArb和BitTimingConfData：指的是用于仲裁和数据段的bit timing参数。这些段可以解释为32位长的bit field。

Bit 0-7: Quartz Frequency in kHz
Bit 8-15: Prescaler
Bit 16-23: BTL Cycles
Bit 24-31: Sampling Point

BitTimingConfExtArb和BitTimingConfExtData：bit timing存储在该段中。如果bit timing不能以旧格式存储，那么、将被设置为0。

Bit 0 – 7: TSEG1-1
Bit 8 – 15: TSEG2-1
Bit 16 – 27: Prescaler
Bit 28 – 31: Quartz Frequency (enumeration). Supported values: 0: 16 MHz, 1: 32 MHz, 2: 80 MHz

举例：

date Mon Apr 10 02:38:41.859 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.038849 CAN 1 Status:chip status error active
   0.038849 CAN 2 Status:chip status error active
   0.100980 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a
   0.200978 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a
   0.301134 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a
   0.400976 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a

1.4.2 经典CAN Extended扩展帧的描述

Format since v8.1	<Time> CANFD <Channel> <Dir> <ID> <SymbolicName> <BRS> <ESI> <DLC> <DataLength> <D1> … <D8> <MessageDuration> <MessageLength> <Flags> <CRC> <BitTimingConfArb> <BitTimingConfData> <BitTimingConfData> <BitTimingConfExtArb> <BitTimingConfExtData>
Example	0.100995 CANFD 2 Rx 10001x 0 0 1 1 01 156000 82 200000 149a 46500250 460a0250 20011736 20010205

各字段的解释详见“1.4.1 经典CAN Standard标准帧的描述”。

举例：

date Mon Apr 10 02:42:26.030 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.035889 CAN 1 Status:chip status error active
   0.035889 CAN 2 Status:chip status error active
   0.100829 CANFD   1 Tx        211x                                  0 0 8  8 00 00 00 00 00 00 00 00   290015  148   200040      37b 50a00150 46280150 20001f7e 20000b1a
   0.200893 CANFD   1 Tx        211x                                  0 0 8  8 00 00 00 00 00 00 00 00   290015  148   200040      37b 50a00150 46280150 20001f7e 20000b1a
   0.300831 CANFD   1 Tx        211x                                  0 0 8  8 00 00 00 00 00 00 00 00   290015  148   200040      37b 50a00150 46280150 20001f7e 20000b1a
   0.400909 CANFD   1 Tx        211x                                  0 0 8  8 00 00 00 00 00 00 00 00   290015  148   200040      37b 50a00150 46280150 20001f7e 20000b1a

1.4.3 CANFD Standard标准帧的描述

该部分列出了CANoe/CANalyzer ASC记录中的所有经典CAN event和CAN FD channel上的CAN FD event。

Format since v8.1	<Time> CANFD <Channel> <Dir> <ID> <SymbolicName> <BRS> <ESI> <DLC> <DataLength> <D1> … <D64> <MessageDuration> <MessageLength> <Flags> <CRC> <BitTimingConfArb> <BitTimingConfData> <BitTimingConfExtArb> <BitTimingConfExtData>
Example	0.151061 CANFD 1 Tx 2 0 0 2 2 02 03 150000 78 301040 10151 46500250 460a0250 20011736 20010205

各字段的解释详见“1.4.1 经典CAN Standard标准帧的描述”。

举例：

date Mon Apr 10 02:48:53.277 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.046804 CAN 1 Status:chip status error active
   0.046804 CAN 2 Status:chip status error active
   0.100836 CANFD   1 Tx        211                                   1 0 8  8 00 00 00 00 00 00 00 00   107015  139   303040 f801828f 50a00150 46280150 20001f7e 20000b1a
   0.200741 CANFD   1 Tx        211                                   1 0 8  8 00 00 00 00 00 00 00 00   107015  139   303040 f801828f 50a00150 46280150 20001f7e 20000b1a
   0.300714 CANFD   1 Tx        211                                   1 0 8  8 00 00 00 00 00 00 00 00   107015  139   303040 f801828f 50a00150 46280150 20001f7e 20000b1a
   0.400735 CANFD   1 Tx        211                                   1 0 8  8 00 00 00 00 00 00 00 00   107015  139   303040 f801828f 50a00150 46280150 20001f7e 20000b1a

date Mon Apr 10 02:38:41.859 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.038849 CAN 1 Status:chip status error active
   0.038849 CAN 2 Status:chip status error active
   0.100980 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a
   0.200978 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a
   0.301134 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a
   0.400976 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   200040     2a8f 50a00150 46280150 20001f7e 20000b1a

1.4.4 CANFD Extended扩展帧的描述

Format since v8.1	<Time> CANFD <Channel> <Dir> <ID> <SymbolicName> <BRS> <ESI> <DLC> <DataLength> <D1> … <D64> <MessageDuration> <MessageLength> <Flags> <CRC> <BitTimingConfArb> <BitTimingConfData> <BitTimingConfExtArb> <BitTimingConfExtData>
Example	0.105537 CANFD 2 Rx 10001x 0 0 1 1 01 174015 91 301000 bfd9 46500250 460a0250 20011736 20010205

各字段的解释详见“1.4.1 经典CAN Standard标准帧的描述”。

举例：

date Mon Apr 10 02:49:57.722 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.018020 CAN 1 Status:chip status error active
   0.018020 CAN 2 Status:chip status error active
   0.100571 CANFD   1 Tx        211x                                  1 0 8  8 00 00 00 00 00 00 00 00   151015  161   303040 80016b85 50a00150 46280150 20001f7e 20000b1a
   0.200634 CANFD   1 Tx        211x                                  1 0 8  8 00 00 00 00 00 00 00 00   151015  161   303040 80016b85 50a00150 46280150 20001f7e 20000b1a
   0.300783 CANFD   1 Tx        211x                                  1 0 8  8 00 00 00 00 00 00 00 00   151015  161   303040 80016b85 50a00150 46280150 20001f7e 20000b1a
   0.400604 CANFD   1 Tx        211x                                  1 0 8  8 00 00 00 00 00 00 00 00   151015  161   303040 80016b85 50a00150 46280150 20001f7e 20000b1a

1.4.5 CAN Remote远程帧的描述

Format	<Time> CANFD <Channel> <Dir> <ID> <SymbolicName> <BRS> <ESI> <DLC> <DataLength> <MessageDuration> <MessageLength> <Flags> <CRC> <BitTimingConfArb> <BitTimingConfData> <BitTimingConfData> <BitTimingConfExtArb> <BitTimingConfExtData>
Example	0.300981 CANFD 1 Tx 50005x 0 0 5 0 140000 73 200050 7a60 46500250 460a0250 20011736 20010205

各字段的解释详见“1.4.1 经典CAN Standard标准帧的描述”。

举例：

date Mon Apr 10 02:52:19.883 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.026889 CAN 1 Status:chip status error active
   0.026889 CAN 2 Status:chip status error active
   0.101047 CANFD   1 Tx        211                                   0 0 8  0    88015   47   200050     2c3a 50a00150 46280150 20001f7e 20000b1a
   0.101187 CANFD   1 Tx        211x                                  0 0 8  0   134015   70   220050     6a2a 50a00150 46280150 20001f7e 20000b1a
   0.201045 CANFD   1 Tx        211x                                  0 0 8  0   134015   70   200050     6a2a 50a00150 46280150 20001f7e 20000b1a
   0.201139 CANFD   1 Tx        211                                   0 0 8  0    88015   47   220050     2c3a 50a00150 46280150 20001f7e 20000b1a

1.4.6 CAN Error错误帧的描述

CAN FD Error Frame
Format	<Time> CANFD <Channel> <Dir> ErrorFrame <ErrorText> <flags> <code> <codeExt> <Phase> <Position> <ID> <BRS> <ESI> <DLC> <DataLength> <D1> … <D64> <MessageDuration> <extFlags> <CRC> <BitTimingConfArb> <BitTimingConfData> <BitTimingConfExtArb> <BitTimingConfExtData> <extFlags>: extFlags(Extended error flags)： Bit 0：0: FDF is 0 (CAN Error Frame)；1: FDF is 1 (CAN FD Error Frame) Bit 1：0: BRS is 0；1: BRS is 1 Bit 2：0: ESI is 0；1: ESI is 1 Bit 3：0: Error in Arbitration Phase；1: Error in Data Phase Bit 4：0: Error is on a CAN channel；1: Error is on a CAN FD channel all others：reserved, must be set to 0
Example: Classic CAN	0.051203 CANFD 1 Rx ErrorFrame Stuff Error fffe 82 20a2 Arb.5 0 0 0 0 0 11984 10 0 46500250 460a0250 20011736 20010205
Example: CAN FD	10.006898 CANFD 1 Tx ErrorFrame Not Acknowledge error, dominant error flag fffe c7 31ca Arb.556 44 0 0 f 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1331984 11 0 46500250 460a0250 20011736 20010205

各字段的解释详见“1.4.1 经典CAN Standard标准帧的描述”。

举例：

date Mon Apr 10 02:55:04.694 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.036456 CAN 1 Status:chip status error active
   0.036456 CAN 2 Status:chip status error active
   0.100770 CAN 1 Status:chip status error active  - TxErr: 8 RxErr: 0
   0.100770 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.100897 CAN 1 Status:chip status error active  - TxErr: 16 RxErr: 0
   0.100897 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101024 CAN 1 Status:chip status error active  - TxErr: 24 RxErr: 0
   0.101024 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101151 CAN 1 Status:chip status error active  - TxErr: 32 RxErr: 0
   0.101151 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101278 CAN 1 Status:chip status error active  - TxErr: 40 RxErr: 0
   0.101278 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101405 CAN 1 Status:chip status error active  - TxErr: 48 RxErr: 0
   0.101405 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101532 CAN 1 Status:chip status error active  - TxErr: 56 RxErr: 0
   0.101532 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101659 CAN 1 Status:chip status error active  - TxErr: 64 RxErr: 0
   0.101659 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101786 CAN 1 Status:chip status error active  - TxErr: 72 RxErr: 0
   0.101786 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.101913 CAN 1 Status:chip status error active  - TxErr: 80 RxErr: 0
   0.101913 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.102040 CAN 1 Status:chip status error active  - TxErr: 88 RxErr: 0
   0.102040 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.102167 CAN 1 Status:chip status warning level - TxErr: 96 RxErr: 0
   0.102167 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.102294 CAN 1 Status:chip status warning level - TxErr: 104 RxErr: 0
   0.102294 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.102421 CAN 1 Status:chip status warning level - TxErr: 112 RxErr: 0
   0.102421 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.102548 CAN 1 Status:chip status warning level - TxErr: 120 RxErr: 0
   0.102548 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   0.102675 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   0.102675 CANFD   1 Tx   ErrorFrame Not Acknowledge error, dominant error flag       fffe c7     31da Arb. 109      211  1 0 8  8 00 00 00 00 00 00 00 00    93015       13 f8000000 50a00150 46280150 20001f7e 20000b1a
   1.036456 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   1.036456 CAN 2 Status:chip status error active
   2.036457 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   2.036457 CAN 2 Status:chip status error active
   3.036457 CAN 1 Status:chip status error passive - TxErr: 128 RxErr: 0
   3.036457 CAN 2 Status:chip status error active

1.5 标志位（换行符等）

标志

换行符

换行是用CR+LF表示的编码。

2 如何分辨CAN Log文件中的“标准帧”和“扩展帧”

2.1 经典CAN网络中的标准帧和扩展帧

经典CAN网络中的标准帧和扩展帧的差异:

经典CAN标准帧的ID和IDnum字段后不带字符x；
经典CAN扩展帧的ID和IDnum字段后带字符x。

举例：

date Mon Apr 10 04:24:18.233 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.028996 CAN 1 Status:chip status error active
   0.028996 CAN 2 Status:chip status error active
   0.101449 1  211             Tx   d 8 00 00 00 00 00 00 00 00  Length = 242015 BitCount = 124 ID = 529
   0.101745 1  211x            Tx   d 8 00 00 00 00 00 00 00 00  Length = 290015 BitCount = 148 ID = 529x
   0.201469 1  211x            Tx   d 8 00 00 00 00 00 00 00 00  Length = 290015 BitCount = 148 ID = 529x
   0.201717 1  211             Tx   d 8 00 00 00 00 00 00 00 00  Length = 242015 BitCount = 124 ID = 529

2.2 CANFD网络中的标准帧和扩展帧

CANFD网络中，可能同时存在：经典CAN标准帧，经典CAN扩展帧，CANFD标准帧，CANFD**扩展帧。

经典CAN/CANFD标准帧的ID字段后不带字符x；
经典CAN/CANFD扩展帧的ID字段后带字符x；
Flags字段的的Bit 12: FDF bit，其0表示经典CAN frame；1表示CAN FD frame。

举例：

date Mon Apr 10 03:28:33.279 pm 2023
base hex  timestamps absolute
internal events logged
// version 11.0.0
   0.008330 CAN 1 Status:chip status error active
   0.008330 CAN 2 Status:chip status error active
   0.100736 CANFD   1 Tx        211                                   1 0 8  8 00 00 00 00 00 00 00 00   107015  139   303040 f801828f 50a00150 46280150 20001f7e 20000b1a
   0.100893 CANFD   1 Tx        211x                                  1 0 8  8 00 00 00 00 00 00 00 00   151015  161   323040 80016b85 50a00150 46280150 20001f7e 20000b1a
   0.101141 CANFD   1 Tx        211                                   0 0 8  8 00 00 00 00 00 00 00 00   242015  124   220040     2a8f 50a00150 46280150 20001f7e 20000b1a
   0.101437 CANFD   1 Tx        211x                                  0 0 8  8 00 00 00 00 00 00 00 00   290015  148   220040      37b 50a00150 46280150 20001f7e 20000b1a

3 ASCLog / BLF 的支持软件

BLF文件通常需要特定的CAN总线分析工具或文件查看器来打开。

一些常见的工具包括CANalyzer、CANoe、Wireshark等。
您需要下载并安装其中一个工具。

CANoe

推荐文献

在CANoe/CANalyzer中如何截取/分段CAN Log文件(自定义时间段) - CSDN

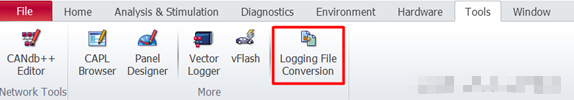

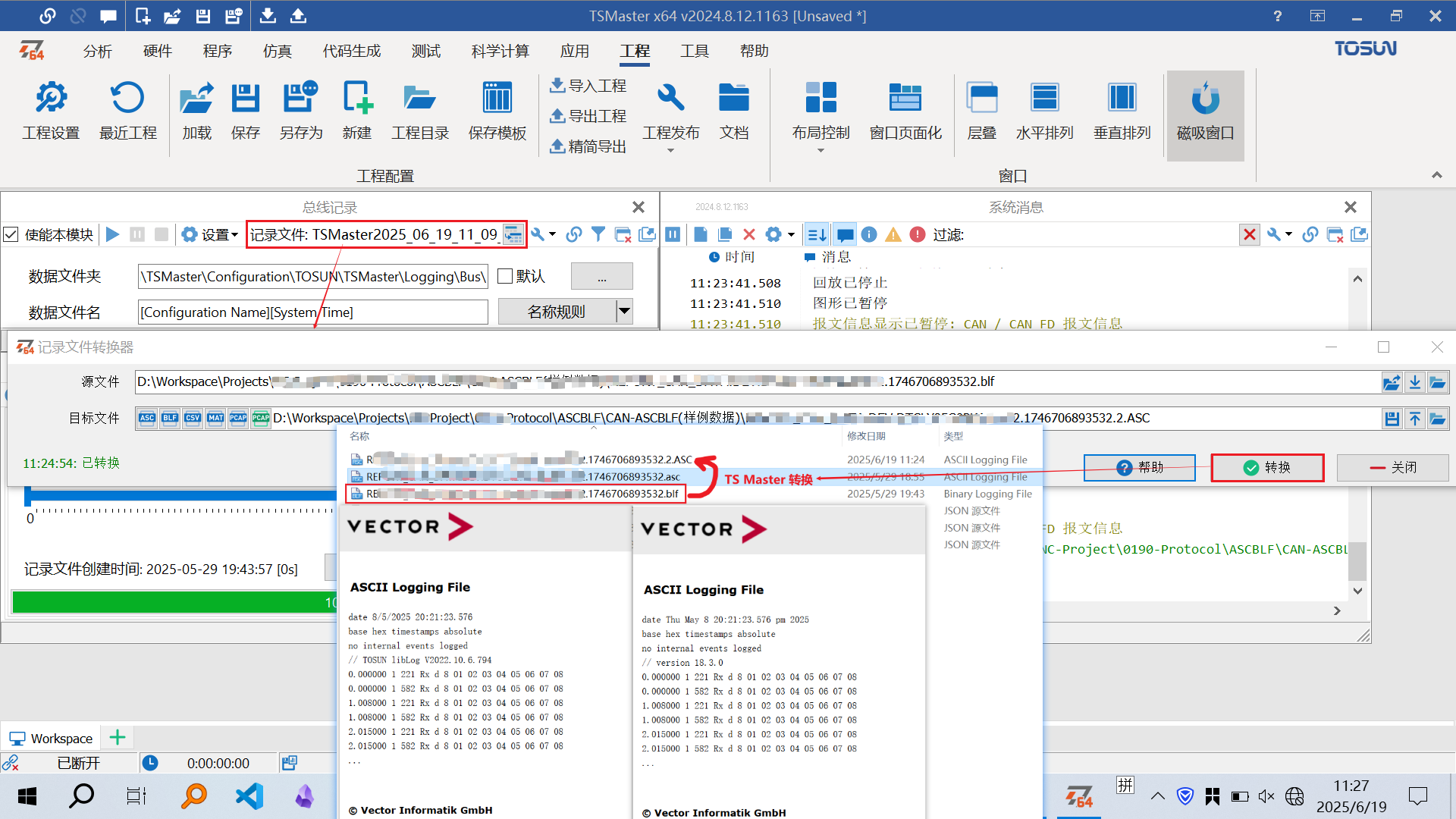

在CANoe和CANalyzer中的Tools菜单中，提供了一个“Logging File Conversion”工具，将 CAN Log 文件（*.asc,*.blf …）根据“自定义时间段”截取/分段成多个较小的CAN log文件。

CANalyzer

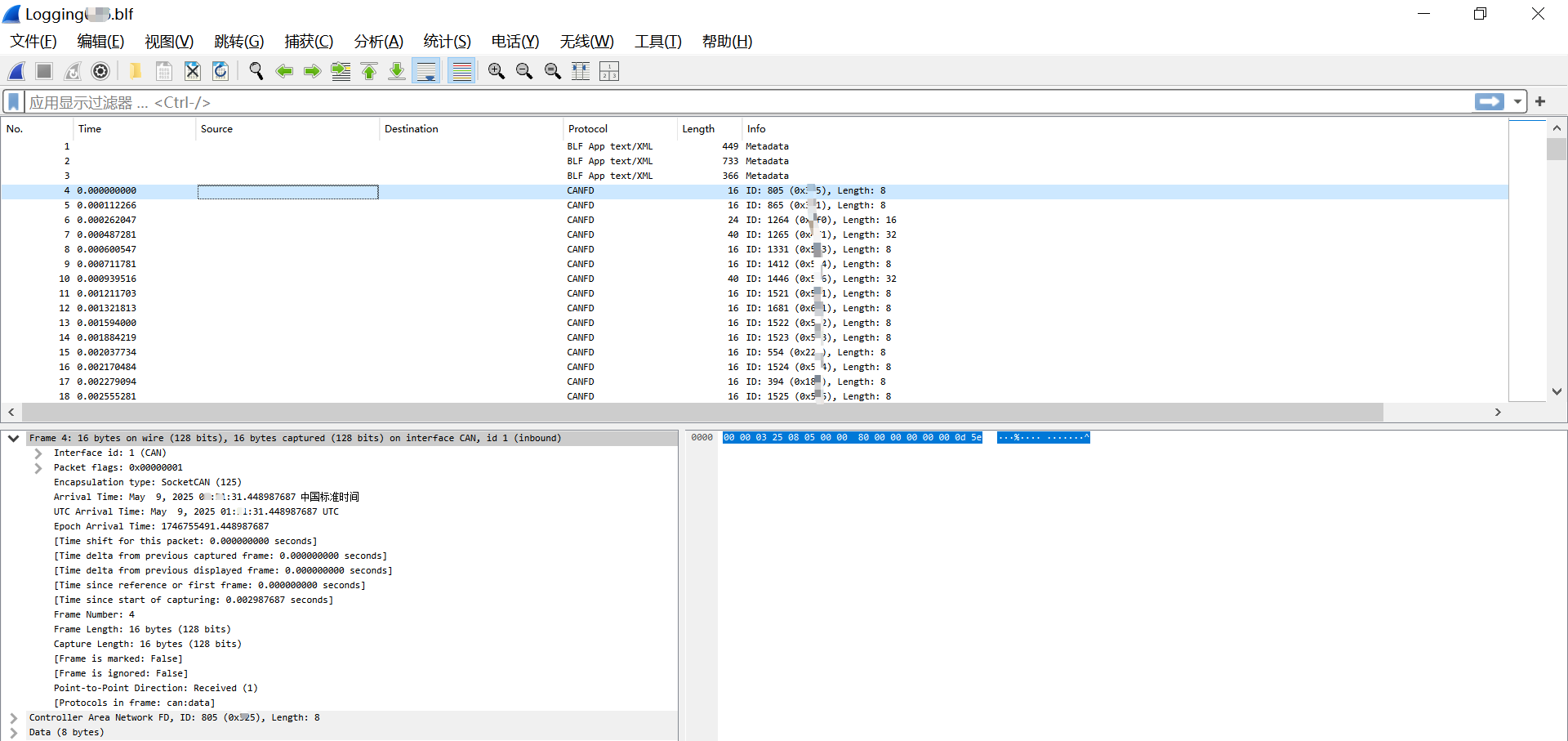

Wireshark

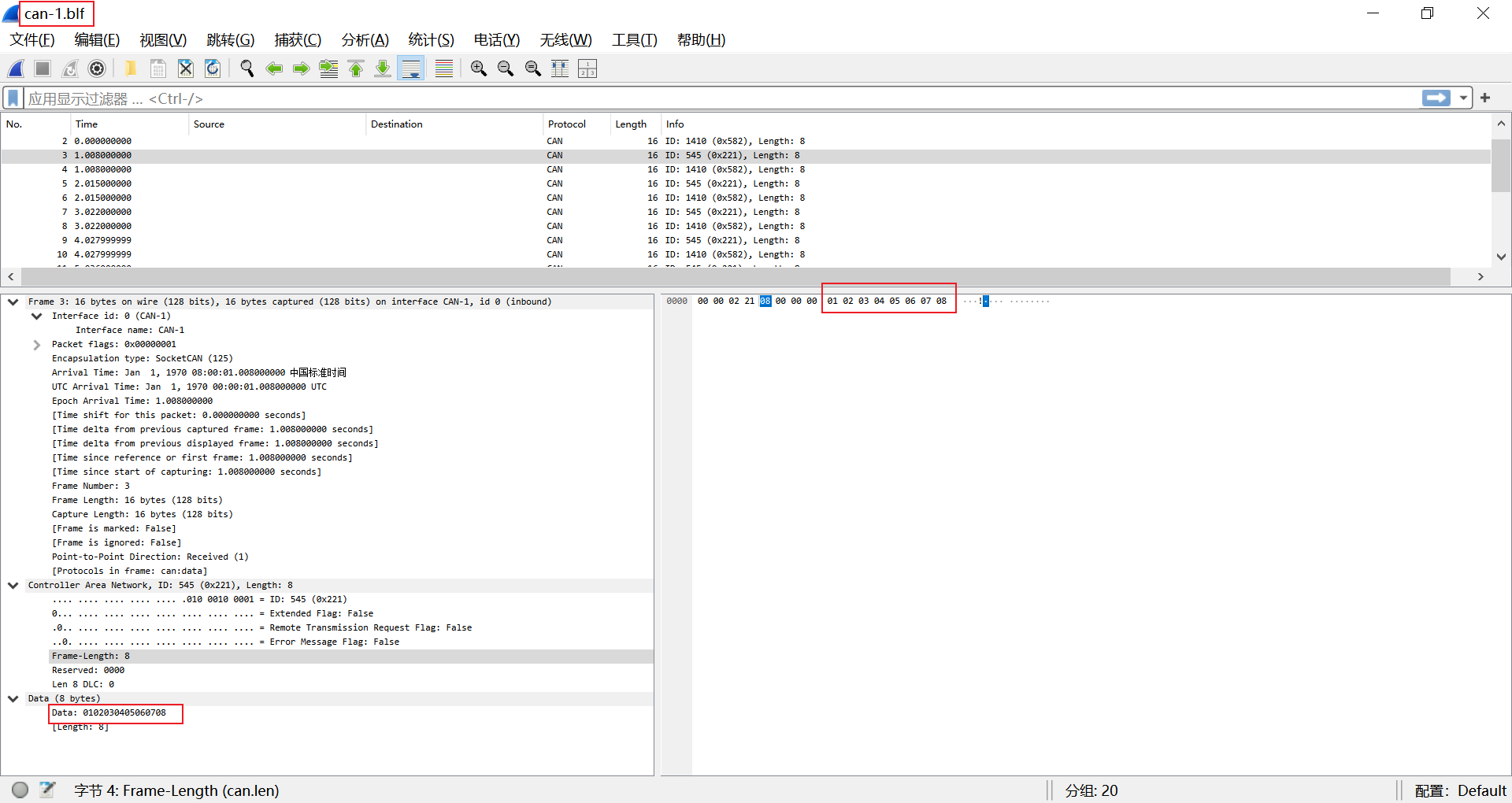

can-xx.blf

can-1.blf

ZCAN Pro

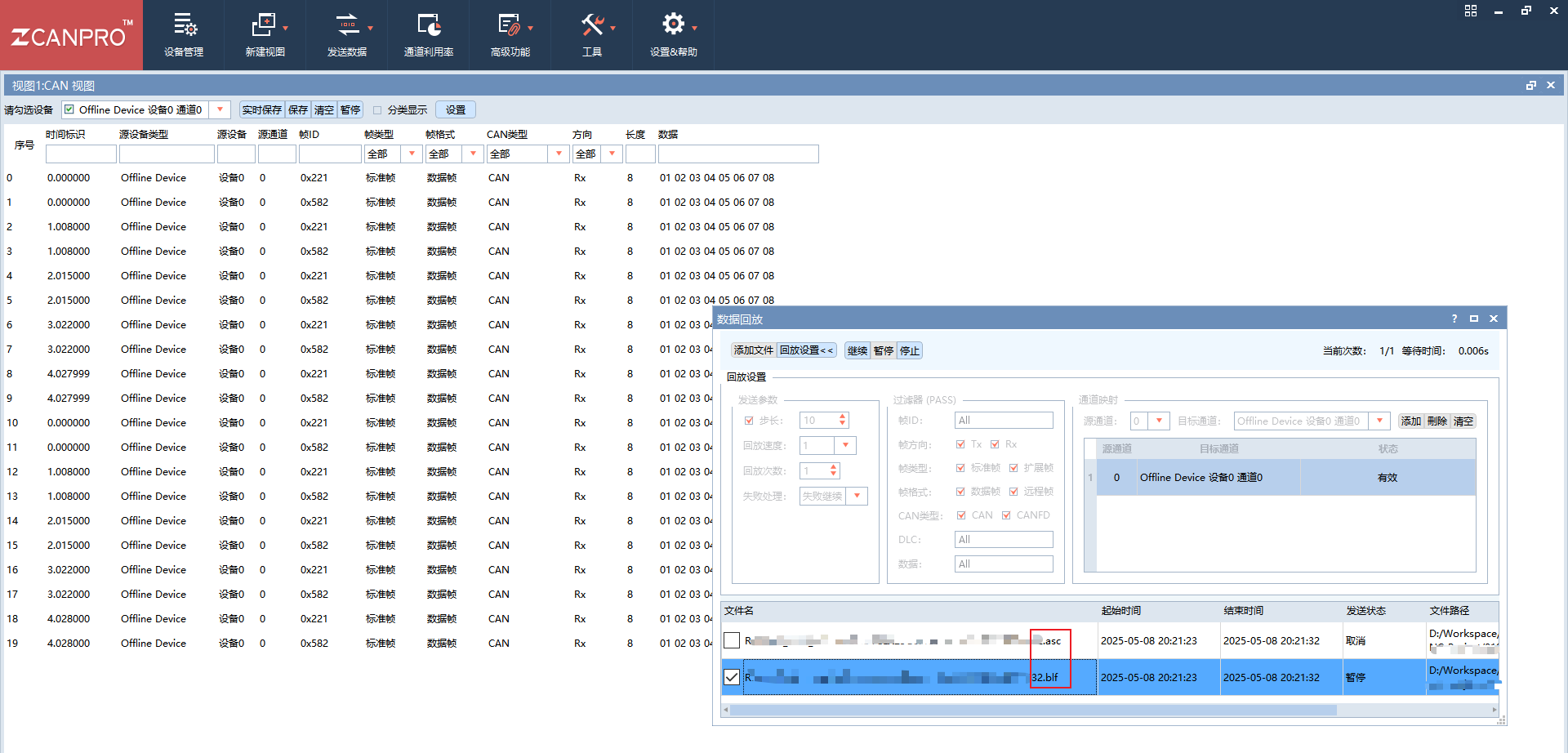

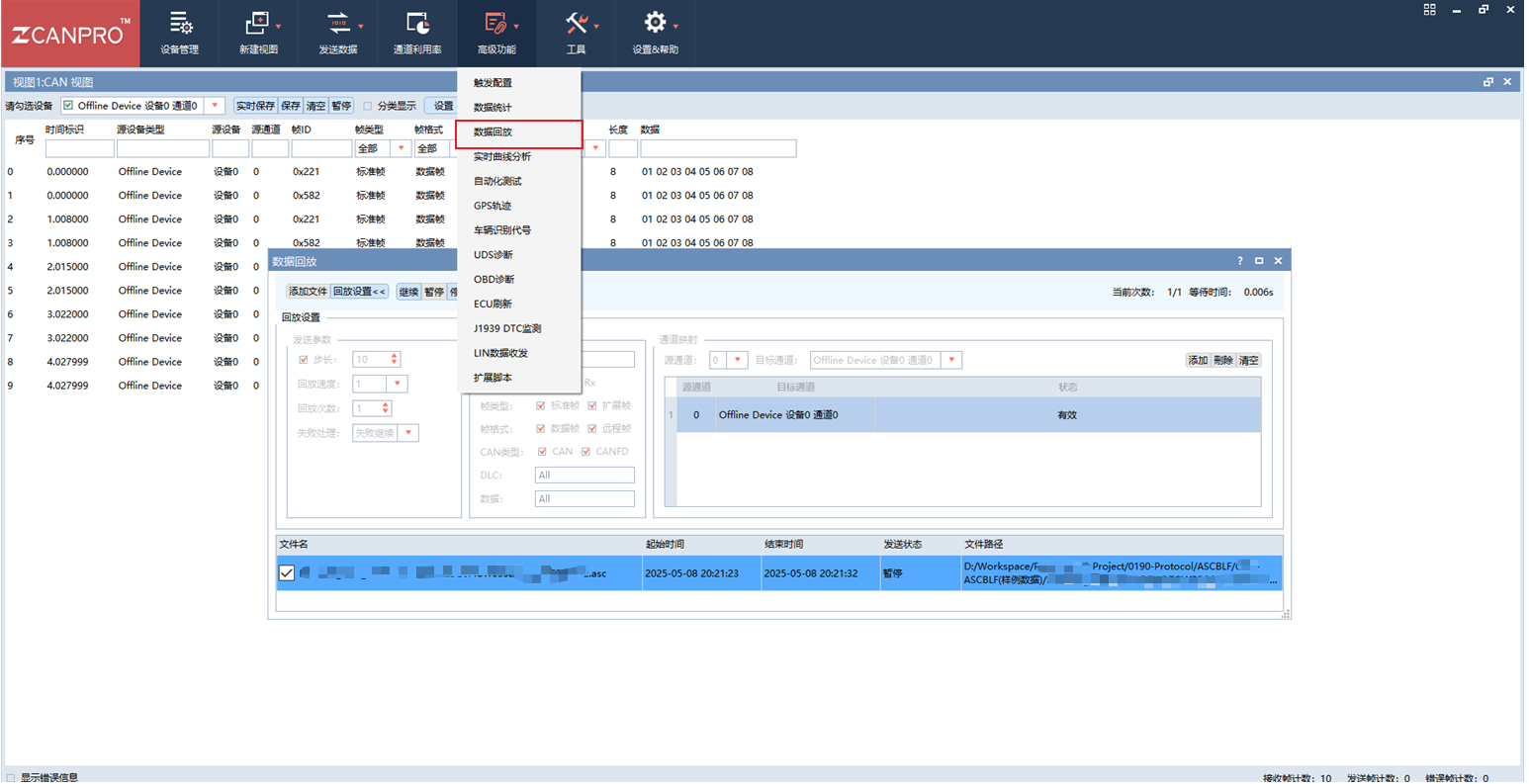

ZCAN Pro - 数据回放

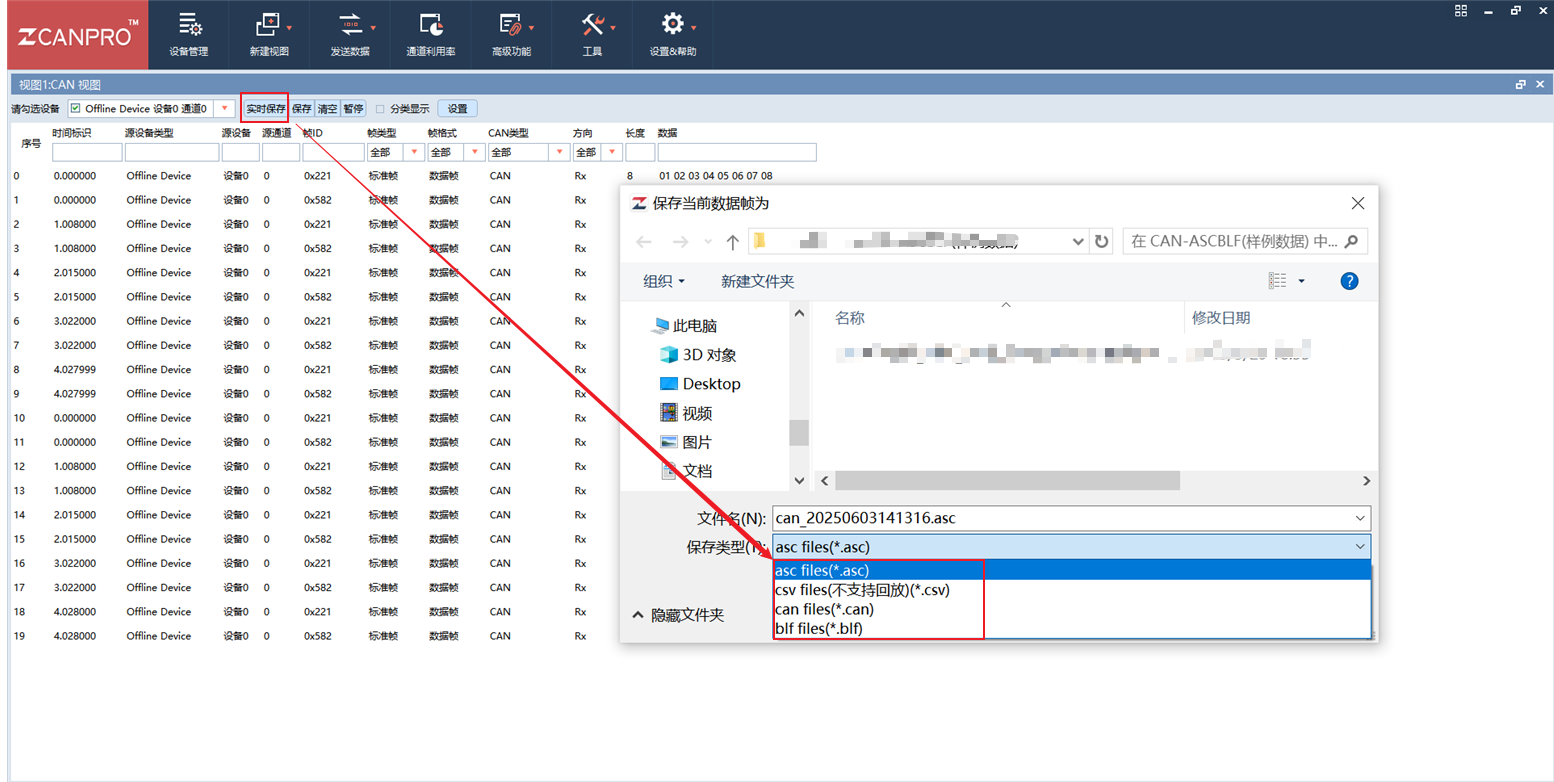

【实时保存】，支持 .asc / .blf / .can / .csv 格式

TSMaster

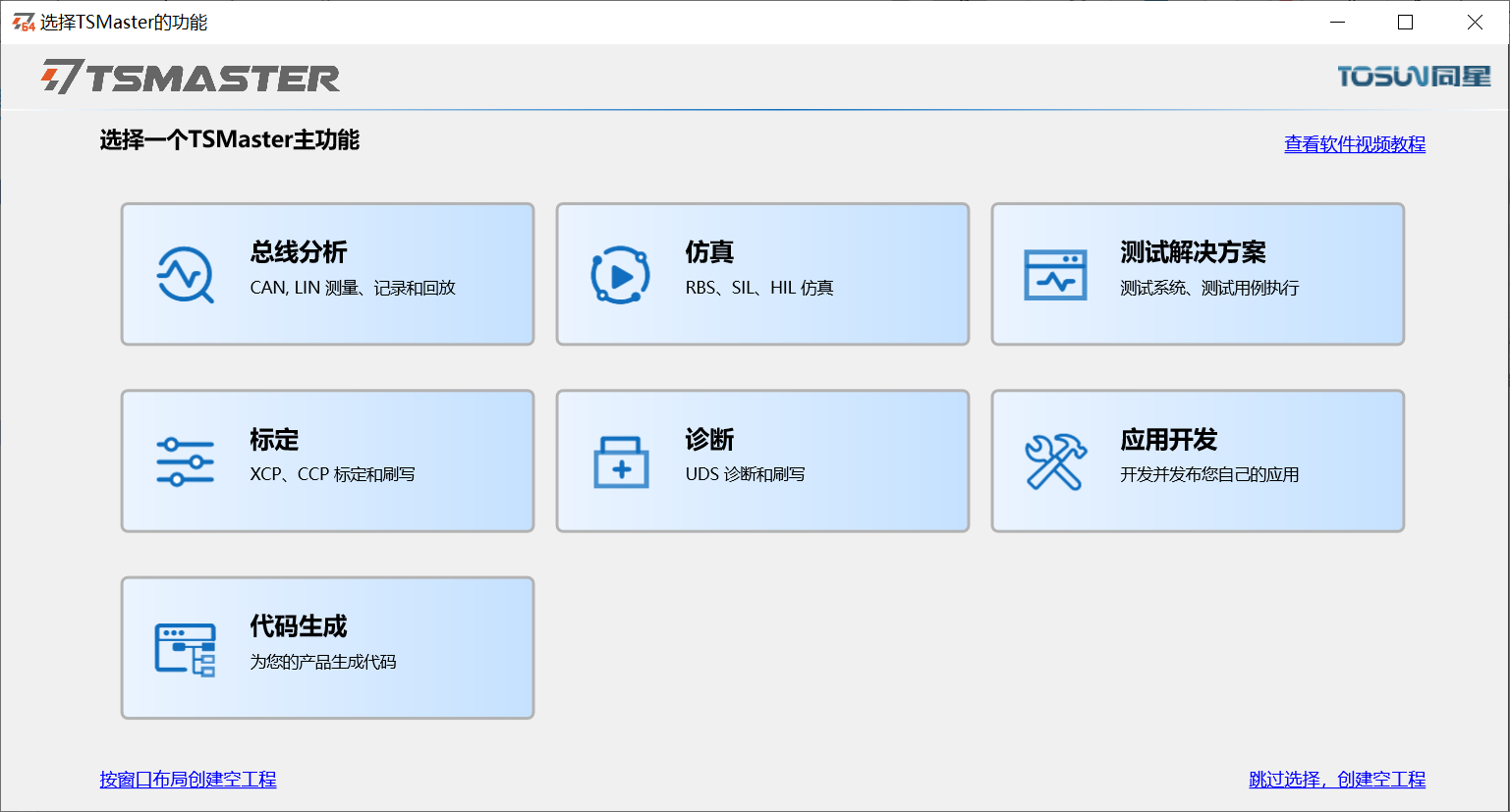

软件简介

TSMaster是一款由上海同星智能科技有限公司开发的虚拟仪器软件平台，它集汽车总线嵌入式代码生成、监控、仿真、开发、UDS诊断、CCP/XCP标定、ECU刷写、I/O控制、测试测量等功能于一体。
TSMaster软件可供客户免费下载、基础功能免费使用并支持第三方硬件设备，包括Vector、PCAN、Kvaser、ZLG等多种硬件。
TSMaster作为一款功能强大、免费且支持多种常用硬件的软件，可以作为Vector CANoe的很好的替代产品。

日志记录回放(.blf)

汽车文件转换(.arxml / .dbc / *.xls / *.xlsx / ...)

https://www.tosunai.com/downloads

https://github.com/TOSUN-Shanghai/TSMaster

帮助文档

BLF 转 ASC

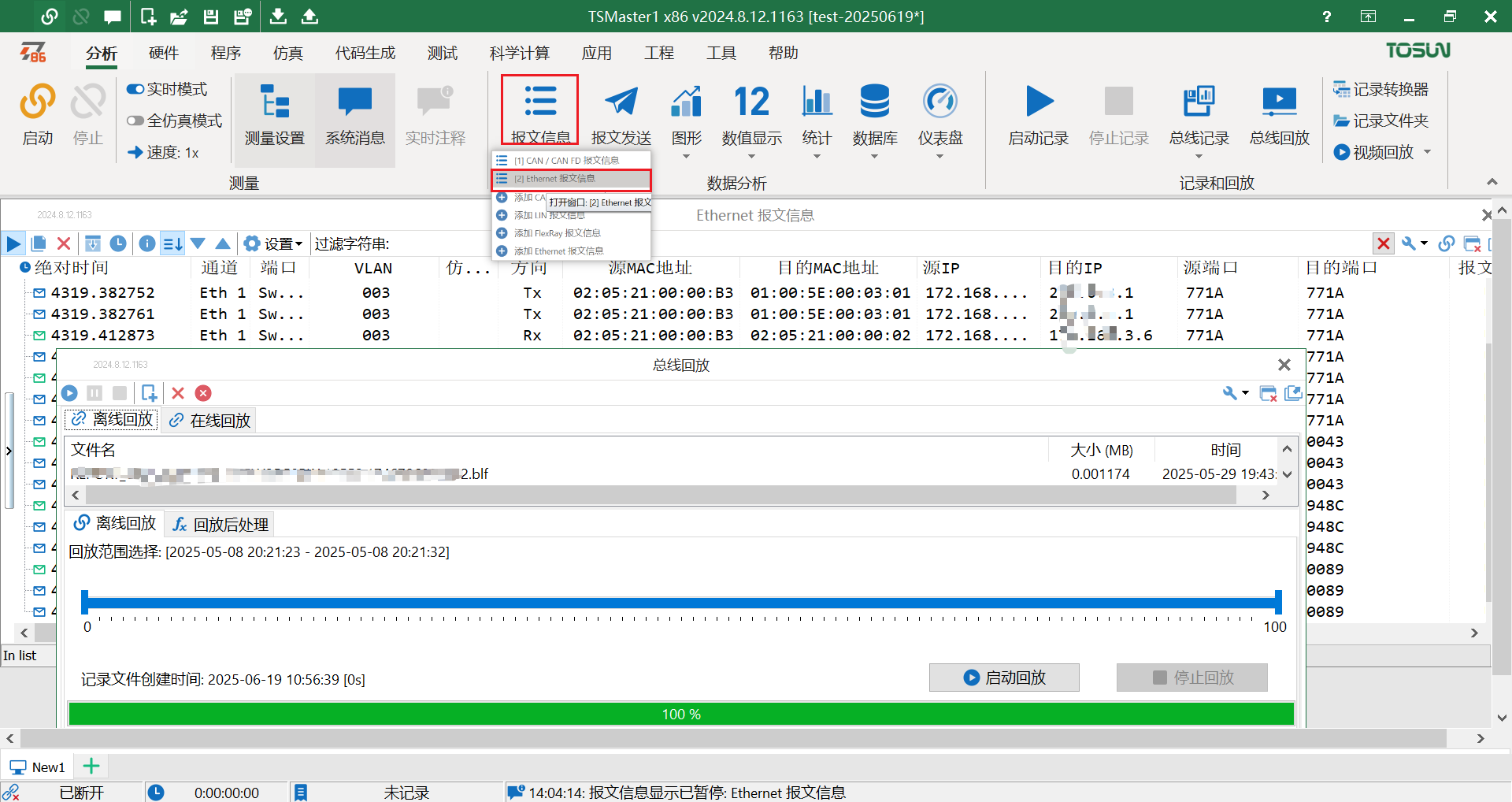

BLF / ASC 文件的回放

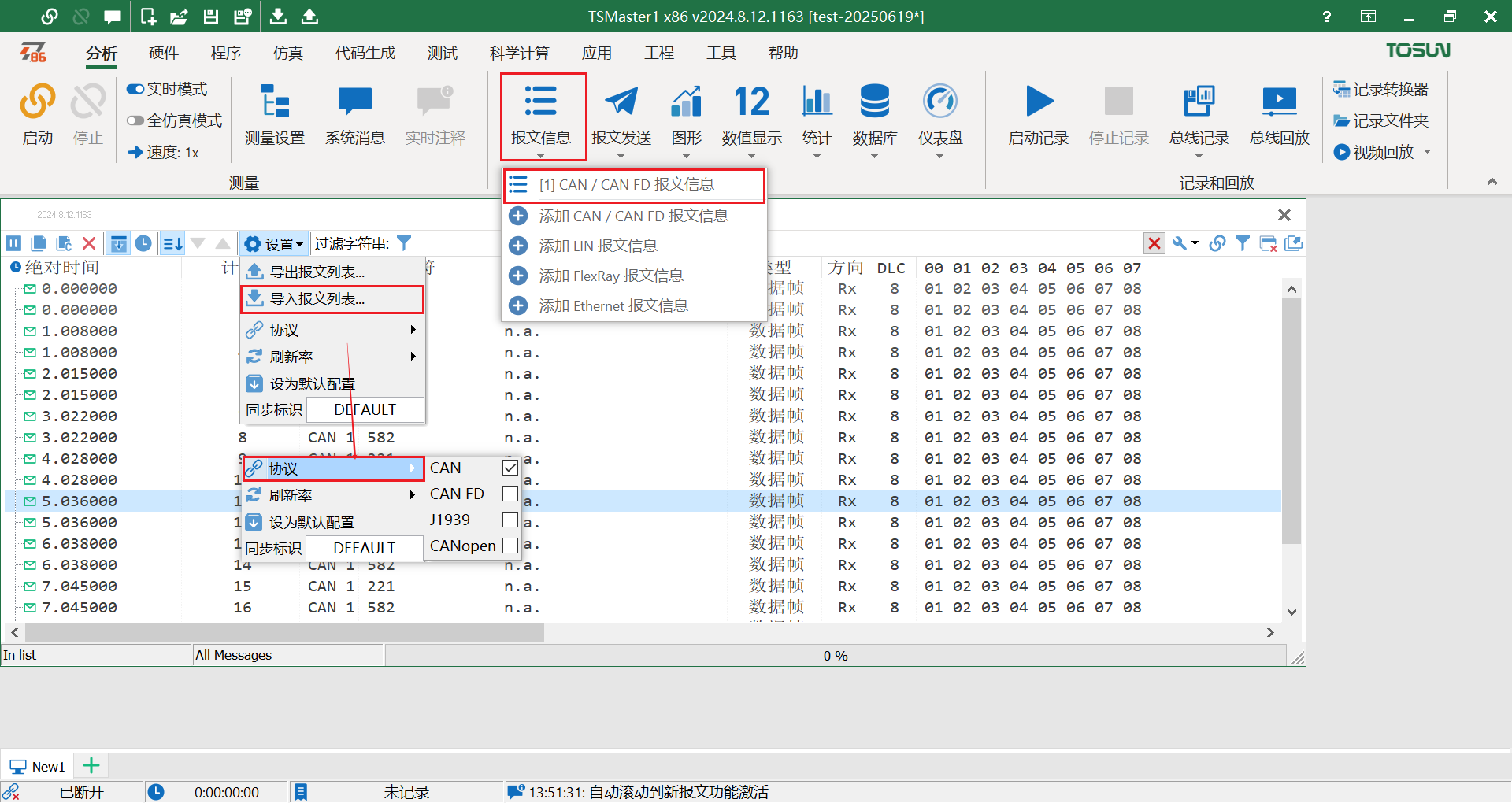

CAN

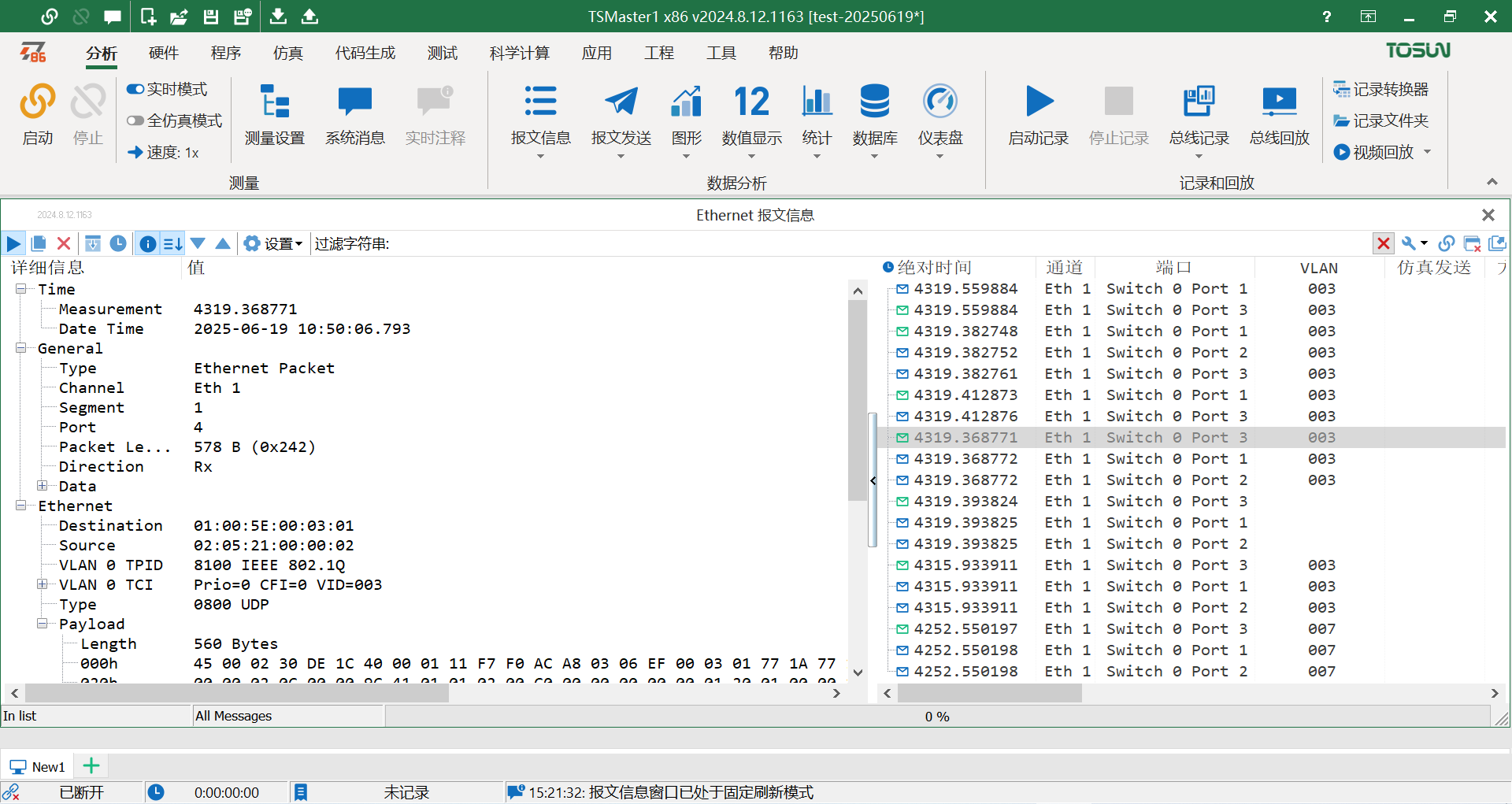

以太网(SOME/IP)

推荐文献

TSMaster软件下载安装及离线报文解析使用教程 - Zhihu

4 样例数据

样例ASC文件 - 001

Time 列的单位: 秒钟。可根据实际诉求，换算为毫秒、微秒等单位。

1秒(s) = 1000毫秒(ms)
1毫秒 = 1000微秒（μs）
1微秒 = 1000纳秒（ns）
1纳秒 = 1000皮秒（ps）

xxx.asc

date Tue Jun 14 04:42:05.200 pm 2022
base hex  timestamps absolute
internal events logged
// version 12.0.0
   5.409731 1  7DF             Tx   d 8 02 10 01 00 00 00 00 00  Length = 242244 BitCount = 124 ID = 2015
   5.410267 1  7A0             Rx   d 8 06 50 01 00 32 00 C8 AA  Length = 227926 BitCount = 118 ID = 1952
   7.635726 1  7DF             Tx   d 8 02 10 03 00 00 00 00 00  Length = 242000 BitCount = 124 ID = 2015
   7.640162 1  7A0             Rx   d 8 06 50 03 00 32 00 C8 AA  Length = 227911 BitCount = 118 ID = 1952
   9.411097 1  7DF             Tx   d 8 02 3E 00 00 00 00 00 00  Length = 248000 BitCount = 127 ID = 2015
   9.420095 1  7A0             Rx   d 8 02 7E 00 AA AA AA AA AA  Length = 223911 BitCount = 116 ID = 1952
  10.564000 1  7DF             Tx   d 8 03 19 02 FF 00 00 00 00  Length = 240244 BitCount = 123 ID = 2015
  10.569931 1  7A0             Rx   d 8 10 2B 59 02 39 C1 46 87  Length = 225910 BitCount = 117 ID = 1952
  10.570703 1  720             Tx   d 8 30 00 00 00 00 00 00 00  Length = 246000 BitCount = 126 ID = 1824
  10.571521 1  7A0             Rx   d 8 21 28 C1 55 87 28 C1 69  Length = 221910 BitCount = 115 ID = 1952
  10.571782 1  7A0             Rx   d 8 22 87 28 C2 31 87 18 C0  Length = 219910 BitCount = 114 ID = 1952
  10.572048 1  7A0             Rx   d 8 23 74 80 28 A2 A0 54 29  Length = 225926 BitCount = 117 ID = 1952
  10.572568 1  7A0             Rx   d 8 24 91 00 16 18 91 A0 2A  Length = 225910 BitCount = 117 ID = 1952
  10.573168 1  7A0             Rx   d 8 25 29 C1 84 87 28 60 70  Length = 221910 BitCount = 115 ID = 1952
  10.573424 1  7A0             Rx   d 8 26 51 19 AA AA AA AA AA  Length = 217910 BitCount = 113 ID = 1952
  13.411307 1  7DF             Tx   d 8 02 3E 00 00 00 00 00 00  Length = 248015 BitCount = 127 ID = 2015
  13.419873 1  7A0             Rx   d 8 02 7E 00 AA AA AA AA AA  Length = 223910 BitCount = 116 ID = 1952

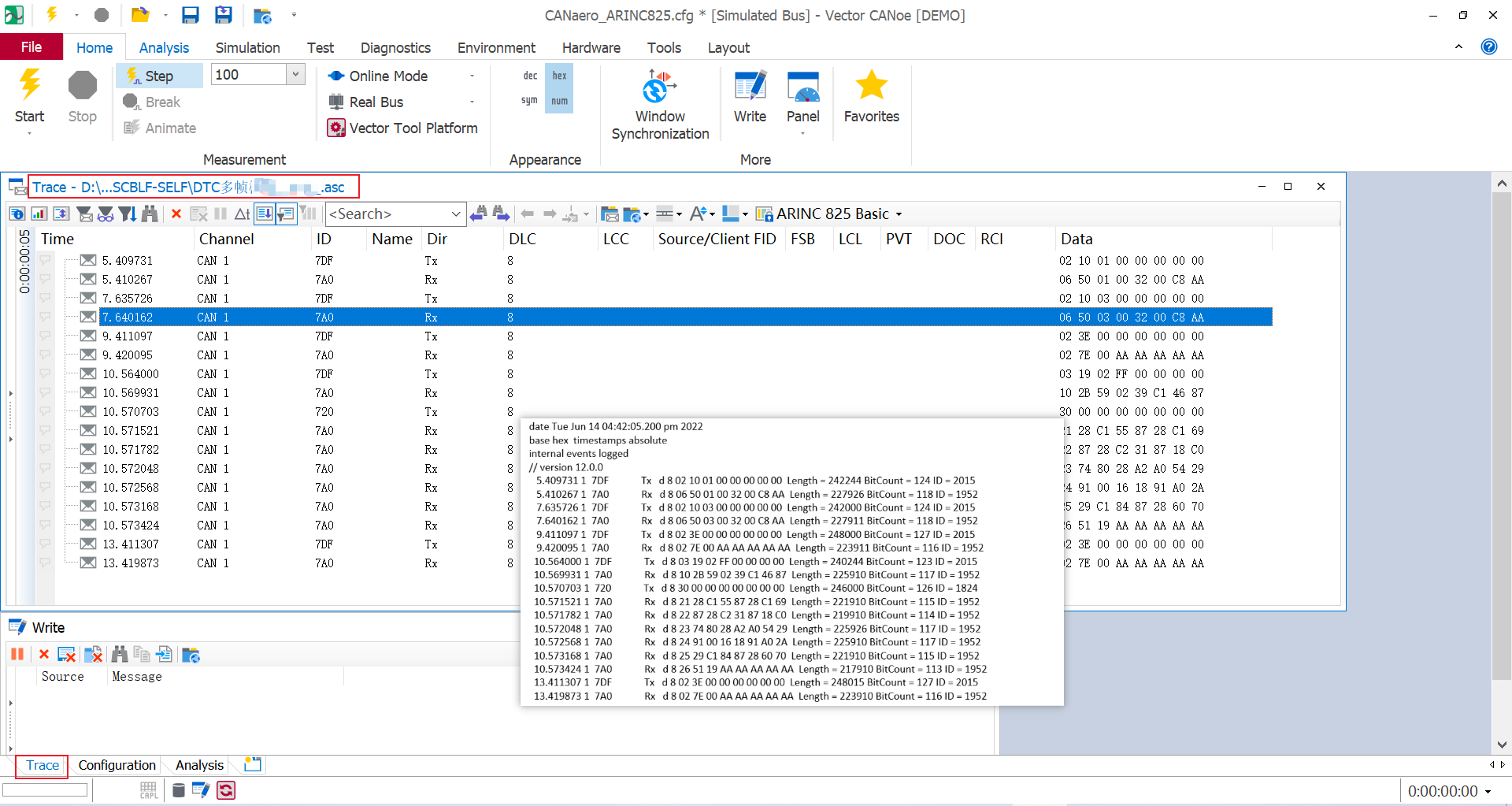

CANoe - Trace - 右键导出 : ASC / BLF 文件 :

Z FAQ for ASCLOG/BLF

Q: 如何打开BLF文件?

推荐文献

如何打开BLF文件 - 百度

BLF文件是一种用于存储CAN（Controller Area Network）总线数据的文件格式，通常在汽车、航空和工业领域中使用。

Y 推荐文献

[汽车电子/网络/CAN/Python] CAN 报文的 ASC LOG 与 BLF 文件转换工具 - 博客园/千千寰宇

X 参考文献

图文详解CAN Log文件 - ASC文件格式 - CSDN 【推荐】
CAN数据格式-ASC - 腾讯云【推荐】
《CAN_LOG_TRIGGER_ASC_Format.pdf - Vector》【推荐】

安装完Vector软件后，在Doc\LoggingFormat_ASCII目录可见

Vector工具链
CAN Matrix DBC
SOME Matrix Arxml
https://github.com/hardbyte/python-can/ 【推荐】

https://python-can.readthedocs.io/

汽车电子 -- CAN文件格式ASC - CSDN

posted @ 2024-07-16 19:37 千千寰宇阅读(1279) 评论(0) 收藏举报

刷新页面返回顶部

千千寰宇

大数据与Java软件开发从业者，数智化转型实践者。

[智能网联汽车/CAN/ASCLOG/BLF] CAN ASC Log文件

0 引言

1 1 CAN ASC Log 文件 := 以 ASCII 编码格式的 CAN 总线日志文件

1.1 Header

1.2 版本编号

1.3 经典CAN网络中的描述

1.3.1 经典CAN Standard标准帧的描述

1.3.2 经典CAN Extended扩展帧的描述

1.3.3 CAN Remote远程帧的描述

1.3.4 CAN Error错误帧的描述

1.4 CANFD网络中的描述

1.4.1 经典CAN Standard标准帧的描述

1.4.2 经典CAN Extended扩展帧的描述

1.4.3 CANFD Standard标准帧的描述

1.4.4 CANFD Extended扩展帧的描述

1.4.5 CAN Remote远程帧的描述

1.4.6 CAN Error错误帧的描述

1.5 标志位（换行符等）

标志

换行符

2 如何分辨CAN Log文件中的“标准帧”和“扩展帧”

2.1 经典CAN网络中的标准帧和扩展帧

2.2 CANFD网络中的标准帧和扩展帧

3 ASCLog / BLF 的支持软件

CANoe

CANalyzer

Wireshark

ZCAN Pro

TSMaster

4 样例数据

样例ASC文件 - 001

Z FAQ for ASCLOG/BLF

Q: 如何打开BLF文件?

Y 推荐文献

X 参考文献

公告
