概述
SPI是串行外设接口（Serial Peripheral Interface）的缩写，是一种高速的，全双工，同步的通信总线，并且在芯片的管脚上只占用四根线，节约了芯片的管脚，同时为PCB的布局上节省空间，提供方便，正是出于这种简单易用的特性，越来越多的芯片集成了这种通信协议，比如 EEPROM，FLASH，实时时钟，AD转换器。
W25Q128 是一款SPI接口的Flash芯片，其存储空间为 128Mbit，相当于16M字节。W25Q128可以支持 SPI 的模式 0 和模式 3，也就是 CPOL=0/CPHA=0 和CPOL=1/CPHA=1 这两种模式。
本篇文章主要介绍如何使用e2studio对瑞萨进行spi配置，同时移植stm32上的W25Q128到瑞萨上,同时通过对该FLASH进行读写操作，验证是否正确。
往期STM32CUBEMX(13)–SPI，W25Q128外部Flash移植
https://blog.csdn.net/qq_24312945/article/details/117756829
硬件准备
首先需要准备一个开发板，这里我准备的是芯片型号R7FA2L1AB2DFL的开发板：

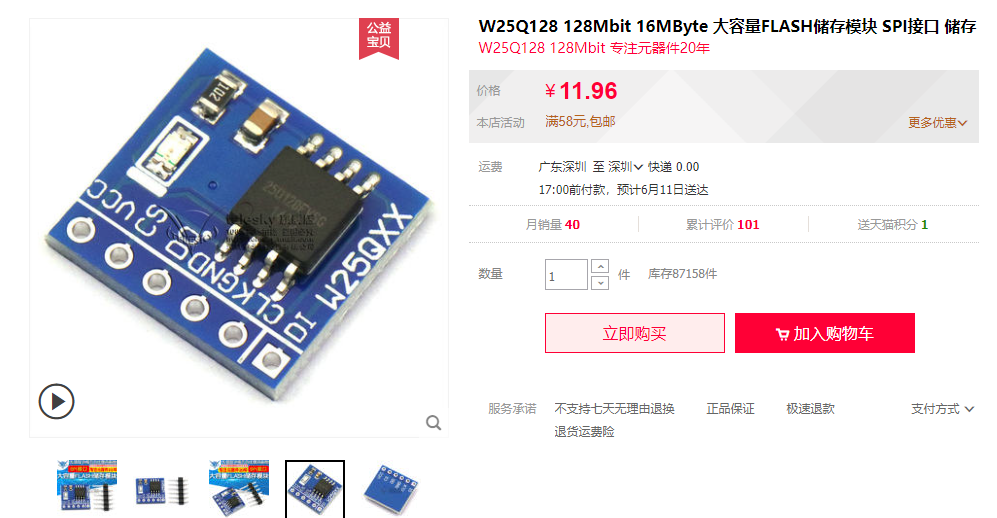

Flash就是淘宝上SPI接口的W25Q128模块。
线序接法
| RA2L1 | W25Q128 |
|---|---|
| P103 | CS |
| P102 | CLK |
| P101 | DI |
| P100 | DO |
新建工程
工程模板
保存工程路径
芯片配置
本文中使用R7FA2L1AB2DFL来进行演示。
工程模板选择
SPI配置

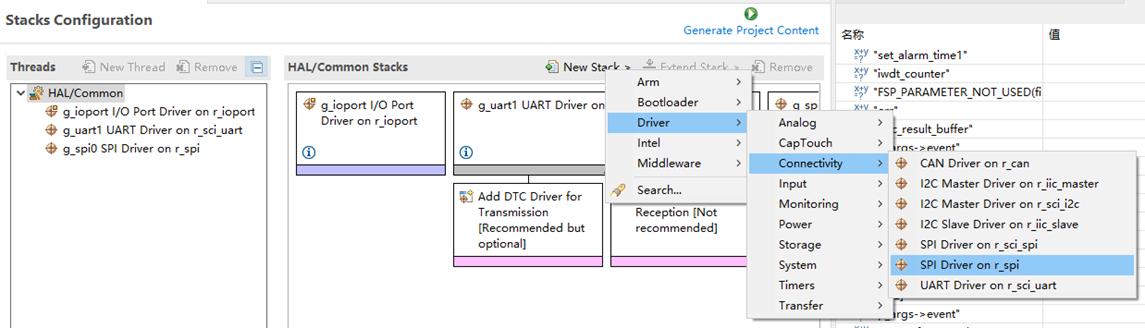

点击Stacks->New Stack->Driver->Connectivity->SPI Driver on r_spi。

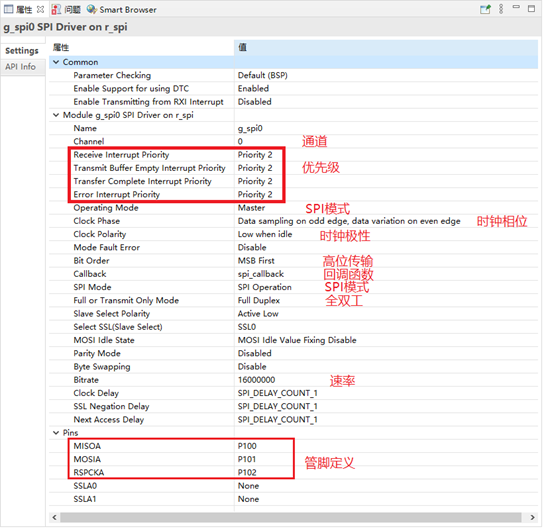

SPI属性配置

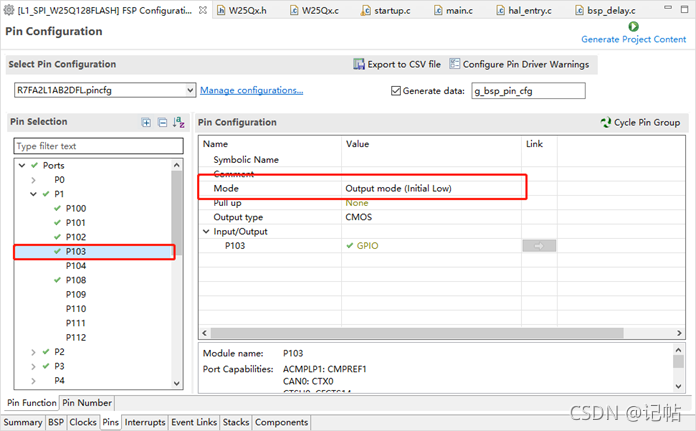

片选CS管脚设置
设置P103管脚为输出管脚，作为CS片选。
设置e2studio堆栈
e2studio的重定向printf设置
C++ 构建->设置->GNU ARM Cross C Linker->Miscellaneous去掉Other linker flags中的 “–specs=rdimon.specs”
uart配置
点击Stacks->New Stack->Driver->Connectivity -> UART Driver on r_sci_uart。
uart属性配置
配置串口，用于打印数据。
printf输出重定向到串口
打印最常用的方法是printf，所以要解决的问题是将printf的输出重定向到串口，然后通过串口将数据发送出去。
注意一定要加上头文件#include <stdio.h>
#ifdef __GNUC__ //串口重定向
#define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
#else
#define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
#endif
PUTCHAR_PROTOTYPE
{
err = R_SCI_UART_Write(&g_uart0_ctrl, (uint8_t *)&ch, 1);
if(FSP_SUCCESS != err) __BKPT();
while(uart_send_complete_flag == false){}
uart_send_complete_flag = false;
return ch;
}
int _write(int fd,char *pBuffer,int size)
{
for(int i=0;i<size;i++)
{
__io_putchar(*pBuffer++);
}
return size;
}
STM32移植瑞萨说明
在STM32的W25Qx.h中,有个片选定义，代码如下。
#define W25Qx_Enable() HAL_GPIO_WritePin(CS_GPIO_Port, CS_Pin, GPIO_PIN_RESET)
#define W25Qx_Disable() HAL_GPIO_WritePin(CS_GPIO_Port, CS_Pin, GPIO_PIN_SET)
修改后如下所示。
#define W25Qx_Enable() R_IOPORT_PinWrite(&g_ioport_ctrl, BSP_IO_PORT_01_PIN_03, BSP_IO_LEVEL_LOW);
#define W25Qx_Disable() R_IOPORT_PinWrite(&g_ioport_ctrl, BSP_IO_PORT_01_PIN_03, BSP_IO_LEVEL_HIGH);
在STM32的W25Qx.c中,有对数据进行发送和接受，代码如下。
/* Send the read status command */
HAL_SPI_Transmit(&hspi1, cmd, 1, W25Qx_TIMEOUT_VALUE);
/* Reception of the data */
HAL_SPI_Receive(&hspi1,&status, 1, W25Qx_TIMEOUT_VALUE);
修改后如下所示。
/* Send the read status command */
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 1, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
/* Reception of the data */
g_transfer_complete = false;
err = R_SPI_Read(&g_spi0_ctrl, &status, 1, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
W25Q128说明
W25Q128将16M的容量分为256个块（Block),每个块大小为64K字节，每个块又分为16个扇区（Sector),每个扇区4K个字节。W25Q128的最小擦除单位为一个扇区，也就是每次必须擦除4K个字节。芯片ID如下所示。
0XEF13,表示芯片型号为W25Q80
0XEF14,表示芯片型号为W25Q16
0XEF15,表示芯片型号为W25Q32
0XEF16,表示芯片型号为W25Q64
0XEF17,表示芯片型号为W25Q128
演示效果

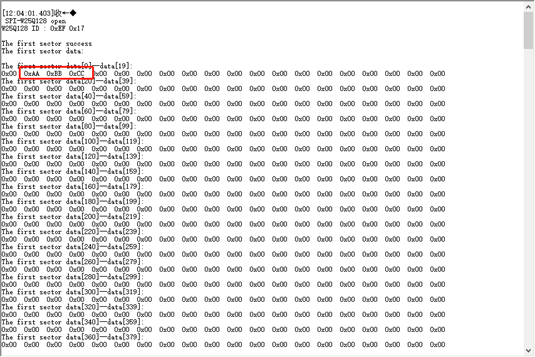

开机会打印W25Q128的ID，ID为0XEF17，实际如下所示。
并且之前保存的数据也正确读取出来了。
定义数组DataBuff，其中DataBuff[0]表示写入扇区， DataBuff[1]表示写入位置，剩下的为写入数据，同时以0xff结尾。

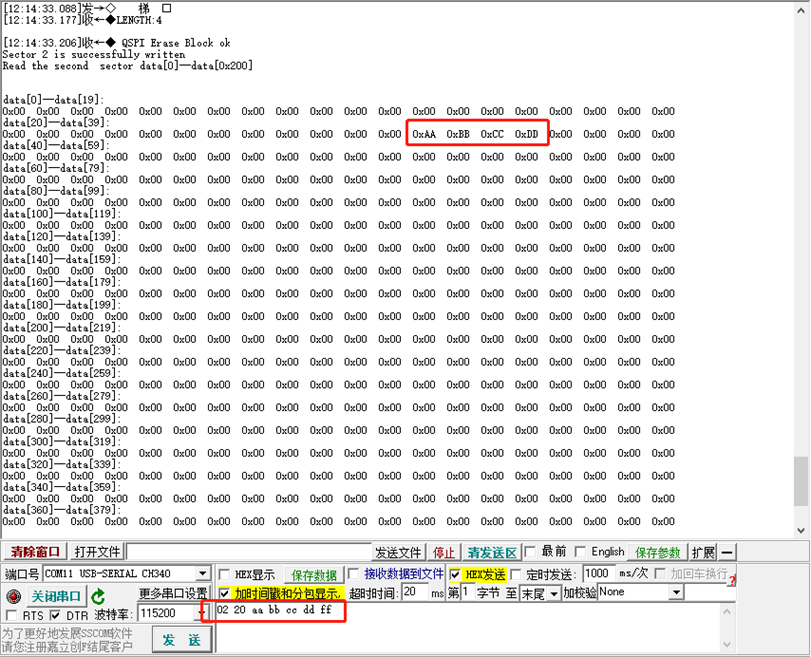

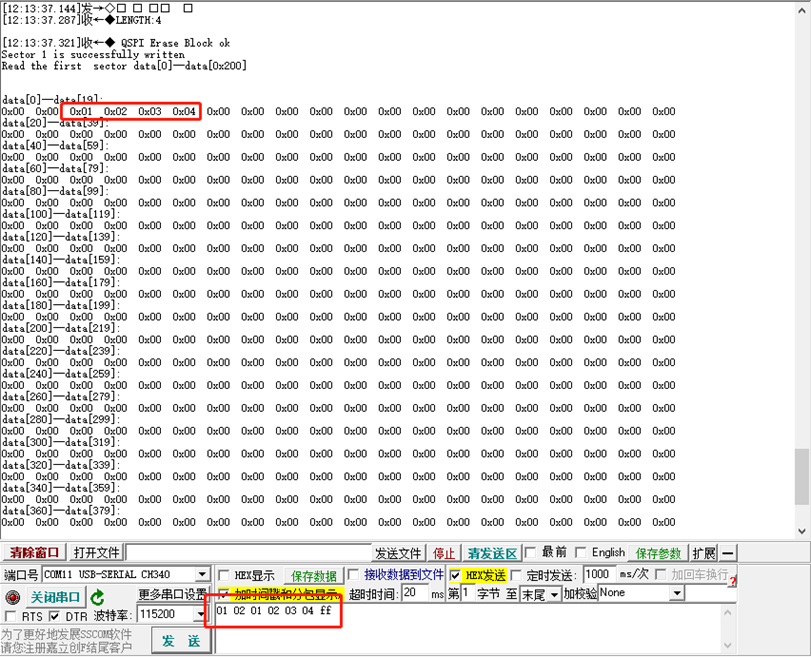

分别输入数据 01 02 01 02 03 04 ff与02 20 aa bb cc dd ff
W25Qx.c
/*
* W25Qx.c
*
* Created on: 2021年11月25日
* Author: leovo
*/
/*********************************************************************************************************
*
* File : ws_W25Qx.c
* Hardware Environment:
* Build Environment : RealView MDK-ARM Version: 4.20
* Version : V1.0
* By :
*
* (c) Copyright 2005-2011, WaveShare
* http://www.waveshare.net
* All Rights Reserved
*
*********************************************************************************************************/
#include "W25Qx.h"
#include "stdlib.h"
//#include "delay.h"
#include "hal_data.h"
extern fsp_err_t err ;
extern volatile bool g_transfer_complete ;
/**
* @brief Initializes the W25Q128FV interface.
* @retval None
*/
uint8_t BSP_W25Qx_Init(void)
{
/* Reset W25Qxxx */
BSP_W25Qx_Reset();
return BSP_W25Qx_GetStatus();
}
/**
* @brief This function reset the W25Qx.
* @retval None
*/
static void BSP_W25Qx_Reset(void)
{
uint8_t cmd[2] = {RESET_ENABLE_CMD,RESET_MEMORY_CMD};
W25Qx_Enable();
/* Send the reset command */
// HAL_SPI_Transmit(&hspi1, cmd, 2, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 2, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
W25Qx_Disable();
}
/**
* @brief Reads current status of the W25Q128FV.
* @retval W25Q128FV memory status
*/
static uint8_t BSP_W25Qx_GetStatus(void)
{
uint8_t cmd[] = {READ_STATUS_REG1_CMD};
uint8_t status;
W25Qx_Enable();
/* Send the read status command */
// HAL_SPI_Transmit(&hspi1, cmd, 1, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 1, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
/* Reception of the data */
// HAL_SPI_Receive(&hspi1,&status, 1, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Read(&g_spi0_ctrl, &status, 1, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
W25Qx_Disable();
/* Check the value of the register */
if((status & W25Q128FV_FSR_BUSY) != 0)
{
return W25Qx_BUSY;
}
else
{
return W25Qx_OK;
}
}
/**
* @brief This function send a Write Enable and wait it is effective.
* @retval None
*/
uint8_t BSP_W25Qx_WriteEnable(void)
{
uint8_t cmd[] = {WRITE_ENABLE_CMD};
// uint32_t tickstart = HAL_GetTick();
/*Select the FLASH: Chip Select low */
W25Qx_Enable();
/* Send the read ID command */
// HAL_SPI_Transmit(&hspi1, cmd, 1, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 1, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
/*Deselect the FLASH: Chip Select high */
W25Qx_Disable();
/* Wait the end of Flash writing */
while(BSP_W25Qx_GetStatus() == W25Qx_BUSY);
{
/* Check for the Timeout */
// if((HAL_GetTick() - tickstart) > W25Qx_TIMEOUT_VALUE)
// {
// return W25Qx_TIMEOUT;
// }
}
return W25Qx_OK;
}
/**
* @brief Read Manufacture/Device ID.
* @param return value address
* @retval None
*/
void BSP_W25Qx_Read_ID(uint8_t *ID)
{
uint8_t cmd[4] = {READ_ID_CMD,0x00,0x00,0x00};
W25Qx_Enable();
/* Send the read ID command */
// HAL_SPI_Transmit(&hspi1, cmd, 4, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 4, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
R_BSP_SoftwareDelay(1, BSP_DELAY_UNITS_MILLISECONDS); // NOLINT
/* Reception of the data */
// HAL_SPI_Receive(&hspi1,ID, 2, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Read(&g_spi0_ctrl, ID, 2, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
R_BSP_SoftwareDelay(1, BSP_DELAY_UNITS_MILLISECONDS); // NOLINT
W25Qx_Disable();
}
/**
* @brief Reads an amount of data from the QSPI memory.
* @param pData: Pointer to data to be read
* @param ReadAddr: Read start address
* @param Size: Size of data to read
* @retval QSPI memory status
*/
uint8_t BSP_W25Qx_Read(uint8_t* pData, uint32_t ReadAddr, uint32_t Size)
{
uint8_t cmd[4];
/* Configure the command */
cmd[0] = READ_CMD;
cmd[1] = (uint8_t)(ReadAddr >> 16);
cmd[2] = (uint8_t)(ReadAddr >> 8);
cmd[3] = (uint8_t)(ReadAddr);
W25Qx_Enable();
/* Send the read ID command */
// HAL_SPI_Transmit(&hspi1, cmd, 4, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 4, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
/* Reception of the data */
// if (HAL_SPI_Receive(&hspi1, pData,Size,W25Qx_TIMEOUT_VALUE) != HAL_OK)
// {
// return W25Qx_ERROR;
// }
g_transfer_complete = false;
err = R_SPI_Read(&g_spi0_ctrl, pData, Size, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
if(err!=FSP_SUCCESS)
{
return W25Qx_ERROR;
}
W25Qx_Disable();
return W25Qx_OK;
}
/**
* @brief Writes an amount of data to the QSPI memory.
* @param pData: Pointer to data to be written
* @param WriteAddr: Write start address
* @param Size: Size of data to write,No more than 256byte.
* @retval QSPI memory status
*/
uint8_t BSP_W25Qx_Write(uint8_t* pData, uint32_t WriteAddr, uint32_t Size)
{
uint8_t cmd[4];
uint32_t end_addr, current_size, current_addr;
// uint32_t tickstart = HAL_GetTick();
/* Calculation of the size between the write address and the end of the page */
current_addr = 0;
while (current_addr <= WriteAddr)
{
current_addr += W25Q128FV_PAGE_SIZE;
}
current_size = current_addr - WriteAddr;
/* Check if the size of the data is less than the remaining place in the page */
if (current_size > Size)
{
current_size = Size;
}
/* Initialize the adress variables */
current_addr = WriteAddr;
end_addr = WriteAddr + Size;
/* Perform the write page by page */
do
{
/* Configure the command */
cmd[0] = PAGE_PROG_CMD;
cmd[1] = (uint8_t)(current_addr >> 16);
cmd[2] = (uint8_t)(current_addr >> 8);
cmd[3] = (uint8_t)(current_addr);
/* Enable write operations */
BSP_W25Qx_WriteEnable();
W25Qx_Enable();
/* Send the command */
// if (HAL_SPI_Transmit(&hspi1,cmd, 4, W25Qx_TIMEOUT_VALUE) != HAL_OK)
// {
// return W25Qx_ERROR;
// }
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 4, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
if(err!=FSP_SUCCESS)
{
return W25Qx_ERROR;
}
/* Transmission of the data */
// if (HAL_SPI_Transmit(&hspi1, pData,current_size, W25Qx_TIMEOUT_VALUE) != HAL_OK)
// {
// return W25Qx_ERROR;
// }
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, pData, current_size, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
if(err!=FSP_SUCCESS)
{
return W25Qx_ERROR;
}
W25Qx_Disable();
/* Wait the end of Flash writing */
while(BSP_W25Qx_GetStatus() == W25Qx_BUSY);
{
/* Check for the Timeout */
// if((HAL_GetTick() - tickstart) > W25Qx_TIMEOUT_VALUE)
// {
// return W25Qx_TIMEOUT;
// }
}
/* Update the address and size variables for next page programming */
current_addr += current_size;
pData += current_size;
current_size = ((current_addr + W25Q128FV_PAGE_SIZE) > end_addr) ? (end_addr - current_addr) : W25Q128FV_PAGE_SIZE;
} while (current_addr < end_addr);
return W25Qx_OK;
}
/**
* @brief Erases the specified block of the QSPI memory.
* @param BlockAddress: Block address to erase
* @retval QSPI memory status
*/
uint8_t BSP_W25Qx_Erase_Block(uint32_t Address)
{
uint8_t cmd[4];
// uint32_t tickstart = HAL_GetTick();
cmd[0] = SECTOR_ERASE_CMD;
cmd[1] = (uint8_t)(Address >> 16);
cmd[2] = (uint8_t)(Address >> 8);
cmd[3] = (uint8_t)(Address);
/* Enable write operations */
BSP_W25Qx_WriteEnable();
/*Select the FLASH: Chip Select low */
W25Qx_Enable();
/* Send the read ID command */
// HAL_SPI_Transmit(&hspi1, cmd, 4, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 4, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
/*Deselect the FLASH: Chip Select high */
W25Qx_Disable();
/* Wait the end of Flash writing */
while(BSP_W25Qx_GetStatus() == W25Qx_BUSY);
{
/* Check for the Timeout */
// if((HAL_GetTick() - tickstart) > W25Q128FV_SECTOR_ERASE_MAX_TIME)
// {
// return W25Qx_TIMEOUT;
// }
}
return W25Qx_OK;
}
/**
* @brief Erases the entire QSPI memory.This function will take a very long time.
* @retval QSPI memory status
*/
uint8_t BSP_W25Qx_Erase_Chip(void)
{
uint8_t cmd[4];
uint32_t tickstart = HAL_GetTick();
cmd[0] = SECTOR_ERASE_CMD;
/* Enable write operations */
BSP_W25Qx_WriteEnable();
/*Select the FLASH: Chip Select low */
W25Qx_Enable();
/* Send the read ID command */
// HAL_SPI_Transmit(&hspi1, cmd, 1, W25Qx_TIMEOUT_VALUE);
g_transfer_complete = false;
err = R_SPI_Write(&g_spi0_ctrl, cmd, 1, SPI_BIT_WIDTH_8_BITS);
assert(FSP_SUCCESS == err);
/* Wait for SPI_EVENT_TRANSFER_COMPLETE callback event. */
while ( g_transfer_complete==false)
{
;
}
/*Deselect the FLASH: Chip Select high */
W25Qx_Disable();
/* Wait the end of Flash writing */
while(BSP_W25Qx_GetStatus() != W25Qx_BUSY);
{
/* Check for the Timeout */
if((HAL_GetTick() - tickstart) > W25Q128FV_BULK_ERASE_MAX_TIME)
{
return W25Qx_TIMEOUT;
}
}
return W25Qx_OK;
}
W25Qx.h
/*
* W25Qx.h
*
* Created on: 2021年11月25日
* Author: leovo
*/
#ifndef W25QX_H_
#define W25QX_H_
#include "stdlib.h"
#include "hal_data.h"
#include "r_spi.h"
/* Includes ------------------------------------------------------------------*/
/** @addtogroup BSP
* @{
*/
/** @addtogroup Components
* @{
*/
/** @addtogroup W25Q128FV
* @{
*/
/** @defgroup W25Q128FV_Exported_Types
* @{
*/
/**
* @}
*/
/** @defgroup W25Q128FV_Exported_Constants
* @{
*/
/**
* @brief W25Q128FV Configuration
*/
#define W25Q128FV_FLASH_SIZE 0x1000000 /* 128 MBits => 16MBytes */
#define W25Q128FV_SECTOR_SIZE 0x10000 /* 256 sectors of 64KBytes */
#define W25Q128FV_SUBSECTOR_SIZE 0x1000 /* 4096 subsectors of 4kBytes */
#define W25Q128FV_PAGE_SIZE 0x100 /* 65536 pages of 256 bytes */
#define W25Q128FV_DUMMY_CYCLES_READ 4
#define W25Q128FV_DUMMY_CYCLES_READ_QUAD 10
#define W25Q128FV_BULK_ERASE_MAX_TIME 250000
#define W25Q128FV_SECTOR_ERASE_MAX_TIME 3000
#define W25Q128FV_SUBSECTOR_ERASE_MAX_TIME 800
#define W25Qx_TIMEOUT_VALUE 1000
/**
* @brief W25Q128FV Commands
*/
/* Reset Operations */
#define RESET_ENABLE_CMD 0x66
#define RESET_MEMORY_CMD 0x99
#define ENTER_QPI_MODE_CMD 0x38
#define EXIT_QPI_MODE_CMD 0xFF
/* Identification Operations */
#define READ_ID_CMD 0x90
#define DUAL_READ_ID_CMD 0x92
#define QUAD_READ_ID_CMD 0x94
#define READ_JEDEC_ID_CMD 0x9F
/* Read Operations */
#define READ_CMD 0x03
#define FAST_READ_CMD 0x0B
#define DUAL_OUT_FAST_READ_CMD 0x3B
#define DUAL_INOUT_FAST_READ_CMD 0xBB
#define QUAD_OUT_FAST_READ_CMD 0x6B
#define QUAD_INOUT_FAST_READ_CMD 0xEB
/* Write Operations */
#define WRITE_ENABLE_CMD 0x06
#define WRITE_DISABLE_CMD 0x04
/* Register Operations */
#define READ_STATUS_REG1_CMD 0x05
#define READ_STATUS_REG2_CMD 0x35
#define READ_STATUS_REG3_CMD 0x15
#define WRITE_STATUS_REG1_CMD 0x01
#define WRITE_STATUS_REG2_CMD 0x31
#define WRITE_STATUS_REG3_CMD 0x11
/* Program Operations */
#define PAGE_PROG_CMD 0x02
#define QUAD_INPUT_PAGE_PROG_CMD 0x32
/* Erase Operations */
#define SECTOR_ERASE_CMD 0x20
#define CHIP_ERASE_CMD 0xC7
#define PROG_ERASE_RESUME_CMD 0x7A
#define PROG_ERASE_SUSPEND_CMD 0x75
/* Flag Status Register */
#define W25Q128FV_FSR_BUSY ((uint8_t)0x01) /*!< busy */
#define W25Q128FV_FSR_WREN ((uint8_t)0x02) /*!< write enable */
#define W25Q128FV_FSR_QE ((uint8_t)0x02) /*!< quad enable */
#define W25Qx_Enable() R_IOPORT_PinWrite(&g_ioport_ctrl, BSP_IO_PORT_01_PIN_03, BSP_IO_LEVEL_LOW);
#define W25Qx_Disable() R_IOPORT_PinWrite(&g_ioport_ctrl, BSP_IO_PORT_01_PIN_03, BSP_IO_LEVEL_HIGH);
#define W25Qx_OK ((uint8_t)0x00)
#define W25Qx_ERROR ((uint8_t)0x01)
#define W25Qx_BUSY ((uint8_t)0x02)
#define W25Qx_TIMEOUT ((uint8_t)0x03)
uint8_t BSP_W25Qx_Init(void);
static void BSP_W25Qx_Reset(void);
static uint8_t BSP_W25Qx_GetStatus(void);
uint8_t BSP_W25Qx_WriteEnable(void);
void BSP_W25Qx_Read_ID(uint8_t *ID);
uint8_t BSP_W25Qx_Read(uint8_t* pData, uint32_t ReadAddr, uint32_t Size);
uint8_t BSP_W25Qx_Write(uint8_t* pData, uint32_t WriteAddr, uint32_t Size);
uint8_t BSP_W25Qx_Erase_Block(uint32_t Address);
uint8_t BSP_W25Qx_Erase_Chip(void);
/**
* @}
*/
/** @defgroup W25Q128FV_Exported_Functions
* @{
*/
/**
* @}
*/
/**
* @}
*/
/**
* @}
*/
/**
* @}
*/
#endif /* W25QX_H_ */
主程序代码
#include "hal_data.h"
#include <stdio.h>
#include "W25Qx.h"
FSP_CPP_HEADER
void R_BSP_WarmStart(bsp_warm_start_event_t event);
FSP_CPP_FOOTER
void uart1_data(void);
#define BUFFERSIZE 255 //可以接收的最大字符个数
uint8_t ReceiveBuff[BUFFERSIZE]; //接收缓冲区
uint8_t recv_end_flag = 0,Rx_len=0;//接收完成中断标志，接收到字符长度
uint8_t wData1[0x200];
uint8_t wData2[0x200];
uint8_t wData3[0x200];
uint8_t rData1[0x200];
uint8_t rData2[0x200];
uint8_t rData3[0x200];
uint8_t ID[4];
uint32_t i;
uint8_t flag[1] ;
int i_flag = 0;
fsp_err_t err = FSP_SUCCESS;
volatile bool uart_send_complete_flag = false;
uint8_t RxBuff[1]; //进入中断接收数据的数组
uint8_t DataBuff[5000]; //保存接收到的数据的数组
int RxLine=0; //接收到的数据长度
int Rx_flag=0; //接受到数据标志
int Rx_flag_finish=0; //接受完成或者时间溢出
void user_uart_callback (uart_callback_args_t * p_args)
{
if(p_args->event == UART_EVENT_TX_COMPLETE)
{
uart_send_complete_flag = true;
}
if(p_args->event == UART_EVENT_RX_CHAR)
{
RxBuff[0] = p_args->data;
RxLine++; //每接收到一个数据，进入回调数据长度加1
DataBuff[RxLine-1]=RxBuff[0]; //把每次接收到的数据保存到缓存数组
Rx_flag=1;
Rx_len++;
if(RxBuff[0]==0xff) //接收结束标志位，这个数据可以自定义，根据实际需求，这里只做示例使用，不一定是0xff
{
Rx_flag_finish=1;
Rx_len--;
}
RxBuff[0]=0;
}
}
#ifdef __GNUC__ //串口重定向
#define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
#else
#define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
#endif
PUTCHAR_PROTOTYPE
{
err = R_SCI_UART_Write(&g_uart1_ctrl, (uint8_t *)&ch, 1);
if(FSP_SUCCESS != err) __BKPT();
while(uart_send_complete_flag == false){}
uart_send_complete_flag = false;
return ch;
}
int _write(int fd,char *pBuffer,int size)
{
for(int i=0;i<size;i++)
{
__io_putchar(*pBuffer++);
}
return size;
}
volatile bool g_transfer_complete = false;
void spi_callback (spi_callback_args_t * p_args)
{
if (SPI_EVENT_TRANSFER_COMPLETE == p_args->event)
{
g_transfer_complete = true;
}
}
/*******************************************************************************************************************//**
* main() is generated by the RA Configuration editor and is used to generate threads if an RTOS is used. This function
* is called by main() when no RTOS is used.
**********************************************************************************************************************/
void hal_entry(void)
{
/* TODO: add your own code here */
err = R_SCI_UART_Open(&g_uart1_ctrl, &g_uart1_cfg);
assert(FSP_SUCCESS == err);
err = R_SPI_Open(&g_spi0_ctrl, &g_spi0_cfg);
assert(FSP_SUCCESS == err);
printf("\r\n SPI-W25Q128 open\n");
/*##-1- Read the device ID ########################*/
BSP_W25Qx_Init();//初始化W25Q128
BSP_W25Qx_Read_ID(ID);//读取ID
if((ID[0] != 0xEF) | (ID[1] != 0x17))
{
printf("SPI-W25Q128 error");
}
else//ID正确，打印ID
{
printf("W25Q128 ID : ");
for(i=0;i<2;i++)
{
printf("0x%02X ",ID[i]);
}
printf("\r\n\r\n");
}
/**************************读取第1扇区数据**************************************************************/
/*##-3- Read the flash ########################*/
/*读取数据，rData读取数据的指针，起始地址0x00，读取数据长度0x200*/
if(BSP_W25Qx_Read(rData1,0x0,0x200)== W25Qx_OK)
printf("The first sector success\n");
else
printf("The first sector error\n");
/*打印数据*/
printf("The first sector data: \r\n");
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\nThe first sector data[%d]--data[%d]: \r\n",i,i+19);
printf("0x%02X ",rData1[i]);
}
printf("\n");
/**************************读取第2扇区数据**************************************************************/
/*##-3- Read the flash ########################*/
/*读取数据，rData读取数据的指针，起始地址0x1000，读取数据长度0x200*/
if(BSP_W25Qx_Read(rData2,0x1000,0x200)== W25Qx_OK)
printf("The second sector success\n");
else
printf("The second sector error\n");
/*打印数据*/
printf("The second sector data: \r\n");
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\nThe second sector data[%d]--data[%d]: \r\n",i,i+19);
printf("0x%02X ",rData2[i]);
}
printf("\n");
/**************************读取第3扇区数据**************************************************************/
/*##-3- Read the flash ########################*/
/*读取数据，rData读取数据的指针，起始地址0x2000，读取数据长度0x200*/
if(BSP_W25Qx_Read(rData3,0x2000,0x200)== W25Qx_OK)
printf("The third sector success\n");
else
printf("The third sector error\n");
/*打印数据*/
printf("The third sector data: \r\n");
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\nThe third sector data[%d]--data[%d]: \r\n",i,i+19);
printf("0x%02X ",rData3[i]);
}
printf("\n");
/**************************清除第1扇区数据为0**************************************************************/
/*##-1- Erase Block ##################################*/
if(BSP_W25Qx_Erase_Block(0) == W25Qx_OK)
printf(" QSPI Erase Block ok\r\n");
else
printf("error\r\n");
/*##-1- Written to the flash ########################*/
/* fill buffer */
printf(" Clear the first sector data[0]--data[0x200]\r\n");
for(i =0;i<0x200;i ++)
{
wData1[i] = 0;
rData1[i] = 0;
}
/*写入数据，wData写入数据的指针，起始地址0x00，写入数据长度0x200*/
if(BSP_W25Qx_Write(wData1,0x00,0x200)== W25Qx_OK)
printf("Clear success\r\n");
else
printf("Clear error\r\n");
/*##-1- Read the flash ########################*/
/*读取数据，rData读取数据的指针，起始地址0x00，读取数据长度0x200*/
if(BSP_W25Qx_Read(rData1,0x00,0x200)== W25Qx_OK)
printf("Read the first sector data[0]--data[0x200]\r\n\r\n");
else
printf("Read error\r\n\r\n");
/*打印数据*/
printf("the first sector data[0]--data[0x200]: \r\n");
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\ndata[%d]--data[%d]:\r\n",i,i+19);
printf("0x%02X ",rData1[i]);
}
printf("\n");
/**************************清除第2扇区数据为0**************************************************************/
/*##-2- Erase Block ##################################*/
if(BSP_W25Qx_Erase_Block(0x1000) == W25Qx_OK)
printf(" QSPI Erase Block ok\r\n");
else
printf("error\r\n");
/*##-2- Written to the flash ########################*/
/* fill buffer */
printf(" Clear the second sector data[0]--data[0x200]\r\n");
for(i =0;i<0x200;i ++)
{
wData2[i] = 0;
rData2[i] = 0;
}
/*写入数据，wData写入数据的指针，起始地址0x1000，写入数据长度0x200*/
if(BSP_W25Qx_Write(wData2,0x1000,0x200)== W25Qx_OK)
printf("Clear success\r\n");
else
printf("Clear error\r\n");
/*##-2- Read the flash ########################*/
/*读取数据，rData读取数据的指针，起始地址0x00，读取数据长度0x200*/
if(BSP_W25Qx_Read(rData2,0x1000,0x200)== W25Qx_OK)
printf("Read the second sector data[0]--data[0x200]\r\n\r\n");
else
printf("Read error\r\n\r\n");
/*打印数据*/
printf("the first sector data[0]--data[0x200]: \r\n");
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\ndata[%d]--data[%d]:\r\n",i,i+19);
printf("0x%02X ",rData2[i]);
}
printf("\n");
/**************************清除第3扇区数据为0**************************************************************/
/*##-3- Erase Block ##################################*/
if(BSP_W25Qx_Erase_Block(0x2000) == W25Qx_OK)
printf(" QSPI Erase Block ok\r\n");
else
printf("error\r\n");
/*##-3- Written to the flash ########################*/
/* fill buffer */
printf(" Clear the third sector data[0]--data[0x200]\r\n");
for(i =0;i<0x200;i ++)
{
wData3[i] = 0;
rData3[i] = 0;
}
/*写入数据，wData写入数据的指针，起始地址0x2000，写入数据长度0x200*/
if(BSP_W25Qx_Write(wData3,0x2000,0x200)== W25Qx_OK)
printf("Clear success\r\n");
else
printf("Clear error\r\n");
/*##-3- Read the flash ########################*/
/*读取数据，rData读取数据的指针，起始地址0x00，读取数据长度0x200*/
if(BSP_W25Qx_Read(rData3,0x2000,0x200)== W25Qx_OK)
printf("Read the third sector data[0]--data[0x200]\r\n\r\n");
else
printf("Read error\r\n\r\n");
/*打印数据*/
printf("the first third data[0]--data[0x200]: \r\n");
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\ndata[%d]--data[%d]:\r\n",i,i+19);
printf("0x%02X ",rData3[i]);
}
printf("\n");
while(1)
{
uart1_data();
R_BSP_SoftwareDelay(100, BSP_DELAY_UNITS_MILLISECONDS); // NOLINT100->160
}
#if BSP_TZ_SECURE_BUILD
/* Enter non-secure code */
R_BSP_NonSecureEnter();
#endif
}
void uart1_data(void)
{
if(Rx_flag_finish ==1)//接收完成标志
{
if(DataBuff[0]==0x01)
{
printf("LENGTH:%d\n",Rx_len-2);
for(int i =0;i<Rx_len-2;i++)
{
wData1[ (i+DataBuff[1]) ] = DataBuff[i+2];
}
/*##-1- Erase Block ##################################*/
if(BSP_W25Qx_Erase_Block(0) == W25Qx_OK)
printf(" QSPI Erase Block ok\r\n");
else
printf(" error\r\n");
/*写入数据，wData写入数据的指针，起始地址0x00，写入数据长度0x200*/
if(BSP_W25Qx_Write(wData1,0x00,0x200)== W25Qx_OK)
printf("Sector 1 is successfully written\r\n");
else
printf(" error\r\n");
if(BSP_W25Qx_Read(rData1,0x00,0x200)== W25Qx_OK)
printf("Read the first sector data[0]--data[0x200]\r\n\r\n");
else
printf(" error\r\n");
/*打印数据*/
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\ndata[%d]--data[%d]:\r\n",i,i+19);
printf("0x%02X ",rData1[i]);
}
printf("\n");
}
else if(DataBuff[0]==0x02)
{
printf("LENGTH:%d\n",Rx_len-2);
for(int i =0;i<Rx_len-2;i++)
{
wData2[ (i+DataBuff[1]) ] = DataBuff[i+2];
}
/*##-2- Erase Block ##################################*/
if(BSP_W25Qx_Erase_Block(0x1000) == W25Qx_OK)
printf(" QSPI Erase Block ok\r\n");
else
printf(" error\r\n");
/*写入数据，wData写入数据的指针，起始地址0x1000，写入数据长度0x200*/
if(BSP_W25Qx_Write(wData2,0x1000,0x200)== W25Qx_OK)
printf("Sector 2 is successfully written\r\n");
else
printf(" error\r\n");
if(BSP_W25Qx_Read(rData2,0x1000,0x200)== W25Qx_OK)
printf("Read the second sector data[0]--data[0x200]\r\n\r\n");
else
printf(" error\r\n");
/*打印数据*/
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\ndata[%d]--data[%d]:\r\n",i,i+19);
printf("0x%02X ",rData2[i]);
}
printf("\n");
}
else if(DataBuff[0]==0x03)
{
printf("LENGTH:%d\n",Rx_len-2);
for(int i =0;i<Rx_len-2;i++)
{
wData3[ (i+DataBuff[1]) ] = DataBuff[i+2];
}
/*##-2- Erase Block ##################################*/
if(BSP_W25Qx_Erase_Block(0x2000) == W25Qx_OK)
printf(" QSPI Erase Block ok\r\n");
else
printf(" error\r\n");
/*写入数据，wData写入数据的指针，起始地址0x2000，写入数据长度0x200*/
if(BSP_W25Qx_Write(wData3,0x2000,0x200)== W25Qx_OK)
printf("Sector 3 is successfully written\r\n");
else
printf(" error\r\n");
if(BSP_W25Qx_Read(rData3,0x2000,0x200)== W25Qx_OK)
printf("Read the third sector data[0]--data[0x200]\r\n\r\n");
else
printf(" error\r\n");
/*打印数据*/
for(i =0;i<0x200;i++)
{
if(i%20==0)
printf("\ndata[%d]--data[%d]:\r\n",i,i+19);
printf("0x%02X ",rData3[i]);
}
printf("\n");
}
else
printf("error！");
for(int i = 0; i < Rx_len+1 ; i++) //清空接收缓存区
DataBuff[i]=0;//置0
Rx_len=0;//接收数据长度清零
Rx_flag_finish=0;//接收标志位清零
RxLine=0;
}
}
最后
以上的代码会在Q群里分享。QQ群：615061293。
或者关注微信公众号『记帖』，持续更新文章和学习资料,可加作者的微信交流学习!
