milvus部署文档

milvus部署文档

提前装好k8s基础环境

导入所有依赖镜像

Ctr -n=k8s.io images import 以下包



配置默认nfs（生成sc）

安装nfs（略）

下载好对应的程序nfs-subdir-external-provisioner-4.0.18.tgz解压

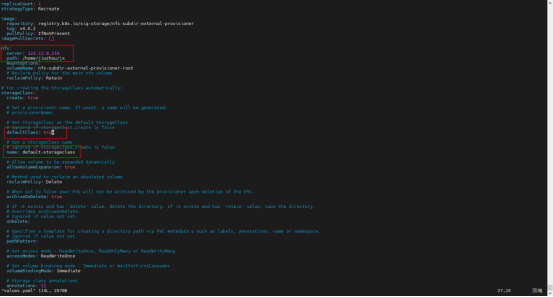

修改配置







注释：该服务为设置默认的存储空间sc，pod会去调用相关的sc空间组成pvc（该处设置应为yaml内设置）

registry.k8s.io/sig-storage/nfs-subdir-external-provisioner:v4.0.2



安装证书管理器（三个依赖包）

Kubect apply -f cert-manager.yaml



注释：该处不做过多介绍需要下载好相关的依赖包

quay.io/jetstack/cert-manager-cainjector:v1.5.3

quay.io/jetstack/cert-manager-controller:v1.5.3

quay.io/jetstack/cert-manager-webhook:v1.5.3





安装 Milvus Operator（两个依赖包）

Kubect apply -f deployment.yaml



注释：安装部署工具主要关注镜像是否下载成功



docker.io/milvusdb/milvus-operator:v1.1.2

docker.io/milvusdb/milvus:v2.4.15





执行安装（三个依赖包）

Kubect apply -f milvus_manifest.yaml

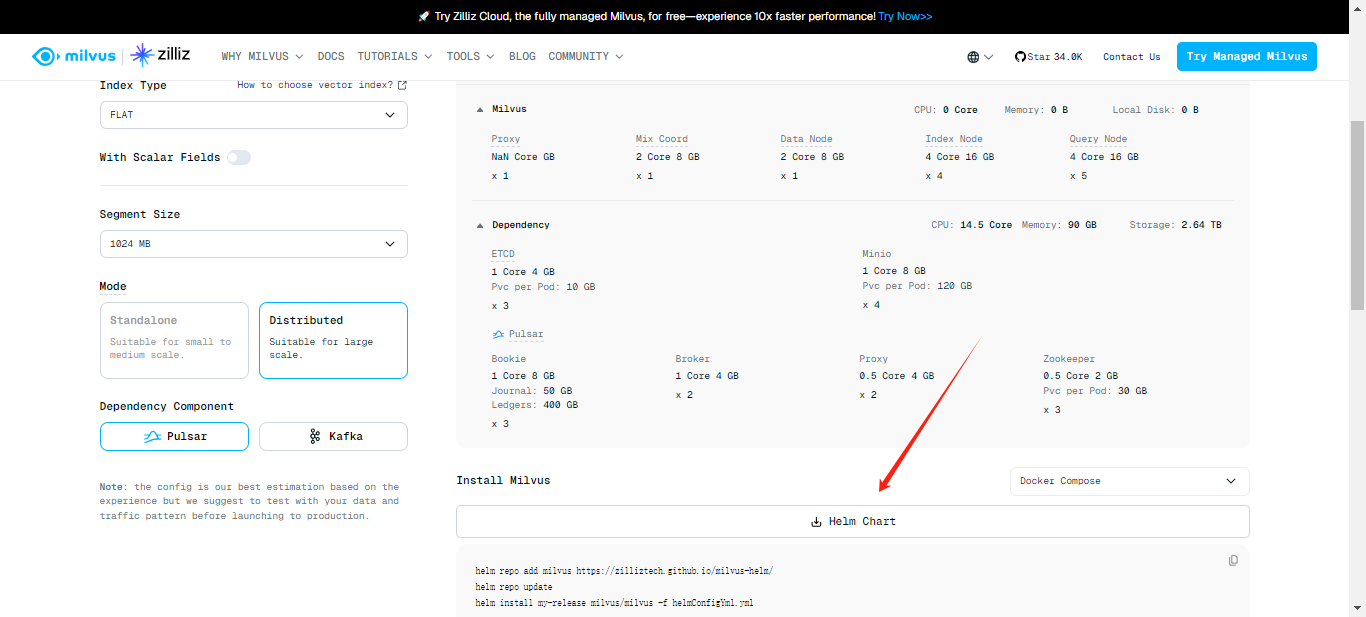

注释：执行安装该处的yaml文件为官网离线版本安装下载需要魔法

该文件主要设置相关的依赖包如minio，etcd，pulser

docker.io/apachepulsar/pulsar:2.9.5

docker.io/minio/minio:RELEASE.2023-03-20T20-16-18Z

docker.io/milvusdb/etcd:3.5.14-r1





验证是否成功

kubectl get milvus my-release -o yaml

kubectl get pods

#查看sc

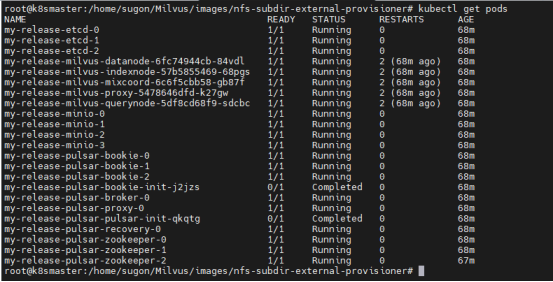

#查看pod









#查看生成的pv（根据pvc自动生成）

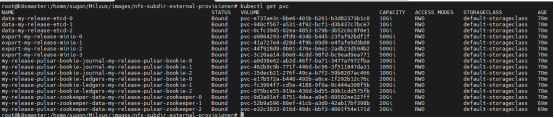

#查看生成pvc（该处一定要成功，报错最多的地方）





生成service端口

#查看服务端口

kubectl get pod my-release-milvus-proxy-84f67cdb7f-pg6wf --template

='{{(index (index .spec.containers 0).ports 0).containerPort}}{{"\n"}}'

19530

#生成服务端口

kubectl port-forward service/my-release-milvus 27017:19530

#生成服务端口

Nohup kubectl port-forward --address 123.13.8.210 service/my-release-milvus 19530:19530 &

错误日志

报错1

  Warning  FailedScheduling  8m59s  default-scheduler  0/3 nodes are available: pod has unbound immediate PersistentVolumeClaims.

  preemption: 0/3 nodes are available: 3 Preemption is not helpful for scheduling..

报错2

  Warning  BackOff    4m22s (x21 over 9m8s)  kubelet

  Back-off restarting failed container datanode in pod my-release-milvus-datanode-6fc74944cb-b22zt_default(7c669de3-fe29-47f0-978f-b45a88a0b6d7)

报错3

  Warning  FailedScheduling  17s (x2 over 5m17s)  default-scheduler  0/3 nodes are available:

  pod has unbound immediate PersistentVolumeClaims. preemption: 0/3 nodes are available: 3 Preemption is not helpf



报错4

   an error occurred forwarding 9527 -> 19530: error forwarding port 19530 to pod f1bfe2ac14f38d9a5074bfcfdbd3383c5dd83ecd7493a61b5e52f591f6b88354,

   uid : failed to execute portforward in network namespace "/var/run/netns/cni-6c390ea4-878d-13ee-698c-1aa6ff386e4a": failed to connect to localhost:19530

   inside namespace "f1bfe2ac14f38d9a5074bfcfdbd3383c5dd83ecd7493a61b5e52f591f6b88354", IPv4: dial tcp4 127.0.0.1:19530: connect:

   connection refused IPv6 dial tcp6: address localhost: no suitable address found

error: lost connection to pod
