C/C++ 开发环境
Windows
MinG-W64
选最新版本中的 x86_64-posix-seh,然后解压,设置环境变量
https://sourceforge.net/projects/mingw-w64/files & https://github.com/GorvGoyl/MinGW64/releases & https://www.mingw-w64.org/downloads
x86_64-posix-sjlj x86_64-posix-seh x86_64-win32-sjlj x86_64-win32-seh i686-posix-sjlj i686-posix-dwarf i686-win32-sjlj i686-win32-dwarf
释义 1:
- DWARF:一种带调试信息的包,所以比一般的包尺寸大,仅支持 32 位系统
- SJLJ:跨平台,支持 32、64 位系统。缺点是运行速度稍慢,GCC 不支持
- SEH:调用系统机制处理异常,支持 32、64 位系统。缺点是:GCC 不支持
释义 2:
- x86_64:64位操作系统
- i686:32 位操作系统 (i386的子集)
释义 3:
- posix:启用了 C++ 11 多线程特性
- win32:未启用
MSVC
https://visualstudio.microsoft.com/zh-hans/visual-cpp-build-tools
# 查看帮助 vs_BuildTools.exe -help # 查询负载 https://learn.microsoft.com/zh-cn/visualstudio/install/workload-component-id-vs-build-tools # 下载 vs_BuildTools.exe --layout .\vs_BuildTools --add Microsoft.VisualStudio.Workload.VCTools --add Microsoft.VisualStudio.Workload.MSBuildTools --includeRecommended --lang zh-CN # 离线安装 cd vs_BuildTools vs_BuildTools.exe --noWeb --add Microsoft.VisualStudio.Workload.VCTools --add Microsoft.VisualStudio.Workload.MSBuildTools --includeRecommended
https://learn.microsoft.com/zh-cn/cpp/build/building-on-the-command-line & https://learn.microsoft.com/zh-cn/cpp/build/reference/compiler-command-line-syntax
NMAKE 目前 CLion 不支持,需要下载 GNU Make 编译使用(打开 x64 Native Tools Command Prompt 执行 build_w32.bat,会生成 WinRel 目录,更多详情可以查看 README.W32 文件)
Makefile
Win32:https://blog.csdn.net/dbzhang800/article/details/6358996 & https://blog.csdn.net/witton/article/details/129727907
#pragma comment(lib, "user32.lib")、#pragma comment(lib, "Ws2_32.lib")
main: src/main.c cl $< /utf-8 /Zi /Fe:target/$@.exe /link /subsystem:windows /entry:WinMainCRTStartup user32.lib main: src/main.c cl $< /utf-8 /Zi /Fo:target/$@.obj /Fd:target/$@.pdb /Fe:target/$@.exe .PHONY: clean clean: del /f /s /q target\*

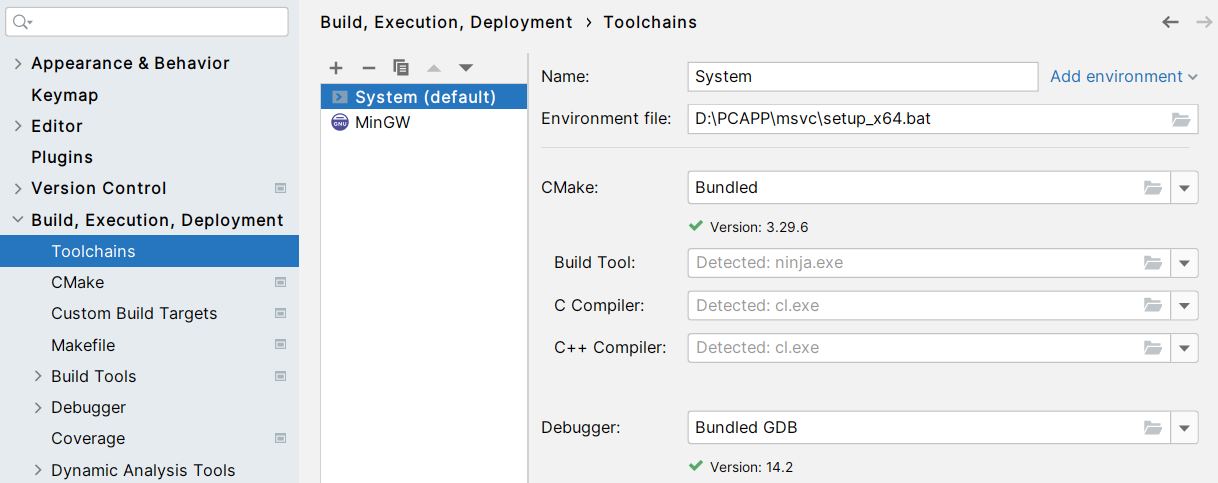

CLion C4819 MSVC 编码问题:https://www.cnblogs.com/Chary/p/13608011.html
cmake_minimum_required(VERSION 3.27) project(cmake_test) # 须位于 add_executable 之前 add_compile_options("$<$<C_COMPILER_ID:MSVC>:/utf-8>") add_compile_options("$<$<CXX_COMPILER_ID:MSVC>:/utf-8>") # 或 # -D CMAKE_CXX_FLAGS="/utf-8" # https://cmake.org/cmake/help/latest/prop_tgt/WIN32_EXECUTABLE.html add_executable(main WIN32 main.c)
删除使用 Visual Studio 打开:del.reg
Windows Registry Editor Version 5.00 [-HKEY_CLASSES_ROOT\Directory\Background\shell\AnyCode] [-HKEY_CLASSES_ROOT\Directory\shell\AnyCode]
Portable MSVC(不含 MSBuild)
https://gist.github.com/mmozeiko/7f3162ec2988e81e56d5c4e22cde9977 & https://github.com/Data-Oriented-House/PortableBuildTools/releases
提取已安装为便携版:https://github.com/EvineDev/portable-msvc
https://kkocdko.site/post/202303251926
Linux
yum install -y cmake gcc gcc-c++ gdb # 新版 cmake # 下载 https://cmake.org/download/ # https://github.com/Kitware/CMake/releases wget -O /opt/cmake-3.17.3.tar.gz https://github.com/Kitware/CMake/releases/download/v3.17.3/cmake-3.17.3.tar.gz cd /opt/ tar -zxf cmake-3.17.3.tar.gz mv cmake-3.17.3 cmake-3.17.3-src cd cmake-3.17.3-src/ # 或者 Install an OpenSSL development package vim CMakeLists.txt 添加 set(CMAKE_USE_OPENSSL OFF) # 配置安装路径 ./bootstrap --prefix=/opt/cmake-3.17.3 # 编译安装 make && make install # 新版本 gdb # 下载 curl -o /opt/gdb-8.3.1.tar.gz https://mirrors.ustc.edu.cn/gnu/gdb/gdb-8.3.1.tar.gz cd /opt/ tar -zxf gdb-8.3.1.tar.gz mv gdb-8.3.1 gdb-8.3.1-src cd gdb-8.3.1-src/ # 配置安装路径 ./configure --prefix=/opt/gdb-8.3.1 # 编译安装 make && make install
下载 VsCode 相关插件
只有 c/c++ 是必须的。
在工作区创建 .vscode 文件夹,用 VsCode 创建,系统自带文件管理无法创建以点开头的文件夹,然后创建下面两个配置文件
修改配置中的路径为自己的 Ming-W64 路径
launch.json 用于调试运行
https://code.visualstudio.com/docs/editor/debugging#_launch-configurations
{ "version": "0.2.0", "configurations": [ { "name": "gdb debug", // 配置名称,将会在启动配置的下拉菜单中显示 "type": "cppdbg", // 配置类型,这里只能为 cppdbg "request": "launch", // 请求配置类型,可以为 launch(启动)或 attach(附加) "program": "${workspaceFolder}/.target/${fileBasenameNoExtension}.exe", // 将要进行调试的程序的路径 "args": [], // 程序调试时传递给程序的命令行参数,一般设为空即可 "stopAtEntry": false, // 设为 true 时程序将暂停在程序入口处,一般设置为 false "cwd": "${workspaceFolder}", // 调试程序时的工作目录,一般为 ${workspaceFolder} 即代码所在目录 "environment": [], "externalConsole": false, // 调试时是否显示控制台窗口,一般设置为true显示控制台 "MIMode": "gdb", "miDebuggerPath": "D:/PcAPP/mingw64/bin/gdb.exe", // miDebugger 的路径,注意这里要与 MinGw 的路径对应 "preLaunchTask": "gcc", // 调试会话开始前执行的任务,一般为编译程序,c++ 为 g++, c 为 gcc "setupCommands": [ { "description": "Enable pretty-printing for gdb", "text": "-enable-pretty-printing", "ignoreFailures": true } ] } ] }
tasks.json 用于调试运行前的编译
https://code.visualstudio.com/docs/editor/tasks#_custom-tasks
{ "version": "2.0.0", "command": "gcc", "args": [ "-g", "${file}", "-o", ".target/${fileBasenameNoExtension}.exe" ], // 编译命令参数 "problemMatcher": { "owner": "cpp", "fileLocation": [ "relative", "${workspaceFolder}" ], "pattern": { "regexp": "^(.*):(\\d+):(\\d+):\\s+(warning|error):\\s+(.*)$", "file": 1, "line": 2, "column": 3, "severity": 4, "message": 5 } }, "presentation": { "echo": true, "reveal": "always", "focus": false, "panel": "new", // 这里 shared 表示共享,改成 new 之后每个进程创建新的端口 "showReuseMessage": true, "clear": false } }
测试
#include <math.h> #include <stdio.h> void main() { double a = pow(2.0, 3.0); printf("res = %f.2\n", a); printf("hello\n"); double b = 1.234; int c = b; printf("%d", c); }
按 F5 即可调试运行
想直接运行,也可以安装 code-runner 插件
附上 VsCode 全部设置 settings.json
{ "editor.minimap.enabled": false, "editor.mouseWheelZoom": true, "files.autoSave": "afterDelay", "terminal.integrated.shell.windows": "C:\\WINDOWS\\System32\\WindowsPowerShell\\v1.0\\powershell.exe", "liveServer.settings.donotShowInfoMsg": true, "workbench.startupEditor": "newUntitledFile", "code-runner.ignoreSelection": true, "code-runner.runInTerminal": true, "editor.fontSize": 18, "liveServer.settings.multiRootWorkspaceName": "", "git.path": "D:/PcAPP/PortableGit/bin/git.exe", "git.enabled": false, "[c]": { "editor.defaultFormatter": "ms-vscode.cpptools" }, "C_Cpp.clang_format_fallbackStyle": "LLVM", "C_Cpp.intelliSenseEngine": "Tag Parser", "workbench.colorTheme": "IDEA like light Theme", "code-runner.executorMap": { // windows 默认为 gbk 编码,这里让 VsCode 中默认 shell 为 PowerShell,编译时指定 gbk 编码,避免 code-runner 插件运行 c/c++ 输出中文时乱码 "c": "cd $dir && gcc -fexec-charset=gbk $fileName -o ..\\.target\\$fileNameWithoutExt.exe && ..\\.target\\$fileNameWithoutExt.exe", "cpp": "cd $dir && g++ -fexec-charset=gbk $fileName -o ..\\.target\\$fileNameWithoutExt.exe && ..\\.target\\$fileNameWithoutExt.exe" }, "workbench.iconTheme": "vsclassic-icon-theme", "update.showReleaseNotes": false, "telemetry.enableTelemetry": false, }
https://marketplace.visualstudio.com/items?itemName=ms-vscode.cpptools
