[Web CV] MobileNet Optimization
TensorFlow.js 入门指南
图片输入
Photo --> Tensor
//convert to tensor const tensor = tf.fromPixels(imageData);
模型剖析
_________________________________________________________________ Layer (type) Output Shape Param # ================================================================= input_1 (InputLayer) (None, 224, 224, 3) 0 // layer 0 _________________________________________________________________ conv1_pad (ZeroPadding2D) (None, 226, 226, 3) 0 _________________________________________________________________ conv1 (Conv2D) (None, 112, 112, 8) 216 _________________________________________________________________ conv1_bn (BatchNormalization (None, 112, 112, 8) 32 _________________________________________________________________ conv1_relu (ReLU) (None, 112, 112, 8) 0 _________________________________________________________________ conv_dw_1 (DepthwiseConv2D) (None, 112, 112, 8) 72 _________________________________________________________________ conv_dw_1_bn (BatchNormaliza (None, 112, 112, 8) 32 _________________________________________________________________ conv_dw_1_relu (ReLU) (None, 112, 112, 8) 0 _________________________________________________________________ conv_pw_1 (Conv2D) (None, 112, 112, 16) 128 _________________________________________________________________ conv_pw_1_bn (BatchNormaliza (None, 112, 112, 16) 64 _________________________________________________________________ conv_pw_1_relu (ReLU) (None, 112, 112, 16) 0 // layer 10 _________________________________________________________________ conv_pad_2 (ZeroPadding2D) (None, 114, 114, 16) 0 _________________________________________________________________ conv_dw_2 (DepthwiseConv2D) (None, 56, 56, 16) 144 _________________________________________________________________ conv_dw_2_bn (BatchNormaliza (None, 56, 56, 16) 64 _________________________________________________________________ conv_dw_2_relu (ReLU) (None, 56, 56, 16) 0 _________________________________________________________________ conv_pw_2 (Conv2D) (None, 56, 56, 32) 512 _________________________________________________________________ conv_pw_2_bn (BatchNormaliza (None, 56, 56, 32) 128 _________________________________________________________________ conv_pw_2_relu (ReLU) (None, 56, 56, 32) 0 _________________________________________________________________ conv_dw_3 (DepthwiseConv2D) (None, 56, 56, 32) 288 _________________________________________________________________ conv_dw_3_bn (BatchNormaliza (None, 56, 56, 32) 128 _________________________________________________________________ conv_dw_3_relu (ReLU) (None, 56, 56, 32) 0 // layer 20 _________________________________________________________________ conv_pw_3 (Conv2D) (None, 56, 56, 32) 1024 _________________________________________________________________ conv_pw_3_bn (BatchNormaliza (None, 56, 56, 32) 128 _________________________________________________________________ conv_pw_3_relu (ReLU) (None, 56, 56, 32) 0 _________________________________________________________________ conv_pad_4 (ZeroPadding2D) (None, 58, 58, 32) 0 _________________________________________________________________ conv_dw_4 (DepthwiseConv2D) (None, 28, 28, 32) 288 _________________________________________________________________ conv_dw_4_bn (BatchNormaliza (None, 28, 28, 32) 128 _________________________________________________________________ conv_dw_4_relu (ReLU) (None, 28, 28, 32) 0 _________________________________________________________________ conv_pw_4 (Conv2D) (None, 28, 28, 64) 2048 _________________________________________________________________ conv_pw_4_bn (BatchNormaliza (None, 28, 28, 64) 256 _________________________________________________________________ conv_pw_4_relu (ReLU) (None, 28, 28, 64) 0 // layer 30 _________________________________________________________________ conv_dw_5 (DepthwiseConv2D) (None, 28, 28, 64) 576 _________________________________________________________________ conv_dw_5_bn (BatchNormaliza (None, 28, 28, 64) 256 _________________________________________________________________ conv_dw_5_relu (ReLU) (None, 28, 28, 64) 0 _________________________________________________________________ conv_pw_5 (Conv2D) (None, 28, 28, 64) 4096 _________________________________________________________________ conv_pw_5_bn (BatchNormaliza (None, 28, 28, 64) 256 _________________________________________________________________ conv_pw_5_relu (ReLU) (None, 28, 28, 64) 0 _________________________________________________________________ conv_pad_6 (ZeroPadding2D) (None, 30, 30, 64) 0 _________________________________________________________________ conv_dw_6 (DepthwiseConv2D) (None, 14, 14, 64) 576 _________________________________________________________________ conv_dw_6_bn (BatchNormaliza (None, 14, 14, 64) 256 _________________________________________________________________ conv_dw_6_relu (ReLU) (None, 14, 14, 64) 0 // layer 40 _________________________________________________________________ conv_pw_6 (Conv2D) (None, 14, 14, 128) 8192 _________________________________________________________________ conv_pw_6_bn (BatchNormaliza (None, 14, 14, 128) 512 _________________________________________________________________ conv_pw_6_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_dw_7 (DepthwiseConv2D) (None, 14, 14, 128) 1152 _________________________________________________________________ conv_dw_7_bn (BatchNormaliza (None, 14, 14, 128) 512 _________________________________________________________________ conv_dw_7_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_pw_7 (Conv2D) (None, 14, 14, 128) 16384 _________________________________________________________________ conv_pw_7_bn (BatchNormaliza (None, 14, 14, 128) 512 _________________________________________________________________ conv_pw_7_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_dw_8 (DepthwiseConv2D) (None, 14, 14, 128) 1152 // layer 50 _________________________________________________________________ conv_dw_8_bn (BatchNormaliza (None, 14, 14, 128) 512 _________________________________________________________________ conv_dw_8_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_pw_8 (Conv2D) (None, 14, 14, 128) 16384 _________________________________________________________________ conv_pw_8_bn (BatchNormaliza (None, 14, 14, 128) 512 _________________________________________________________________ conv_pw_8_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_dw_9 (DepthwiseConv2D) (None, 14, 14, 128) 1152 _________________________________________________________________ conv_dw_9_bn (BatchNormaliza (None, 14, 14, 128) 512 _________________________________________________________________ conv_dw_9_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_pw_9 (Conv2D) (None, 14, 14, 128) 16384 _________________________________________________________________ conv_pw_9_bn (BatchNormaliza (None, 14, 14, 128) 512 // layer 60 _________________________________________________________________ conv_pw_9_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_dw_10 (DepthwiseConv2D) (None, 14, 14, 128) 1152 _________________________________________________________________ conv_dw_10_bn (BatchNormaliz (None, 14, 14, 128) 512 _________________________________________________________________ conv_dw_10_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_pw_10 (Conv2D) (None, 14, 14, 128) 16384 _________________________________________________________________ conv_pw_10_bn (BatchNormaliz (None, 14, 14, 128) 512 _________________________________________________________________ conv_pw_10_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_dw_11 (DepthwiseConv2D) (None, 14, 14, 128) 1152 _________________________________________________________________ conv_dw_11_bn (BatchNormaliz (None, 14, 14, 128) 512 _________________________________________________________________ conv_dw_11_relu (ReLU) (None, 14, 14, 128) 0 // layer 70 _________________________________________________________________ conv_pw_11 (Conv2D) (None, 14, 14, 128) 16384 _________________________________________________________________ conv_pw_11_bn (BatchNormaliz (None, 14, 14, 128) 512 _________________________________________________________________ conv_pw_11_relu (ReLU) (None, 14, 14, 128) 0 _________________________________________________________________ conv_pad_12 (ZeroPadding2D) (None, 16, 16, 128) 0 _________________________________________________________________ conv_dw_12 (DepthwiseConv2D) (None, 7, 7, 128) 1152 _________________________________________________________________ conv_dw_12_bn (BatchNormaliz (None, 7, 7, 128) 512 _________________________________________________________________ conv_dw_12_relu (ReLU) (None, 7, 7, 128) 0 ___________________________________________1______________________ conv_pw_12 (Conv2D) (None, 7, 7, 256) 32768 _________________________________________________________________ conv_pw_12_bn (BatchNormaliz (None, 7, 7, 256) 1024 _________________________________________________________________ conv_pw_12_relu (ReLU) (None, 7, 7, 256) 0 // layer 80 _________________________________________________________________ conv_dw_13 (DepthwiseConv2D) (None, 7, 7, 256) 2304 _________________________________________________________________ conv_dw_13_bn (BatchNormaliz (None, 7, 7, 256) 1024 _________________________________________________________________ conv_dw_13_relu (ReLU) (None, 7, 7, 256) 0 _________________________________________________________________ conv_pw_13 (Conv2D) (None, 7, 7, 256) 65536 _________________________________________________________________ conv_pw_13_bn (BatchNormaliz (None, 7, 7, 256) 1024 _________________________________________________________________ conv_pw_13_relu (ReLU) (None, 7, 7, 256) 0 _________________________________________________________________ global_average_pooling2d_1 ( (None, 256) 0 _________________________________________________________________ dense_1 (Dense) (None, 100) 25700 // layer 88 _________________________________________________________________ dropout_1 (Dropout) (None, 100) 0 _________________________________________________________________ dense_2 (Dense) (None, 50) 5050 // layer 90 _________________________________________________________________ dense_3 (Dense) (None, 4) 204 ================================================================= Total params: 249,498 Trainable params: 30,954 Non-trainable params: 218,544
到 conv_pw_13_relu 这里，共有87层．若再加上一个output，则为88层次．
上图中的输出部分，竟然有五层．
可训练层
固定层的输出
首先，我们需要摆脱模型的密集层。
const layer = mobilenet.getLayer('conv_pw_13_relu');
现在让我们更新我们的模型，让这个图层成为一个输出．
mobilenet = tf.model({inputs: mobilenet.inputs, outputs: layer.output});
可训练层的输入
最后，我们创建了可训练模型，但我们需要知道最后一层输出形状：
//this outputs a layer of size [null, 7, 7, 256] const layerOutput = layer.output.shape;
知道了shape后，开始设置＂参数可变＂层．
1 trainableModel = tf.sequential({ 2 layers: [ 3 tf.layers.flatten({inputShape: [7, 7, 256]}), 4 tf.layers.dense({ 5 units: 100, 6 activation: 'relu', 7 kernelInitializer: 'varianceScaling', 8 useBias: true 9 }), 10 tf.layers.dense({ 11 units: 2, 12 kernelInitializer: 'varianceScaling', 13 useBias: false, 14 activation: 'softmax' 15 }) 16 ] 17 });
最后的组装
输出变为下一层的输入．
const activation = mobilenet.predict(input); const predictions = trainableModel.predict(activation);
[前端智能系列] 纯前端(TF.js)实现扫五福功能
重要指标
最终压缩后的体积在400kb左右，极限压缩在200kb左右(会损失一点模型性能)。
在mac上的性能在30fps左右；
安卓高端机性能在15~20fps左右；
模型训练
tfjs模型同构是指模型的训练和模型的端上推理用的也是同一套框架及代码。即，使用tfjs在服务端离线训练，在客户端用tfjs部署模型。
仅仅是想证明tfjs有训练模型的能力而已，真正的生产环境还是建议用tensorflow for py去训练好了，原因不再赘述。
两层dense层
conv_pw_13_relu层后面加了两层dense层，最后加上一个softmax激活函数。这里面有一个小技巧，即把MobileNet的预训练参数进行冻结，仅仅训练我们新加的两层dense层，这样能够大大提升模型的收敛速度。最后我们把两个模型融合，得到我们的五福模型。
模型瘦身
这时候我们得到的模型大小为4mb左右，做为需要在端上部署的模型，这个体积是无法接受的。
conv_pw_13_relu的输出大小为[7,7,256]，而我们的模型直接在后面加了一个flatten层，导致参数量较大．
解决方法：

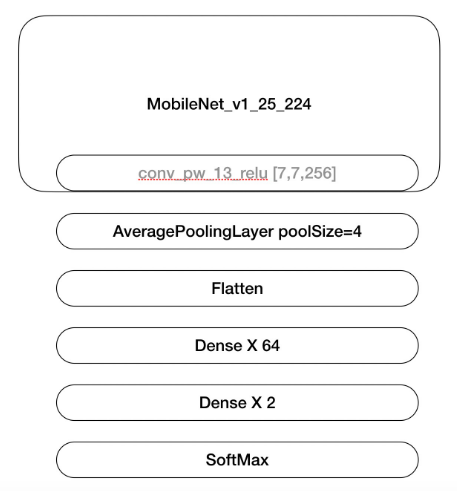

(1) 加一个池化层，将模型体积减少到了900多kb．
(2) 再用tfjs-converter进行下模型压缩，最终得到了400kb 体积的模型。
部署过程
部署过程较为简单，将我们的模型文件 (model.json、weights.bin)上传到cdn，在客户端通过tfjs将模型load到内存中，就能愉快地进行五福识别了~
我们是蚂蚁金服人工智能部前端团队(AI-Team)，致力于开发最好的AI服务应用及前端智能应用。欢迎各位有志之士加入，一起探索前端智能的未来。
有兴趣的请联系我：yaohua.cyh@antfin.com
https://juejin.im/post/5e3766db5188254e1b0c7062
