docker安装nacos(sentinel)
# 拉取镜像
docker pull nacos/nacos-server
# 可以添加镜像源
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
# 更新yum
yum makecache fast
# 数据初始化sql
https://github.com/alibaba/nacos/blob/master/config/src/main/resources/META-INF/nacos-db.sql
docker network create -d bridge myNet
docker pull nacos/nacos-server

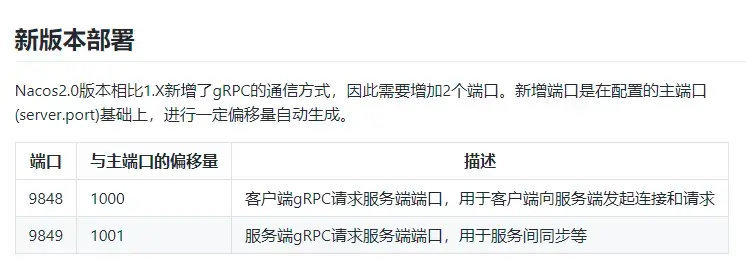

2.x的版本，如果你是外网访问，需要开放端口：8848 9848 9849，当nacos客户端升级为2.x版本后，新增了gRPC的通信方式，新增了两个端口。这两个端口在nacos原先的端口上(默认8848)，进行一定偏移量自动生成。
# 普通方式启动
docker run --env MODE=standalone --env NACOS_AUTH_ENABLE=true --env NACOS_AUTH_TOKEN="VGhpc0lzTXlDdXN0b21TZWNyZXRLZXkwMTIzNDU2Nzg=" -p 9555:9555 --name nacos -d -p 8848:8848 nacos/nacos-server
# 数据库方式配置
mkdir -p /home/nacos/logs/
mkdir -p /home/nacos/init.d/
# docker run -d -e PREFER_HOST_MODE=ip -e MODE=standalone -e SPRING_DATASOURCE_PLATFORM=mysql -e MYSQL_SERVICE_HOST=xxxx -e MYSQL_SERVICE_PORT=3306 -e MYSQL_SERVICE_USER=root -e MYSQL_SERVICE_PASSWORD=xxxxx -e MYSQL_SERVICE_DB_NAME=nacos_config -e TIME_ZONE='Asia/Shanghai' -v /home/nacos/logs:/home/nacos/logs -p 8848:8848 --name nacos --restart=always nacos/nacos-server
docker run -d \
-e PREFER_HOST_MODE=ip \
-e MODE=standalone \
-e SPRING_DATASOURCE_PLATFORM=mysql \
-e MYSQL_SERVICE_HOST=192.168.0.170 \
-e MYSQL_SERVICE_PORT=3306 \
-e MYSQL_SERVICE_USER=root \
-e MYSQL_SERVICE_PASSWORD=xxxxxx \
-e MYSQL_SERVICE_DB_NAME=nacos_config \
-e TIME_ZONE='Asia/Shanghai' \
-v /home/nacos/logs:/home/nacos/logs \
-p 8848:8848 \
--name nacos \
--restart=always \
nacos/nacos-server
http://127.0.0.1:8848/nacos/
默认端口号是：8848
默认账号密码：nacos/nacos
# 配置文件
conf/application.properties### nacos访问地址的密码
nacos.config.password=nacos
### nacos访问地址的用户名
nacos.config.username=nacos
# 开启权限,不然权限不生效
#镜像/home/nacos/conf/application.properties
nacos.core.auth.enabled=true#数据库脚本/home/nacos/conf/schema.sql
#https://nacos.io/zh-cn/docs/quick-start-docker.html
# yml
spring:
application:
name: xxxx
profiles:
active: pre
cloud:
sentinel:
transport:
dashboard: xxxx:8858
port: 8758
eager: true
# 安装sentinel
docker run --name sentinel -d -p 8858:8858 bladex/sentinel-dashboard
# 默认账号密码 sentinel:sentinel
# https://www.modb.pro/db/423153
# 指定版本
# docker pull bladex/sentinel-dashboard:1.6.3
# docker run --name sentinel -d -p 8858:8858 -d bladex/sentinel-dashboard:1.6.3
#nacos v1.X sql SET NAMES utf8mb4; SET FOREIGN_KEY_CHECKS = 0; -- ---------------------------- -- Table structure for config_info -- ---------------------------- DROP TABLE IF EXISTS `config_info`; CREATE TABLE `config_info` ( `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id', `data_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'data_id', `group_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `content` longtext CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'content', `md5` varchar(32) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'md5', `gmt_create` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '创建时间', `gmt_modified` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '修改时间', `src_user` text CHARACTER SET utf8 COLLATE utf8_bin NULL COMMENT 'source user', `src_ip` varchar(20) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'source ip', `app_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT '租户字段', `c_desc` varchar(256) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `c_use` varchar(64) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `effect` varchar(64) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `type` varchar(64) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `c_schema` text CHARACTER SET utf8 COLLATE utf8_bin NULL, PRIMARY KEY (`id`) USING BTREE, UNIQUE INDEX `uk_configinfo_datagrouptenant`(`data_id`, `group_id`, `tenant_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 268 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = 'config_info' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for config_info_aggr -- ---------------------------- DROP TABLE IF EXISTS `config_info_aggr`; CREATE TABLE `config_info_aggr` ( `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id', `data_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'data_id', `group_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'group_id', `datum_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'datum_id', `content` longtext CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT '内容', `gmt_modified` datetime(0) NOT NULL COMMENT '修改时间', `app_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT '租户字段', PRIMARY KEY (`id`) USING BTREE, UNIQUE INDEX `uk_configinfoaggr_datagrouptenantdatum`(`data_id`, `group_id`, `tenant_id`, `datum_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = '增加租户字段' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for config_info_beta -- ---------------------------- DROP TABLE IF EXISTS `config_info_beta`; CREATE TABLE `config_info_beta` ( `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id', `data_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'data_id', `group_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'group_id', `app_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'app_name', `content` longtext CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'content', `beta_ips` varchar(1024) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'betaIps', `md5` varchar(32) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'md5', `gmt_create` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '创建时间', `gmt_modified` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '修改时间', `src_user` text CHARACTER SET utf8 COLLATE utf8_bin NULL COMMENT 'source user', `src_ip` varchar(20) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'source ip', `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT '租户字段', PRIMARY KEY (`id`) USING BTREE, UNIQUE INDEX `uk_configinfobeta_datagrouptenant`(`data_id`, `group_id`, `tenant_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = 'config_info_beta' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for config_info_tag -- ---------------------------- DROP TABLE IF EXISTS `config_info_tag`; CREATE TABLE `config_info_tag` ( `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id', `data_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'data_id', `group_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'group_id', `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT 'tenant_id', `tag_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'tag_id', `app_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'app_name', `content` longtext CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'content', `md5` varchar(32) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'md5', `gmt_create` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '创建时间', `gmt_modified` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '修改时间', `src_user` text CHARACTER SET utf8 COLLATE utf8_bin NULL COMMENT 'source user', `src_ip` varchar(20) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'source ip', PRIMARY KEY (`id`) USING BTREE, UNIQUE INDEX `uk_configinfotag_datagrouptenanttag`(`data_id`, `group_id`, `tenant_id`, `tag_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = 'config_info_tag' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for config_tags_relation -- ---------------------------- DROP TABLE IF EXISTS `config_tags_relation`; CREATE TABLE `config_tags_relation` ( `id` bigint(20) NOT NULL COMMENT 'id', `tag_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'tag_name', `tag_type` varchar(64) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'tag_type', `data_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'data_id', `group_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'group_id', `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT 'tenant_id', `nid` bigint(20) NOT NULL AUTO_INCREMENT, PRIMARY KEY (`nid`) USING BTREE, UNIQUE INDEX `uk_configtagrelation_configidtag`(`id`, `tag_name`, `tag_type`) USING BTREE, INDEX `idx_tenant_id`(`tenant_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = 'config_tag_relation' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for group_capacity -- ---------------------------- DROP TABLE IF EXISTS `group_capacity`; CREATE TABLE `group_capacity` ( `id` bigint(20) UNSIGNED NOT NULL AUTO_INCREMENT COMMENT '主键ID', `group_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL DEFAULT '' COMMENT 'Group ID，空字符表示整个集群', `quota` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '配额，0表示使用默认值', `usage` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '使用量', `max_size` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '单个配置大小上限，单位为字节，0表示使用默认值', `max_aggr_count` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '聚合子配置最大个数，，0表示使用默认值', `max_aggr_size` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值', `max_history_count` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '最大变更历史数量', `gmt_create` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '创建时间', `gmt_modified` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '修改时间', PRIMARY KEY (`id`) USING BTREE, UNIQUE INDEX `uk_group_id`(`group_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = '集群、各Group容量信息表' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for his_config_info -- ---------------------------- DROP TABLE IF EXISTS `his_config_info`; CREATE TABLE `his_config_info` ( `id` bigint(64) UNSIGNED NOT NULL, `nid` bigint(20) UNSIGNED NOT NULL AUTO_INCREMENT, `data_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL, `group_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL, `app_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'app_name', `content` longtext CHARACTER SET utf8 COLLATE utf8_bin NOT NULL, `md5` varchar(32) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `gmt_create` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00', `gmt_modified` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00', `src_user` text CHARACTER SET utf8 COLLATE utf8_bin NULL, `src_ip` varchar(20) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `op_type` char(10) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL, `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT '租户字段', PRIMARY KEY (`nid`) USING BTREE, INDEX `idx_gmt_create`(`gmt_create`) USING BTREE, INDEX `idx_gmt_modified`(`gmt_modified`) USING BTREE, INDEX `idx_did`(`data_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 8 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = '多租户改造' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for permissions -- ---------------------------- DROP TABLE IF EXISTS `permissions`; CREATE TABLE `permissions` ( `role` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL, `resource` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL, `action` varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL, UNIQUE INDEX `uk_role_permission`(`role`, `resource`, `action`) USING BTREE ) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for roles -- ---------------------------- DROP TABLE IF EXISTS `roles`; CREATE TABLE `roles` ( `username` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL, `role` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL, UNIQUE INDEX `uk_username_role`(`username`, `role`) USING BTREE ) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for tenant_capacity -- ---------------------------- DROP TABLE IF EXISTS `tenant_capacity`; CREATE TABLE `tenant_capacity` ( `id` bigint(20) UNSIGNED NOT NULL AUTO_INCREMENT COMMENT '主键ID', `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL DEFAULT '' COMMENT 'Tenant ID', `quota` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '配额，0表示使用默认值', `usage` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '使用量', `max_size` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '单个配置大小上限，单位为字节，0表示使用默认值', `max_aggr_count` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '聚合子配置最大个数', `max_aggr_size` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值', `max_history_count` int(10) UNSIGNED NOT NULL DEFAULT 0 COMMENT '最大变更历史数量', `gmt_create` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '创建时间', `gmt_modified` datetime(0) NOT NULL DEFAULT '2010-05-05 00:00:00' COMMENT '修改时间', PRIMARY KEY (`id`) USING BTREE, UNIQUE INDEX `uk_tenant_id`(`tenant_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = '租户容量信息表' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for tenant_info -- ---------------------------- DROP TABLE IF EXISTS `tenant_info`; CREATE TABLE `tenant_info` ( `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id', `kp` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NOT NULL COMMENT 'kp', `tenant_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT 'tenant_id', `tenant_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT '' COMMENT 'tenant_name', `tenant_desc` varchar(256) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'tenant_desc', `create_source` varchar(32) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL COMMENT 'create_source', `gmt_create` bigint(20) NOT NULL COMMENT '创建时间', `gmt_modified` bigint(20) NOT NULL COMMENT '修改时间', PRIMARY KEY (`id`) USING BTREE, UNIQUE INDEX `uk_tenant_info_kptenantid`(`kp`, `tenant_id`) USING BTREE, INDEX `idx_tenant_id`(`tenant_id`) USING BTREE ) ENGINE = InnoDB AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_bin COMMENT = 'tenant_info' ROW_FORMAT = Dynamic; -- ---------------------------- -- Table structure for users -- ---------------------------- DROP TABLE IF EXISTS `users`; CREATE TABLE `users` ( `username` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL, `password` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL, `enabled` tinyint(1) NOT NULL, PRIMARY KEY (`username`) USING BTREE ) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic; SET FOREIGN_KEY_CHECKS = 1;
INSERT INTO users (username, password, enabled) VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', TRUE);
INSERT INTO roles (username, role) VALUES ('nacos', 'ROLE_ADMIN');
