双vip的MySQL高可用集群
目录
1、使用master与所有从服务器建立SSH免密通道，然后添加到mysqld组到hosts文件里面
2、使用ansible给从服务器部署mysql（5.7.34）
1、先将master的数据库全备导出，然后在slave导入，达到两边数据库的基础数据一致
2、在master上创建一个由备份权限的授权用户，然后在slave上添加授权用户的信息
2、在backup_server上设置延迟时间，然后开启slave
1、准备两台全新的linux服务器，安装好mysqlrouter软件
2、在要监控的服务器上安装mysqld_exporter软件
3、将mysqld_exporter接入prometheus里
一、mysql集群的搭建
准备四台装好centos7系统的服务器
IP地址规划：
master：192.168.44.170 --> 主
slave1：192.168.44.160 --> 从1
slave2：192.168.44.140 --> 从2
backup_server:192.168.44.203 --> 延迟备份服务器####################################################################################
使用ansible给从服务器安装mysql
1、使用master与所有从服务器建立SSH免密通道，然后添加到mysqld组到hosts文件里面
示例：将从服务器IP地址添加到/etc/ansible/hosts文件里面的mysqlserver组
[root@master ansible]# cat hosts
[mysqlserver]
192.168.44.140
192.168.44.160
192.168.44.203
测试ansible是否与三台从服务器建立连接
[root@master ansible]# ansible all -m shell -a "mkdir /root/mysql_test.txt"
192.168.44.160 | CHANGED | rc=0 >>
192.168.44.140 | CHANGED | rc=0 >>
192.168.44.203 | CHANGED | rc=0 >>
效果：三台机器上都成功新建一个mysql_test.txt文件
[root@slave1 ~]# ls
mysql_test.txt[root@slave2 ~]# ls
mysql_test.txt
[root@backup_server ~]# ls
mysql_test.txt
####################################################################################
2、使用ansible给从服务器部署mysql（5.7.34）
使用ansible将mysql软件压缩包copy到从服务器上面，这里因为slave1上面已经安装mysql，所以没有传
[root@master ~]# ansible all -m copy -a "src=/root/mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz dest=/root/"
192.168.44.203 | CHANGED => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": true,
"checksum": "c401420251b9eae3b95c21753a925675bc731df3",
"dest": "/root/mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz",
"gid": 0,
"group": "root",
"md5sum": "cdf3bec90f7dd576397b23d1ddb399c5",
"mode": "0644",
"owner": "root",
"secontext": "system_u:object_r:admin_home_t:s0",
"size": 665389778,
"src": "/root/.ansible/tmp/ansible-tmp-1663061649.05-19487-87578574739390/source",
"state": "file",
"uid": 0
}
192.168.44.140 | CHANGED => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": true,
"checksum": "c401420251b9eae3b95c21753a925675bc731df3",
"dest": "/root/mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz",
"gid": 0,
"group": "root",
"md5sum": "cdf3bec90f7dd576397b23d1ddb399c5",
"mode": "0644",
"owner": "root",
"secontext": "system_u:object_r:admin_home_t:s0",
"size": 665389778,
"src": "/root/.ansible/tmp/ansible-tmp-1663061649.08-19486-277324168009261/source",
"state": "file",
"uid": 0
}
[root@master ~]#
使用ansible将一键二进制安装脚本copy给从服务器
[root@master ~]# ansible all -m copy -a "src=/root/onekey_install_mysql_binary_v3.sh dest=/root/"
192.168.44.203 | CHANGED => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": true,
"checksum": "0747136284b8c9d2d605e6a62358e4b3382d956f",
"dest": "/root/onekey_install_mysql_binary_v3.sh",
"gid": 0,
"group": "root",
"md5sum": "1d46566cecdd2bef46e6815ad978b1c8",
"mode": "0644",
"owner": "root",
"secontext": "system_u:object_r:admin_home_t:s0",
"size": 3086,
"src": "/root/.ansible/tmp/ansible-tmp-1663067531.62-19593-204811003943206/source",
"state": "file",
"uid": 0
}
192.168.44.140 | CHANGED => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": true,
"checksum": "0747136284b8c9d2d605e6a62358e4b3382d956f",
"dest": "/root/onekey_install_mysql_binary_v3.sh",
"gid": 0,
"group": "root",
"md5sum": "1d46566cecdd2bef46e6815ad978b1c8",
"mode": "0644",
"owner": "root",
"secontext": "system_u:object_r:admin_home_t:s0",
"size": 3086,
"src": "/root/.ansible/tmp/ansible-tmp-1663067531.68-19591-45378666974808/source",
"state": "file",
"uid": 0
}

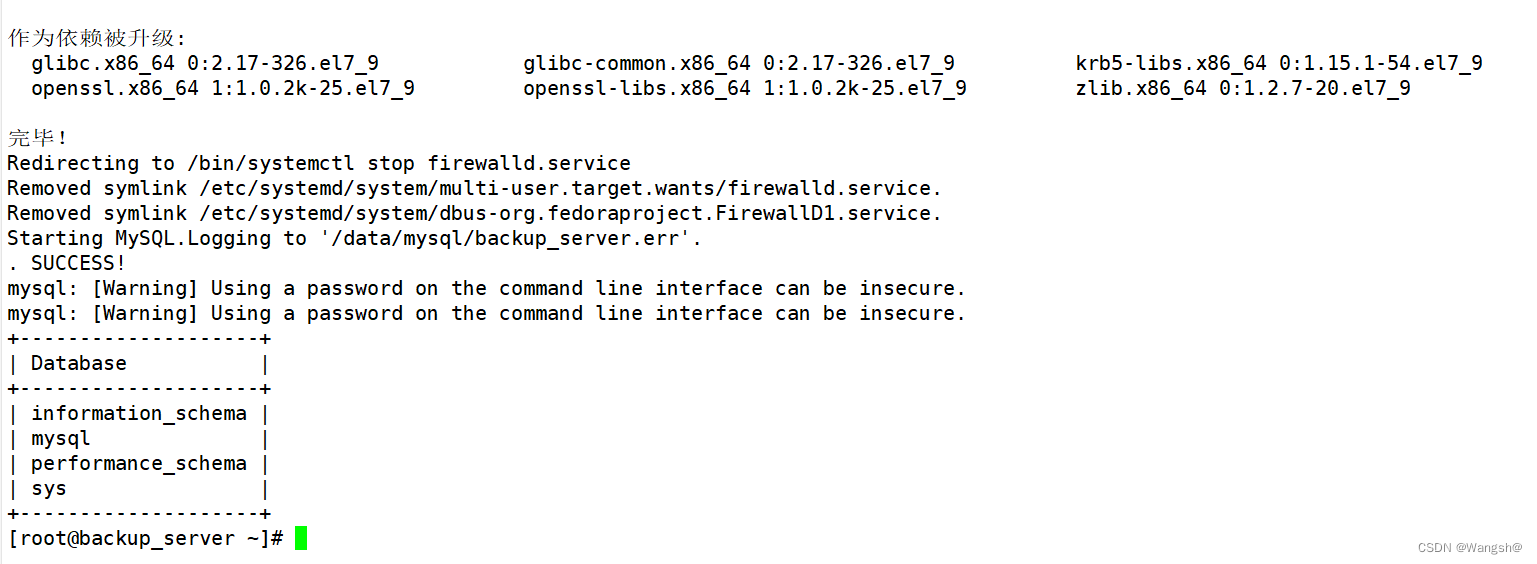

使用ansible给所有从服务器执行一键安装脚本
[root@master ~]# ansible all -m shell -a "bash /root/onekey_install_mysql_binary_v3.sh"安装成功效果：
####################################################################################
在master和slave集群配置异步复制
1、先将master的数据库全备导出，然后在slave导入，达到两边数据库的基础数据一致
使用mysqldump 将数据库全备导出
[root@master backup]# mysqldump -uroot -p'Sanchuang123#' --all-databases >/backup/all_db.sql
mysqldump: [Warning] Using a password on the command line interface can be insecure.
Warning: A partial dump from a server that has GTIDs will by default include the GTIDs of all transactions, even those that changed suppressed parts of the database. If you don't want to restore GTIDs, pass --set-gtid-purged=OFF. To make a complete dump, pass --all-databases --triggers --routines --events.
[root@master backup]# ls
all_db.sql
master和slave配置里面要开启二进制日志以及server_id
master配置：
# binary log
log_bin
server_id = 1
slave1配置
# 二进制日志
log-bin
server_id = 2
slave2配置
# 开启二进制日志
log_bin
server_id = 3
backup_server配置
# 开启二进制日志
log_bin
server_id = 4
将master导出的全备份sql文件使用ansible传到slave机器上，然后导入
[root@master backup]# ansible all -m copy -a "src=/backup/all_db.sql dest=/root/backup"
192.168.44.160 | CHANGED => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": true,
"checksum": "10ec634ad8d698aa0a05f00f3526ee80008cac98",
"dest": "/root/backup/all_db.sql",
"gid": 0,
"group": "root",
"md5sum": "227bf971bfba9df5da84ca696b2e3a55",
"mode": "0644",
"owner": "root",
"size": 899886,
"src": "/root/.ansible/tmp/ansible-tmp-1663122288.81-19992-243949179800744/source",
"state": "file",
"uid": 0
}
192.168.44.203 | CHANGED => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": true,
"checksum": "10ec634ad8d698aa0a05f00f3526ee80008cac98",
"dest": "/root/backup/all_db.sql",
"gid": 0,
"group": "root",
"md5sum": "227bf971bfba9df5da84ca696b2e3a55",
"mode": "0644",
"owner": "root",
"secontext": "system_u:object_r:admin_home_t:s0",
"size": 899886,
"src": "/root/.ansible/tmp/ansible-tmp-1663122289.14-19993-173407275816877/source",
"state": "file",
"uid": 0
}
192.168.44.140 | CHANGED => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": true,
"checksum": "10ec634ad8d698aa0a05f00f3526ee80008cac98",
"dest": "/root/backup/all_db.sql",
"gid": 0,
"group": "root",
"md5sum": "227bf971bfba9df5da84ca696b2e3a55",
"mode": "0644",
"owner": "root",
"secontext": "system_u:object_r:admin_home_t:s0",
"size": 899886,
"src": "/root/.ansible/tmp/ansible-tmp-1663122289.17-19991-31806854150922/source",
"state": "file",
"uid": 0
}
[root@master backup]#
在slave和延迟备份服务器backup_server上面导入master的全备份
[root@slave1 backup]# mysql -uroot -p'Sanchuang123#' < all_db.sql
mysql: [Warning] Using a password on the command line interface can be insecure.
[root@slave2 backup]# mysql -uroot -p'Sanchuang123#' <all_db.sql
mysql: [Warning] Using a password on the command line interface can be insecure.
[root@backup_server backup]# mysql -uroot -p'Sanchuang123#' <all_db.sql
mysql: [Warning] Using a password on the command line interface can be insecure.

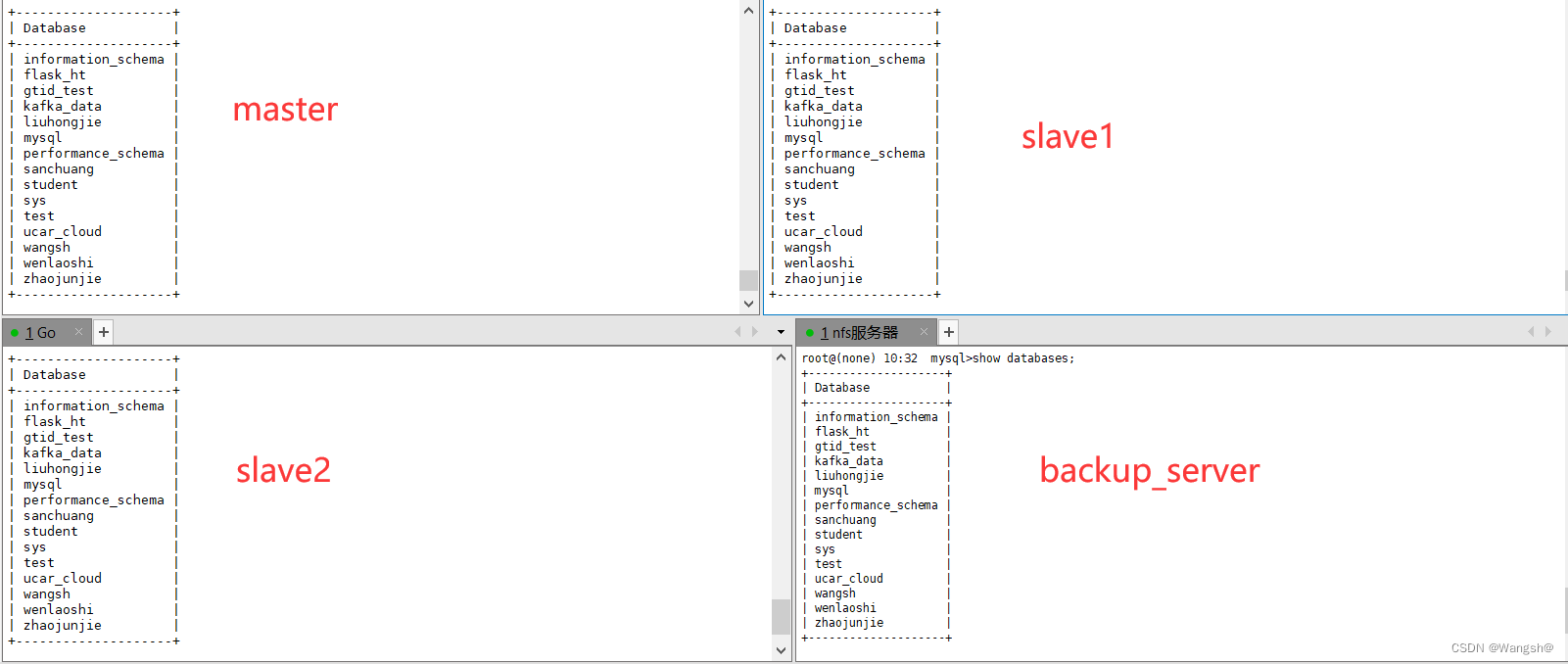

查看数据现在是否达到一致，可以看到每个数据库的数据已经一致
####################################################################################
2、在master上创建一个由备份权限的授权用户，然后在slave上添加授权用户的信息
root@mysql 10:31 mysql>create user 'chen'@'%' identified by '123456';
Query OK, 0 rows affected (1.01 sec)
root@mysql 10:40 mysql>grant replication slave on *.* to 'chen'@'%';
Query OK, 0 rows affected (0.00 sec)
查看master相关信息
root@(none) 16:03 mysql>show master status;
+-------------------+----------+--------------+------------------+-------------------------------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+-------------------+----------+--------------+------------------+-------------------------------------------+
| master-bin.000002 | 194 | | | 0294c53c-06a2-11ed-98a8-000c29f3aa67:1-29 |
+-------------------+----------+--------------+------------------+-------------------------------------------+
1 row in set (0.00 sec)
在slave1和slave2以及backup_server 上面添加授权用户信息
root@(none) 16:07 mysql>CHANGE MASTER TO MASTER_HOST='192.168.44.170' ,
-> MASTER_USER='chen',
-> MASTER_PASSWORD='123456',
-> MASTER_PORT=3306,
-> MASTER_LOG_FILE='master-bin.000002',
-> MASTER_LOG_POS=194;
Query OK, 0 rows affected, 2 warnings (0.01 sec)
查看slave状态：可以看到IO线程和SQL线程并没有开启，这是因为我们还没有开启slave角色导致的
root@(none) 10:52 mysql>show slave status\G;
*************************** 1. row ***************************
Slave_IO_State:
Master_Host: 192.168.44.170
Master_User: chen
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: master-bin.000001
Read_Master_Log_Pos: 605
Relay_Log_File: slave1-relay-bin.000001
Relay_Log_Pos: 4
Relay_Master_Log_File: master-bin.000001
Slave_IO_Running: No
Slave_SQL_Running: No
start slave ：在slave1和slave2以及backup_server上开启slave角色，然后就可以看到IO线程和SQL线程都已经开启
root@(none) 10:53 mysql>start slave;
Query OK, 0 rows affected (0.08 sec)
root@(none) 10:55 mysql>show slave status\G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.44.170
Master_User: chen
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: master-bin.000001
Read_Master_Log_Pos: 605
Relay_Log_File: slave1-relay-bin.000002
Relay_Log_Pos: 321
Relay_Master_Log_File: master-bin.000001
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
所有从服务器都开启slave后，测试数据的一致性
在master上面删除zhaojunjie数据库，发现从服务上面的zhaojunjie数据库也被删除了
root@(none) 16:13 mysql>drop database zhaojunjie;
Query OK, 1 row affected (0.01 sec)
root@(none) 16:12 mysql>show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| flask_ht |
| gtid_test |
| kafka_data |
| mysql |
| performance_schema |
| sanchuang |
| student |
| sys |
| test |
| ucar_cloud |
| wangsh |
| wenlaoshi |
| zhaojunjie |
+--------------------+
14 rows in set (0.00 sec)
root@(none) 16:13 mysql>show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| flask_ht |
| gtid_test |
| kafka_data |
| mysql |
| performance_schema |
| sanchuang |
| student |
| sys |
| test |
| ucar_cloud |
| wangsh |
| wenlaoshi |
+--------------------+
13 rows in set (0.00 sec)
root@(none) 16:17 mysql>
此时我们的mysql集群就完成了异步复制
####################################################################################
给mysql集群部署基于gtid的主从复制
1、关闭所有从服务器上的slave服务
root@(none) 16:13 mysql>stop slave;
Query OK, 0 rows affected (0.01 sec)
2、编辑master和从服务器的配置文件，添加gtid功能
gtid-mode=on
enforce-gtid-consistency = on
3、重启master和从服务器的mysql服务
[root@backup_server ~]# service mysqld restart
Shutting down MySQL.. SUCCESS!
Starting MySQL.. SUCCESS!
重启服务后登陆mysql服务，发现IO线程和SQL线程都已经处于开启状态，至此，基于gtid的主从复制部署完成
####################################################################################
给backup_server配置延迟备份
1、首先停止 backup_server的salve功能
root@(none) 16:48 mysql>stop slave ;
Query OK, 0 rows affected (0.00 sec)

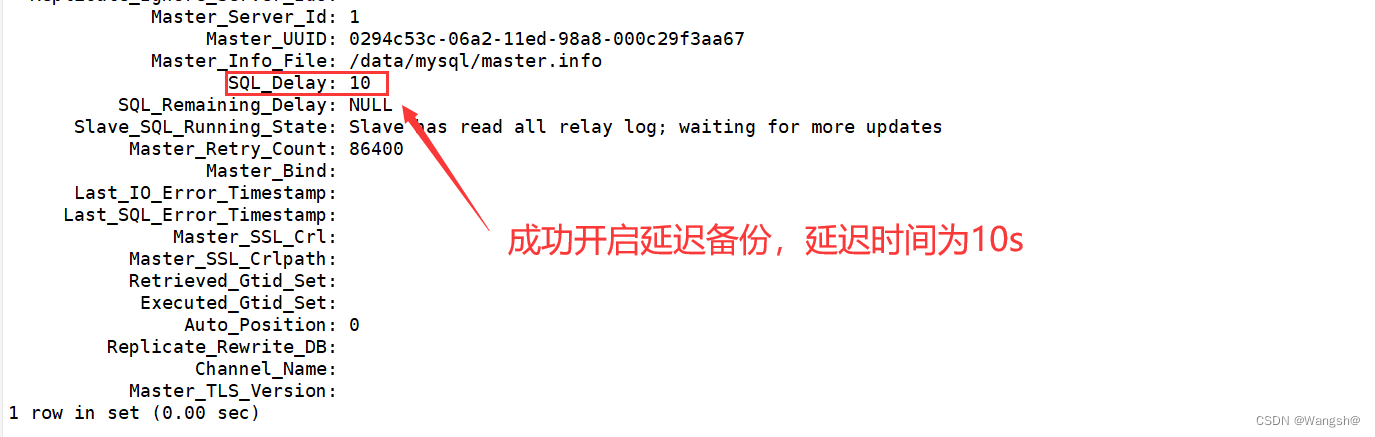

2、在backup_server上设置延迟时间，然后开启slave
为了后面测试延迟备份，设置延迟时间为10s，在生产环境应该把这个时间调大点，给灾备情况给出缓冲时间
root@(none) 16:49 mysql>CHANGE MASTER TO MASTER_DELAY = 10;
Query OK, 0 rows affected (0.00 sec)
root@(none) 16:50 mysql>start slave;
Query OK, 0 rows affected (0.00 sec)
3、测试延迟备份的效果
在master上新建数据库delay_test，观察数据一致性情况
可以很清楚地看到，slave1和slave2上的数据很快同步，出现了delay_test数据库，但是backup_server延时备份服务器上30s后才同步，
root@(none) 16:54 mysql>create database delay_test;
Query OK, 1 row affected (0.00 secroot@(none) 16:54 mysql>show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| delay_test |
| flask_ht |
| gtid_test |
| kafka_data |
| mysql |
| performance_schema |
| sanchuang |
| student |
| sys |
| test |
| ucar_cloud |
| wangsh |
| wenlaoshi |
+--------------------+
14 rows in set (0.00 sec)
至此，基于gtid和延迟备份的mysql主从复制集群搭建完毕
####################################################################################
部署基于gtid的半同步复制
在master和所有slave服务器上做相同操作，部署半同步复制
1、首先在master上面安装插件
root@(none) 15:42 mysql>INSTALL PLUGIN rpl_semi_sync_master SONAME 'semisync_master.so';
Query OK, 0 rows affected (0.01 sec)2、设置master全局变量和超时时间
root@(none) 15:46 mysql>SET GLOBAL rpl_semi_sync_master_enabled = 1;
Query OK, 0 rows affected (0.00 sec)
root@(none) 15:47 mysql>查看变量是否开启
root@(none) 15:47 mysql>show variables like "%semi_sync%";
+-------------------------------------------+------------+
| Variable_name | Value |
+-------------------------------------------+------------+
| rpl_semi_sync_master_enabled | ON |
| rpl_semi_sync_master_timeout | 10000 |
| rpl_semi_sync_master_trace_level | 32 |
| rpl_semi_sync_master_wait_for_slave_count | 1 |
| rpl_semi_sync_master_wait_no_slave | ON |
| rpl_semi_sync_master_wait_point | AFTER_SYNC |
+-------------------------------------------+------------+
6 rows in set (0.01 sec)
root@(none) 15:48 mysql>3、在slave上面安装插件，设置全局变量
root@(none) 15:51 mysql>INSTALL PLUGIN rpl_semi_sync_slave SONAME 'semisync_slave.so';
Query OK, 0 rows affected (0.00 sec)
root@(none) 15:51 mysql>root@(none) 15:52 mysql>SET GLOBAL rpl_semi_sync_slave_enabled = 1;
Query OK, 0 rows affected (0.00 sec)
4、停止slave上面的I/O线程，然后重启I/O线程
root@(none) 15:53 mysql>STOP SLAVE IO_THREAD;
Query OK, 0 rows affected (0.00 sec)
root@(none) 15:57 mysql>START SLAVE IO_THREAD;
Query OK, 0 rows affected (0.00 sec)
root@(none) 15:58 mysql>至此，gtid的半同步复制mysql集群就部署完成
####################################################################################
mysqlrouter读写分离部署实现
MySQL Router是MySQL官方提供的一个轻量级中间件，可以在应用程序与MySQL服务器之间提供透明的路由方式。主要用以解决MySQL主从库集群的高可用、负载均衡、易扩展等问题。
1、准备两台全新的linux服务器，安装好mysqlrouter软件
proxy-1 ：192.168.44.132
proxy-2： 192.168.44.166
修改mysqlrouter的配置文件
proxy-1配置文件修改：
# 名字可以自定义
[routing:read_write]
#是mysql-router服务器的ip地址
bind_address = 192.168.44.132
bind_port = 7001
#支持可读可写
mode = read-write
#mysql-master服务器的ip地址：mysql服务的端口号
destinations = 192.168.44.170:3306
max_connections = 65535
max_connect_errors = 100
client_connect_timeout = 9
[routing:read_only]
#是mysql-router服务器的ip地址
bind_address = 192.168.44.132
bind_port = 7002
# 仅可读
mode = read-only
# mysql-slave服务器的ip地址：mysql服务的端口号
destinations = 192.168.44.170:3306,192.168.44.140:3306,192.168.44.160:3306
max_connections = 65535
max_connect_errors = 100
client_connect_timeout = 9
proxy-2配置文件修改：
# 名字可以自定义
[routing:read_write]
#是mysql-router服务器的ip地址
bind_address = 192.168.44.166
bind_port = 7001
#支持可读可写
mode = read-write
#mysql-master服务器的ip地址：mysql服务的端口号
destinations = 192.168.44.170:3306
max_connections = 65535
max_connect_errors = 100
client_connect_timeout = 9
[routing:read_only]
#是mysql-router服务器的ip地址
bind_address = 192.168.44.166
bind_port = 7002
# 仅可读
mode = read-only
# mysql-slave服务器的ip地址：mysql服务的端口号
destinations = 192.168.44.170:3306,192.168.44.140:3306,192.168.44.160:3306
max_connections = 65535
max_connect_errors = 100
client_connect_timeout = 9重启mysqlrouter服务，可以看到mysqlrouter进程和7001,7002端口已经开启，说明mysqlrouter服务已经成功启动
[root@proxy-1 ~]# service mysqlrouter restart
Redirecting to /bin/systemctl restart mysqlrouter.service
[root@proxy-1 ~]# ps aux | grep mysqlrouter
mysqlro+ 3455 0.3 0.9 515444 9892 ? Ssl 22:18 0:00 /usr/bin/mysqlrouter
root 3464 0.0 0.0 112824 992 pts/0 R+ 22:18 0:00 grep --color=auto mysqlrouter
[root@proxy-1 ~]# netstat -anplut |grep mysqlrouter
tcp 0 0 192.168.44.132:7001 0.0.0.0:* LISTEN 3455/mysqlrouter
tcp 0 0 192.168.44.132:7002 0.0.0.0:* LISTEN 3455/mysqlrouter [root@proxy-2 mysqlrouter]# service mysqlrouter restart
Redirecting to /bin/systemctl restart mysqlrouter.service
[root@proxy-2 mysqlrouter]# ps aux |grep mysql
mysqlro+ 2813 0.5 0.9 515444 9924 ? Ssl 22:20 0:00 /usr/bin/mysqlrouter
root 2822 0.0 0.0 112824 988 pts/1 R+ 22:20 0:00 grep --color=auto mysql
[root@proxy-2 mysqlrouter]# netstat -anplut|grep mysqlrouter
tcp 0 0 192.168.44.166:7001 0.0.0.0:* LISTEN 2813/mysqlrouter
tcp 0 0 192.168.44.166:7002 0.0.0.0:* LISTEN 2813/mysqlrouter ####################################################################################
2、创建授权用户验证读写分离
在mysql集群的master机器上创建两个用户
read-write --->7001 ---> 192.168.44.170 写操作在master执行
read-only -->7002 --> 192.168.44.170:3306,192.168.44.140:3306,192.168.44.160:3306 读操作在master和slave都可以执行
创建可读可写用户：
root@(none) 11:07 mysql>create user 'read-write'@'%' identified by '123456';
Query OK, 0 rows affected (0.00 sec)
root@(none) 11:10 mysql>grant all on *.* to 'read-write'@'%';
Query OK, 0 rows affected (0.01 sec)
root@(none) 11:10 mysql>
创建仅可读用户：
root@(none) 11:10 mysql>create user 'read-only'@'%' identified by '123456';
Query OK, 0 rows affected (0.00 sec)
root@(none) 11:11 mysql>grant select on *.* to 'read-only'@'%';
Query OK, 0 rows affected (0.00 sec)
root@(none) 11:12 mysql>
####################################################################################
3、验证读写分离操作效果
准备一台客户机，测试访问mysqlrouter中间件所在的服务器
验证效果：read-write用户可以 进行读写操作 指定端口7001
[root@client-server ~]# mysql -h 192.168.44.132 -P 7001 -u read-write -p'123456'
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 14
Server version: 5.7.34-log MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
read-write@(none) 11:23 mysql>show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| delay_test |
| flask_ht |
| gtid_test |
| kafka_data |
| mysql |
| performance_schema |
| sanchuang |
| student |
| sys |
| test |
| ucar_cloud |
| wangsh |
| wenlaoshi |
+--------------------+
14 rows in set (0.01 sec)
read-write@(none) 11:26 mysql>create database test1;
Query OK, 1 row affected (0.00 sec)
read-write@(none) 11:28 mysql>select host,user from mysql.user;
+---------------+---------------+
| host | user |
+---------------+---------------+
| % | chen |
| % | liming |
| % | read-only |
| % | read-write |
| % | shiyaling |
| % | wangsh |
| % | zhangj |
| 192.168.0.124 | liuhongjie |
| 192.168.44.% | liu |
| localhost | mysql.session |
| localhost | mysql.sys |
| localhost | root |
+---------------+---------------+
12 rows in set (0.00 sec)
read-write@(none) 11:28 mysql>
####################################################################################
验证效果：read-only用户只可以进行读操作，不能进行写操作 ，指定端口7002
[root@client-server ~]# mysql -h 192.168.44.132 -P 7002 -u read-only -p'123456'
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 16
Server version: 5.7.34-log MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
read-only@(none) 11:35 mysql>
read-only@(none) 11:35 mysql>select user,host from mysql.user;
+---------------+---------------+
| user | host |
+---------------+---------------+
| chen | % |
| liming | % |
| read-only | % |
| read-write | % |
| shiyaling | % |
| wangsh | % |
| zhangj | % |
| liuhongjie | 192.168.0.124 |
| liu | 192.168.44.% |
| mysql.session | localhost |
| mysql.sys | localhost |
| root | localhost |
+---------------+---------------+
12 rows in set (0.00 sec)
read-only@(none) 11:35 mysql>
至此，基于gtid的半1复制的读写分离集群搭建完成
####################################################################################
搭建双vip高可用集群
在proxy-1和proxy-2集群上部署keepalived做高可用
proxy-1和proxy-2都要安装keepalived
1、安装部署keepalived软件 ，并修改配置文件
[root@proxy-1 ~]# yum install keepalived -y
[root@proxy-2 ~]# yum install keepalived -y
[root@proxy-2 ~]# keepalived -v
Keepalived v1.3.5 (03/19,2017), git commit v1.3.5-6-g6fa32f2
Copyright(C) 2001-2017 Alexandre Cassen, <acassen@gmail.com>
Build options: PIPE2 LIBNL3 RTA_ENCAP RTA_EXPIRES RTA_PREF RTA_VIA FRA_OIFNAME FRA_SUPPRESS_PREFIXLEN FRA_TUN_ID RTAX_CC_ALGO RTAX_QUICKACK LIBIPTC LIBIPSET_DYNAMIC LVS LIBIPVS_NETLINK VRRP VRRP_AUTH VRRP_VMAC SOCK_NONBLOCK SOCK_CLOEXEC FIB_ROUTING INET6_ADDR_GEN_MODE SNMP_V3_FOR_V2 SNMP SNMP_KEEPALIVED SNMP_CHECKER SNMP_RFC SNMP_RFCV2 SNMP_RFCV3 SO_MARK
[root@proxy-2 ~]#
配置proxy-1：keepalived的配置文件
将proxy-1配置为master，将proxy-2作为backup
[root@proxy-1 keepalived]# cat keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
acassen@firewall.loc
failover@firewall.loc
sysadmin@firewall.loc
}
notification_email_from Alexandre.Cassen@firewall.loc
smtp_server 192.168.200.1
smtp_connect_timeout 30
router_id LVS_DEVEL
vrrp_skip_check_adv_addr
# vrrp_strict
vrrp_garp_interval 0
vrrp_gna_interval 0
}
vrrp_instance VI_1 {
state MASTER
interface ens33
virtual_router_id 61
priority 200
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.44.180
}
}
vrrp_instance VI_2 {
state BACKUP
interface ens33
virtual_router_id 62
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.44.181
}
}
配置proxy-2 keepalived的配置文件
[root@proxy-2 keepalived]# cat keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
acassen@firewall.loc
failover@firewall.loc
sysadmin@firewall.loc
}
notification_email_from Alexandre.Cassen@firewall.loc
smtp_server 192.168.200.1
smtp_connect_timeout 30
router_id LVS_DEVEL
vrrp_skip_check_adv_addr
# vrrp_strict
vrrp_garp_interval 0
vrrp_gna_interval 0
}
vrrp_instance VI_1 {
state BACKUP
interface ens33
virtual_router_id 61
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.44.180
}
}
vrrp_instance VI_2 {
state MASTER
interface ens33
virtual_router_id 62
priority 200
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.44.181
}
}
编辑好配置文件以后，重启keepalived服务
[root@proxy-1 keepalived]# service keepalived start
Redirecting to /bin/systemctl start keepalived.service
[root@proxy-1 keepalived]# ps aux|grep keepalived
root 3892 0.0 0.1 123012 1404 ? Ss 15:17 0:00 /usr/sbin/keepalived -D
root 3893 0.0 0.3 133980 3340 ? S 15:17 0:00 /usr/sbin/keepalived -D
root 3894 0.0 0.2 133852 2672 ? S 15:17 0:00 /usr/sbin/keepalived -D
root 3904 0.0 0.0 112824 992 pts/1 R+ 15:17 0:00 grep --color=auto keepalived
[root@proxy-2 keepalived]# service keepalived start
Redirecting to /bin/systemctl start keepalived.service
[root@proxy-2 keepalived]# ps aux |grep keepalived
root 3369 0.0 0.1 123012 1396 ? Ss 15:16 0:00 /usr/sbin/keepalived -D
root 3370 0.0 0.3 133984 3400 ? S 15:16 0:00 /usr/sbin/keepalived -D
root 3371 0.0 0.2 133852 2664 ? S 15:16 0:00 /usr/sbin/keepalived -D
root 3381 0.0 0.0 112824 988 pts/2 R+ 15:16 0:00 grep --color=auto keepalived
实现效果：
[root@proxy-1 keepalived]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:92:35:e8 brd ff:ff:ff:ff:ff:ff
inet 192.168.44.132/24 brd 192.168.44.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet 192.168.44.180/32 scope global ens33
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe92:35e8/64 scope link
valid_lft forever preferred_lft forever
[root@proxy-2 keepalived]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:70:78:9f brd ff:ff:ff:ff:ff:ff
inet 192.168.44.166/24 brd 192.168.44.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet 192.168.44.181/32 scope global ens33
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe70:789f/64 scope link
valid_lft forever preferred_lft forever
####################################################################################
2、使用客户机访问配置好的master
注意：这个时候我们访问master是访问不了的，因为master上并没有开启7001,7002端口
[root@client-server ~]# mysql -h 192.168.44.180 -P 7001 -u read-write -p'123456'
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 2003 (HY000): Can't connect to MySQL server on '192.168.44.180' (111)
所以我们要将mysqlrouter的配置文件修改一下，将mysqlroute绑定的IP地址改为0.0.0.0，本机任意ip地址都能访问，然后重启mysqlrouter服务
注意：proxy-1和proxy-2的mysqlrouter配置文件都要修改
# 名字可以自定义
[routing:read_write]
#是mysql-router服务器的ip地址
bind_address = 0.0.0.0
bind_port = 7001
#支持可读可写
mode = read-write
#mysql-master服务器的ip地址：mysql服务的端口号
destinations = 192.168.44.170:3306
max_connections = 65535
max_connect_errors = 100
client_connect_timeout = 9
[routing:read_only]
#是mysql-router服务器的ip地址
bind_address = 0.0.0.0
bind_port = 7002
# 仅可读
mode = read-only
# mysql-slave服务器的ip地址：mysql服务的端口号
destinations = 192.168.44.170:3306,192.168.44.140:3306,192.168.44.160:3306
max_connections = 65535
max_connect_errors = 100
client_connect_timeout = 9
[root@proxy-1 mysqlrouter]# service mysqlrouter restart
Redirecting to /bin/systemctl restart mysqlrouter.service
[root@proxy-1 mysqlrouter]# ps aux |egrep "mysqlrouter|keepalived"
root 3892 0.0 0.1 123012 1404 ? Rs 15:17 0:00 /usr/sbin/keepalived -D
root 3893 0.0 0.3 133980 3340 ? S 15:17 0:00 /usr/sbin/keepalived -D
root 3894 0.0 0.2 133852 2672 ? S 15:17 0:00 /usr/sbin/keepalived -D
mysqlro+ 3940 0.4 0.7 515444 7856 ? Ssl 15:50 0:00 /usr/bin/mysqlrouter
root 3949 0.0 0.1 112824 996 pts/1 R+ 15:50 0:00 grep -E --color=auto mysqlrouter|keepalived
[root@proxy-2 mysqlrouter]# service mysqlrouter restart
Redirecting to /bin/systemctl restart mysqlrouter.service
[root@proxy-2 mysqlrouter]# ps aux |egrep "mysqlrouter|keepalived"
root 3369 0.0 0.1 123012 1396 ? Ss 15:16 0:00 /usr/sbin/keepalived -D
root 3370 0.0 0.3 133984 3400 ? S 15:16 0:00 /usr/sbin/keepalived -D
root 3371 0.0 0.2 133852 2664 ? S 15:16 0:00 /usr/sbin/keepalived -D
mysqlro+ 3417 0.0 0.9 515444 9924 ? Ssl 15:49 0:00 /usr/bin/mysqlrouter
root 3431 0.0 0.1 112824 1000 pts/2 R+ 15:52 0:00 grep -E --color=auto mysqlrouter|keepalived
[root@proxy-2 mysqlrouter]#
重启服务以后，再次使用客户机访问master，可以看到，read-write和read-only都可以成功访问
[root@client-server ~]# mysql -h 192.168.44.180 -P 7001 -u read-write -p'123456'
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 2003 (HY000): Can't connect to MySQL server on '192.168.44.180' (113)
[root@client-server ~]# mysql -h 192.168.44.180 -P 7001 -u read-write -p'123456'
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 18
Server version: 5.7.34-log MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
read-write@(none) 16:18 mysql>
[root@client-server ~]# mysql -h 192.168.44.180 -P 7002 -u read-only -p'123456'
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 6
Server version: 5.7.34-log MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
read-only@(none) 16:21 mysql>
至此，双vip的高可用mysql集群就搭建好了
####################################################################################
prometheus监控的部署
1、在监控服务器安装部署prometheus软件
准备一台prometheus监控服务器
prometheus：192.168.44.210
下载好prometheus源码包，然后新建prometheus文件夹，将源码包上传到prometheus服务器里
[root@prometheus prometheus]# ls
prometheus-2.34.0.linux-amd64.tar.gz
[root@prometheus prometheus]#
[root@prometheus prometheus]# tar xf prometheus-2.34.0.linux-amd64.tar.gz
[root@prometheus prometheus]# ls
prometheus-2.34.0.linux-amd64 prometheus-2.34.0.linux-amd64.tar.gz
修改PATH变量，将PATH变量写入.bashrc文件里
[root@prometheus ~]# cat .bashrc
PATH=/root/prometheus/prometheus:$PATH

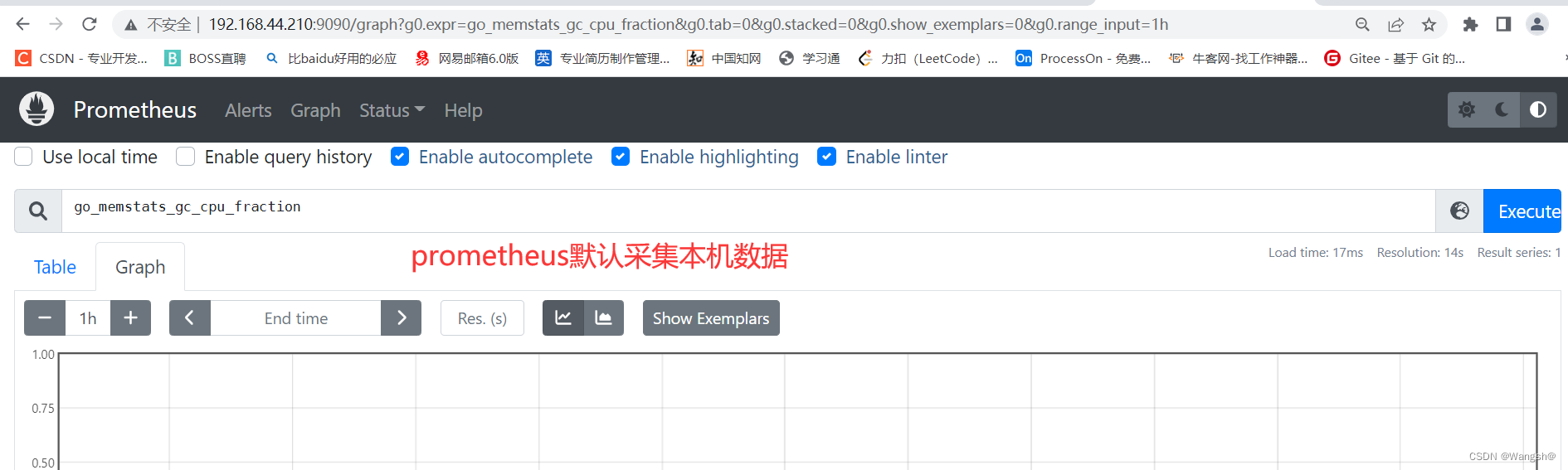

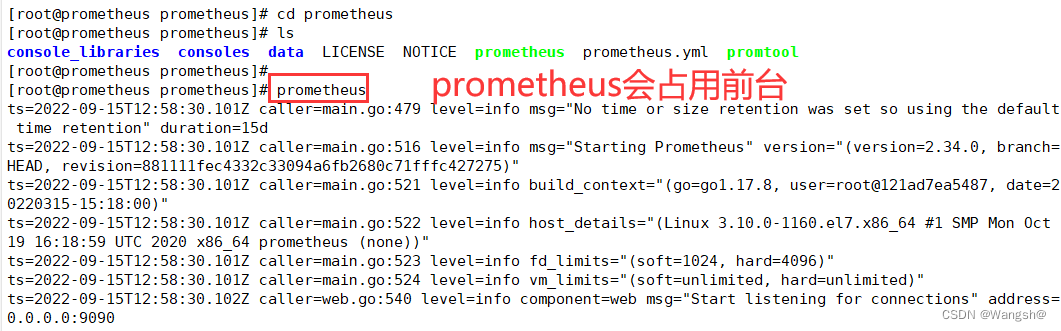

将prometheus放到后台运行
[root@prometheus prometheus]# nohup prometheus &
[1] 2000
[root@prometheus prometheus]# nohup: 忽略输入并把输出追加到"nohup.out"
2、在要监控的服务器上安装mysqld_exporter软件
[root@master mysqld_exporter]# ls
mysqld_exporter-0.14.0.linux-amd64.tar.gz
[root@master mysqld_exporter]# tar xf mysqld_exporter-0.14.0.linux-amd64.tar.gz
[root@master mysqld_exporter]# ls
mysqld_exporter-0.14.0.linux-amd64 mysqld_exporter-0.14.0.linux-amd64.tar.gz
[root@master mysqld_exporter]# mv mysqld_exporter-0.14.0.linux-amd64 mysqld_exporter
[root@master mysqld_exporter]# ls
mysqld_exporter mysqld_exporter-0.14.0.linux-amd64.tar.gz
创建授权用户，并授予权限
root@(none) 21:40 mysql>create user 'exporter'@'localhost' identified by '123123';
Query OK, 0 rows affected (0.00 sec)
root@(none) 21:41 mysql>grant process,replication client,select on *.* to 'exporter'@'localhost';
Query OK, 0 rows affected (0.01 sec)
创建一个配置文件my.cnf将刚才创建的用户信息添加到配置文件
[root@master mysqld_exporter]# cat my.cnf
[client]
user=exporter
password=123123
host=localhost
port=3306

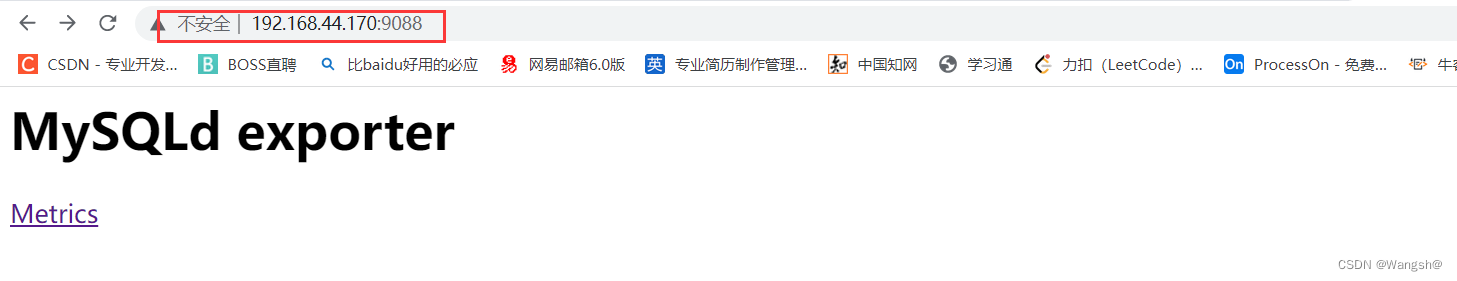

测试连接，看能否监控mysql指标
--config.mycnf : 指定mysqld_exporter配置文件
--web.listen-address 指定监听端口
--log.level 指定日志级别
[root@master mysqld_exporter]# nohup mysqld_exporter --config.my-cnf="/mysqld_exporter/mysqld_exporter/my.cnf" --web.listen-address='0.0.0.0':9088 --log.level=debug &
[1] 22075
[root@master mysqld_exporter]# nohup: 忽略输入并把输出追加到"nohup.out"
3、将mysqld_exporter接入prometheus里
在prometheus配置文件prometheus.yml里面添加mysqld_exporter信息
scrape_configs:
# The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
- job_name: "prometheus"
static_configs:
- targets: ["localhost:9090"]
- job_name: "mysqld_exporter1"
static_configs:
- targets: ["192.168.44.170:9088"]

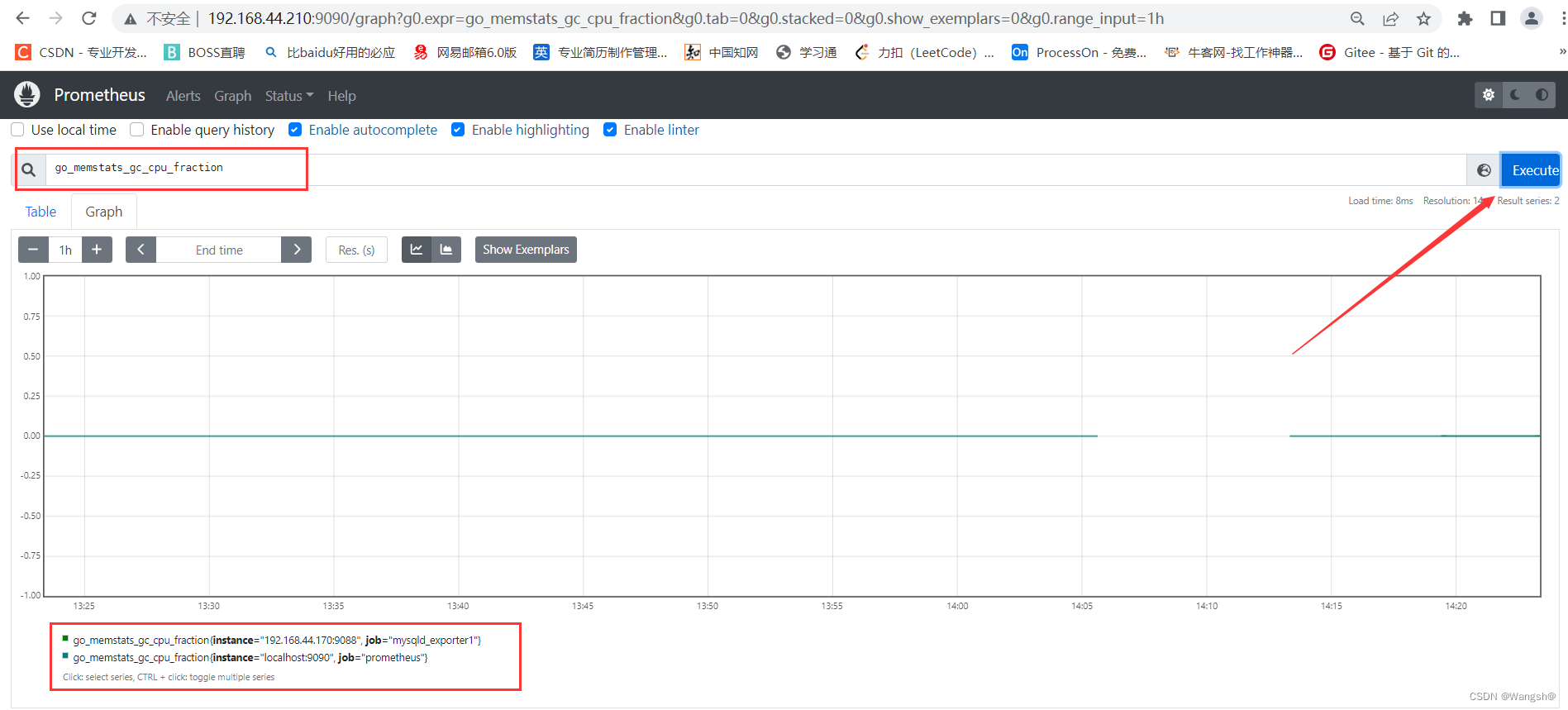

修改配置文件以后重新执行prometheus程序,
[root@prometheus prometheus]# nohup prometheus --config.file=prometheus.yml &
[1] 2260
[root@prometheus prometheus]# nohup: 忽略输入并把输出追加到"nohup.out"
4、部署grafana可视化监控指标展示工具
下载grafana压缩包，上传至prometheus监控服务器，然后使用yum install 安装
[root@prometheus grafana]# ls
grafana-enterprise-8.4.5-1.x86_64.rpm
[root@prometheus grafana]# yum install grafana-enterprise-8.4.5-1.x86_64.rpm -y
启动grafana服务，查看端口
[root@prometheus grafana]# service grafana-server start
Starting grafana-server (via systemctl): [ 确定 ]
[root@prometheus grafana]# ss -anplut|grep grafana
tcp LISTEN 0 128 [::]:3000 [::]:* users:(("grafana-server",pid=2474,fd=8))

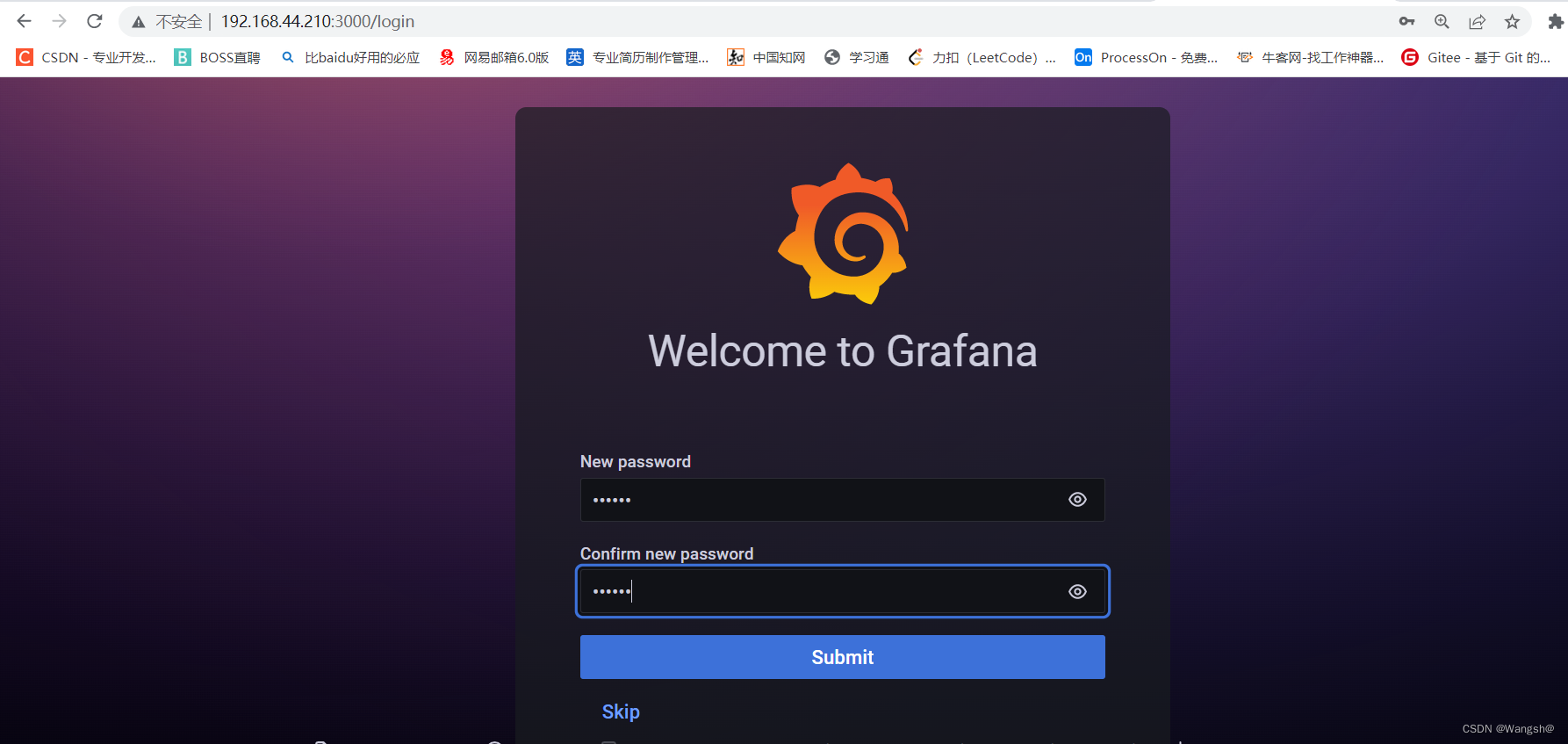

访问测试grafana服务

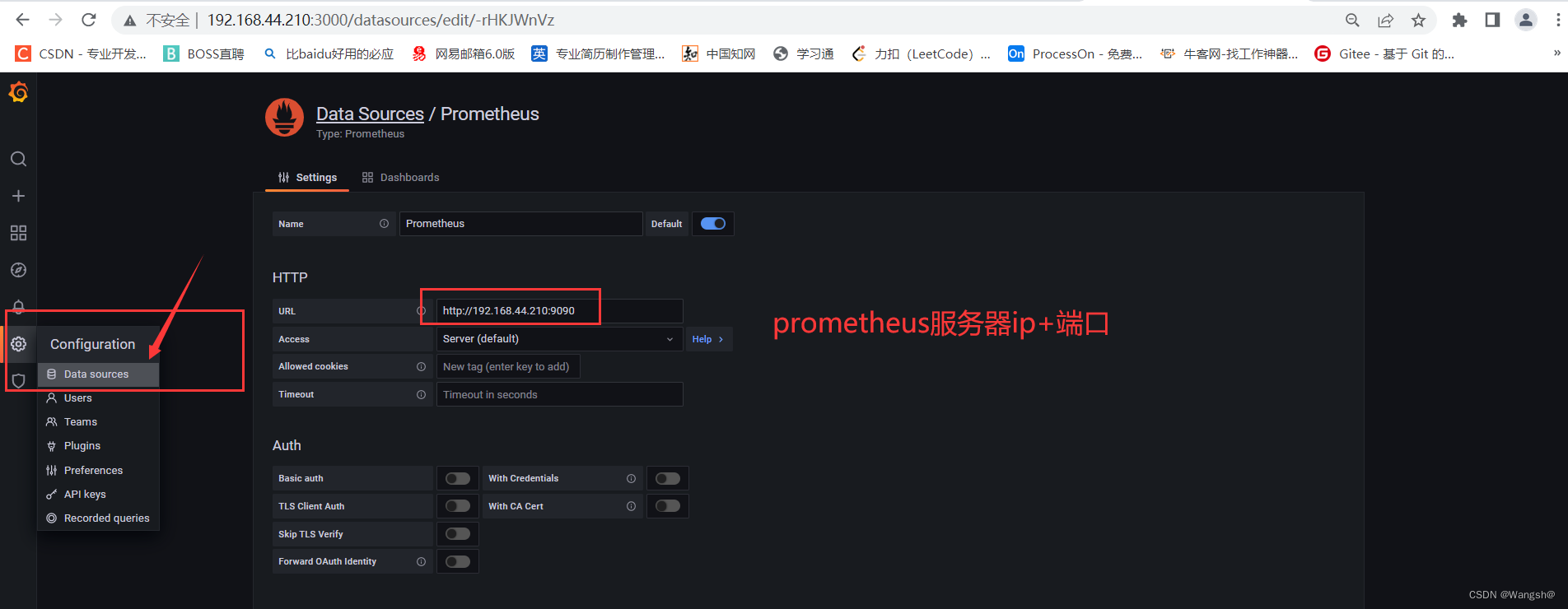

添加数据源
添加新的面板，将想要监控的指标显示出来
####################################################################################
【推荐】国内首个AI IDE，深度理解中文开发场景，立即下载体验Trae
【推荐】编程新体验，更懂你的AI，立即体验豆包MarsCode编程助手
【推荐】抖音旗下AI助手豆包，你的智能百科全书，全免费不限次数
【推荐】轻量又高性能的 SSH 工具 IShell：AI 加持，快人一步
· 无需6万激活码！GitHub神秘组织3小时极速复刻Manus，手把手教你使用OpenManus搭建本
· Manus爆火，是硬核还是营销？
· 终于写完轮子一部分：tcp代理 了，记录一下
· 别再用vector＜bool＞了！Google高级工程师：这可能是STL最大的设计失误
· 单元测试从入门到精通
