006ES索引数据reindex数据copy
一、

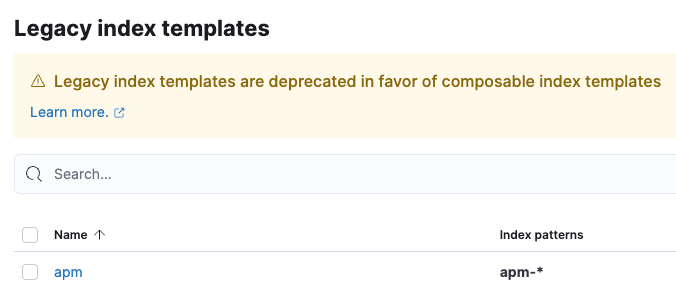

(1)老版本索引template
GET _template/apm
(2)新版本索引template
GET _index_template/apm
二、查看mapping
PUT apm-2023.09.05_0
GET apm-2023.09.05_0/_mapping
三、ES索引数据reindex数据copy
POST _reindex?wait_for_completion=false
{
"source": {
"index": "apm-2023.09.05"
},
"dest": {
"index": "apm-2023.09.05_0"
}
}

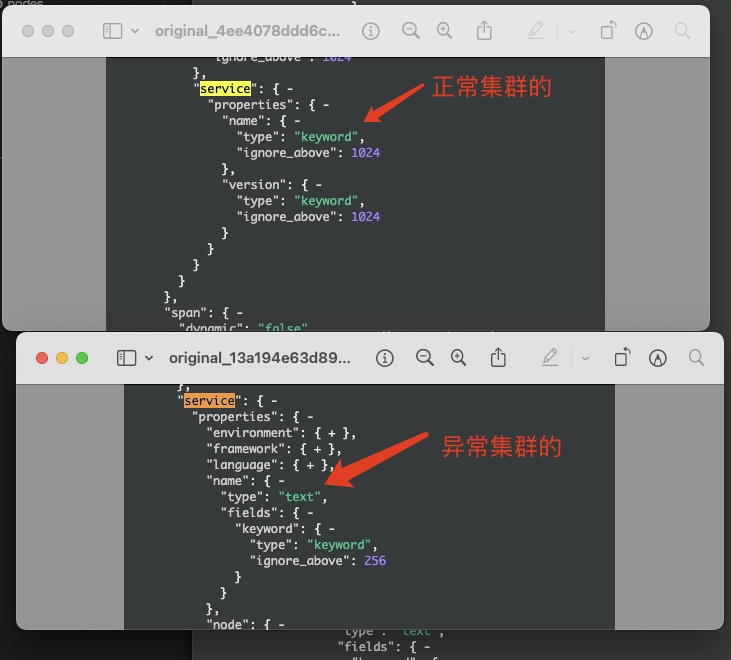

四、apm的service无法显示根本原因
附:apm索引模版创建
PUT _index_template/apm
{
"priority": 10,
"template": {
"settings": {
"index": {
"lifecycle": {
"name": "apm-hot-warm-del",
"rollover_alias": "apm-warm"
},
"routing": {
"allocation": {
"include": {
"_tier_preference": "data_hot,data_warm"
},
"total_shards_per_node": "15"
}
},
"mapping": {
"total_fields": {
"limit": "5000"
}
},
"refresh_interval": "30s",
"number_of_shards": "36"
}
},
"mappings": {
"_source": {
"excludes": [],
"includes": [],
"enabled": true
},
"_meta": {
"beat": "apm",
"version": "7.14.2"
},
"_routing": {
"required": false
},
"dynamic": true,
"numeric_detection": false,
"date_detection": false,
"dynamic_templates": [
{
"labels": {
"path_match": "labels.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"container.labels": {
"path_match": "container.labels.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"dns.answers": {
"path_match": "dns.answers.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"log.syslog": {
"path_match": "log.syslog.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"network.inner": {
"path_match": "network.inner.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"observer.egress": {
"path_match": "observer.egress.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"observer.ingress": {
"path_match": "observer.ingress.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"fields": {
"path_match": "fields.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"docker.container.labels": {
"path_match": "docker.container.labels.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"kubernetes.labels.*": {
"path_match": "kubernetes.labels.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "*"
}
},
{
"kubernetes.annotations.*": {
"path_match": "kubernetes.annotations.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "*"
}
},
{
"labels_string": {
"path_match": "labels.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"labels_boolean": {
"path_match": "labels.*",
"mapping": {
"type": "boolean"
},
"match_mapping_type": "boolean"
}
},
{
"labels_*": {
"path_match": "labels.*",
"mapping": {
"scaling_factor": 1000000,
"type": "scaled_float"
},
"match_mapping_type": "*"
}
},
{
"transaction.marks": {
"path_match": "transaction.marks.*",
"mapping": {
"type": "keyword"
},
"match_mapping_type": "string"
}
},
{
"transaction.marks.*.*": {
"path_match": "transaction.marks.*.*",
"mapping": {
"scaling_factor": 1000000,
"type": "scaled_float"
},
"match_mapping_type": "*"
}
},
{
"strings_as_keyword": {
"mapping": {
"ignore_above": 1024,
"type": "keyword"
},
"match_mapping_type": "string"
}
}
],
"properties": {
"@timestamp": {
"type": "date"
},
"agent": {
"dynamic": false,
"type": "object",
"properties": {
"ephemeral_id": {
"ignore_above": 1024,
"type": "keyword"
},
"hostname": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"as": {
"type": "object",
"properties": {
"number": {
"type": "long"
},
"organization": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"child": {
"dynamic": false,
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"client": {
"dynamic": false,
"type": "object",
"properties": {
"address": {
"ignore_above": 1024,
"type": "keyword"
},
"as": {
"type": "object",
"properties": {
"number": {
"type": "long"
},
"organization": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"bytes": {
"type": "long"
},
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"geo": {
"type": "object",
"properties": {
"city_name": {
"ignore_above": 1024,
"type": "keyword"
},
"continent_name": {
"ignore_above": 1024,
"type": "keyword"
},
"country_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"country_name": {
"ignore_above": 1024,
"type": "keyword"
},
"location": {
"type": "geo_point"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"region_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"region_name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"ip": {
"type": "ip"
},
"mac": {
"ignore_above": 1024,
"type": "keyword"
},
"nat": {
"type": "object",
"properties": {
"ip": {
"type": "ip"
},
"port": {
"type": "long"
}
}
},
"packets": {
"type": "long"
},
"port": {
"type": "long"
},
"registered_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"top_level_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"user": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"email": {
"ignore_above": 1024,
"type": "keyword"
},
"full_name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"group": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"cloud": {
"type": "object",
"properties": {
"account": {
"dynamic": false,
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"availability_zone": {
"ignore_above": 1024,
"type": "keyword"
},
"image": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"instance": {
"dynamic": false,
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"machine": {
"dynamic": false,
"type": "object",
"properties": {
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"project": {
"dynamic": false,
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"provider": {
"ignore_above": 1024,
"type": "keyword"
},
"region": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"code_signature": {
"type": "object",
"properties": {
"exists": {
"type": "boolean"
},
"status": {
"ignore_above": 1024,
"type": "keyword"
},
"subject_name": {
"ignore_above": 1024,
"type": "keyword"
},
"trusted": {
"type": "boolean"
},
"valid": {
"type": "boolean"
}
}
},
"container": {
"dynamic": false,
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"image": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"tag": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"labels": {
"type": "object"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"runtime": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"destination": {
"type": "object",
"properties": {
"address": {
"ignore_above": 1024,
"type": "keyword"
},
"as": {
"type": "object",
"properties": {
"number": {
"type": "long"
},
"organization": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"bytes": {
"type": "long"
},
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"geo": {
"type": "object",
"properties": {
"city_name": {
"ignore_above": 1024,
"type": "keyword"
},
"continent_name": {
"ignore_above": 1024,
"type": "keyword"
},
"country_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"country_name": {
"ignore_above": 1024,
"type": "keyword"
},
"location": {
"type": "geo_point"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"region_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"region_name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"ip": {
"type": "ip"
},
"mac": {
"ignore_above": 1024,
"type": "keyword"
},
"nat": {
"type": "object",
"properties": {
"ip": {
"type": "ip"
},
"port": {
"type": "long"
}
}
},
"packets": {
"type": "long"
},
"port": {
"type": "long"
},
"registered_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"top_level_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"user": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"email": {
"ignore_above": 1024,
"type": "keyword"
},
"full_name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"group": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"dll": {
"type": "object",
"properties": {
"code_signature": {
"type": "object",
"properties": {
"exists": {
"type": "boolean"
},
"status": {
"ignore_above": 1024,
"type": "keyword"
},
"subject_name": {
"ignore_above": 1024,
"type": "keyword"
},
"trusted": {
"type": "boolean"
},
"valid": {
"type": "boolean"
}
}
},
"hash": {
"type": "object",
"properties": {
"md5": {
"ignore_above": 1024,
"type": "keyword"
},
"sha1": {
"ignore_above": 1024,
"type": "keyword"
},
"sha256": {
"ignore_above": 1024,
"type": "keyword"
},
"sha512": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"path": {
"ignore_above": 1024,
"type": "keyword"
},
"pe": {
"type": "object",
"properties": {
"company": {
"ignore_above": 1024,
"type": "keyword"
},
"description": {
"ignore_above": 1024,
"type": "keyword"
},
"file_version": {
"ignore_above": 1024,
"type": "keyword"
},
"original_file_name": {
"ignore_above": 1024,
"type": "keyword"
},
"product": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"dns": {
"type": "object",
"properties": {
"answers": {
"type": "object",
"properties": {
"class": {
"ignore_above": 1024,
"type": "keyword"
},
"data": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"ttl": {
"type": "long"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"header_flags": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"op_code": {
"ignore_above": 1024,
"type": "keyword"
},
"question": {
"type": "object",
"properties": {
"class": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"registered_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"subdomain": {
"ignore_above": 1024,
"type": "keyword"
},
"top_level_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"resolved_ip": {
"type": "ip"
},
"response_code": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"docker": {
"type": "object",
"properties": {
"container": {
"type": "object",
"properties": {
"labels": {
"type": "object"
}
}
}
}
},
"ecs": {
"type": "object",
"properties": {
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"error": {
"dynamic": false,
"type": "object",
"properties": {
"code": {
"ignore_above": 1024,
"type": "keyword"
},
"culprit": {
"ignore_above": 1024,
"type": "keyword"
},
"exception": {
"type": "object",
"properties": {
"code": {
"ignore_above": 1024,
"type": "keyword"
},
"handled": {
"type": "boolean"
},
"message": {
"norms": false,
"type": "text"
},
"module": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"grouping_key": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"log": {
"type": "object",
"properties": {
"level": {
"ignore_above": 1024,
"type": "keyword"
},
"logger_name": {
"ignore_above": 1024,
"type": "keyword"
},
"message": {
"norms": false,
"type": "text"
},
"param_message": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"message": {
"norms": false,
"type": "text"
},
"stack_trace": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"event": {
"type": "object",
"properties": {
"action": {
"ignore_above": 1024,
"type": "keyword"
},
"category": {
"ignore_above": 1024,
"type": "keyword"
},
"code": {
"ignore_above": 1024,
"type": "keyword"
},
"created": {
"type": "date"
},
"dataset": {
"ignore_above": 1024,
"type": "keyword"
},
"duration": {
"type": "long"
},
"end": {
"type": "date"
},
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"ingested": {
"type": "date"
},
"kind": {
"ignore_above": 1024,
"type": "keyword"
},
"module": {
"ignore_above": 1024,
"type": "keyword"
},
"original": {
"ignore_above": 1024,
"type": "keyword"
},
"outcome": {
"ignore_above": 1024,
"type": "keyword"
},
"provider": {
"ignore_above": 1024,
"type": "keyword"
},
"reference": {
"ignore_above": 1024,
"type": "keyword"
},
"risk_score": {
"type": "float"
},
"risk_score_norm": {
"type": "float"
},
"sequence": {
"type": "long"
},
"severity": {
"type": "long"
},
"start": {
"type": "date"
},
"timezone": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"url": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"experimental": {
"dynamic": true,
"type": "object"
},
"fields": {
"type": "object"
},
"file": {
"type": "object",
"properties": {
"accessed": {
"type": "date"
},
"attributes": {
"ignore_above": 1024,
"type": "keyword"
},
"code_signature": {
"type": "object",
"properties": {
"exists": {
"type": "boolean"
},
"status": {
"ignore_above": 1024,
"type": "keyword"
},
"subject_name": {
"ignore_above": 1024,
"type": "keyword"
},
"trusted": {
"type": "boolean"
},
"valid": {
"type": "boolean"
}
}
},
"created": {
"type": "date"
},
"ctime": {
"type": "date"
},
"device": {
"ignore_above": 1024,
"type": "keyword"
},
"directory": {
"ignore_above": 1024,
"type": "keyword"
},
"drive_letter": {
"ignore_above": 1,
"type": "keyword"
},
"extension": {
"ignore_above": 1024,
"type": "keyword"
},
"gid": {
"ignore_above": 1024,
"type": "keyword"
},
"group": {
"ignore_above": 1024,
"type": "keyword"
},
"hash": {
"type": "object",
"properties": {
"md5": {
"ignore_above": 1024,
"type": "keyword"
},
"sha1": {
"ignore_above": 1024,
"type": "keyword"
},
"sha256": {
"ignore_above": 1024,
"type": "keyword"
},
"sha512": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"inode": {
"ignore_above": 1024,
"type": "keyword"
},
"mime_type": {
"ignore_above": 1024,
"type": "keyword"
},
"mode": {
"ignore_above": 1024,
"type": "keyword"
},
"mtime": {
"type": "date"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"owner": {
"ignore_above": 1024,
"type": "keyword"
},
"path": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"pe": {
"type": "object",
"properties": {
"company": {
"ignore_above": 1024,
"type": "keyword"
},
"description": {
"ignore_above": 1024,
"type": "keyword"
},
"file_version": {
"ignore_above": 1024,
"type": "keyword"
},
"original_file_name": {
"ignore_above": 1024,
"type": "keyword"
},
"product": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"size": {
"type": "long"
},
"target_path": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"uid": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"geo": {
"type": "object",
"properties": {
"city_name": {
"ignore_above": 1024,
"type": "keyword"
},
"continent_name": {
"ignore_above": 1024,
"type": "keyword"
},
"country_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"country_name": {
"ignore_above": 1024,
"type": "keyword"
},
"location": {
"type": "geo_point"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"region_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"region_name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"group": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hash": {
"type": "object",
"properties": {
"md5": {
"ignore_above": 1024,
"type": "keyword"
},
"sha1": {
"ignore_above": 1024,
"type": "keyword"
},
"sha256": {
"ignore_above": 1024,
"type": "keyword"
},
"sha512": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"host": {
"dynamic": false,
"type": "object",
"properties": {
"architecture": {
"ignore_above": 1024,
"type": "keyword"
},
"containerized": {
"type": "boolean"
},
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"geo": {
"type": "object",
"properties": {
"city_name": {
"ignore_above": 1024,
"type": "keyword"
},
"continent_name": {
"ignore_above": 1024,
"type": "keyword"
},
"country_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"country_name": {
"ignore_above": 1024,
"type": "keyword"
},
"location": {
"type": "geo_point"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"region_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"region_name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hostname": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"ip": {
"type": "ip"
},
"mac": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"os": {
"type": "object",
"properties": {
"build": {
"ignore_above": 1024,
"type": "keyword"
},
"codename": {
"ignore_above": 1024,
"type": "keyword"
},
"family": {
"ignore_above": 1024,
"type": "keyword"
},
"full": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"kernel": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"platform": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"uptime": {
"type": "long"
},
"user": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"email": {
"ignore_above": 1024,
"type": "keyword"
},
"full_name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"group": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"http": {
"dynamic": false,
"type": "object",
"properties": {
"request": {
"type": "object",
"properties": {
"body": {
"type": "object",
"properties": {
"bytes": {
"type": "long"
},
"content": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
},
"bytes": {
"type": "long"
},
"headers": {
"type": "object",
"enabled": false
},
"method": {
"ignore_above": 1024,
"type": "keyword"
},
"referrer": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"response": {
"type": "object",
"properties": {
"body": {
"type": "object",
"properties": {
"bytes": {
"type": "long"
},
"content": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
},
"bytes": {
"type": "long"
},
"finished": {
"type": "boolean"
},
"headers": {
"type": "object",
"enabled": false
},
"status_code": {
"type": "long"
}
}
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"interface": {
"type": "object",
"properties": {
"alias": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"kubernetes": {
"dynamic": false,
"type": "object",
"properties": {
"annotations": {
"type": "object",
"properties": {
"*": {
"type": "object"
}
}
},
"container": {
"type": "object",
"properties": {
"image": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"deployment": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"labels": {
"type": "object",
"properties": {
"*": {
"type": "object"
}
}
},
"namespace": {
"ignore_above": 1024,
"type": "keyword"
},
"node": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"pod": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"uid": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"replicaset": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"statefulset": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"labels": {
"dynamic": true,
"type": "object"
},
"log": {
"type": "object",
"properties": {
"level": {
"ignore_above": 1024,
"type": "keyword"
},
"logger": {
"ignore_above": 1024,
"type": "keyword"
},
"origin": {
"type": "object",
"properties": {
"file": {
"type": "object",
"properties": {
"line": {
"type": "long"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"function": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"original": {
"ignore_above": 1024,
"type": "keyword"
},
"syslog": {
"type": "object",
"properties": {
"facility": {
"type": "object",
"properties": {
"code": {
"type": "long"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"priority": {
"type": "long"
},
"severity": {
"type": "object",
"properties": {
"code": {
"type": "long"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
}
}
},
"message": {
"norms": false,
"type": "text"
},
"network": {
"type": "object",
"properties": {
"application": {
"ignore_above": 1024,
"type": "keyword"
},
"bytes": {
"type": "long"
},
"community_id": {
"ignore_above": 1024,
"type": "keyword"
},
"direction": {
"ignore_above": 1024,
"type": "keyword"
},
"forwarded_ip": {
"type": "ip"
},
"iana_number": {
"ignore_above": 1024,
"type": "keyword"
},
"inner": {
"type": "object",
"properties": {
"vlan": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"packets": {
"type": "long"
},
"protocol": {
"ignore_above": 1024,
"type": "keyword"
},
"transport": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"vlan": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"observer": {
"dynamic": false,
"type": "object",
"properties": {
"egress": {
"type": "object",
"properties": {
"interface": {
"type": "object",
"properties": {
"alias": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"vlan": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"zone": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"geo": {
"type": "object",
"properties": {
"city_name": {
"ignore_above": 1024,
"type": "keyword"
},
"continent_name": {
"ignore_above": 1024,
"type": "keyword"
},
"country_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"country_name": {
"ignore_above": 1024,
"type": "keyword"
},
"location": {
"type": "geo_point"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"region_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"region_name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hostname": {
"ignore_above": 1024,
"type": "keyword"
},
"ingress": {
"type": "object",
"properties": {
"interface": {
"type": "object",
"properties": {
"alias": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"vlan": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"zone": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"ip": {
"type": "ip"
},
"listening": {
"ignore_above": 1024,
"type": "keyword"
},
"mac": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"os": {
"type": "object",
"properties": {
"family": {
"ignore_above": 1024,
"type": "keyword"
},
"full": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"kernel": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"platform": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"product": {
"ignore_above": 1024,
"type": "keyword"
},
"serial_number": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"vendor": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
},
"version_major": {
"type": "byte"
}
}
},
"organization": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
},
"os": {
"type": "object",
"properties": {
"family": {
"ignore_above": 1024,
"type": "keyword"
},
"full": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"kernel": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"platform": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"package": {
"type": "object",
"properties": {
"architecture": {
"ignore_above": 1024,
"type": "keyword"
},
"build_version": {
"ignore_above": 1024,
"type": "keyword"
},
"checksum": {
"ignore_above": 1024,
"type": "keyword"
},
"description": {
"ignore_above": 1024,
"type": "keyword"
},
"install_scope": {
"ignore_above": 1024,
"type": "keyword"
},
"installed": {
"type": "date"
},
"license": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"path": {
"ignore_above": 1024,
"type": "keyword"
},
"reference": {
"ignore_above": 1024,
"type": "keyword"
},
"size": {
"type": "long"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"parent": {
"dynamic": false,
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"pe": {
"type": "object",
"properties": {
"company": {
"ignore_above": 1024,
"type": "keyword"
},
"description": {
"ignore_above": 1024,
"type": "keyword"
},
"file_version": {
"ignore_above": 1024,
"type": "keyword"
},
"original_file_name": {
"ignore_above": 1024,
"type": "keyword"
},
"product": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"process": {
"dynamic": false,
"type": "object",
"properties": {
"args": {
"ignore_above": 1024,
"type": "keyword"
},
"args_count": {
"type": "long"
},
"code_signature": {
"type": "object",
"properties": {
"exists": {
"type": "boolean"
},
"status": {
"ignore_above": 1024,
"type": "keyword"
},
"subject_name": {
"ignore_above": 1024,
"type": "keyword"
},
"trusted": {
"type": "boolean"
},
"valid": {
"type": "boolean"
}
}
},
"command_line": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"entity_id": {
"ignore_above": 1024,
"type": "keyword"
},
"executable": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"exit_code": {
"type": "long"
},
"hash": {
"type": "object",
"properties": {
"md5": {
"ignore_above": 1024,
"type": "keyword"
},
"sha1": {
"ignore_above": 1024,
"type": "keyword"
},
"sha256": {
"ignore_above": 1024,
"type": "keyword"
},
"sha512": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"parent": {
"type": "object",
"properties": {
"args": {
"ignore_above": 1024,
"type": "keyword"
},
"args_count": {
"type": "long"
},
"code_signature": {
"type": "object",
"properties": {
"exists": {
"type": "boolean"
},
"status": {
"ignore_above": 1024,
"type": "keyword"
},
"subject_name": {
"ignore_above": 1024,
"type": "keyword"
},
"trusted": {
"type": "boolean"
},
"valid": {
"type": "boolean"
}
}
},
"command_line": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"entity_id": {
"ignore_above": 1024,
"type": "keyword"
},
"executable": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"exit_code": {
"type": "long"
},
"hash": {
"type": "object",
"properties": {
"md5": {
"ignore_above": 1024,
"type": "keyword"
},
"sha1": {
"ignore_above": 1024,
"type": "keyword"
},
"sha256": {
"ignore_above": 1024,
"type": "keyword"
},
"sha512": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"pgid": {
"type": "long"
},
"pid": {
"type": "long"
},
"ppid": {
"type": "long"
},
"start": {
"type": "date"
},
"thread": {
"type": "object",
"properties": {
"id": {
"type": "long"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"title": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"uptime": {
"type": "long"
},
"working_directory": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
},
"pe": {
"type": "object",
"properties": {
"company": {
"ignore_above": 1024,
"type": "keyword"
},
"description": {
"ignore_above": 1024,
"type": "keyword"
},
"file_version": {
"ignore_above": 1024,
"type": "keyword"
},
"original_file_name": {
"ignore_above": 1024,
"type": "keyword"
},
"product": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"pgid": {
"type": "long"
},
"pid": {
"type": "long"
},
"ppid": {
"type": "long"
},
"start": {
"type": "date"
},
"thread": {
"type": "object",
"properties": {
"id": {
"type": "long"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"title": {
"ignore_above": 1024,
"type": "keyword"
},
"uptime": {
"type": "long"
},
"working_directory": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
},
"processor": {
"type": "object",
"properties": {
"event": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"profile": {
"dynamic": false,
"type": "object",
"properties": {
"alloc_objects": {
"type": "object",
"properties": {
"count": {
"type": "long"
}
}
},
"alloc_space": {
"type": "object",
"properties": {
"bytes": {
"type": "long"
}
}
},
"cpu": {
"type": "object",
"properties": {
"ns": {
"type": "long"
}
}
},
"duration": {
"type": "long"
},
"inuse_objects": {
"type": "object",
"properties": {
"count": {
"type": "long"
}
}
},
"inuse_space": {
"type": "object",
"properties": {
"bytes": {
"type": "long"
}
}
},
"samples": {
"type": "object",
"properties": {
"count": {
"type": "long"
}
}
},
"stack": {
"dynamic": false,
"type": "object",
"properties": {
"filename": {
"ignore_above": 1024,
"type": "keyword"
},
"function": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"line": {
"type": "long"
}
}
},
"top": {
"dynamic": false,
"type": "object",
"properties": {
"filename": {
"ignore_above": 1024,
"type": "keyword"
},
"function": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"line": {
"type": "long"
}
}
}
}
},
"registry": {
"type": "object",
"properties": {
"data": {
"type": "object",
"properties": {
"bytes": {
"ignore_above": 1024,
"type": "keyword"
},
"strings": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hive": {
"ignore_above": 1024,
"type": "keyword"
},
"key": {
"ignore_above": 1024,
"type": "keyword"
},
"path": {
"ignore_above": 1024,
"type": "keyword"
},
"value": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"related": {
"type": "object",
"properties": {
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"ip": {
"type": "ip"
},
"user": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"rule": {
"type": "object",
"properties": {
"author": {
"ignore_above": 1024,
"type": "keyword"
},
"category": {
"ignore_above": 1024,
"type": "keyword"
},
"description": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"license": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"reference": {
"ignore_above": 1024,
"type": "keyword"
},
"ruleset": {
"ignore_above": 1024,
"type": "keyword"
},
"uuid": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"server": {
"type": "object",
"properties": {
"address": {
"ignore_above": 1024,
"type": "keyword"
},
"as": {
"type": "object",
"properties": {
"number": {
"type": "long"
},
"organization": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"bytes": {
"type": "long"
},
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"geo": {
"type": "object",
"properties": {
"city_name": {
"ignore_above": 1024,
"type": "keyword"
},
"continent_name": {
"ignore_above": 1024,
"type": "keyword"
},
"country_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"country_name": {
"ignore_above": 1024,
"type": "keyword"
},
"location": {
"type": "geo_point"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"region_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"region_name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"ip": {
"type": "ip"
},
"mac": {
"ignore_above": 1024,
"type": "keyword"
},
"nat": {
"type": "object",
"properties": {
"ip": {
"type": "ip"
},
"port": {
"type": "long"
}
}
},
"packets": {
"type": "long"
},
"port": {
"type": "long"
},
"registered_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"top_level_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"user": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"email": {
"ignore_above": 1024,
"type": "keyword"
},
"full_name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"group": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"service": {
"dynamic": false,
"type": "object",
"properties": {
"environment": {
"ignore_above": 1024,
"type": "keyword"
},
"ephemeral_id": {
"ignore_above": 1024,
"type": "keyword"
},
"framework": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"language": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"node": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"runtime": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"state": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"source": {
"dynamic": false,
"type": "object",
"properties": {
"address": {
"ignore_above": 1024,
"type": "keyword"
},
"as": {
"type": "object",
"properties": {
"number": {
"type": "long"
},
"organization": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"bytes": {
"type": "long"
},
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"geo": {
"type": "object",
"properties": {
"city_name": {
"ignore_above": 1024,
"type": "keyword"
},
"continent_name": {
"ignore_above": 1024,
"type": "keyword"
},
"country_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"country_name": {
"ignore_above": 1024,
"type": "keyword"
},
"location": {
"type": "geo_point"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"region_iso_code": {
"ignore_above": 1024,
"type": "keyword"
},
"region_name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"ip": {
"type": "ip"
},
"mac": {
"ignore_above": 1024,
"type": "keyword"
},
"nat": {
"type": "object",
"properties": {
"ip": {
"type": "ip"
},
"port": {
"type": "long"
}
}
},
"packets": {
"type": "long"
},
"port": {
"type": "long"
},
"registered_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"top_level_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"user": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"email": {
"ignore_above": 1024,
"type": "keyword"
},
"full_name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"group": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
}
}
}
}
},
"sourcemap": {
"dynamic": false,
"type": "object",
"properties": {
"bundle_filepath": {
"ignore_above": 1024,
"type": "keyword"
},
"service": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"span": {
"dynamic": false,
"type": "object",
"properties": {
"action": {
"ignore_above": 1024,
"type": "keyword"
},
"db": {
"dynamic": false,
"type": "object",
"properties": {
"link": {
"ignore_above": 1024,
"type": "keyword"
},
"rows_affected": {
"type": "long"
}
}
},
"destination": {
"dynamic": false,
"type": "object",
"properties": {
"service": {
"dynamic": false,
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"resource": {
"ignore_above": 1024,
"type": "keyword"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"duration": {
"type": "object",
"properties": {
"us": {
"type": "long"
}
}
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"message": {
"dynamic": false,
"type": "object",
"properties": {
"age": {
"type": "object",
"properties": {
"ms": {
"type": "long"
}
}
},
"queue": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"self_time": {
"type": "object",
"properties": {
"count": {
"type": "long"
},
"sum": {
"type": "object",
"properties": {
"us": {
"type": "long"
}
}
}
}
},
"start": {
"type": "object",
"properties": {
"us": {
"type": "long"
}
}
},
"subtype": {
"ignore_above": 1024,
"type": "keyword"
},
"sync": {
"type": "boolean"
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"system": {
"type": "object",
"properties": {
"cpu": {
"type": "object",
"properties": {
"total": {
"type": "object",
"properties": {
"norm": {
"type": "object",
"properties": {
"pct": {
"scaling_factor": 1000,
"type": "scaled_float"
}
}
}
}
}
}
},
"memory": {
"type": "object",
"properties": {
"actual": {
"type": "object",
"properties": {
"free": {
"type": "long"
}
}
},
"total": {
"type": "long"
}
}
},
"process": {
"type": "object",
"properties": {
"cpu": {
"type": "object",
"properties": {
"total": {
"type": "object",
"properties": {
"norm": {
"type": "object",
"properties": {
"pct": {
"scaling_factor": 1000,
"type": "scaled_float"
}
}
}
}
}
}
},
"memory": {
"type": "object",
"properties": {
"rss": {
"type": "object",
"properties": {
"bytes": {
"type": "long"
}
}
},
"size": {
"type": "long"
}
}
}
}
}
}
},
"tags": {
"ignore_above": 1024,
"type": "keyword"
},
"threat": {
"type": "object",
"properties": {
"framework": {
"ignore_above": 1024,
"type": "keyword"
},
"tactic": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"reference": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"technique": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"reference": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"timeseries": {
"type": "object",
"properties": {
"instance": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"timestamp": {
"type": "object",
"properties": {
"us": {
"type": "long"
}
}
},
"tls": {
"type": "object",
"properties": {
"cipher": {
"ignore_above": 1024,
"type": "keyword"
},
"client": {
"type": "object",
"properties": {
"certificate": {
"ignore_above": 1024,
"type": "keyword"
},
"certificate_chain": {
"ignore_above": 1024,
"type": "keyword"
},
"hash": {
"type": "object",
"properties": {
"md5": {
"ignore_above": 1024,
"type": "keyword"
},
"sha1": {
"ignore_above": 1024,
"type": "keyword"
},
"sha256": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"issuer": {
"ignore_above": 1024,
"type": "keyword"
},
"ja3": {
"ignore_above": 1024,
"type": "keyword"
},
"not_after": {
"type": "date"
},
"not_before": {
"type": "date"
},
"server_name": {
"ignore_above": 1024,
"type": "keyword"
},
"subject": {
"ignore_above": 1024,
"type": "keyword"
},
"supported_ciphers": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"curve": {
"ignore_above": 1024,
"type": "keyword"
},
"established": {
"type": "boolean"
},
"next_protocol": {
"ignore_above": 1024,
"type": "keyword"
},
"resumed": {
"type": "boolean"
},
"server": {
"type": "object",
"properties": {
"certificate": {
"ignore_above": 1024,
"type": "keyword"
},
"certificate_chain": {
"ignore_above": 1024,
"type": "keyword"
},
"hash": {
"type": "object",
"properties": {
"md5": {
"ignore_above": 1024,
"type": "keyword"
},
"sha1": {
"ignore_above": 1024,
"type": "keyword"
},
"sha256": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"issuer": {
"ignore_above": 1024,
"type": "keyword"
},
"ja3s": {
"ignore_above": 1024,
"type": "keyword"
},
"not_after": {
"type": "date"
},
"not_before": {
"type": "date"
},
"subject": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"version": {
"ignore_above": 1024,
"type": "keyword"
},
"version_protocol": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"trace": {
"dynamic": false,
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"tracing": {
"type": "object",
"properties": {
"trace": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"transaction": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"transaction": {
"dynamic": false,
"type": "object",
"properties": {
"breakdown": {
"type": "object",
"properties": {
"count": {
"type": "long"
}
}
},
"duration": {
"type": "object",
"properties": {
"count": {
"type": "long"
},
"sum": {
"type": "object",
"properties": {
"us": {
"type": "long"
}
}
},
"us": {
"type": "long"
}
}
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"marks": {
"dynamic": true,
"type": "object",
"properties": {
"*": {
"type": "object",
"properties": {
"*": {
"dynamic": true,
"type": "object"
}
}
}
}
},
"message": {
"dynamic": false,
"type": "object",
"properties": {
"age": {
"type": "object",
"properties": {
"ms": {
"type": "long"
}
}
},
"queue": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"result": {
"ignore_above": 1024,
"type": "keyword"
},
"root": {
"type": "boolean"
},
"sampled": {
"type": "boolean"
},
"self_time": {
"type": "object",
"properties": {
"count": {
"type": "long"
},
"sum": {
"type": "object",
"properties": {
"us": {
"type": "long"
}
}
}
}
},
"span_count": {
"type": "object",
"properties": {
"dropped": {
"type": "long"
}
}
},
"type": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"url": {
"dynamic": false,
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"extension": {
"ignore_above": 1024,
"type": "keyword"
},
"fragment": {
"ignore_above": 1024,
"type": "keyword"
},
"full": {
"ignore_above": 1024,
"type": "keyword"
},
"original": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"password": {
"ignore_above": 1024,
"type": "keyword"
},
"path": {
"ignore_above": 1024,
"type": "keyword"
},
"port": {
"type": "long"
},
"query": {
"ignore_above": 1024,
"type": "keyword"
},
"registered_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"scheme": {
"ignore_above": 1024,
"type": "keyword"
},
"top_level_domain": {
"ignore_above": 1024,
"type": "keyword"
},
"username": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"user": {
"dynamic": false,
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"email": {
"ignore_above": 1024,
"type": "keyword"
},
"full_name": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"group": {
"type": "object",
"properties": {
"domain": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"hash": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"user_agent": {
"dynamic": false,
"type": "object",
"properties": {
"device": {
"type": "object",
"properties": {
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"original": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"os": {
"type": "object",
"properties": {
"family": {
"ignore_above": 1024,
"type": "keyword"
},
"full": {
"ignore_above": 1024,
"type": "keyword"
},
"kernel": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
},
"platform": {
"ignore_above": 1024,
"type": "keyword"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"view spans": {
"ignore_above": 1024,
"type": "keyword"
},
"vlan": {
"type": "object",
"properties": {
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"name": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"vulnerability": {
"type": "object",
"properties": {
"category": {
"ignore_above": 1024,
"type": "keyword"
},
"classification": {
"ignore_above": 1024,
"type": "keyword"
},
"description": {
"ignore_above": 1024,
"type": "keyword",
"fields": {
"text": {
"norms": false,
"type": "text"
}
}
},
"enumeration": {
"ignore_above": 1024,
"type": "keyword"
},
"id": {
"ignore_above": 1024,
"type": "keyword"
},
"reference": {
"ignore_above": 1024,
"type": "keyword"
},
"report_id": {
"ignore_above": 1024,
"type": "keyword"
},
"scanner": {
"type": "object",
"properties": {
"vendor": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"score": {
"type": "object",
"properties": {
"base": {
"type": "float"
},
"environmental": {
"type": "float"
},
"temporal": {
"type": "float"
},
"version": {
"ignore_above": 1024,
"type": "keyword"
}
}
},
"severity": {
"ignore_above": 1024,
"type": "keyword"
}
}
}
}
}
},
"index_patterns": [
"apm-*"
]
}
浙公网安备 33010602011771号
