iOS开发 - 用AFNetworking实现https单向验证，双向验证
自苹果宣布2017年1月1日开始强制使用https以来，htpps慢慢成为大家讨论的对象之一，不是说此前https没有出现，只是这一决策让得开发者始料未及，博主在15年的时候就做过https的接口，深知此坑之深，原因就是自身对这方面知识不了解加上网上的资料少，除此外还有博客不知对错就互相转载，导致当时网上几乎找不到能用的代码，这一点，博主说的毫不夸张。
鉴于此，博主一直想填一下这个坑，多增加一些正确的代码，来供广大开发者使用，后来一直被搁置，经过尝试后，博主现将整理好的代码发布在这里，希望能帮到焦急寻找的开发者。
1.先来说说老的AFNetworking2.x怎么来实现的
博主在网上看过几篇帖子，其中说的一些方法是正确的，但是却并不全对，由于那几篇博客几乎一样，博主不能确定最早的那篇是谁写的，所以就重新在下面说明下方法：
1）倒入client.p12证书；

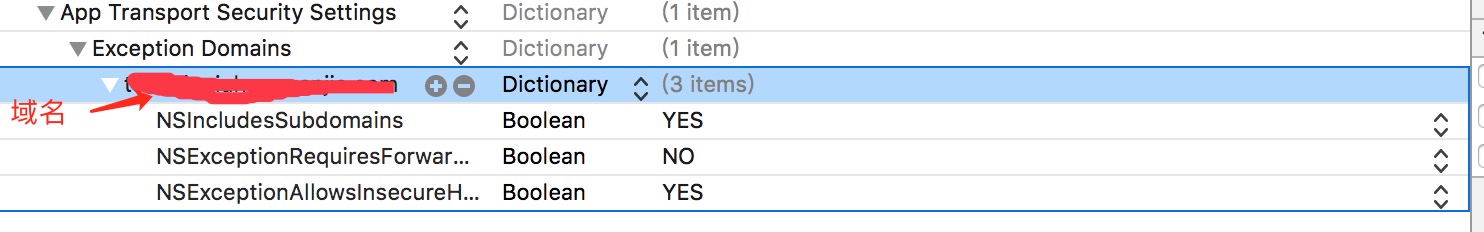

2）在plist文件做如图配置：
各个项代表的含义请看这篇博客，博主写的很详细：http://blog.csdn.net/zhouzhoujianquan/article/details/53401506 除了一些说明，对方也提供了一些代码，大家可以拿来相互印证；
3）在AFNetworking中修改一个类：
找到这个文件，在里面增加一个方法：
- (OSStatus)extractIdentity:(CFDataRef)inP12Data toIdentity:(SecIdentityRef*)identity {
OSStatus securityError = errSecSuccess;
CFStringRef password = CFSTR("证书密码");
const void *keys[] = { kSecImportExportPassphrase };
const void *values[] = { password };
CFDictionaryRef options = CFDictionaryCreate(NULL, keys, values, 1, NULL, NULL);
CFArrayRef items = CFArrayCreate(NULL, 0, 0, NULL);
securityError = SecPKCS12Import(inP12Data, options, &items);
if (securityError == 0)
{
CFDictionaryRef ident = CFArrayGetValueAtIndex(items,0);
const void *tempIdentity = NULL;
tempIdentity = CFDictionaryGetValue(ident, kSecImportItemIdentity);
*identity = (SecIdentityRef)tempIdentity;
}
if (options) {
CFRelease(options);
}
return securityError;
}
再修改一个方法：
用下面的这段代码替换NSURLConnectionDelegate中的同名代码，
- (void)connection:(NSURLConnection *)connection
willSendRequestForAuthenticationChallenge:(NSURLAuthenticationChallenge *)challenge
{
NSString *thePath = [[NSBundle mainBundle] pathForResource:@"client" ofType:@"p12"];
//倒入证书 NSLog(@"thePath===========%@",thePath);
NSData *PKCS12Data = [[NSData alloc] initWithContentsOfFile:thePath];
CFDataRef inPKCS12Data = (__bridge CFDataRef)PKCS12Data;
SecIdentityRef identity = NULL;
// extract the ideneity from the certificate
[self extractIdentity :inPKCS12Data toIdentity:&identity];
SecCertificateRef certificate = NULL;
SecIdentityCopyCertificate (identity, &certificate);
const void *certs[] = {certificate};
// CFArrayRef certArray = CFArrayCreate(kCFAllocatorDefault, certs, 1, NULL);
// create a credential from the certificate and ideneity, then reply to the challenge with the credential
//NSLog(@"identity=========%@",identity);
NSURLCredential *credential = [NSURLCredential credentialWithIdentity:identity certificates:nil persistence:NSURLCredentialPersistencePermanent];
// credential = [NSURLCredential credentialWithIdentity:identity certificates:(__bridge NSArray*)certArray persistence:NSURLCredentialPersistencePermanent];
[challenge.sender useCredential:credential forAuthenticationChallenge:challenge];
}
4）发起请求
NSString *url = @"xxxxxxxxxx";
// 1.获得请求管理者
AFHTTPRequestOperationManager *mgr = [AFHTTPRequestOperationManager manager];
//2设置https 请求
AFSecurityPolicy *securityPolicy = [AFSecurityPolicy policyWithPinningMode:AFSSLPinningModeCertificate];
securityPolicy.allowInvalidCertificates = YES;
mgr.securityPolicy = securityPolicy;
// 3.发送POST请求
[mgr POST:url parameters:nil success:^(AFHTTPRequestOperation * _Nonnull operation, id _Nonnull responseObject) {
NSLog(@"responseObject: %@", responseObject);
} failure:^(AFHTTPRequestOperation * _Nonnull operation, NSError * _Nonnull error) {
NSLog(@"Error: %@", error);
}];
到此，老版的AFNetworking请求https接口的双向验证就做完了，但是有一个问题，这里需要改动AFNetworking的代码，何况新的AFNetworking已经有了，为了保持代码的活力，老的应该摒弃的，而且更新pods后肯定替换的代码就没了，也是一个问题，不要急，下面来说说怎么用新的AFNetworking，并解决被pods更新替换代码的问题。
最后再说一点，使用老的AF来请求，只用到了client.p12文件，并没有用到server.cer，在新的里面是有用到的，猜测可能是客户端选择信任任何证书导致的，就变成了单向的验证。
Demo放在最后
2.来说说新的AFNetworking3.x怎么来实现的
1）倒入client.p12和server.cer文件
2）plist内的设置，这是和上面一样的：
各个项代表的含义请看这篇博客，博主写的很详细：http://blog.csdn.net/zhouzhoujianquan/article/details/53401506 除了一些说明，对方也提供了一些代码，大家可以拿来相互印证；
3）这里可不需要修改类里面的代码，但是这里需要重写一个方法：
NSString *url = @"https://test.niuniuhaoguanjia.com/3.0.0/?service=City.GetCityList";
NSString *certFilePath = [[NSBundle mainBundle] pathForResource:@"server" ofType:@"cer"];
NSData *certData = [NSData dataWithContentsOfFile:certFilePath];
NSSet *certSet = [NSSet setWithObject:certData];
AFSecurityPolicy *policy = [AFSecurityPolicy policyWithPinningMode:AFSSLPinningModeCertificate withPinnedCertificates:certSet];
policy.allowInvalidCertificates = YES;
policy.validatesDomainName = NO;
_manager = [AFHTTPSessionManager manager];
_manager.securityPolicy = policy;
_manager.requestSerializer = [AFHTTPRequestSerializer serializer];
_manager.responseSerializer = [AFHTTPResponseSerializer serializer];
_manager.responseSerializer.acceptableContentTypes = [NSSet setWithObjects:@"application/json", @"text/json", @"text/javascript",@"text/plain", nil];
//关闭缓存避免干扰测试r
_manager.requestSerializer.cachePolicy = NSURLRequestReloadIgnoringLocalCacheData;
[_manager setSessionDidBecomeInvalidBlock:^(NSURLSession * _Nonnull session, NSError * _Nonnull error) {
NSLog(@"setSessionDidBecomeInvalidBlock");
}];
//客户端请求验证 重写 setSessionDidReceiveAuthenticationChallengeBlock 方法
__weak typeof(self)weakSelf = self;
[_manager setSessionDidReceiveAuthenticationChallengeBlock:^NSURLSessionAuthChallengeDisposition(NSURLSession*session, NSURLAuthenticationChallenge *challenge, NSURLCredential *__autoreleasing*_credential) {
NSURLSessionAuthChallengeDisposition disposition = NSURLSessionAuthChallengePerformDefaultHandling;
__autoreleasing NSURLCredential *credential =nil;
if([challenge.protectionSpace.authenticationMethod isEqualToString:NSURLAuthenticationMethodServerTrust]) {
if([weakSelf.manager.securityPolicy evaluateServerTrust:challenge.protectionSpace.serverTrust forDomain:challenge.protectionSpace.host]) {
credential = [NSURLCredential credentialForTrust:challenge.protectionSpace.serverTrust];
if(credential) {
disposition =NSURLSessionAuthChallengeUseCredential;
} else {
disposition =NSURLSessionAuthChallengePerformDefaultHandling;
}
} else {
disposition = NSURLSessionAuthChallengeCancelAuthenticationChallenge;
}
} else {
// client authentication
SecIdentityRef identity = NULL;
SecTrustRef trust = NULL;
NSString *p12 = [[NSBundle mainBundle] pathForResource:@"client"ofType:@"p12"];
NSFileManager *fileManager =[NSFileManager defaultManager];
if(![fileManager fileExistsAtPath:p12])
{
NSLog(@"client.p12:not exist");
}
else
{
NSData *PKCS12Data = [NSData dataWithContentsOfFile:p12];
if ([[weakSelf class]extractIdentity:&identity andTrust:&trust fromPKCS12Data:PKCS12Data])
{
SecCertificateRef certificate = NULL;
SecIdentityCopyCertificate(identity, &certificate);
const void*certs[] = {certificate};
CFArrayRef certArray =CFArrayCreate(kCFAllocatorDefault, certs,1,NULL);
credential =[NSURLCredential credentialWithIdentity:identity certificates:(__bridge NSArray*)certArray persistence:NSURLCredentialPersistencePermanent];
disposition =NSURLSessionAuthChallengeUseCredential;
}
}
}
*_credential = credential;
return disposition;
}];
关于这段代码，其实和老的AF里面修改的道理是一样的，可以看下这篇文章：http://www.jianshu.com/p/9e573607be13
4）发起请求
//第三步和这一步代码是放在一起的，请注意哦
[_manager GET:url parameters:nil progress:^(NSProgress * _Nonnull downloadProgress) {
} success:^(NSURLSessionDataTask * _Nonnull task, id _Nullable responseObject) {
NSDictionary *dic = [NSJSONSerialization JSONObjectWithData:responseObject options:NSJSONReadingMutableContainers error:nil];
NSLog(@"JSON: %@", dic);
} failure:^(NSURLSessionDataTask * _Nullable task, NSError * _Nonnull error) {
NSLog(@"Error: %@", error);
NSData *data = [error.userInfo objectForKey:@"com.alamofire.serialization.response.error.data"];
NSString *str = [[NSString alloc]initWithData:data encoding:NSUTF8StringEncoding];
NSLog(@"%@",str);
}];
另外还要加上一个方法：
+(BOOL)extractIdentity:(SecIdentityRef*)outIdentity andTrust:(SecTrustRef *)outTrust fromPKCS12Data:(NSData *)inPKCS12Data {
OSStatus securityError = errSecSuccess;
//client certificate password
NSDictionary*optionsDictionary = [NSDictionary dictionaryWithObject:@"证书密码"
forKey:(__bridge id)kSecImportExportPassphrase];
CFArrayRef items = CFArrayCreate(NULL, 0, 0, NULL);
securityError = SecPKCS12Import((__bridge CFDataRef)inPKCS12Data,(__bridge CFDictionaryRef)optionsDictionary,&items);
if(securityError == 0) {
CFDictionaryRef myIdentityAndTrust =CFArrayGetValueAtIndex(items,0);
const void*tempIdentity =NULL;
tempIdentity= CFDictionaryGetValue (myIdentityAndTrust,kSecImportItemIdentity);
*outIdentity = (SecIdentityRef)tempIdentity;
const void*tempTrust =NULL;
tempTrust = CFDictionaryGetValue(myIdentityAndTrust,kSecImportItemTrust);
*outTrust = (SecTrustRef)tempTrust;
} else {
NSLog(@"Failedwith error code %d",(int)securityError);
return NO;
}
return YES;
}
你会发现http://www.jianshu.com/p/9e573607be13 这里的代码有冗余，没错，我们是要封装一下，可是要怎么封装呢？博主尝试了集中都失败了，真是百思不得解，相信主动去封装的开发者也会碰到封装后请求失败的问题，也许你成功了，但是这里需要注意一个在block内使用变量的问题，具体的可以去看博主怎么封装的。
到这里，新的AF请求https就已经结束了，想看封装的，Demo放在最后。
3.单向验证
说到这个，不得不说一下网上的很多方法，都把单向验证当作双向的，其实也是并不理解其原理，关于原理，请看这里
代码实现AF都是一样的：
//AF加上这句和下面的方法
_manager.securityPolicy = [self customSecurityPolicy];
/**** SSL Pinning ****/
- (AFSecurityPolicy*)customSecurityPolicy {
NSString *cerPath = [[NSBundle mainBundle] pathForResource:@"server" ofType:@"cer"];
NSData *certData = [NSData dataWithContentsOfFile:cerPath];
AFSecurityPolicy *securityPolicy = [AFSecurityPolicy policyWithPinningMode:AFSSLPinningModeCertificate];
[securityPolicy setAllowInvalidCertificates:YES];
NSSet *set = [NSSet setWithObjects:certData, nil];
[securityPolicy setPinnedCertificates:@[certData]];
/**** SSL Pinning ****/
return securityPolicy;
}4.Demo下载福利
因为证书安全问题，Demo 里的证书博主删除了，请见谅，请大家放入自己的证书。
老的AF访问httpsDemo
