五子棋－b
五子棋是程序猿比较熟悉的一款小游戏,相信很多人大学时期就用多种语言写过五子棋小游戏.笔者工作闲暇之余,试着用OC实现了一下,在这里给大家分享一下.有不足之处,欢迎大家提供建议和指点!!!GitHub源码链接https://github.com/HelloYeah/Gomoku-Game

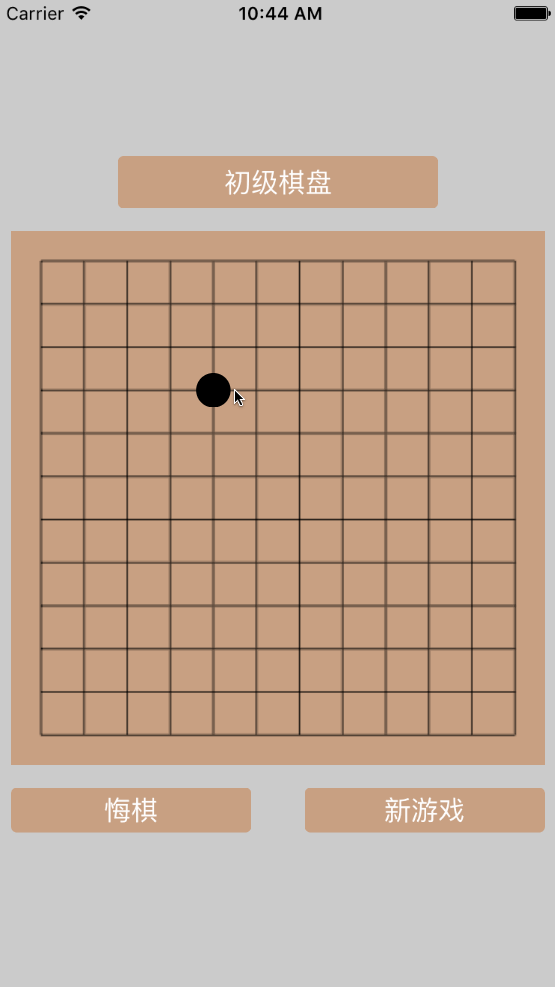

先上效果图
-
功能展示
-
初高级棋盘切换效果
实现思路及主要代码详解
1.绘制棋盘
利用Quartz2D绘制棋盘.代码如下
- (void)drawBackground:(CGSize)size{
self.gridWidth = (size.width - 2 * kBoardSpace) / self.gridCount; //1.开启图像上下文
UIGraphicsBeginImageContext(size); //2.获取上下文
CGContextRef ctx = UIGraphicsGetCurrentContext(); CGContextSetLineWidth(ctx, 0.8f); //3.1 画16条竖线
for (int i = 0; i <= self.gridCount; i ++) {
CGContextMoveToPoint(ctx, kBoardSpace + i * self.gridWidth , kBoardSpace); CGContextAddLineToPoint(ctx, kBoardSpace + i * self.gridWidth , kBoardSpace + self.gridCount * self.gridWidth);
} //3.1 画16条横线
for (int i = 0; i <= self.gridCount; i ++) {
CGContextMoveToPoint(ctx, kBoardSpace, kBoardSpace + i * self.gridWidth ); CGContextAddLineToPoint(ctx, kBoardSpace + self.gridCount * self.gridWidth , kBoardSpace + i * self.gridWidth);
}
CGContextStrokePath(ctx); //4.获取生成的图片
UIImage *image=UIGraphicsGetImageFromCurrentImageContext(); //5.显示生成的图片到imageview
UIImageView * imageView = [[UIImageView alloc]initWithImage:image];
[self addSubview:imageView];
UIGraphicsEndImageContext();
}2.点击棋盘落子
1.根据落子位置求出该棋子的行号与列号.
2.判断落子位置是否已经有棋子,有则不能下.如果没有,将棋子保存在字典中,以列号和行号组合起来的字符串为key值.
代码如下
//点击棋盘,下棋
- (void)tapBoard:(UITapGestureRecognizer *)tap{
CGPoint point = [tap locationInView:tap.view]; //计算下子的列号行号
NSInteger col = (point.x - kBoardSpace + 0.5 * self.gridWidth) / self.gridWidth; NSInteger row = (point.y - kBoardSpace + 0.5 * self.gridWidth) / self.gridWidth; NSString * key = [NSString stringWithFormat:@"%ld-%ld",col,row]; if (![self.chessmanDict.allKeys containsObject:key]) { UIView * chessman = [self chessman];
chessman.center = CGPointMake(kBoardSpace + col * self.gridWidth, kBoardSpace + row * self.gridWidth);
[self addSubview:chessman];
[self.chessmanDict setValue:chessman forKey:key]; self.lastKey = key; //检查游戏结果
[self checkResult:col andRow:row andColor:self.isBlack]; self.isBlack = !self.isBlack;
}
}3.检测游戏结果
每落一个棋子就要多游戏结果进行一次检查,判断四个方向上是否有大于等于5个同色的棋子连成一线,有则提示游戏输赢结果,无则游戏继续.算法为,从当前棋子位置向前遍历,直到遇到与自己不同色的棋子,累加同色棋子的个数,再往后遍历,直到遇到与自己不同色的棋子,累加同色棋子的个数.得到该方向相连同色棋子的总个数
代码如下
//判断是否大于等于五个同色相连
- (BOOL)checkResult:(NSInteger)col andRow:(NSInteger)row andColor:(BOOL)isBlack andDirection:(GmkDirection)direction{
if (self.sameChessmanArray.count >= 5) {
return YES;
}
UIColor * currentChessmanColor = [self.chessmanDict[[NSString stringWithFormat:@"%ld-%ld",col,row]] backgroundColor];
[self.sameChessmanArray addObject:self.chessmanDict[self.lastKey]];
switch (direction) { //水平方向检查结果
case GmkHorizontal:{ //向前遍历
for (NSInteger i = col - 1; i > 0; i --) {
NSString * key = [NSString stringWithFormat:@"%ld-%ld",i,row];
if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
} //向后遍历
for (NSInteger i = col + 1; i < kGridCount; i ++) { NSString * key = [NSString stringWithFormat:@"%ld-%ld",i,row];
if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
}
if (self.sameChessmanArray.count >= 5) {
[self alertResult];
return YES;
}
[self.sameChessmanArray removeAllObjects];
}
break;
case GmkVertical:{ //向前遍历
for (NSInteger i = row - 1; i > 0; i --) { NSString * key = [NSString stringWithFormat:@"%ld-%ld",col,i]; if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
} //向后遍历
for (NSInteger i = row + 1; i < kGridCount; i ++) { NSString * key = [NSString stringWithFormat:@"%ld-%ld",col,i]; if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
}
if (self.sameChessmanArray.count >= 5) {
[self alertResult];
return YES;
}
[self.sameChessmanArray removeAllObjects];
}
break;
case GmkObliqueDown:{ //向前遍历
NSInteger j = col - 1;
for (NSInteger i = row - 1; i >= 0; i--,j--) { NSString * key = [NSString stringWithFormat:@"%ld-%ld",j,i]; if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor || j < 0) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
} //向后遍历
j = col + 1;
for (NSInteger i = row + 1 ; i < kGridCount; i++,j++) { NSString * key = [NSString stringWithFormat:@"%ld-%ld",j,i]; if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor || j > kGridCount) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
}
if (self.sameChessmanArray.count >= 5) {
[self alertResult];
return YES;
}
[self.sameChessmanArray removeAllObjects]; }
break;
case GmkObliqueUp:{ //向前遍历
NSInteger j = col + 1;
for (NSInteger i = row - 1; i >= 0; i--,j++) { NSString * key = [NSString stringWithFormat:@"%ld-%ld",j,i]; if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor || j > kGridCount) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
} //向后遍历
j = col - 1;
for (NSInteger i = row + 1 ; i < kGridCount; i++,j--) { NSString * key = [NSString stringWithFormat:@"%ld-%ld",j,i]; if (![self.chessmanDict.allKeys containsObject:key] || [self.chessmanDict[key] backgroundColor] != currentChessmanColor || j < 0) break;
[self.sameChessmanArray addObject:self.chessmanDict[key]];
}
if (self.sameChessmanArray.count >= 5) {
[self alertResult];
return YES;
}
[self.sameChessmanArray removeAllObjects];
}
break;
}
return NO;
}4.对外提供,重新开始,悔棋,切换初高级棋盘的三个接口
重新开始
- (void)newGame{
self.isOver = NO;
self.lastKey = nil;
[self.sameChessmanArray removeAllObjects];
self.userInteractionEnabled = YES;
[self.chessmanDict removeAllObjects];
for (UIView * view in self.subviews) {
if ([view isKindOfClass:[UIImageView class]]) {
continue;
}
[view removeFromSuperview];
}
self.isBlack = NO;
}悔棋
//撤回至上一步棋
- (void)backOneStep:(UIButton *)sender{
if(self.isOver) return;
if (self.lastKey == nil) {
sender.enabled = NO;
CGFloat width = SCREEN_WIDTH * 0.4 * SCREEN_WIDTH_RATIO; UIView * tip = [[UIView alloc]initWithFrame:CGRectMake(0, 0, width, 0.6 * width)]; tip.backgroundColor = [UIColor colorWithWhite:1 alpha:0.8];
tip.layer.cornerRadius = 8.0f;
[self addSubview:tip];
tip.center = CGPointMake(self.width * 0.5, self.height * 0.5); UILabel * label = [[UILabel alloc]init];
label.text = self.chessmanDict.count > 0 ? @"只能悔一步棋!!!" : @"请先落子!!!";
label.font = [UIFont systemFontOfSize:15];
[label sizeToFit];
label.center = CGPointMake(tip.width * 0.5, tip.height * 0.5);
[tip addSubview:label];
self.userInteractionEnabled = NO;
dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(2.0 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{ self.userInteractionEnabled = YES;
sender.enabled = YES;
[tip removeFromSuperview];
});
return;
}
[self.chessmanDict removeObjectForKey:self.lastKey];
[self.subviews.lastObject removeFromSuperview];
self.isBlack = !self.isBlack;
self.lastKey = nil;
}切换初高级键盘
//改变键盘级别
- (void)changeBoardLevel{
for (UIView * view in self.subviews) {
[view removeFromSuperview];
}
[self newGame];
self.isHighLevel = !self.isHighLevel;
[self drawBackground:self.bounds.size];
}Demo中的一个小技巧
用字典存放棋子,以棋子的列号和行号组合起来的字符串为key值,value值为棋子view.这样处理,在判断某行某列是否有棋子就非常简单了.
GitHub源码地址https://github.com/HelloYeah/Gomoku-Game
