26、.NET与Halcon混合编程（缩放、平移）

1、get_image_size(Image : : : Width, Height)

    功能：获取图像的真实大小（不受放缩、平移影响）

    read_image (Image, 'fabrik')

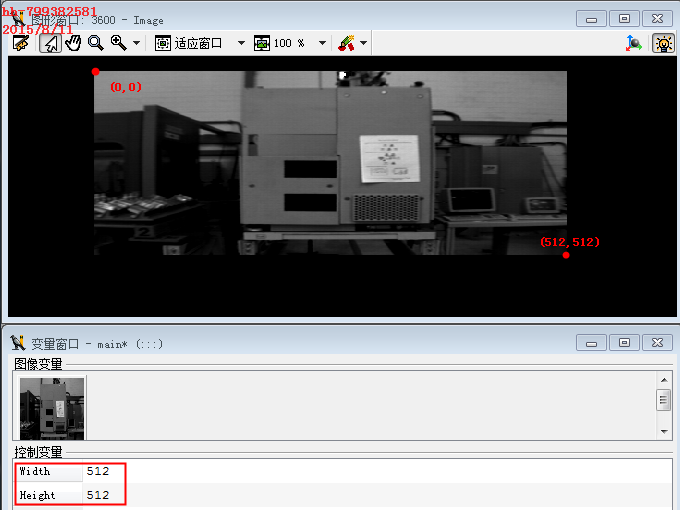

get_image_size (Image, Width, Height)



2、get_part( : : WindowHandle : Row1, Column1, Row2, Column2)

    功能：获取图形窗口左上角、右下角坐标。

    read_image (Image, 'fabrik')

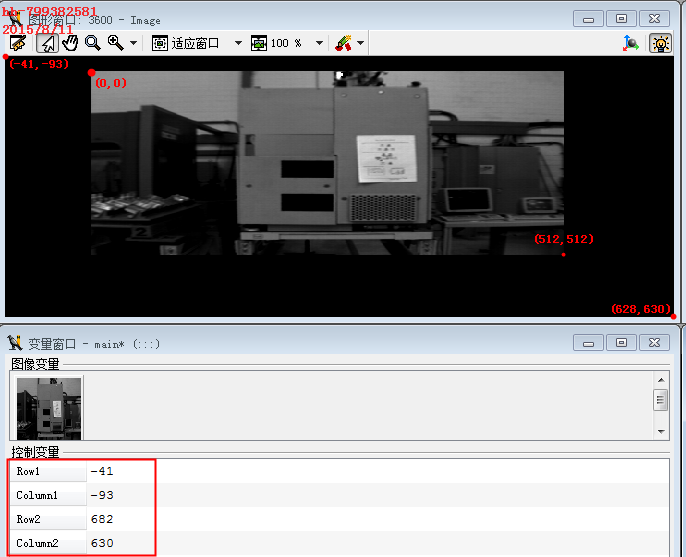

get_part (3600, Row1, Column1, Row2, Column2)



3、dev_set_part( : : Row1, Column1, Row2, Column2 : )

    功能：设置图形窗口左上角、右下角坐标。

    read_image (Image, 'fabrik')

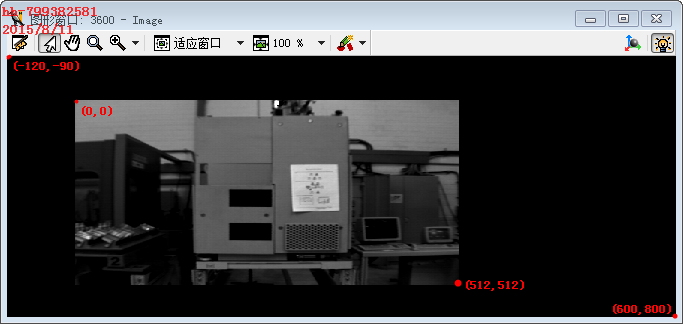

dev_set_part (-120, -90, 600, 800)

*要显式调用显示算子才看到效果

dev_display (Image)

4、get_mposition( : : WindowHandle : Row, Column, Button)

    功能：该算子在HDevelop中无法运行，它的主要是在.NET编程中获取HWindowControl控件鼠标当前位置的像

            素坐标。

    实例说明：

    在调用

 HOperatorSet.SetPart(hv_WindowHandle,-50, -50, 300, 400)

 HOperatorSet.ClearWindow(hv_WindowHandle)

HOperatorSet.DispObj(ho_Image12, hv_WindowHandle)

后

    若：

Private Sub HWindowControl1_MouseMove(ByVal sender As System.Object, ByVal e As System.Windows.Forms.MouseEventArgs) Handles HWindowControl1.MouseMove

       Me.Text = "(" + e.X.ToString + "," + e.Y.ToString + ")"

   End Sub

则

    若：

    Private Sub HWindowControl1_MouseMove(ByVal sender As System.Object, ByVal e As

    System.Windows.Forms.MouseEventArgs) Handles HWindowControl1.MouseMove



Dim X As HTuple = Nothing

Dim Y As HTuple = Nothing

'像素精度

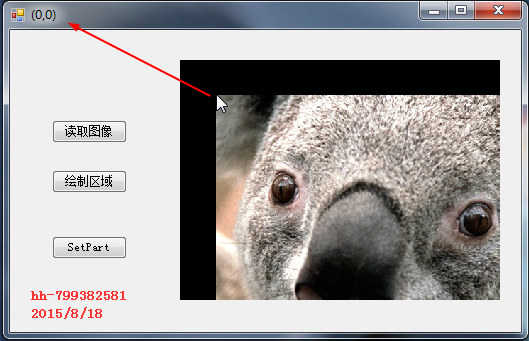

HOperatorSet.GetMposition(hv_WindowHandle, X, Y, 0)

'亚像素精度

'HOperatorSet.GetMpositionSubPix(hv_WindowHandle, X, Y, 0)



Me.Text = "(" + X.ToString + "," + Y.ToString + ")"



End Sub

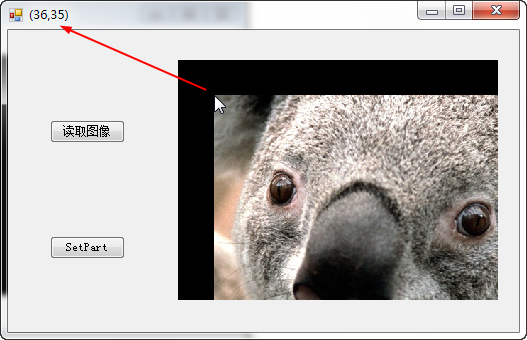

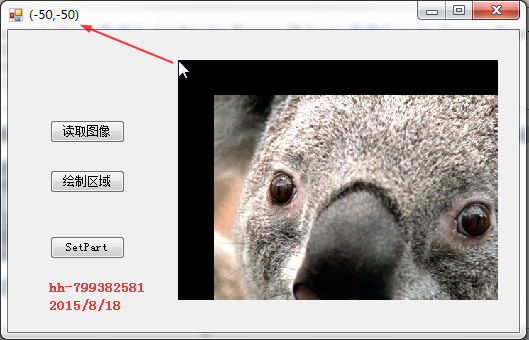

    则：

5、get_mposition_sub_pix( : : WindowHandle : Row, Column, Button)

    功能：和4一样，但它提取的像素坐标为亚像素精度

一、绘制区域：

Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click

'p是一个布尔类型的变量，用于判断是绘制区域还是移动图像，下面代码表示绘制区域，所以想把它置为True，

'防止在鼠标按下时被认为执行移动图像操作

p = True

HWindowControl1.Focus()

Dim region As HObject = Nothing

Dim out_img As HObject = Nothing

HOperatorSet.SetColor(hv_WindowHandle, New HTuple("yellow"))

HOperatorSet.DrawRegion(region, hv_WindowHandle)

HOperatorSet.ReduceDomain(ho_GrayImage, region, out_img)

HOperatorSet.ClearWindow(hv_WindowHandle)

HOperatorSet.DispObj(out_img, hv_WindowHandle)

p = False

End Sub

二、移动图像

1、HWindowControl1.HMouseDown事件中记录初识当前鼠标在图像中的坐标，以及GetPart

Private Sub HWindowControl1_HMouseDown(ByVal sender As System.Object, ByVal e As HalconDotNet.HMouseEventArgs) Handles HWindowControl1.HMouseDown

'p是一个布尔类型的变量，用于判断是绘制区域还是移动图像

If p = False And e.Button = Windows.Forms.MouseButtons.Left Then

HWindowControl1.Cursor = System.Windows.Forms.Cursors.NoMove2D



HOperatorSet.GetMposition(hv_WindowHandle, X1, Y1, 1)

Label1.Text = "(" + X1.ToString + "," + Y1.ToString + ")"

HOperatorSet.GetPart(hv_WindowHandle, row1, column1, row2, column2)

End If

End Sub

2、HWindowControl1.HMouseUp事件中记录移动后的鼠标在图像中的坐标，再根据移动前后的坐标差值

    调用SetPart来平移图像

Private Sub HWindowControl1_HMouseUp(ByVal sender As System.Object, ByVal e As HalconDotNet.HMouseEventArgs) Handles HWindowControl1.HMouseUp

'p是一个布尔类型的变量，用于判断是绘制区域还是移动图像

If p = False And e.Button = Windows.Forms.MouseButtons.Left Then

HOperatorSet.GetMposition(hv_WindowHandle, X2, Y2, 1)

Label2.Text = "(" + X2.ToString + "," + Y2.ToString + ")"

Dim t1 As Integer = X1 - X2

Dim t2 As Integer = Y1 - Y2

Label3.Text = t1.ToString



HOperatorSet.ClearWindow(hv_WindowHandle)

HOperatorSet.SetPart(hv_WindowHandle, row1 + t1, column1 + t2, row2 + t1, column2 + t2)

HOperatorSet.DispObj(ho_Image12, hv_WindowHandle)

HWindowControl1.Cursor = System.Windows.Forms.Cursors.Default

End If



End Sub

三、缩放图像

原理:先获取原图像的大小（GetPart），若鼠标滚轮向上滑动，则它大小变为原来的0.9倍，若向下滑动，则变为1.1倍。

Private Sub HWindowControl1_HMouseWheel(ByVal sender As System.Object, ByVal e As HalconDotNet.HMouseEventArgs) Handles HWindowControl1.HMouseWheel



HOperatorSet.GetPart(hv_WindowHandle, row1, column1, row2, column2)

If e.Delta > 0 Then

row1 = row1 * 0.9

column1 = column1 * 0.9

row2 = row2 * 0.9

column2 = column2 * 0.9

HOperatorSet.ClearWindow(hv_WindowHandle)

HOperatorSet.SetPart(hv_WindowHandle, row1, column1, row2, column2)

HOperatorSet.DispObj(ho_Image12, hv_WindowHandle)

ElseIf e.Delta < 0 Then

HOperatorSet.ClearWindow(hv_WindowHandle)

HOperatorSet.SetPart(hv_WindowHandle, row1 * 1.1, column1 * 1.1, row2 * 1.1, column2 * 1.1)

HOperatorSet.DispObj(ho_Image12, hv_WindowHandle)

End If

End Sub
