文件和数据格式化

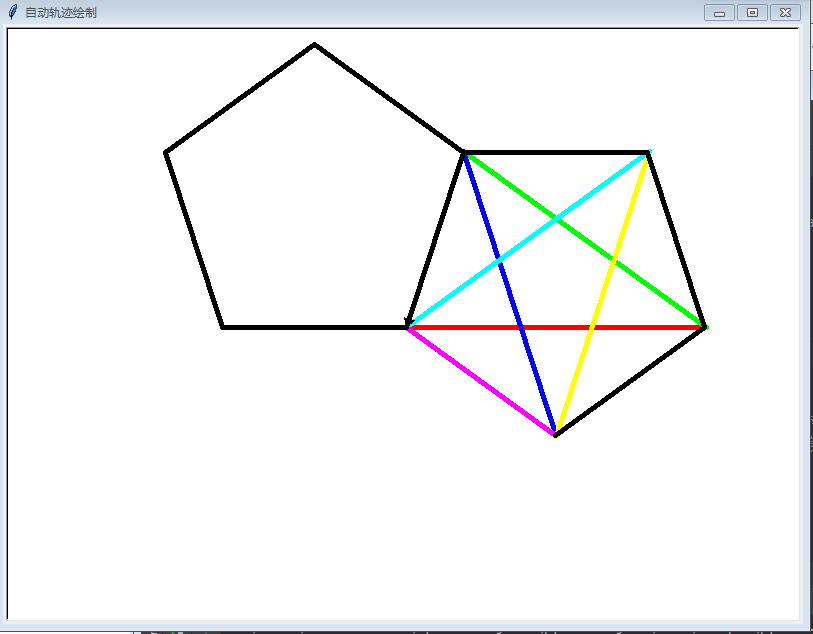

自动轨迹绘制

import turtle as t

t.title("自动轨迹绘制")
t.setup(800,600,0,0)
t.pencolor("red")
t.pensize(5)

# 读取文件
datals = []
f = open("d://data.txt")

print(f)
# 遍历每一行
for line in f:
    # 替换换行符号
    line = line.replace("\n","")
    # 去除逗号 转换列表 添加到datals列表中
    datals.append(list(map(eval,line.split(","))))

f.close()
# 自动绘制
for i in range(len(datals)):
    # [行][列] 提取RGB
    t.pencolor(datals[i][3],datals[i][4],datals[i][5])
    # 前进距离
    t.fd(datals[i][0])
    # 判断方向
    if datals[i][1]:
        t.right(datals[i][2])
    else:
        t.left(datals[i][2])
t.done()

# data.txt
300,0,144,1,0,0
300,0,144,0,1,0
300,0,144,0,0,1
300,0,144,1,1,0
300,0,108,0,1,1
184,0,72,1,0,1
184,0,72,0,0,0
184,0,72,0,0,0
184,0,72,0,0,0
184,1,72,1,0,1
184,1,72,0,0,0
184,1,72,0,0,0
184,1,72,0,0,0
184,1,72,0,0,0
184,1,720,0,0,0


# 300行进距离,0转向判断(0:左转 1:右转),144转向角度,1,0,0RGB三个通道颜色
# (1,0,0)红  (0,1,0)绿
