博客总结作业二
前言：
本次总结包括pta题目集4、5、6，期中考试，以及链表作业。其中pta题目集4、5，是关于图形类设计的题目，其中包括点线面，三角形，以及四边形的设计。
pta题目集4：这次作业难度较大，虽然三道题的题量并不多，但是写起来可一点都不轻松。其中第一题就涉及了对于字符串格式正确与否的判断，以及字符串分割。第二题就困扰了我很久，第二题涉及到了线之间的关系，我们需要设计方法进行计算，并且题目涉及到了split函数的调用，并且这一题也包含了字符串格式判断。第三题是最难的，我到时间截止也没有做到满分，不光要设计方法，还要调用round函数、split函数等。
pta题目集5：这次作业难度比前一次下降了一些，前四道题都是有关于正则表达的简单题目，第五道与正则没有关系，而是考验了我们类与类之间的调用以及耦合。我们需要考虑清楚各个类之间的关系，才能完成题目。
pta题目集6：这次作业对于我而言难度太大，我只能把1、3题完成，第二道题涉及到四边形的计算，前三个我还可以完成，但是4、5的实现过程过于复杂，不光涉及到各种函数的调用，还涉及了数学方面的知识，以及我们的设计能力。
链表作业：链表是老师上课讲完知识点后的课堂作业，对于c语言链表没学好的我而言，还是挺难的，其中不光包括了链表的知识点，还有类与类之间的联系与调用。
期中考试：本次考试包含了三道题，并且这三道题是层层递进的，第一题是点与线，涉及到类的设计；第二题点线面问题重构，涉及到继承与多态；第三题依然是点线面问题重构，但多了容器类。
设计与分析：
题目集4：
7-3 点线形系列3-三角形的计算：
用户输入一组选项和数据，进行与三角形有关的计算。选项包括：
1：输入三个点坐标，判断是否是等腰三角形、等边三角形，判断结果输出true/false，两个结果之间以一个英文空格符分隔。
2：输入三个点坐标，输出周长、面积、重心坐标，三个参数之间以一个英文空格分隔，坐标之间以英文","分隔。
3：输入三个点坐标，输出是钝角、直角还是锐角三角形，依次输出三个判断结果（true/false），以一个英文空格分隔，
4：输入五个点坐标，输出前两个点所在的直线与三个点所构成的三角形相交的交点数量，如果交点有两个，则按面积大小依次输出三角形被直线分割成两部分的面积。若直线与三角形一条线重合，输出"The point is on the edge of the triangle"
5：输入四个点坐标，输出第一个是否在后三个点所构成的三角形的内部（输出in the triangle/outof triangle）。
必须使用射线法，原理：由第一个点往任一方向做一射线，射线与三角形的边的交点（不含点本身）数量如果为1，则在三角形内部。如果交点有两个或0个，则在三角形之外。若点在三角形的某条边上，输出"on the triangle"
输入格式:
基本格式：选项+":"+坐标x+","+坐标y+" "+坐标x+","+坐标y。点的x、y坐标之间以英文","分隔，点与点之间以一个英文空格分隔。
输出格式:
基本输出格式见每种选项的描述。
异常情况输出：
如果不符合基本格式，输出"Wrong Format"。
如果符合基本格式，但输入点的数量不符合要求，输出"wrong number of points"。
如果输入的三个点无法构成三角形，输出"data error"。
注意：输出的数据若小数点后超过6位，只保留小数点后6位，多余部分采用四舍五入规则进到最低位。小数点后若不足6位，按原始位数显示，不必补齐。例如：1/3的结果按格式输出为 0.333333，1.0按格式输出为1.0
选项4中所输入线的两个点坐标重合，输出"points coincide"。
代码：
import java.util.Scanner; public class Main { public static void main(String[] args) { // TODO 自动生成的方法存根 Scanner in = new Scanner(System.in); int f = 0,f1 = 0,count = 0,i,b1=0,f2 = 0,d,num = 0; boolean flag = false,flag1 = false,flag2 = false; double x1,x2,y1,y2,x3,y3,x4,y4,x5,y5,a1,a2,a3,a4,a5,a6,perimeter,area,focusx,focusy,p1,p2,p3,p4,xa,ya,xb,yb,xc,yc; String sc = in.nextLine(); d = sc.length()-1; if(sc.charAt(0)=='1') { for(i=0;i<sc.length();i++) { if(sc.charAt(i)==',') { count++; } } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==' ') { f2++; } } if(count!=3||f2!=2) { System.out.print("wrong number of points"); System.exit(0); } if(count==3&&f2==2) { String[] p=sc.split(" "); String[] q=p[0].split(":"); String[] m=q[1].split(","); String[] n=p[1].split(","); String[] s=p[2].split(","); x1=Double.parseDouble(m[0]); y1=Double.parseDouble(m[1]); x2=Double.parseDouble(n[0]); y2=Double.parseDouble(n[1]); x3=Double.parseDouble(s[0]); y3=Double.parseDouble(s[1]); a1 = Math.sqrt((x1-x2)*(x1-x2)+(y1-y2)*(y1-y2)); a2 = Math.sqrt((x1-x3)*(x1-x3)+(y1-y3)*(y1-y3)); a3 = Math.sqrt((x3-x2)*(x3-x2)+(y3-y2)*(y3-y2)); if((a1+a2)-a3>0.0001||(a1+a3)-a2>0.0001||(a2+a3)-a1>0.0001) { if((a1==a2&&a1!=a3)||(a1==a3&&a1!=a2)||(a2==a3&&a2!=a1)){ flag = true; flag1 = false; } else if(a1==a2&&a1==a3) { flag = true; flag1 = true; } } else { System.out.print("data error"); } System.out.print(flag+" "+flag1); } } if(sc.charAt(0)=='2') { for(i=0;i<sc.length();i++) { if(sc.charAt(i)==',') { count++; } } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==' ') { f2++; } } if(count!=3||f2!=2) { System.out.print("wrong number of points"); System.exit(0); } if(count==3&&f2==2){ String[] p=sc.split(" "); String[] q=p[0].split(":"); String[] m=q[1].split(","); String[] n=p[1].split(","); String[] s=p[2].split(","); x1=Double.parseDouble(m[0]); y1=Double.parseDouble(m[1]); x2=Double.parseDouble(n[0]); y2=Double.parseDouble(n[1]); x3=Double.parseDouble(s[0]); y3=Double.parseDouble(s[1]); a1 = Math.sqrt((x1-x2)*(x1-x2)+(y1-y2)*(y1-y2)); a2 = Math.sqrt((x1-x3)*(x1-x3)+(y1-y3)*(y1-y3)); a3 = Math.sqrt((x3-x2)*(x3-x2)+(y3-y2)*(y3-y2)); if((a1+a2)-a3<0.0001||(a1+a3)-a2<0.0001||(a2+a3)-a1<0.0001) { System.out.print("data error"); System.exit(0); } else { perimeter = (a1+a2+a3)*1000000; area = Math.abs((x1*(y2-y3)+x2*(y3-y1)+x3*(y1-y2)))/2*1000000; focusx = (x1+x2+x3)*1000000/3; focusy = (y1+y2+y3)*1000000/3; p1 = Math.round(perimeter); p2 = Math.round(area); p3 = Math.round(focusx); p4 = Math.round(focusy); double c1 = p1/1000000; double c2 = p2/1000000; double c3 = p3/1000000; double c4 = p4/1000000; System.out.print(c1+" "+c2+" "+c3+","+c4); } } } if(sc.charAt(0)=='3') { for (i=0;i<sc.length()-1;i++) { if ((sc.charAt(i)=='+'&&sc.charAt(i+1)=='+')||(sc.charAt(i)=='-'&&sc.charAt(i+1)=='-') || (sc.charAt(i)=='+'&&sc.charAt(i+1)=='-')||(sc.charAt(i)=='-'&&sc.charAt(i+1)=='+') || (sc.charAt(i)=='.'&&sc.charAt(i+1)==',')||(sc.charAt(i)==','&&sc.charAt(i+1)=='.') || (sc.charAt(i)==' '&&sc.charAt(i+1)=='.')||(sc.charAt(i)=='.'&&sc.charAt(i+1)=='.') || (sc.charAt(i)==' '&&sc.charAt(i+1)==',')||(sc.charAt(i)==','&&sc.charAt(i+1)==' ') || (sc.charAt(i)==' '&&sc.charAt(i+1)==' ')||(sc.charAt(i)==':'&&sc.charAt(i+1)==':') || (sc.charAt(i)==','&&sc.charAt(i+1)==',')||(sc.charAt(sc.length()-1)==',') || (sc.charAt(i)==':'&&sc.charAt(i+1)==',')||sc.charAt(0)<'1'||sc.charAt(0)>'5' || (sc.charAt(i)=='0'&&(sc.charAt(i+1) > '0'&&sc.charAt(i + 1) < '9')) || (sc.charAt(i)==':'&&sc.charAt(i+1) == '.')) { b1=1; } } if(b1==1) { System.out.print("Wrong Format"); System.exit(0); } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==',') { count++; } } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==' ') { f2++; } } if(count!=3||f2!=2) { System.out.print("wrong number of points"); System.exit(0); } if(count==3&&f2==2) { String[] p=sc.split(" "); String[] q=p[0].split(":"); String[] m=q[1].split(","); String[] n=p[1].split(","); String[] s=p[2].split(","); x1=Double.parseDouble(m[0]); y1=Double.parseDouble(m[1]); x2=Double.parseDouble(n[0]); y2=Double.parseDouble(n[1]); x3=Double.parseDouble(s[0]); y3=Double.parseDouble(s[1]); a1 = Math.sqrt((x1-x2)*(x1-x2)+(y1-y2)*(y1-y2)); a2 = Math.sqrt((x1-x3)*(x1-x3)+(y1-y3)*(y1-y3)); a3 = Math.sqrt((x3-x2)*(x3-x2)+(y3-y2)*(y3-y2)); if((a1+a2)-a3<0.0001||(a1+a3)-a2<0.0001||(a2+a3)-a1<0.0001) { System.out.print("data error"); System.exit(0); } else { if(Math.abs(a1*a1+a2*a2-a3*a3)<0.001||Math.abs(a1*a1+a3*a3-a2*a2)<0.001||Math.abs(a3*a3+a2*a2-a1*a1)<0.001) { flag = false; flag1 = true; flag2 = false; } else if(a3*a3-(a1*a1+a2*a2)>-0.001||a2*a2-(a1*a1+a3*a3)>-0.001||a1*a1-(a3*a3+a2*a2)>-0.001) { flag = true; flag1 = false; flag2 = false; } else { flag = false; flag1 = false; flag2 = true; } System.out.print(flag+" "+flag1+" "+flag2); } } } if(sc.charAt(0)=='4') { for (i=0;i<sc.length()-1;i++) { if ((sc.charAt(i)=='+'&&sc.charAt(i+1)=='+')||(sc.charAt(i)=='-'&&sc.charAt(i+1)=='-') || (sc.charAt(i)=='+'&&sc.charAt(i+1)=='-')||(sc.charAt(i)=='-'&&sc.charAt(i+1)=='+') || (sc.charAt(i)=='.'&&sc.charAt(i+1)==',')||(sc.charAt(i)==','&&sc.charAt(i+1)=='.') || (sc.charAt(i)==' '&&sc.charAt(i+1)=='.')||(sc.charAt(i)=='.'&&sc.charAt(i+1)=='.') || (sc.charAt(i)==' '&&sc.charAt(i+1)==',')||(sc.charAt(i)==','&&sc.charAt(i+1)==' ') || (sc.charAt(i)==' '&&sc.charAt(i+1)==' ')||(sc.charAt(i)==':'&&sc.charAt(i+1)==':') || (sc.charAt(i)==','&&sc.charAt(i+1)==',')||(sc.charAt(sc.length()-1)==',') || (sc.charAt(i)==':'&&sc.charAt(i+1)==',') ||sc.charAt(0)<'1'||sc.charAt(0)>'5' || (sc.charAt(i)==':'&&sc.charAt(i+1) == '.')) { b1=1; } } if(b1==1) { System.out.print("Wrong Format"); System.exit(0); } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==',') { count++; } } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==' ') { f2++; } } if(count!=5||f2!=4) { System.out.print("wrong number of points"); System.exit(0); } if(count==5&&f2==4) { String[] p=sc.split(" "); String[] q=p[0].split(":"); String[] m=q[1].split(","); String[] n=p[1].split(","); String[] s=p[2].split(","); String[] z=p[3].split(","); String[] o=p[4].split(","); x1=Double.parseDouble(m[0]); y1=Double.parseDouble(m[1]); x2=Double.parseDouble(n[0]); y2=Double.parseDouble(n[1]); x3=Double.parseDouble(s[0]); y3=Double.parseDouble(s[1]); x4=Double.parseDouble(z[0]); y4=Double.parseDouble(z[1]); x5=Double.parseDouble(o[0]); y5=Double.parseDouble(o[1]); a1 = Math.sqrt((x3-x4)*(x3-x4)+(y3-y4)*(y3-y4)); a2 = Math.sqrt((x4-x5)*(x4-x5)+(y4-y5)*(y4-y5)); a3 = Math.sqrt((x3-x5)*(x3-x5)+(y3-y5)*(y3-y5)); if(x1==x2&&y1==y2) { System.out.print("points coincide"); System.exit(0); } if((a1+a2)-a3<0.0001||(a1+a3)-a2<0.0001||(a2+a3)-a1<0.0001) { System.out.print("data error"); System.exit(0); } else { double mn = (y3 - y2) / (x3 - x2); double ab = y2 - (mn * x2); double mn1 = (y4 - y2) / (x4 - x2); double ab1 = y2 - (mn1 * x2); double mn2 = (y5 - y2) / (x5 - x2); double ab2 = y2 - (mn2 * x2); double k1 = (y2 - y1) / (x2 - x1); double k2 = (y4 - y3) / (x4 - x3); double k3 = (y5 - y3) / (x5 - x3); double k4 = (y5 - y4) / (x5 - x4); if(((x1 == x3 && x1 == x2)&&(k1==k2||k1==k3))||((x1 == x4 && x1 == x2)&&(k1==k2||k1==k4))||((x1 == x5 && x1 == x2)&&(k1==k3||k1==k4))) { System.out.print("The point is on the edge of the triangle"); System.exit(0); } if(((y1 == y2 && y2 == y3)&&(k1==k2||k1==k3))||((y1 == y2 && y2 == y4)&&(k1==k2||k1==k4))||((y1 == y2 && y2 == y5)&&(k1==k3||k1==k4))) { System.out.print("The point is on the edge of the triangle"); System.exit(0); } if(((y1 == mn * x1 + ab)&&(k1==k2||k1==3))||((y1 == mn1 * x1 + ab1)&&(k1==k2||k1==k4))||((y1 == mn2 * x1 + ab2)&&(k1==k3||k1==k4))) { System.out.print("The point is on the edge of the triangle"); System.exit(0); } else { double m1=Math.sqrt((x3-x5)*(x3-x5)+(y3-y5)*(y3-y5)); double m2=Math.sqrt((x3-x4)*(x3-x4)+(y3-y4)*(y3-y4)); double m3=Math.sqrt((x4-x5)*(x4-x5)+(y4-y5)*(y4-y5)); if((x1 == x2 && x3 == x4)||k1==k2) { xa=(y3*x5*x2-y5*x3*x2-y3*x5*x1+y5*x3*x1-y1*x2*x5+y2*x1*x5+y1*x2*x3-y2*x1*x3)/(x5*y2-x5*y1-x3*y2+x3*y1-x2*y5+x2*y3+x1*y5-x1*y3); ya=(-y3*x5*y2+y5*x3*y2+y3*x5*y1-y5*x3*y1+y1*x2*y5-y1*x2*y3-y2*x1*y5+y2*x1*y3)/(y5*x2-y5*x1-y3*x2+x1*y3-y2*x5+y2*x3+y1*x5-y1*x3); xb=(y4*x5*x2-y5*x4*x2-y4*x5*x1+y5*x4*x1-y1*x2*x5+y2*x1*x5+y1*x2*x4-y2*x1*x4)/(x5*y2-x4*y1-x4*y2+x4*y1-x2*y5+x2*y4+x1*y5-x1*y4); yb=(-y4*x5*y2+y5*x4*y2+y4*x5*y1-y5*x4*y1+y1*x2*y5-y1*x2*y4-y2*x1*y5+y2*x1*y4)/(y5*x2-y5*x1-y4*x2+x1*y4-y2*x5+y2*x4+y1*x5-y1*x4); a1=Math.sqrt((xa-x3)*(xa-x3)+(ya-y3)*(ya-y3)); a2=Math.sqrt((xa-x5)*(xa-x5)+(ya-y5)*(ya-y5)); a3=Math.sqrt((xb-x4)*(xb-x4)+(yb-y4)*(yb-y4)); a4=Math.sqrt((xb-x5)*(xb-x5)+(yb-y5)*(yb-y5)); if(xa==xb&&ya==yb) { System.out.print("1"); System.exit(0); } else{ if(m1-(a1+a2)<0.1) { num++; } if(m3-(a3+a4)<0.1) { num++; } if(num!=2) { System.out.print(num); } else { area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((xa*(yb-y5)+xb*(y5-ya)+x5*(ya-yb)))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } } } else if((x1 == x2 && x3 == x5)||k1==k3) { xa=(y3*x4*x2-y4*x3*x2-y3*x4*x1+y4*x3*x1-y1*x2*x4+y2*x1*x4+y1*x2*x3-y2*x1*x3)/(x4*y2-x4*y1-x3*y2+x3*y1-x2*y4+x2*y3+x1*y4-x1*y3); ya=(-y3*x4*y2+y4*x3*y2+y3*x4*y1-y4*x3*y1+y1*x2*y4-y1*x2*y3-y2*x1*y4+y2*x1*y3)/(y4*x2-y4*x1-y3*x2+x1*y3-y2*x4+y2*x3+y1*x4-y1*x3); xb=(y4*x5*x2-y5*x4*x2-y4*x5*x1+y5*x4*x1-y1*x2*x5+y2*x1*x5+y1*x2*x4-y2*x1*x4)/(x5*y2-x4*y1-x4*y2+x4*y1-x2*y5+x2*y4+x1*y5-x1*y4); yb=(-y4*x5*y2+y5*x4*y2+y4*x5*y1-y5*x4*y1+y1*x2*y5-y1*x2*y4-y2*x1*y5+y2*x1*y4)/(y5*x2-y5*x1-y4*x2+x1*y4-y2*x5+y2*x4+y1*x5-y1*x4); a1=Math.sqrt((xa-x3)*(xa-x3)+(ya-y3)*(ya-y3)); a2=Math.sqrt((xa-x4)*(xa-x4)+(ya-y4)*(ya-y4)); a3=Math.sqrt((xb-x4)*(xb-x4)+(yb-y4)*(yb-y4)); a4=Math.sqrt((xb-x5)*(xb-x5)+(yb-y5)*(yb-y5)); if(xa==xb&&ya==yb) { System.out.print("1"); System.exit(0); } else { if(Math.abs(m2-(a1+a2))<0.1) { num++; } if(Math.abs(m3-(a3+a4))<0.2) { num++; } if(num!=2) { System.out.print(num); } else { area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((xa*(y4-yb)+x4*(yb-ya)+xb*(ya-y4)))*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); } } } } else if((x1 == x2 && x4 == x5)||k1==k4) { xa=(y3*x4*x2-y4*x3*x2-y3*x4*x1+y4*x3*x1-y1*x2*x4+y2*x1*x4+y1*x2*x3-y2*x1*x3)/(x4*y2-x4*y1-x3*y2+x3*y1-x2*y4+x2*y3+x1*y4-x1*y3); ya=(-y3*x4*y2+y4*x3*y2+y3*x4*y1-y4*x3*y1+y1*x2*y4-y1*x2*y3-y2*x1*y4+y2*x1*y3)/(y4*x2-y4*x1-y3*x2+x1*y3-y2*x4+y2*x3+y1*x4-y1*x3); xb=(y3*x5*x2-y5*x3*x2-y3*x5*x1+y5*x3*x1-y1*x2*x5+y2*x1*x5+y1*x2*x3-y2*x1*x3)/(x5*y2-x5*y1-x3*y2+x3*y1-x2*y5+x2*y3+x1*y5-x1*y3); yb=(-y3*x5*y2+y5*x3*y2+y3*x5*y1-y5*x3*y1+y1*x2*y5-y1*x2*y3-y2*x1*y5+y2*x1*y3)/(y5*x2-y5*x1-y3*x2+x1*y3-y2*x5+y2*x3+y1*x5-y1*x3); a1=Math.sqrt((xa-x3)*(xa-x3)+(ya-y3)*(ya-y3)); a2=Math.sqrt((xa-x4)*(xa-x4)+(ya-y4)*(ya-y4)); a3=Math.sqrt((xb-x3)*(xb-x3)+(yb-y3)*(yb-y3)); a4=Math.sqrt((xb-x5)*(xb-x5)+(yb-y5)*(yb-y5)); if(xa==xb&&ya==yb) { System.out.print("1"); System.exit(0); } else{ if(m2-(a1+a2)<0.1) { num++; } if(m1-(a3+a4)<0.1) { num++; } if(num!=2) { System.out.print(num); System.exit(0); } else { area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((x3*(ya-yb)+xa*(yb-y3)+xb*(y3-ya)))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } } } else { xa=(y3*x4*x2-y4*x3*x2-y3*x4*x1+y4*x3*x1-y1*x2*x4+y2*x1*x4+y1*x2*x3-y2*x1*x3)/(x4*y2-x4*y1-x3*y2+x3*y1-x2*y4+x2*y3+x1*y4-x1*y3); ya=(-y3*x4*y2+y4*x3*y2+y3*x4*y1-y4*x3*y1+y1*x2*y4-y1*x2*y3-y2*x1*y4+y2*x1*y3)/(y4*x2-y4*x1-y3*x2+x1*y3-y2*x4+y2*x3+y1*x4-y1*x3); xb=(y3*x5*x2-y5*x3*x2-y3*x5*x1+y5*x3*x1-y1*x2*x5+y2*x1*x5+y1*x2*x3-y2*x1*x3)/(x5*y2-x5*y1-x3*y2+x3*y1-x2*y5+x2*y3+x1*y5-x1*y3); yb=(-y3*x5*y2+y5*x3*y2+y3*x5*y1-y5*x3*y1+y1*x2*y5-y1*x2*y3-y2*x1*y5+y2*x1*y3)/(y5*x2-y5*x1-y3*x2+x1*y3-y2*x5+y2*x3+y1*x5-y1*x3); xc=(y4*x5*x2-y5*x4*x2-y4*x5*x1+y5*x4*x1-y1*x2*x5+y2*x1*x5+y1*x2*x4-y2*x1*x4)/(x5*y2-x5*y1-x4*y2+x4*y1-x2*y5+x2*y4+x1*y5-x1*y4); yc=(-y4*x5*y2+y5*x4*y2+y4*x5*y1-y5*x4*y1+y1*x2*y5-y1*x2*y4-y2*x1*y5+y2*x1*y4)/(y5*x2-y5*x1-y4*x2+x1*y4-y2*x5+y2*x4+y1*x5-y1*x4); a1=Math.sqrt((xa-x3)*(xa-x3)+(ya-y3)*(ya-y3)); a2=Math.sqrt((xa-x4)*(xa-x4)+(ya-y4)*(ya-y4)); a3=Math.sqrt((xb-x3)*(xb-x3)+(yb-y3)*(yb-y3)); a4=Math.sqrt((xb-x5)*(xb-x5)+(yb-y5)*(yb-y5)); a5=Math.sqrt((xc-x4)*(xc-x4)+(yc-y4)*(yc-y4)); a6=Math.sqrt((xc-x5)*(xc-x5)+(yc-y5)*(yc-y5)); if((xa==xb&&ya==yb)&&(Math.abs(m3-(a5+a6))<0.000001)) { num=2; area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((x3*(y4-yc)+x4*(yc-y3)+xc*(y3-y4)))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } if((xa==xb&&ya==yb)&&(Math.abs(m3-(a5+a6))>0.0000001)) { num=1; System.out.print(num); System.exit(0); } if((xa==xc&&ya==yc)&&(Math.abs(m1-(a3+a4))<0.00000001)) { num=2; area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((x3*(y4-yb)+x4*(yb-y3)+xb*(y3-y4)))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } if((xa==xb&&ya==yb)&&(Math.abs(m1-(a3+a4))>0.01)){ num=1; System.out.print(num); System.exit(0); } if((xb==xc&&yb==yc)&&(Math.abs(m2-(a1+a2))<0.01)) { num=2; area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((x3*(y5-ya)+x5*(ya-y3)+xa*(y3-y5)))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } if((xa==xb&&ya==yb)&&(Math.abs(m2-(a1+a2))>0.01)){ num=1; System.out.print(num); System.exit(0); } if(((xa!=xb)&&(xb!=xc)&&(xa!=xc)&&(ya!=yb)&&(yb!=yc)&&(ya!=yc))&&((Math.abs(m2-(a1+a2))<0.01)&&(Math.abs(m1-(a3+a4))<0.01))){ num=2; area = Math.round(-(x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4))/2*1000000); double area1=Math.round(-(x3*(yb-ya)+xb*(ya-y3)+xa*(y3-yb))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } if(((xa!=xb)&&(xb!=xc)&&(xa!=xc)&&(ya!=yb)&&(yb!=yc)&&(ya!=yc))&&((Math.abs(m2-(a1+a2))<0.01)&&(Math.abs(m3-(a5+a6))<0.01))) { num=2; area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((xa*(y4-yc)+x4*(yc-ya)+xc*(ya-y4)))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } if(((xa!=xb)&&(xb!=xc)&&(xa!=xc)&&(ya!=yb)&&(yb!=yc)&&(ya!=yc))&&((Math.abs(m1-(a3+a4))<0.01)&&(Math.abs(m3-(a5+a6))<0.01))) { num=2; area = Math.round(Math.abs((x3*(y4-y5)+x4*(y5-y3)+x5*(y3-y4)))/2*1000000); double area1=Math.round(Math.abs((xb*(yc-y5)+xc*(y5-yb)+x5*(yb-yc)))/2*1000000); double area2=Math.round(area-area1); if(area1>area2) { double aread=area1/1000000; double areax=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } else { double areax=area1/1000000; double aread=area2/1000000; System.out.print(num+" "+areax+" "+aread); System.exit(0); } } // if(((xa==xb&&ya==yb)||(xa==xc&&ya==yc)||(xb==xc&&yb==yc))&&((m2-(a1+a2)<0.01)||(m1-(a3+a4)<0.01)||(m3-(a5+a6)<0.01))){ // System.out.print("2"); // } // else if(((xa==xb&&ya==yb)||(xa==xc&&ya==yc)||(xb==xc&&yb==yc))&&((m2-(a1+a2)>0.01)&&(m1-(a3+a4)>0.01)&&(m3-(a5+a6)>0.01))) { // // } // if(m2-(a1+a2)<0.01) { // num++; // } // if(m1-(a3+a4)<0.01) { // num++; // } // if(m3-(a5+a6)<0.01) { // num++; // } // System.out.print(num); } } } } } if(sc.charAt(0)=='5') { for (i=0;i<sc.length()-1;i++) { if ((sc.charAt(i)=='+'&&sc.charAt(i+1)=='+')||(sc.charAt(i)=='-'&&sc.charAt(i+1)=='-') || (sc.charAt(i)=='+'&&sc.charAt(i+1)=='-')||(sc.charAt(i)=='-'&&sc.charAt(i+1)=='+') || (sc.charAt(i)=='.'&&sc.charAt(i+1)==',')||(sc.charAt(i)==','&&sc.charAt(i+1)=='.') || (sc.charAt(i)==' '&&sc.charAt(i+1)=='.')||(sc.charAt(i)=='.'&&sc.charAt(i+1)=='.') || (sc.charAt(i)==' '&&sc.charAt(i+1)==',')||(sc.charAt(i)==','&&sc.charAt(i+1)==' ') || (sc.charAt(i)==' '&&sc.charAt(i+1)==' ')||(sc.charAt(i)==':'&&sc.charAt(i+1)==':') || (sc.charAt(i)==','&&sc.charAt(i+1)==',')||(sc.charAt(sc.length()-1)==',') || (sc.charAt(i)==':'&&sc.charAt(i+1)==',')||sc.charAt(0)<'1'||sc.charAt(0)>'5' || (sc.charAt(i)=='0'&&(sc.charAt(i+1) > '0'&&sc.charAt(i + 1) < '9')) || (sc.charAt(i)==':'&&sc.charAt(i+1) == '.')) { b1=1; } } if(b1==1) { System.out.print("Wrong Format"); System.exit(0); } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==',') { count++; } } for(i=0;i<sc.length();i++) { if(sc.charAt(i)==' ') { f2++; } } if(count!=4||f2!=3) { System.out.print("wrong number of points"); System.exit(0); } if(count==4&&f2==3) { String[] p=sc.split(" "); String[] q=p[0].split(":"); String[] m=q[1].split(","); String[] n=p[1].split(","); String[] s=p[2].split(","); String[] z=p[3].split(","); x1=Double.parseDouble(m[0]); y1=Double.parseDouble(m[1]); x2=Double.parseDouble(n[0]); y2=Double.parseDouble(n[1]); x3=Double.parseDouble(s[0]); y3=Double.parseDouble(s[1]); x4=Double.parseDouble(z[0]); y4=Double.parseDouble(z[1]); a1 = Math.sqrt((x3-x4)*(x3-x4)+(y3-y4)*(y3-y4)); a2 = Math.sqrt((x2-x3)*(x2-x3)+(y2-y3)*(y2-y3)); a3 = Math.sqrt((x2-x4)*(x2-x4)+(y2-y4)*(y2-y4)); if((Math.abs(a1+a2)-a3)<0||(Math.abs(a1+a3)-a2)<0||(Math.abs(a2+a3)-a1)<0) { System.out.print("data error"); System.exit(0); } else { area = Math.abs((x2*(y3-y4)+x3*(y4-y2)+x4*(y2-y3)))/2; double area1 = Math.abs((x1*(y2-y3)+x2*(y3-y1)+x3*(y1-y2)))/2; double area2 = Math.abs((x1*(y3-y4)+x3*(y4-y1)+x4*(y1-y3)))/2; double area3 = Math.abs((x1*(y2-y4)+x2*(y4-y1)+x4*(y1-y2)))/2; if((Math.abs(area-(area1+area2+area3))<0.0001)&&area1>0&&area2>0&&area3>0) { System.out.print("in the triangle"); } if((area1<0.0001||area2<0.0001||area3<0.0001)&&(Math.abs(area-(area1+area2+area3))<0.0001)) { System.out.print("on the triangle"); } if(Math.abs(area-(area1+area2+area3))>0.001) { System.out.print("outof the triangle"); } } } } } }
心得：这道题真的让我痛不欲生，第一次写这么多行的代码。这道题真的让我体验到了Java的难度，我也想到了后面的题目集难度会越来越大。但是对于我们的设计能力有很大帮助，虽然写的过程很痛苦，但是看到分数慢慢增加还是挺开心的。
题目集6：7-2：
用户输入一组选项和数据，进行与四边形有关的计算。
以下四边形顶点的坐标要求按顺序依次输入，连续输入的两个顶点是相邻顶点，第一个和最后一个输入的顶点相邻。
选项包括：
1：输入四个点坐标，判断是否是四边形、平行四边形，判断结果输出true/false，结果之间以一个英文空格符分隔。
2：输入四个点坐标，判断是否是菱形、矩形、正方形，判断结果输出true/false，结果之间以一个英文空格符分隔。 若四个点坐标无法构成四边形，输出"not a quadrilateral"
3：输入四个点坐标，判断是凹四边形（false）还是凸四边形(true)，输出四边形周长、面积，结果之间以一个英文空格符分隔。 若四个点坐标无法构成四边形，输出"not a quadrilateral"
4：输入六个点坐标，前两个点构成一条直线，后四个点构成一个四边形或三角形，输出直线与四边形（也可能是三角形）相交的交点数量。如果交点有两个，再按面积从小到大输出四边形(或三角形)被直线分割成两部分的面积（不换行）。若直线与四边形或三角形的一条边线重合，输出"The line is coincide with one of the lines"。若后四个点不符合四边形或三角形的输入，输出"not a quadrilateral or triangle"。
后四个点构成三角形的情况：假设三角形一条边上两个端点分别是x、y，边线中间有一点z，另一顶点s：
1）符合要求的输入：顶点重复或者z与xy都相邻，如x x y s、x z y s、x y x s、s x y y。此时去除冗余点，保留一个x、一个y。
2) 不符合要求的输入：z 不与xy都相邻，如z x y s、x z s y、x s z y
5：输入五个点坐标，输出第一个是否在后四个点所构成的四边形（限定为凸四边形，不考虑凹四边形）或三角形（判定方法见选项4）的内部（若是四边形输出in the quadrilateral/outof the quadrilateral，若是三角形输出in the triangle/outof the triangle）。如果点在多边形的某条边上，输出"on the triangle或者on the quadrilateral"。若后四个点不符合四边形或三角形，输出"not a quadrilateral or triangle"。
import java.util.Scanner; public class Main { public static void main(String[] args) { // TODO 自动生成的方法存根 Scanner in=new Scanner(System.in); double x1,x2,x3,x4,y1,y2,y3,y4; String a=in.nextLine(); if (a.matches("[1-5]:[\\-\\+]?\\d+(\\.\\d+)?,[\\-\\+]?\\d+(\\.\\d+)?(\\s[\\-\\+]?\\d+(\\.\\d+)?,[\\-\\+]?\\d+(\\.\\d+)?){0,}\\s?")) { if (a.matches("[1-3]:([+-]?\\d+(\\.\\d+)?,[+-]?\\d+(\\.\\d+)?\\s?)*")) { if(a.matches("[1-3]:([+-]?\\d+(\\.\\d+)?,[+-]?\\d+(\\.\\d+)?\\s?){4}")){ String[] p=a.split(" "); String[] q=p[0].split(":"); String[] m=q[1].split(","); String[] n=p[1].split(","); String[] s=p[2].split(","); String[] z=p[3].split(","); x1=Double.parseDouble(m[0]); y1=Double.parseDouble(m[1]); x2=Double.parseDouble(n[0]); y2=Double.parseDouble(n[1]); x3=Double.parseDouble(s[0]); y3=Double.parseDouble(s[1]); x4=Double.parseDouble(z[0]); y4=Double.parseDouble(z[1]); if(a.charAt(0)=='1') { if((x1==x2&&y1==y2)||(x1==x3&&y1==y3)||(x1==x4&&y1==y4)||(x2==x3&&y2==y3)||(x4==x2&&y4==y2)||(x3==x4&&y3==y4)) { System.out.print("points coincide"); } else { System.out.println(Quadrilateral(x1,y1,x2,y2,x3,y3,x4,y4)+" "+parallelogram(x1,y1,x2,y2,x3,y3,x4,y4)); } } else if(a.charAt(0)=='2') { if((x1==x2&&y1==y2)||(x1==x3&&y1==y3)||(x1==x4&&y1==y4)||(x2==x3&&y2==y3)||(x4==x2&&y4==y2)||(x3==x4&&y3==y4)) { System.out.print("points coincide"); } else { System.out.println(Linxing(x1,y1,x2,y2,x3,y3,x4,y4)+" "+Rectangle(x1,y1,x2,y2,x3,y3,x4,y4)+" "+Square(x1,y1,x2,y2,x3,y3,x4,y4)); } } else if(a.charAt(0)=='3') { if((x1==x2&&y1==y2)||(x1==x3&&y1==y3)||(x1==x4&&y1==y4)||(x2==x3&&y2==y3)||(x4==x2&&y4==y2)||(x3==x4&&y3==y4)) { System.out.print("points coincide"); } else { if(!Quadrilateral(x1,y1,x2,y2,x3,y3,x4,y4)) { System.out.print("not a quadrilateral"); } else { System.out.print(aotu(x1,y1,x2,y2,x3,y3,x4,y4)+" "); System.out.print(Perimeter(x1,y1,x2,y2,x3,y3,x4,y4)+" "); System.out.print(Area(x1,y1,x2,y2,x3,y3,x4,y4)); } } } } else { System.out.print("wrong number of points"); } } if(a.matches("[4]:([+-]?\\d+(\\.\\d+)?,[+-]?\\d+(\\.\\d+)?\\s?)*")){ if (a.matches("[4]:([+-]?\\d+(\\.\\d+)?,[+-]?\\d+(\\.\\d+)?\\s?){6}")){ System.out.println("not a quadrilateral or triangle"); }else { System.out.println("wrong number of points"); } } if(a.matches("[5]:([+-]?\\d+(\\.\\d+)?,[+-]?\\d+(\\.\\d+)?\\s?)*")) { if (!a.matches("[5]:([+-]?\\d+(\\.\\d+)?,[+-]?\\d+(\\.\\d+)?\\s?){5}")) { System.out.println("wrong number of points"); } else { System.out.println("on the quadrilateral"); } } } else { System.out.print("Wrong Format"); } } public static double Distance(double a,double b,double c,double d) { return Math.sqrt((a-c)*(a-c)+(b-d)*(b-d)); } public static boolean Parallel(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4){ double k1=(y1-y2)/(x1-x2); double k2=(y3-y4)/(x3-x4); if(k1==k2||x1==x2&&x3==x4){ return true; }else return false; } public static boolean Quadrilateral(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4){//是否为四边形 double k1,k2,k3; k1=(y1-y2)/(x1-x2); k2=(y1-y3)/(x1-x3); k3=(y1-y4)/(x1-x4); if(k1==k2||k1==k3||k2==k3){ return false; }else return true; } public static boolean parallelogram(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4){//判断平行四边形 if(Quadrilateral(x1, y1, x2, y2, x3, y3, x4, y4)&&Parallel(x1,y1,x2,y2,x3,y3,x4,y4)&&Distance(x1,y1,x2,y2)==Distance(x3,y3,x4,y4)){ return true; }else return false; } public static boolean Linxing(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4){//判断菱形 if(parallelogram(x1,y1,x2,y2,x3,y3,x4,y4)&&Distance(x1,y1,x2,y2)==Distance(x2,y2,x3,y3)){ return true; }else return false; } public static boolean Rectangle(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4){//判断矩形 double k1=(y1-y2)/(x1-x2); double k2=(y2-y3)/(x2-x3); if(parallelogram(x1,y1,x2,y2,x3,y3,x4,y4)&&k1*k2==-1||x1==x2&&y2==y3){ return true; }else return false; } public static boolean Square(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4){//判断正方形 if(Rectangle(x1,y1,x2,y2,x3,y3,x4,y4)&&Linxing(x1,y1,x2,y2,x3,y3,x4,y4)){ return true; }else return false; } public static double judge(double x1,double y1,double x2,double y2,double x3,double y3){ double a=Distance(x1,y1,x2,y2)+Distance(x1,y1,x3,y3)+Distance(x3,y3,x2,y2); double b=a/2; return Math.sqrt(b*(b-Distance(x1,y1,x2,y2))*(b-Distance(x1,y1,x3,y3))*(b-Distance(x3,y3,x2,y2))); } public static boolean aotu(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4){ double a = judge(x1,y1,x2,y2,x3,y3); double b = judge(x2,y2,x3,y3,x4,y4); double c = judge(x1,y1,x3,y3,x4,y4); double d = judge(x1,y1,x2,y2,x4,y4); if((a+c)==(b+d)) { return true; } else { return false; } } public static double Perimeter(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4) { double p = Distance(x1,y1,x2,y2)+Distance(x2,y2,x3,y3)+Distance(x3,y3,x4,y4)+Distance(x1,y1,x4,y4); double q = p*1000; double m = Math.round(q); return m/1000; } public static double Area(double x1,double y1,double x2,double y2,double x3,double y3,double x4,double y4) { if(aotu(x1,y1,x2,y2,x3,y3,x4,y4)) { double a = judge(x1, y1, x2, y2, x3, y3); double b = judge(x1, y1, x3, y3, x4, y4); double c = (a+b)*1000; double d = Math.round(c); return d/1000; } else { if(judge(x1, y1, x2, y2, x3, y3)+judge(x1, y1, x3, y3, x4, y4)>judge(x2, y2, x3, y3, x4, y4)+judge(x1, y1, x2, y2, x4, y4)){ double a=judge(x2, y2, x3, y3, x4, y4)+judge(x1, y1, x2, y2, x4, y4); double b=a*1000; double c=Math.round(b); return c/1000; } else { double a=judge(x1, y1, x2, y2, x3, y3)+judge(x1, y1, x3, y3, x4, y4); double b=a*1000; double c=Math.round(b); return c/1000; } } } }
心得：本题十分考验我们对于java字符串的理解以及数学知识的灵活运用，掌握了如何通过字符串来解决题目的能力。写完这题后我对于Java字符串的运用熟练了很多，并且也学到了一些规范代码的格式。并且在写题过程中我发现误差范围也是我们应该考虑到的，要不然根本过不了测试点。并且对于我们的心态也是锻炼，也很锻炼我们的设计能力。但是这道题我只得到了一半的分，我觉得这还是跟我自身问题有关，我不能自信得去完成题目，有了恐惧，自然就很难完成。

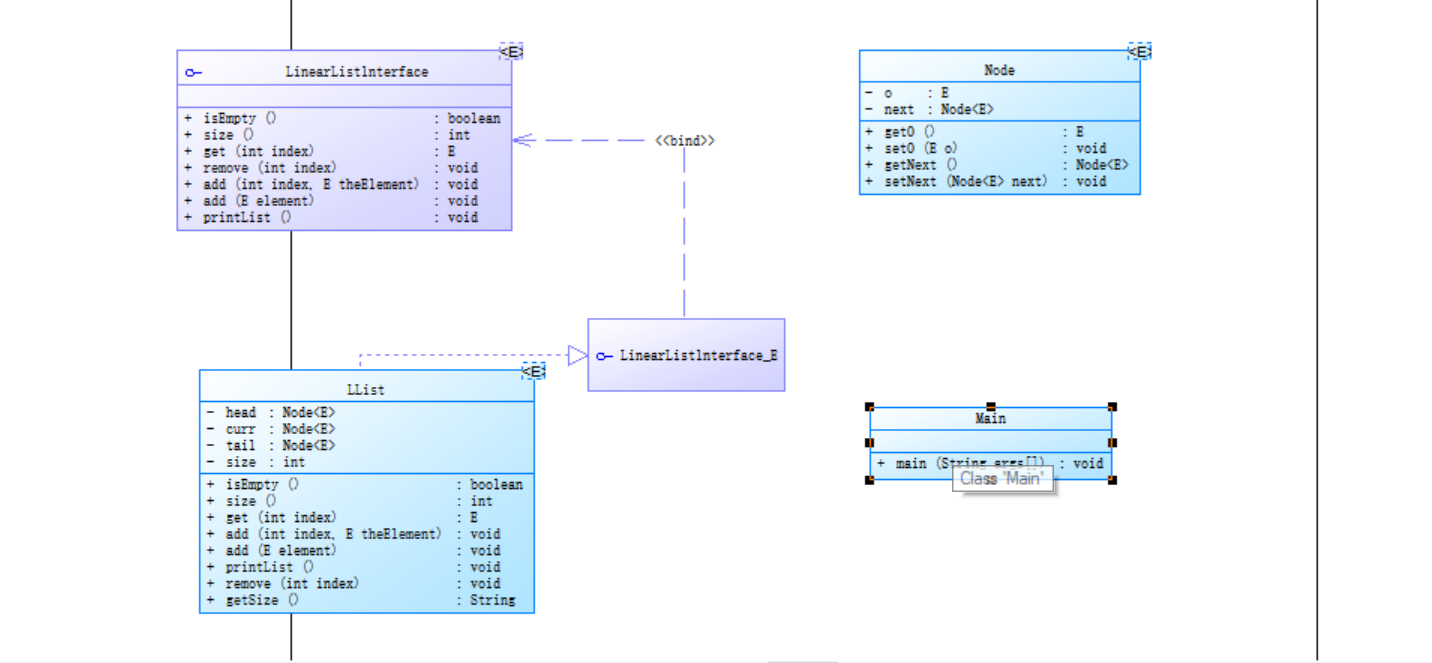

链表作业：
public interface LinearListlnterface<E> { public boolean isEmpty(); public int size(); public E get(int index); public void remove(int index); public void add(int index, E theElement); public void add(E element); public void printList(); } import java.beans.ParameterDescriptor; public class LList<E> implements LinearListlnterface<E> { private Node<E> head,curr,tail; private int size; @Override public boolean isEmpty() { // TODO 自动生成的方法存根 if(head==null) return true; else return false; } @Override public int size() { // TODO 自动生成的方法存根 return this.size; } @Override public E get(int index) { // TODO 自动生成的方法存根 int count = 0; Node<E> i = head; for(;;) { if(index > size || index < 0) return null; if(i != null && count <= index) { count ++; i = i.getNext(); if(i == null || count == index) break; } } return i.getO(); } @Override public void add(int index, E theElement) { // TODO 自动生成的方法存根 if(index==size) { add(theElement); } else { int count=0; Node<E> t=this.head; Node<E> p=null; while(count!=index&&t!=null) { count++; p=t; t=t.getNext(); } curr=new Node<E>(); curr.setO(theElement); curr.setNext(t.getNext()); t.setNext(curr); size++; } } @Override public void add(E element) { // TODO 自动生成的方法存根 if(head==null) { head=tail=new Node<E>(); head.setO(element); head.setNext(null); size++; } else { curr=new Node<E>(); tail.setNext(curr); curr.setO(element); curr.setNext(null); size++; } } @Override public void printList() { // TODO 自动生成的方法存根 Node<E> b=head; for(;;) { System.out.println(b.getO()); b=b.getNext(); if(b==null) break; } } @Override public void remove(int index) { // TODO 自动生成的方法存根 int count=0; Node<E> t=this.head; Node<E> p=null; while(count!=index-1&&t!=null) { count=count+1; p=t; t=t.getNext(); } if(p==null) { head=head.getNext(); } else { t.setNext(p.getNext()); } if(t==tail) { tail=p; } size--; } public String getSize() { // TODO 自动生成的方法存根 return null; } } import java.util.Scanner; public class Main { public static void main(String[] args) { // TODO 自动生成的方法存根 Scanner input = new Scanner(System.in); LList<Integer> list = new LList<Integer>(); System.out.println("菜单"); System.out.println("1.是否为空"); System.out.println("2:大小"); System.out.println("3:得到下标"); System.out.println("4:移除下标"); System.out.println("5:添加下标"); System.out.println("6:尾插"); System.out.println("7:输出链表"); System.out.print("请输入你的选择:"); while(true) { System.out.print("请输入你的选择:"); int choice = input.nextInt(); if(choice == 1) { if(list.isEmpty()) System.out.println("是空"); else System.out.println("非空"); } else if(choice == 2) { System.out.println("链表的大小为:" + list.getSize()); } else if(choice == 3) { System.out.println("请输入你的下标:"); int index = input.nextInt(); if(list.get(index) == null) System.out.println("未找到"); else System.out.println("链表的大小为:" + list.get(index)); } else if(choice == 4) { System.out.println("请输入添加的下标:"); int index = input.nextInt(); if(list.get(index) == null) System.out.println("未找到!"); else { list.remove(index); System.out.println("完成"); } } else if(choice == 5) { System.out.println("请输入添加下标和值:"); int index = input.nextInt(); int value = input.nextInt(); if(list.get(index) == null) System.out.println("未找到!"); else { list.add(index, value); System.out.println("完成"); } } else if(choice == 6) { System.out.println("请输入值:"); int value = input.nextInt(); list.add(value); System.out.println("完成"); } else if(choice == 7) { list.printList(); } else System.out.println("Wrong Format"); } } } public class Node<E> { private E o; private Node<E> next; public E getO() { return o; } public void setO(E o) { this.o = o; } public Node<E> getNext() { return next; } public void setNext(Node<E> next) { this.next = next; } }
心得：链表这一部分真是上学期没学好，所以这个作业写的我很头疼，我在写之前还特意温习了链表的知识点。这次作业不光涉及到链表的知识点，还有类与类之间的关系以及调用，在老师讲解后，我认为我对于脸的掌握熟练了一些，但是日后还是得下功夫学习。

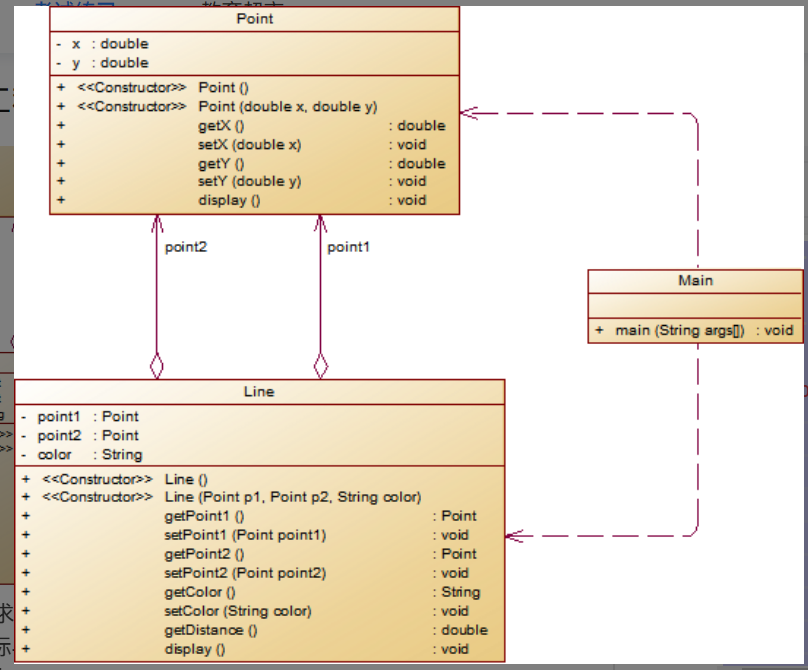

期中考试-7-1：
-
设计一个类表示平面直角坐标系上的点Point，私有属性分别为横坐标x与纵坐标y，数据类型均为实型数，除构造方法以及属性的getter与setter方法外，定义一个用于显示信息的方法display(),用来输出该坐标点的坐标信息，格式如下：
(x,y)，数值保留两位小数。为简化题目，其中，坐标点的取值范围设定为(0,200]。若输入有误，系统则直接输出Wrong Format -
设计一个类表示平面直角坐标系上的线Line，私有属性除了标识线段两端的点point1、point2外，还有一个字符串类型的color，用于表示该线段的颜色，同样，除构造方法以及属性的getter与setter方法外，定义一个用于计算该线段长度的方法getDistance(),还有一个用于显示信息的方法display(),用来输出线段的相关信息。
import java.util.Scanner; public class Main { public static void main(String[] args) { // TODO 自动生成的方法存根 Scanner in=new Scanner(System.in); double x1,y1,x2,y2; String color; x1 = in.nextDouble(); y1 = in.nextDouble(); x2 = in.nextDouble(); y2 = in.nextDouble(); color = in.next(); if(x1>0&&x1<=200&&y1>0&&y1<=200&&x2>0&&x2<=200&&y2>0&&y2<=200) { Point point1 = new Point(x1,y1); Point point2 = new Point(x2,y2); Line line = new Line(point1, point2, color); line.display(); } else { System.out.println("Wrong Format"); } } } class Point{ private double x; private double y; public Point() { super(); // TODO 自动生成的构造函数存根 } public Point(double x, double y) { super(); this.x = x; this.y = y; } public double getX() { return x; } public void setX(double x) { this.x = x; } public double getY() { return y; } public void setY(double y) { this.y = y; } public void display() { if(x>0&&x<=200&&y>0&&y<=200) { System.out.print("("+String.format("%.2f",x)+","+String.format("%.2f",y)+")"); } else { System.out.println("Wrong Format"); } } } class Line{ private Point point1; private Point point2; private String color; public Line() { super(); // TODO 自动生成的构造函数存根 } public Line(Point point1, Point point2, String color) { super(); this.point1 = point1; this.point2 = point2; this.color = color; } public Point getPoint1() { return point1; } public void setPoint1(Point point1) { this.point1 = point1; } public Point getPoint2() { return point2; } public void setPoint2(Point point2) { this.point2 = point2; } public String getColor() { return color; } public void setColor(String color) { this.color = color; } public double getDistance(double x1,double y1,double x2,double y2) { double data = Math.sqrt((x1-x2)*(x1-x2)+(y1-y2)*(y1-y2)); return data; } public void display() { System.out.println("The line's color is:"+this.color); System.out.println("The line's begin point's Coordinate is:"); System.out.println("("+String.format("%.2f",point1.getX())+","+String.format("%.2f",point1.getY())+")"); System.out.println("The line's end point's Coordinate is:"); System.out.println("("+String.format("%.2f",point2.getX())+","+String.format("%.2f",point2.getY())+")"); System.out.print("The line's length is:"+String.format("%.2f", getDistance(point1.getX(),point1.getY(),point2.getX(),point2.getY()))); } }
心得：这道题是第一题，属于简单的题目，只包含了类与类的相关知识，并且类图已经给了我们，我们并不需要设计，只需要按类图写代码就行。
期中考试-7-2：
import java.util.Scanner; public class Main { public static void main(String[] args) { // TODO 自动生成的方法存根 Scanner in=new Scanner(System.in); double x1,y1,x2,y2; String color; x1 = in.nextDouble(); y1 = in.nextDouble(); x2 = in.nextDouble(); y2 = in.nextDouble(); color = in.next(); if(x1>0&&x1<=200&&y1>0&&y1<=200&&x2>0&&x2<=200&&y2>0&&y2<=200) { Point point1 = new Point(x1,y1); Point point2 = new Point(x2,y2); Line line = new Line(point1, point2, color); Element element; Plane plane = new Plane(color); element = point1;//起点Point element.display(); element = point2;//终点Point element.display(); element = line;//线段 element.display(); element = plane;//面 element.display(); } else { System.out.println("Wrong Format"); } } } class Point extends Element{ private double x; private double y; public Point() { super(); // TODO 自动生成的构造函数存根 } public Point(double x, double y) { super(); this.x = x; this.y = y; } public double getX() { return x; } public void setX(double x) { this.x = x; } public double getY() { return y; } public void setY(double y) { this.y = y; } public void display() { if(x>0&&x<=200&&y>0&&y<=200) { System.out.println("("+String.format("%.2f",x)+","+String.format("%.2f",y)+")"); } else { System.out.println("Wrong Format"); } } } class Line extends Element{ private Point point1; private Point point2; private String color; public Line() { super(); // TODO 自动生成的构造函数存根 } public Line(Point point1, Point point2, String color) { super(); this.point1 = point1; this.point2 = point2; this.color = color; } public Point getPoint1() { return point1; } public void setPoint1(Point point1) { this.point1 = point1; } public Point getPoint2() { return point2; } public void setPoint2(Point point2) { this.point2 = point2; } public String getColor() { return color; } public void setColor(String color) { this.color = color; } public double getDistance(double x1,double y1,double x2,double y2) { double data = Math.sqrt((x1-x2)*(x1-x2)+(y1-y2)*(y1-y2)); return data; } public void display() { System.out.println("The line's color is:"+this.color); System.out.println("The line's begin point's Coordinate is:"); System.out.println("("+String.format("%.2f",point1.getX())+","+String.format("%.2f",point1.getY())+")"); System.out.println("The line's end point's Coordinate is:"); System.out.println("("+String.format("%.2f",point2.getX())+","+String.format("%.2f",point2.getY())+")"); System.out.println("The line's length is:"+String.format("%.2f", getDistance(point1.getX(),point1.getY(),point2.getX(),point2.getY()))); } } abstract class Element{ public abstract void display() ; } class Plane extends Element{ private String color; public Plane() { super(); // TODO 自动生成的构造函数存根 } public Plane(String color) { super(); this.color = color; } public String getColor() { return color; } public void setColor(String color) { this.color = color; } @Override public void display() { // TODO 自动生成的方法存根 System.out.println("The Plane's color is:"+this.color); } }

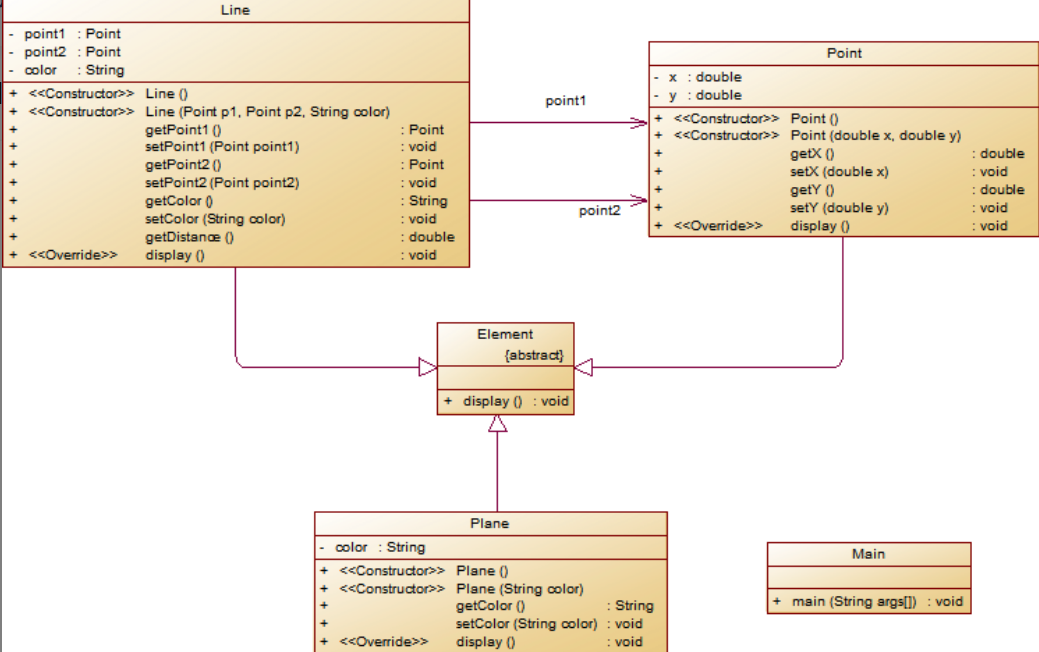

心得：第二题是在第一题的基础上迭代的，比第一题多了继承与多态，我们需要增加抽象类Element以及Plane类。我们在主函数的输出时改变输出方法，变为抽象类的输出。

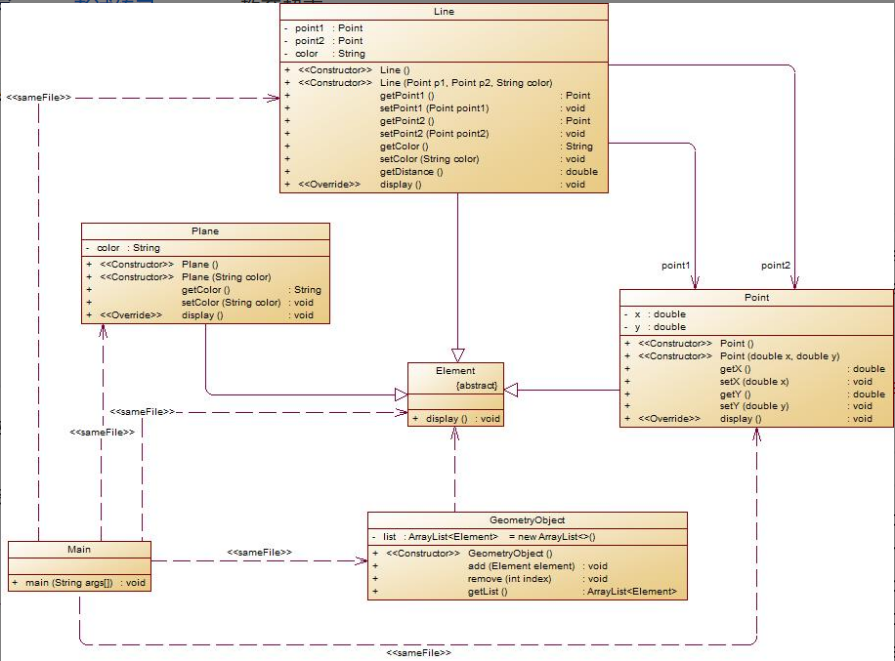

期中考试-7-3：
import java.util.ArrayList; import java.util.Scanner; public class Main { public static void main(String[] args) { // TODO 自动生成的方法存根 Scanner in=new Scanner(System.in); int choice; double x1,y1,x2,y2; String color; GeometryObject a = new GeometryObject(); Plane plane ; Point point; Line line; choice = in.nextInt(); while(choice != 0) { switch(choice) { case 1://insert Point object into list x1=in.nextDouble(); y1=in.nextDouble(); point=new Point(x1,y1); a.add(point); break; case 2://insert Line object into list x1=in.nextDouble(); y1=in.nextDouble(); x2=in.nextDouble(); y2=in.nextDouble(); Point point1=new Point(x1,y1); Point point2=new Point(x2,y2); color=in.next(); line=new Line(point1,point2,color); a.add(line); break; case 3://insert Plane object into list color=in.next(); plane = new Plane(color); a.add(plane); break; case 4://delete index - 1 object from list int index = in.nextInt(); a.remove(index-1); } choice = in.nextInt(); } for(Element element : a.getList()) { element.display(); } } } class Point extends Element{ private double x; private double y; public Point() { super(); // TODO 自动生成的构造函数存根 } public Point(double x, double y) { super(); this.x = x; this.y = y; } public double getX() { return x; } public void setX(double x) { this.x = x; } public double getY() { return y; } public void setY(double y) { this.y = y; } public void display() { if(x>0&&x<=200&&y>0&&y<=200) { System.out.println("("+String.format("%.2f",x)+","+String.format("%.2f",y)+")"); } else { System.out.println("Wrong Format"); } } } class Line extends Element{ private Point point1; private Point point2; private String color; public Line() { super(); // TODO 自动生成的构造函数存根 } public Line(Point point1, Point point2, String color) { super(); this.point1 = point1; this.point2 = point2; this.color = color; } public Point getPoint1() { return point1; } public void setPoint1(Point point1) { this.point1 = point1; } public Point getPoint2() { return point2; } public void setPoint2(Point point2) { this.point2 = point2; } public String getColor() { return color; } public void setColor(String color) { this.color = color; } public double getDistance(double x1,double y1,double x2,double y2) { double data = Math.sqrt((x1-x2)*(x1-x2)+(y1-y2)*(y1-y2)); return data; } public void display() { if(point1.getX()>0&&point1.getX()<=200&&point2.getX()>0&&point2.getX()<=200&&point1.getY()>0&&point1.getY()<=200&&point2.getY()>0&&point2.getY()<=200) { System.out.println("The line's color is:"+this.color); System.out.println("The line's begin point's Coordinate is:"); System.out.println("("+String.format("%.2f",point1.getX())+","+String.format("%.2f",point1.getY())+")"); System.out.println("The line's end point's Coordinate is:"); System.out.println("("+String.format("%.2f",point2.getX())+","+String.format("%.2f",point2.getY())+")"); System.out.println("The line's length is:"+String.format("%.2f", getDistance(point1.getX(),point1.getY(),point2.getX(),point2.getY()))); } else { System.out.println("Wrong Format"); } } } abstract class Element{ public abstract void display() ; } class Plane extends Element{ private String color; public Plane() { super(); // TODO 自动生成的构造函数存根 } public Plane(String color) { super(); this.color = color; } public String getColor() { return color; } public void setColor(String color) { this.color = color; } @Override public void display() { // TODO 自动生成的方法存根 System.out.println("The Plane's color is:"+this.color); } } class GeometryObject { private ArrayList<Element> list= new ArrayList<>(); public GeometryObject() { super(); // TODO 自动生成的构造函数存根 } public void add(Element element) { list.add(element); } public void remove(int index) { if(index>=0&&index<list.size()) list.remove(index); } public ArrayList<Element> getList() { return list; } }
心得：第三题在第二题的迭代的基础上增加了容器类，说实话，如果不给我类图的话，我还真不会设计，但是在有类图的情况下，我还能解决问题，我学会了容器类的使用，虽然在考试的时候对于所写的代码十分不确定，但是对于所学的知识还能做到运用。
踩坑心得：

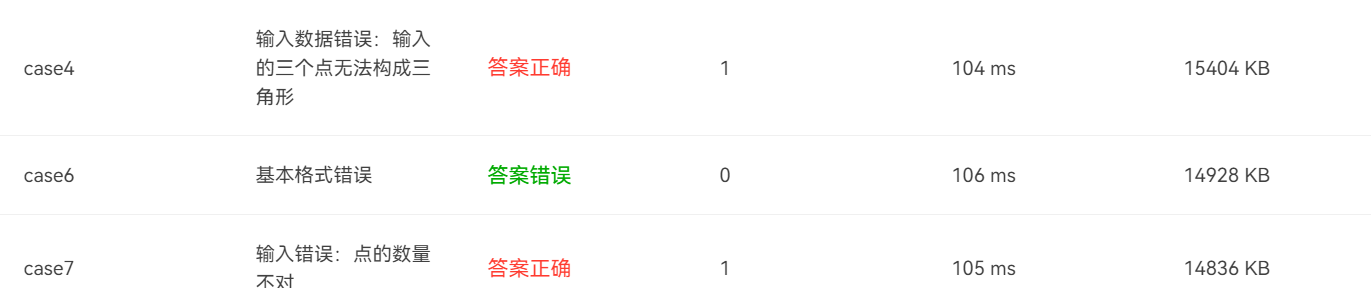

题目集4：
===============================================================================================================================

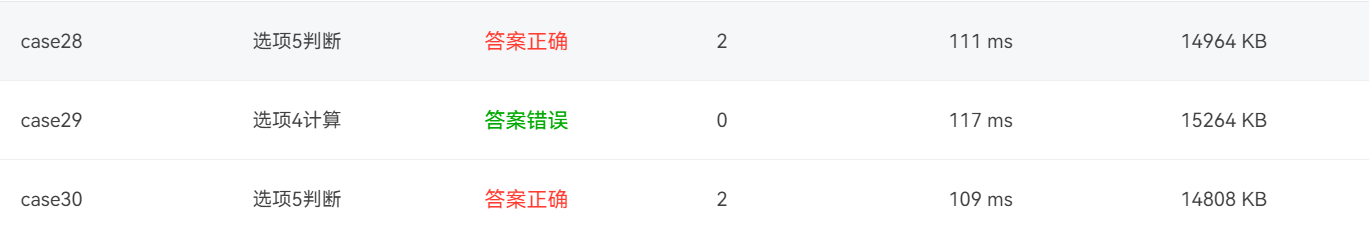

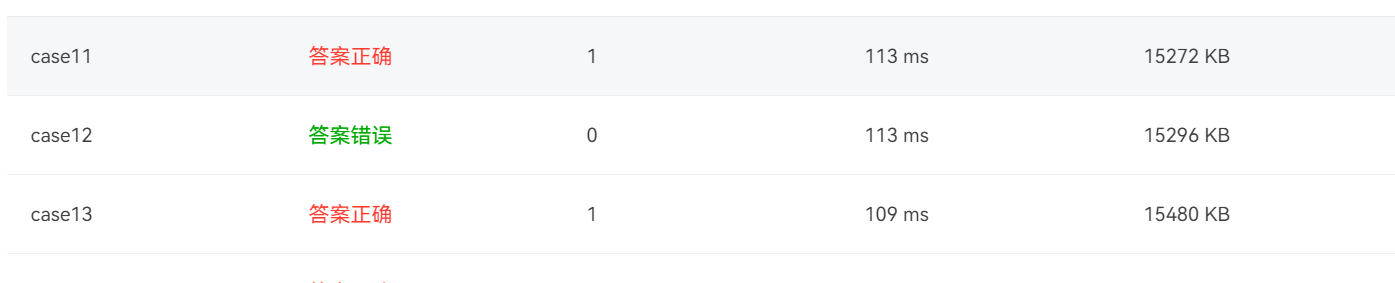

心得：基本格式错误用了枚举法，结果始终有一个测试点过不了，证明还是有情况没有考虑到。选项四计算错误有一个测试点过不了，调试不出来，到截止时间都没有找出，证明还是设计有问题。

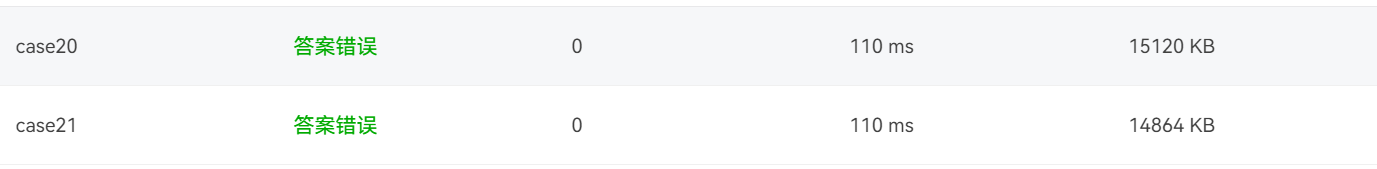

题目集6：
===============================================================================================================================
心得：这道题目我只写了前三个选择，后两个的情况太复杂了，其中未过的测试点都是能否构成四边形出了问题，我自己找的判断能否构成四边形的方法在此题中并不完全适用，因为我发现此题的构成四边形的四个点是必须按顺序来的，这也导致了有几个测试点过不了。
链表课堂作业：
心得：我们并没有清楚了解增加类是头插还是尾插，并且链表的知识点我并没有很好的理解与掌握，踩了很多坑。
题目集5：
心得：这道题对于格式判断的正则表达式我写的有点为了过测试点而写，其中“|”的作用我开始搞错了，后来修改完才对。
期中考试：

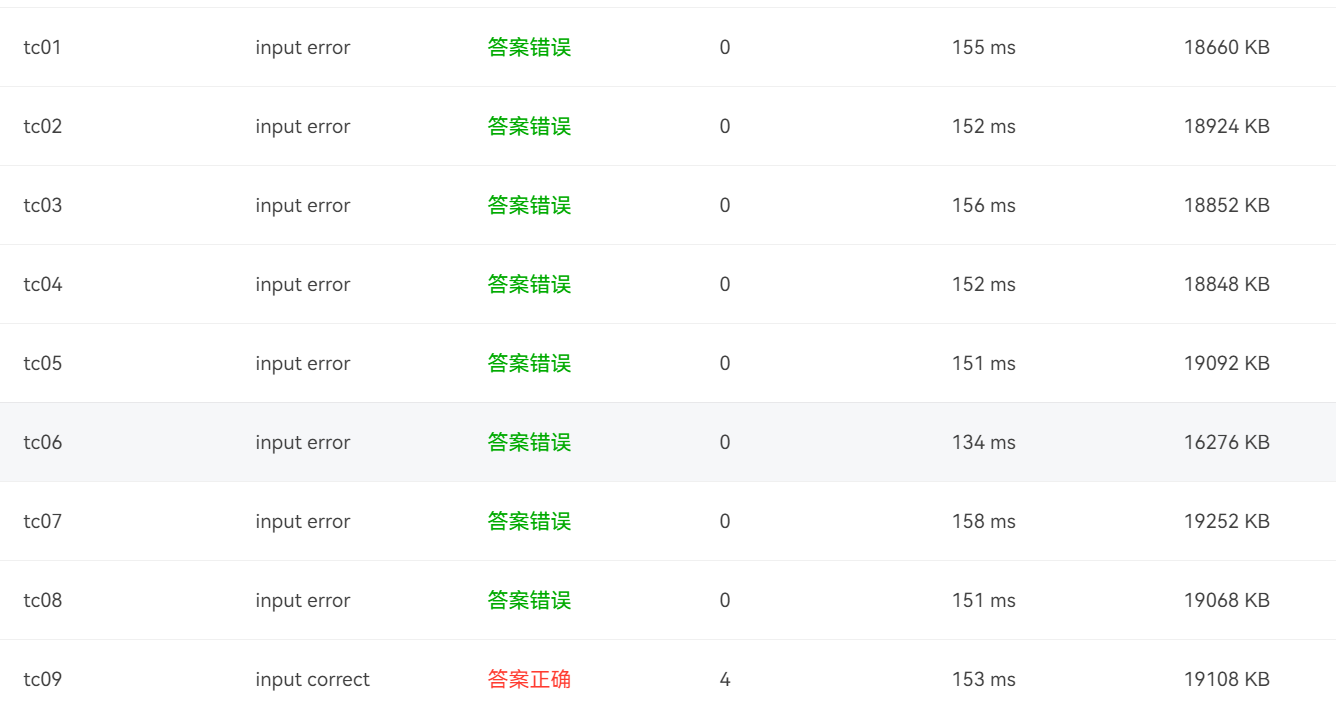

心得：这题我没本来信心满满的提交，但是没想到才四分，我想到是没有输出“wrong format”，结果加上了“wrong format”直接满分，由此可见粗心大意写代码是要不得的。

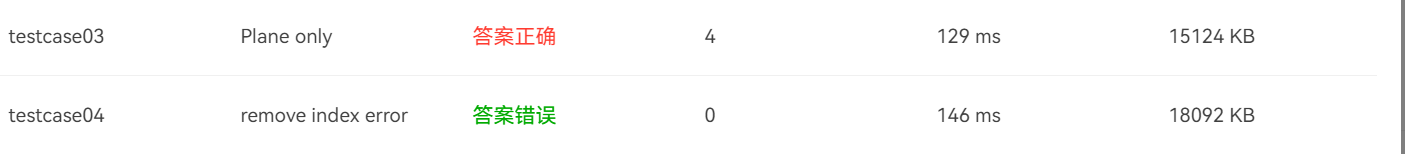

心得：这道题的移除指定坐标的元素测试点出错了，我突然发现是自己没有规定index的范围，然后规定完范围后就能通过测试点了，审题不仔细这个毛病真得改改了。
改进建议：
这次总结包括了题目集4、5、6，链表课堂作业，以及期中考试的三道题。这几次题目难度多我来说还是很大的，有两次pta都没有拿到满分，甚至其中还有一次刚及格。对于现阶段的我来说，打好基础是当务之急，我觉得我去优化代码是有点不切实际的。我得学好类与类之间的关系，继承与多态，以及容器类。我对于这些都是一知半解，有时候能写出代码，也能运行，但是根本就不清楚怎么运行的，为什么可以运行。其次就是写代码粗心大意，好就好在eclipse可以及时报错，这对于我来说还是挺友好的。然后就是写代码之前要先设计，我就没有设计的概念，拿到题目就直接去写，根本没有设计，因此我写出的代码在画类图是是很混乱的。就说图形类设计的那几道题，我根本没有建立类，我只编写了方法，这样是不好的，因为代码需要低耦合性。还有链表的课堂作业，由于我对于链表的知识不熟练，因此写出的代码是很低级的，甚至还会有错误。
总结：
这几次的作业让我清楚认识到了自己的渺小，java的课绝对不是一门可以混过的课程，不光有pta，还有随堂作业，以及实验等，我觉得对于我而言还是很难的，不知道别人怎么样，但是我清楚认识到我的思维并不适合编程，就像老师说的，有的人的脑子，是天生适合写代码的，而我就是那种可能得学习很久才能开始写，但既然选择了这个专业，我还是得坚持下去，虽然做不到游刃有余，但是基本的东西还是得掌握的。希望这个学期的java课程可以顺利通过吧。
