CloudCompare编译

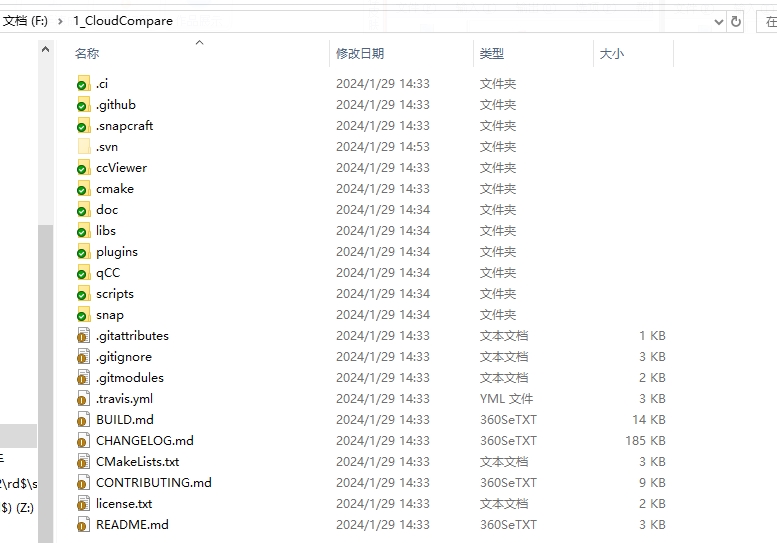

1、下载CloudCompare源代码，解压（本人是放于 F:\1_CloudCompare）；

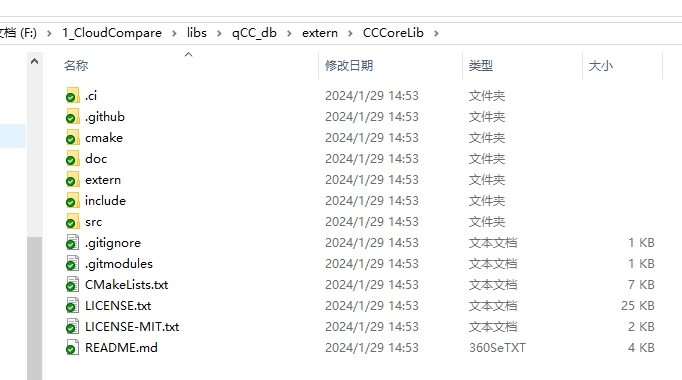

2、下载CCCoreLib源代码，解压路径：F:\1_CloudCompare\libs\qCC_db\extern\CCCoreLib；

3、下载nanoflann源代码，解压路径：F:\1_CloudCompare\libs\qCC_db\extern\CCCoreLib\extern\nanoflann

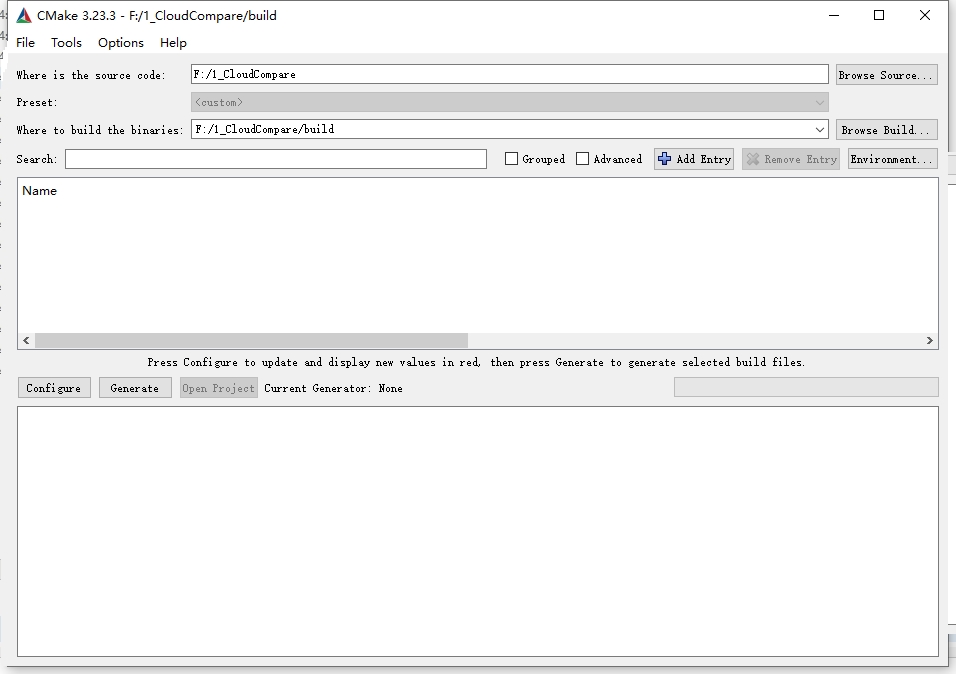

4、打开CMake，添加路径：

5、添加变量

（1）CMAKE_PREFIX_PATH，指向QT安装路径，如D:/Qt/5.15.2/msvc2019_64

（2）CMAKE_INSTALL_PREFIX，指定安装目录，如../Install

6、Configure & Generate

7、打开项目，编译

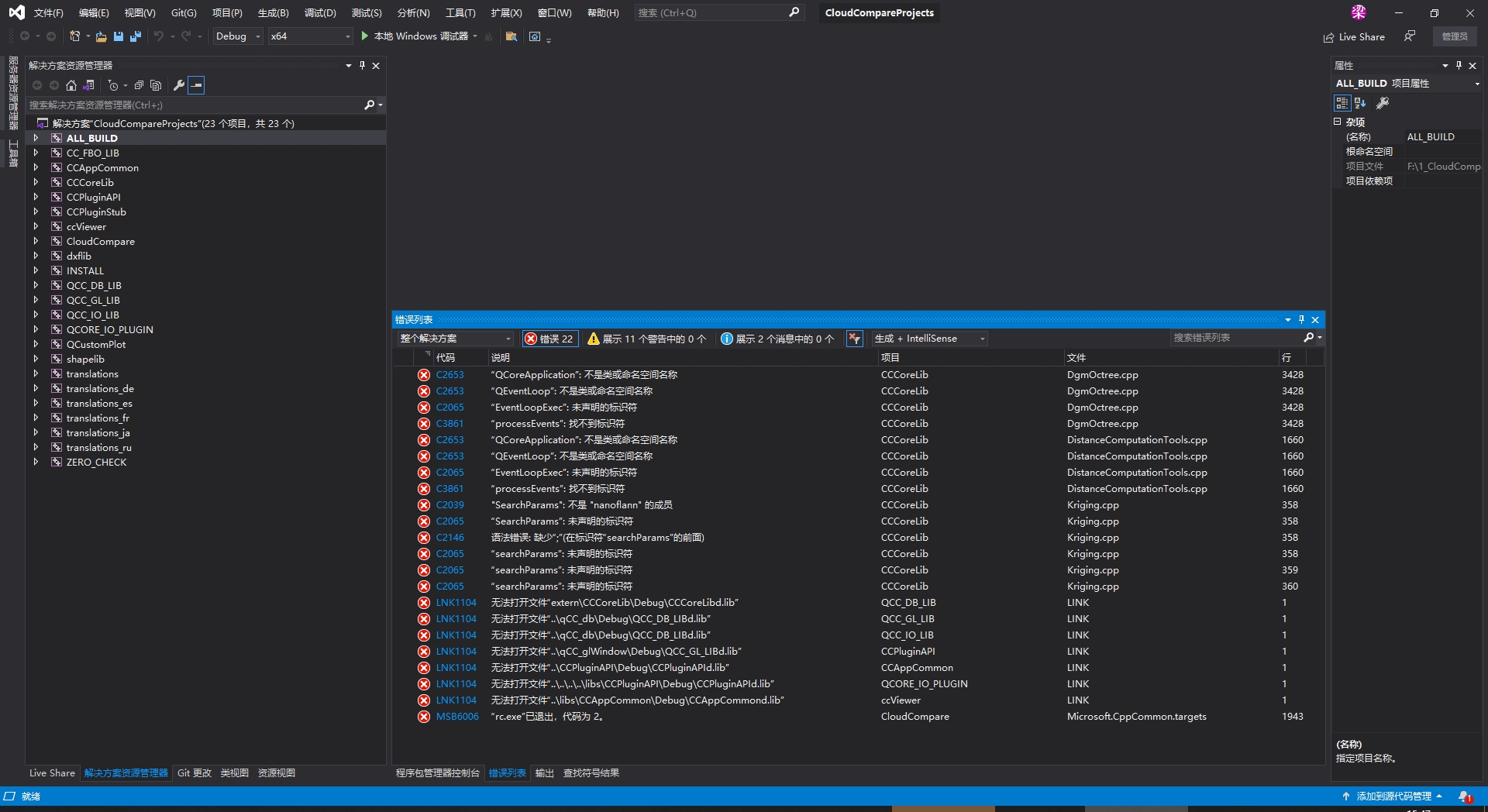

8、编译错误 C2653 “QCoreApplication”: 不是类或命名空间名称 CCCoreLib F:\1_CloudCompare\libs\qCC_db\extern\CCCoreLib\src\DgmOctree.cpp 3428

解决：

DgmOctree.h添加#include <QCoreApplication>

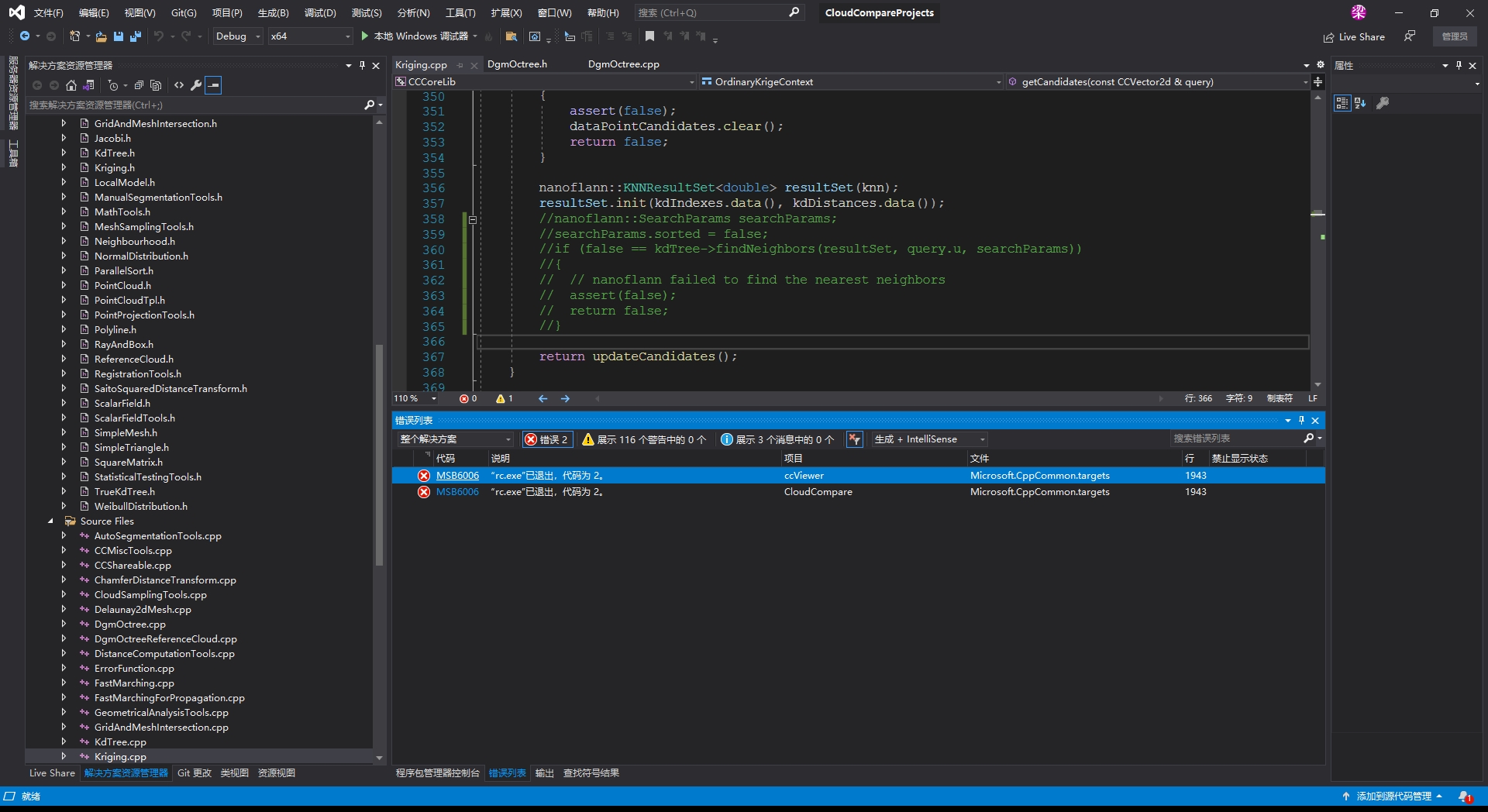

9、编译错误：E0135 namespace "nanoflann" 没有成员 "SearchParams" CCCoreLib F:\1_CloudCompare\libs\qCC_db\extern\CCCoreLib\src\Kriging.cpp 358

可能是代码版本不匹配，先不去管，做注释处理

10、编译错误：

错误 MSB6006 “rc.exe”已退出，代码为 2。 ccViewer C:\Program Files (x86)\Microsoft Visual Studio\2019\Community\MSBuild\Microsoft\VC\v160\Microsoft.CppCommon.targets 1943

详细错误日志为：

TRACKER : 错误 TRK0002: 未能执行命令: “"E:\Windows Kits\10\bin\10.0.20348.0\x64\rc.exe" /D WIN32 /D _DEBUG /D _WINDOWS /D CC_VIEWER /D NOMINMAX /D _CRT_SECURE_NO_WARNINGS /D __STDC_LIMIT_MACROS /D QT_USE_QSTRINGBUILDER /D CC_CORE_LIB_USES_FLOAT /D CC_CORE_LIB_USES_QT_CONCURRENT /D QT_CONCURRENT_LIB /D QT_CORE_LIB /D QT_OPENGL_LIB /D QT_WIDGETS_LIB /D QT_GUI_LIB /D QT_OPENGLEXTENSIONS_LIB /D CC_DXF_SUPPORT /D CC_SHP_SUPPORT /D CMAKE_INTDIR=\"Debug\" /l0x0409 /IF:\1_CloudCompare\build\ccViewer\ccViewer_autogen\include_Debug /IF:\1_CloudCompare\plugins /IF:\1_CloudCompare\ccViewer /IF:\1_CloudCompare\ccViewer\..\qCC /IF:\1_CloudCompare\build\ccViewer /IF:\1_CloudCompare\libs\CCAppCommon\include /IF:\1_CloudCompare\libs\CCPluginAPI\include /IF:\1_CloudCompare\libs\CCPluginStub\include /IF:\1_CloudCompare\libs\qCC_glWindow\include /IF:\1_CloudCompare\libs\qCC_db\include /IF:\1_CloudCompare\build\libs\qCC_db\extern\CCCoreLib\exports /IF:\1_CloudCompare\libs\qCC_db\extern\CCCoreLib\include /IF:\1_CloudCompare\libs\qCC_db\extern\CCCoreLib\extern\nanoflann\include /IF:\1_CloudCompare\libs\CCFbo\include /IF:\1_CloudCompare\libs\qCC_io\include /IF:\1_CloudCompare\libs\qCC_io\extern\dxflib\src /IF:\1_CloudCompare\libs\qCC_io\extern\shapelib /ID:\Qt\5.15.2\msvc2019_64\include /ID:\Qt\5.15.2\msvc2019_64\include\QtConcurrent /ID:\Qt\5.15.2\msvc2019_64\include\QtCore /ID:\Qt\5.15.2\msvc2019_64\.\mkspecs\win32-msvc /ID:\Qt\5.15.2\msvc2019_64\include\QtOpenGL /ID:\Qt\5.15.2\msvc2019_64\include\QtWidgets /ID:\Qt\5.15.2\msvc2019_64\include\QtGui /ID:\Qt\5.15.2\msvc2019_64\include\QtANGLE /ID:\Qt\5.15.2\msvc2019_64\include\QtOpenGLExtensions /nologo /foccViewer.dir\Debug\cc_viewer_icon.res F:\1_CloudCompare\ccViewer\images\icon\cc_viewer_icon.rc”。拒绝访问。
15>C:\Program Files (x86)\Microsoft Visual Studio\2019\Community\MSBuild\Microsoft\VC\v160\Microsoft.CppCommon.targets(1943,5): error MSB6006: “rc.exe”已退出，代码为 2。

解决：

F:\1_CloudCompare\ccViewer\images\icon\cc_viewer_icon.rc”。拒绝访问。

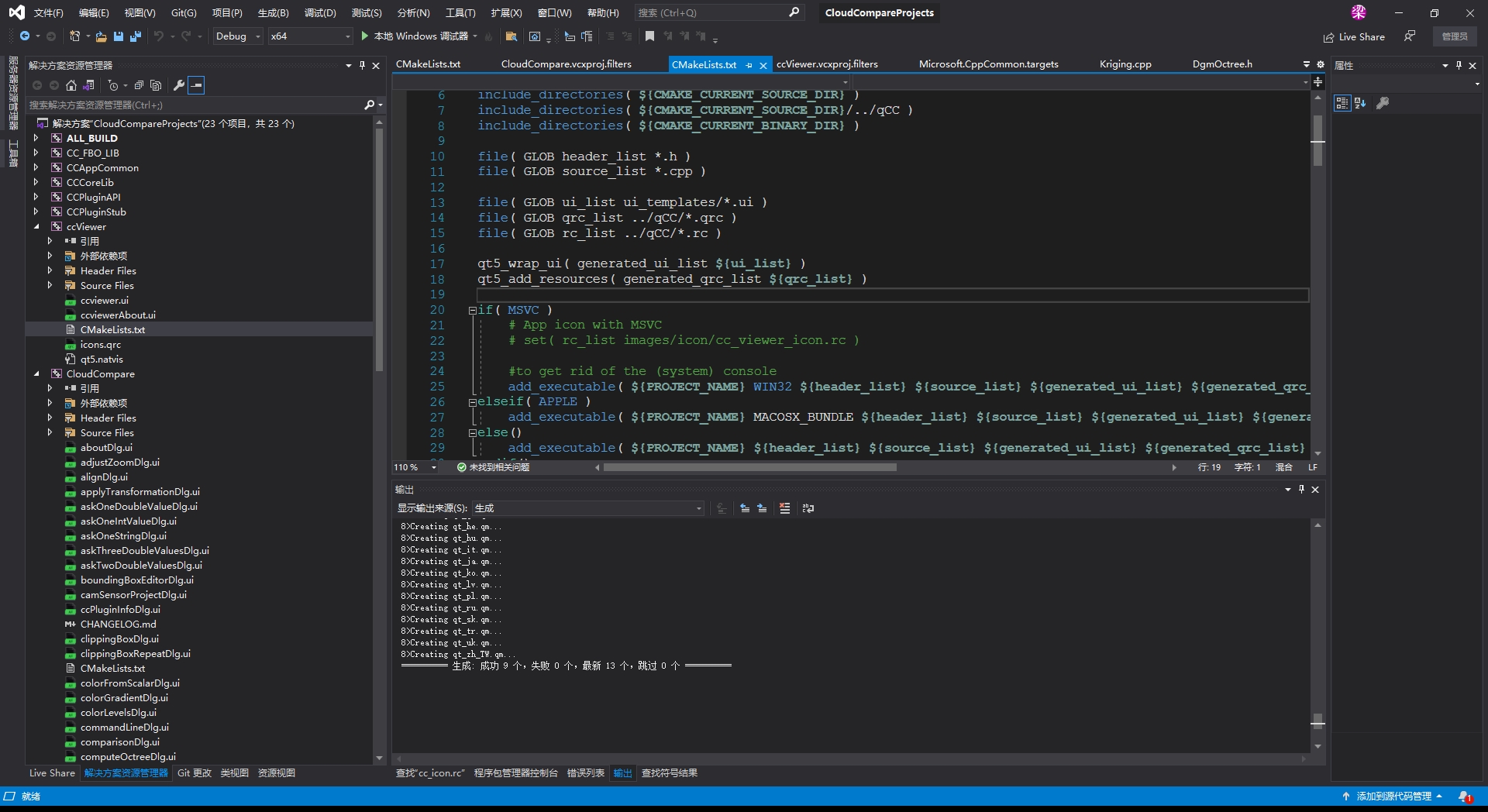

找到对应的CMake文件，将该行注释掉
