cocos2d-x的初步学习十之CCScrollview

这篇文章中，我们简单讲下CCScrollview，顾名思义，Scrollview，滚动视图，无论在android，ios，黑莓上都有这个滚动视图。那我们来看下cocos2dx中的CCScrollview，我这个版本的cocos2dx是2.0.4版本的，貌似前几个版本都有点不一样。OK，下面我直接上代码：

在头文件中.h：



class HelloWorld : public cocos2d::CCLayer, public cocos2d::extension::CCScrollViewDelegate
{
public:
    // Method 'init' in cocos2d-x returns bool, instead of 'id' in cocos2d-iphone (an object pointer)
    virtual bool init();

    // there's no 'id' in cpp, so we recommend to return the class instance pointer
    static cocos2d::CCScene* scene();

    // a selector callback
    void menuCloseCallback(CCObject* pSender);

    // preprocessor macro for "static create()" constructor ( node() deprecated )
    CREATE_FUNC(HelloWorld);


public:

    void scrollViewDidScroll(cocos2d::extension::CCScrollView *view);

    void scrollViewDidZoom(cocos2d::extension::CCScrollView *view);

private:


    cocos2d::extension::CCScrollView *showScrollView;

    int curPage;


};

稍微解释下，首页继承CCScrollViewDelegate这个类，里面有两个纯虚函数，重写这两个方法，一个是滚动的，一个是缩放的，定义一个ccscrollview这样一个对象。

看下.cpp:

bool HelloWorld::init()
{
    //////////////////////////////
    // 1. super init first
    if ( !CCLayer::init() )
    {
        return false;
    }

    //获取窗口大小
    CCSize visibleSize = CCDirector::sharedDirector()->getVisibleSize();
    CCPoint origin = CCDirector::sharedDirector()->getVisibleOrigin();

    //创建一个层
    CCLayer *slayer=CCLayer::create();

    for (int i=1; i<5; i++) {
        //背景
        CCSprite *bgsprite = CCSprite::create("deskBG@2x.png");
        bgsprite->setPosition(ccp(visibleSize.width * (i-0.5f), visibleSize.height / 2));
        slayer->addChild(bgsprite,1);

        CCString *nameString=CCString::createWithFormat("sprite%d@2x.png",i);

        CCSprite *sprite = CCSprite::create(nameString->getCString());
        sprite->setPosition(ccp(visibleSize.width * (i-0.5f), visibleSize.height / 2));
        slayer->addChild(sprite,1);


    }



    showScrollView = CCScrollView::create(CCSizeMake(visibleSize.width, visibleSize.height), slayer);
    showScrollView->setContentOffset(CCPointZero);
    //false自己写touch事件
    showScrollView->setTouchEnabled(true);
    showScrollView->setDelegate(this);

    //滚动方向
    showScrollView->setDirection(kCCScrollViewDirectionHorizontal);

    showScrollView->setBounceable(true);
  //  slayer->setContentSize(CCSizeMake(visibleSize.width*3, visibleSize.height));
    showScrollView->setContentSize(CCSizeMake(visibleSize.width*4, visibleSize.height));

    this->addChild(showScrollView,1);

    //创建pagecontrol
    for (int i=1; i<5; i++) {

        CCSprite *pageControlSprite=CCSprite::create("regitChoose@2x.png");

        pageControlSprite->setPosition(ccp( origin.x + (visibleSize.width - 4 * pageControlSprite->getContentSize().width)/2 + pageControlSprite->getContentSize().width * (i-1), origin.y + 30));

        pageControlSprite->setTag(100+i);

        this->addChild(pageControlSprite, 1);

    }

    //默认是第一页选中
    CCSprite *selectedSrite = (CCSprite *)this->getChildByTag(101);

    //换贴图
    CCTexture2D *aTexture =CCTextureCache::sharedTextureCache()->addImage("regitUnchoose@2x.png");

    selectedSrite->setTexture(aTexture);



    curPage=1;

    //触摸分发
  //  CCDirector::sharedDirector()->getTouchDispatcher()->addTargetedDelegate(this, 1, false);


    return true;
}

回调函数：

void HelloWorld::scrollViewDidScroll(CCScrollView *view)
{

     CCSize visibleSize = CCDirector::sharedDirector()->getVisibleSize();

     curPage=(int)fabsf(showScrollView->getContentOffset().x/visibleSize.width)+1;


     for (int i=1; i<5; i++) {

        if (curPage==i) {


            CCSprite *selectedSrite = (CCSprite *)this->getChildByTag(100+curPage);

            CCTexture2D *aTexture =CCTextureCache::sharedTextureCache()->addImage("regitUnchoose@2x.png");

            selectedSrite->setTexture(aTexture);

        }
        else
        {


            CCSprite *selectedSrite = (CCSprite *)this->getChildByTag(100+i);

            CCTexture2D *aTexture =CCTextureCache::sharedTextureCache()->addImage("regitChoose@2x.png");

            selectedSrite->setTexture(aTexture);



        }




    }



  //  CCLOG("%d",curPage);





}


void HelloWorld::scrollViewDidZoom(CCScrollView *view)
{








}

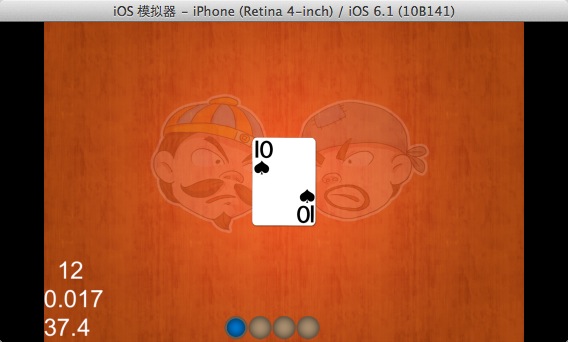

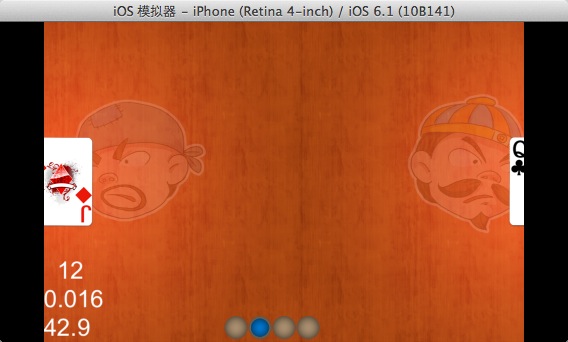

OK，就这么简单，貌似ccscrollview没有按一页一页那样的滑动，哪个童鞋知道的可以告诉我。。。O(∩_∩)O，看效果：

~~~~~~
