一、Config 概述
1、分布式系统面临的---配置问题
微服务意味着要将单体应用中的业务拆分成一个个子服务,每个服务的粒度相对较小,因此系统中会出现大量的服务。由于每个服务都需要必要的配置信息才能运行,所以一套集中式的、动态的配置管理设施是必不可少的。
SpringCloud提供了ConfigServer来解决这个问题,我们每一个微服务自己带着一个application.yml,上百个配置文件的管理。
2、Config 是什么

SpringCloud Config为微服务架构中的微服务提供集中化的外部配置支持,配置服务器为各个不同微服务应用的所有环境提供了一个中心化的外部配置。
SpringCloud Config分为服务端和客户端两部分。
服务端也称为分布式配置中心,它是一个独立的微服务应用,用来连接配置服务器并为客户端提供获取配置信息,加密/解密信息等访问接口。
客户端则是通过指定的配置中心来管理应用资源,以及与业务相关的配置内容,并在启动的时候从配置中心获取和加载配置信息配置服务器默认采用git来存储配置信息,这样就有助于对环境配置进行版本管理,并且可以通过git客户端工具来方便的管理和访问配置内容。
4、Config 能干嘛
- 集中管理配置文件
- 不同环境不同配置,动态化的配置更新,分环境部署比如dev/test/prod/beta/release
- 运行期间动态调整配置,不再需要在每个服务部署的机器上编写配置文件,服务会向配置中心统一拉取配置自己的信息
- 当配置发生变动时,服务不需要重启即可感知到配置的变化并应用新的配置
- 将配置信息以REST接口的形式暴露,post、curl访问刷新均可......
5、Config 与 Github 整合配置
由于SpringCloud Config默认使用Git来存储配置文件(也有其它方式,比如支持SVN和本地文件), 但最推荐的还是Git,而且使用的是http/https访问的形式
6、官网
https://cloud.spring.io/spring-cloud-static/spring-cloud-config/2.2.1.RELEASE/reference/html/

二、Config 服务端配置与测试
1、创建Git仓库并配置
(1)用你自己的账号在GitHub上新建一个名为springcloud-config的新Repository
(2)由上一步获得刚新建的git地址,如:git@github.com:zzyybs/springcloud-config.git
(3)本地硬盘目录上新建git仓库并clone

git 命令:
git clone git@github.com:zzyybs/springcloud-config.git
(4)在仓库中创建配置文件 此时在本地D盘符下D:\44\SpringCloud2020\springcloud-config 表示多个环境的配置文件,保存格式必须为UTF-8,如果需要修改,此处模拟运维人员操作git和github。
常用命令:
git add .
git commit -m "init yml"
git push origin master
我这里使用的 Gitee,直接在IDEA中创建目录:

配置内容:
config:
info: "master branch,springcloud-config/config-dev.yml version=1"
2、创建配置中心
新建Module模块cloud-config-center-3344 它即为Cloud的配置中心模块cloudConfig Center
3、改 POM
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>cloud2020</artifactId>
<groupId>com.njf.springcloud</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>cloud-config-center-3344</artifactId>
<properties>
<maven.compiler.source>8</maven.compiler.source>
<maven.compiler.target>8</maven.compiler.target>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-config-server</artifactId>
<version>2.2.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<scope>runtime</scope>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
</project>
4、写 YML
server:
port: 3344
spring:
application:
name: cloud-config-center #注册进Eureka服务器的微服务名
cloud:
config:
server:
git:
#uri: git@gitee.com:niujifei/springcloud2020.git #GitHub上面的git仓库名字
uri: https://gitee.com/niujifei/springcloud2020.git
username: niujifei
password: njf101497.
####搜索目录
search-paths:
- springcloud-config
####读取分支
label: master
#服务注册到eureka地址
eureka:
client:
service-url:
defaultZone: http://localhost:7001/eureka
由于我是把配置信息放在了 gitee 上面,并且放在 microservicecloud-config 文件夹中,所以配置信息有所不同, 可能会出现授权登录的问题,需要配置用户名和密码。
5、主启动类
@SpringBootApplication
@EnableConfigServer
public class ConfigCenterMain3344 {
public static void main(String[] args) {
SpringApplication.run(ConfigCenterMain3344.class, args);
}
}
6、添加域名映射
在 C:\Windows\System32\drivers\etc 目录下修改 hosts
127.0.0.1 config-3344.com
7、测试
测试通过Config微服务是否可以从GitHub上获取配置内容
- 启动Eureka 服务注册中心
- 启动Config 配置中心
浏览器输入地址:http://config-3344.com:3344/master/config-dev.yml 查看是否获取 Git 上面的配置信息

8、配置读取规则
官网:

(1)/{label}/{application}-{profile}.yml
master分支
http://config-3344.com:3344/master/config-dev.yml
http://config-3344.com:3344/master/config-test.yml
http://config-3344.com:3344/master/config-prod.yml
dev 分支
http://config-3344.com:3344/dev/config-dev.yml
http://config-3344.com:3344/dev/config-test.yml
http://config-3344.com:3344/dev/config-prod.yml
(2)/{application}-{profile}.yml
http://config-3344.com:3344/config-dev.yml
http://config-3344.com:3344/config-test.yml
http://config-3344.com:3344/config-prod.yml
http://config-3344.com:3344/config-xxxx.yml(不存在的配置)
(3)/{application}/{profile}[/{label}]
http://config-3344.com:3344/config/dev/master
http://config-3344.com:3344/config/test/master
http://config-3344.com:3344/config/test/dev
(4)重要配置细节总结
/{name}-{profiles}.yml
/{label}-{name}-{profiles}.yml
label:分支(branch)
name :服务名
profiles:环境(dev/test/prod)
成功实现了用SpringCloud Config通过GitHub获取配置信息。
三、Config 客户端配置与测试
1、创建Config 客户端
新建 cloud-config-client-3355 作为客户端
2、改 POM
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>cloud2020</artifactId>
<groupId>com.njf.springcloud</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>cloud-config-client-3355</artifactId>
<properties>
<maven.compiler.source>8</maven.compiler.source>
<maven.compiler.target>8</maven.compiler.target>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-config</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<scope>runtime</scope>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
</project>
3、bootstrap.yml 配置文件
(1) bootstrap.yml 是什么
- applicaiton.yml是用户级的资源配置项
- bootstrap.yml是系统级的,优先级更加高
Spring Cloud会创建一个“Bootstrap Context”,作为Spring应用的Application Context
的父上下文。初始化的时候,Bootstrap Context
负责从外部源加载配置属性并解析配置。这两个上下文共享一个从外部获取的Environment
。
Bootstrap
属性有高优先级,默认情况下,它们不会被本地配置覆盖。 Bootstrap context
和Application Context
有着不同的约定,所以新增了一个bootstrap.yml
文件,保证Bootstrap Context
和Application Context
配置的分离。
要将Client模块下的application.yml文件改为bootstrap.yml,这是很关键的,因为bootstrap.yml是比application.yml先加载的。bootstrap.yml优先级高于application.yml。
(2) bootstrap.yml 内容
server:
port: 3355
spring:
application:
name: config-client
cloud:
#Config客户端配置
config:
label: master #分支名称
name: config #配置文件名称
profile: dev #读取后缀名称 上述3个综合:master分支上config-dev.yml的配置文件被读取http://config-3344.com:3344/master/config-dev.yml
uri: http://localhost:3344 #配置中心地址k
#服务注册到eureka地址
eureka:
client:
service-url:
defaultZone: http://localhost:7001/eureka
(3) 说明

4、主启动类
@EnableEurekaClient
@SpringBootApplication
public class ConfigClientMain3355 {
public static void main(String[] args) {
SpringApplication.run(ConfigClientMain3355.class,args);
}
}
5、业务类
从配置文件中读取信息:
@RestController
public class ConfigClientController {
@Value("${config.info}")
private String configInfo;
@GetMapping("/configInfo")
public String getConfigInfo() {
return configInfo;
}
}
6、测试
-
启动Eureka注册中心
-
启动Config服务端并自测通过: http://config-3344.com:3344/master/config-dev.yml
-
启动Config客户端并测试,启动3355作为Client准备访问:http://localhost:3355/configInfo
成功实现了客户端3355访问SpringCloud Config3344通过GitHub获取配置信息
7、修改配置文件
修改config-dev.yml配置并提交到GitHub中,比如加个变量age或者版本号version
- 在 bootstrap.yml 配置文件中切换分支名称和配置文件名称并重启服务可以读取到不同文件中的值
8、存在的问题
问题随时而来,分布式配置的动态刷新问题:
Linux运维修改GitHub上的配置文件内容做调整:
- 刷新3344,发现ConfigServer配置中心立刻响应
- 刷新3355,发现ConfigClient客户端没有任何响应
- 3355没有变化除非自己重启或者重新加载
- 3355 重启后可以加载到最新的值
难到每次运维修改配置文件,客户端都需要重启???
四、Config 客户端之动态刷新
针对上面的问题,如何避免每次更新配置都要重启客户端微服务3355?
动态刷新
1、修改3355模块
2、POM引入actuator监控
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
3、修改YML,暴露监控端口
# 暴露监控端点
management:
endpoints:
web:
exposure:
include: "*"
4、@RefreshScope 注解
@RefreshScope业务类Controller修改
@RefreshScope
@RestController
public class ConfigClientController {
@Value("${config.info}")
private String configInfo;
@GetMapping("/configInfo")
public String getConfigInfo() {
return configInfo;
}
}
5、测试
此时再次修改github上内容, 3344可以获取到最新值,而3355 还是没有获取最新值!!!
6、发送POST请求
需要运维人员发送Post请求刷新3355
必须是POST请求

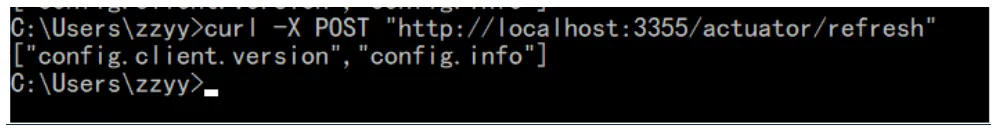

curl -X POST "http://localhost:3355/actuator/refresh"

成功实现了客户端3355刷新到最新配置内容,避免了服务重启
7、想想还有什么问题?
假如有多个微服务客户端3355/3366/3377。。。。。。
每个微服务都要执行一次post请求,手动刷新?
可否广播,一次通知,处处生效?
我们想大范围的自动刷新,求方法
