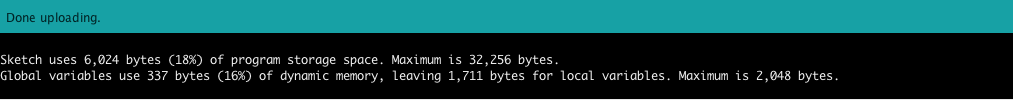

ros_arduino_bridge封装了通过串口于底盘控制器Arduino的通信，并提供了一个标准的base controller，所以对arduino资源的占用非常小，arduino只是作为一个单纯的硬件控制器来使用，而所有的运算逻辑都放在上位机进行，通过串口指令的方式控制Arduino程序的运行。在Arduino UNO编译一个完整的ros_arduino_bridge后的资源占用情况如下图：
从上图可以看出占用资源非常上，用户还可以在Arduino UNO开发更多的应用，接更多的传感器。
1.ros_arduino_bridge的安装
a.下载
进入你的workspace目录下的src目录，catkin_ws是workspace
cd ~/catkin_ws/src
git clone https://github.com/hbrobotics/ros_arduino_bridge.git- 1
- 2
b.编译，在workspace目录编译
cd <catkin_ws>
catkin_make- 1
- 2

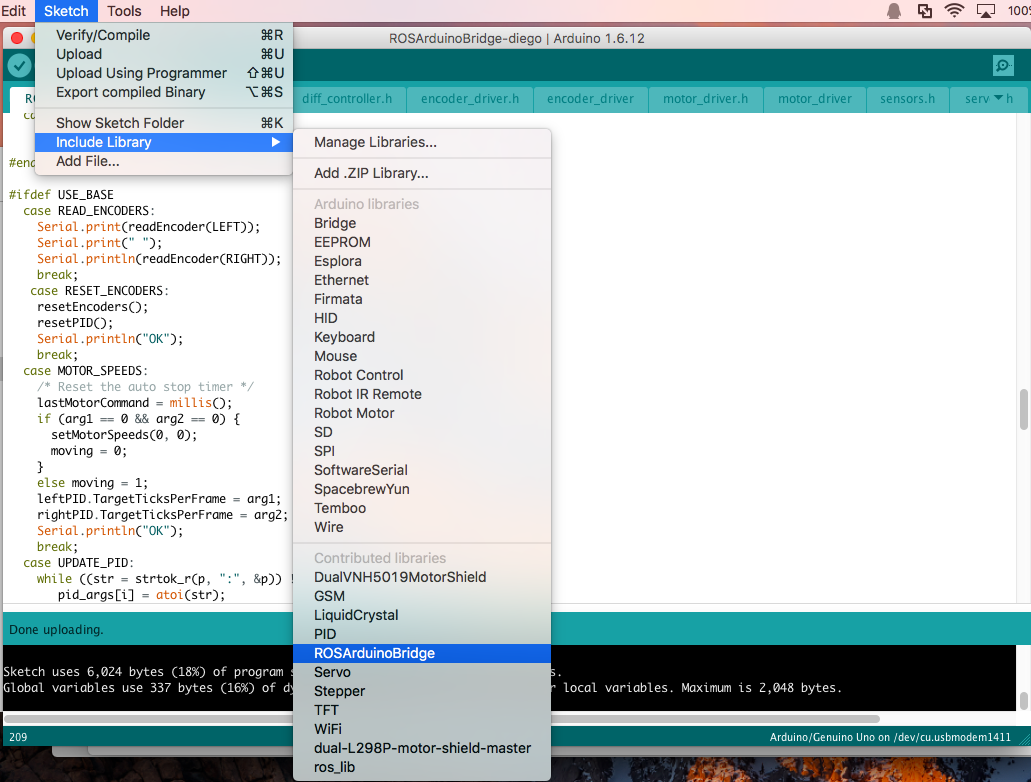

c.拷贝Arduino看库文件到，相应的Arduino IDE的libraries目录
$ cd SKETCHBOOK_PATH//Arduino IDE的库文件目录
$ \cp -rp `rospack find ros_arduino_firmware`/src/libraries/ROSArduinoBridge -T ROSArduinoBridge- 1
- 2
这时候可以把ROSArduinoBridge拷贝到其他windows， Mac电脑的Arduino IDE环境下使用，重启后既可以用
2.开发Arduino 代码

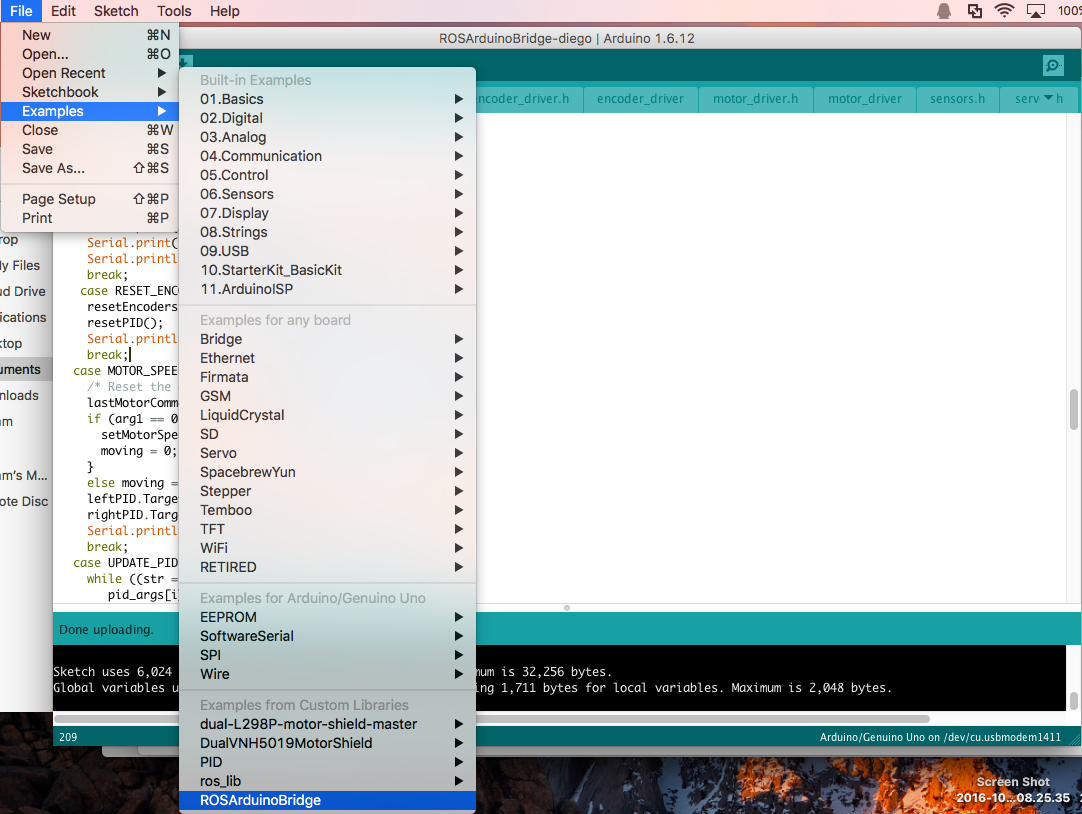

a.从Example中打开ROSArduinoBridge的示例代码，另存为自己喜欢的项目名称，我们只需要根据自己的需求修改示例代码即可
b.示例代码文件介绍
ROSArduinoBridge.ino 主程序
commands.h 串口命令的预定义
diff_controller.h PID控制代码
encoder_driver.h 编码器，这里只是针对了Arduino UNO，使用了中断接口D2,D3,和模拟接口A4，A5；所以电机编码器的输出接线需要按照此规则接线，另外要注意编码器要有两路输出
左侧电机的编码输出接D2,D3；右侧电机的编码输出接A4,A5
encoder_driver.ino 编码器的实现代码
motor_driver.h 马达驱动的接口定义，用不动的马达驱动板都要实现此文件定义的三个函数
motor_driver.ino马达驱动实现代码，根据预定义选择不同的驱动板库，在这里我使用了L298P，所以需要自己实现一个新的驱动库，后面会介绍
sensors.h传感器的实现文件
servos.h舵机的实现文件
c.为了满足我们控制的需要需要修改的是ROSArduinoBridge.ino文件，主要修改的点如下：
启用Base Controller
#define USE_BASE // Enable the base controller code启用base controller
//#undef USE_BASE // Disable the base controller code- 1
- 2
马达控制板定义
/* Define the motor controller and encoder library you are using */
#ifdef USE_BASE
/* The Pololu VNH5019 dual motor driver shield */
//#define POLOLU_VNH5019
/* The L298P dual motor driver shield，这里我们使用我们自己写的L298P库 */
#define L298P
/* The Pololu MC33926 dual motor driver shield */
//#define POLOLU_MC33926
/* The RoboGaia encoder shield */
//#define ROBOGAIA
/* Encoders directly attached to Arduino board，启用Arduino UNO的板载Encoder功能 */
#define ARDUINO_ENC_COUNTER
#endif
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
定义电机PWM控制范围
/* Maximum PWM signal */
#define MAX_PWM 255//最大的PWM为255- 1
- 2
d.motor_driver.ino的修改///主要是增加对L298P马达驱动板的支持
/***************************************************************
Motor driver definitions
Add a "#elif defined" block to this file to include support
for a particular motor driver. Then add the appropriate
#define near the top of the main ROSArduinoBridge.ino file.
*************************************************************/
#ifdef USE_BASE
#if defined POLOLU_VNH5019
/* Include the Pololu library */
#include "DualVNH5019MotorShield.h"
/* Create the motor driver object */
DualVNH5019MotorShield drive;
/* Wrap the motor driver initialization */
void initMotorController() {
drive.init();
}
/* Wrap the drive motor set speed function */
void setMotorSpeed(int i, int spd) {
if (i == LEFT) drive.setM1Speed(spd);
else drive.setM2Speed(spd);
}
// A convenience function for setting both motor speeds
void setMotorSpeeds(int leftSpeed, int rightSpeed) {
setMotorSpeed(LEFT, leftSpeed);
setMotorSpeed(RIGHT, rightSpeed);
}
#elif defined POLOLU_MC33926
/* Include the Pololu library */
#include "DualMC33926MotorShield.h"
/* Create the motor driver object */
DualMC33926MotorShield drive;
/* Wrap the motor driver initialization */
void initMotorController() {
drive.init();
}
/* Wrap the drive motor set speed function */
void setMotorSpeed(int i, int spd) {
if (i == LEFT) drive.setM1Speed(spd);
else drive.setM2Speed(spd);
}
// A convenience function for setting both motor speeds
void setMotorSpeeds(int leftSpeed, int rightSpeed) {
setMotorSpeed(LEFT, leftSpeed);
setMotorSpeed(RIGHT, rightSpeed);
}
#elif defined L298P////////增加对L298P的支持
#include "DualL298PMotorShield.h"
/* Create the motor driver object */
DualL298PMotorShield drive;
/* Wrap the motor driver initialization */
void initMotorController() {
drive.init();
}
/* Wrap the drive motor set speed function */
void setMotorSpeed(int i, int spd) {
if (i == LEFT) drive.setM1Speed(spd);
else drive.setM2Speed(spd);
}
// A convenience function for setting both motor speeds
void setMotorSpeeds(int leftSpeed, int rightSpeed) {
setMotorSpeed(LEFT, leftSpeed);
setMotorSpeed(RIGHT, rightSpeed);
}
#else
#error A motor driver must be selected!
#endif
#endif- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
e.L298P的驱动库，把.h和.cpp文件放在同一个目录下，拷贝到Arduino IDE的库文件目录下就可以。
DualL298PMotorShield.h代码
#ifndef DualL298PMotorShield_h
#define DualL298PMotorShield_h
#include <Arduino.h>
class DualL298PMotorShield
{
public:
// CONSTRUCTORS
DualL298PMotorShield(); // Default pin selection.
DualL298PMotorShield(unsigned char M1DIR, unsigned char M1PWM,
unsigned char M2DIR, unsigned char M2PWM); // User-defined pin selection.
// PUBLIC METHODS
void init(); // Initialize TIMER 1, set the PWM to 20kHZ.
void setM1Speed(int speed); // Set speed for M1.
void setM2Speed(int speed); // Set speed for M2.
void setSpeeds(int m1Speed, int m2Speed); // Set speed for both M1 and M2.
private:
static const unsigned char _M1DIR = 4;
static const unsigned char _M2DIR = 7;
static const unsigned char _M1PWM = 5;
static const unsigned char _M2PWM = 6;
};
#endif- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
DualL298PMotorShield.cpp代码
#include "DualL298PMotorShield.h"
// Constructors ////////////////////////////////////////////////////////////////
DualL298PMotorShield::DualL298PMotorShield()
{
//Pin map
}
// Public Methods //////////////////////////////////////////////////////////////
void DualL298PMotorShield::init()
{
// Define pinMode for the pins and set the frequency for timer1.
pinMode(_M1DIR,OUTPUT);
pinMode(_M1PWM,OUTPUT);
pinMode(_M2DIR,OUTPUT);
pinMode(_M2PWM,OUTPUT);
}
// Set speed for motor 1, speed is a number betwenn -400 and 400
void DualL298PMotorShield::setM1Speed(int speed)
{
unsigned char reverse = 0;
if (speed < 0)
{
speed = -speed; // Make speed a positive quantity
reverse = 1; // Preserve the direction
}
if (speed > 255) // Max PWM dutycycle
speed = 255;
if (reverse)
{
digitalWrite(_M1DIR,LOW);
analogWrite(_M1PWM, speed);
}
else
{
digitalWrite(_M1DIR,HIGH);
analogWrite(_M1PWM, speed);
}
}
// Set speed for motor 2, speed is a number betwenn -400 and 400
void DualL298PMotorShield::setM2Speed(int speed)
{
unsigned char reverse = 0;
if (speed < 0)
{
speed = -speed; // Make speed a positive quantity
reverse = 1; // Preserve the direction
}
if (speed > 255) // Max PWM dutycycle
speed = 255;
if (reverse)
{
digitalWrite(_M2DIR,LOW);
analogWrite(_M2PWM, speed);
}
else
{
digitalWrite(_M2DIR,HIGH);
analogWrite(_M2PWM, speed);
}
}
// Set speed for motor 1 and 2
void DualL298PMotorShield::setSpeeds(int m1Speed, int m2Speed)
{
setM1Speed(m1Speed);
setM2Speed(m2Speed);
}- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
修改完成后变可以编译upload到Arduino UNO上了。
3.ROS上位机开发
a.配置你的机器人参数
进入配置文件目录
$ roscd ros_arduino_python/config- 1
拷贝一份新的配置文件
$ cp arduino_params.yaml my_arduino_params.yaml- 1
用nano打开编辑
sudo nano my_arduino_params.yaml- 1
修改后的my_arduino_params.yaml如下图，主要修改就是启用base Controller，修改PID参数，修改机器人的参数：
# For a direct USB cable connection, the port name is typically
# /dev/ttyACM# where is # is a number such as 0, 1, 2, etc
# For a wireless connection like XBee, the port is typically
# /dev/ttyUSB# where # is a number such as 0, 1, 2, etc.
port: /dev/ttyACM0
baud: 57600
timeout: 0.1
rate: 50
sensorstate_rate: 10
use_base_controller: True
base_controller_rate: 10
# For a robot that uses base_footprint, change base_frame to base_footprint
base_frame: base_link
# === Robot drivetrain parameters
wheel_diameter: 0.02900 #轮胎直径
wheel_track: 0.18 #两个轮胎间距
encoder_resolution: 2 # 码盘孔数
gear_reduction: 75.0 #转速比
motors_reversed: True
# === PID parameters
Kp: 10
Kd: 12
Ki: 0
Ko: 50
accel_limit: 1.0
# === Sensor definitions. Examples only - edit for your robot.
# Sensor type can be one of the follow (case sensitive!):
# * Ping
# * GP2D12
# * Analog
# * Digital
# * PololuMotorCurrent
# * PhidgetsVoltage
# * PhidgetsCurrent (20 Amp, DC)
sensors: {
#motor_current_left: {pin: 4, type: PololuMotorCurrent, rate: 5},
#motor_current_right: {pin: 7, type: PololuMotorCurrent, rate: 5},
#ir_front_center: {pin: 2, type: GP2D12, rate: 10},
#sonar_front_center: {pin: 5, type: Ping, rate: 10},
arduino_led: {pin: 13, type: Digital, rate: 5, direction: output}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
修改完成后，既可以运行了
b.运行测试
启动roscore
roscore- 1
增加路径到bash
. ~/catkin_ws/devel/setup.bash- 1
启动节点
roslaunch ros_arduino_python arduino.launch- 1

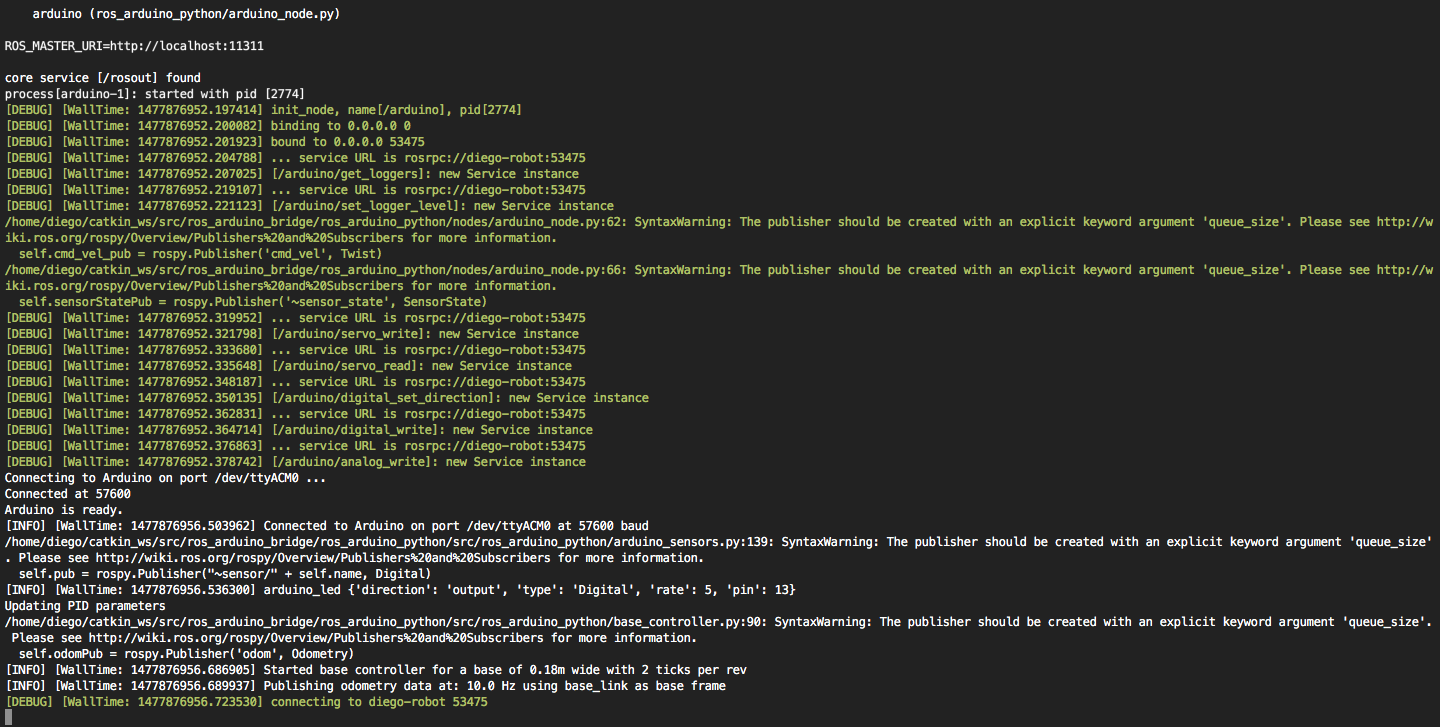

启动后的截图
这时候我们可以发布Twist消息来控制机器人的运行，如：
rostopic pub /cmd_vel geometry_msgs/Twist -r 1 -- '[2.0, 0.0, 0.0]' '[0.0, 0.0, 1.8]'- 1

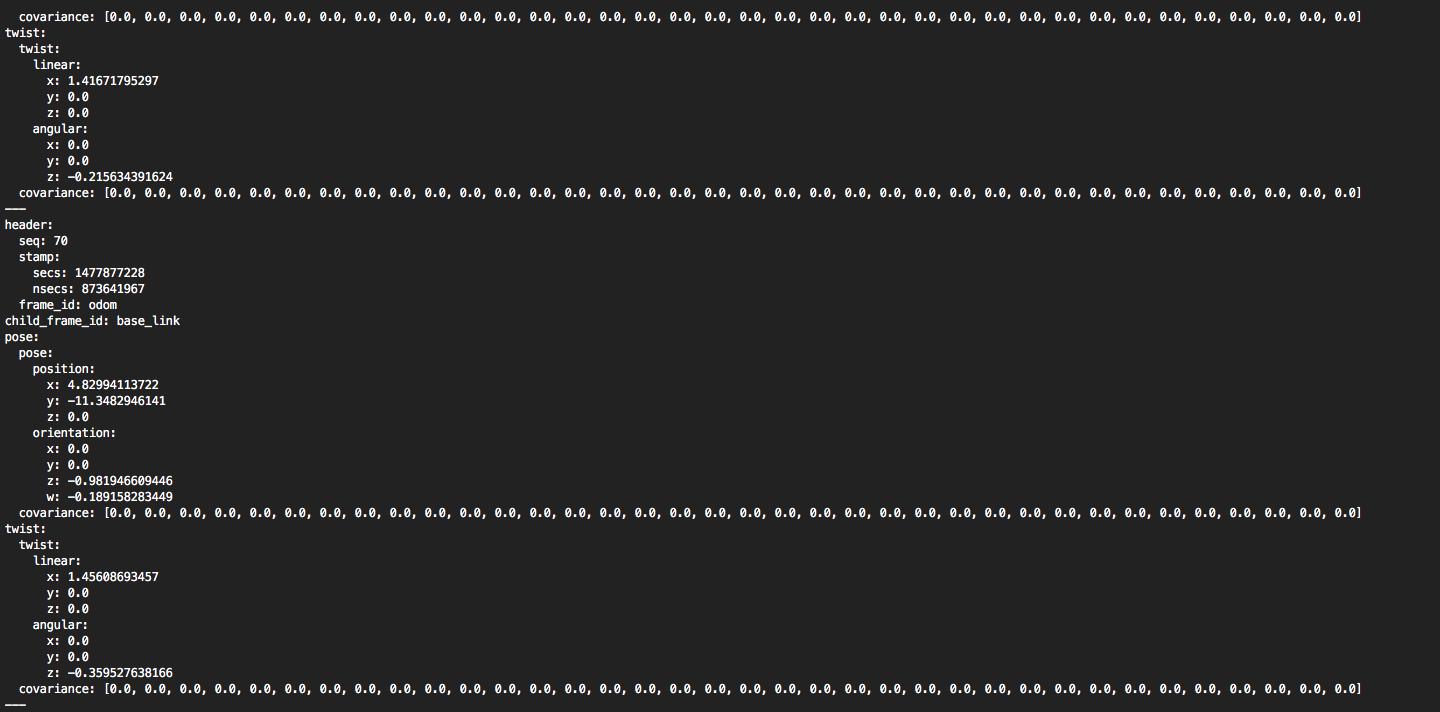

运行此命令，机器人会原地打转，用如下命令查看odom的信息，此信息会不断的变化
rostopic echo /odom
至此机器人已经可以按照Twist消息进行控制，发布功move base使用的odom信息，不过做到这里，为了控制精度，我们还需要标定机器人，即标定机器人按照机器人给定的线速度，和角速度行进，下篇博文，我们将讲述如何标定。
