Unity做简单的有限元分析效果

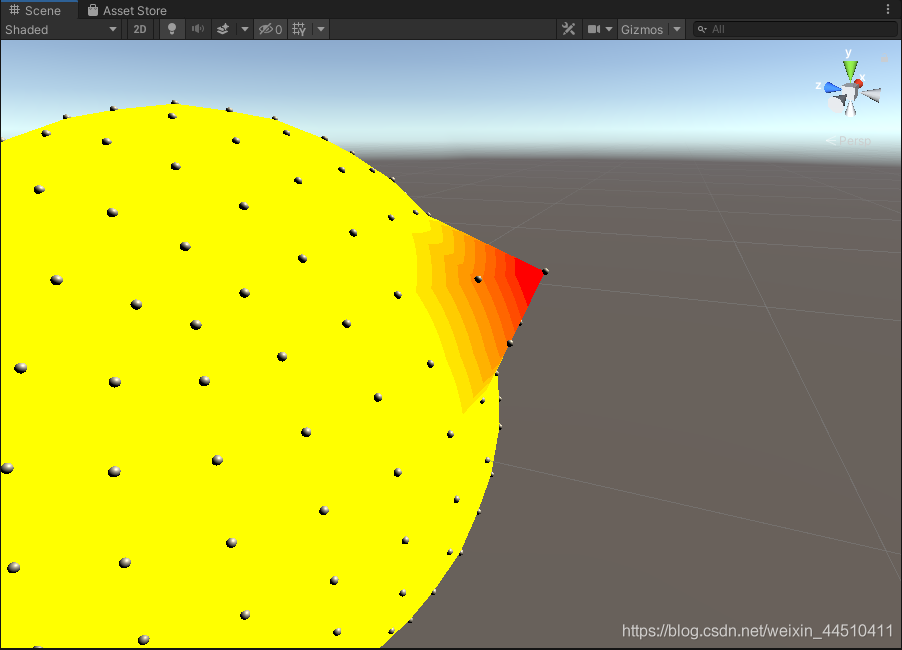

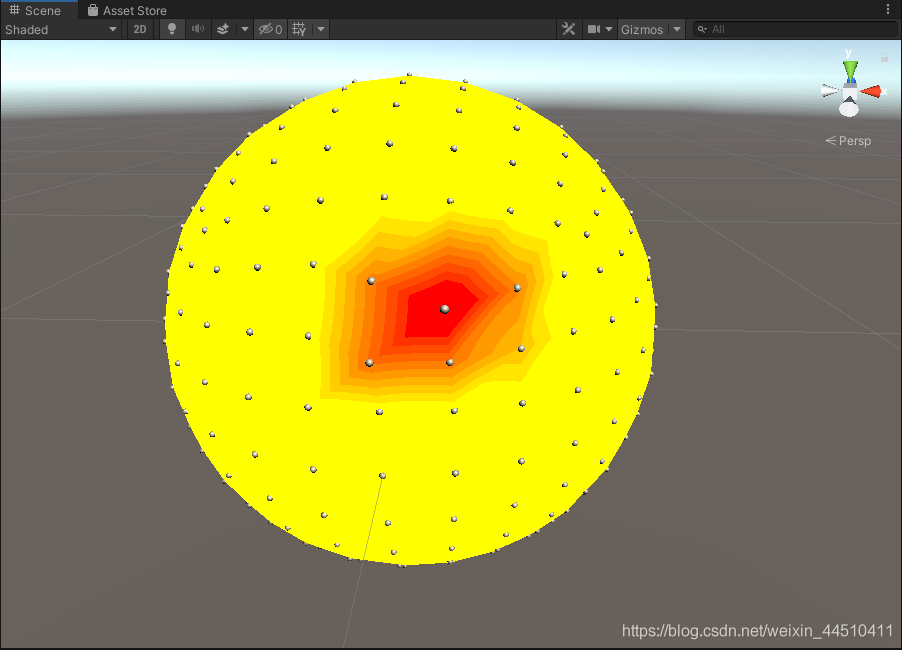

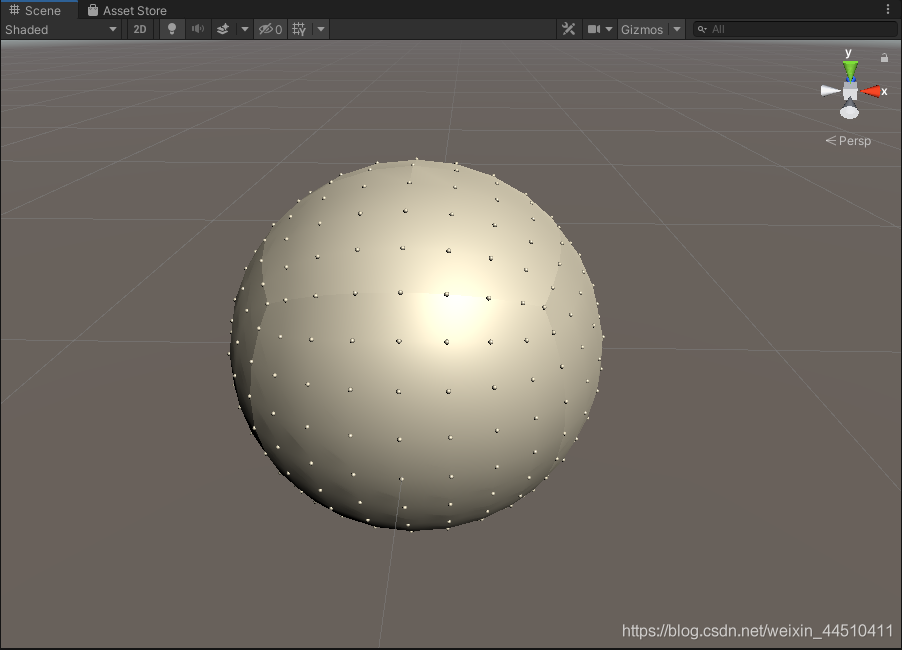

一、获取Mesh顶点位置，并在顶点生成用于控制的小球

ChangMesh.cs（pointsFather是小球的父物体，随便找个空物体就行。）

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class ChangeMesh : MonoBehaviour
{
    public GameObject pointsFather;
    private Mesh mesh;
    private GameObject newPoint;
    private Vector3[] vertices;

    // Start is called before the first frame update
    void Start()
    {
        pointsFather.transform.position = this.transform.position;
        mesh = this.GetComponent<MeshFilter>().mesh;
        vertices = new Vector3[mesh.vertices.Length];
        CreatMeshPoint();
    }

    private void CreatMeshPoint()
    {
        for (int i = 0; i < mesh.vertices.Length; i++)
        {
            vertices[i] = mesh.vertices[i];
        }
        for (int i = 0; i < mesh.vertices.Length; i++)
        {
            GameObject creatPoint = GameObject.CreatePrimitive(PrimitiveType.Sphere);
            creatPoint.transform.localPosition = vertices[i];
            creatPoint.transform.name = "EditorPoint" + i.ToString();
            creatPoint.transform.localScale = new Vector3(0.01f, 0.01f, 0.01f);
            creatPoint.transform.parent = pointsFather.transform;
            float distance = Vector3.Distance(creatPoint.transform.localPosition, Vector3.zero);
        }
    }

    private void MovePoint()
    {
        for(int i=0;i<mesh.vertices.Length;i++)
        {
            newPoint = GameObject.Find("EditorPoint" + i.ToString());
            if(newPoint.transform.position!=vertices[i])
            {
                vertices[i] = newPoint.transform.position;
            }
        }
        mesh.vertices = vertices;
        mesh.RecalculateTangents();
        mesh.RecalculateNormals();
    }

    // Update is called once per frame
    void Update()
    {
        MovePoint();
    }

}

二、编写Shader

ColorChange.shader

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

Shader "Custom/ColorChange"
{
    Properties
    {
        _Color("Color",Color) = (1,1,1,1)
        _Height("Normal",Float) = 1
        _Ambient("Ambient",Float) = 5
        _Specular("Specular",Float) = 20
    }
    SubShader
    {
        Pass
        {
           CGPROGRAM

              fixed4 _Color;
              float _Height;
              float _Ambient;
              float _Specular;
              #pragma vertex vert
              #pragma fragment frag
              #include "UnityCG.cginc"

              struct a2v {/*模型到顶点*/
                  fixed4 vertex : POSITION;
                  fixed3 normal : NORMAL;
              };

              struct v2f {/*顶点到面*/
                  fixed4 pos : SV_POSITION;
                  fixed3 worldNormal : TEXCOORD0;
                  fixed3 worldPos : TEXCOORD1;
              };

              v2f vert(a2v v)/*顶点函数*/
              {
                  //v.vertex.xyz += _Height * v.normal;/**/
                  v2f o;
                  v2f old;/**/
                  o.pos = UnityObjectToClipPos(v.vertex);/*重要的函数UnityObjectToClipPos，转换坐标*/
                  o.worldNormal = UnityObjectToWorldNormal(v.normal);/*重要的函数UnityObjectToWorldNormal，转换坐标*/
                  o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
                  return o;
              }

              fixed4 frag(v2f i) :SV_Target/*片元函数*/
              {
                  //fixed3 l = normalize(_WorldSpaceLightPos0.xyz);
                  //float diff = dot(i.worldNormal, 1);
                  //diff = diff < 0 ? 0 : diff;

                  fixed3 zero = fixed3(0,0,0);
                  float distance = sqrt(pow(i.worldPos.x - zero.x, 2) + pow(i.worldPos.y - zero.y, 2) + pow(i.worldPos.z - zero.z, 2));
                  float standardV = 0.5;
                  //fixed3 cameraPos = _WorldSpaceCameraPos.xyz;
                  //fixed3 v = normalize(i.worldPos- cameraPos);
                  //fixed4 position = fixed4(v * 2, 1);


                  fixed4 position0 = fixed4(1, 1, 0, 1);
                  //fixed4 position1 = fixed4(1, 0, 0, 1);
                  //fixed4 position2 = fixed4(1, 0.647, 0, 1);
                  //fixed4 position3 = fixed4(1, 1, 0.5, 1);
                  //fixed4 position4 = fixed4(0, 1, 0, 1);
                  //fixed4 position5 = fixed4(0, 0.675, 1, 1);
                  //fixed4 position6 = fixed4(0, 0, 1, 1);
                  //fixed4 position7 = fixed4(0.545, 0, 1, 1);

                  fixed4 position1 = fixed4(1, 0.9, 0, 1);
                  fixed4 position2 = fixed4(1, 0.8, 0, 1);
                  fixed4 position3 = fixed4(1, 0.7, 0, 1);
                  fixed4 position4 = fixed4(1, 0.6, 0, 1);
                  fixed4 position5 = fixed4(1, 0.5, 0, 1);
                  fixed4 position6 = fixed4(1, 0.4, 0, 1);
                  fixed4 position7 = fixed4(1, 0.3, 0, 1);
                  fixed4 position8 = fixed4(1, 0.2, 0, 1);
                  fixed4 position9 = fixed4(1, 0.1, 0, 1);
                  fixed4 position10 = fixed4(1, 0, 0, 1);
                  fixed4 position11 = fixed4(0, 1, 0, 1);


                  if (distance-standardV > 0.01&&distance - standardV < 0.02)
                  {
                      return position1;
                  }
                  else if(distance - standardV > 0.02&&distance - standardV < 0.03)
                  {
                      return position2;
                  }
                  else if (distance - standardV > 0.03&&distance - standardV < 0.04)
                  {
                      return position3;
                  }
                  else if (distance - standardV > 0.04&&distance - standardV < 0.05)
                  {
                      return position4;
                  }
                  else if (distance - standardV > 0.05&&distance - standardV < 0.06)
                  {
                      return position5;
                  }
                  else if (distance - standardV > 0.06&&distance - standardV < 0.07)
                  {
                      return position6;
                  }
                  else if (distance - standardV > 0.07&&distance - standardV < 0.08)
                  {
                      return position7;
                  }
                  else if (distance - standardV > 0.08&&distance - standardV < 0.09)
                  {
                      return position8;
                  }
                  else if (distance - standardV > 0.09&&distance - standardV < 0.010)
                  {
                      return position9;
                  }
                  else if (distance - standardV >= 0.010)
                  {
                      return position10;
                  }
                  else if (distance - standardV < -0.01)
                  {
                      return position11;
                  }
                  else
                  {
                      return position0;
                  }

                  //return position;

              }
          ENDCG
        }
    }
    FallBack "Diffuse"
}
