unity 编辑mesh顶点位置

在某些特殊情况下，不得不对模型进行一些简单的修改，所以写了个简单的编辑脚本。

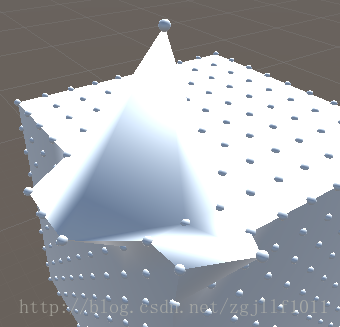

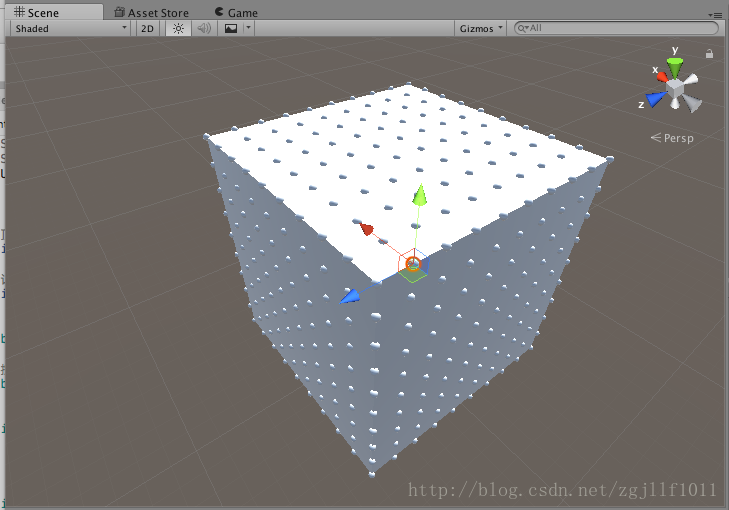

思路就是获取mesh上的所有顶点，然后在每个顶点位置创建一个控制点，控制点可以是任意你喜欢的物体，通过判断控制点的位置信息来修改mesh的顶点位置。

在unity中，mesh上的顶点与几个面相交，就会有几个坐标点，估计是把点为每一个三角形面复制了一份，所以这里在生成控制点时要注意剔除重复的点，不要重复生成。

这里我是把每个顶点的坐标转为字符串，使用该坐标的字符串作为key来把控制点与顶点数据联系起来。

下面给出完整代码

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class MeshEditorPoint : MonoBehaviour {

    //顶点id，（顶点初始位置转字符串）
    [HideInInspector] public string pointid;

    //记录坐标点上一次移动的位置，用于判断控制点是否移动
    [HideInInspector] private Vector3 lastPosition;


    public delegate void MoveDelegate(string pid,Vector3 pos);

    //控制点移动时的回调
    public MoveDelegate onMove = null;

    // Use this for initialization
    void Start () {
        lastPosition = transform.position;
    }

    // Update is called once per frame
    void Update () {
        if(transform.position != lastPosition){
            if(onMove != null) onMove(pointid, transform.localPosition);
            lastPosition = transform.position;
        }
    }
}

然后是顶点编辑脚本:

100

101

102

103

104

105

106

107

108

109

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using System.Text;
using System;

public class ModelMeshEditor : MonoBehaviour {

    //控制点的大小
    public float pointScale = 1.0f;
    private float lastPointScale = 1.0f;

    Mesh mesh;

    //顶点列表
    List<Vector3> positionList = new List<Vector3>();

    //顶点控制物体列表
    List<GameObject> positionObjList = new List<GameObject>();

    /// <summary>
    /// key:顶点字符串
    /// value:顶点在列表中的位置
    /// </summary>
    Dictionary<string, List<int>> pointmap = new Dictionary<string, List<int>>();

    // Use this for initialization
    void Start () {
        lastPointScale = pointScale;
        mesh = GetComponent<MeshFilter>().sharedMesh;
        CreateEditorPoint();
    }

    //创建控制点
    public void CreateEditorPoint(){

        positionList = new List<Vector3>(mesh.vertices);

        for (int i = 0; i < mesh.vertices.Length; i++)
        {
            string vstr = Vector2String(mesh.vertices[i]);

            if(!pointmap.ContainsKey(vstr)){
                pointmap.Add(vstr,new List<int>());
            }
            pointmap[vstr].Add(i);
        }

        foreach (string key in pointmap.Keys)
        {

            GameObject editorpoint = (GameObject)Resources.Load("Prefabs/MeshEditor/MeshEditorPoint");
            editorpoint = Instantiate(editorpoint);
            editorpoint.transform.parent = transform;
            editorpoint.transform.localPosition = String2Vector(key);
            editorpoint.transform.localScale = new Vector3(1f, 1f, 1f);

            MeshEditorPoint editorPoint = editorpoint.GetComponent<MeshEditorPoint>();
            editorPoint.onMove = PointMove;
            editorPoint.pointid = key;

            positionObjList.Add(editorpoint);
        }
    }

    //顶点物体被移动时调用此方法
    public void PointMove(string pointid,Vector3 position){
        if(!pointmap.ContainsKey(pointid)){
            return;
        }

        List<int> _list = pointmap[pointid];

        for (int i = 0; i < _list.Count; i ++){
            positionList[_list[i]] = position;
        }

        mesh.vertices = positionList.ToArray();
        mesh.RecalculateNormals();
    }

    // Update is called once per frame
    void Update () {
        //检测控制点尺寸是否改变
        if (Math.Abs(lastPointScale - pointScale) > 0.1f){
            lastPointScale = pointScale;
            for (int i = 0; i < positionObjList.Count; i ++){
                positionObjList[i].transform.localScale = new Vector3(pointScale, pointScale, pointScale);
            }
        }
    }

    string Vector2String(Vector3 v){
        StringBuilder str = new StringBuilder();
        str.Append(v.x).Append(",").Append(v.y).Append(",").Append(v.z);
        return str.ToString();
    }

    Vector3 String2Vector(string vstr)
    {
        try{
            string[] strings = vstr.Split(',');
            return new Vector3(float.Parse(strings[0]), float.Parse(strings[1]), float.Parse(strings[2]));
        }catch(Exception e){
            Debug.LogError(e.ToString());
            return Vector3.zero;
        }
    }
}
