arduino统计一段时间内传感器数据时间

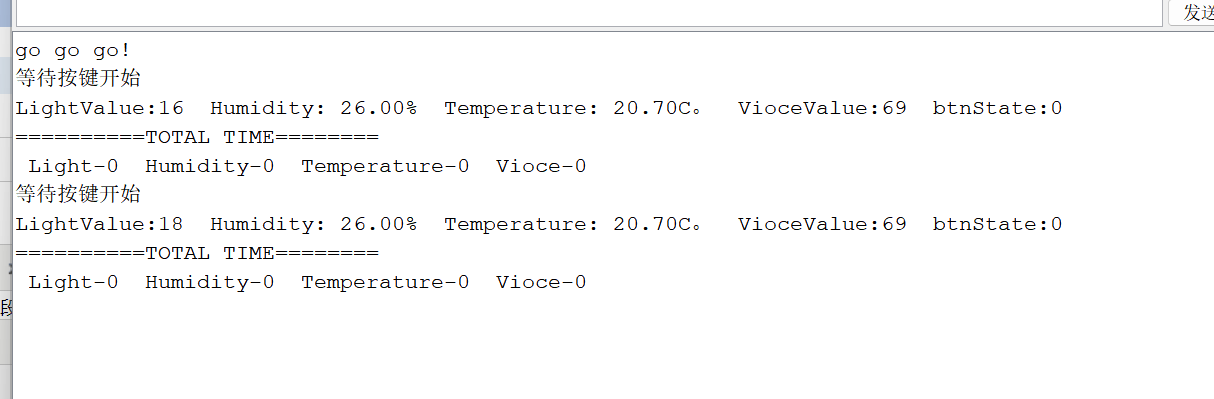

上电

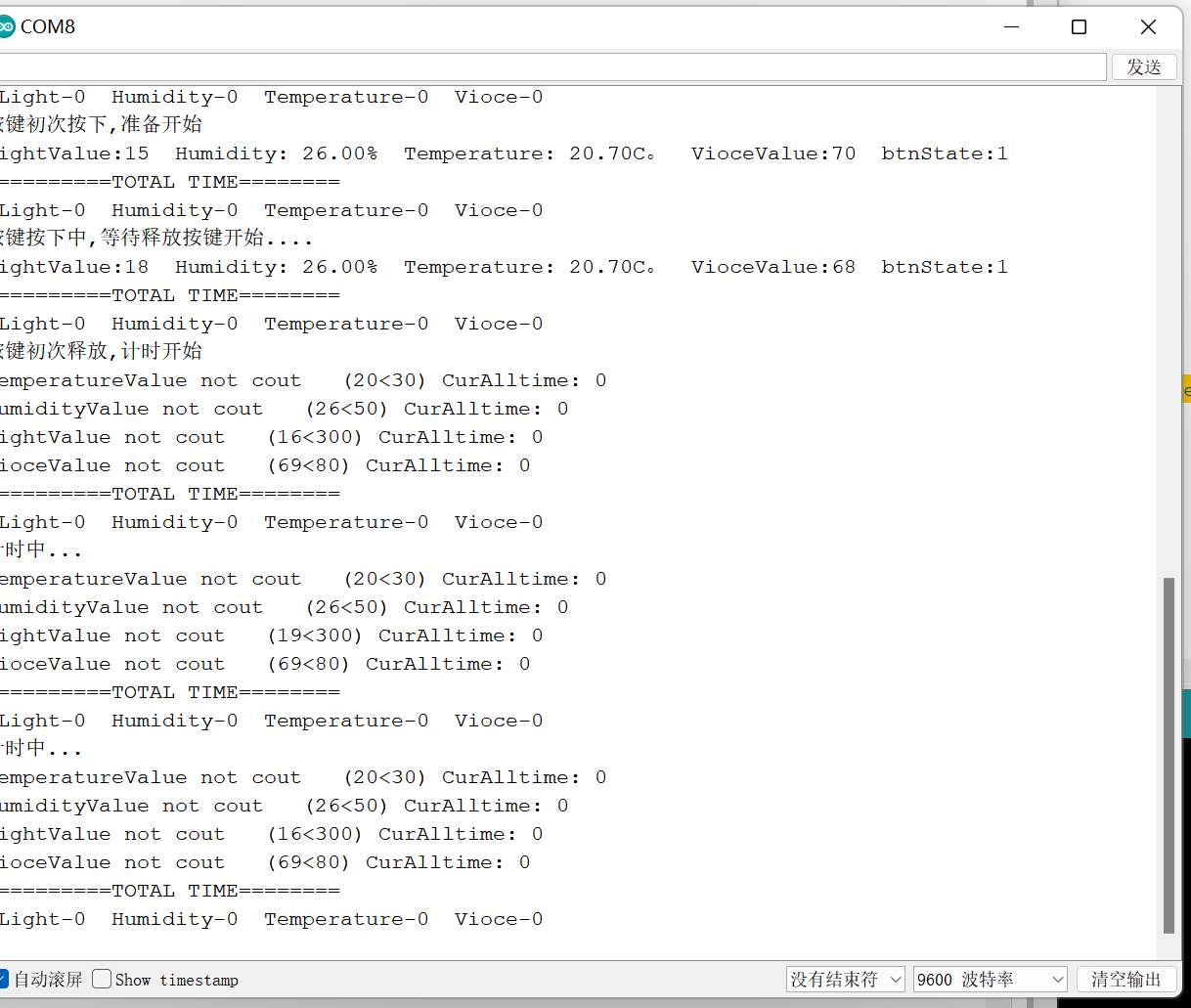

按键开始

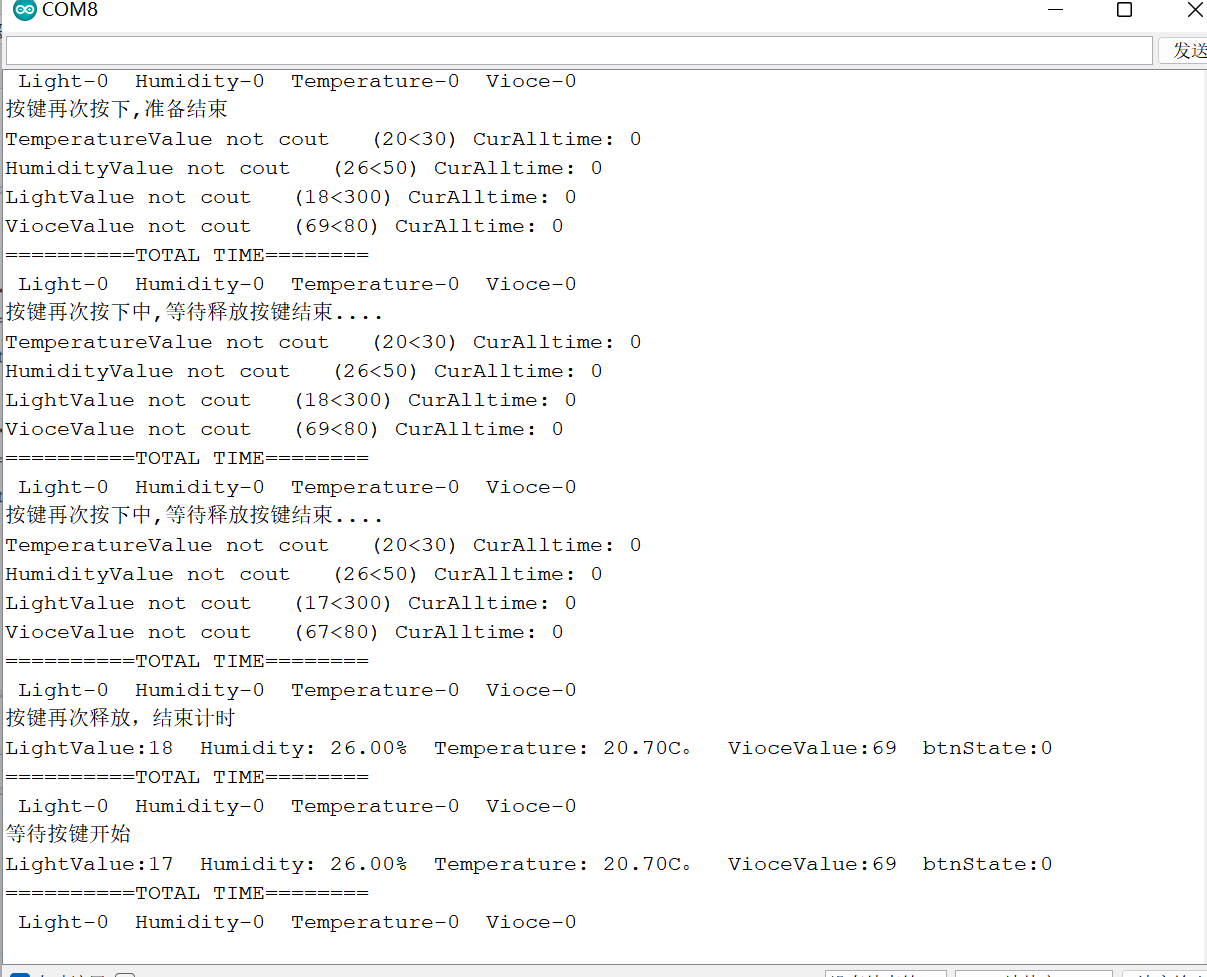

按键结束

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

#include "DHT.h"

#define DHTPIN 4     // Digital pin connected to the DHT sensor
#define DHTTYPE DHT11   // DHT 11

#define LightPIN A0
#define ViocePIN A1

#define BtnPIN 3


DHT dht(DHTPIN, DHTTYPE);




// 顺序 0 温度0-100  1 湿度0-100 2 光照0-1023 3 声音0-1023
String sensorName[4]={"TemperatureValue","HumidityValue","LightValue","VioceValue"};
int thresh[4]={30,50,300,80};//阈值
int btnState=0;
int SensorState[4]={0,0,0,0};;
unsigned int timeALL[4]={0,0,0,0};
unsigned int timeALLOld[4]={0,0,0,0};
unsigned int timeCurStart[4]={0,0,0,0};
unsigned int timeCurEnd[4]={0,0,0,0};

bool timeCostState=0;


void setup() {

  Serial.begin(9600);
  Serial.println(F("go go go!"));

  dht.begin();



    //time_cur=millis();
    //time_old=millis();

}


void loop() {

  float TemperatureValue = dht.readTemperature();
  float HumidityValue = dht.readHumidity();
  int  LightValue=1024-analogRead(LightPIN);
  int  VioceValue=analogRead(ViocePIN);

  int  BtnValue=digitalRead(BtnPIN);

  if (isnan(HumidityValue) || isnan(TemperatureValue) ) {
    Serial.println(F("Failed to read from DHT sensor!"));
    HumidityValue=0;
    TemperatureValue=0;
    return ;
  }
    int curTimeValue[4]={int(TemperatureValue),int(HumidityValue),LightValue,VioceValue};

    if(BtnValue==1&&btnState==0){
      Serial.println("按键初次按下,准备开始");
      btnState=1;
    }
    else if(BtnValue==1&&btnState==1)
    {
      Serial.println("按键按下中,等待释放按键开始....");

     }
    else if(BtnValue==0&&btnState==1)
    {
      Serial.println("按键初次释放,计时开始");
      btnState=2;
      timeCostState=1;//开始计时
      }
     else if(BtnValue==0&&btnState==2){
      Serial.println("计时中...");
      }
     else if(BtnValue==1&&btnState==2){
      Serial.println("按键再次按下,准备结束");
      btnState=3;
      }
      else if(BtnValue==1&&btnState==3){
      Serial.println("按键再次按下中,等待释放按键结束....");
      }
      else if(BtnValue==0&&btnState==3){
        Serial.println("按键再次释放，结束计时");

       btnState=0;
       timeCostState=0;//结束标志位
       for (int i=0;i<=3;i++){

         timeALLOld[i]=timeALL[i];
         SensorState[i]=0;
         timeALL[i]=0;
         timeCurStart[i]=0;
         timeCurEnd[i]=0;
       }



      }
      else if(BtnValue==0&&btnState==0){
      Serial.println("等待按键开始");
      }

  unsigned time_cur=millis();
  //time_cost=int((time_cur-time_old)/1000);
  if(timeCostState==1){
    for(int i=0;i<=3;i++)
    {
        if(curTimeValue[i]>thresh[i]){
           if(SensorState[i]==0){
              timeCurStart[i]=millis();
              timeCurEnd[i]=millis();
              SensorState[i]=1;
              String msgs=String(sensorName[i])+" ,begin cout! ("+String(curTimeValue[i])+">"+String(thresh[i])+")"+  " CurAlltime: "+String(timeALL[i]);
              Serial.println(msgs);
            }
            else if(SensorState[i]==1){
              timeCurEnd[i]=millis();
              unsigned int timeInterval= int((timeCurEnd[i]-timeCurStart[i])/1000);
              timeALL[i]=timeALL[i]+timeInterval;
              timeCurStart[i]=millis();

              String msgs=String(sensorName[i])+" ,couting...  ("+String(curTimeValue[i])+">"+String(thresh[i])+")"+  " CurAlltime: "+String(timeALL[i]);
              Serial.println(msgs);
            }


         }
         else{
            if(SensorState[i]==0){
              timeCurStart[i]=millis();
              timeCurEnd[i]=millis();
              String msgs=String(sensorName[i])+" not cout   ("+String(curTimeValue[i])+"<"+String(thresh[i])+")"+  " CurAlltime: "+String(timeALL[i]);
              Serial.println(msgs);
            }
            else if(SensorState[i]==1){
              timeCurEnd[i]=millis();
              unsigned int timeInterval= int((timeCurEnd[i]-timeCurStart[i])/1000);
              timeALL[i]=timeALL[i]+timeInterval;
              timeCurStart[i]=millis();
              SensorState[i]=0;
              String msgs=String(sensorName[i])+" ,cout end!  ("+String(curTimeValue[i])+"<"+String(thresh[i])+")" +  " CurAlltime: "+String(timeALL[i]);
              Serial.println(msgs);
            }

          }

        }

        String ShowMsg=String("")+"==========TOTAL TIME======== \n "
        +"Light-"+String(timeALL[0])+"  Humidity-"+String(timeALL[1])+"  Temperature-"+String(timeALL[2])+"  Vioce-"+String(timeALL[3]);
        Serial.println(ShowMsg);

     }//if(timeCostState==1){
     else{//没有开始计时
          String ShowMsg=String("")
                 +"LightValue:" +String(LightValue)+"  "
                 +"Humidity: "+String(HumidityValue)+"%  "
                 +"Temperature: "+String(TemperatureValue)+"C。  "
                 +"VioceValue:" +String(VioceValue)+"  "
                 +"btnState:"+String(BtnValue)+"  "
                 ;

           Serial.println(ShowMsg);


            ShowMsg=String("")+"==========TOTAL TIME======== \n "
            +"Light-"+String(timeALLOld[0])+"  Humidity-"+String(timeALLOld[1])+"  Temperature-"+String(timeALLOld[2])+"  Vioce-"+String(timeALLOld[3]);
            Serial.println(ShowMsg);
      }





  delay(1*1000);//等待一会 延迟2秒
}
