UE5--016--C005DodgeballCharacter--DodgeballPlayerController

1. C005DodgeballCharacter

1.1 C005DodgeballCharacter.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "Logging/LogMacros.h"
#include "HealthInterface.h"
#include "C005DodgeballCharacter.generated.h"

class USpringArmComponent;
class UCameraComponent;
class UInputMappingContext;
class UInputAction;
struct FInputActionValue;

DECLARE_LOG_CATEGORY_EXTERN(LogTemplateCharacter, Log, All);

UCLASS(config=Game)
class AC005DodgeballCharacter : public ACharacter, public IHealthInterface
{
    GENERATED_BODY()

    /** Camera boom positioning the camera behind the character */
    UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Camera, meta = (AllowPrivateAccess = "true"))
    USpringArmComponent* CameraBoom;

    /** Follow camera */
    UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Camera, meta = (AllowPrivateAccess = "true"))
    UCameraComponent* FollowCamera;

    /** MappingContext */
    UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, meta = (AllowPrivateAccess = "true"))
    UInputMappingContext* DefaultMappingContext;

    /** Jump Input Action */
    UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, meta = (AllowPrivateAccess = "true"))
    UInputAction* JumpAction;

    /** Move Input Action */
    UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, meta = (AllowPrivateAccess = "true"))
    UInputAction* MoveAction;

    /** Look Input Action */
    UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, meta = (AllowPrivateAccess = "true"))
    UInputAction* LookAction;

private:
    class UHealthComponent* HealthComponent;

public:
    AC005DodgeballCharacter();


protected:

    /** Called for movement input */
    void Move(const FInputActionValue& Value);

    /** Called for looking input */
    void Look(const FInputActionValue& Value);


protected:
    // APawn interface
    virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

    // To add mapping context
    virtual void BeginPlay();

public:
    /** Returns CameraBoom subobject **/
    FORCEINLINE class USpringArmComponent* GetCameraBoom() const { return CameraBoom; }
    /** Returns FollowCamera subobject **/
    FORCEINLINE class UCameraComponent* GetFollowCamera() const { return FollowCamera; }
    //
    virtual void OnDeath_Implementation() override;

    virtual void OnTakeDamage_Implementation() override;

};

1.2 C005DodgeballCharacter.cpp

#include "C005DodgeballCharacter.h"
#include "Engine/LocalPlayer.h"
#include "Camera/CameraComponent.h"
#include "Components/CapsuleComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/Controller.h"
#include "EnhancedInputComponent.h"
#include "EnhancedInputSubsystems.h"
#include "InputActionValue.h"
#include "HealthComponent.h"
#include "Kismet/KismetSystemLibrary.h"
#include "DodgeballPlayerController.h"

DEFINE_LOG_CATEGORY(LogTemplateCharacter);

//////////////////////////////////////////////////////////////////////////
// AC005DodgeballCharacter

AC005DodgeballCharacter::AC005DodgeballCharacter()
{
    // Set size for collision capsule
    GetCapsuleComponent()->InitCapsuleSize(42.f, 96.0f);

    // Don't rotate when the controller rotates. Let that just affect the camera.
    bUseControllerRotationPitch = false;
    bUseControllerRotationYaw = false;
    bUseControllerRotationRoll = false;

    // Configure character movement
    GetCharacterMovement()->bOrientRotationToMovement = true; // Character moves in the direction of input...
    GetCharacterMovement()->RotationRate = FRotator(0.0f, 500.0f, 0.0f); // ...at this rotation rate

    // Note: For faster iteration times these variables, and many more, can be tweaked in the Character Blueprint
    // instead of recompiling to adjust them
    GetCharacterMovement()->JumpZVelocity = 700.f;
    GetCharacterMovement()->AirControl = 0.35f;
    GetCharacterMovement()->MaxWalkSpeed = 500.f;
    GetCharacterMovement()->MinAnalogWalkSpeed = 20.f;
    GetCharacterMovement()->BrakingDecelerationWalking = 2000.f;
    GetCharacterMovement()->BrakingDecelerationFalling = 1500.0f;

    // Create a camera boom (pulls in towards the player if there is a collision)
    CameraBoom = CreateDefaultSubobject<USpringArmComponent>(TEXT("CameraBoom"));
    CameraBoom->SetupAttachment(RootComponent);
    //CameraBoom->TargetArmLength = 400.0f; // The camera follows at this distance behind the character
    // The camera follows at this distance behind the character
    CameraBoom->TargetArmLength = 900.0f;
    //CameraBoom->bUsePawnControlRotation = true; // Rotate the arm based on the controller
    //The camera looks down at the player
    CameraBoom->SetRelativeRotation(FRotator(-70.f, 0.f, 0.f));
    // Don't rotate the arm based on the controller
    CameraBoom->bUsePawnControlRotation = false;
    // Ignore pawn's pitch, yaw and roll
    CameraBoom->bInheritPitch = false;
    CameraBoom->bInheritYaw = false;
    CameraBoom->bInheritRoll = false;

    // Create a follow camera
    FollowCamera = CreateDefaultSubobject<UCameraComponent>(TEXT("FollowCamera"));
    FollowCamera->SetupAttachment(CameraBoom, USpringArmComponent::SocketName); // Attach the camera to the end of the boom and let the boom adjust to match the controller orientation
    FollowCamera->bUsePawnControlRotation = false; // Camera does not rotate relative to arm

    //
    HealthComponent = CreateDefaultSubobject<UHealthComponent>(TEXT("HealthComponent"));

    // Note: The skeletal mesh and anim blueprint references on the Mesh component (inherited from Character)
    // are set in the derived blueprint asset named ThirdPersonCharacter (to avoid direct content references in C++)
}

void AC005DodgeballCharacter::BeginPlay()
{
    // Call the base class
    Super::BeginPlay();
}

//////////////////////////////////////////////////////////////////////////
// Input

void AC005DodgeballCharacter::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
    // Add Input Mapping Context
    if (APlayerController* PlayerController = Cast<APlayerController>(GetController()))
    {
        if (UEnhancedInputLocalPlayerSubsystem* Subsystem = ULocalPlayer::GetSubsystem<UEnhancedInputLocalPlayerSubsystem>(PlayerController->GetLocalPlayer()))
        {
            Subsystem->AddMappingContext(DefaultMappingContext, 0);
        }
    }

    // Set up action bindings
    if (UEnhancedInputComponent* EnhancedInputComponent = Cast<UEnhancedInputComponent>(PlayerInputComponent)) {

        // Jumping
        EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Started, this, &ACharacter::Jump);
        EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Completed, this, &ACharacter::StopJumping);

        // Moving
        EnhancedInputComponent->BindAction(MoveAction, ETriggerEvent::Triggered, this, &AC005DodgeballCharacter::Move);

        // Looking
        EnhancedInputComponent->BindAction(LookAction, ETriggerEvent::Triggered, this, &AC005DodgeballCharacter::Look);

    }
    else
    {
        UE_LOG(LogTemplateCharacter, Error, TEXT("'%s' Failed to find an Enhanced Input component! "), *GetNameSafe(this));
    }
}

void AC005DodgeballCharacter::Move(const FInputActionValue& Value)
{
    // input is a Vector2D
    FVector2D MovementVector = Value.Get<FVector2D>();

    if (Controller != nullptr)
    {
        // find out which way is forward
        const FRotator Rotation = Controller->GetControlRotation();
        const FRotator YawRotation(0, Rotation.Yaw, 0);

        // get forward vector
        const FVector ForwardDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::X);

        // get right vector
        const FVector RightDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::Y);

        // add movement
        AddMovementInput(ForwardDirection, MovementVector.Y);
        AddMovementInput(RightDirection, MovementVector.X);
    }
}

void AC005DodgeballCharacter::Look(const FInputActionValue& Value)
{
    // input is a Vector2D
    FVector2D LookAxisVector = Value.Get<FVector2D>();

    if (Controller != nullptr)
    {
        // add yaw and pitch input to controller
        AddControllerYawInput(LookAxisVector.X);
        AddControllerPitchInput(LookAxisVector.Y);
    }
}

void AC005DodgeballCharacter::OnDeath_Implementation()
{
    if (1 == 0) {
        UKismetSystemLibrary::QuitGame(this, nullptr, EQuitPreference::Quit, true);
    }
    else {
        ADodgeballPlayerController* PlayerController = Cast<ADodgeballPlayerController>(GetController());
        if (PlayerController != nullptr)
        {
            PlayerController->ShowRestartWidget();
        }
    }
}

void AC005DodgeballCharacter::OnTakeDamage_Implementation()
{
    ADodgeballPlayerController* PlayerController = Cast<ADodgeballPlayerController>(GetController());
    if (PlayerController != nullptr)
    {
        PlayerController->UpdateHealthPercent(HealthComponent->GetHealthPercent());
    }
}

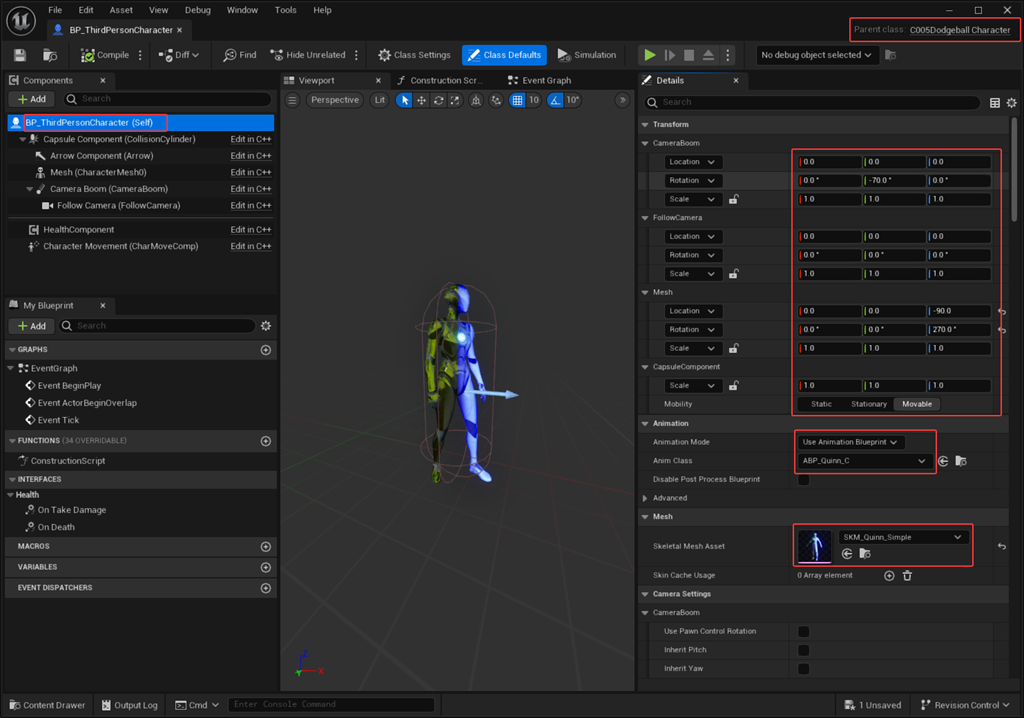

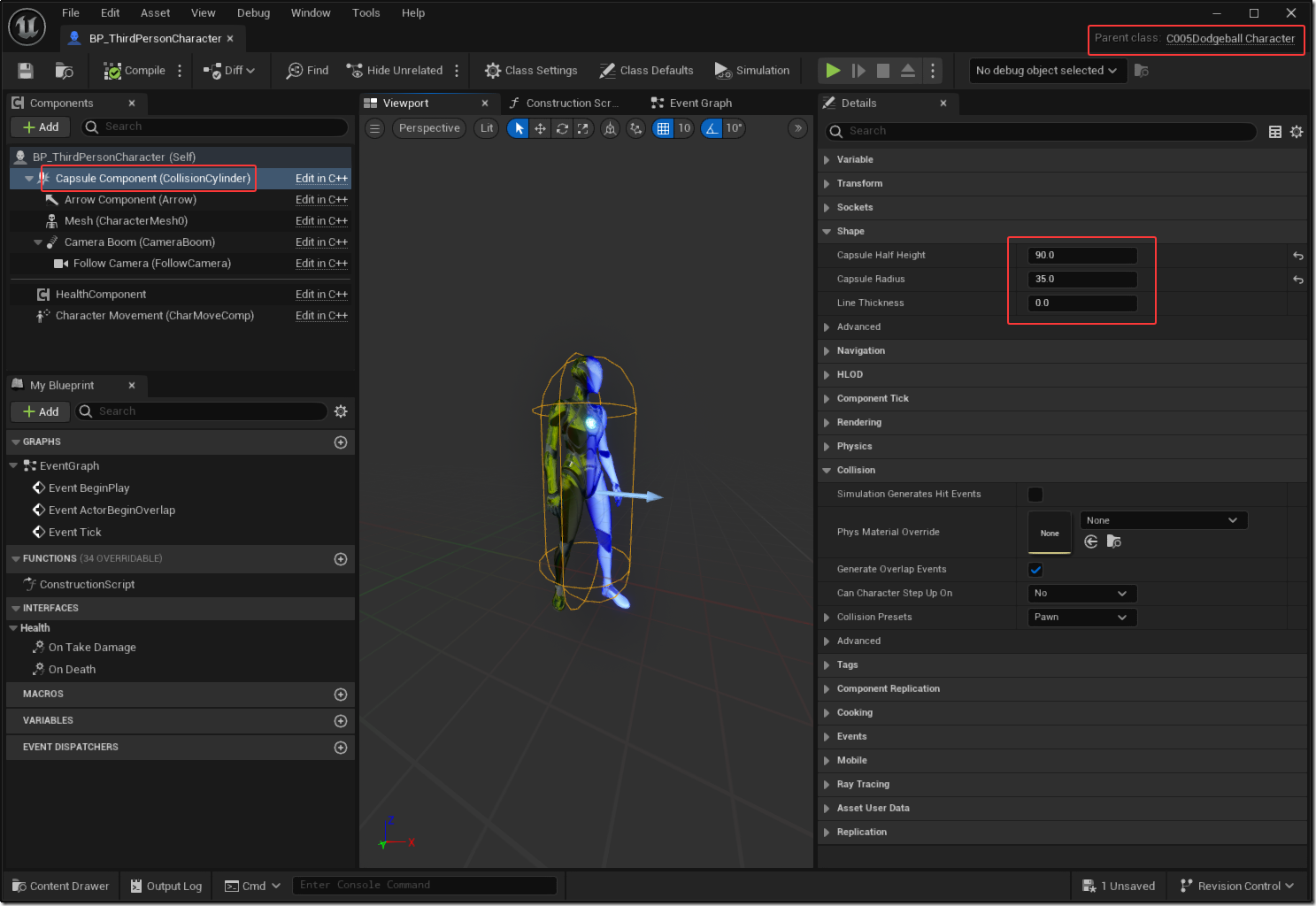

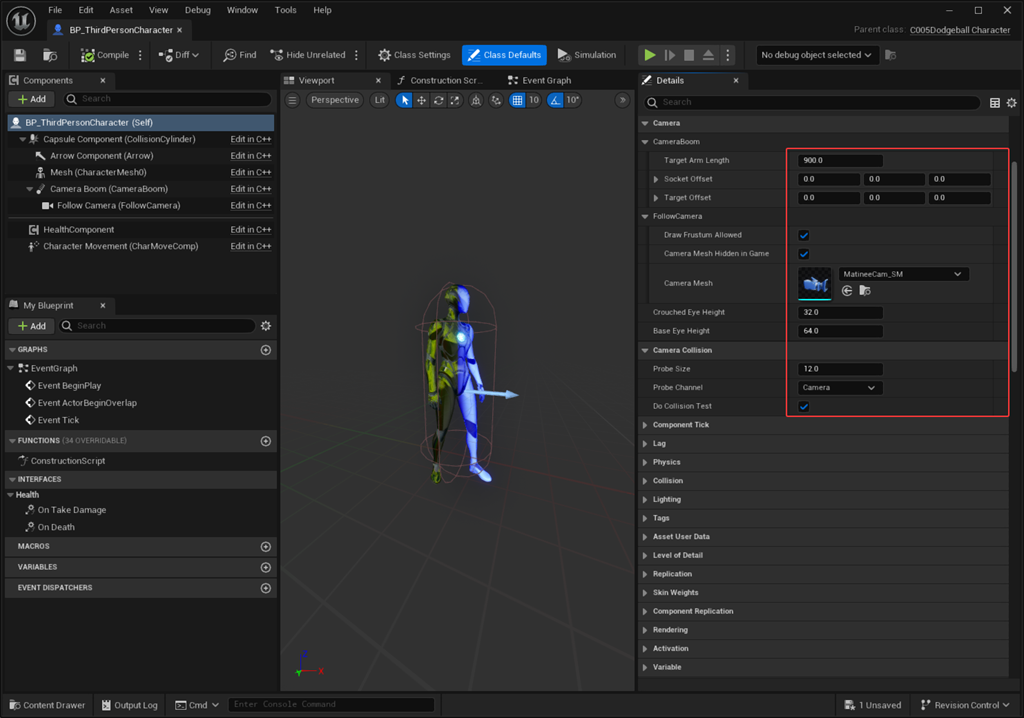

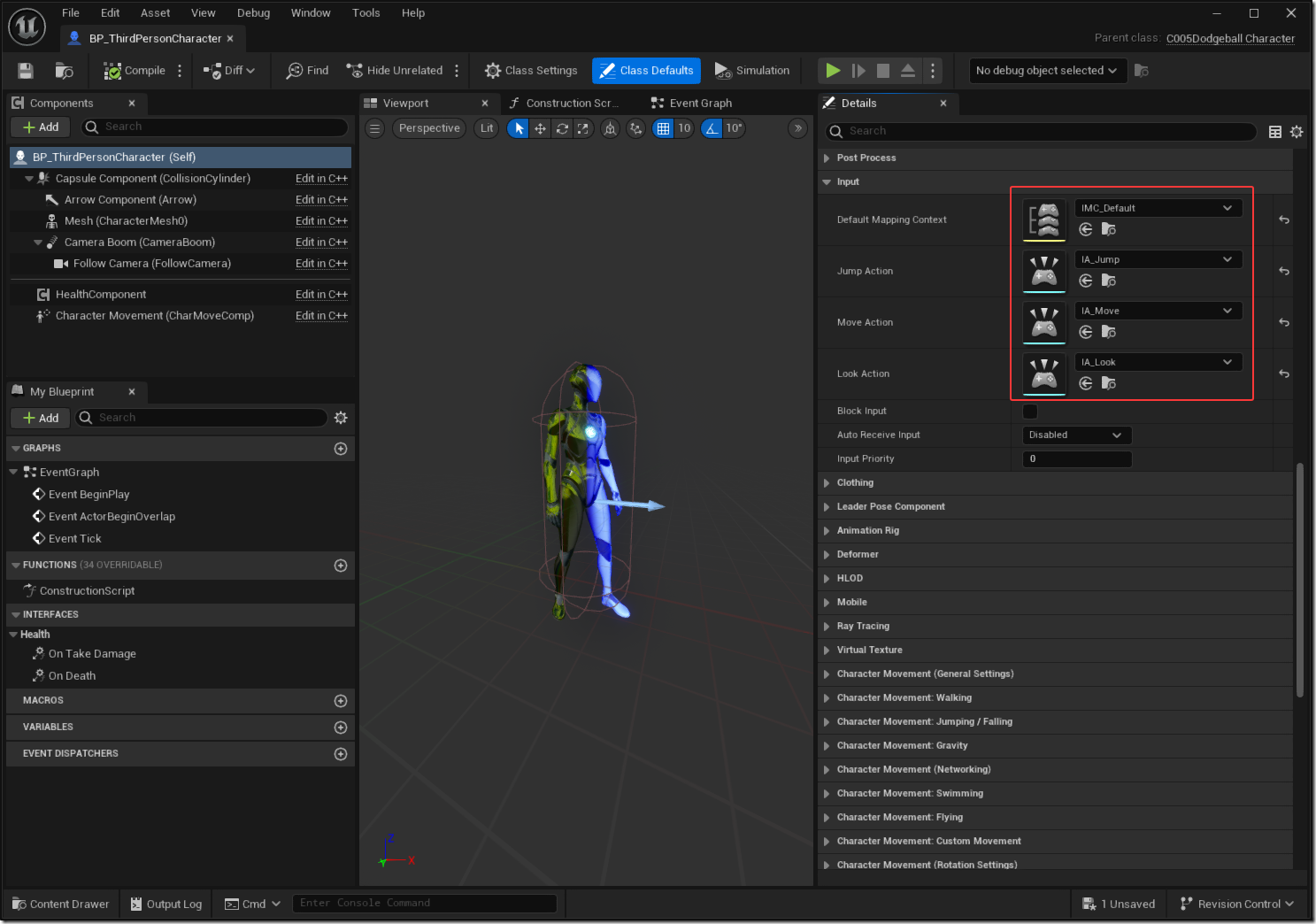

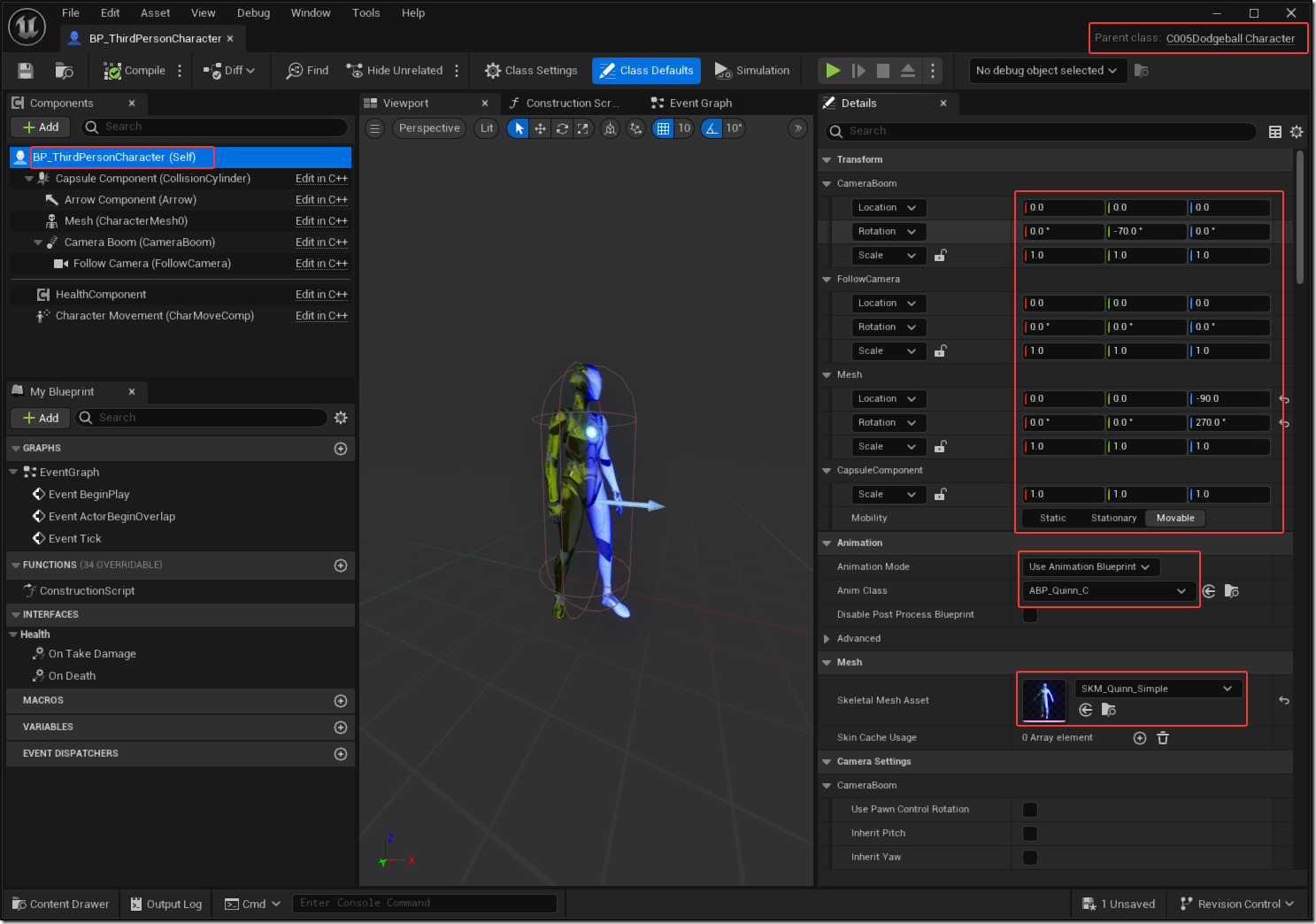

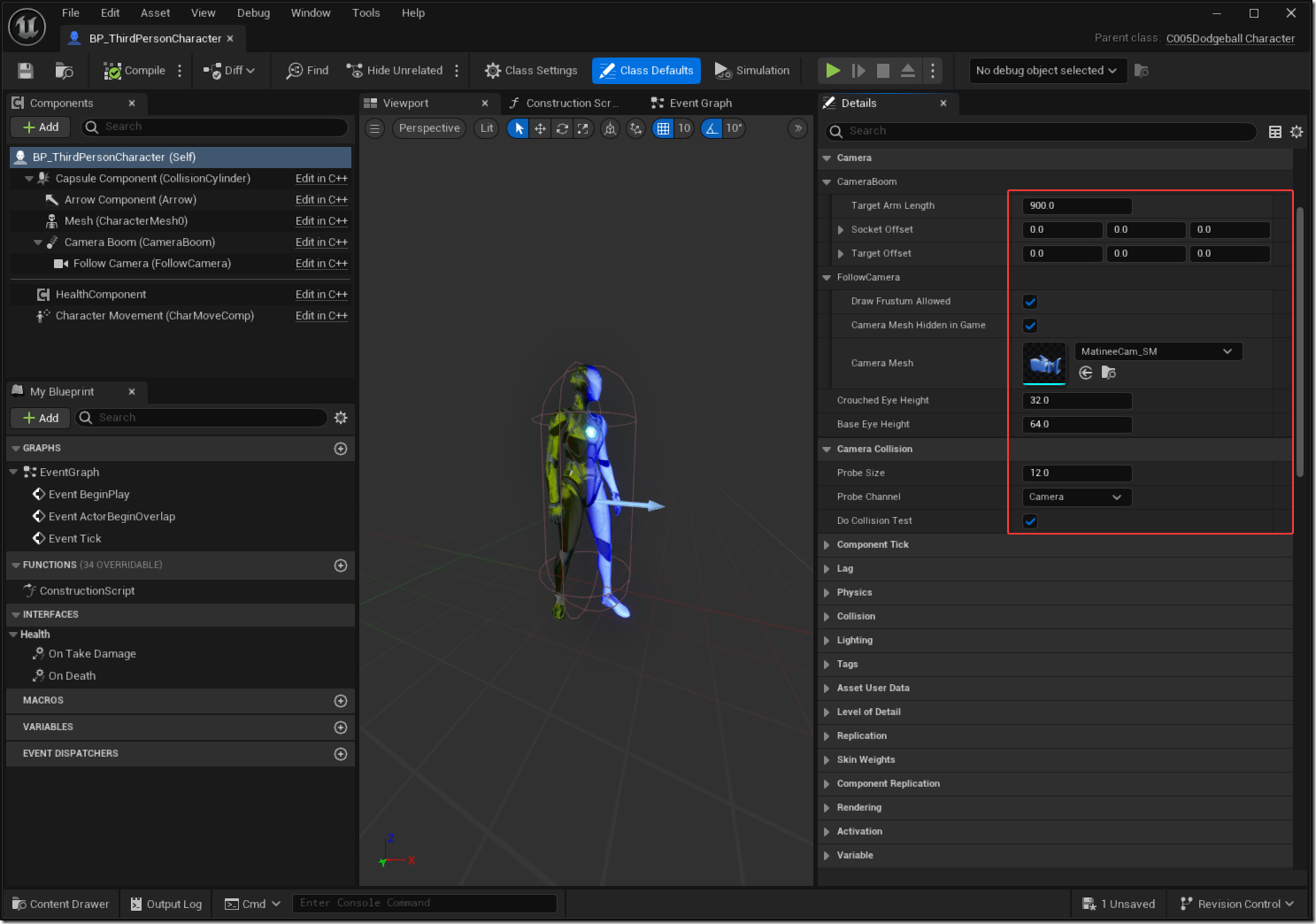

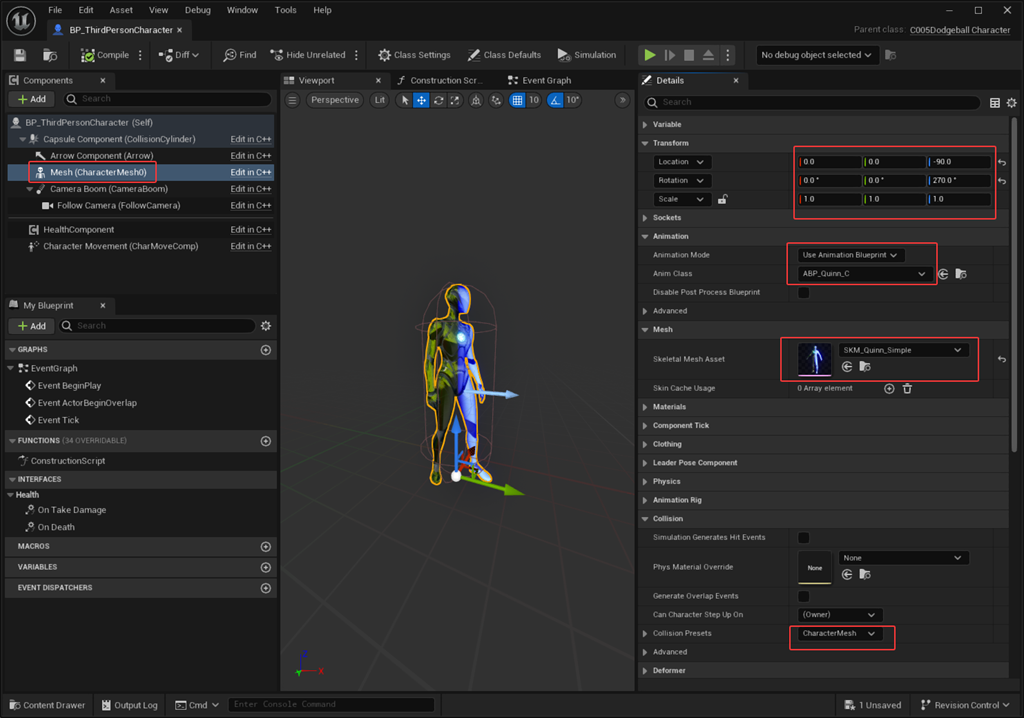

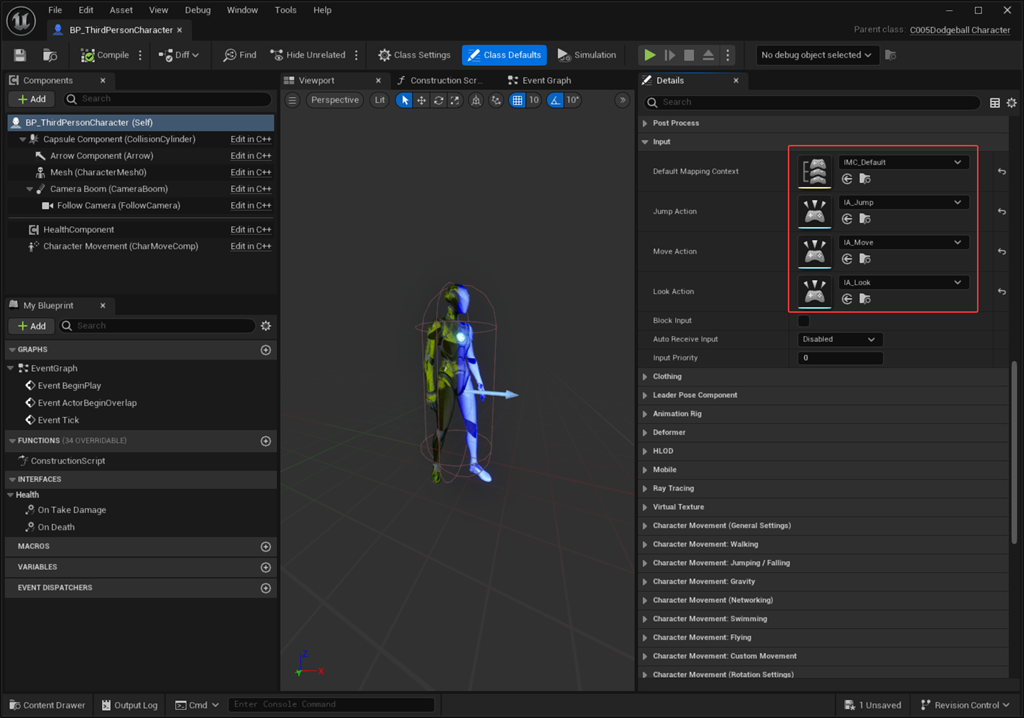

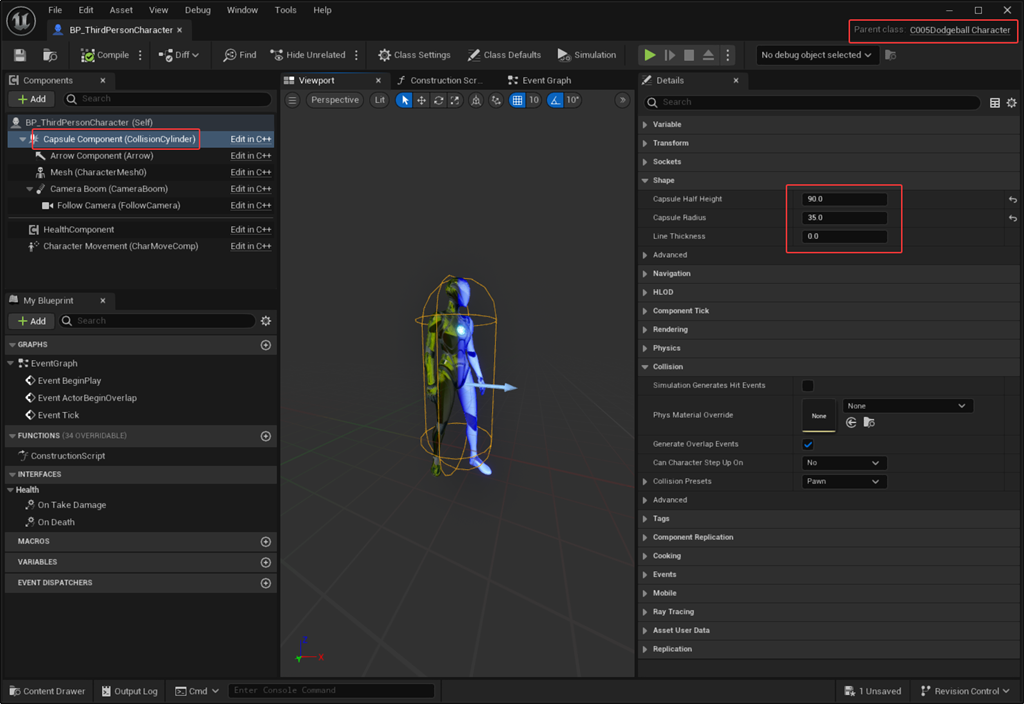

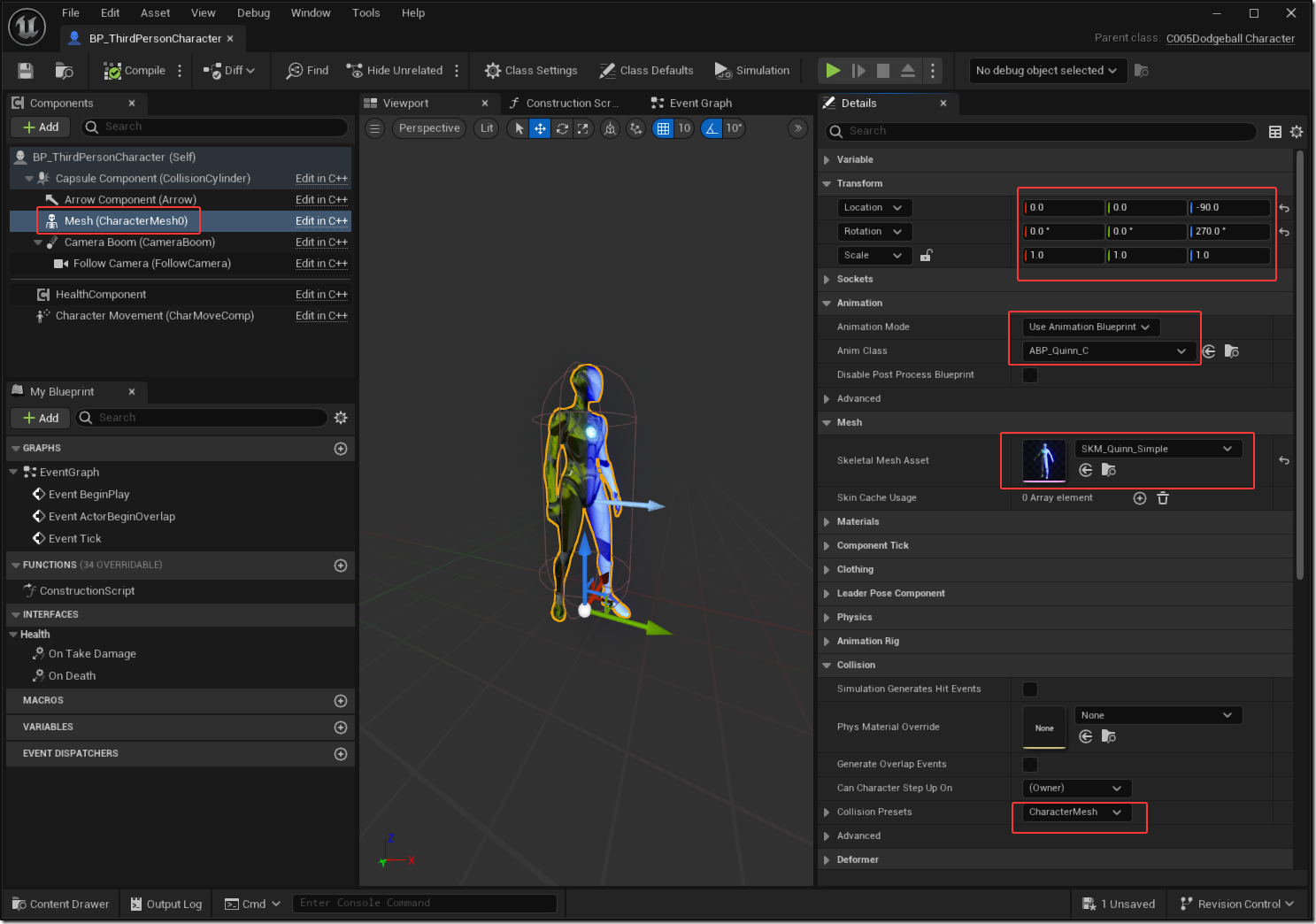

1.3 BP_C005DodgeballCharacter

2. DodgeballPlayerController

2.1 DodgeballPlayerController.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/PlayerController.h"
#include "DodgeballPlayerController.generated.h"

/**
 *
 */
UCLASS()
class C005DODGEBALL_API ADodgeballPlayerController : public APlayerController
{
    GENERATED_BODY()

public:
    UPROPERTY(EditDefaultsOnly)
    TSubclassOf<class URestartWidget> BP_RestartWidget;

    UPROPERTY(EditDefaultsOnly)
    TSubclassOf<class UHUDWidget> BP_HUDWidget;

private:
    UPROPERTY()
    class URestartWidget* RestartWidget;

    UPROPERTY()
    class UHUDWidget* HUDWidget;

public:
    void ShowRestartWidget();

    void HideRestartWidget();

    void UpdateHealthPercent(float HealthPercent);

protected:
    virtual void BeginPlay() override;

};

2.2 DodgeballPlayerController.cpp

#include "DodgeballPlayerController.h"

#include "RestartWidget.h"
#include "HUDWidget.h"

void ADodgeballPlayerController::ShowRestartWidget()
{
    if (BP_RestartWidget != nullptr)
    {
        SetPause(true);

        SetInputMode(FInputModeUIOnly());

        bShowMouseCursor = true;

        RestartWidget = CreateWidget<URestartWidget>(this, BP_RestartWidget);

        RestartWidget->AddToViewport();
    }
}


void ADodgeballPlayerController::HideRestartWidget()
{
    RestartWidget->RemoveFromParent();
    RestartWidget->Destruct();

    SetPause(false);

    SetInputMode(FInputModeGameOnly());
    bShowMouseCursor = false;
}

void ADodgeballPlayerController::BeginPlay()
{
    Super::BeginPlay();
    if (BP_HUDWidget != nullptr)
    {
        HUDWidget = CreateWidget<UHUDWidget>(this, BP_HUDWidget);

        HUDWidget->AddToViewport();
    }
}

void ADodgeballPlayerController::UpdateHealthPercent(float HealthPercent)
{
    if (HUDWidget != nullptr)
    {
        HUDWidget->UpdateHealthPercent(HealthPercent);
    }
}

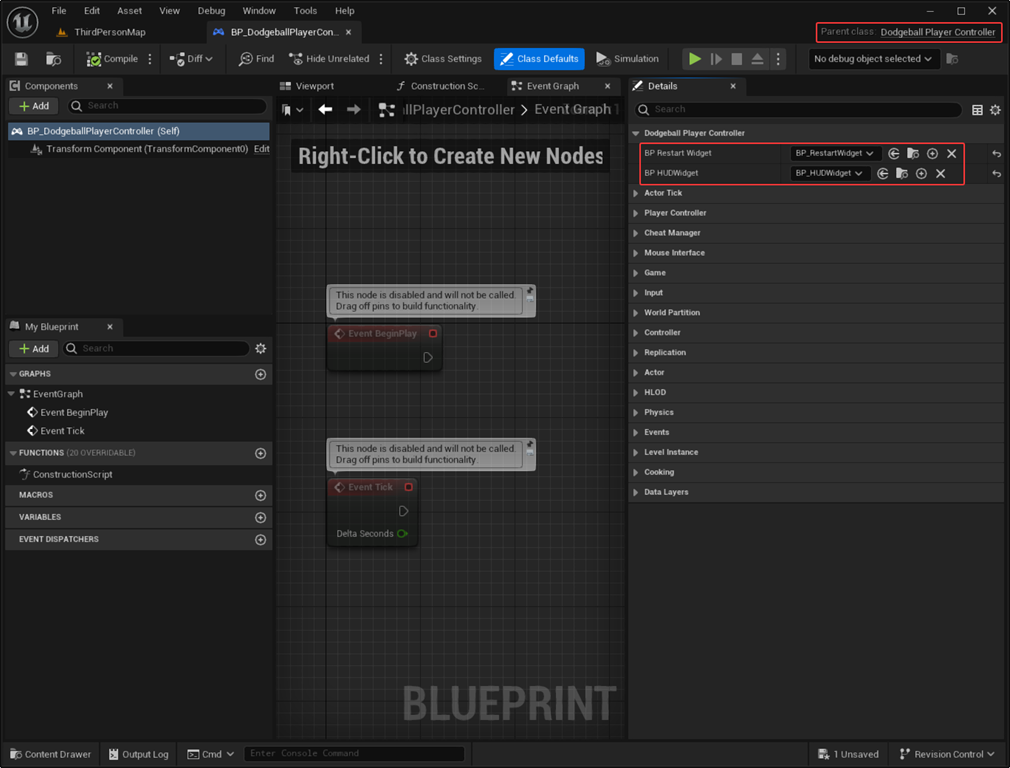

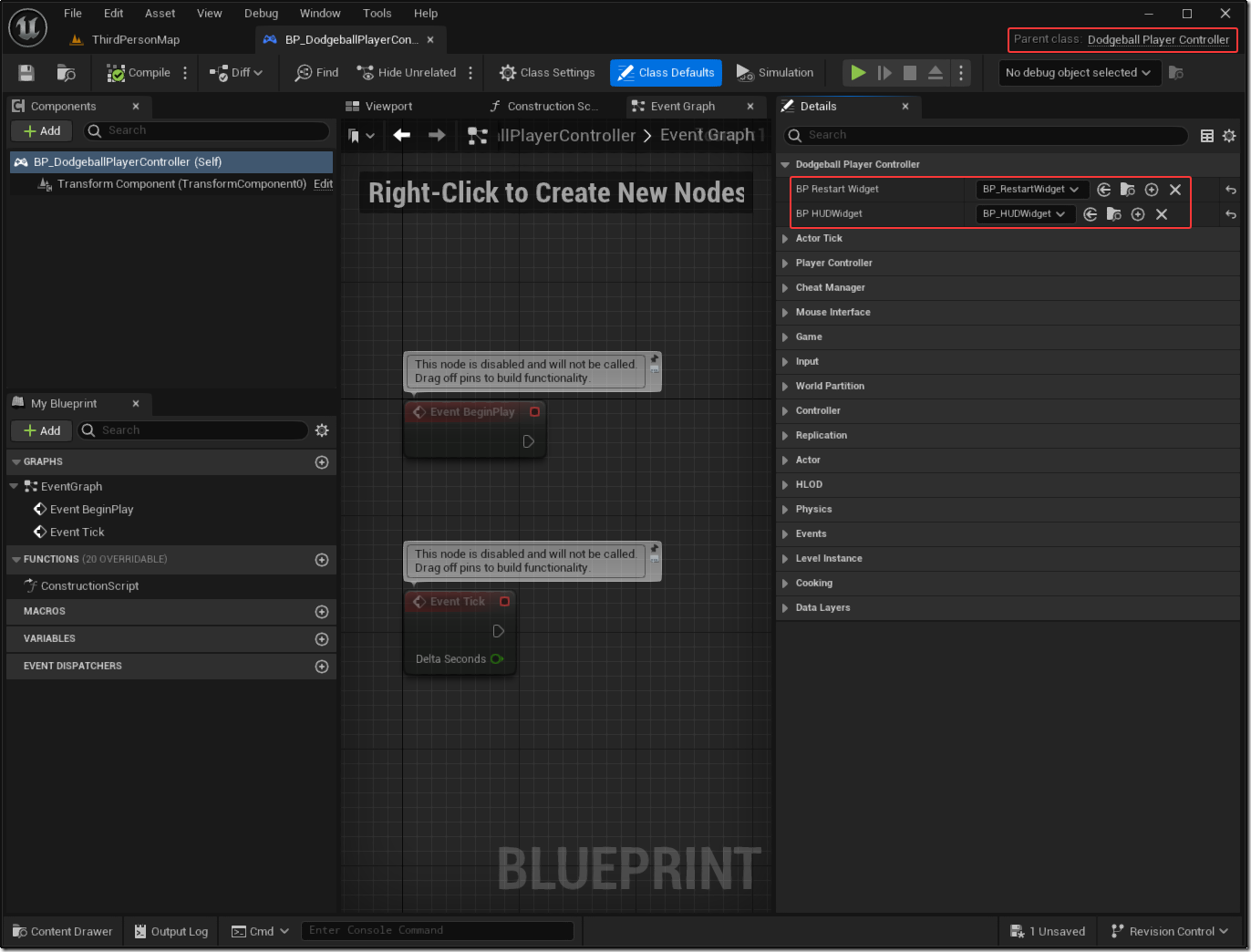

2.3 BP_DodgeballPlayerController
