MVC（Model-View-Controller）framework using Python ,Tkinter and SQLite

项目结构

 sql:

?

1 2 3 4 5

CREATE TABLE IF NOT EXISTS School (     SchoolId TEXT not null,      SchoolName TEXT NOT NULL,     SchoolTelNo TEXT NOT NULL )

　　

整体思路
Model：负责与 SQLite 数据库进行交互，包括创建表、插入、删除、更新和查询数据等操作。
View：使用 Tkinter 和 ttk.Treeview 创建用户界面，包含输入框、按钮和分页控件，用于显示数据并处理用户的交互。
Controller：处理用户界面的事件，调用 Model 中的方法进行数据操作，并更新 View 中的显示。
代码实现：

Model 部分

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243

# encoding: utf-8 # 版权所有 2024 ©涂聚文有限公司 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎 # 描述： # Author    : geovindu,Geovin Du 涂聚文. # IDE       : PyCharm 2023.1 python 3.11 # OS        : windows 10 # database  : mysql 9.0 sql server 2019, poostgreSQL 17.0  oracle 11g sqlite # Datetime  : 2024-11-20 22:35:21 # database  ：sql server 2019 # User      : geovindu # Product   : PyCharm # Project   : pySQLiteMvcDemo # File      : bll/School.py # explain   : 学习 from __future__ import annotations from abc import ABC, abstractmethod import os import sys from Model.school import SchoolInfo from Factory.AbstractFactory import AbstractFactory    class SchoolBll(object):     """     学校表                        """        dal = AbstractFactory.createSchool     """     类属性 接口DAL     """     def __init__(self):         """         """         self.__name = "SchoolBll"         self.createtable()  # 如果不存在，初始化表               def __del__(self):         """         :return:         """         print(f"{self.__name} ERASE MEMORY")        def Close(cls):         """         关闭         :return:         """         cls.dal().Close()        def createtable(self):         """         建表         """         self.dal().createtable()           def selectData(self) -> list:         """         :return:         """         data = self.dal().selectSql()         return data           def select(self) -> list[SchoolInfo]:         """         :return:         """            schools = []            data = self.dal().selectSql()         if len(data) > 0:             for SchoolId,SchoolName,SchoolTelNo in data[0]:                 info = SchoolInfo()                 info.SchoolId = SchoolId                 info.SchoolName = SchoolName                 info.SchoolTelNo = SchoolTelNo                 schools.append(info)         return schools        def selectSql(cls) -> list[SchoolInfo]:         """         元组数据         :return: list 列表         """         schools = []            data = cls.dal().selectSql()         if len(data) > 0:             for SchoolId,SchoolName,SchoolTelNo in data[0]:                 info=SchoolInfo()                 info.SchoolId = SchoolId                 info.SchoolName = SchoolName                 info.SchoolTelNo = SchoolTelNo                 schools.append(info)         return schools        def selectSqlCount(cls) -> int:         """         查询数据 总数         :return:         """         #print(cls.dal().selectSqlCount()[0][0])         total = cls.dal().selectSqlCount()[0][0]         return total        def Count(self) -> int:         """         查询数据 总数         :return:         """         total = self.dal().selectSqlCount()[0][0]         return total           def getcount(cls, search_query=""):         """         计算         :param search_query:         :return:         """         return cls.dal().getcount(search_query)           def getschools(cls, page, limit, search_query=""):         """         查询         :param page:         :param limit:         :param search_query:         :return:         """         data=cls.dal().getschools(page, limit, search_query)         print("data:",data)         return data           def selectSqlOrder(cls, order: str) -> list[SchoolInfo]:         """         元组数据         :param order: SchoolName desc/asc         :return:         """         schools = []         data = cls.dal().selectSqlOrder(order)         if len(data) > 0:             for SchoolId,SchoolName,SchoolTelNo in data[0]:                 info=SchoolInfo()                 info.SchoolId = SchoolId                 info.SchoolName = SchoolName                 info.SchoolTelNo = SchoolTelNo                 schools.append(info)         return schools           def selectSort(cls,field:str,isOrder:bool)->list[SchoolInfo]:         """         :param field SchoolId         :param order:  desc/asc         :return:         """         schools = []         data = cls.dal().selectSort(field,isOrder)         if len(data) > 0:             for SchoolId,SchoolName,SchoolTelNo in data[0]:                 info = SchoolInfo()                 info.SchoolId = SchoolId                 info.SchoolName = SchoolName                 info.SchoolTelNo = SchoolTelNo                 schools.append(info)         return schools           def selectIdSql(cls,SchoolId:str) -> list[SchoolInfo]:         """         :param SchoolId:ID         :return:         """         schools = []         data = cls.dal().selectIdSql(SchoolId)         #print(data)         if len(data)>0:             for SchoolId,SchoolName,SchoolTelNo in data[0]:                 info = SchoolInfo()                 info.SchoolId = SchoolId                 info.SchoolName = SchoolName                 info.SchoolTelNo = SchoolTelNo                 schools.append(info)         return schools        def addSql(cls,info:SchoolInfo) -> int:         """         :param info:实体类         :return:         """         return cls.dal().addSql(info)           def add(self,info:SchoolInfo) -> int:         """         :param info:实体类         :return:         """         return self.dal().addSql(info)           def editSql(cls,info:SchoolInfo) -> int:         """         :param info:实体类         :return:         """         #print(info)         return cls.dal().editSql(info)        def edit(self,info:SchoolInfo) -> int:         """         :param info:实体类         :return:         """         #print(info)         return self.dal().editSql(info)              def delSql(cls, SchoolId: str) -> int:         """         :param SchoolId:         :return:         """         return cls.dal().delSql(SchoolId)        def delinfo(self, SchoolId: str) -> int:         """         :param SchoolId:         :return:         """         return self.dal().delSql(SchoolId)

　　

View 部分

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269

# encoding: utf-8 # 版权所有 2025 ©涂聚文有限公司 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎 # 描述： # Author    : geovindu,Geovin Du 涂聚文. # IDE       : PyCharm 2023.1 python 3.11 # OS        : windows 10 # database  : mysql 9.0 sql server 2019, poostgreSQL 17.0  oracle 21c Neo4j sqlite # Datetime  : 2025/2/11 20:37 # User      : geovindu # Product   : PyCharm # Project   : pySQLiteMvcDemo # File      : ViewUI/SchoolView.py # explain   : 学习    import tkinter as tk from tkinter import ttk, messagebox import sqlite3 from Model.school import SchoolInfo    class SchoolView(tk.Frame):     """     View 类：负责创建和管理用户界面     """     def __init__(self, master=None):         """         :param master:         """         super().__init__(master)            self.master = master         self.pack()         self.create_widgets()        def create_widgets(self):         """         :return:         """         self.search_frame = tk.Frame(self)         self.search_frame.pack(pady=10)         # 搜索输入框         self.search_label = tk.Label(self.search_frame, text="搜索:")         #self.search_label.pack()         self.search_label.grid(row=0, column=0)         self.search_entry = tk.Entry(self.search_frame)         #self.search_entry.pack()         self.search_entry.grid(row=0, column=1)         # 搜索按钮         self.search_button = tk.Button(self.search_frame, text="搜索")         #self.search_button.pack()         self.search_button.grid(row=0, column=2)            self.tree_frame = tk.Frame(self)         self.tree_frame.pack(pady=10)         # Treeview 控件         self.tree = ttk.Treeview(self.tree_frame, columns=('ID', '校名', '电话'), show='headings')         self.tree.heading('ID', text='ID')         self.tree.heading('校名', text='校名')         self.tree.heading('电话', text='电话')         self.tree.pack()            # Pagination Frame         self.pagination_frame = tk.Frame(self)         self.pagination_frame.pack(pady=10)            # 分页控件         self.prev_button = tk.Button(self.pagination_frame, text="上一页")         self.prev_button.pack(side=tk.LEFT)         self.page_label = tk.Label(self.pagination_frame, text="第 1 页")         self.page_label.pack(side=tk.LEFT)            self.pagetotal_label = tk.Label(self.pagination_frame, text="/共 1 条")         self.pagetotal_label.pack(side=tk.LEFT)            self.next_button = tk.Button(self.pagination_frame, text="下一页")         self.next_button.pack(side=tk.LEFT)            # Add/Update/Delete Frame         self.action_frame = tk.Frame(self)         self.action_frame.pack(pady=10)         self.id_label = tk.Label(self.action_frame, text="編號:")         #self.id_label.pack()         self.id_label.grid(row=0, column=0)            self.id_entry = tk.Entry(self.action_frame)         self.id_entry.grid(row=0, column=1)            # 校名输入框         self.name_label = tk.Label(self.action_frame, text="校名:")         self.name_label.grid(row=1, column=0)            self.name_entry = tk.Entry(self.action_frame)         self.name_entry.grid(row=1, column=1)         # 电话输入框         self.phone_label = tk.Label(self.action_frame, text="电话:")         self.phone_label.grid(row=2, column=0)         self.phone_entry = tk.Entry(self.action_frame)         self.phone_entry.grid(row=2, column=1)         # 添加按钮         self.add_button = tk.Button(self.action_frame, text="添加")         self.add_button.grid(row=3, column=0)         # 修改按钮         self.update_button = tk.Button(self.action_frame, text="修改")         self.update_button.grid(row=3, column=1)         # 删除按钮         self.delete_button = tk.Button(self.action_frame, text="删除")         self.delete_button.grid(row=3, column=2)        def clear_entries(self):         """         :return:         """         self.id_entry.delete(0, tk.END)         self.name_entry.delete(0, tk.END)         self.phone_entry.delete(0, tk.END)         self.search_entry.delete(0, tk.END)        def populate_treeview(self, contacts):         """         :param contacts:         :return:         """         for i in self.tree.get_children():             self.tree.delete(i)         for contact in contacts:             self.tree.insert('', 'end', values=contact)           def update_page_label(self, page, total_pages):         """         :param page:         :param total_pages:         :return:         """         self.page_label.config(text=f"第 {page} 页/共 {total_pages} 页")        def update_page_total(self,tatal):         """         :param tatal:         :return:         """         self.pagetotal_label.config(text=f"共{tatal} 条")          class AddSchoolWindow(tk.Toplevel):     """     弹出窗口 - 添加学校     """     def __init__(self, master, controller):         """         :param master:         :param controller:         """         super().__init__(master)         self.controller = controller         self.title("添加学校")         self.create_widgets()     def create_widgets(self):         """         :return:         """         self.action_frame = tk.Frame(self)         self.action_frame.pack(pady=10)         # 学校 ID 输入框         self.id_label = tk.Label(self.action_frame, text="学校 ID:")         self.id_label.grid(row=0, column=0)         self.id_entry = tk.Entry(self.action_frame)         self.id_entry.grid(row=0, column=1)         # 学校名称输入框         self.name_label = tk.Label(self.action_frame, text="学校名称:")         self.name_label.grid(row=1, column=0)         self.name_entry = tk.Entry(self.action_frame)         self.name_entry.grid(row=1, column=1)         # 学校电话输入框         self.tel_label = tk.Label(self.action_frame, text="学校电话:")         self.tel_label.grid(row=2, column=0)         self.tel_entry = tk.Entry(self.action_frame)         self.tel_entry.grid(row=2, column=1)         # 保存按钮         self.save_button = tk.Button(self.action_frame, text="保存", command=self.save_school)         self.save_button.grid(row=3, column=0)     def save_school(self):         """         :return:         """         school_id = self.id_entry.get()         school_name = self.name_entry.get()         school_tel = self.tel_entry.get()         info = SchoolInfo()         info.SchoolId = school_id         info.SchoolName = school_name         info.SchoolTelNo = school_tel            if school_id and school_name and school_tel:             self.controller.add_school(info)             self.destroy()         else:             messagebox.showerror("错误", "所有字段均为必填项")          class EditSchoolWindow(tk.Toplevel):     """     弹出窗口 - 修改学校     """     def __init__(self, master, controller, school_id, school_name, school_tel):         """         :param master:         :param controller:         :param school_id:         :param school_name:         :param school_tel:         """         super().__init__(master)         self.controller = controller         self.school_id = school_id         self.title("修改学校")         self.create_widgets(school_name, school_tel)     def create_widgets(self, school_name, school_tel):         """         :param school_name:         :param school_tel:         :return:         """         self.action_frame = tk.Frame(self)         self.action_frame.pack(pady=10)         # 学校 ID 标签（不可编辑）         self.id_label = tk.Label(self.action_frame, text="学校 ID:")         self.id_label.grid(row=0, column=0)         self.id_entry = tk.Entry(self.action_frame)         self.id_entry.insert(0, self.school_id)         self.id_entry.config(state='readonly')         self.id_entry.grid(row=0, column=1)         # 学校名称输入框         self.name_label = tk.Label(self.action_frame, text="学校名称:")         self.name_label.grid(row=1, column=0)         self.name_entry = tk.Entry(self.action_frame)         self.name_entry.insert(0, school_name)         self.name_entry.grid(row=1, column=1)         # 学校电话输入框         self.tel_label = tk.Label(self.action_frame, text="学校电话:")         self.tel_label.grid(row=2, column=0)         self.tel_entry = tk.Entry(self.action_frame)         self.tel_entry.insert(0, school_tel)         self.tel_entry.grid(row=2, column=1)         # 保存按钮         self.save_button = tk.Button(self.action_frame, text="保存", command=self.save_school)         self.save_button.grid(row=3, column=0)           def save_school(self):         """         :return:         """            school_name = self.name_entry.get()         school_tel = self.tel_entry.get()         if school_name and school_tel:             print("edit",self.school_id)             info=SchoolInfo()             info.SchoolId=self.school_id             info.SchoolName=school_name             info.SchoolTelNo=school_tel             #self.controller.update_school(self.school_id, school_name, school_tel)             self.controller.update_school(info)             self.destroy()         else:             messagebox.showerror("错误", "所有字段均为必填项")

　　

Controller 部分

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209

# encoding: utf-8 # 版权所有 2025 ©涂聚文有限公司 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎 # 描述： # Author    : geovindu,Geovin Du 涂聚文. # IDE       : PyCharm 2023.1 python 3.11 # OS        : windows 10 # database  : mysql 9.0 sql server 2019, poostgreSQL 17.0  oracle 21c Neo4j sqlite # Datetime  : 2025/2/11 20:36 # User      : geovindu # Product   : PyCharm # Project   : Controller/pySQLiteMvcDemo # File      : SchoolController.py # explain   : 学习 import tkinter as tk from tkinter import ttk, messagebox import sqlite3 from Model.school import SchoolInfo from BLLModel.school import SchoolBll from ViewUI.SchoolView import AddSchoolWindow from ViewUI.SchoolView import EditSchoolWindow       class SchoolController(object):     """     Controller 类：负责处理用户输入和更新模型和视图     """     def __init__(self, model, view):         """         :param model:         :param view:         """         self.model = SchoolInfo()         self.view = view         self.current_page = 1         self.limit = 10         self.search_query = ""         # 绑定按钮点击事件到相应的处理方法         self.view.add_button.config(command=self.addschools)         #self.view.add_button.config(command=self.open_add_window)         self.view.update_button.config(command=self.updateschools)         self.view.delete_button.config(command=self.deleteschools)         self.view.search_button.config(command=self.searchschools)         self.view.prev_button.config(command=self.prev_page)         self.view.next_button.config(command=self.next_page)            self.view.tree.bind("<Double-1>", self.open_edit_window)         self.showschools()         self.bll = SchoolBll()        def open_add_window(self):         """         :return:         """         AddSchoolWindow(self.view.master, self)        def open_edit_window(self, event):         """         :param event:         :return:         """         selected_item = self.view.tree.selection()         if selected_item:             values = self.view.tree.item(selected_item)['values']             school_id = values[0]             school_name = values[1]             school_tel = values[2]             EditSchoolWindow(self.view.master, self, school_id, school_name, school_tel)        def add_school(self, info:SchoolInfo):         """         :param info:         :return:         """         self.bll.addSql(info)         self.show_schools()        def delete_school(self):         """         :return:         """         selected_item = self.view.tree.selection()         if selected_item:             school_id = self.view.tree.item(selected_item)['values'][0]             self.bll.delSql(school_id)             self.show_schools()         else:             messagebox.showerror("错误", "请选择要删除的学校")        def update_school(self, info):         """         :param info:         :return:         """         self.bll.editSql(info)         self.show_schools()        def search_schools(self):         """         :return:         """         self.search_query = self.view.search_entry.get()         self.current_page = 1         self.show_schools()        def show_schools(self):         """         :return:         """         total_count = self.bll.getcount(self.search_query)[0][0]         print(total_count)         if total_count >= 1:             total_pages = (total_count + self.limit - 1) // self.limit             contacts = self.bll.getschools(self.current_page, self.limit, self.search_query)             self.view.populate_treeview(contacts)             self.view.update_page_label(self.current_page, total_pages)             self.view.update_page_total(total_count)           def addschools(self):         """         :return:         """         id = self.view.id_entry.get()         name = self.view.name_entry.get()         phone = self.view.phone_entry.get()         self.model.SchoolId=id         self.model.SchoolName=name         self.model.SchoolTelNo=phone;         if name and phone:             self.bll.add(self.model)             self.view.clear_entries()             self.showschools()         else:             messagebox.showerror("错误", "校名和电话不能为空")     def deleteschools(self):         """         :return:         """         selected_item = self.view.tree.selection()         if selected_item:             id = str(self.view.tree.item(selected_item)['values'][0])             print("id",id)             self.bll.delSql(id)             self.showschools()         else:             messagebox.showerror("错误", "请选择要删除的联系人")        def updateschools(self, event):         """         :return:         """         selected_item = self.view.tree.selection()         if selected_item:             id = str(self.view.tree.item(selected_item)['values'][0])             #values = self.view.tree.item(selected_item)['values']             name = self.view.name_entry.get()             phone = self.view.phone_entry.get()             self.model.SchoolId = id             self.model.SchoolName = name             self.model.SchoolTelNo = phone             if name and phone:                 self.bll.editSql(self.model)                    self.view.clear_entries()                 self.showschools()             else:                 messagebox.showerror("错误", "校名和电话不能为空")         else:             messagebox.showerror("错误", "请选择要修改的学校")        def searchschools(self):         """         :return:         """         self.search_query = self.view.search_entry.get()         self.current_page = 1         self.showschools()     def prev_page(self):         """         :return:         """         if self.current_page > 1:             self.current_page -= 1             self.showschools()     def next_page(self):         """         :return:         """         total_count = self.bll.getcount(self.search_query)[0][0]         total_pages = (total_count + self.limit - 1) // self.limit         if self.current_page < total_pages:             self.current_page += 1             self.showschools()     def showschools(self):         """         :return:         """         bll=SchoolBll()         total_count = bll.getcount(self.search_query)[0][0]         print(total_count)         if total_count >= 1:             total_pages = (total_count + self.limit - 1) // self.limit             contacts = bll.getschools(self.current_page, self.limit, self.search_query)             self.view.populate_treeview(contacts)             self.view.update_page_label(self.current_page, total_pages)             self.view.update_page_total(total_count)

　　

调用：

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

# encoding: utf-8 # 版权所有 2025 ©涂聚文有限公司 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎 # 描述： # Author    : geovindu,Geovin Du 涂聚文.塗聚文 # IDE       : PyCharm Community Edition 2024.3 python 3.11 # OS        : windows 10 # database  : mysql 9.0 sql server 2019, postgreSQL 17.0  oracle 11g oracle 20c  Neo4j  sqlite # Datetime  : 2025/2/11 20:11 # User      : geovindu # Product   : PyCharm # Project   : pySQLiteMVCDemo # File      : main.py # explain   : 学习    import tkinter as tk from tkinter import ttk, messagebox from BLLModel.school import SchoolBll from ViewUI.SchoolView import SchoolView from Controller.SchoolController import SchoolController       if __name__ == '__main__':     """           """     root = tk.Tk()     bllmodel = SchoolBll()     view = SchoolView(master=root)     controller = SchoolController(bllmodel, view)     root.title("School Management")     root.iconbitmap('favicon.ico')     root.mainloop()

　　

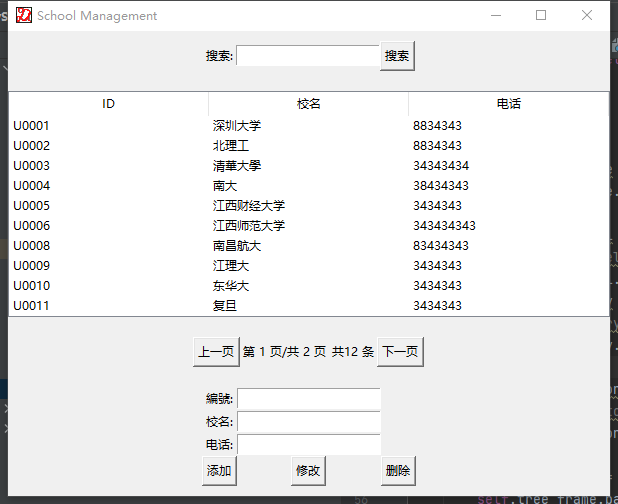

输出：
