Qt Designer and Python: Build Your GUI

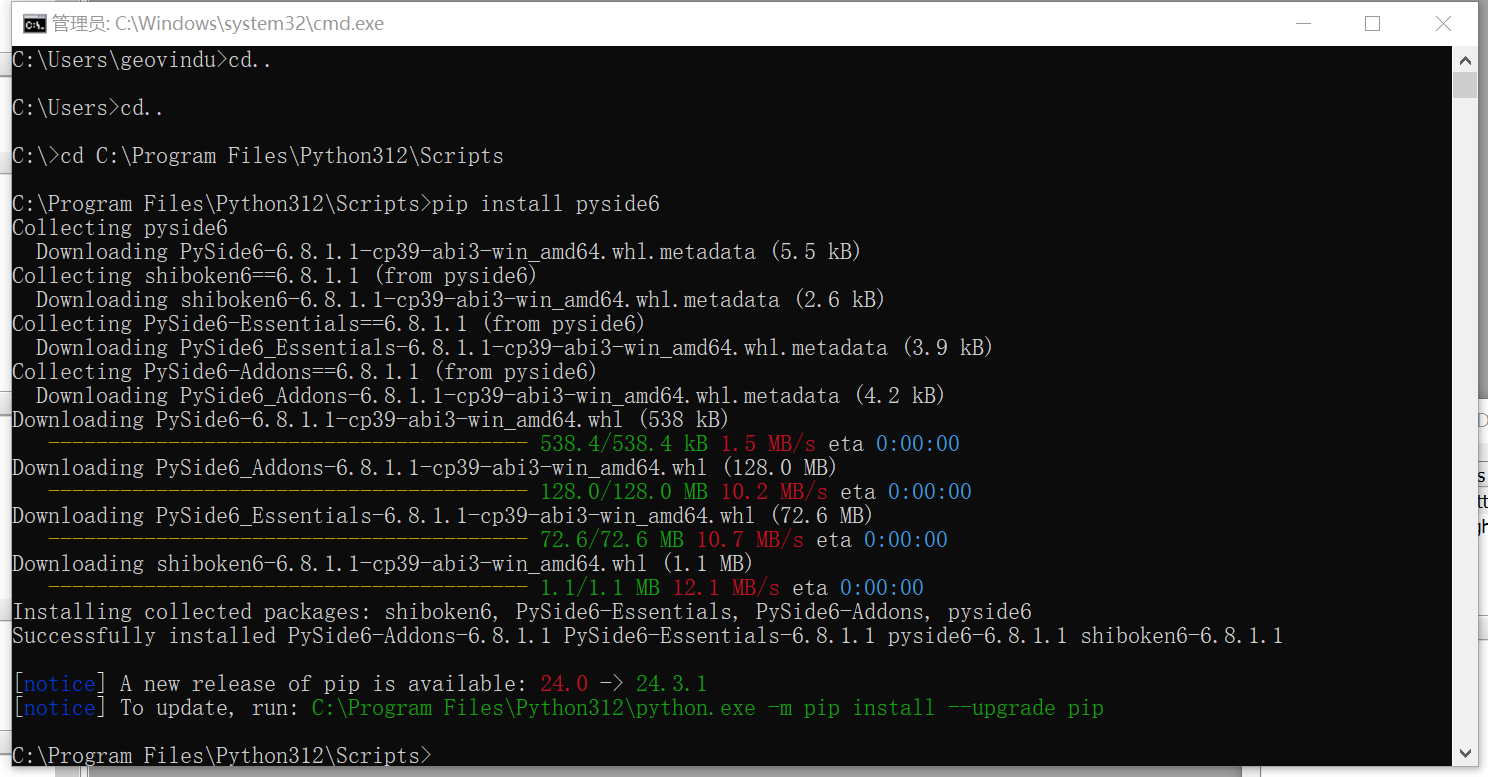

1.install pyside6

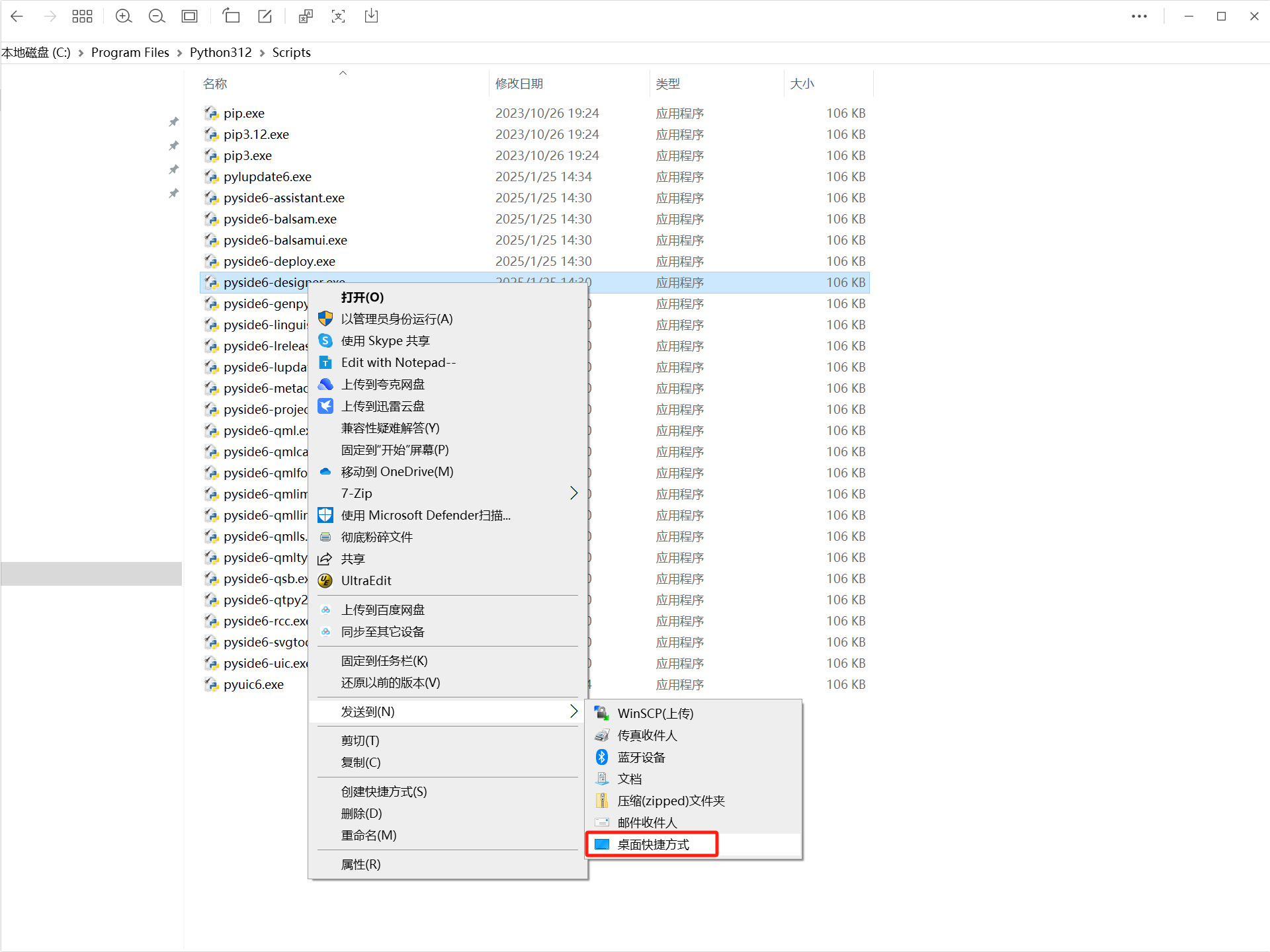

2.pyside6-designer.exe 发送到桌面快捷方式

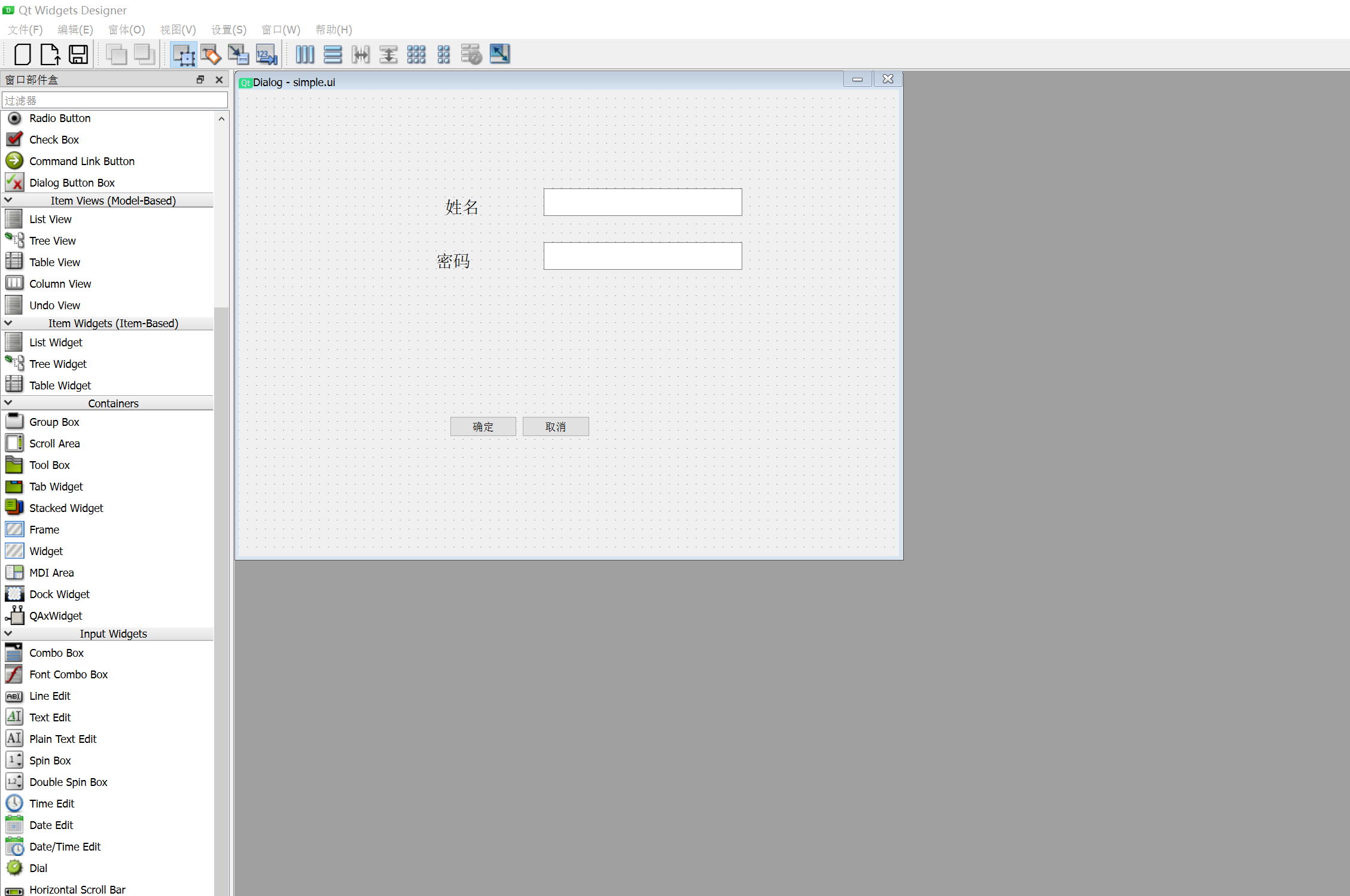

 3. 打开pyside6-designer 设计UI

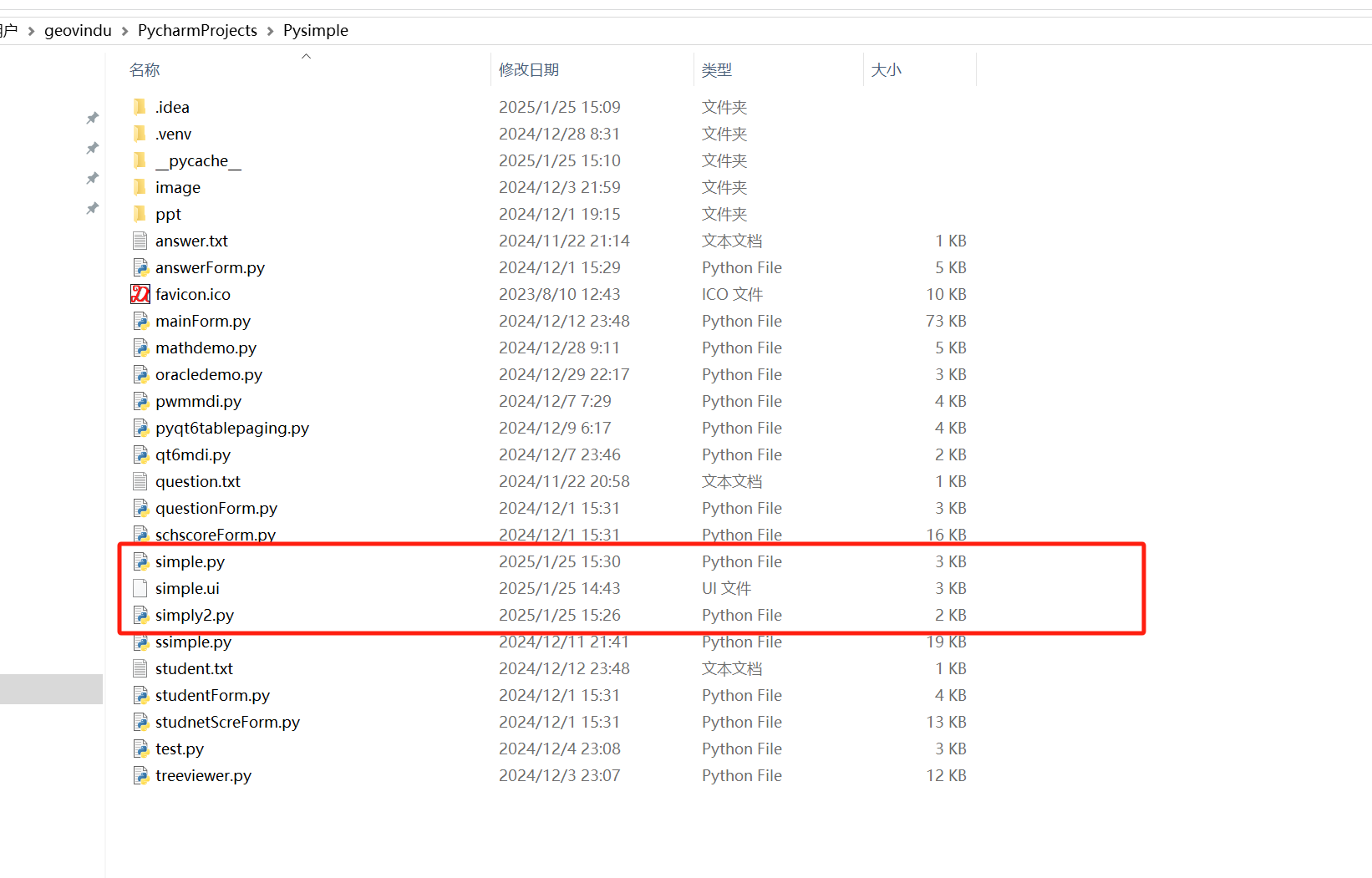

4.保存为simple.ui 文件，再转成py文件

用代码执行

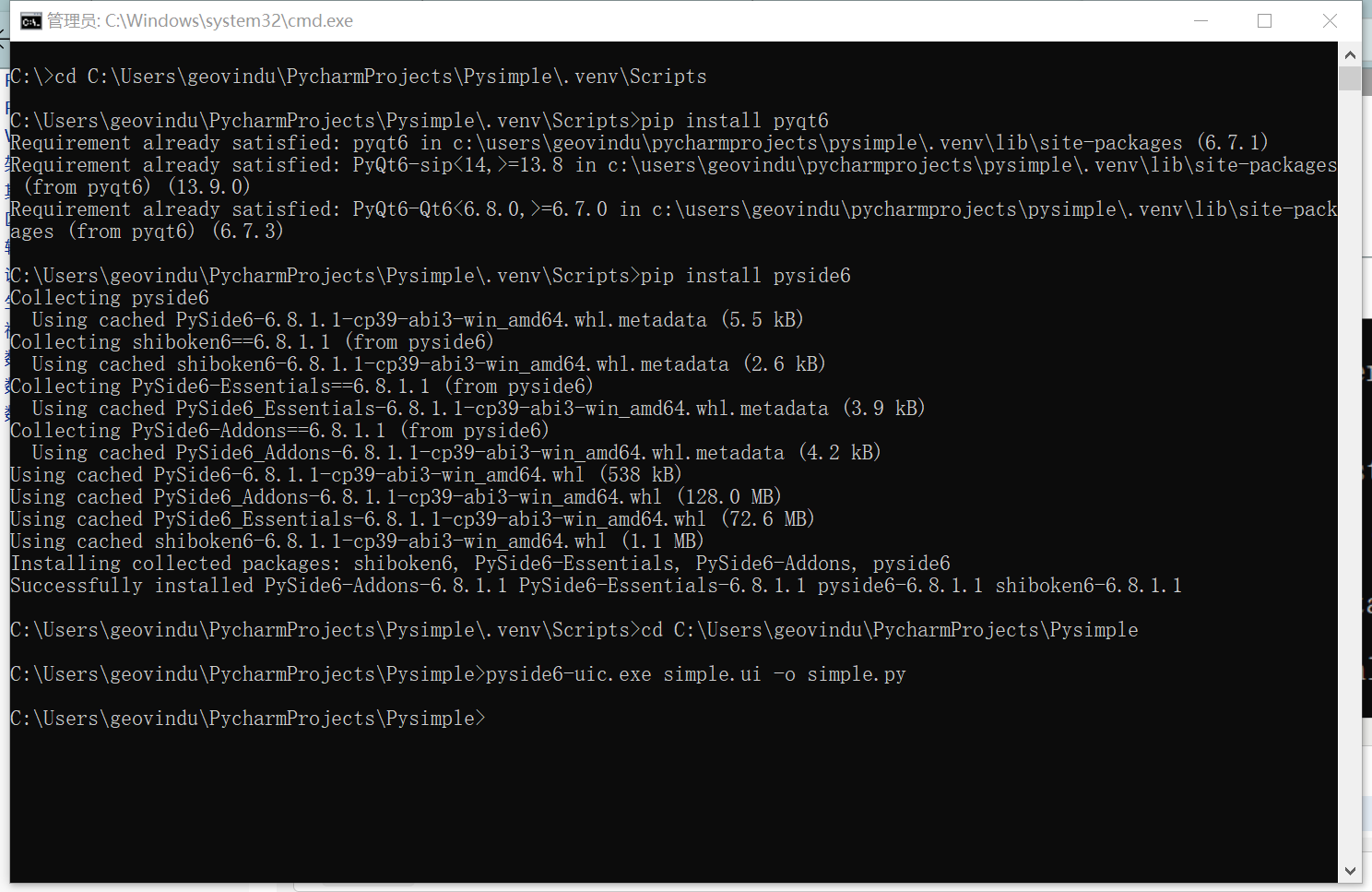

 用代码执行 pyside6-uic.exe simple.ui -o simple.py

 生成源文件simple.py：

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
# -*- coding: utf-8 -*-

################################################################################
## Form generated from reading UI file 'simple.ui'
##
## Created by: Qt User Interface Compiler version 6.8.0
##
## WARNING! All changes made in this file will be lost when recompiling UI file!
################################################################################

from PySide6.QtCore import (QCoreApplication, QDate, QDateTime, QLocale,
    QMetaObject, QObject, QPoint, QRect,
    QSize, QTime, QUrl, Qt)
from PySide6.QtGui import (QBrush, QColor, QConicalGradient, QCursor,
    QFont, QFontDatabase, QGradient, QIcon,
    QImage, QKeySequence, QLinearGradient, QPainter,
    QPalette, QPixmap, QRadialGradient, QTransform)
from PySide6.QtWidgets import (QAbstractButton, QApplication, QDialog, QDialogButtonBox,
    QLabel, QSizePolicy, QTextEdit, QWidget)

class Ui_Dialog(object):
    def setupUi(self, Dialog):
        if not Dialog.objectName():
            Dialog.setObjectName(u"Dialog")
        Dialog.resize(736, 520)
        self.buttonBox = QDialogButtonBox(Dialog)
        self.buttonBox.setObjectName(u"buttonBox")
        self.buttonBox.setGeometry(QRect(50, 360, 341, 32))
        self.buttonBox.setOrientation(Qt.Orientation.Horizontal)
        self.buttonBox.setStandardButtons(QDialogButtonBox.StandardButton.Cancel|QDialogButtonBox.StandardButton.Ok)
        self.txtName = QTextEdit(Dialog)
        self.txtName.setObjectName(u"txtName")
        self.txtName.setGeometry(QRect(340, 110, 221, 31))
        self.txtpassword = QTextEdit(Dialog)
        self.txtpassword.setObjectName(u"txtpassword")
        self.txtpassword.setGeometry(QRect(340, 170, 221, 31))
        self.label = QLabel(Dialog)
        self.label.setObjectName(u"label")
        self.label.setGeometry(QRect(230, 120, 61, 21))
        font = QFont()
        font.setPointSize(14)
        self.label.setFont(font)
        self.label.setLineWidth(3)
        self.label_2 = QLabel(Dialog)
        self.label_2.setObjectName(u"label_2")
        self.label_2.setGeometry(QRect(220, 180, 71, 21))
        self.label_2.setFont(font)

        self.retranslateUi(Dialog)
        self.buttonBox.accepted.connect(Dialog.objectName)
        self.buttonBox.rejected.connect(Dialog.objectName)

        QMetaObject.connectSlotsByName(Dialog)
    # setupUi

    def retranslateUi(self, Dialog):
        Dialog.setWindowTitle(QCoreApplication.translate("Dialog", u"Dialog", None))
        self.label.setText(QCoreApplication.translate("Dialog", u"\u59d3\u540d", None))
        self.label_2.setText(QCoreApplication.translate("Dialog", u"\u5bc6\u7801", None))
    # retranslateUi

　　加上点击事件

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
# -*- coding: utf-8 -*-

################################################################################
## Form generated from reading UI file 'simple.ui'
##
## Created by: Qt User Interface Compiler version 6.8.0
##
## WARNING! All changes made in this file will be lost when recompiling UI file!
################################################################################
from PySide6.QtCore import (QCoreApplication, QDate, QDateTime, QLocale,
    QMetaObject, QObject, QPoint, QRect,
    QSize, QTime, QUrl, Qt)
from PySide6.QtGui import (QBrush, QColor, QConicalGradient, QCursor,
    QFont, QFontDatabase, QGradient, QIcon,
    QImage, QKeySequence, QLinearGradient, QPainter,
    QPalette, QPixmap, QRadialGradient, QTransform)
from PySide6.QtWidgets import (QAbstractButton, QApplication, QDialog, QDialogButtonBox,
    QLabel, QSizePolicy, QTextEdit, QWidget,QVBoxLayout)

'''
class CustomDialog(QDialog):
    """

    """
    def __init__(self, parent=None):
        super().__init__(parent)

        self.setWindowTitle("HELLO!")

        QBtn = (
            QDialogButtonBox.StandardButton.Ok | QDialogButtonBox.StandardButton.Cancel
        )

        self.buttonBox = QDialogButtonBox(QBtn)
        self.buttonBox.accepted.connect(self.accept)
        self.buttonBox.rejected.connect(self.reject)

        layout = QVBoxLayout()
        message = QLabel("Something happened, is that OK?")
        layout.addWidget(message)
        layout.addWidget(self.buttonBox)
        self.setLayout(layout)

    def button_clicked(self, s):
        print("click", s)

        dlg = CustomDialog()
        if dlg.exec():
            print("Success!")
        else:
            print("Cancel!")

'''

class Ui_Dialog(object):
    """

    """
    def setupUi(self, Dialog):
        """

        :param Dialog:
        :return:
        """
        if not Dialog.objectName():
            Dialog.setObjectName(u"Dialog")
        Dialog.resize(736, 520)
        self.buttonBox = QDialogButtonBox(Dialog)
        self.buttonBox.setObjectName(u"buttonBox")
        self.buttonBox.setGeometry(QRect(90, 280, 341, 32))
        self.buttonBox.setOrientation(Qt.Orientation.Horizontal)
        self.buttonBox.setStandardButtons(QDialogButtonBox.StandardButton.Cancel|QDialogButtonBox.StandardButton.Ok)

        self.txtName = QTextEdit(Dialog)
        self.txtName.setObjectName(u"txtName")
        self.txtName.setGeometry(QRect(340, 110, 221, 31))
        self.txtpassword = QTextEdit(Dialog)
        self.txtpassword.setObjectName(u"txtpassword")
        self.txtpassword.setGeometry(QRect(340, 170, 221, 31))
        self.label = QLabel(Dialog)
        self.label.setObjectName(u"label")
        self.label.setGeometry(QRect(230, 120, 61, 21))
        font = QFont()
        font.setPointSize(14)
        self.label.setFont(font)
        self.label.setLineWidth(3)
        self.label_2 = QLabel(Dialog)
        self.label_2.setObjectName(u"label_2")
        self.label_2.setGeometry(QRect(230, 180, 71, 21))
        self.label_2.setFont(font)

        self.retranslateUi(Dialog)
        self.buttonBox.accepted.connect(Dialog.objectName)
        self.buttonBox.rejected.connect(Dialog.objectName)
        self.buttonBox.clicked.connect(self.buttonClicked)
        '''
        layout = QVBoxLayout()
        message = QLabel("Something happened, is that OK?")
        layout.addWidget(message)
        layout.addWidget(self.buttonBox)
        self.setLayout(layout)

        layout = QVBoxLayout()
        #message = QLabel("Something happened, is that OK?")
        #layout.addWidget(message)
        layout.addWidget(self.buttonBox)
        Dialog.setLayout(layout)
        '''

        QMetaObject.connectSlotsByName(Dialog)
     # setupUi


    def buttonClicked(self,button):

          role = self.buttonBox.standardButton(button)
          if role == QDialogButtonBox.StandardButton.Ok:


              print("Save clicked")
          elif role == QDialogButtonBox.StandardButton.Cancel:

              print("Cancel clicked")

    def retranslateUi(self, Dialog):
        Dialog.setWindowTitle(QCoreApplication.translate("Dialog", u"Dialog\u6d4b\u8bd5", None))
#if QT_CONFIG(tooltip)
        self.buttonBox.setToolTip(QCoreApplication.translate("Dialog", u"\u6309\u786e\u5b9a", None))
#endif // QT_CONFIG(tooltip)
        self.label.setText(QCoreApplication.translate("Dialog", u"\u59d3\u540d", None))
        self.label_2.setText(QCoreApplication.translate("Dialog", u"\u5bc6\u7801", None))
    # retranslateUi

　　



python.exe -m pip install --upgrade pip
pip install pyside6
pip install pyside6 -i https://pypi.tuna.tsinghua.edu.cn/simple
pip install pyqt6

引用：



?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
# -*- coding: utf-8 -*-
# 版权所有 2024 涂聚文有限公司
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：pip install pyqt6  python.exe -m pip install --upgrade pip  pip install pyside6
# pip install pyside6 -i https://pypi.tuna.tsinghua.edu.cn/simple
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : PyCharm 2023.1 python 3.11
# os        : windows 10
# database  : mysql 9.0 sql server 2019, poostgreSQL 17.0
# Datetime  : 2024/12/7 23:37
# User      : geovindu
# Product   : PyCharm
# Project   : Pysimple
# File      : simply2.py
# explain   : 学习

import sys
from PySide6.QtWidgets import QApplication,QWidget
from simple import Ui_Dialog

class Windows(Ui_Dialog,QWidget):
    """
    多重继承
    继承UI 设计的文件
    """
    def __init__(self):
        """

        """
        super().__init__()
        self.setupUi(self)

if __name__ == '__main__':
    app=QApplication(sys.argv)
    win=Windows()
    win.show()
    m=app.exec()
    sys.exit(m)

　　

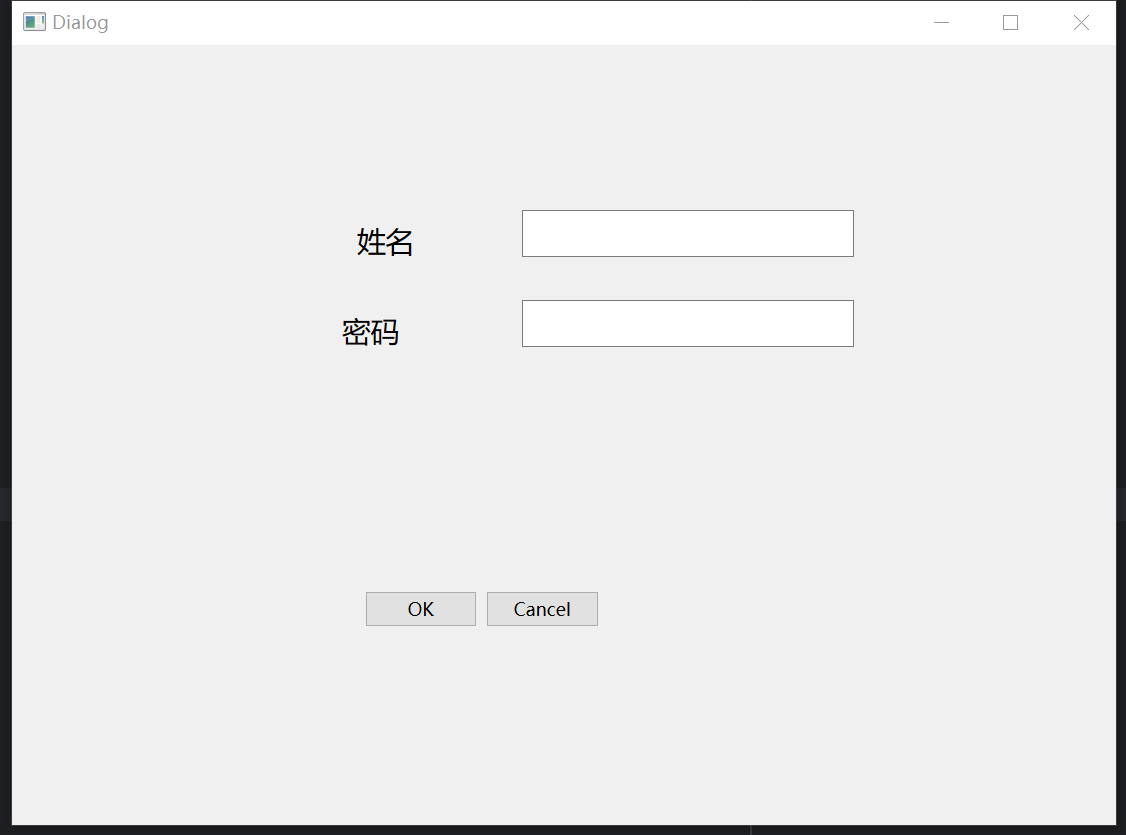

运行：
