SVG Line Between Divs (multi-point)



?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>SVG Line Between Divs (multi-point)</title>
<style>
html, body {
  margin: 0;
  padding: 0;
}

#svg {
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100vh;
}

#line {
  stroke-width: 2px;
  stroke: black;
}

.point {
  width: 15px;
  height: 15px;
  background: #d54501;
  position: absolute;
  z-index: 10;
}

.dupoint {
  width: 15px;
  height: 15px;
  background:#ffffff;
  position: absolute;
  z-index: 10;
}

body {
  font-family: "Niramit", sans-serif;
  background-color: #b2ada3;
}

p {
  margin-left: 20px;
  margin-right: 20px;
  position: relative;
  z-index: 11;
  background: rgba(178, 173, 163, 0.55);
}

#one {
  top: 80px;
  left: 50px;
}

#two {
  top: 290px;
  right: 50px;
}

#three {
  top: 390px;
  right: 150px;
}

#four {
  top: 590px;
  left: 20px;
}

.btn {
  display: inline-block;
  background: #4e7c80;
  color: white;
  padding: 10px 15px;
  margin-left: 5px;
  cursor: pointer;
  position: relative;
  z-index: 11;
  line-height: 1em;
}
.btn:hover {
  background: #3b5d60;
}
</style>
</head>

<body>
     <!-- each object needs a unique ID although this could be removed for the className check -->

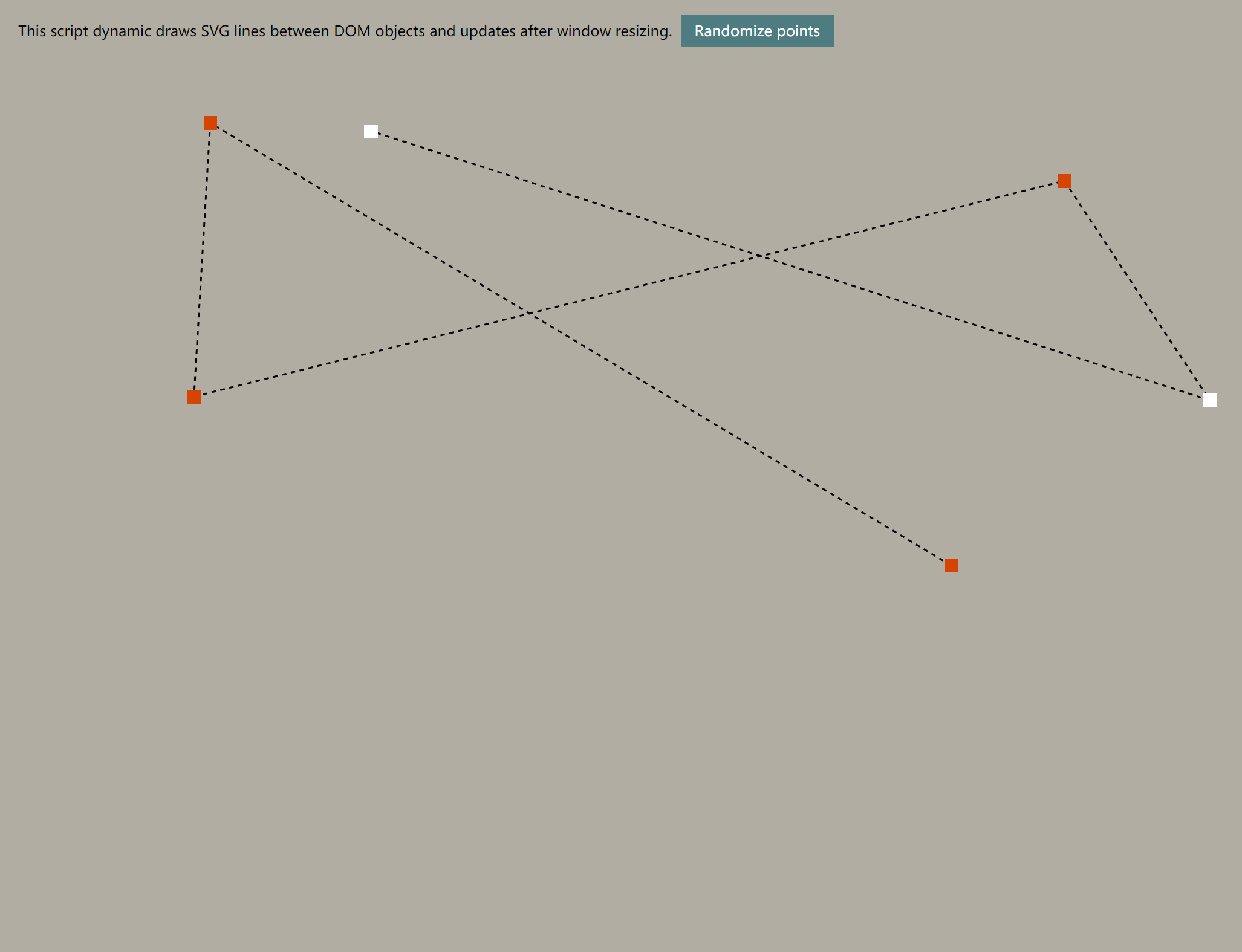

<p>This script dynamic draws SVG lines between DOM objects and updates after window resizing. <span class="btn">Randomize points</span></p>
<div id="one" class="point"></div>
<div id="two" class="point"></div>
<div id="three" class="point"></div>
<div id="four" class="point"></div>
<div id="five" class="point dupoint"></div>
<div id="six" class="point dupoint"></div>
<svg id="svg">
  <line id="line" class="line original" stroke-dasharray="5, 5"/>
    </svg>

    <script src='https://cdnjs.cloudflare.com/ajax/libs/jquery/3.3.1/jquery.min.js'></script>
      <script id="rendered-js" >
const config = {
  target: $(".point"),
  line: $(".line"),
  delay: 40 // enter zero for live resizing
};
const drawBetweenObjects = {
  //cmake the line
  makeLine: function (line, div1, div2) {
    var className = div1.attr('id') + div2.attr('id');
    if (className.includes("undefined") !== true) {//error check
      $(line).clone().addClass('deleteMe').addClass(className).removeClass("original").insertAfter(line);
      //calculations (for legibility, these are separte vars)
      var x1 = div1.offset().left + div1.width() / 2;
      var y1 = div1.offset().top + div1.height() / 2;
      var x2 = div2.offset().left + div2.width() / 2;
      var y2 = div2.offset().top + div2.height() / 2;
      $("." + className).attr('x1', x1).attr('y1', y1).attr('x2', x2).attr('y2', y2); //svg attributes
    } else {console.error("undefined object");}
  },
  findLines: function (search) {
    $(".deleteMe").remove(); //remove last set of lines
    $(search).each(function (index, el) {
      if (search.eq(index + 1).length) {//only do drawBetweenObject if there is another.
        drawBetweenObjects.makeLine(config.line, $(this), search.eq(index + 1)); //args order - line, div1 and div2 - the next div.
      }
    });
  },
  init: function () {
    drawBetweenObjects.findLines(config.target);
    //give resizing time to happen
    var resizeId;
    $(window).resize(function () {
      clearTimeout(resizeId);
      if (config.delay !== 0) {
        resizeId = setTimeout(doneResizing, config.delay);
      } else {
        drawBetweenObjects.findLines(config.target);
      }
    });
    function doneResizing() {
      drawBetweenObjects.findLines(config.target);
    }
  } };


drawBetweenObjects.init();

// umimportant ugly scripting
// this just randomizes the points
// It's pretty ugly.
$(".btn").click(function () {
  var heightMax = $(document).height(),
  widthMax = $(document).width();
  function widthCalc() {
    return Math.floor(Math.random() * widthMax);
  }
  function heightCalc() {
    return Math.floor(Math.random() * heightMax);
  }
  $("#one").css({ left: widthCalc(), top: heightCalc() });
  $("#four").css({ left: widthCalc(), top: heightCalc() });
  $("#three").css({ right: widthCalc(), top: heightCalc() });
  $("#two").css({ right: widthCalc(), top: heightCalc() });
  $("#five").css({ right: widthCalc(), top: heightCalc() });
  $("#six").css({ right: widthCalc(), top: heightCalc() });
  drawBetweenObjects.findLines(config.target);
});
//# sourceURL=pen.js from https://blog.greggant.com/posts/2018/10/16/drawing-svg-lines-between-multiple-dom-objects.html
    </script>



</body>
</html>

　　
