Tinyhttpd

Server

stdin --> exec color.cgi --> stdout

/* J. David's webserver */
/* This is a simple webserver.
 * Created November 1999 by J. David Blackstone.
 * CSE 4344 (Network concepts), Prof. Zeigler
 * University of Texas at Arlington
 */
/* This program compiles for Sparc Solaris 2.6.
 * To compile for Linux:
 *  1) Comment out the #include <pthread.h> line.
 *  2) Comment out the line that defines the variable newthread.
 *  3) Comment out the two lines that run pthread_create().
 *  4) Uncomment the line that runs accept_request().
 *  5) Remove -lsocket from the Makefile.
 */
#include <stdio.h>
#include <sys/socket.h>
#include <sys/types.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <unistd.h>
#include <ctype.h>
#include <strings.h>
#include <string.h>
#include <sys/stat.h>
#include <pthread.h>
#include <sys/wait.h>
#include <stdlib.h>
#include <stdint.h>

#define ISspace(x) isspace((int)(x))

#define SERVER_STRING "Server: jdbhttpd/0.1.0\r\n"
#define STDIN   0
#define STDOUT  1
#define STDERR  2

void accept_request(void *);
void bad_request(int);
void cat(int, FILE *);
void cannot_execute(int);
void error_die(const char *);
void execute_cgi(int, const char *, const char *, const char *);
int get_line(int, char *, int);
void headers(int, const char *);
void not_found(int);
void serve_file(int, const char *);
int startup(u_short *);
void unimplemented(int);

/**********************************************************************/
/* A request has caused a call to accept() on the server port to
 * return.  Process the request appropriately.
 * Parameters: the socket connected to the client */
/**********************************************************************/
void accept_request(void *arg)
{
    int client = (intptr_t)arg;
    char buf[1024];
    size_t numchars;
    char method[255];
    char url[255];
    char path[512];
    size_t i, j;
    struct stat st;
    int cgi = 0;      /* becomes true if server decides this is a CGI
                       * program */
    char *query_string = NULL;

    numchars = get_line(client, buf, sizeof(buf));
    printf("len(%d) : %s", numchars, buf);
    i = 0; j = 0;
    while (!ISspace(buf[i]) && (i < sizeof(method) - 1))
    {
        method[i] = buf[i];
        i++;
    }
    j=i;
    method[i] = '\0';

    if (strcasecmp(method, "GET") && strcasecmp(method, "POST"))
    {
        unimplemented(client);
        return;
    }

    if (strcasecmp(method, "POST") == 0)
        cgi = 1;

    i = 0;
    while (ISspace(buf[j]) && (j < numchars))
        j++;
    while (!ISspace(buf[j]) && (i < sizeof(url) - 1) && (j < numchars))
    {
        url[i] = buf[j];
        i++; j++;
    }
    url[i] = '\0';


    printf("url : %s\n",url);
    if (strcasecmp(method, "GET") == 0)
    {
        query_string = url;
        while ((*query_string != '?') && (*query_string != '\0'))
            query_string++;
        if (*query_string == '?')
        {
            cgi = 1;
            *query_string = '\0';
            query_string++;
        }
    }

    sprintf(path, "htdocs%s", url);
    printf("doc:%s\n", path);
    if (path[strlen(path) - 1] == '/')
        strcat(path, "index.html");
    if (stat(path, &st) == -1) {
        while ((numchars > 0) && strcmp("\n", buf))  /* read & discard headers */
            numchars = get_line(client, buf, sizeof(buf));
        not_found(client);
    }
    else
    {
        if ((st.st_mode & S_IFMT) == S_IFDIR)
            strcat(path, "/index.html");
        if ((st.st_mode & S_IXUSR) ||
                (st.st_mode & S_IXGRP) ||
                (st.st_mode & S_IXOTH)    )
            cgi = 1;
        if (!cgi)
            serve_file(client, path);
        else
            execute_cgi(client, path, method, query_string);
    }

    close(client);
}

/**********************************************************************/
/* Inform the client that a request it has made has a problem.
 * Parameters: client socket */
/**********************************************************************/
void bad_request(int client)
{
    char buf[1024];

    sprintf(buf, "HTTP/1.0 400 BAD REQUEST\r\n");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "Content-type: text/html\r\n");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "<P>Your browser sent a bad request, ");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "such as a POST without a Content-Length.\r\n");
    send(client, buf, sizeof(buf), 0);
}

/**********************************************************************/
/* Put the entire contents of a file out on a socket.  This function
 * is named after the UNIX "cat" command, because it might have been
 * easier just to do something like pipe, fork, and exec("cat").
 * Parameters: the client socket descriptor
 *             FILE pointer for the file to cat */
/**********************************************************************/
void cat(int client, FILE *resource)
{
    char buf[1024];

    fgets(buf, sizeof(buf), resource);
    while (!feof(resource))
    {
        send(client, buf, strlen(buf), 0);
        fgets(buf, sizeof(buf), resource);
    }
}

/**********************************************************************/
/* Inform the client that a CGI script could not be executed.
 * Parameter: the client socket descriptor. */
/**********************************************************************/
void cannot_execute(int client)
{
    char buf[1024];

    sprintf(buf, "HTTP/1.0 500 Internal Server Error\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<P>Error prohibited CGI execution.\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/
/* Print out an error message with perror() (for system errors; based
 * on value of errno, which indicates system call errors) and exit the
 * program indicating an error. */
/**********************************************************************/
void error_die(const char *sc)
{
    perror(sc);
    exit(1);
}

/**********************************************************************/
/* Execute a CGI script.  Will need to set environment variables as
 * appropriate.
 * Parameters: client socket descriptor
 *             path to the CGI script */
/**********************************************************************/
void execute_cgi(int client, const char *path,
        const char *method, const char *query_string)
{
    char buf[1024];

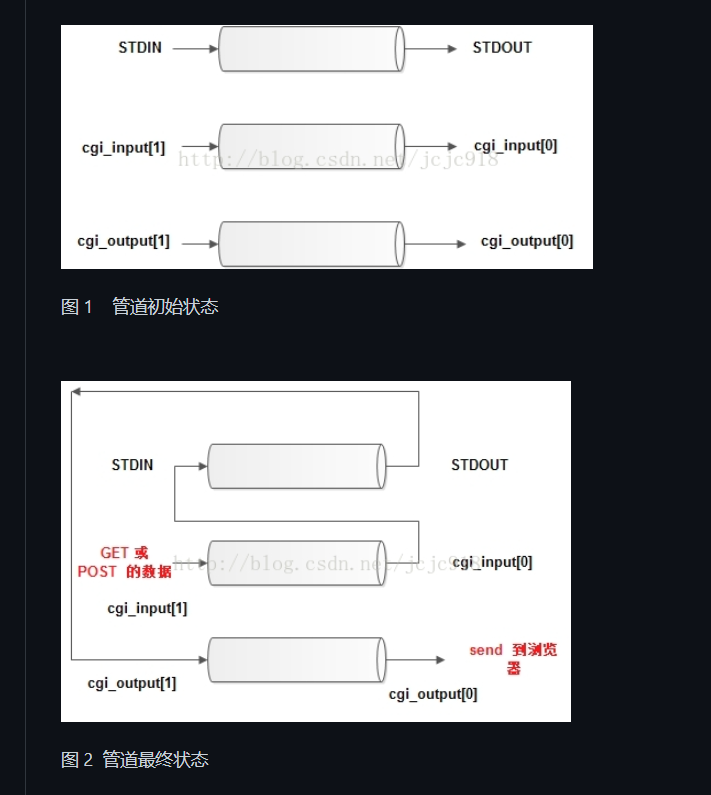

    int cgi_output[2];
    int cgi_input[2];
    pid_t pid;
    int status;
    int i;
    char c;
    int numchars = 1;
    int content_length = -1;


    printf("query: %s\n", query_string);
    buf[0] = 'A'; buf[1] = '\0';
    if (strcasecmp(method, "GET") == 0)
        while ((numchars > 0) && strcmp("\n", buf))  /* read & discard headers */
            numchars = get_line(client, buf, sizeof(buf));
    else if (strcasecmp(method, "POST") == 0) /*POST*/
    {
        numchars = get_line(client, buf, sizeof(buf));
        while ((numchars > 0) && strcmp("\n", buf))
        {
            buf[15] = '\0';
            if (strcasecmp(buf, "Content-Length:") == 0)
                content_length = atoi(&(buf[16]));
            numchars = get_line(client, buf, sizeof(buf));
        }
        if (content_length == -1) {
            bad_request(client);
            return;
        }
    }
    else/*HEAD or other*/
    {
    }


    if (pipe(cgi_output) < 0) {
        cannot_execute(client);
        return;
    }
    if (pipe(cgi_input) < 0) {
        cannot_execute(client);
        return;
    }

    if ( (pid = fork()) < 0 ) {
        cannot_execute(client);
        return;
    }
    sprintf(buf, "HTTP/1.0 200 OK\r\n");
    send(client, buf, strlen(buf), 0);
    if (pid == 0)  /* child: CGI script */
    {
        char meth_env[255];
        char query_env[255];
        char length_env[255];

        dup2(cgi_output[1], STDOUT);
        dup2(cgi_input[0], STDIN);
        close(cgi_output[0]);
        close(cgi_input[1]);
        sprintf(meth_env, "REQUEST_METHOD=%s", method);
        printf("env:%s\n",meth_env);
        putenv(meth_env);
        if (strcasecmp(method, "GET") == 0) {
            sprintf(query_env, "QUERY_STRING=%s", query_string);
            putenv(query_env);
        }
        else {   /* POST */
            sprintf(length_env, "CONTENT_LENGTH=%d", content_length);
            putenv(length_env);
        }
        execl(path, NULL);
        exit(0);
    } else {    /* parent */
        close(cgi_output[1]);
        close(cgi_input[0]);
        if (strcasecmp(method, "POST") == 0)
            for (i = 0; i < content_length; i++) {
                recv(client, &c, 1, 0);
                write(cgi_input[1], &c, 1);
            }
        while (read(cgi_output[0], &c, 1) > 0)
            send(client, &c, 1, 0);

        close(cgi_output[0]);
        close(cgi_input[1]);
        waitpid(pid, &status, 0);
    }
}

/**********************************************************************/
/* Get a line from a socket, whether the line ends in a newline,
 * carriage return, or a CRLF combination.  Terminates the string read
 * with a null character.  If no newline indicator is found before the
 * end of the buffer, the string is terminated with a null.  If any of
 * the above three line terminators is read, the last character of the
 * string will be a linefeed and the string will be terminated with a
 * null character.
 * Parameters: the socket descriptor
 *             the buffer to save the data in
 *             the size of the buffer
 * Returns: the number of bytes stored (excluding null) */
/**********************************************************************/
int get_line(int sock, char *buf, int size)
{
    int i = 0;
    char c = '\0';
    int n;

    /*
    sockfd是你想用来传输数据的socket描述符；
    msg是一个指向要发送数据的指针；
    Len是以字节为单位的数据的长度；f
    lags一般情况下置为0（关于该参数的用法可参照man手册）。
    Send()函数返回实际上发送出的字节数，可能会少于你希望发送的数据。
    在程序中应该将send()的返回值与欲发送的字节数进行比较。当send()返回值与len不匹配时，应该对这种情况进行处理。
    */
    while ((i < size - 1) && (c != '\n'))
    {
        /*
        sockfd是接受数据的socket描述符；
        buf 是存放接收数据的缓冲区；
        len是缓冲的长度。
        Flags也被置为0。
        Recv()返回实际上接收的字节数，当出现错误时，返回-1并置相应的errno值。
        sendto()和recvfrom()用于在无连接的数据报socket方式下进行数据传输。
        由于本地socket并没有与远端机器建立连接，所以在发送数据时应指明目的地址。
        */
        n = recv(sock, &c, 1, 0);
        /* DEBUG printf("%02X\n", c); */
        if (n > 0)
        {
            if (c == '\r')
            {
                n = recv(sock, &c, 1, MSG_PEEK);
                /* DEBUG printf("%02X\n", c); */
                if ((n > 0) && (c == '\n'))
                    recv(sock, &c, 1, 0);
                else
                    c = '\n';
            }
            buf[i] = c;
            i++;
        }
        else
            c = '\n';
    }
    buf[i] = '\0';

    return(i);
}

/**********************************************************************/
/* Return the informational HTTP headers about a file. */
/* Parameters: the socket to print the headers on
 *             the name of the file */
/**********************************************************************/
void headers(int client, const char *filename)
{
    char buf[1024];
    (void)filename;  /* could use filename to determine file type */

    strcpy(buf, "HTTP/1.0 200 OK\r\n");
    send(client, buf, strlen(buf), 0);
    strcpy(buf, SERVER_STRING);
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-Type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    strcpy(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/
/* Give a client a 404 not found status message. */
/**********************************************************************/
void not_found(int client)
{
    char buf[1024];

    sprintf(buf, "HTTP/1.0 404 NOT FOUND\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, SERVER_STRING);
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-Type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<HTML><TITLE>Not Found</TITLE>\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<BODY><P>The server could not fulfill\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "your request because the resource specified\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "is unavailable or nonexistent.\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "</BODY></HTML>\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/
/* Send a regular file to the client.  Use headers, and report
 * errors to client if they occur.
 * Parameters: a pointer to a file structure produced from the socket
 *              file descriptor
 *             the name of the file to serve */
/**********************************************************************/
void serve_file(int client, const char *filename)
{
    FILE *resource = NULL;
    int numchars = 1;
    char buf[1024];

    buf[0] = 'A'; buf[1] = '\0';
    while ((numchars > 0) && strcmp("\n", buf))  /* read & discard headers */
        numchars = get_line(client, buf, sizeof(buf));

    resource = fopen(filename, "r");
    if (resource == NULL)
        not_found(client);
    else
    {
        headers(client, filename);
        cat(client, resource);
    }
    fclose(resource);
}

/**********************************************************************/
/* This function starts the process of listening for web connections
 * on a specified port.  If the port is 0, then dynamically allocate a
 * port and modify the original port variable to reflect the actual
 * port.
 * Parameters: pointer to variable containing the port to connect on
 * Returns: the socket */
/**********************************************************************/
int startup(u_short *port)
{
    int httpd = 0;
    int on = 1;
    struct sockaddr_in name;

    // 建立Socket，程序可以调用Socket函数，该函数返回一个类似于文件描述符的句柄。
    httpd = socket(PF_INET, SOCK_STREAM, 0);            // PF_INET: IP        SOCK_STREAM: TCP
    if (httpd == -1)
        error_die("socket");
    memset(&name, 0, sizeof(name));

    // 通过将my_addr.sin_port置为0，函数会自动为你选择一个未占用的端口来使用，也可以自己来指定端口号。
    // 同样，通过将my_addr.sin_addr.s_addr置为INADDR_ANY，
    // 系统会自动填入本机IP地址(注意在使用bind函数是需要将sin_port和sin_addr转换成为网络字节优先顺序；
    // 而sin_addr则不需要转换，如果sin_add是自己指定的IP地址就需要我们自己来转换为网络字节序)
    name.sin_family = AF_INET;
    name.sin_port = htons(*port);
    name.sin_addr.s_addr = htonl(INADDR_ANY);

    // SO_REUSEADDR，打开或关闭地址复用功能。
    // 当option_value不等于0时，打开，否则，关闭。它实际所做的工作是置sock->sk->sk_reuse为1或0。
    if ((setsockopt(httpd, SOL_SOCKET, SO_REUSEADDR, &on, sizeof(on))) < 0)  {
        error_die("setsockopt failed");
    }

    // Bind函数将socket与本机上的一个端口相关联
    if (bind(httpd, (struct sockaddr *)&name, sizeof(name)) < 0)
        error_die("bind");


    if (*port == 0)  /* if dynamically allocating a port */
    {
        socklen_t namelen = sizeof(name);
        if (getsockname(httpd, (struct sockaddr *)&name, &namelen) == -1)
            error_die("getsockname");
        *port = ntohs(name.sin_port);              // return th soeckt's port to parameter *port
    }

    // listen函数使socket处于被动的监听模式，并为该socket建立一个输入数据队列，将到达的服务请求保存在此队列中，直到程序处理它们
    // backlog指定在请求队列中允许的最大请求数(5)
    // 进入的连接请求将在队列中等待accept()它们。Backlog对队列中等待 服务的请求的数目进行了限制，大多数系统缺省值为20。
    if (listen(httpd, 5) < 0)
        error_die("listen");
    return(httpd);
}

/**********************************************************************/
/* Inform the client that the requested web method has not been
 * implemented.
 * Parameter: the client socket */
/**********************************************************************/
void unimplemented(int client)
{
    char buf[1024];

    sprintf(buf, "HTTP/1.0 501 Method Not Implemented\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, SERVER_STRING);
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-Type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<HTML><HEAD><TITLE>Method Not Implemented\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "</TITLE></HEAD>\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<BODY><P>HTTP request method not supported.\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "</BODY></HTML>\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/

int main(void)
{
    int server_sock = -1;
    u_short port = 4000;
    int client_sock = -1;
    struct sockaddr_in client_name;
    socklen_t  client_name_len = sizeof(client_name);
    pthread_t newthread;

    server_sock = startup(&port);
    printf("httpd running on port %d\n", port);

    while (1)
    {

        // accept()函数让服务器接收客户的连接请求。在建立好输入队列后，服务器就调用accept函数，然后睡眠并等待客户的连接请求
        // 出现错误时accept函数返回-1并置相应的errno值
        client_sock = accept(server_sock,
                (struct sockaddr *)&client_name,
                &client_name_len);
        if (client_sock == -1)
            error_die("accept");
        /* accept_request(&client_sock); */
        if (pthread_create(&newthread , NULL, (void *)accept_request, (void *)(intptr_t)client_sock) != 0)
            perror("pthread_create");
    }

    close(server_sock);

    return(0);
}

client

#include <stdio.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <unistd.h>

int main(int argc, char *argv[])
{
    int sockfd;
    int len;
    struct sockaddr_in address;
    int result;
    char ch = 'A';

    sockfd = socket(AF_INET, SOCK_STREAM, 0);
    address.sin_family = AF_INET;
    address.sin_addr.s_addr = inet_addr("127.0.0.1");
    address.sin_port = htons(4000);
    len = sizeof(address);

    // 面向连接的客户程序使用Connect函数来配置socket并与远端服务器建立一个TCP连接
    result = connect(sockfd, (struct sockaddr *)&address, len);

    if (result == -1)
    {
        perror("oops: client1");
        exit(1);
    }
    write(sockfd, &ch, 1);
    read(sockfd, &ch, 1);
    printf("char from server = %c\n", ch);
    close(sockfd);
    exit(0);
}
