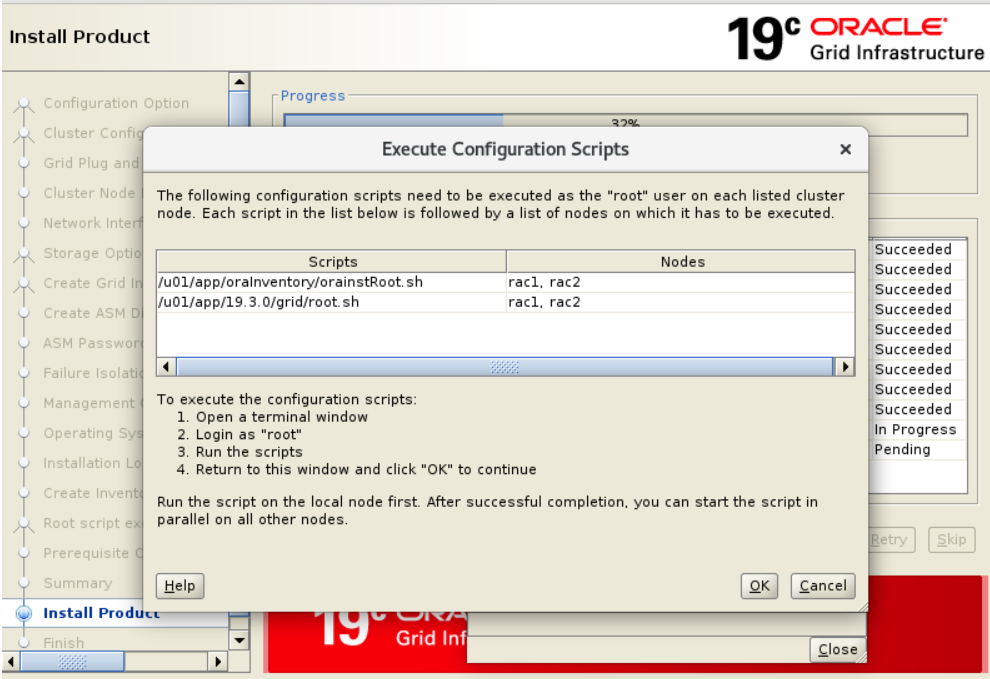

安装过程:oracle RAC 19c,节点2的root.sh执行失败,节点2集群启动失败,报错:CRS-1705/CRS-2883/CRS-4406/PRVG-2032/PRVH-0116

环境介绍:

个人笔记本电脑，VMware Workstation Pro 工具软件在两节点添加SCSI共享磁盘,Linux OS 7.6 x64 ,安装Oracle RAC 19.3c

具体日志报错信息如下:

2023/02/16 20:09:12 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.mdnsd' on 'rac2'
CRS-2672: Attempting to start 'ora.evmd' on 'rac2'
CRS-2676: Start of 'ora.evmd' on 'rac2' succeeded
CRS-2676: Start of 'ora.mdnsd' on 'rac2' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'rac2'
CRS-2676: Start of 'ora.gpnpd' on 'rac2' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'rac2'
CRS-2676: Start of 'ora.gipcd' on 'rac2' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'rac2'
CRS-2676: Start of 'ora.cssdmonitor' on 'rac2' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'rac2'
CRS-2672: Attempting to start 'ora.cssd' on 'rac2'
CRS-2672: Attempting to start 'ora.diskmon' on 'rac2'
CRS-2676: Start of 'ora.diskmon' on 'rac2' succeeded
CRS-2676: Start of 'ora.crf' on 'rac2' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'rac2'
CRS-2676: Start of 'ora.cssdmonitor' on 'rac2' succeeded
CRS-1705: Found 0 configured voting files but 1 voting files are required, terminating to ensure data integrity; details at (:CSSNM00065:) in /u01/app/grid/diag/crs/rac2/crs/trace/ocssd.trc
CRS-2883: Resource 'ora.cssd' failed during Clusterware stack start.
CRS-4406: Oracle High Availability Services synchronous start failed.
CRS-41053: checking Oracle Grid Infrastructure for file permission issues
PRVG-2032 : Group of file "/etc/oracleafd.conf" did not match the expected value on node "rac2". [Expected = "oinstall(54321)" ; Found = "asmadmin(54329)"]'
PRVH-0116 : Path "/u01/app/19.3.0/grid/crs/install/cmdllroot.sh" with permissions "rw-r--r--" does not have execute permissions for the owner, file's group, and others on node "rac2".
PRVG-2031 : Owner of file "/u01/app/19.3.0/grid/crs/install/cmdllroot.sh" did not match the expected value on node "rac2". [Expected = "grid(54322)" ; Found = "root(0)"]
PRVG-2032 : Group of file "/u01/app/19.3.0/grid/crs/install/cmdllroot.sh" did not match the expected value on node "rac2". [Expected = "oinstall(54321)" ; Found = "root(0)"]
CRS-4000: Command Start failed, or completed with errors.
2023/02/16 20:19:38 CLSRSC-117: Failed to start Oracle Clusterware stack
Died at /u01/app/19.3.0/grid/crs/install/crsinstall.pm line 1970.
Error 4 opening dom ASM/Self in 0x94440b0
Domain name to open is ASM/Self
Error 4 opening dom ASM/Self in 0x94440b0
[root@rac2 ~]#
